USER MANUAL B-10 KLIPSCH

Technical drawing of a square component with concentric circles and mounting holes, shown in two orthogonal views (top: top; bottom: top).

B-10

Owner's Manual

IMPORTANT SAFETY INSTRUCTIONS!

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. ONLY USE attachments/accessories specified by the manufacturer.
10. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
11. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources – such as candles – should be placed on the product.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

ROOM PLACEMENT

Before You Start — Your Klipsch B-10 speakers have rubber feet that can be installed prior to use. Refer to Figure 1. They also have keyhole mounts on the rear that allow you to wall-mount them. Refer to Figure 2.

Left and Right Main Channel Speakers — For optimum performance, Klipsch suggests placing your speakers six to 15 feet (2 to 4.5m) apart and at least 24 inches (60.8cm) from the back and side walls. Their height should be at ear height of a seated listener. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figure 3.

CONNECTING

Conventional Connection — Using 16-gauge or larger speaker wire, connect the RED “positive” (+) terminal of the LEFT speaker to the RED “positive” (+) terminal of your amplifier’s LEFT channel. Connect the BLACK “negative” (−) terminal of the LEFT speaker to the BLACK “negative” (−) terminal of your amplifier’s LEFT channel. Repeat this procedure for connecting the remaining speaker to the appropriate amplifier channel. Refer to Figure 4. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Amplifier Requirements — Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

EU COMPLIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union EMC Directive 2004/108/EC.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Klipsch will keep you up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

Figure 1 Bookshelf Speakers

Line drawing of a rectangular electronic device with a speaker grille and labeled rubber feet (no text or symbols on the device itself)

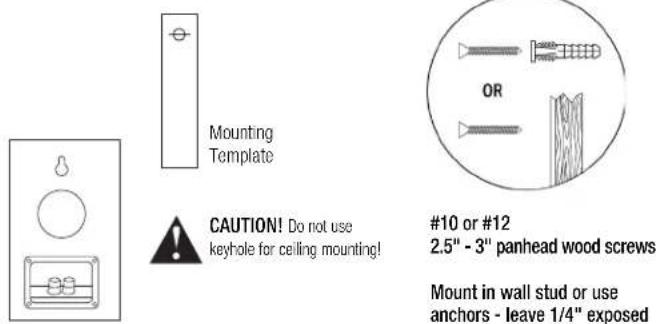

Figure 2 Wall Mounting Surround Speakers

Mounting Template CAUTION! Do not use keyhole for ceiling mounting! #10 or #12 2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed

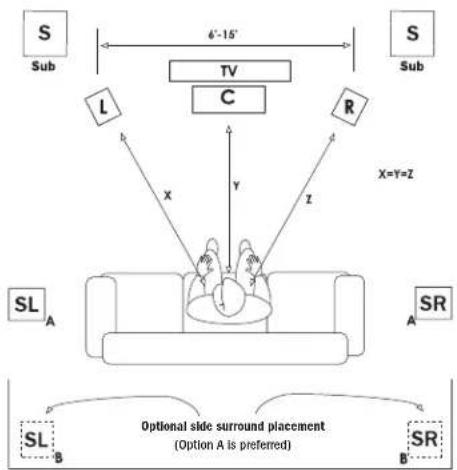

Figure 3 Speaker Placement in Listening Area


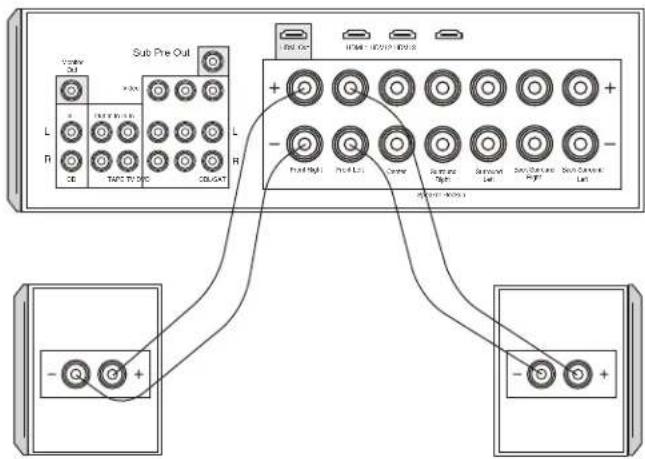

Figure 4 Standard Connections

Sub Pre-Out Vccu Out L R CD TAPE TV 201C CBLG4* + - Prey High Prey Low Cocu Schematic Sign Dutout/low Dut/Standard High Dut/Standard Low - - +

FRENCH - CONSIGNES DE SECURITE IMPORTANTES

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

INFORMATIONS DE CONFORMITÉ UE :

Figure 4F: Raccordements standard

Sub Pre Out L R TAPC TV/DC COLSAT + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

Sub Pro Out + - Dual High Profile Low Cable Squeeze High Sensual Low Squeeze High Sensyl Cable Senior Video - - +

CHINESE - 重要安全信息

Line drawing of a box with a speaker grille and a small electronic component labeled 'Gummifüßchen' (no other text or symbols)
