ENGLISH

Line drawing of four identical outdoor speakers with circular speaker holes, arranged in descending order (no text or symbols)

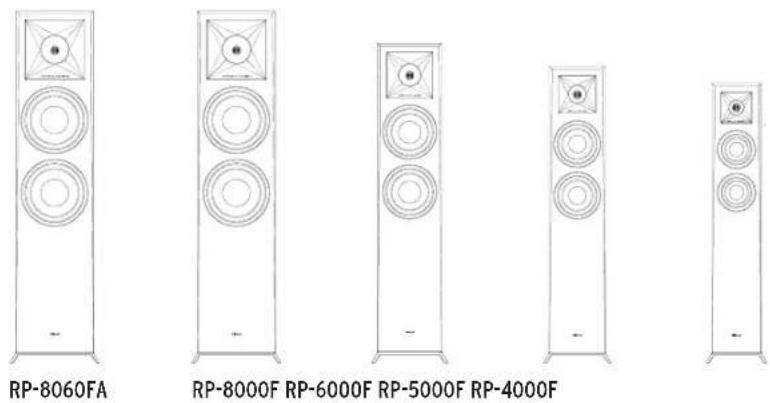

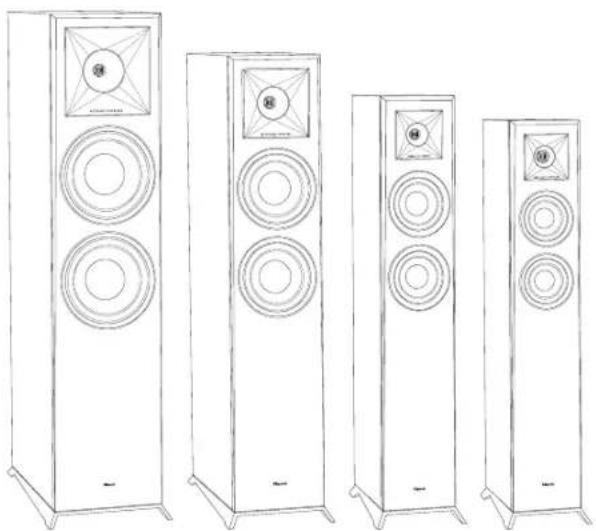

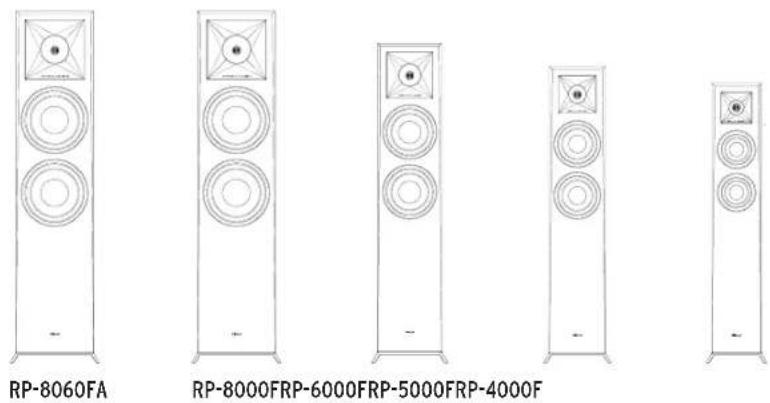

REFERENCE PREMIERE SPEAKERS

RP-600M

Five identical line drawings of a speaker tower with circular speakers and front panels (no text or symbols)

RP-500M RP-400M RP-502S RP-402S RP-500SA

Five identical circular speaker or speaker unit designs, each with a central button and two side panels (no text or symbols visible)

RP-504C RP-404C RP-600C RP-500C RP-400C

BEFORE YOU START

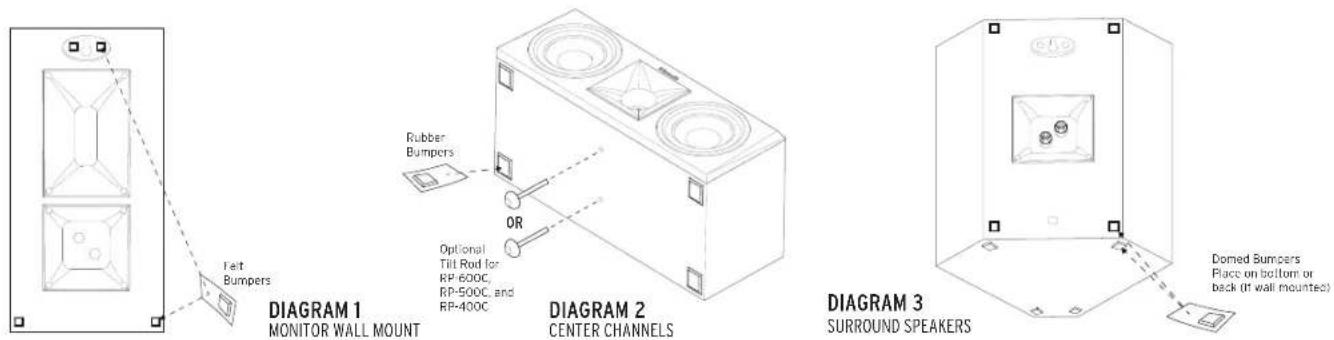

Some Klipsch ^® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.

ROOM PLACEMENT

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

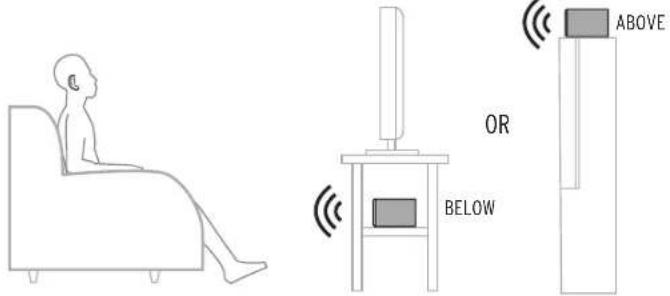

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

CONNECTION

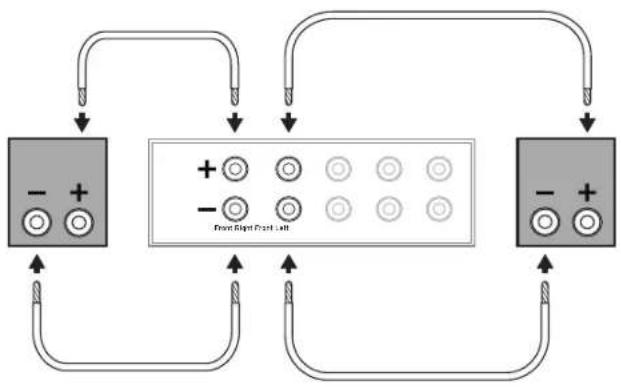

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Reference Premiere models RP-8060FA, RP-8000F, RP-6000F, RP-5000F, RP-4000F and RP-160M are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver's manual for further instructions.

Amplifier Requirements – Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels, Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

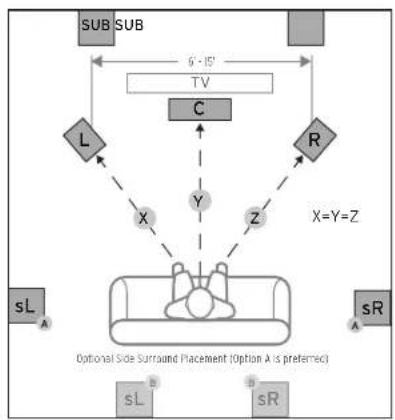

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA

FIGURE 3 STANDARD CONNECTIONS
    BFZ["X"]

FIGURE 2 CENTER CHANNEL

OR BELOW ABOVE

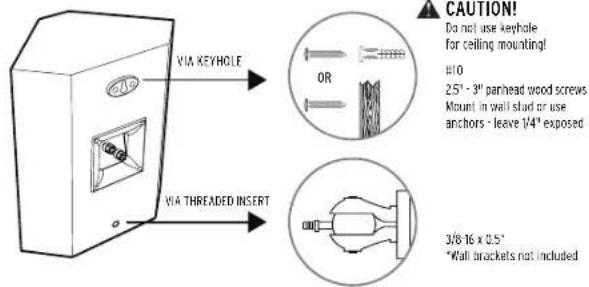

FIGURE 4 WALL MOUNTING

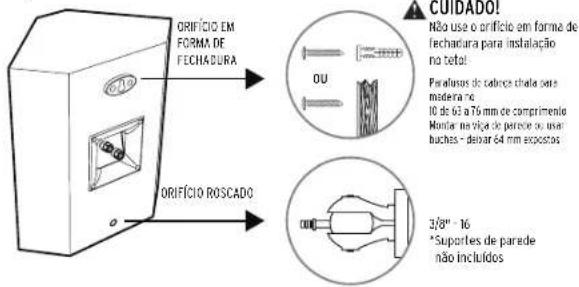

VIA KEYHOLE VIA THREADED INSERT OR CAUTION! Do not use keyhole for ceiling mounting! H10 2.5" - 3" parhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed 3/8 16 x 0.5" "Wall brackets not included

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

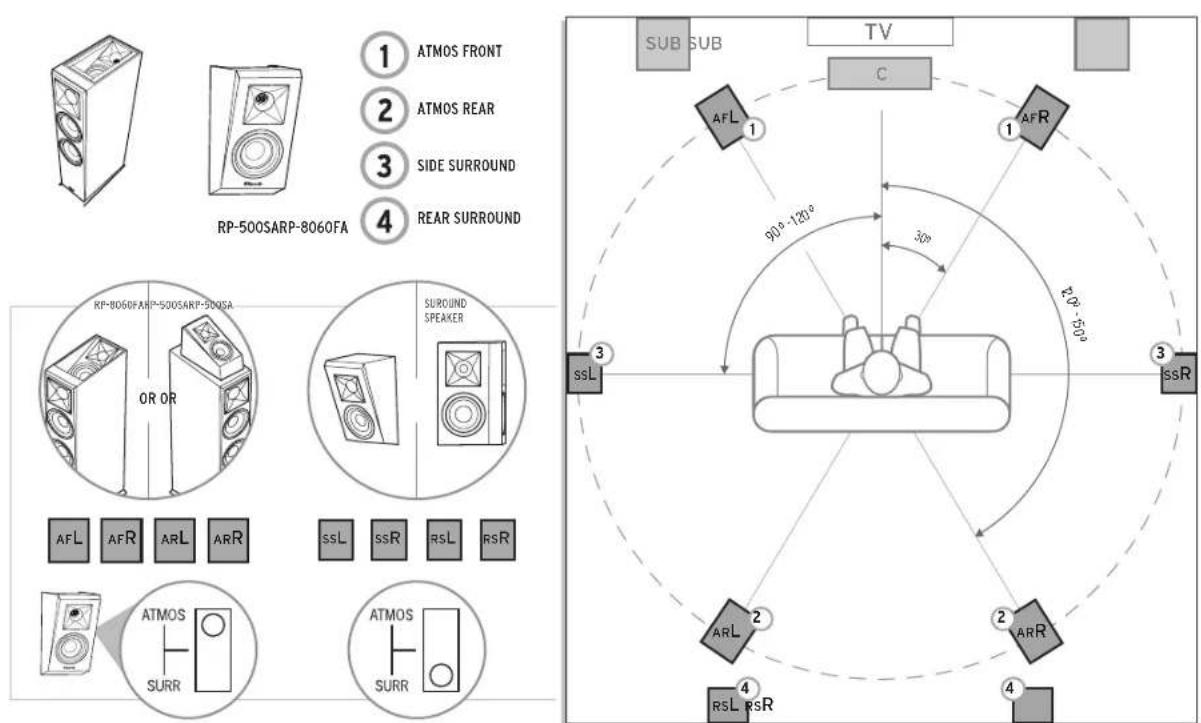

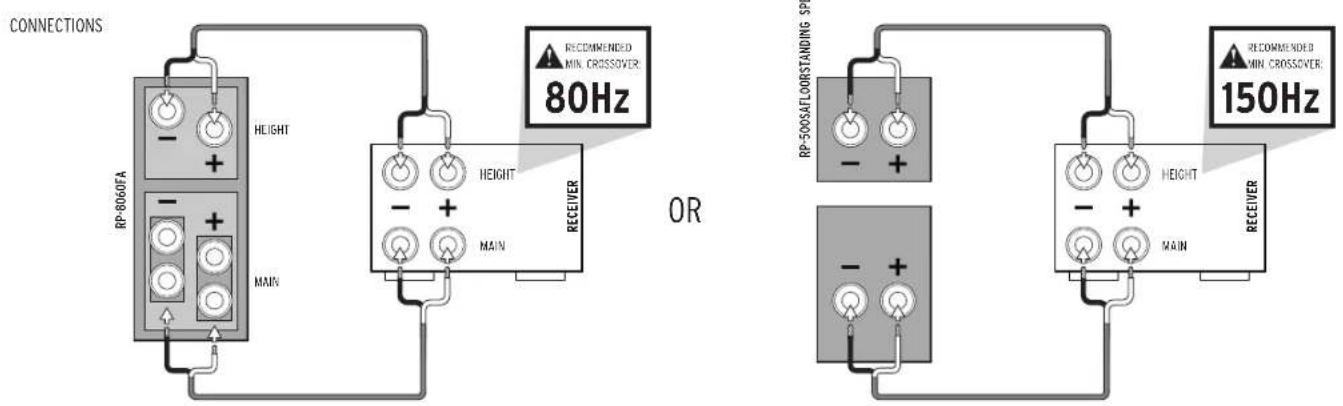

1 ATMOS FRONT 2 ATMOS REAR 3 SIDE SURROUND 4 REAR SURROUND RP-500SARP-8060FA 1 2 3 4 RF-8060FARP-500SARP-500SA OR OR SUROUND SPEAKER AFL AFR ARL ARR ssL ssR RsL RsR ATMOS SURR ATMOS SURR 3 ssL 1 2 3 4 TV C 90°-120° 30° 20°-50° 2 ARR 4 SSR Sub SUB TV

SPEAKER PLACEMENT IN LISTENING AREA

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

RP-500SALOORSTANDING SPEAKER

The RP-500SA can be added to any passive loudspeaker setup.

Line drawing of a CD or audio amplifier with a speaker grille and base mount (no text or symbols)

Technical diagram showing a mounted electrical component with a magnified view of its internal structure, labeled 'OR'.

CAUTION!

Do not use keyhole for ceiling mounting

10

2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

- Keep up-to-date on new products and promotions.

- Your personal information will never be resold.

• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE

Line drawing of four identical outdoor speakers with circular speaker holes, arranged in descending order (no text or symbols)

ENCEINTES REFERENCE PREMIERE

RP-600M

Five identical line drawings of a speaker tower with circular speakers and front panels (no text or symbols)

RP-500M RP-400M RP-502S RP-402S RP-500SA

Five identical circular speaker or speaker unit designs, each with a central button and two side panels (no text or symbols visible)

RP-504C RP-404C RP-600C RP-500C RP-400C

AVANT DE COMMENCER

FIGURE 2 VOIE CENTRALE OU EN DESSOUS AU-DESSUS

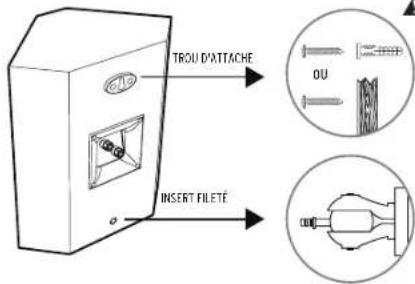

FIGURE 4 MONTAGE MURAL DES ENCEINTES SURROUND

TROU D'ATTACHE OU INSERT FILETÉ

Line drawing of a speaker with two circular components and a star-shaped top panel (no text or symbols)

MONTAGE MURAL DES ENCEINTES SURROUNDECIENTE D'ÉLÉVATION

Technical diagram showing a component with a pin and magnified view of two screws (OU) on a wooden surface.

ATTENTION!

We are the Keepers of the Sound ^® .

DEUTSCH

Line drawing of four identical outdoor speakers with circular speaker holes, arranged in descending order (no text or symbols)

REFERENCE PREMIERE-LAUTSPRECHER

RP-600M

Five identical line drawings of a speaker tower with circular speakers and front panels (no text or symbols)

RP-500M RP-400M RP-502S RP-402S RP-500SA

Five identical circular speaker unit designs arranged in a row, each with a central button (no text or symbols visible)

RP-504C RP-404C RP-600C RP-500C RP-400C

ERSTE SCHRITTE

Line drawing of a speaker with a circular head and antenna (no text or symbols)

Diagram showing a device with screw and a circular inset showing ODER (osteel) components, likely illustrating electrical or mechanical assembly.

VORSICHT!

Line drawing of four identical outdoor speakers with circular speaker holes, arranged in descending order (no text or symbols)

ALTAVOCES REFERENCE PREMIERE

RP-600M

Five identical line drawings of a speaker tower with circular speakers and front panels (no text or symbols)

RP-500M RP-400M RP-502S RP-402S RP-500SA

Five identical circular speaker or speaker unit designs, each with a central button and two side panels (no text or symbols visible)

RP-504C RP-404C RP-600C RP-500C RP-400C

ANTES DE EMPEZAR

Line drawing of a speaker with two circular components and a star-shaped top (no text or symbols)

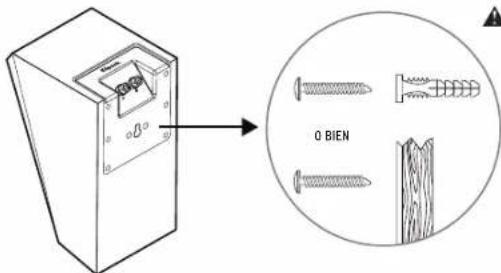

MONTAJE DE LOS ALTAVOCES SURROUND EN LA PAREDALTAVOZ DE ALTURA

O BIEN

PRECAUCIÓN

Somos os Keepers of the Sound ^8 .

PORTUGUÊS

Line drawing of four identical outdoor speakers with circular speaker holes, arranged in descending order (no text or symbols)

CAIXAS ACÚSTICAS REFERENCE PREMIERE

RP-600M

Five identical line drawings of a speaker tower with circular speakers and front panels (no text or symbols)

RP-500M RP-400M RP-502S RP-402S RP-500SA

Five identical circular speaker or speaker unit designs, each with a central button and two side panels (no text or symbols visible)

RP-504C RP-404C RP-600C RP-500C RP-400C

ANTES DE COMEÇAR

FIGURA 2 CANAL CENTRAL OU ABAIXO ACIMA

FIGURA 4 INSTALAÇÃO DAS CAIXAS ACÚSTICAS SURROUND EM PAREDE

Line drawing of a speaker with two circular components and a star-shaped top (no text or symbols)

Diagram showing a screw holder with a magnified view of two screws and a wooden screw, labeled 'OU'.

CUIDADO!

Line drawing of four identical outdoor speakers with circular speaker holes, arranged in descending order (no text or symbols)

ALTOPARLANTI REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

OPERAZIONI PRELIMINARI

Line drawing of a speaker with two circular components and a triangular top (no text or symbols)

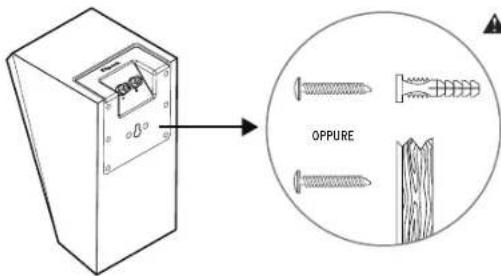

FISSAGGIO A PARETE DEGLI ALTOPARLANTI SURROUNDALTOPARLANTI ELEVATO

OPPURE

ATTENZIONE

Line drawing of four identical outdoor speakers with circular speaker holes, arranged in descending order (no text or symbols)

参考系列扬声器

RP-600M

RP-500MRP-400MRP-502SRP-402SRP-500SA

RP-504CRP-404CRP-600CRP-500CRP-400C

开始使用之前

Pure technical line drawing of a 3D enclosure with no text, numbers, or symbols

Line drawing of four identical outdoor speakers with circular speaker holes, arranged in descending order (no text or symbols)

Line drawing of a CD or audio amplifier with two circular components and a star-shaped top (no text or symbols)

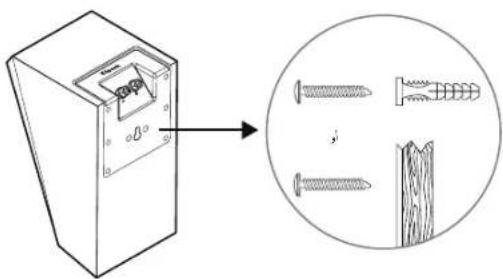

التركيب بالحانط
