Flex Pro - Laptop Prixton - Free user manual and instructions

Product type	Convertible laptop
Brand	Prixton
Model	Flex Pro
Processor	Intel Celeron Gemini Lake N4020
RAM	4 GB
Internal storage	128 GB (eMMC or M.2 SATA SSD)
Screen size	11.6 inches
Screen type	TN LCD
Screen resolution	1366 x 768 pixels
Operating system	Windows 11 Home
Wi-Fi connectivity	IEEE 802.11 b/g/n
Bluetooth	4.0
USB ports	1 x USB 3.0, 1 x USB 2.0
Video output	Mini-HDMI
Headphone jack	3.5 mm jack
Card reader	Micro SD
Speakers	2 x 1 W
Battery	Rechargeable lithium polymer
Power supply	12 V / 2 A power adapter
Front camera	Built-in
Touchpad	Built-in
Keyboard	AZERTY with numeric keypad
Care and cleaning	Use a dry, soft cloth; do not use chemical products
Safety precautions	Do not expose to water, shocks, extreme temperatures, or magnetic fields
Spare parts and repairability	Available on the manufacturer's website www.prixton.com
Warranty	In accordance with the legislation of the country of purchase

Frequently Asked Questions - Flex Pro Prixton

How to turn on the computer for the first time?

Press and hold the power button until the screen lights up. The setup wizard will guide you through configuring language, date, Wi-Fi, and your Microsoft account.

How long does it take to charge the battery?

The first charge takes about 6 hours. Subsequent charges take about 4 hours. Use the supplied 12V/2A adapter.

How to connect my computer to a Wi-Fi network?

Click on the network icon in the taskbar, select your network, enter the password, and click 'Connect'. You can also go to Settings > Network & Internet.

Can the computer be used as a tablet?

Yes, the Prixton Flex Pro is a convertible model. You can rotate the screen 360° to use it in tablet mode.

How to expand the computer's storage?

You can add an M.2 SATA SSD of 128, 256, or 512 GB in the dedicated slot. Open the bottom cover to access the connector.

What to do if the screen does not turn on?

Make sure the battery is charged. Plug in the adapter and press and hold the power button for 10 seconds. If nothing happens, contact Prixton support.

How to clean the screen and keyboard?

Use a soft, dry cloth. Never use chemicals or liquids. For the keyboard, you can use a can of compressed air.

Can I use a Bluetooth headset?

Yes, enable Bluetooth in Settings > Bluetooth & other devices, then pair your headset.

How to reset the computer to factory settings?

Go to Settings > Update & Security > Recovery, then click 'Reset this PC'. Follow the instructions.

Where to find the device serial number?

The serial number is on the label on the back of the computer or in the original packaging. It can also be displayed in Settings > System > About.

USER MANUAL Flex Pro Prixton

Line drawing of a laptop with blank screen and side connectors (no text or symbols)

ORDENADOR PORTÁTIL CONVERTIBLE

CONVERTIBLE LAPTOP

Cuadro de búsqueda

Barra de menús

Centro de Windows

Personalización

Precautions before use

1. This production is suitable for use in non-tropic areas below 2,000 meters.
2. Prevent the device from falling to the ground or being strongly impacted otherwise.
3. Do not use it in the long term in any environment where the air is too cold, too hot (<35 °C) too humid or with too much dust. Do not expose the Device to sunlight.
4. Avoid using it in the strong magnetic and strong static environment as much as possible.
5. Once any water or other liquid splashes onto the Device, close it immediately and do not use it until it dries out.

6. Do not clean the Device with any detergent containing chemical element or other liquid to avoid causing damage due to corrosion and becoming damp. If cleaning is really necessary clean it with dry soft cloth tissue paper.

7. Our company shall not bear any and all responsibilities for loss or deletion of material inside the machine caused due to abnormal software and hardware operation, maintenance or any other accident.

8. Please back up your important material at any time to avoid loss.

9. Please do not disassemble the Device by yourself; otherwise you will lose the right to warranty

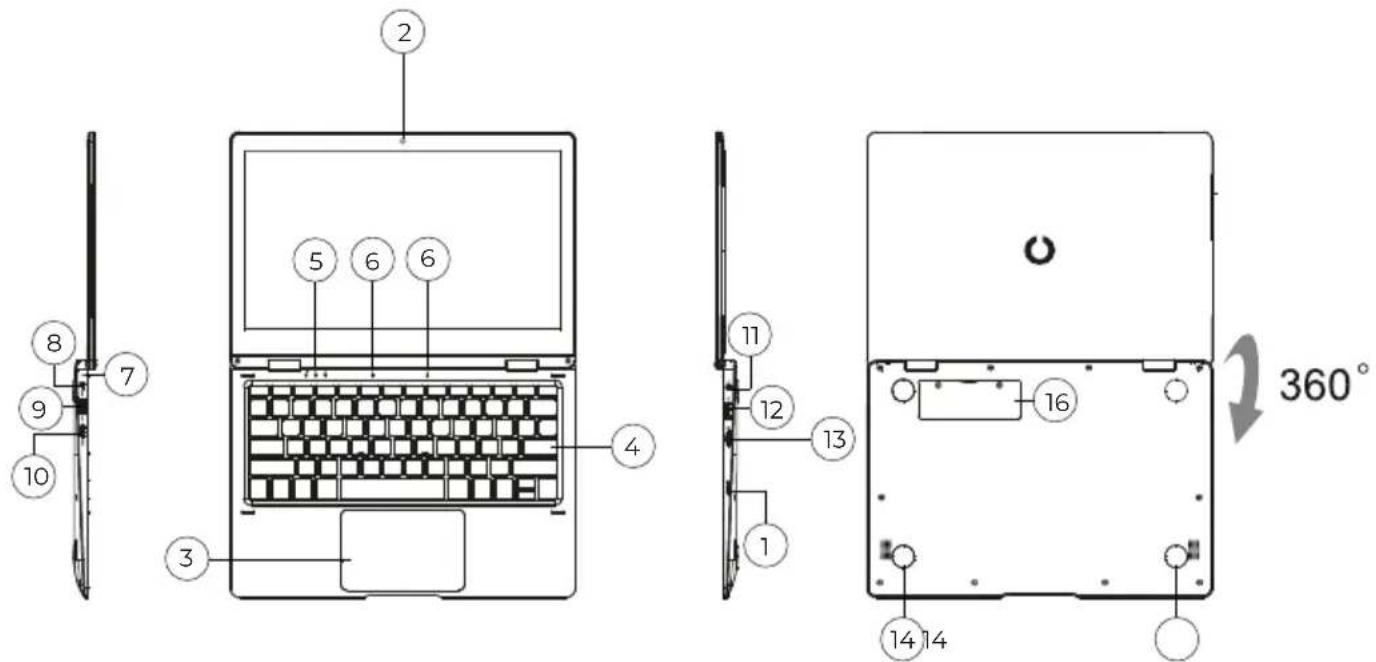

Unit at a glance

1. Power button
   Also allows you to suspend the computer or turn it on after suspension.
2. Front camera: allows you to take pictures/videos and make teleconferences. 3.
3. Touchpad: allows you to interact with the device.
4. Keyboard: allows you to interact with the device.

5. Keyboard LED indicators:

6. Power on: the green light indicates that the computer is turned on.

7. Caps lock: green light indicates that the caps lock is activated. 3.

8. Numeric keypad: green light indicates that the numeric keypad function is activated.

9. Microphone: allows you to record or transmit audio.

10. LED charging indicators:

- Orange color indicates that the battery is charged. - Green color indicates that the battery is fully charged.

1. DC charger connector: use the included 12V/2A charger.

2. USB 3.0 connector: allows you to connect memory sticks and external devices at a higher speed than USB 2.0.

3. Mini-HDMI interface: can be connected to an external imaging device such as a TV or projector.

4. Headphone jack: This jack allows audio signals to be transmitted to speakers or headphones.

5. USB 2.0 connector: allows you to connect memory sticks and external devices.

6. Micro SD card slot; slot with integrated memory card reader that supports the Micro SD format.

7. Speakers: integrated speaker allows you to listen to the sound without the need to connect an additional device.

8. Power button.

9. M2 SATA SSD Slot: allows you to expand the storage memory with 128GB/256GB/512GB M.2 SATA SSD.

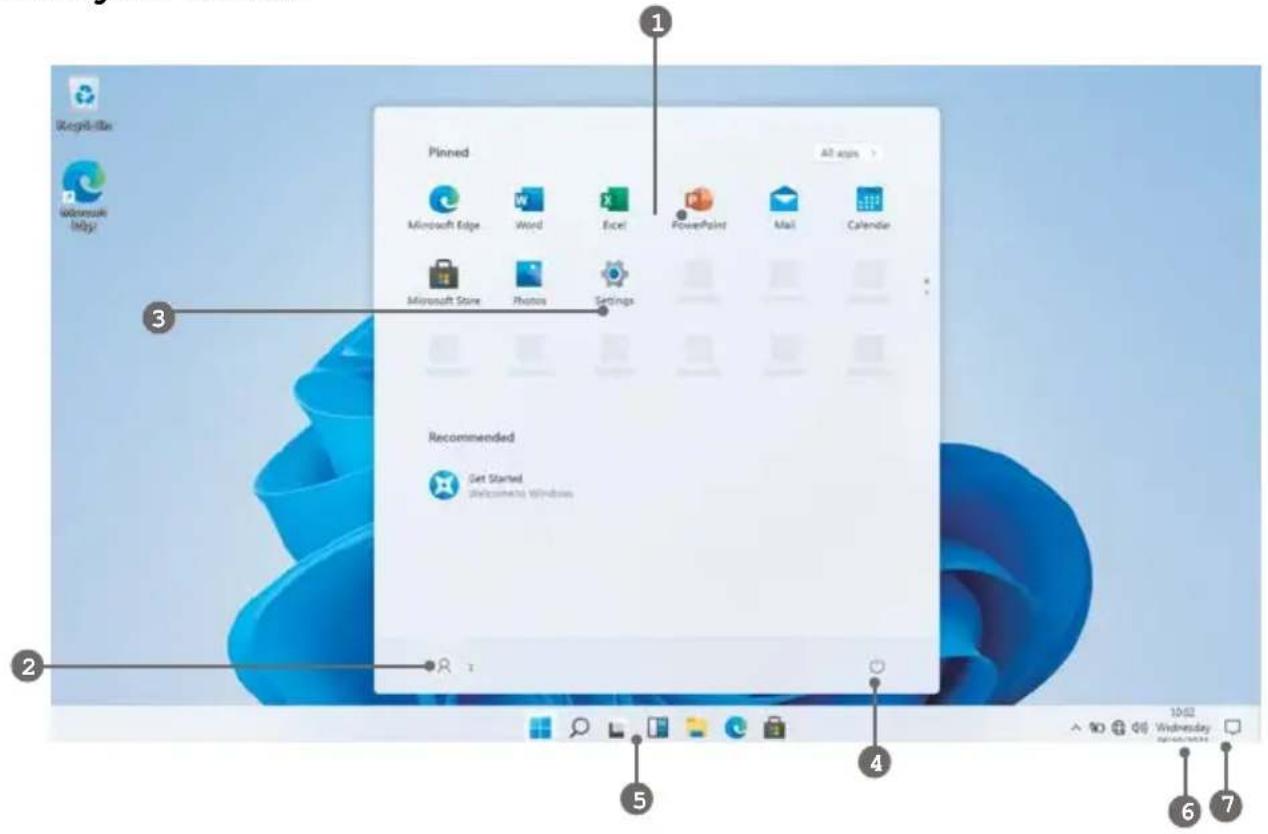

Know your Screen

1. Start Screen - Display useful information at a glance without opening the app.
2. Microsoft™ Account - Change account settings or switch to another user account.
3. Settings - View and change any system settings.
4. Power - Shut Down, Hibernate or put your PC to sleep.
5. Search Bar - Quickly find files, directions, information or the name of a song.
6. Notification Area - View all notifications, date and time.
7. Peek - Quickly show your desktop

You need to log on your Microsoft account before the application program completely runs.

Using the Laptop

Before First Use

• Before first use, please make sure the Laptop is fully charged. If not, connect the power adaptor, so your Laptop can charge fully.
• Charging time is at least 6 hours the first time, 4 hours there after.

Note: This Laptop contains a Built-in type rechargeable Lithium-ion battery, the charger must be a standard adaptor (12V/2A plug adaptor), this Laptop includes DC charging.

- Ensure that you have a good Wi-Fi connection, with your network name and password available.

Starting up

Press and hold the Power key until the screen turns on. Wait until the Desktop screen appears. The computer is now ready for use.

The first time you use your device, the startup wizard will help you set up your device:

• Language
• Date & Time
  • Wi-Fi Connection
• Location service options
  • Third-party applications
• Necessary Updates
  • Account Synchronization

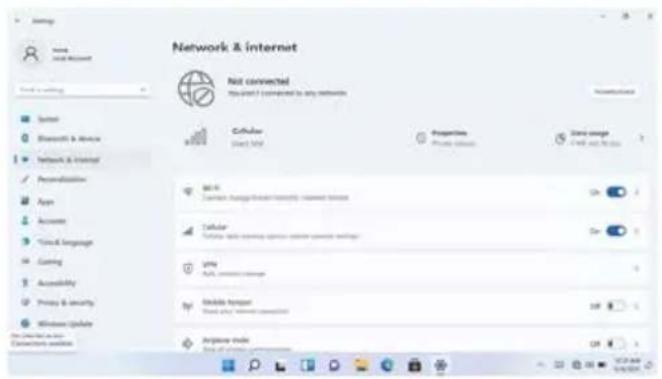

Connect to a Wi-Fi network

The Notification bar displays icons that indicate your Laptop's internet status.

Connected to a Wi-Fi network (waves indicate connection strength).

There are no Wi-Fi networks in range, or the Wi-Fi is not connected.

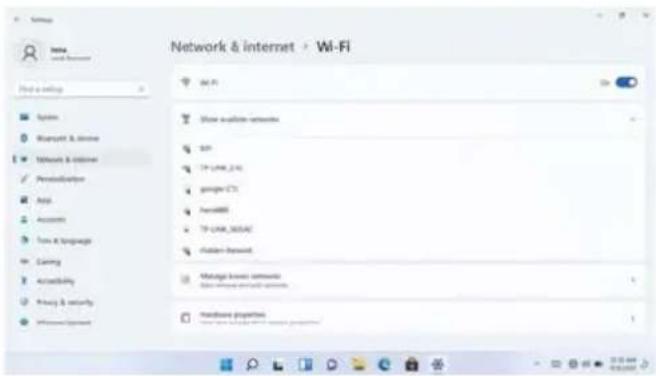

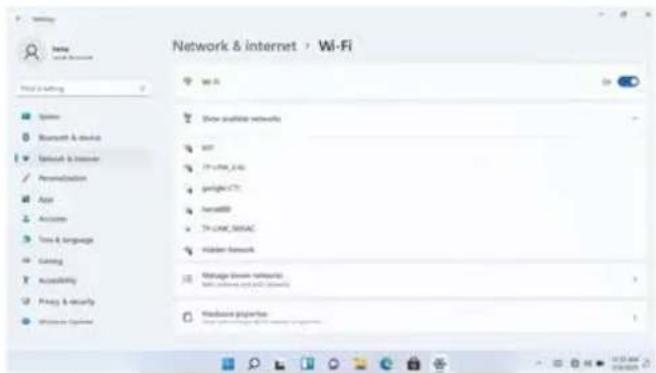

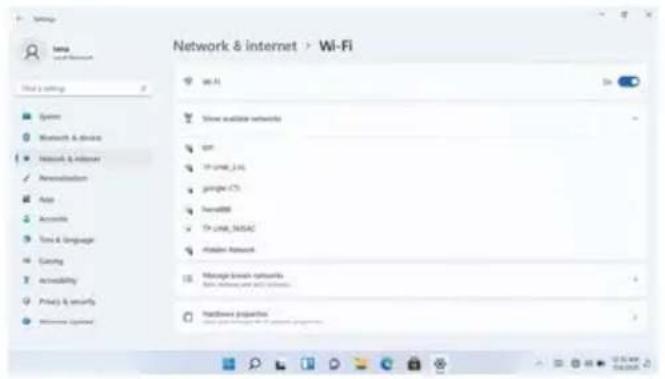

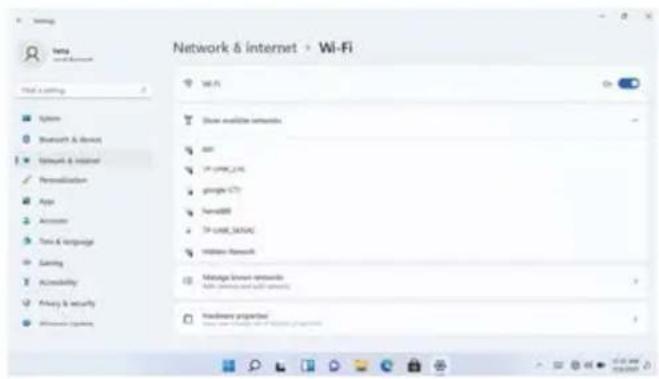

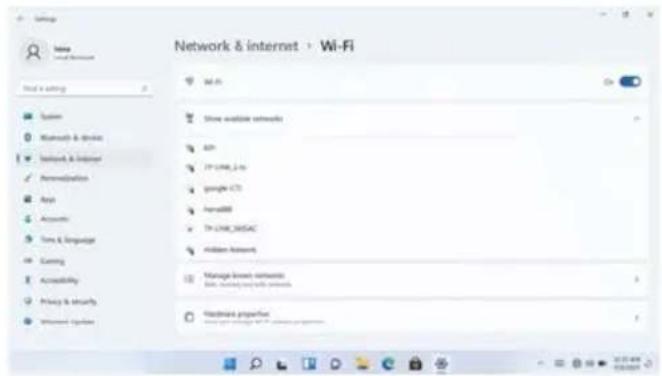

Open the Settings menu by pressing the start button and clicking on the cog / settings icon

Select your network from the list of available networks. The Laptop will prompt you to confirm connection to the network. Touch Connect to confirm. If the network is secured (as indicated by a Lock icon), the Laptop will prompt you to enter a password or other credentials.

Settings icon can also be found on the desktop. Open the Network and Internet menu and turn the WiFi on.

User Interface

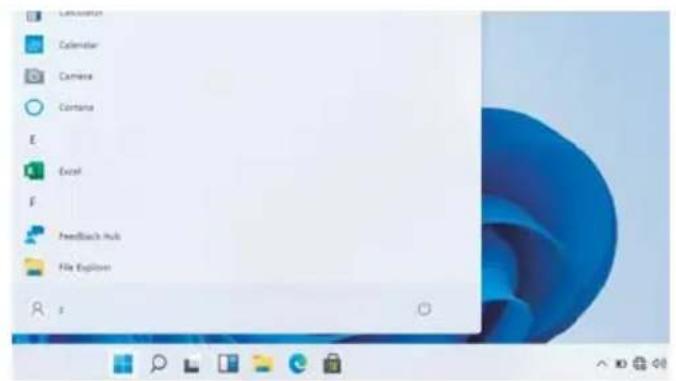

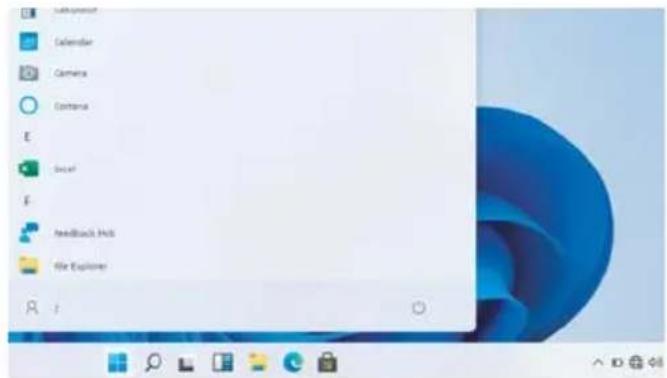

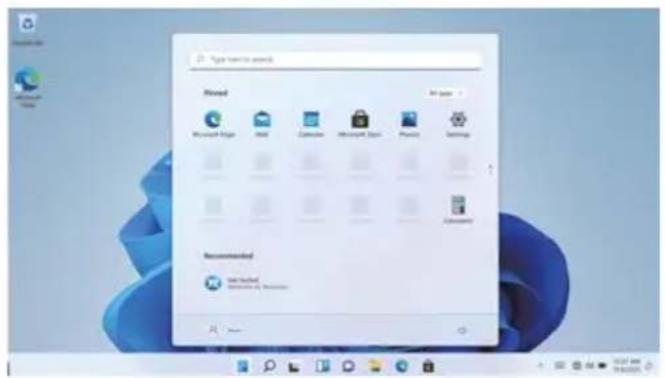

Start Menu

To open the start menu select the icon in the bottom left hand corner of the desktop. Once the menu has been opened you will be greeted with a variety of options.

Applications

In addition to already fixed on the start screen of the application, you can open all applications in the home page.

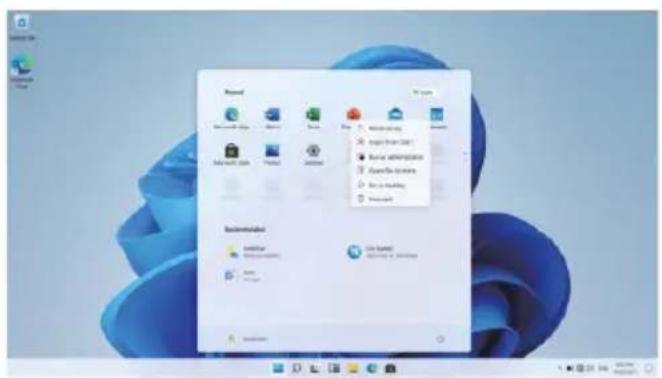

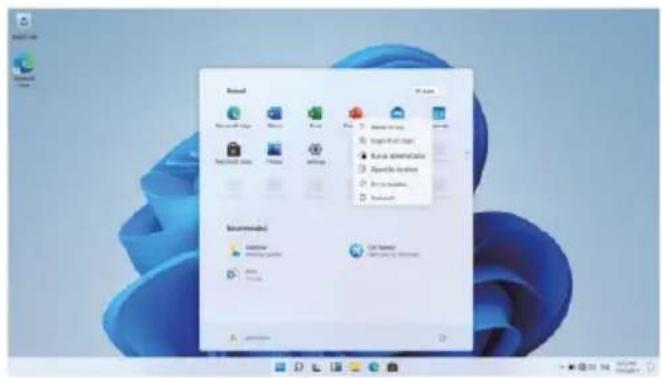

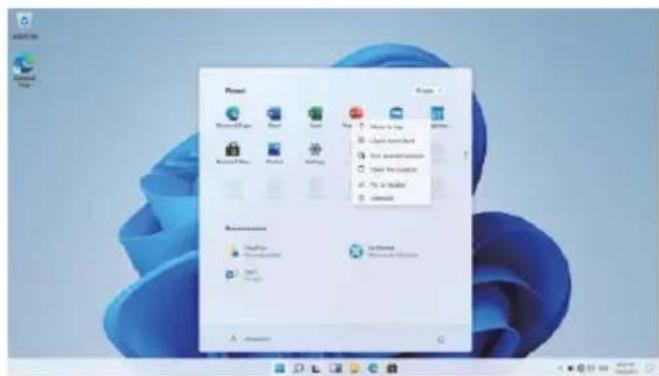

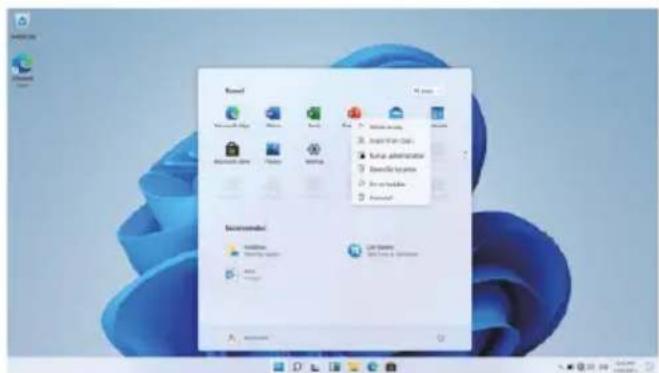

Adding a shortcut tile to start menu

1. Right-click on properties
2. Select fixed at the beginning of the page

Search Box

Right-click the taskbar and go to Taskbar settings. Under Taskbar items, toggle the switch to On/Off next to Search to set up.

Change the taskbar location

Right-click any empty space on the taskbar. Select Taskbar settings > Taskbar behaviors > Taskbar alignment and then select Center or Left.

Rearrange taskbar buttons

Drag a button from its current position to a different one.

Menu bar

Expand the menu bar from the screen.

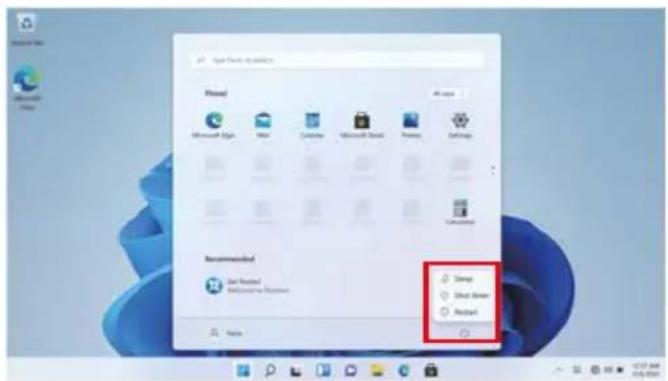

File manager, settings, power supply and all applications, you can sleep / shutdown / restart the device

Power

Manage files and applications

Set up your machine

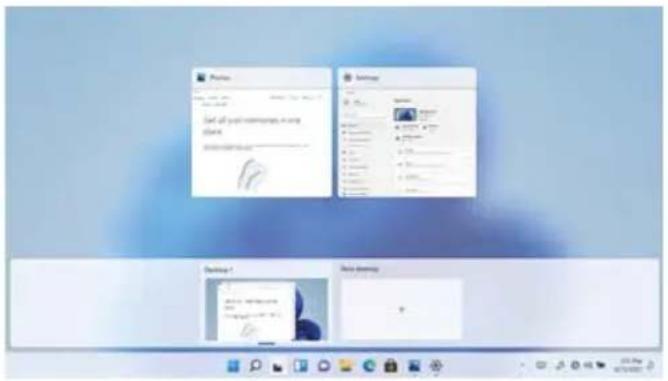

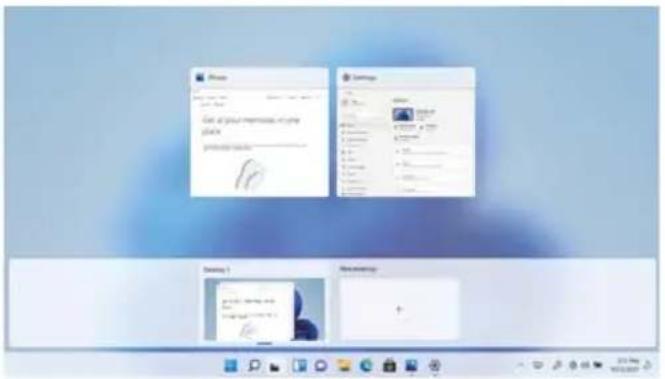

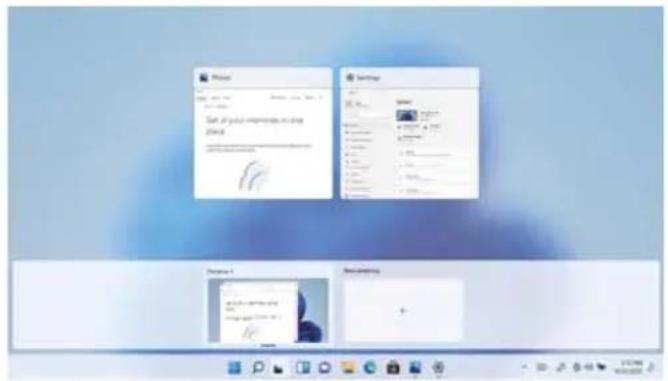

Multitasking operating interface

Click the Desktop task view to operating a multi-operating interface.

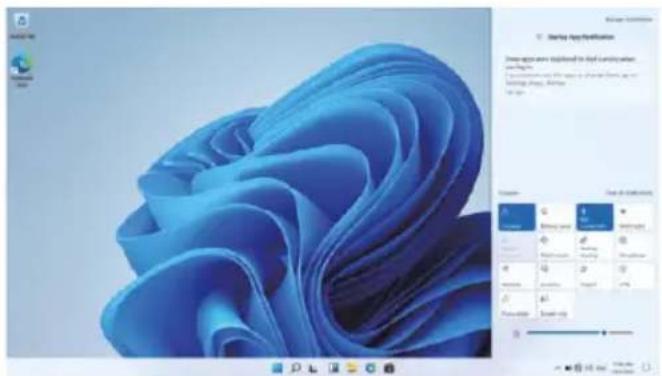

Windows Centre

The Action Center is where you can find application notifications and quick actions. On the bottom right corner of the screen, look for the Action Center icon.

The Action Center allows access to quick settings, in the form of small boxes at the bottom of the panel.

Notifications within the action centre are sorted into categories by app.

The Action Center also supports actionable notifications, such as recent text messages, emails or social media integration.

Personalising

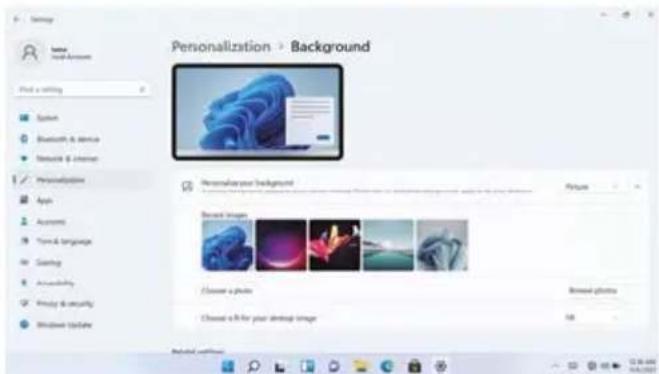

Changing your wallpaper and themes

Press start and select the settings icon Select the personalisation menu where you will be greeted with the options to change your background/theme for the Desktop and lockscreen. In this section you also have the option to change the Windows accent colours and choose which elements will use the colour.

To download new apps

To install new apps approved by Windows, click the Windows Store icon on the bottom task bar. There you will find over 1 million apps including many of which are free. Even if you only going to use free apps you will still need to create a Windows account but you don't need to enter your credit card details to do this.

Before installing any application on the computer, you must activate the Windows Home 11 license as it comes protected by default. When attempting the installation, a message will appear. Click on "See how." After this, click "Get" on the screen, and after a few seconds, the license type will have changed.

Specifications

Processor Intel Celeron Gemini Lake N4020
Storage RAM 4G, ROM 128GB
Screen 11.6" TN LCD (1366*768)
Wi-Fi Networking IEEE 802.11 b/g/n
Audio output 3.5mm headphone
USB Host 1xUSB3.0, 1xUSB2.0
HDMI MINI HDMI1x1
Wireless connection 4.0
Camera Included
O.S Windows 11 HOME
Power Rechargeable Li-poli batteryPower Adapter (DC IN 5V, 2.5A)
Speakers 2x1W

Warranty policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration Of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION	CATEGORY
Prixton	FLEX PRO	Convertible Laptop4/128GB 11.6 "Computing

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL
