F7IWC24O1-L - Wine cellar Fulgor Milano - Free user manual and instructions

USER MANUAL F7IWC24O1-L Fulgor Milano

Three black bottle illustrations arranged horizontally on a white background (no text or symbols)

F7IWC24O1 - R

F7IWC24O1 - L

F7SWC24S1 - R

F7SWC24S1 - L

WINE CELLAR

CAVE À VINS

ARMARIO CAVA

EN

USER MANUAL

FR

MODE D'EMPLOI

ES

MANUAL DE USUARIO

1 IMPORTANT DIRECTIONS OF SAFETY AND THE ENVIRONMENT 6

1.1 For your safety.... 6
1.2 Important information when using the appliance.... 6
1.3 Caring for the environment.... 7

2 INSTALLATION 7

2.1 Installation.... 7
2.2 Connection to electrical power 7

3 BEFORE STARTING 7

3.1 Know your appliance.... 7
3.2 Model / serial identification.... 8
3.3 Main components.... 10
3.4 Electronic control.... 11
3.5 Main control panel.... 11

4 APPLIANCE ON / OFF AND TEMPERATURE SETTINGS 12

4.1 Turning the appliance on and off 12
4.2 How to adjust the temperature for different requirements.... 14
4.3 Information signals of warning messages on the display.... 15
4.4 Wine Cellar temperatures.... 16

5 FUNCTIONS AND SETTINGS 17

5.1 Functions.... 17
5.2 Settings.... 18

6 INTERNAL LAYOUT 24

6.1 Internal layout (positioning, adjustment, removal) 24

7 LIGHTING 24

7.1 Interior lighting 24

8 WINE STORAGE 25

8.1 General directions.... 25
8.2 Conservation temperature.... 25
8.3 Time of conservation.... 26
8.4 Consumption temperature 27
8.5 Position of bottles 28

9 CARE AND CLEANING 28

9.1 Care and cleaning 28
9.2 Cleaning of the grille and condenser.... 29
9.3 Internal cleaning 30

10 TROUBLESHOOTING GUIDE 30

10.1 Troubleshooting guide.... 30
10.2 Messages appearing on the display.... 32

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

WARNING

DANGER

You can be killed or seriously injured if you don't follow instructions. You can be killed or seriously injured if you don't immediately follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

SAVE THESE INSTRUCTIONS!

WARNING

IMPORTANT SAFETY INSTRUCTIONS

This manual contains operational instructions for the users of the appliance. Keep this manual in an easily accessible place for future reference. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury, or death.

Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

To reduce risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
This appliance is designed to refrigerate wine and is intended for domestic use.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.
Do NOT use an extension cord or adapter.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.

WARNING

WARNING

WARNING

WARNING

WARNING

In the event of a power failure, do not attempt to operate this appliance.

Keep the appliance area free and clear from combustibles or flammable materials and vapors.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not obstruct the air intake or exhaust openings of the appliance.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Do not use electrical appliances inside the food storage compartments of the appliance.

IMPORTANT SAFETY INSTRUCTIONS FOR PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

WARNING

Suffocation Hazard

Remove doors or lid from your old appliance.

Failure to do so can result in death or brain damage.

WARNING Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

Take off the doors and cut off the power cord.
Leave the shelves in place so that children may not easily climb inside.
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous, even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Important information to know about disposal of refrigerants:

Dispose of refrigerator in accordance with federal and local regulations. Refrigerants must be evacuated by a licensed. EPA-certified refrigerant technician in accordance with established procedures.

IMPORTANT SAFETY INSTRUCTIONS FOR MAINTENANCE AND CARE

DANGER

Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. Flammable refrigerant used.

WARNING

To be repaired only by trained service personnel.

Use only manufacturer-authorized service parts, Do not use replacement parts that have not been recommended by the manufacturer (e.g., parts made at home using a 3D printer). If power supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Use nonflammable cleaner.

WARNING

Do not puncture refrigerant tubing, do not damage the refrigerant circuit.

WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

TIP OVER HAZARD

WARNING Refrigerator is top heavy and tips easily when not completely installed; to avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions (see installation manual provided).

Keep doors taped closed until refrigerator is completely installed especially while unattended.

Use two or more people to move and install refrigerator.

Failure to do can result in death or serius injury.

1.1 For your safety

If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance.
The appliance must be installed by following the instructions in the Installation Guide, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units.
The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.

This warning is also contained on the label attached to the inside of the refrigerator door.

Do not use any type of electrical equipment inside of the food conservation compartments.

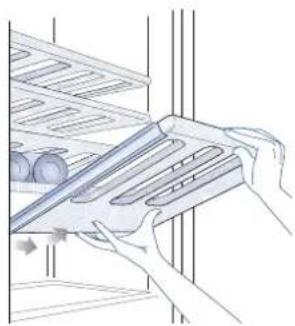

When positioning the shelves, do not place fingers in the shelf slide guides.
Do not position containers of flammable liquids near the appliance.
Completely switch off the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn off the breaker or remove the fuse that controls the socket that the appliance is connected to.
The packaging material can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam.
Any repairs must be performed by a qualified Fulgor Milano Service technician.
Do not damage the appliance refrigerant circuit pipes.
Repairs may be performed by the manufacturer, service company or a similarly qualified person only.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Disconnect power to all units before servicing.

1.2 Important information when using the appliance

Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts

and cause a short-circuit. Risk of electric shock!

Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

Explosion hazard!

Do not stand on or lean heavily against base of appliance, drawers or doors, etc.
Before cleaning the appliance, pull out the power cord plug or switch off the breaker. Do not pull out the power cord plug by tugging on the power cord.
Store high-percentage alcohol tightly closed and standing up.
Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
Never cover or block the ventilation openings for the appliance.

Symbols used in the Guide:

Note

Recommendations for correct use of the appliance

Important

Directions for avoiding appliance damage

Warning

Indications for avoiding injury to people

1.3 Caring for the environment

Pay special attention to correct disposal procedure for all the packaging materials.
The appliance must not be disposed of with urban waste. Contact local waste disposal centers for on how to dispose of recyclable waste.
Prior to disposal, cut the power supply cord and remove the door.
During disposal, avoid damage to the refrigeration circuit.
The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.

2.1 Installation

Make sure that installation is performed correctly, adhering to all of the instructions in the specific installation guide provided with the appliance.

2.2 Connection to electrical power supply

Illustration of hands connecting a plug to a wall socket (no text or symbols)

The appliance operates at 115 V AC, 60 Hz and is equipped with a power supply cord with a 3-prong grounded plug, which must be connected to a corresponding 3-prong (15 Amp) grounding-type wall receptacle.

Do not use extension cords and/or multiple adapters for connection.

3.1 Know your appliance

Congratulations for having purchased your new appliance: from now on you can use our innovative conservation system, which will allow you to keep wine in the best way possible.

This manual will answer most of your questions about the product's features. Should you require further information, please

call us 1-855-4FULGOR (1-855-438-5467)

visit fulgor-milano.com/us/en/assistance

Before calling, write down the model code and serial number which are available with the manuals and on the rating plate located on the bottom left-hand corner of the appliance, behind the bottom drawer.

Before calling, please make sure to have the following information ready:

• Date of Purchase;
• Name of dealer where product was purchased.

2.4 Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged: - avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.

3.2 Model / serial identification

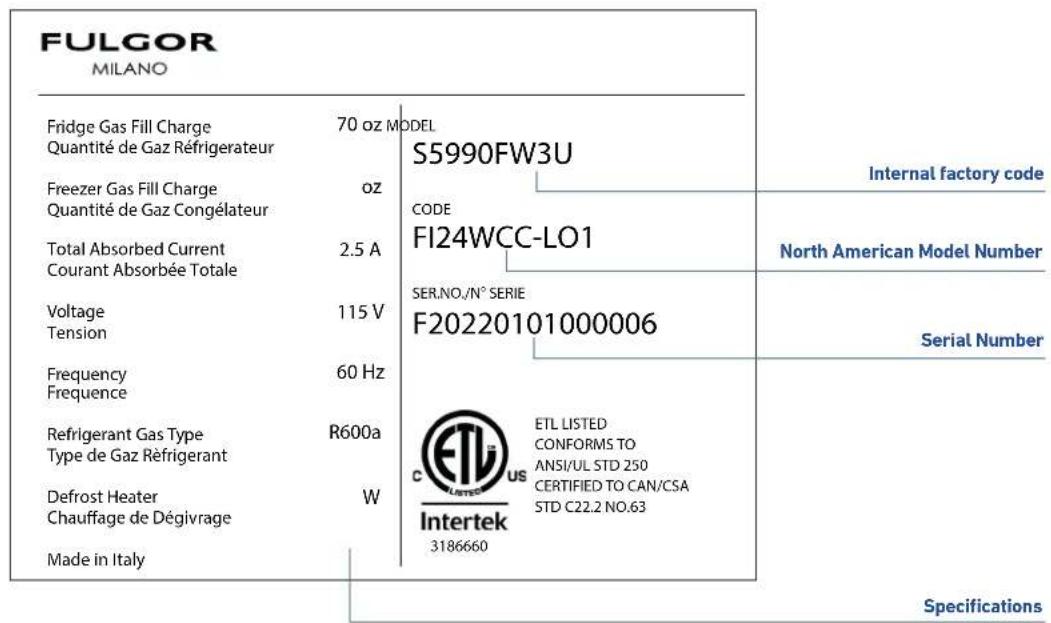

The model / serial identification shows the technical data, the serial number and the model. The product plate must never be removed.

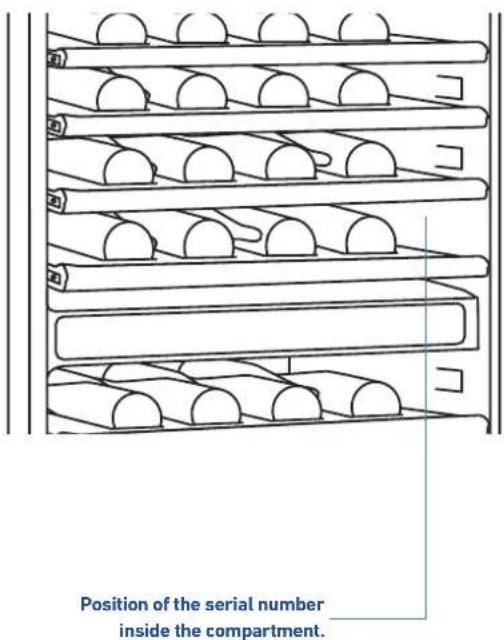

Position of the serial number inside the compartment.

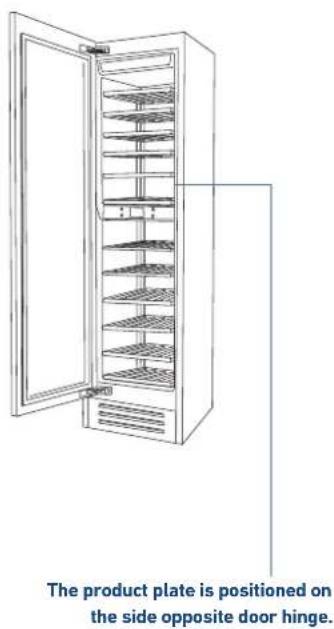

The product plate is positioned on the side opposite door hinge.

FULGOR MILANO Fridge Gas Fill Charge 70 oz MODEL Quantité de Gaz Réfrigerateur S5990FW3U Freezer Gas Fill Charge oz Quantité de Gaz Congélateur Total Absorbed Current 2.5 A Courant Absorbée Totale Voltage 115 V Tension Frequency 60 Hz Frequency Frequence Refrigerant Gas Type R600a Type de Gaz Réfrigerant Defrost Heater W Chauffage de Dégivrage Made in Italy Internal factory code CODE FI24WCC-LO1 SER.NO./N° SERIE F20220101000006 Serial Number ETL LISTED CONFORMS TO ANSI/UL STD 250 CERTIFIED TO CAN/CSA STD C22.2 NO.63 Intertek 3186660 Specifications

Climate Classes - this model is SN/T

SN (Subnormal) from +50°F to +90°F (+10°C to +32°C)
N (Normal) from +61°F to +90°F (+16°C to +32°C)
ST (Subtropical) from +64°F to +100°F (+18°C to +38°C)
T (Tropical) from +64°F to +109°F (+18°C to +43°C)

3.3 Main components

1 3 2 4 5 6 Wine Cellar +39°F / +64°F (+4°C /+18°C) Wine Cellar

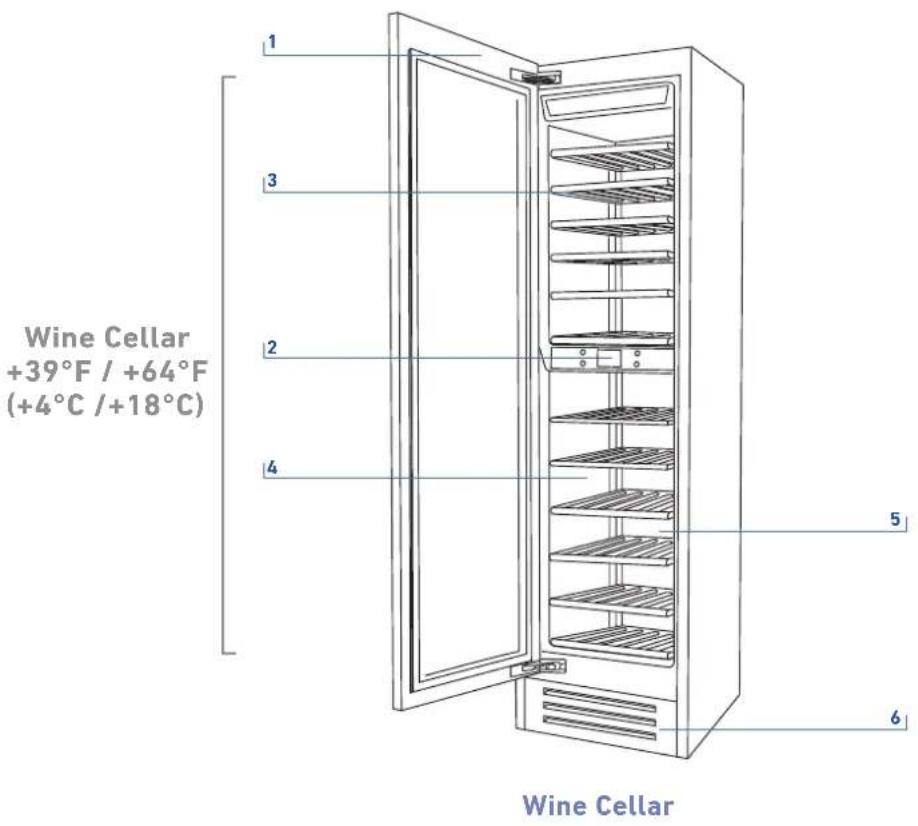

1 Glass door.
2 Interactive control panel.
3 Upper Compartment.
4 Sliding bottle shelves, mounted on wheels for easy extraction.
5 Lower compartment.
6 Ventilation grille.

3.4 Electronic Control

The innovative electronic control system maintains constant temperature in the 2 temperature zones and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.

3.5 Main control panel

FULGOR

MILANO

On / Off:

Touch the icon to turn the unit on or off.

Home

Touch the Home icon for going back to the main display screen.

Alarm

Touch the icon to view the alarm tone functions and to deactivate them.

Back

Touch the arrow icon for going back to the previous display screen.

4.1 Turning the appliance on and off

First time starting the unit

Touch the power icon ⓍThe display shows the following launch screens:

FULGOR MILANO

1) Logo.

FUNCTIONS INITIAL TEST... SETTINGS

2) Initial test (lasts 3 minutes).

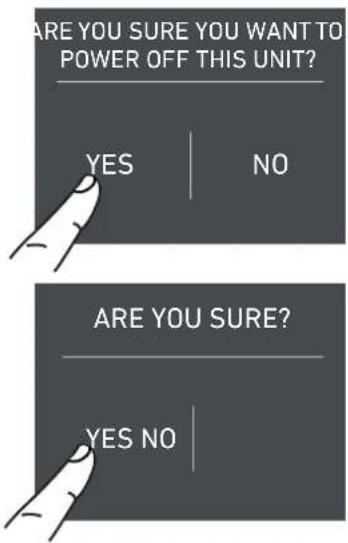

ARE YOU SURE YOU WANT TO POWER OFF THIS UNIT? YES | NO ARE YOU SURE? YES NO

2) Touch YES to continue.

3) Confirm shutdown by touching the YES icon.

When the wine cellar is off there are no standby indications that the wine cellar is plugged to a socket.

3) The display shows the main screen with the temperatures measured inside the compartments. Automatically the unit starts to cool down until reaching the set temperatures.

Switching off upper and lower compartments.

The upper compartment and the lower compartment, can be shutdown individually.

FUNCTIONS + 10 °C —— SETTINGS + 5 °C

4) Home screen.

• upper compartment +46°F (+8°C)
• lower compartment +41°F (+5°C)

+ 10 °C + 5 °C FUNCTIONS SETTINGS

1) Home screen. Touch the wine icon for the compartment you wish to shut down.

When the appliance is first switched on is recommended to wait at least 12 hours without opening the doors and before placing any bottles inside the unit. During such period deactivate any error message by pressing the Alarm button.

OFF +4 +5 +6°C +7 +8 OK

2) Touch the OFF icon.

Shutdown.

FULGOR WEANO FULGOR WEANO

1) Touch the power icon ⏻off.

i TURN COMPARTMENT OFF? YES NO

3) Touch YES to continue with shutdown.

ARE YOU SURE? YES NO

4) Touch YES to confirm shutdown.

ARE YOU SURE? YES NO

4) Final confirmation to turn the compartment on.

+ 10 °C FUNCTIONS SETTINGS OFF °C

5) On the home screen OFF appears next to the icon, which indicates that the compartment is off.

FUNCTIONS + 10 °C SETTINGS + 5 °C

5) Turn on again the lower compartment. Home screen will open up.

Turning the appliance on again

To turn the unit on again press the button Ⓤ, the display will turn on and the launch screen will appear again with the temperatures measured inside the wine cellar compartments. The wine cellar will start to cool down until reaching the set temperatures.

Restart the compartments.

In case you wish to turn the upper or lower compartments on again.

+ 10 °C FUNCTIONS SETTINGS OFF °C

1) Home screen. To turn the compartment on again, touch the icon

ON +4 +5 +6°C +7 +8 OK

2) Touch the icon ON.

i TURN COMPARTMENT ON? YES NO

3) Confirm with YES to continue.

Switching off for long periods

During long absence periods it is recommended to switch off the wine cellar by pressing the Unit button ⓞ for three seconds and disconnecting the electrical plug or the breaker controlling the socket. Completely empty the wine cellar, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors.

During the first startup, it will not be possible to use the Menu to modify the factory settings until the preset temperature has been reached.

Each time the appliance is switched on it goes through a self-diagnosis procedure lasting three minutes before completely starting up.

4.2 How to adjust the temperature for different requirements.

Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low power consumption. Usually, it is not necessary to modify the settings.

Follow the following on screen steps to personalize the temperature settings:

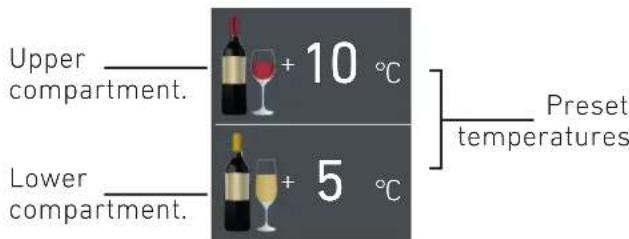

Modify the compartment temperatures

Example: How to modify the upper compartment temperature.

+ 10 °C + 5 °C FUNCTIONS SETTINGS

1) Home screen.

Touch icon for upper compartment.

Upper compartment. Lower compartment. + 10 °C + 5 °C Preset temperatures

OFF +4 +5 +6°C +7 +8 OK

2) Scoll up/down to select the desired temperature.

UpperCompartment from +39°F to +64°F (from +4°C to +18°C).

OFF +4 +5 +6°C +7 +8 OK

3) Touch OK to confirm the desired temperature.

The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature items. It might take between 6 to 12 hours for warm items to reach the selected temperature.

Padlock icon

The padlock icon shows up when the temperatures are set up.

The padlock open/close shows that the compartment's temperatures can or cannot be modified by the user.

Usually a grey padlock will show open, in that case you can scroll up or down with a finger on the display, selecting the desired temperature and press OK to confirm.

OFF +4 +5 +6°C +7 +8 OK

Whereas a white closed padlock will be seen if the user has activated a function that modifies the settings of the refrigerator and prevents the user from changing the temperature of the compartment.

OFF +4 +5 +6°C +7 +8 OK

If the icon function is touched and a specific function is set, the white padlock will be seen closed and it won't be possible to change the temperature of the compartments as long as the function won't be completed or if it is manually deactivated as long as the function is active.

4.3 Information signals of warning messages on the display.

An integrated control system will give information through messages you will see on the display.

There is an alarm tone that occurs with some error messages which can be turned off by touching the alarm button on the main control panel.

You can find the list of the various messages at the end of this manual.

FULGOR MEANO FULGOR MEANO FLUOR FLUOR FLUOR

4.4 Wine Cellar temperatures.

Most red wines are best stored a slightly warmer temperatures.

Illustration of a wine bottle and a glass on a neutral background (no text or symbols)

Red Wine.

from +50°F to +64°F (from +10°C to +18°C).

Illustration of a wine bottle and two glasses on a neutral background (no text or symbols)

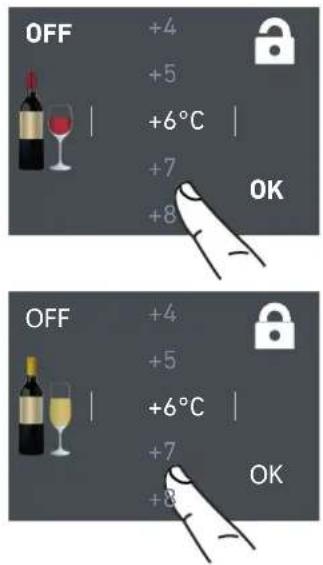

White Wine.

from +39°F to +48°F (from +4°C to +9°C).

If a temperature higher than +48°F (+9°C) is set, the display will change the icon from white wine to red wine.

OFF +4 +5 +6°C +7 +8 OK OFF +4 +5 +6°C +7 +8 OK

INFORMATION FOR USING THE DISPLAY.

It is possible to personalize the operation of your unit in order to adapt it to the different ways you might want to use it.

5.1 Functions.

After touching the functions icon 📄 on the home screen, the user will be shown the icons of the following available functions.

HIGH MEDIUM LOW OK

c) Scroll until setting the desired humidity and press Ok.

2) Interior light for 12 h.

This function enables the interior light staying on for 12 hours even when the wine cellar door is closed, in order to see the interior lighted up, through the glass.

1) Humidity Control.

2) Light 12h.

10 °C 5 °C FUNCTIONS SETTINGS

A) Home screen. Touch FUNCTIONS.

HUMIDITY CONTROL LIGHT 12H

B) Touch the LIGHT 12H icon.

1) Humidity Control.

This function enables to set the humidity of the upper and lower compartments. The default setting is set to "Medium".

FUNCTIONS + 10 °C + 5 °C SETTINGS

A) Home screen. Touch FUNCTIONS.

LIGHT 12h MODE ON OFF

c) Push ON if you want to activate Light 12h Mode.

HUMIDITY CONTROL LIGHT 12H

B) Touch HUMIDITY CONTROL.

5.2 Settings.

It is possible to personalize the settings of your wine cellar or adapting it to the different ways you might want to use it.

1) Date

The display will show the date in the format (day:month:year).

By touching the display you can modify the settings.

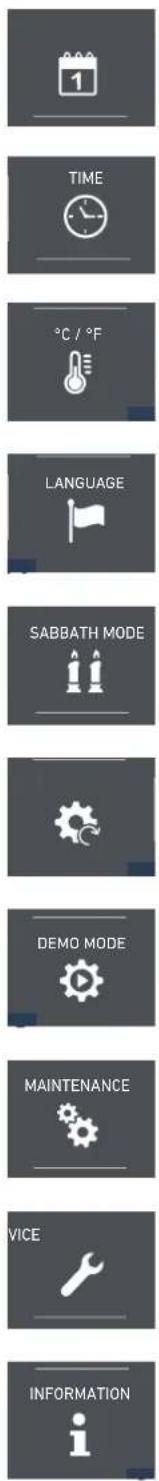

TIME °C / °F LANGUAGE SABBATH MODE DEMO MODE MAINTENANCE VICE INFORMATION

1) Date.

2) Time.

3) Fahrenheit and Celsius.

4) Language.

5) Sabbath Mode.

6) Reset.

7) Demo Mode.

8) Maintenance.

9) Service.

10) Information.

FUNCTIONS + 10 °C + 5 °C SETTINGS

A) Home screen. Touch the SETTINGS icon.

TIMEDATE 1 LANGUAGE°C /

B) Touch DATE.

2019 2020 YEAR | 2021 | 2022 2023 OK

C) Scroll up or down until the desired year appears and press OK

7 8 MONTH | 9 | 10 11 OK

D) Scroll up or down until the desired month appears and press OK

7 8 | 9DAY | 1 11 OK

E) Scroll up or down until the desired date appears and press OK

2) Time

The display shows the hours and minutes in the format hh:mm.

This function selects the display at 12 or 24 h and sets the time.

3) Set °F/°C

This function allows the temperature to be displayed in Fahrenheit or Centigrade. The factory setting is Fahrenheit.

FUNCTIONS + 10 °C + 5 °C SETTINGS

A) Home screen. Touch SETTINGS.

FUNCTIONS + 10 °C + 5 °C SETTINGS

A) Home screen. Touch SETTINGS.

TIMEDATE 1 LANGUAGE*0

C) Touch the desired method which you want the time to display: 12 hour or 24 hour.

°C °F OK

C) Scroll up / down to select either fahrenheit or centigrade degrees and press OK

7 8 HOUR | 9 | 10 11 OK

D) Scroll up / down to set the hour and then press OK

35 36 MIN | 37 | 38 39 OK

E) Scroll up / down to set the minutes and then press OK

4) Language

To set the language of the fridge, simply touch the settings button on the display.

FUNCTIONS + 10 °C SETTINGS + 5 °C

A) Home screen. Touch SETTINGS.

TIMEDATE 1 LANGUAGE°C / °

B) Touch the LANGUAGE icon.

ITALIANO ENGLISH | FRANÇAIS | DEUTSCH ESPAÑOL OK

C) Scroll up / down to select the desired language and press OK

6) Sabbath Mode

The function makes it possible to comply to certain religious observances requiring the operation of the appliance to not be affected by the opening or closing of the doors. The thermostatic control and inner lighting are deactivated.

FUNCTIONS + 10 °C 5 °C SETTINGS

A) Home screen. Touch SETTINGS.

SABBATH MODE DEMO MODERES

B) Scroll right once and touch the SABBATH MODE icon.

SABBATH MODE ON OFF

C) Touch the ON button to confirm the Sabbath Mode.

SABBATH MODE YES NO

D) Touch the YES button to activate the function.

SABBATH MODE

E) The wine cellar will work accordingly to this configuration.
Note: Sabbath mode automatically expires after 72 hours. To deactivate prior to this, touch the display to wake it up and choose the OFF option.

7) Reset

It gives the possibility to restore the default settings that were set in the factory, cancelling all the changes that have been made from there onward.

8) Demo Mode

It is possible to simulate the functioning of the appliance for showroom display or for trade shows.

FUNCTIONS + 10 °C + 5 °C SETTINGS

A) Home screen. Touch SETTINGS.

+ 10 °C + 5 °C FUNCTIONS SETTINGS

A) Home screen. Touch SETTINGS.

SABBATH MODE DEMO MODERESE

B) Scroll right once touch the RESET icon.

SABBATH MODE DEMO MODERESE

B) Scroll right once and touch DEMO MODE.

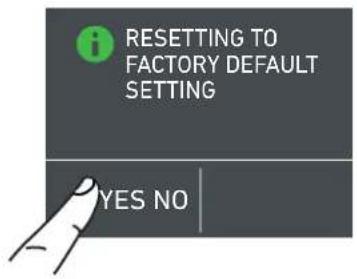

i RESETTING TO FACTORY DEFAULT SETTING YES NO

c) Touch the YES icon to confirm the selection of the resetting of factory default settings.

DEMO MODE 1 | 2 3 | 4

C) Input the password for the activation.
Default password 1-2-3-4

RESET YESNO

D) Touch the YES icon

DEMO MODE ON OFF

D) Select either ON or OFF.

RESET RESET COMPLETE

E) The reset has been performed. The wine cellar's factory settings have been restored.

9) Maintenance

For the appliance to function as designed, it is important to periodically clean the ventilation grille and the condenser. The default setting of the unit is "Warning disabled". Cleaning is recommended every 12 months. If enabled, the appliance will issue a reminder once per year to clean the grille and condenser. It is possible to disable the warning signal and see the time left before the next cleaning that has to be done. For details see section 9.2.

FUNCTIONS + 10 °C + 5 °C SETTINGS

A) Home screen. Touch SETTINGS.

MAINTENANCE SERVICE INFORMATION i

B) Scroll to the right three times and touch MAINTENANCE.

CLEAN CONDENSER ENABLE REMINDER? YES NO

C) To enable it, touch the YES icon.

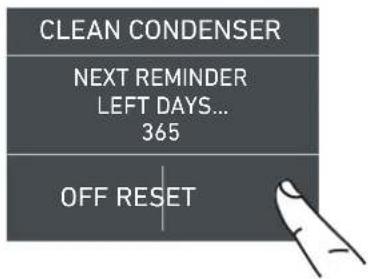

CLEAN CONDENSER NEXT REMINDER LEFT DAYS... 365 OFF RESET

D) Here you can RESET the countdown for another year or disable the reminder altogether by touching OFF.
If you choose to disable the reminder, you will see the screen below.

CLEAN CONDENSER DISABLE REMINDER? YES NO

E) To disable the warning, touch the YES button.

9) Service

The service function is reserved for the Fulgor Milano service technicians.

11) Info System

The Info System function shows the product data, for example the software code, serial number and the factory code of the of the wine cellar.

FUNCTIONS + 10 °C + 5 °C SETTINGS

A) Home screen. Touch SETTINGS.

MAINTENANCESERVICE INFORMATION i

B) Touch INFORMATION.

SK Power | HW: SW: SK User | HW: SW:

C) The display will show the data specific to the appliance.

6.1 Internal Layout (positioning, adjustment, removal)

Wine shelf

The shelves can be easily removed for cleaning. Remove the bottles, completely extract the shelf, tilt it upward until the wheels are free of their seat and extract it.

Illustration of hands installing or adjusting a metal tray with circular components (no text or symbols)

7.1 Interior lighting

To provide optimum interior lighting, LED strips illuminate both compartments from the sides.

In case of malfunction and/or failure of the lighting system, you should contact an authorized Fulgor Milano Service Agent.

Once activated, the light of the top compartment will automatically shut off after 12 hours.

Illustration of a smartphone screen with abstract triangular patterns on blue background (no text or symbols)

8.1 General directions

Wine can stored for extended periods of time, especially under the following conditions:

Suitable temperature without significant mid to long term temperature changes over time
Controlled level of humidity
Protection from light
Absence of vibrations
Absence of odours
Bottle kept horizontal.

All of these conditions are fully met in the Fulgor Milano Wine Cellar.

8.2 Conservation temperature

The space offered by the upper and lower compartments, allows conservation of your wines at two different temperatures.

The two compartments are initially set to the following temperatures:

Upper compartment

$$ \begin{array}{l} + 5 4 ^ {\circ} \mathrm{F} (+ 1 2 ^ {\circ} \mathrm{C}) - \text { adjustable from } + 3 9 ^ {\circ} \mathrm{F} \text { to } + 6 4 ^ {\circ} \mathrm{F} \ (\text { from } + 4 ^ {\circ} \mathrm{C} \text { to } + 1 8 ^ {\circ} \mathrm{C}) \end{array} $$

Lower compartment

$$ \begin{array}{l} + 5 0 ^ {\circ} \mathrm{F} (+ 1 0 ^ {\circ} \mathrm{C}) - \text { adjustable from } + 3 9 ^ {\circ} \mathrm{F} \text { to } + 6 4 ^ {\circ} \mathrm{F} \ (\text { from } + 4 ^ {\circ} \mathrm{C} \text { to } + 1 8 ^ {\circ} \mathrm{C}) \end{array} $$

All the temperatures can be modified according to the characteristics of the wines and personal preferences. However, you should attempt to keep the temperature as constant as possible over time.

Rapid and large-scale temperature variations can in fact cause dilation of the liquid and early aging of the wine.

You should also avoid very low temperatures (below +39°F) which may lead to the formation of deposits and damage the aesthetic qualities of the wine.

All the compartments offer optimal conditions and take into account all these needs. It should however be noted that the upper compartment, in particular, is thermostatically controlled in a very precise manner and ensures the utmost care and

attention over time of your most prized bottles. When the upper compartment is set below +54°F (+12°C) the lower compartment must not be set beyond +50°F (+10°C).

Cantina
	> Upper compartment +54°F (+12°C) - adjustable from +39°F to +64°F (from +4°C to +18°C)
	> Lower compartment +50°F (+10°C) - adjustable from +39°F to +64°F (from +4°C to +18°C)

8.3 Time of conservation

Improvement of wine over time and its duration usually depends on the character of the variety and its type. The following chart shows the best period of conservation and aging for various types in ideal conservation conditions offered by your appliance.

However, you should always follow the instructions of the winemaker, especially for fine wines.

TYPE OF WINE CONSERVATION TEMPERATURE TIME OF CONSERVATION

New wines (Vin Nouveau) from +54° to +57°F 6 months

Sweet sparkling wines from +46° to +50°F 1 year

Rosé from +50° to +57°F 1 year

Semi-sparkling wines from +50° to +54°F 1-2 year

Normal white wines from +50° to +57°F 1-2 year

Light red wines from +54° to +57°F 2 year

Dry sparkling wines from +46° to +50°F 2 year

Classic sparkling wines from +46° to +50°F 3-4 year

Barrique and Vigorous white from +46° to +54°F 3-5 year

Normal red wines from +57° to +61°F 3-5 year

Barrique and Vigorous red wines from +57° to +64°F 7-10 year

Straw wines or Liquorous wines from +61° to +64°F 10-15 year

8.4 Consumption temperature

As a general rule, white wines should be served at a temperature between +50°F and +54°F (+10°C and +12°C) and red wines between +54°F and +57°F (+12°C and +14°C).

Some wines may however be best enjoyed at higher or lower temperatures.

You should also keep in mind that, during the summer, wine is generally enjoyed at lower temperatures than during the winter.

You should also consider the following:

White wines

White wines are normally not served at high temperatures, since they are generally more acidic that red wines and not very tannic. Therefore they are more enjoyable at low temperatures.

It is preferable to serve these wines between

+ 50°F and +57°F (+10°C and +14°C). Young, fresh and aromatic wines can also be served at +50°F (+10°C), while less aromatic ones are served at +54°F (+12°C).

Temperatures between +54°F and +57°F (+12°C and +14°C) are for soft, mature white wines that have been aged for some years in the bottle.

Higher temperatures would favour the exaltation of the sweet character of the wine, at the expense of the acidity and flavour, which are considered pleasant and desirable characteristics of this type of wine.

Rosé

Rosé wine is served at the same temperature as white wines. It should be noted that these wines may include a certain amount of tannin and may therefore be preferable at higher temperatures. Therefore, they are served between +50°F and +54°F (+10°C and +12°C), if young and fresh, and between +54°F and +57°F (+12°C and +14°C) if robust and mature.

Due to the special processing they undergo, new vintage wines contain a low tannin content and are therefore more enjoyable if served between +54°F and +57°F (+12°C and +14°C).

Red wines

Since they contain more tannin and are less acidic, red wines are normally served at higher temperatures.

Younger wines with less tannin are normally served between +57°F and +61°F (+14°C and +16°C), while more full-bodied ones that are more tannic may be served at up to +64°F (+18°C). Some wines that have aged for years in the bottle, still full-bodies and tannic, may be served at +64°F (+18°C) or even +68°F (+20°C).

Young red wines with little tannin and slightly structured may be enjoyable at lower temperatures, between +54°F and +57°F (+12°C and +14°C).

Sparkling wines

It is difficult to provide instructions to cover the wide variety of sparkling wines in available.

As a general rule, sweeter and more aromatic sparkling wines should be served at lower temperatures, down to +46^ (+8°C), whereas more tannic sparkling wines may be served at higher temperatures, up to +57^ (+14°C).

Dry sparkling wines are usually served between +46°F and +50°F (+8°C and +10°C).

"Classic" sparkling wines are normally served at these temperatures, which may be as high as +54^ (+12^) for sparkling wines that have been aged for some time.

It is however advisable, especially for finer wines, to follow the suggestions and recommendations of the winemaker on the bottle.

These types of wines can be served at temperatures between +61°F and +64°F (+16°C and +18°C), depending on personal tastes, to attenuate the sweet taste of straw wines, it can also be served at +50°F (+10°C).

8.5 Position of bottles

The sliding shelves are made of fine wood and contoured so as to hold bottles of the most classical traditional shape or of the most modern design.

Whether your collection holds fine bottles or small bottles they will be right at home in the Fulgor Milano Wine Cellar.

Also Magnum bottles can be stored, provided you remove the shelf just above the one that will hold them.

After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if the temperature has been raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items. After one minute the display will resume normal operation, while the Alarm button will continue to blink.

Press the Alarm button ⏻ to display the highest recorded temperatures.

9.1 Care and Cleaning

To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel's satin finish.

Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth.

You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions.

Carefully follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently.

Before performing any sort of cleaning, disconnect the appliance from the electrical power supply.

Make sure you do not damage the refrigerant circuit in any way.

Do not use chlorine-based detergents or cleaning agents.

Burgundy BOTTLE Bordeaux BOTTLE

9.2 Cleaning of the ventilation grille and condenser.

The unit requires, for a correct operation, the cleaning of the toe kick cover, filter and condenser.

It is recommended to perform the following cleaning steps very 12 months. If enabled, an audio and visual message on the display will serve as a reminder. It is possible to disable the warning signal and see the time left before the next cleaning has to be done.

Behind the frontal ventilation grille is the condenser. To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along in the direction of the vent slits. In case of a significant dust build up, the toe kick cover can be removed to allow a more accurate cleaning of the filter.

On the maintenance settings, after the installation of the unit and after it has been turned on, you can set the condenser cleaning warning.

In the case the warning sign is enabled, there will be an audible signal every 12 months, alerting that it is time to clean the condenser.

After cleaning it, touch the reset icon in order to reactivate the warning signal in 12 months.

If you do not want the cleaning signal alert for the condenser, touch the Off icon.

Lower condenser.

For cleaning the condenser follow the instructions:

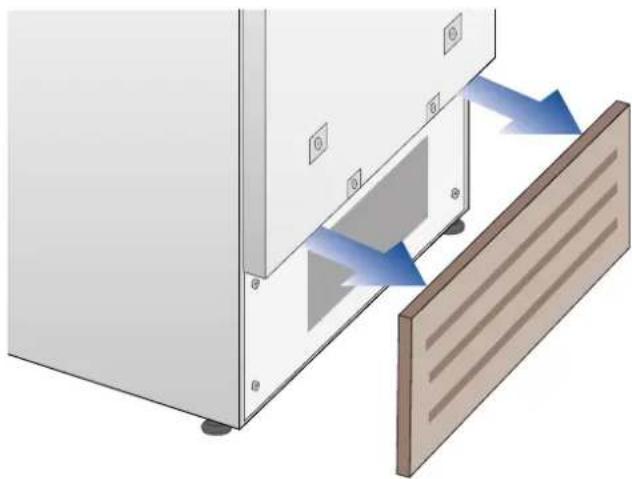

Remove the magnetic grille behind the door.

Diagram of a door opening with blue arrows indicating direction, showing structural components and a wooden panel (no text or symbols)

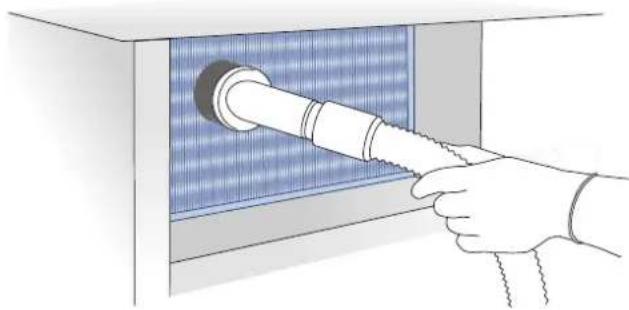

Clean it thoroughly of any dust build up as shown in the picture, taking care not to damage the condenser.

Illustration of a hand inserting a pipe into a blue-patterned panel inside a cabinet (no text or symbols)

The edges of the condenser are extremely thin and can be sharp, therefore use adequate protection for hands and arms when cleaning the condenser.

9.3 Internal cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water and a small amount of dishwashing detergent.

Rinse and dry right away.

Do not use mechanical devices or other methods to speed up defrosting.

Do not use water on the electrical parts, lights and control panel.

The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

Do not bring cold glass parts into contact with boiling water.

Do not wash any parts of the refrigerator in a dishwashing machine since this could damage or irreparably deform the parts.

10.1 Troubleshooting guide

If you notice malfunctions in your appliance, use this guide before calling Service. This guide may help you resolve the problem yourself or could provide important information to ensure rapid and effective service.

Malfunction message

A malfunction is usually indicated on the display. Problems that cannot be resolved by the user are signalled through an error code.

The appliance does not work

Is the appliance connected to the electrical power supply?

Does electrical power arrive at the electrical socket?

Is the Unit power activated?

Is the condenser clean?

The internal temperatures are higher than normal

Does the display show a malfunction code?

Is the temperature adjusted correctly?

Is the condenser clean?

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

The compressor runs for a long time period

Bear in mind that during a very hot weather and with very high temperatures in the room it is normal that the compressor remains in operation for prolonged periods of time.

Were the doors or drawers open for a long period of time?

Were large quantities bottles recently inserted?

Is the condenser clean?

Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door.

If you hear strange noises

It is normal to hear noise from the fans or compressors during the defrost phase.

Noise could be louder depending on the position of the appliance and the surrounding environment.

Condensation forms both inside and out

If the climate is very humid, the formation of condensation is normal. Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation.

In any case, make sure that the doors are always completely closed.

The doors are difficult to open

The appliance was designed to permit hermetic closure.

When the door is closed, a vacuum situation can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door.

10.2 Malfunction indications appearing on the display

Display message Malfunction description
Power Failure	Prolonged interruption of electrical powerThe appliance starts up again automatically and indicates the highest recorded temperatures.
Door open	Door openthis message appears few minutes from the door opening.
Upper or lower zone too warm	See the troubleshooting guide.
Upper or lower zone too cold	Wait 12 hours. If the problem persists, contact Customer Care.
Error Code...	Functional problemscall Customer Care who may help you to salve the problem or put you in contact with the nearest Service Agent may help you solve the problem.
Check condenser	Check CondenserEvery 12 months the display shows the message “Check Cond”, clean the condenser and follow the instructions above about how to clean the condenser.

In case of errors, touch the button Alarm ⏻ and the display will show the error message with its error number code.
The message will be shown for 3 seconds, then it will go back to the home screen.
To hold the message on the screen, press on the display, the button info ( i ). The message will be on the screen for 30 seconds, then it will go back to the home screen.
In the case there is more than one error message, the display will show in timed sequence the different messages.

1 INDICATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ 4

Illustration of hands inserting a plug into an electrical outlet (no text or symbols)

SN (Subnormal) from +50°F to +90°F (+10°C to +32°C)
N (Normal) from +61°F to +90°F (+16°C to +32°C)
ST (Subtropical) from +64°F to +100°F (+18°C to +38°C)
T (Tropical) from +64°F to +109°F (+18°C to +43°C)

First time starting the unit

FULGOR MILANO

1) Logo.

ESSAI INTIAL ... FONCTIONS RÉGLAGES

2) Test initial (il dure environ 3 minutes).

VOULEZ-VOUS CONTINUER? OUI NON

FULGOR MLAND FULGOR MLAND

VOULEZ-VOUS CONTINUER? OUI NON

VOULEZ-VOUS CONTINUER? OUI NON

ON +4 +5 +6°C +7 +8 OK

FULGOR MEANO FULGOR MEANO FULGOR MEANO

Illustration of a wine bottle and a glass on a neutral background (no text or symbols)

Vins Rouges.

$$ \begin{array}{l} \text {de} + 5 0 ^ {\circ} \mathrm{F} \text {à} + 6 4 ^ {\circ} \mathrm{F} \ (\text {de} + 1 0 ^ {\circ} \mathrm{C} \text {à} + 1 8 ^ {\circ} \mathrm{C}). \end{array} $$

Illustration of a wine bottle and a glass on a neutral background (no text or symbols)

Vins Blancs.

$$ \begin{array}{l} \text { de } + 3 9 ^ {\circ} \text { F à } + 4 8 ^ {\circ} \text { F } \ (\text { de } + 4 ^ {\circ} \text { C à } + 9 ^ {\circ} \text { C }). \end{array} $$

7 8 | 9MOIS | 10 11 OK

MODE DEMO 1 | 2 3 | 4

MODE DEMO ON OFF

SK Power | HW: SW: SK User | HW: SW:

Illustration of hands installing or maintaining a tray with a plastic sheet, no text or symbols present

7.1 Éclairage

Illustration of a smartphone with abstract geometric patterns on a blue background (no text or symbols)

Diagram of a door opening with blue arrows indicating direction, showing structural components and a wooden panel (no text or symbols)

Illustration of a hand inserting a pipe into a blue-patterned panel inside a cabinet (no text or symbols)

Illustration of hands inserting a plug into an electrical outlet (no text or symbols)

3.5 Panel de control principal

FULGOR

MILANO

Encendido y Apagado

FULGOR MILANO

1) Logotipo.

FULGOR MLAND FULGOR MLAND

ON +4 +5 +6°C +7 +8 OK

2) Pulse ON.

FULGOR MLAND FULGOR SLAND FULGOR SLAND

4.4 Temperaturas del armario cava

Illustration of a wine bottle and a glass on a neutral background (no text or symbols)

Vino tinto.

Illustration of a wine bottle and two glasses (no text or symbols)

Vino blanco.

7 8 HOUR | 9 | 10 11 OK

Note: Sabbath mode automatically expires after 72 hours. To deactivate prior to this, touch the display to wake it up and choose the 'OFF' option.

7) Reiniciar

DEMO MODE 1 | 2 3 | 4

DEMO MODE ON OFF

SK Power | HW: SW: SK User | HW: SW:

Illustration of hands handling a tray with a plastic sheet, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram of a cabinet with arrows indicating flow or movement, showing internal components and a wooden panel (no text or symbols)

Illustration of a hand inserting a pipe into a blue-patterned panel inside a cabinet (no text or symbols)
