USER MANUAL OSE 2-70x198-EC Flex
OSE 2-70x198-ECOSE 2-70x19
Diagram showing a hand holding a rectangular plate with holes, being cut by an arrow (no text or symbols present)
WARNING!
Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.
CAUTION!
Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.
NOTE
Denotes application tips and important information.
Symbols on the power tool
To reduce the risk of injury, read the operating instructions!
Wear goggles!
Wear ear protection!
Wear mask!
Class II tool
Disposal information for the old machine
For your safety
WARNING!
Before using the power tool, please read the follow:
- these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.
This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.
Nevertheless, when in use, the power tool may
be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.
The sander may be used only
-asintended,
- in perfect working order.
Faults which impair safety must be repaired immediately.
Intended use
The sander is intended
– for commercial use in industry and trade,
- for sanding wood, plastic, paint, filler and similar materials using the dry sanding process.
- for use with Velcro sanding sheet and accessories which are indicated in these instructions or which are recommended by the manufacturer.
When metal is being ground, flying sparks occur. Ensure that nobody can be endangered by flying sparks.
Safety instructions for sander
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
- Hold the power tool by insulated gripping surfaces, because the sanding surface may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
■ Attention Risk of fire! Avoid overheating the material to be ground and the grinder. Always empty the dust container before taking breaks from work. Grinding dust in the dust sack, microfilter, paper sack (or in the filter sack or filter of the dust extractor) may self-ignite under unfavourable conditions, e.g. caused by flying sparks when grinding metals. It is particularly hazardous if the grinding dust is mixed with paint or polyurethane residue or other chemical substances and if the material is ground for a long time until hot.
■ Do not use the electric power tool if it has a damaged power cord. Do not touch the damaged power cord and pull out the mains plug if the power cord is damaged during work. Damaged power cords increase the risk of an electric shock.
■ Use the electric power tool for dry sanding only. If water penetrates the electric power tool, there is an increased risk of electric shock.
■ Dust released from materials, such as lead paints, some types of wood, minerals and metal, may be hazardous to the operator or people in the vicinity.
Inhaling or touching these dusts may result in respiratory diseases and/or allergic reactions.
- Ensure the work place is well ventilated!
- If possible, use external dust extraction.
-
It is recommended to wear a respirator mask belonging to filter class P2.
-
Secure the workpiece. A workpiece is held more securely in a clamping device or vice than by hand.
- Keep the workplace clean. Material mixtures are especially dangerous. Light metal dust may burn or explode.
■ Do not work on materials which release hazardous substances (e.g. asbestos).
■ Never grind or cut light metals which have a magnesium content greater than 80%.
Risk of fire!
■ Before using the machine, check that the grinding tools have been installed and secured correctly. Switch on the power tool at no load for 30 seconds! - Interrupt the test run immediately if violent vibrations occur or other damage is established. Check the machine to determine the cause.
■ Before putting down the power tool, switch it off and wait until it comes to a standstill.
■ Do not clamp the power tool in a vice.
■ Always lay the power cord to the rear away from the electric power tool.
Additional safety instructions
■ Use only extension cables permitted for outdoor use.
■ Identify the power tool with stickers only. Do not drill any holes into the housing.
■ The mains voltage and the voltage specifications on the rating plate must correspond.
Noise and vibration
The noise and vibration values have been determined in accordance with EN 62841.
The A evaluated noise level of the power tool is typically:
– Sound pressure level L_pA : 76 dB(A);
– Sound power level L_WA : 84 dB(A);
- Uncertainty: K = 3 dB.
Total vibration value:
- Emission value a_h : 3.47 m/s
– Uncertainty: K = 1.5 m/s ^2
WARNING!
The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.
NOTE
The vibration emission level given in this information sheet has been measured in accordance with a measurement method standardised in EN62841-1, EN62841-2-4 and may be used to compare one tool with another.
It may be used for a preliminary assessment of exposure. The specified vibration emission level represents the main applications of the tool.
WARNING!
That the vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed; and of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
CAUTION!
Wear ear defenders at a sound pressure above 85 dB(A).
Technical specifications
See figure B

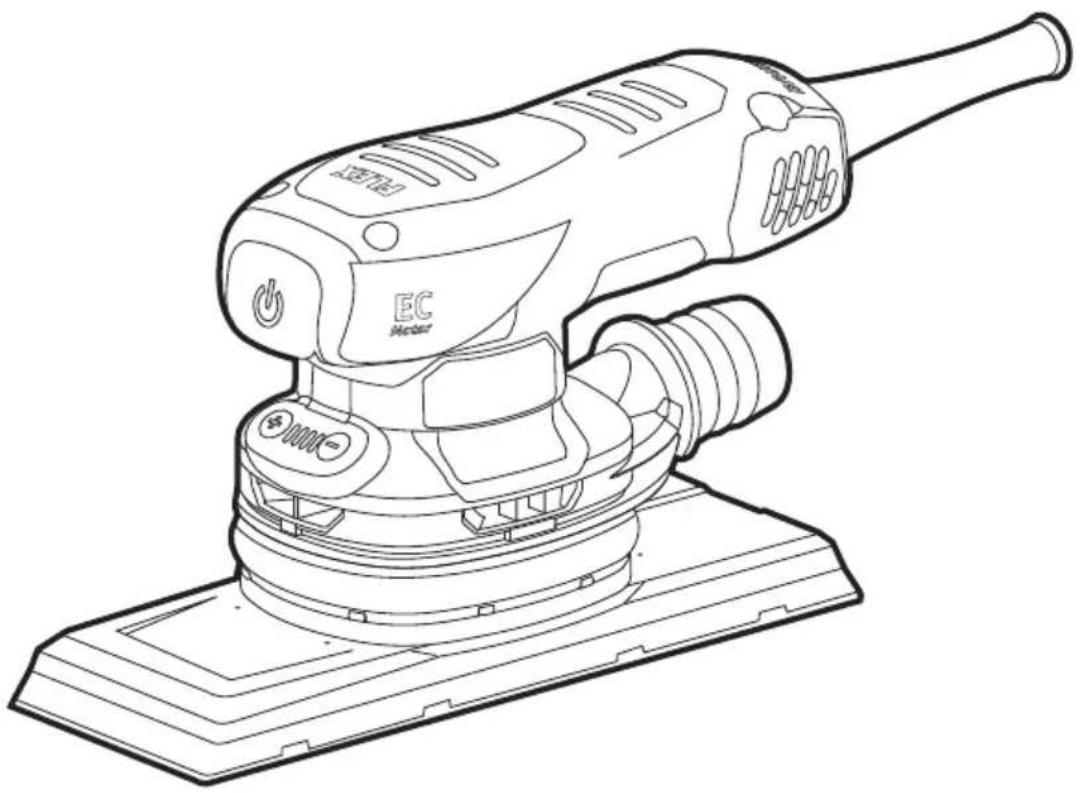

Overview (see figure A)
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 Insulated grip surfaces
2 On/off switch
3 Speed setting button
4 Speed control panel
5 Extraction nozzle
6 Sanding plate
7 Sanding sheet
Operating instructions
NOTE
When the power tool is switched off, the tool continues running briefly.
WARNING!
Before performing any work on the electric power tool, pull out the mains plug.
Before switching on the power tool
Pull out the mains plug and check that there are no missing or damaged parts.
Attaching/changing the sanding sheet
The sanding plate has Velcro fasteners and is therefore designed exclusively for use with Velcro sanding sheet (see figure C).
■ Pull out the mains plug.
■ Remove used sanding sheet 7.
■ Remove any coarse debris from the sanding plate 6.
■ Attach new sanding sheet. Align the holes in the sanding sheet with the holes in the sanding plate 6.
■ Attach the sanding sheet by gently pressing it against the Velcro fasteners on the sanding plate 6.
Changing the sanding plate

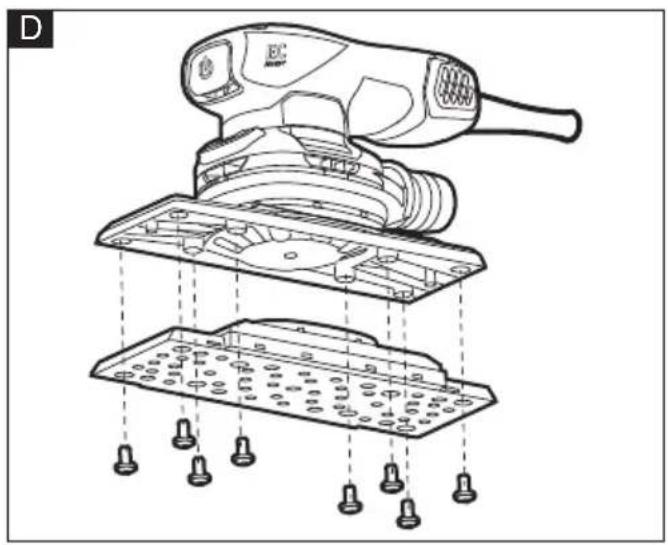

If the sanding plate 6 has worn out, it can be replaced (see figure D).
■ Pull out the mains plug.
■ Undo the eight screws.
■ Remove the sanding plate 6 by pulling it downwards.
■ Attach a new sanding plate.
■ Tighten the eight screws back.
Setting the speed

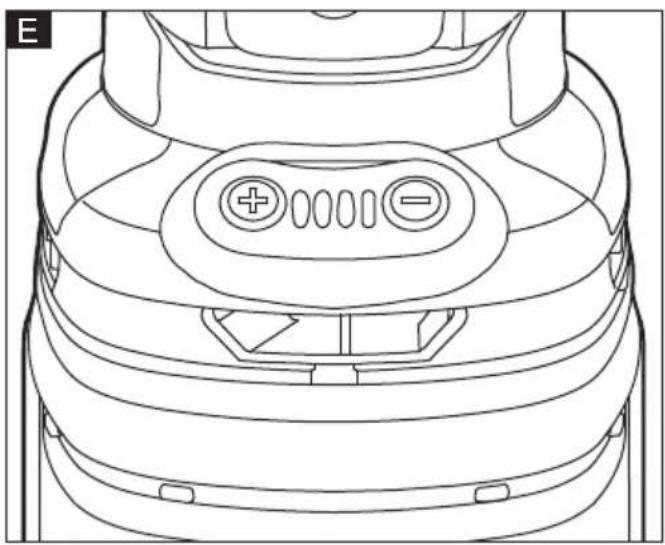

There are four speed levels that can be changed using the speed setting buttons 3. The LED lights above the numbers indicate the current speed level (see figure E).
The speed level can be set when the tool is connected to the power supply or when the tool is already in operation. After you turn the tool off, the memory function will remember and revert to the last active speed level the next time the tool is turned on.
Switching on and off

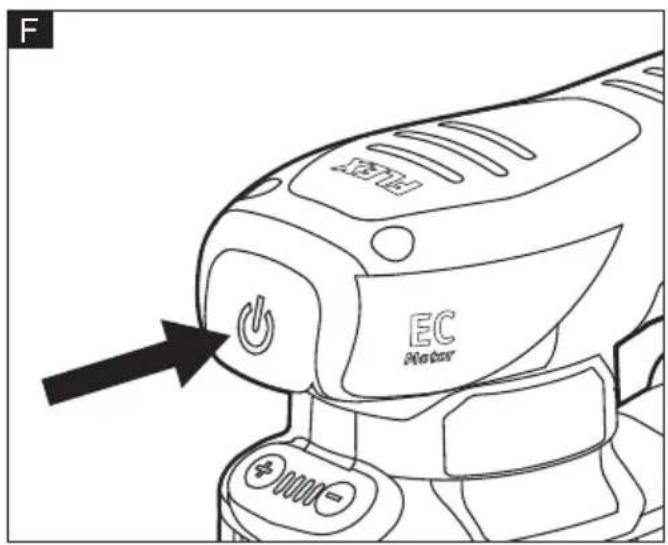

Switch power tool on or off by pressing on/off switch 2 (see figure F).
CAUTION!
Following a power failure, the switched-on power tool will not start running again.
Operating instructions
WARNING!
Hold the electric power tool by the insulated grip surfaces only!
CAUTION!
When the power tool is switched off, the grinding tool continues running briefly.
- Switch on the sander and place the whole sanding sheet on the surface to be processed.
- Applying moderate pressure, move the sander evenly over the workpiece.
- The sanding result is determined primarily by the selection of the correct sanding sheet, the selected number of oscillations and the contact pressure.
– Replace sanding sheets in good time. - An excessive increase in the contact pressure will not increase the grinding performance, but will increase the wear on the electric power tool and the sanding tool.
Maintenance and care
WARNING!
Before performing any work on the electric power tool, pull out the mains plug.
Cleaning
■ Clean the power tool and grille in front of the vent slots regularly. Frequency of cleaning is dependent on the material and duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air.
Spare parts and accessories
For other accessories, in particular tools and polishing aids, see the manufacturer's catalogues.
if the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.
Exploded drawings and spare-part lists can be found on our homepage:
www.flex-tools.com
Disposal information
WARNING!
Render redundant power tools unusable:
- mains operated power tool by removing the power cord,
EU countries only
Do not throw electric power tools into the household waste!
In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.
Raw material recovery instead of waste disposal.
Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.
NOTE
Please ask your dealer about disposal options!
C ∈-Declaration of conformity
We declare on our sole responsibility that the product described in "Technical specifications" conforms to the following standards or normative documents:
EN 62841 in accordance with the regulations of the directives 2014/30/EU, 2006/42/EC, 2011/65/EU.
Responsible for technical documents:
Technical Director Head of Quality
Department (QD)
Exemption from liability
The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.
The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.
Declaration of Conformity
We as the manufacturer: FLEX
declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant provisions of The Supply of Machinery
(Safety) Regulations S.I. 2008/1597 and also fulfills all the relevant provisions of the following UK Regulations:
Electromagnetic Compatibility Regulations
S.I. 2016/1091, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations
S.I. 2012/3032 and are manufactured in accordance with the following designated Standards:
BS EN 62841-2-4
Place of declaration: Steinheim, Germany. Responsible person: Peter Lameli, Technical Director - FLEX-Elektrowerkzeuge GmbH
Contact details for Great Britain: FLEX Power Tools Limited, Unit 8 Anglo Office Park, Lincoln Road, HP 12, 3RH Buckinghamshire, United Kingdom.
Technical Head Head of Quality
Department (QD)
01.03.2023
Peter Lameli Klaus Peter Weinper Technical Head Head of Quality Department
Aₚ - Several (A) := minimizeBudget L.
