USER MANUAL BBP62 BeamZ

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION....4

POWERSUPPLY 4

DMX512 CONTROL 4

WIRELESS DMX CONTROL 4

APP INSTRUCTION 4

CLEANING....5

TROUBLE SHOOTING 6

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 7

UITPAKKEN 8

AANSLUITSPANNING 8

DMX BEDIENING 8

DRAADLOOS DMX 8

APP INSTRUCTIE....9

REINIGEN 9

PROBLEMEN OPLOSSEN 10

DEUTSCH

INSTRUCTIONS POUR L'APPLICATION ....21

NETTOYAGE 21

RESOLUTION DE PROBLEMES....22

POLSKI

INSTRUKCJA BEZPIECZENSTWA 23

ROZPAKOWYWANIE INSTRUKCJI 24

ZASILACZ 24

KONTROLA DMX512 24

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to ry, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5mm^2 . The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by pulling the powerconnector but use the power on/off switch!

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

DMX512 CONTROL

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

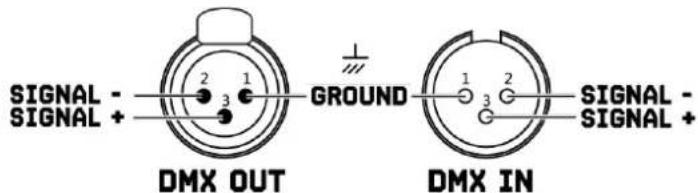

SIGNAL - SIGNAL + DMX OUT GROUND 1 2 3 1 2 3 SIGNAL - SIGNAL + DMX IN

1 2 3 120 OHM TERMINATOR

WIRELESS DMX CONTROL

The unit can be used with wireless DMX. The wireless receiver module, functions only as a receiver of a 2.4 GHz wireless signal. Switch DMX on wirelessly via the main menu (see menu structure, behind of the manual for more information).

Then establish a wireless connection with the Beamz BPP Wireless DMX Transmitter (154.077).

CAUTION! The BPP Wireless DMX Transmitter and unit must be connected on the same DMX Universe, you can check easily by the colour of LED indicator.

DMX UNIVERSE	COLOUR	DMX CHANNELS
1	Red	1 - 512
2	Green	1 - 512
3	Yellow	1 - 512
4	Blue	1 - 512
5	Magenta	1 - 512
6	Cyan	1 - 512
7	White	1 - 512

APP INSTRUCTION

STEP 1:

Find [WIFI] and press to turn[ENTER].

STEP 2:

"Led_XXX" displayed on the screen is the WIFI address of the light fixture.

STEP 3:

Scan the above QR code to install [LED (LAMP)] mobile phone.

STEP 4:

On the phone, find WIFI and search WIFI address, and the words beginning with LED appear.

For example, "LED-XXX", click the link.

STEP 5:

Turn on the [AED in LAME] on the phone and show the link is successful then you can control it.

QR code with a central logo containing the letters 'C' and 'B', likely linking to a digital resource or website.

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
• Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained.Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit.Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

Black wireless earplifier device with two external antennas (no visible text or labels)

APP INSTRUCTIE

STAP 1:

QR code with central logo containing 'LED' text and rainbow-colored circular design

REINIGEN

QR code with central logo containing 'LED' text and rainbow-colored circular design

REINIGUNG

QR code with a colorful circular logo in the center, likely linking to a digital resource or website.

LIMPIEZA

QR code with central logo containing a rainbow-colored 'L' and text 'LSD'

NETTOYAGE

QR code with central logo containing 'LED' text and rainbow-colored arc design

ROZWIAZYWANIE PROBLEMÓW

	Auto Power	On/Off
	IRC Setting	YES/NO
	Wireless DMX Setting	YES/NO
	Wireless DMX FREQ	1CH-7CH
	Power Setting	High/Medium/Low
	Emergency Lamp	YES/NO
	DMX Hold	YES/NO
	Auto Lock	YES/NO
INFORMATION	Work Hours	001-999
	Software Version	Vxxxx
	Hardware Version	OLED90 6in1
	Power on

DMX CHANNELS

7 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	RED	000-255	Red from darkness to brightness
2	GREEN	000-255	Green from darkness to brightness
3	BLUE	000-255	Blue from darkness to brightness
4	WHITE	000-255	White from darkness to brightness
5	AMBER	000-255	Amber from darkness to brightness
6	UV	000-255	UV from darkness to brightness
7	DIMMER	000-019	Normal
		020-039	Dimmer-1
		040-059	Dimmer-2
		060-255	Dimmer-3

11 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	TOTAL DIMMER	000-255	Total dimmer
2	STROBE	000-009	Strobe close
		010-255	Strobe open, from slow to fast
3	RED	000-255	Red from darkness to brightness
4	GREEN	000-255	Green from darkness to brightness
5	BLUE	000-255	Blue from darkness to brightness
6	WHITE	000-255	White from darkness to brightness
7	AMBER	000-255	Amber from darkness to brightness
8	UV	000-255	UV from darkness to brightness
9	PROGRAMS	000-009	Dimmer mode
		010-029	Color selection: color selection for the 10th channel
		030-049	Jump, the channel 10 controls the speed
		050-069	Gradient, the channel 10 controls the speed
		070-089	Sudden, the channel 10 controls the speed
		090-109	Red on+ white strobe, the channel 10 controls the speed
		110-129	Green on+ white strobe, the channel 10 controls the speed
		130-149	Blue on+ white strobe, the channel 10 controls the speed
		150-169	Amber on+ white strobe, the channel 10 controls the speed
		170-255	UV on+ white strobe, the channel 10 controls the speed
10	COLOR SELECT OR SPEED	000-255	The function of this channel depends on the value of the 9th channel: When the 9th channel is 10~29, this channel is used to select the color When the 9th channel is 30~255, the control speed of this channel: 0 is the slowest, 255 is the fastest
11	DIMMER	000-019	Normal
		020-039	Dimmer-1
		040-059	Dimmer-2
		060-255	Dimmer-3

TECHNICAL SPECIFICATIONS

Product colour Black

Light source 6-in-1 LED

LED colours Red, Green, Blue, Amber, White, Ultra Violet

Quantity of LEDs 6

Illuminance 5.423 lx @1m

Beam angle 22°

Field angle 45°

Flash rate per second 1 - 24Hz

IP rating IP65

DMX channels 7.11

DMX connection Wireless DMX

Wireless DMX protocol Eazylink

Battery 11.1V - 13.2Ah

Power supply 100-240VAC 50/60Hz

Power plug External power supply, Power-connector

Included accessories Power cable

Dimensions (L x W x H) 140 x 140 x 202mm (242mm with handle up)

Weight 39,00

Weight: Each 3.05

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

BEAMZ

offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!
