ASM250Z - Hand blender BESTRON - Free user manual and instructions

Product Type	Immersion blender
Brand	Bestron
Model	ASM250Z
Rated Power	250 W
Supply Voltage	220-240 V
Frequency	50/60 Hz
Protection Class	II
Dimensions (L x W x H)	6,5 x 6,5 x 38,0 cm
Cord Length	105 cm
Number of Speeds	2 (low and high)
Turbo Function	Yes
Recommended Uses	Blended drinks, milkshakes, sauces, soups, mashed potatoes and vegetables
Functions	Mix, puree, beat, finely chop
Maximum Continuous Operating Time	1 minute
Blade Cleaning	In a cup of lukewarm water, run the appliance for a few seconds
Motor Unit Cleaning	Damp cloth, do not immerse
Maintenance	Clean the mixing shaft after each use
Safety	Automatic stop when releasing the button; sharp blade, handle with care
Shaft Material	Metal (estimation)
Included Accessories	Shaft with blades, motor unit, power cord
Warranty	Consult Bestron customer service
Usage	Household use only

Frequently Asked Questions - ASM250Z BESTRON

How to use the Bestron ASM250Z immersion blender?

Attach the shaft to the motor unit by turning counterclockwise until it clicks. Plug in, immerse in ingredients, then press the on button (low speed) or the turbo button (high speed). Release to stop. Do not exceed 1 minute of continuous operation.

What types of food can I blend with this appliance?

You can prepare drinks, milkshakes, sauces, soups, and puree potatoes and vegetables directly in the pot (off the heat).

How to clean the immersion blender?

Unplug and let cool. Remove the shaft by turning clockwise. For quick cleaning, immerse the shaft in a cup half-filled with lukewarm water and run for a few seconds. Rinse and dry. The motor unit can be cleaned with a damp cloth. Beware of sharp blades.

Can I blend hot foods?

Yes, you can puree hot vegetables directly in the pot, but remove it from the heat before. Do not blend boiling liquids to avoid splashes.

What is the maximum continuous operating time?

The blender should not run for more than 1 minute at a time. Afterward, let it cool to room temperature before using again.

Is the blender suitable for elderly or children?

No, this appliance is not intended for children or persons with reduced capabilities without supervision. Children should not play with it. Keep it out of reach of children under 8 years.

What to do if the blender stops working?

Check that the voltage matches and the plug is good. If the cord is damaged or the appliance defective, contact a qualified repair person or Bestron customer service at www.bestron.com/service.

Can I use the blender without immersing it in a container?

No, never operate the blender outside a container. The blades are sharp and can cause injury. Always immerse the shaft in food before starting.

How to change speed?

The appliance has two buttons: one for low speed (on/off button) and one for high speed (turbo button). Hold down the button for the desired speed; release to stop.

What are the important safety instructions?

Use the appliance on a stable surface, with dry hands. Never immerse the motor unit in water. Do not let the cord hang. Unplug after use. Do not cover the appliance. Read the full manual before first use.

USER MANUAL ASM250Z BESTRON

Black and white photo of a Bestron electric shaver with a metal handle and spout (no visible text or symbols)

INSTRUCTION MANUALSTICK

DE

EN

PL H

SK

G

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

SICHERHEITSHINWEISE

- This appliance is not intended for professional use, but is intended for domestic and similar use, such as in staff kitchens, in shops, offices and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.

- Make sure that the mains voltage matches with the voltage shown on the rating plate.

• Always install the appliance on a stable and level surface where it cannot fall over.

- Parts of this appliance may become warm or hot. Avoid burning yourself. Do not touch.

- Your hands must be dry when you touch this appliance, it's cord and plug.

- This appliance must lose it's heat so give it sufficient clearance around it. Also do not cover it.

- This appliance, it's cord and plug may not come into contact with water.

- Do not touch this appliance if it have been in contact with water. Immediately unplug it.

- This appliance, it's cord and plug may not come into contact with heat sources or open fire.

- Never let the cord hang over the edge of the sink, a worktop or a table.

• Always remove the plug from the socket when you are not using the electrical appliance.

- Remove the plug from the socket by pulling the plug itself and not the cord.

- Do not use the electrical appliance if the cord is damaged.

- Do not switch on this appliance with an external timer or a separate remote controlled system.

- If the appliance is defective or the cord is damaged, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs. It must be replaced by the manufacturer, a technical service provider or a person with an equivalent qualification, to avoid any danger.

- Only use this appliance to mix, puree, beat and finely chop ingredients and never for other uses to avoid damages and injuries.

- This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge.

• Children are not allowed to play with the device.

- Cleaning and user maintenance should not be performed by children.

- Keep the appliance, it's cable and plug out of reach of children under the age of 8 years old.

ENVIRONMENT

Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.
- The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.
- Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

SERVICE

In the unlikely event of a malfunction, please contact Bestron customer service: www.bestron.com/service

Technical Specifications
Model ASM250Z
Mains 220-240V
Frequency (Hz) 50/60
Safety Class II
Power (Watt) 250
Noise (dB(A)) -
Max. Capacity -
Maximum continuous operating time (KB) -
Dimensions (L x W x H) (cm)	6,5x6,5x38,0
Cable length (cm)	105

OPERATION - General information

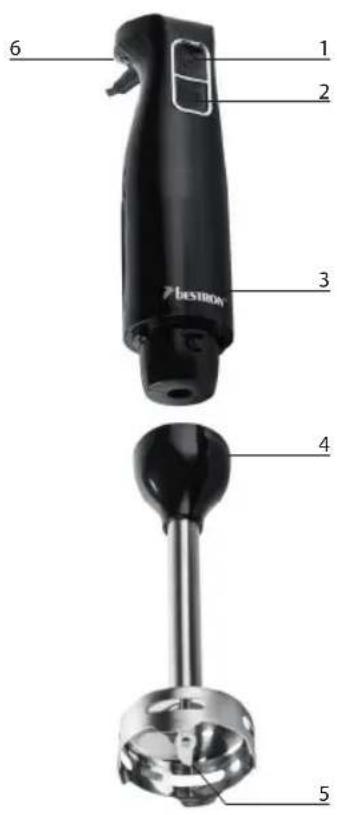

The following description is associated with the image on page 2:

1. Power button
2. Turbo button
3. Motor housing
4. Rod
5. Knives

6. Cord and plug

7. Take the appliance out of the packaging.

8. Clean the appliance (see 'Cleaning and maintenance').

The stickmixer is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing drinks and milkshakes. The stickmixer is equipped with two finger-tip pressure switches. Switch I to blend at a low speed, pressure switch II to blend at a high speed.

1. Install the rod to the motor housing by turning it counterclockwise until it clicks.
2. Put the ingredients to be mixed in a bowl. Make up with a small amount of moist substance such as milk, juice, water to make mixing easier.
3. Potatoes and vegetables can be pureed in the saucepan, but the saucepan must first be removed from the heat source.
4. Next, insert the plug into the plug socket.
5. Hold the Hand Blender upright in the bowl or pan. Then switch on the device by pressing the on / off button. Once the button is released, the unit will stop mixing.
6. If mixing at high speed is required, hold down the turbo button. Once the button is released, the unit will stop mixing.
7. Hold the bowl / pan during use so that it cannot slide off the worktop.
8. Switch off the appliance after use by releasing the switch. Once you have finished, remove the plug from the plug socket.

WARNING:

- Never turn on the mixer if the mixing stick is not in the bowl/saucepan. Otherwise, the sharp knife may cause serious injury.

- The mixer may not be used for more than one minute without stopping. After that let the appliance cool down to room temperature.

CLEANING AND MAINTENANCE

1. Remove the plug from the wall socket and allow the appliance to cool down sufficiently.
2. Remove the rod from the motor housing by turning it clockwise.
3. Put the hand blender in a cup half filled with warm water. Hold the cup firmly and turn on the device for a few seconds. The knives have now been cleaned.
4. The stickmixer can be cleaned by rinsing it with running tap water. Dry it thoroughly.
5. Clean the appliance's motorunit with a damp cloth. After cleaning, dry the unit thoroughly.
6. Store the appliance.

WARNING:

- Be careful with the sharp knife during cleaning.

- Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

ALL YOU WANT TO KNOW ABOUT YOUR UNIQUE 5 YEAR WARRANTY

ALLES, WAS SIE ÜBER IHRE EINZIGARTIGE 5-JAHRES-GARANTIE WISSEN MÖCHTEN TOUT CE QUE VOUS VOULEZ SAVOIR SUR VOTRE GARANTIE UNIQUE DE 5 ANS ALLES WAT U WILT WETEN OVER UW UNIEKE GARANTIE VAN 5 JAAR TUTTO QUE LLO CHE VUOI SAPERE SULLA TUA GARANZIA UNICA DI 5 ANNI TODO LO QUE QUIERES SABER SOBRE TU ÚNICA GARANTÍA DE 5 AÑOS

BESTRON.COM/GUARANTEE

NEED HELP?

CHECK OUT OUR SERVICE PAGE

BRAUCHEN SIE HILFE? SCHAUEN SIE SICH UNSERE SERVICESEITE AN BESOIN D'AIDE? DISCUTE AVEC NOUS! CONSULTEZ NOTRE PAGE DE SERVICE HULP NODIG? CHAT MET ONS! BEKIIJK ONZE SERVICEPAGINA HO BISOGNO DI AIUTO? CHATTA CON NOI! GUARDA LA NOSTRA PAGINA SERVIZI ¿NECESITAS AYUDA? CONSULTE NUESTRA PÁGINA DE SERVICIO

BESTRON.COM/SERVICE

Generic user avatar icon showing a person wearing a headset and uniform (no text or symbols)

EASTERN EUROPE CUSTOMER SERVICE

POLSKA [e-mail] HRVATSKA [e-mail] CZECHIA [e-mail] SLOVENSKO [e-mail] ROMÂNIA [e-mail] BULGARIA [e-mail]

SERVICE HOTLINE: [phone]

240625-01

Hersteller / Fournisseur/ Výrobce / Proizvođač / Produčator / Výrobca / ПроизводителBestron Nederland BV, Moeskampweg 20, 5222 AW, 's-Hertogenbosch Niederlande, Pays-Bas, Nizozemi, Hollandia, Holandia, Olandia, Holandsko, Холандия
DCZHRPLRO/MDSKBG
Ursprungs-landChina	Pays d'origineChine Čína	Země původuChina Chiny	Zermlja podrijetlaChina Čína Kyráj	Wyprodu kowano w	Tara de origine	Krajina pôvodu	Страна на производ
