Product Type	TV cabinet with doors and glass shelves
Brand	Sanus
Model	DFV50
Dimensions (approx.)	Width: 120 cm, Depth: 40 cm, Height: 57 cm
Weight	Approximately 25 kg
Materials	Particle board, tempered glass, steel
Number of shelves	3 glass shelves (bottom, middle, top)
Doors	2 doors with handles
Maximum load capacity per shelf	Up to 10 kg (estimate)
Main features	Storage for audiovisual equipment, integrated cables, modern design
Included accessories	Rubber pads, soundproofing pads, handles, hinges, mounting hardware
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Anti-tip strap available as an option (ELM 701 sold separately)
Spare parts and repairability	Contact Sanus customer service for replacement parts
General information	Assembly required. Tool provided: M4 Allen key. Requires 2 people for assembly.

Frequently Asked Questions - DFV50 SANUS

What are the exact dimensions of the Sanus DFV50?

Approximate dimensions are: width 120 cm, depth 40 cm, height 57 cm. Please consult the manual for precise measurements.

What is the maximum weight each glass shelf can support?

Each glass shelf can support up to approximately 10 kg. Distribute the load evenly to avoid breakage.

How to clean the glass surfaces of the cabinet?

Use a soft, dry or slightly damp cloth. Avoid abrasive or ammonia-based cleaners that could damage the glass.

Is the cabinet delivered with an anti-tip strap?

No, the ELM 701 anti-tip strap is sold separately. It is highly recommended to install it for safety.

How many people are needed to assemble the DFV50?

Two people are recommended for safe and easier assembly.

What tools are provided in the kit?

The kit includes an M4 Allen key. Screws and other hardware are also provided.

Can I assemble the cabinet without the doors?

The cabinet design incorporates the doors into the structure. It is best to follow the complete assembly instructions.

How to install the door handles?

Push the handles [21, 22] onto the doors [08] as shown on page 15 of the manual. They snap into place without tools.

Is the cabinet compatible with a 55-inch TV?

The DFV50 model is designed for TVs up to 50 inches. For a 55-inch, check the dimensions and weight capacity.

What to do if a part is damaged or missing?

Contact Sanus customer service. Do not return parts to the retailer. Use only original replacement parts.

USER MANUAL DFV50 SANUS

ID SANUS™ FOUNDATIONS

DFV50

(6901-002061 <01>)

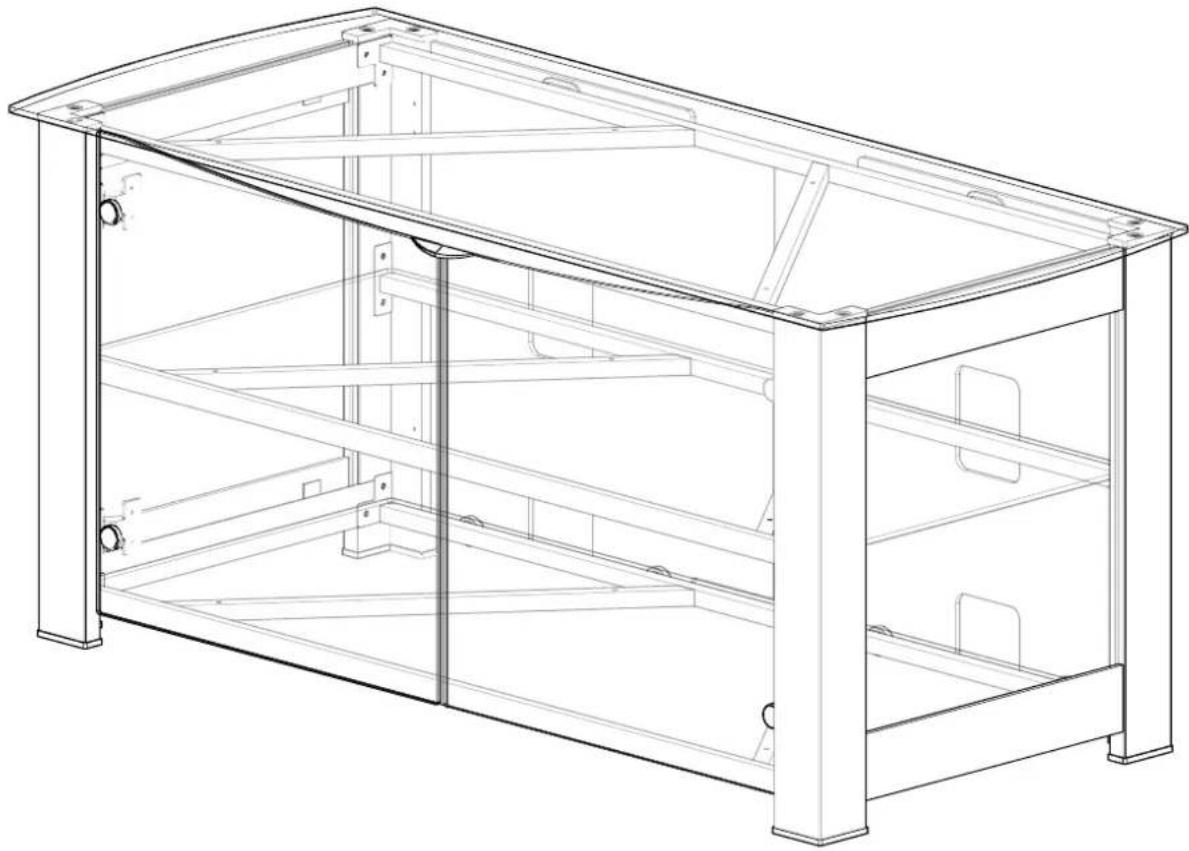

Technical line drawing of a rectangular metal enclosure with internal structural framework (no text or symbols)

Technical illustration of a toolbox and screwdriver (no text or symbols)

Sanus Systems

2221 Hwy 36 West

Saint Paul, MN 55113 USA

Customer Service

Americas: 800-359-5520 • 651-484-7988 • [e-mail]

Europe, Middle East, and Africa: [phone] • [e-mail]

Asia Pacific: 86 755 8996 9226 · [e-mail]

sanus.com

EnglishTools required	WARNING: This product contains small items that could be a choking hazard.	CAUTION / WARNING	Repeat Step Heavy! Assistance Required.
FrançaisOutils nécessaires	Ce produit contient de petites pièces qui peuvent représenter un risque d'étouff ement.	ATTENTION/ AVERTISSEMENT!	Répétez l'étape	TRÈS LOURD ! Cette étape requiert deux personnes.
DeutschBenötigte Werkzeuge	Dieses Produkt enthält kleine Teile, die zum Erstickungstod führen können.	VORSICHT / WARNUNG	Wiederholen Sie den Schritt	VORSICHT, SCHWER! Bei diesem Schritt werden Sie Hilfe benötigen.
EspañolHerramientas necesarias	Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfi xia.	PRECAUCIÓN /IADVERTENCIA!	Repita este paso	¡PESADO! Necesitará ayuda para realizar esta operación.
PortuguêsFerramentas necessárias	Este produto contém itens pequenos que podem oferecer risco de sufocamento.	ATENÇÃO / AVISO! Repita a etapa		PESADO! Necesitará de ajuda nesta etapa.
NederlandsBenodigd gereedschap	Dit product bevat kleine onderdelen die stikkingsgevaar kunnen opleveren.	VOORZICHTIG/ WAARSCHUWING	Herhaal stap	ZWAAR! Voor het uitvoeren van deze stap is assistentie vereist.
ItalianoStrumenti richiesti	Questo prodotto comprende elementi di piccole dimensioni che potrebbero causare il soff ocamento.	PRECAUZIONE/ AVVERTENZA	Ripetere l'operazione	PESANTE! Per questa operazione, si avrà bisogno di aiuto.
ЭллнукáАпайтоúμενα εργαλεία	To προϊόν autó περιλαμβάνει μικρά αντικείμενα που μπορεί να αποτελέσουν κίνδυνο πνιγμού.	ΠΡΟΣΟΧΗ/ ΠΡΟΕΙΔΟΠΟΙΗΣΗ	Елavaláβετε το βήμα	ВАРУ! Θα χρειαστείτε βοήθεια σ' autó το βήμα.
NorskNødvendig verktøy	Dette produktet inneholder små elementer som kan utgjøre kvelefare.	FORSIKTIG/ADVARSEL Gjenta trinn		TUNGT! Du vil trenge hjelp til denne operasjonen.
DanskRedskaber, der skal bruges	Dette produkt indeholder små dele, som kan forårsage kvælning, hvis de bliver slugt.	FORSIGTIG/ADVARSEL Gentag trin		TUNGT! Du skal bruge hjælp, när du udfører dette trin.
SvenskaVerktyg som behövs	Den här produkten innehåller små delar som kan utgöra kvävningsrisk.	FÖRSIKTIGHET/WARNING	Upprepa steg	TUNGT! Du kommer att behöva hjälp under det här steget.
РусскийНеобходимые инструменты	В изделии есть мелкие детали, которые могут стать причиной удушения при попадании в дыхательные пути.	ПРЕДУПРЕЖДЕНИЕ/ ПРЕДУПРЕЖДЕНИЕ	Повторить действие	БОЛЬШОЙ ВЕС! При выполнении данной операции вам понадобится помощь.
polskiWymagane narzędzia	Produkt zawiera male elementy, które mogą grozić zakrztuszeniem.	UWAGA / OSTRZEŻENIE	Powtórzyć krok	СІЁŻКІЕ! W tej czynności potrzebna będzie pomoc drugiej osoby.
CeskyPožadované nástroje	Tento výrobek obsahuje malé součástky, které hrozi rizikem zadušení.	POZOR / VAROVÁNÍ Opakovat krok		ТЕЁŻКЁ! K tomuto kroku budete potřebovat pomocnika.
TürkçeGereken Aletler	Bu ürün, boğulma tehlikesine neden olabilecek küçük parçalar içermektedir.	DIKKAT / UYARI Adım	Tekrarlayın	AĞIR MALZEME! Bu aşamada yardima ihtiyaciniz vardır.
日本語必要なツール	本製品には小さい部品が付属しており、窒息の危険性があります。	注意/警告 手順の繰り返し		重量あり!この操作は2人で行ってください。
中文需要的工具	此产品包含可能带来窒息危险的小组件。	小心/警告 重复步骤		支架臂很重!该步骤需要协助。
EnglishChoose an Option	This End Up	Loosen/Tighten	Alternate View	Do Not
FrançaisSélectionnez une option Ce côté vers le haut Dévisser/visser	Autre vue Interdit
DeutschWählen Sie eine Option Dieses Ende nach oben Lösen/Festzlehen Alternative Ansicht Tun Sie Folgendes nicht
EspañolElija una opción	Este extremo hacia arriba	Aflojar/Ajustar	Vista ampliada	Prohibido
PortuguêsEscolha uma opção	Esta extremidade para cima	Afrouxar/Apertar	Exibição alternada	Não
NederlandsKies een optie	Deze zijde boven	Losdraaien/Vastdraaien	Alternatieve weergave	Niet
ItalianoScegliere un'opzione	Alto	Allentare/Stringere	Visualizzazione alternativa	Divieto
ΕλληνικάΕπλέξτε μια επιλογή	Με αυτό το άκρο προς τα επάνω	Ξεβιδώστε/βιδώστε	Εναλλακτική προβολή	Mην
NorskVelg et alternativ	Denne siden opp	Løsne/stram	Alternativ visning	Forbudt
DanskVælg en mulighed	Denne ende skal være opad	Løsne/Spænde	Skift visning	Advarsel
SvenskaVälj ett alternativ	Denna sida upp	Lossa/Dra åt	Annan vinkel	Gör inte
РусскийВыберите вариант	Этим концом вверх	Ослабить/Затянуть	Альтернативный вид	Запрещается
polskiWybrać opcję	Tym końcem do góry	Poluzować/dokręcić	Widok z innej strony	Nie należy:
ČeskyVyberte jednu možnost	Tímto koncem vzhůru	Uvolnit/přitáhnout	Alternativní zobrazení	Nedělat
TürkçeSeçeneklerden Birini Belirleyin	Bu Uç Yukarı	Gevşet/Sık	Diğer Görünüm	Yapılmaması Gerekenler
日本語オプションの選択 この面を上にします		緩める/締める	別の角度からの図	禁止事項
中文选择一个选项	此端向上	松开/紧固	交换视图	请勿

English

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

For best results, reference both the text and illustrations when using this manual. Cut along the dashed lines to match your language with the illustrations.

English Text Pages 5-17

Français

INFORMATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ – CONSERVEZ CES INSTRUCTIONS – VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

Specifications

Weight capacities:

Top shelf [06]: 68 kg (150 lbs)
Middle shelf [07]: 31.75 kg (70 lbs)
Bottom shelf [07]: 31.75 kg (70 lbs)

▲CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose not explicitly specified by manufacturer.
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer Customer Service or call a qualified contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

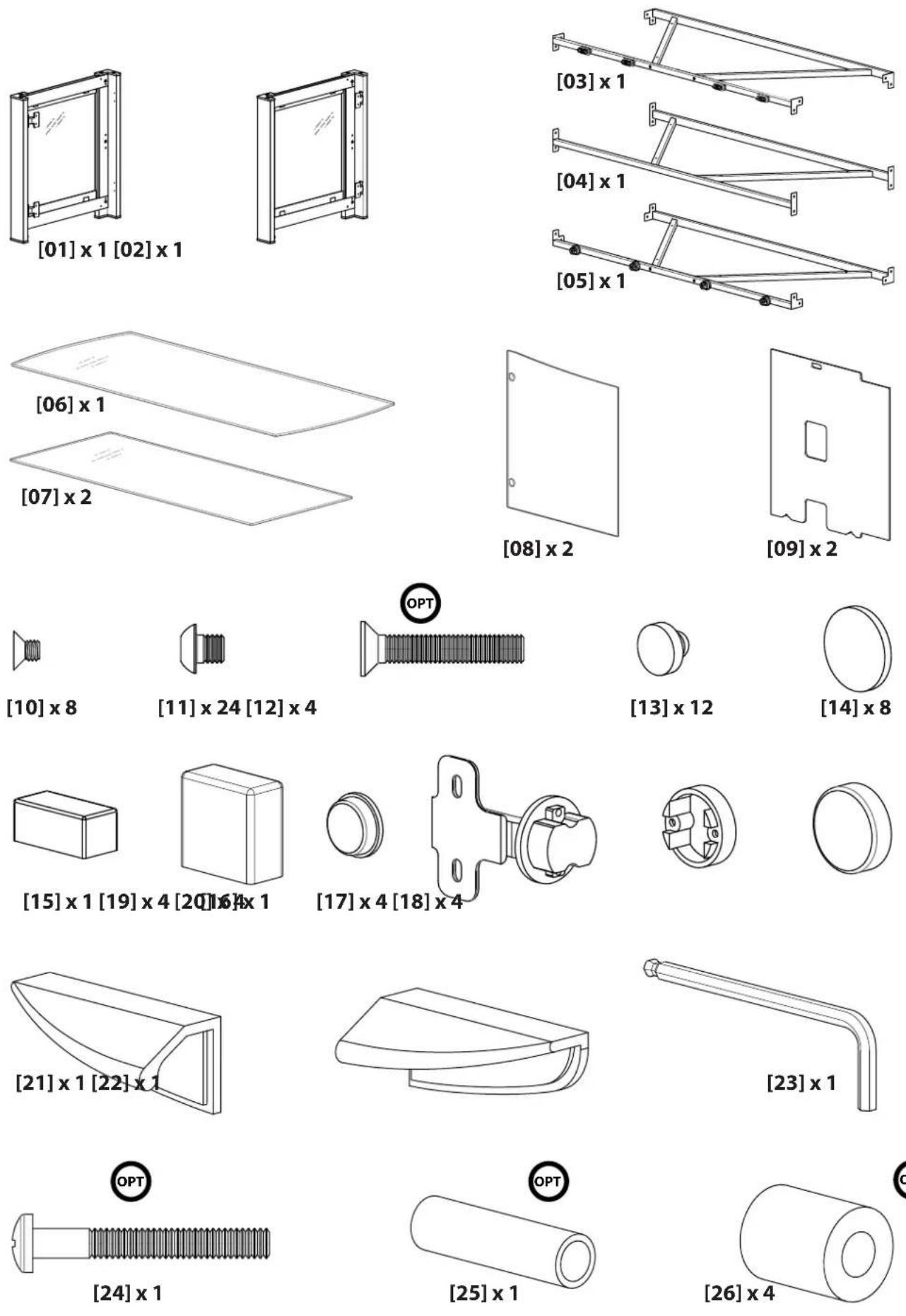

Supplied Parts and Hardware.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

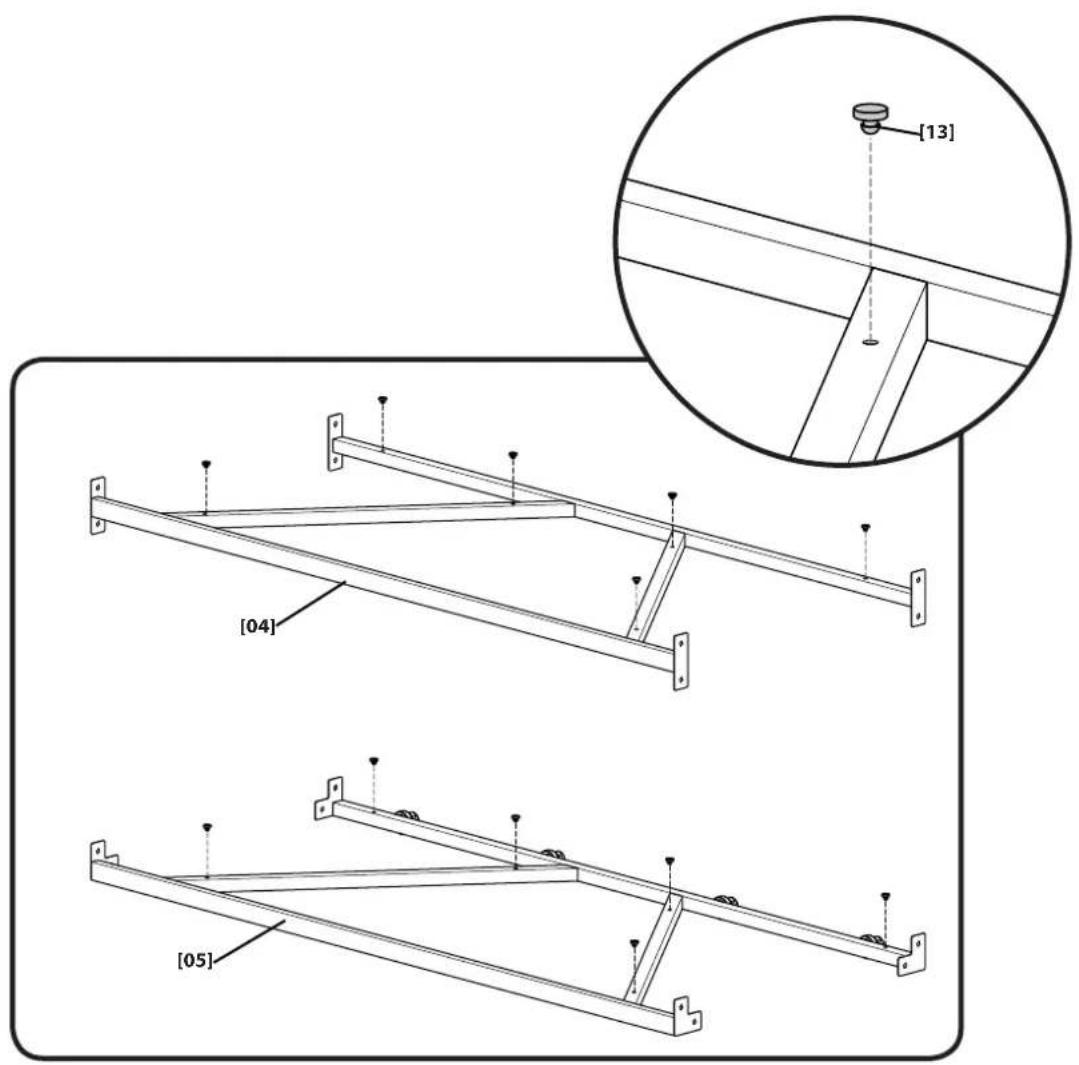

Insert the rubber shelf protectors [13] into the shelf brackets.

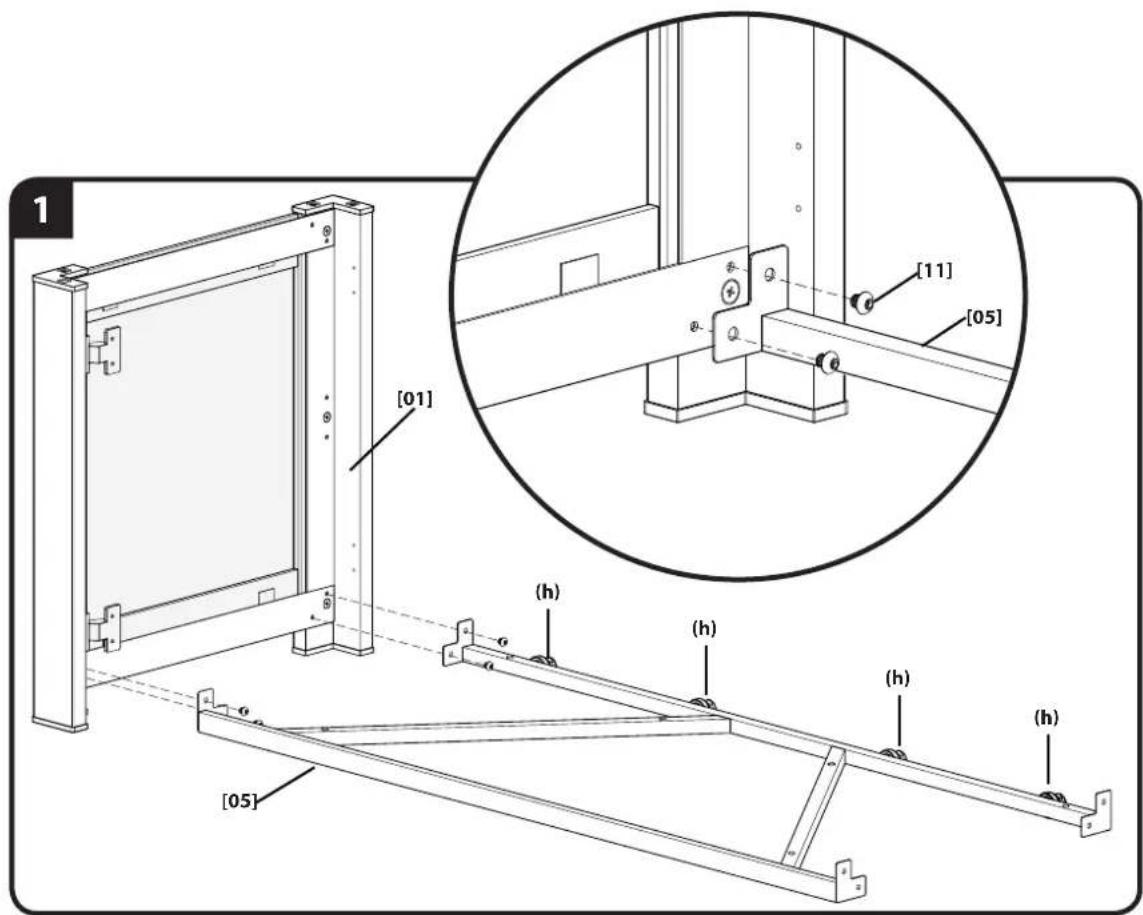

1. Make sure the hardware (h) for the back panels faces the back and attach the bottom shelf bracket [05] to the left side assembly [01]. Secure with screws [11].

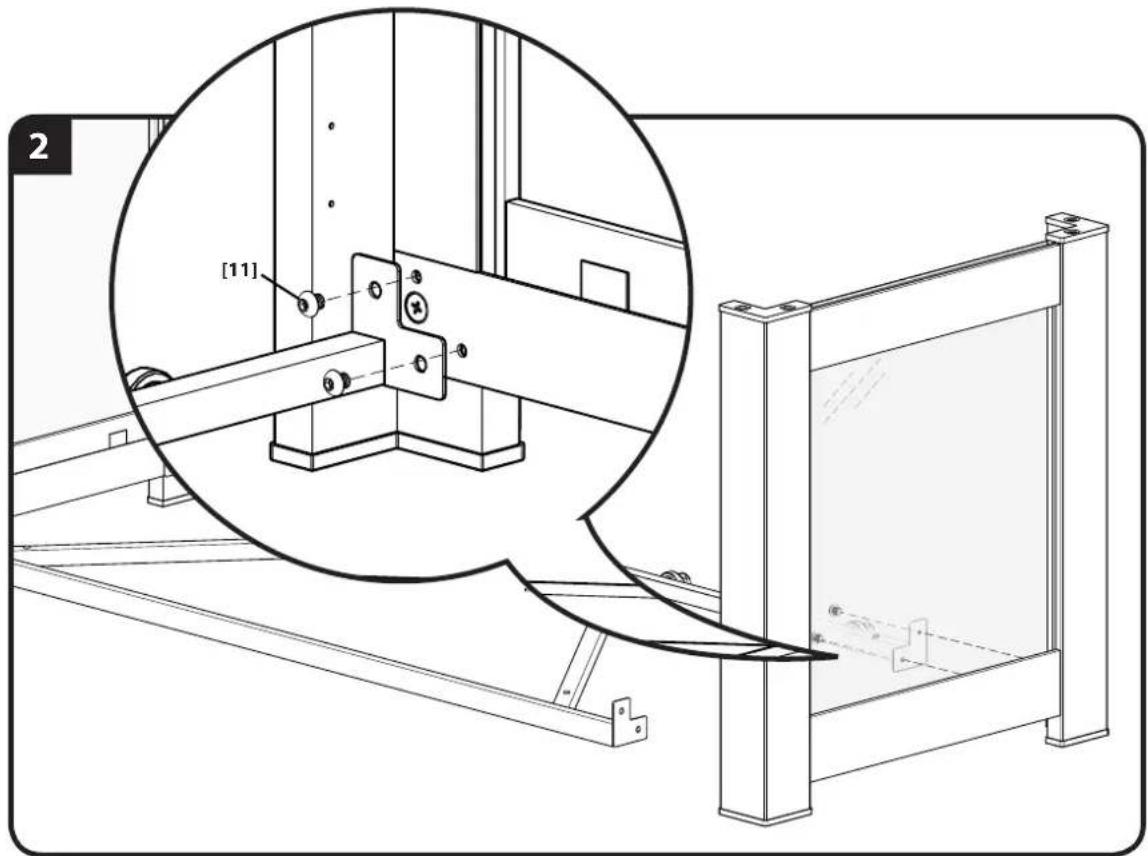

2. Attach the right side assembly [02] and secure with screws [11].

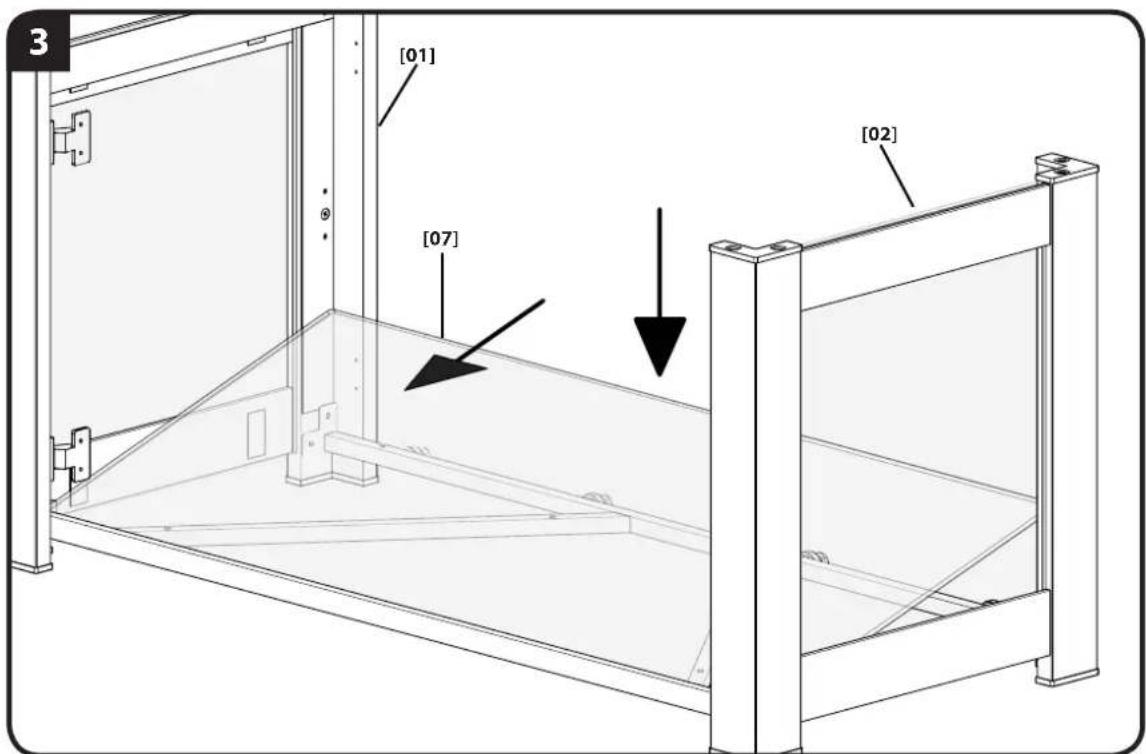

3. Insert bottom glass shelf [07].

NOTE: All 3 shelf brackets must face the same way.

2

2-1

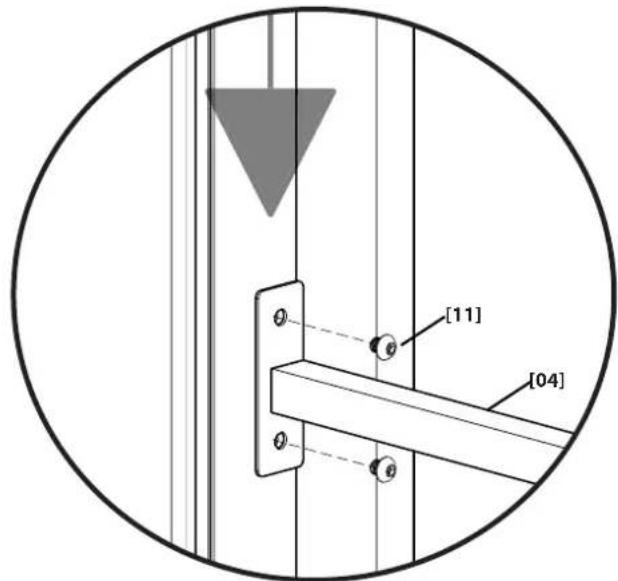

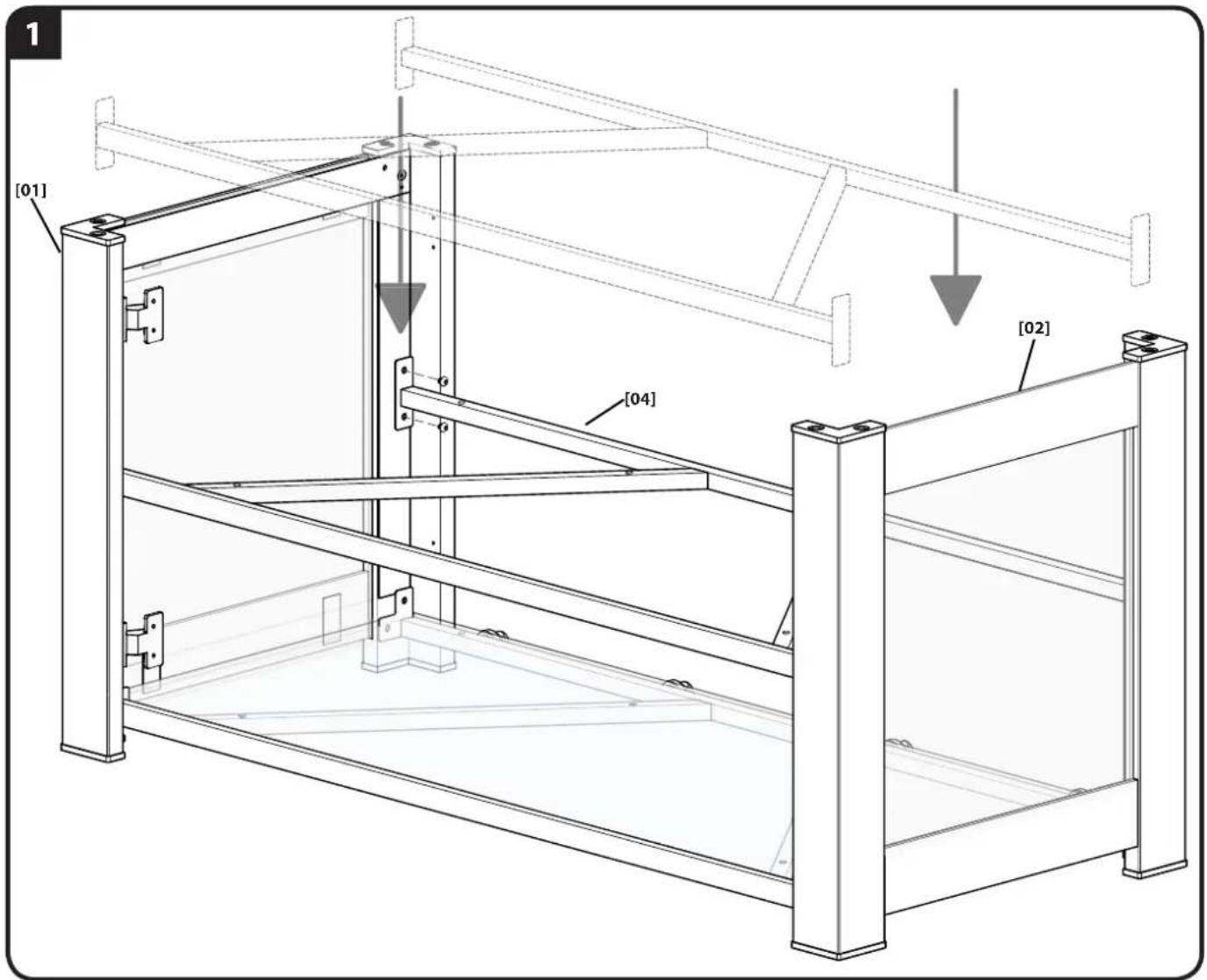

1. Lower the middle shelf bracket [04] into place and attach it to the side assemblies [01] and [02] using the screws provided [11].
2. Insert middle glass shelf [07].

NOTE: All 3 shelf brackets must face the same way.

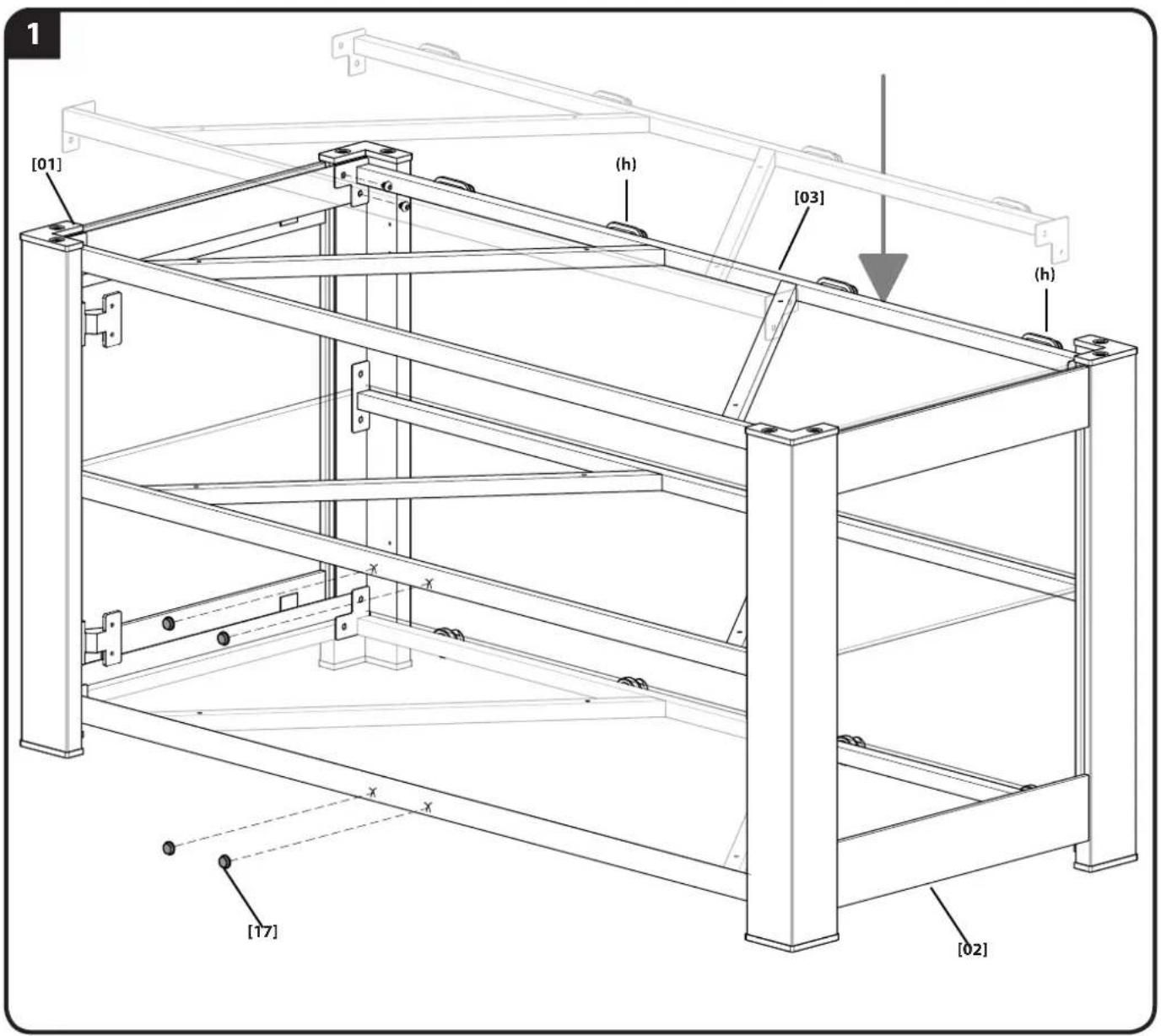

1. Make sure the hardware (h) for the back panels faces the back and attach the top shelf bracket [03] to the side assemblies [01] and [02]. Secure with screws [11].

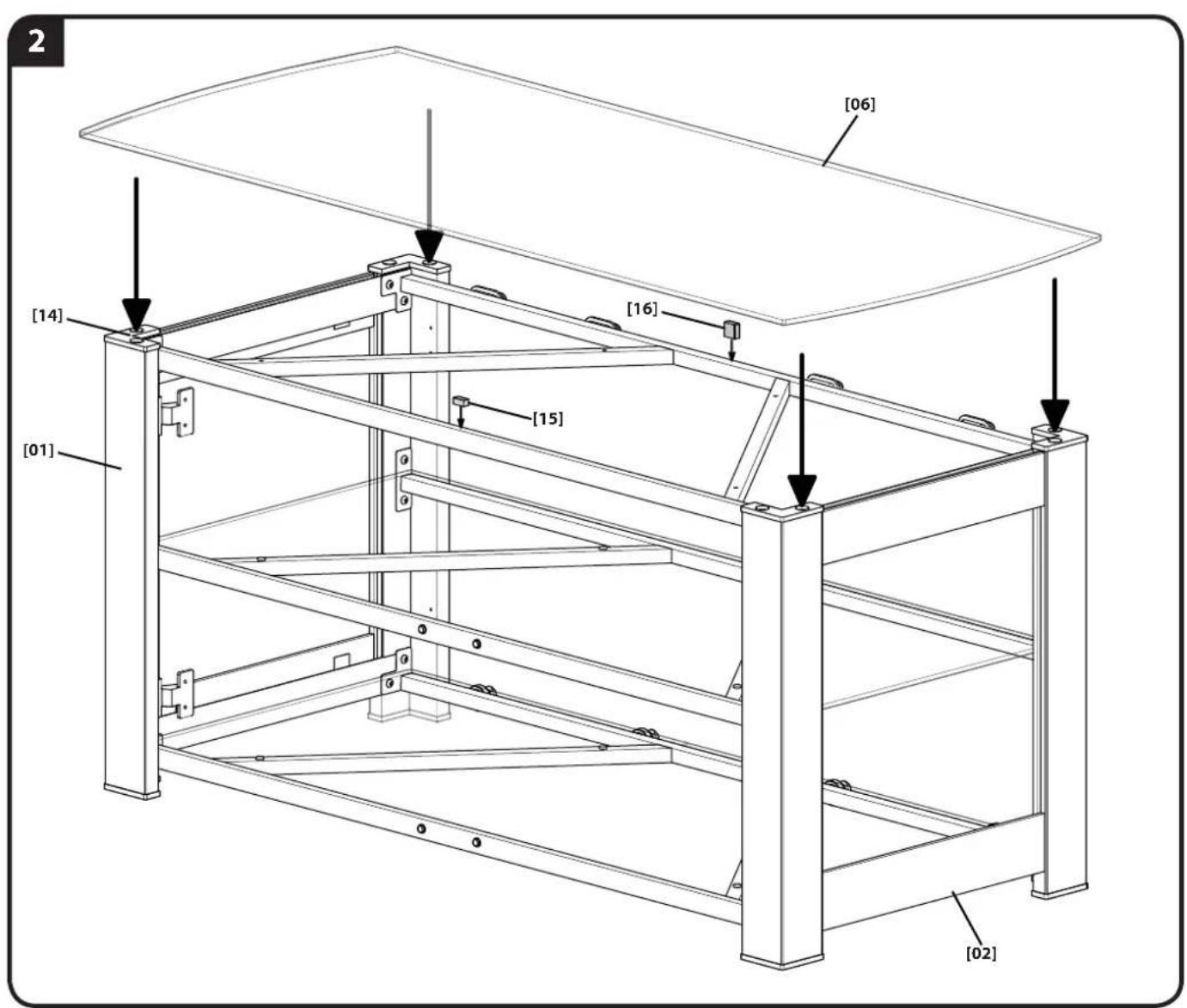

2. Affix the pad blocks [15, 16] and the shelf protector pads [14] to the top shelf bracket [03]. Set top glass shelf [06] evenly atop the top shelf bracket [03].

NOTE: All 3 shelf brackets must face the same way.

3

4

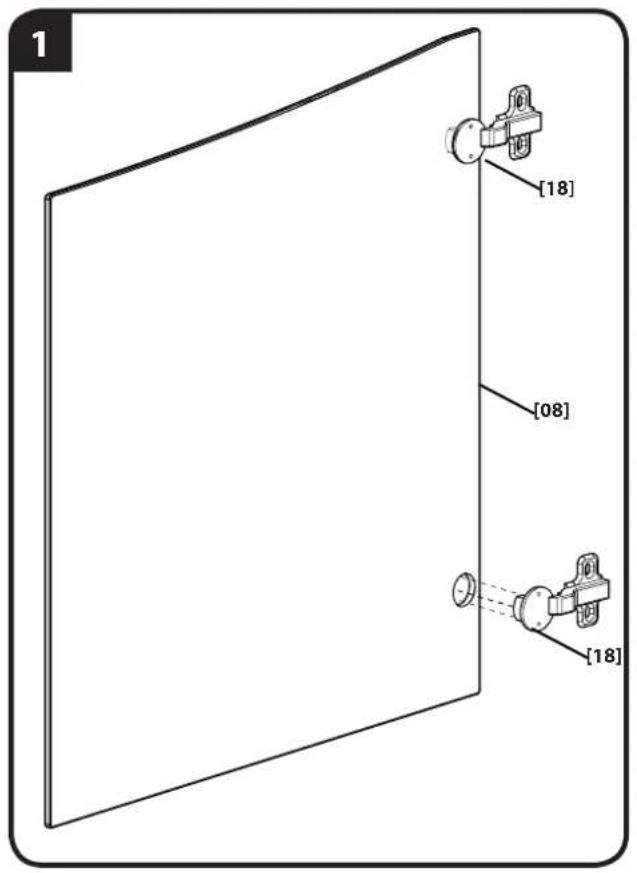

1. Gently push the hinges [18] through the holes in the doors [08].

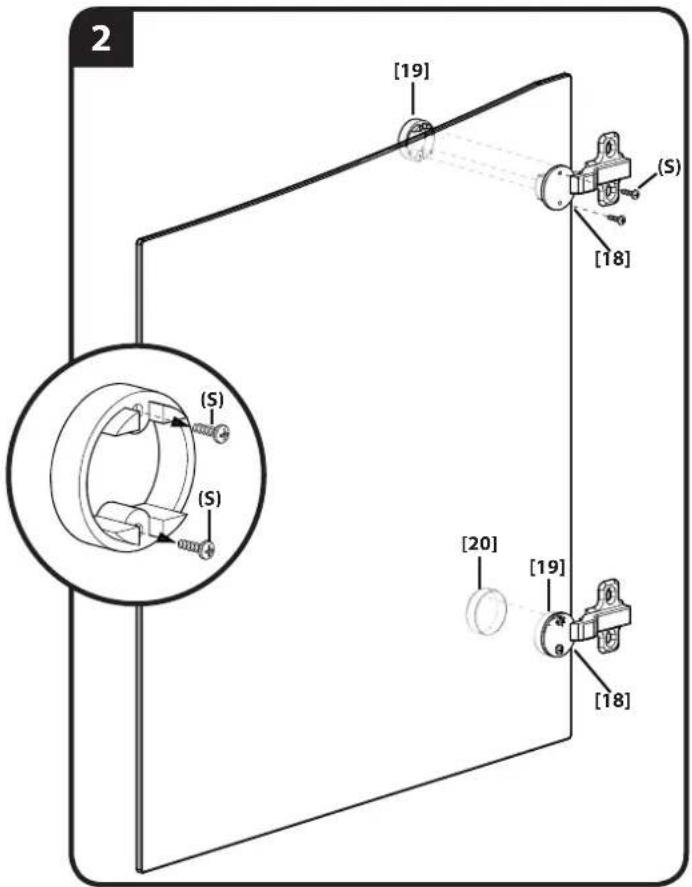

2. Remove the screws (S) from the glass clamp [19]. Attach the glass clamp [19] to the hinge [18] using the screws (S), as shown. Cover the clamps [19] with the caps [20].

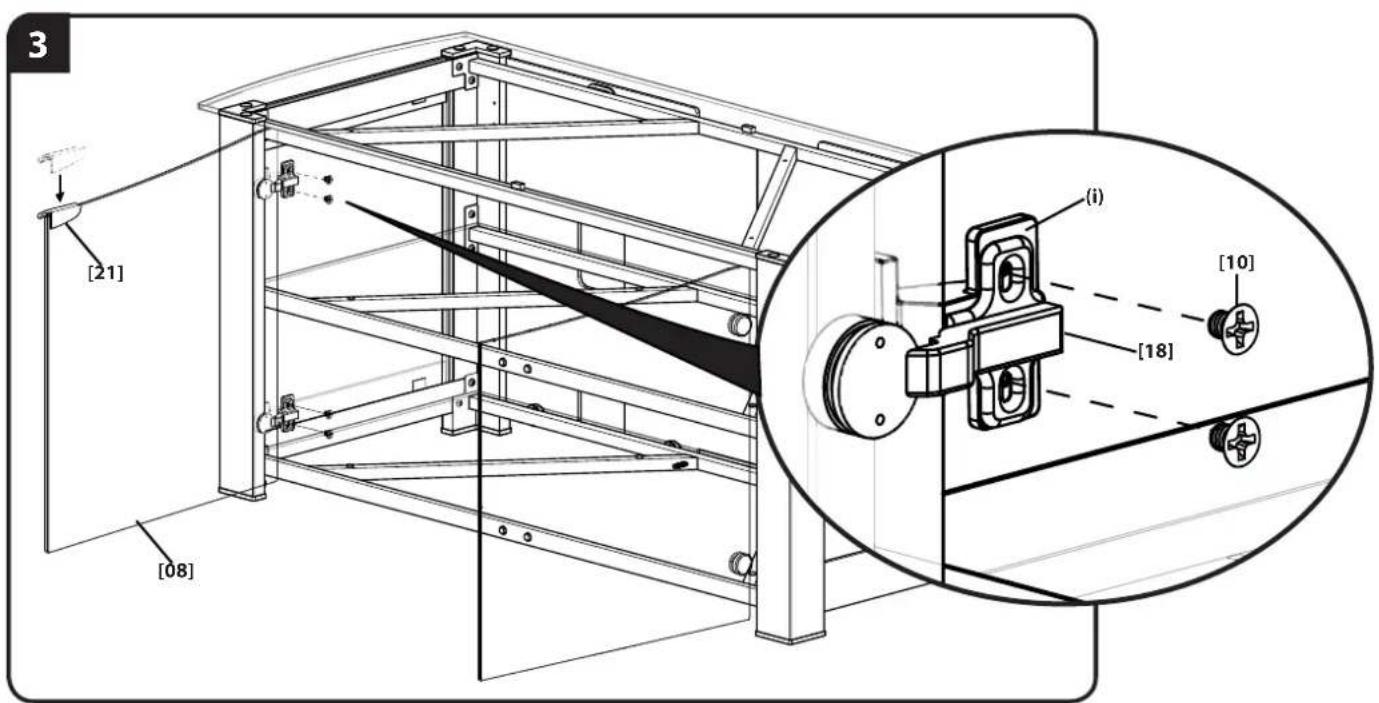

3. Attach the doors [08] and hinges [18] to the hinge backers (i) using screws [10]. Push the door handles [21, 22] down onto the doors [08] as shown.

NOTE: The M4 allen key and pillar bracket are included with the FMK056 pillar kit mount.

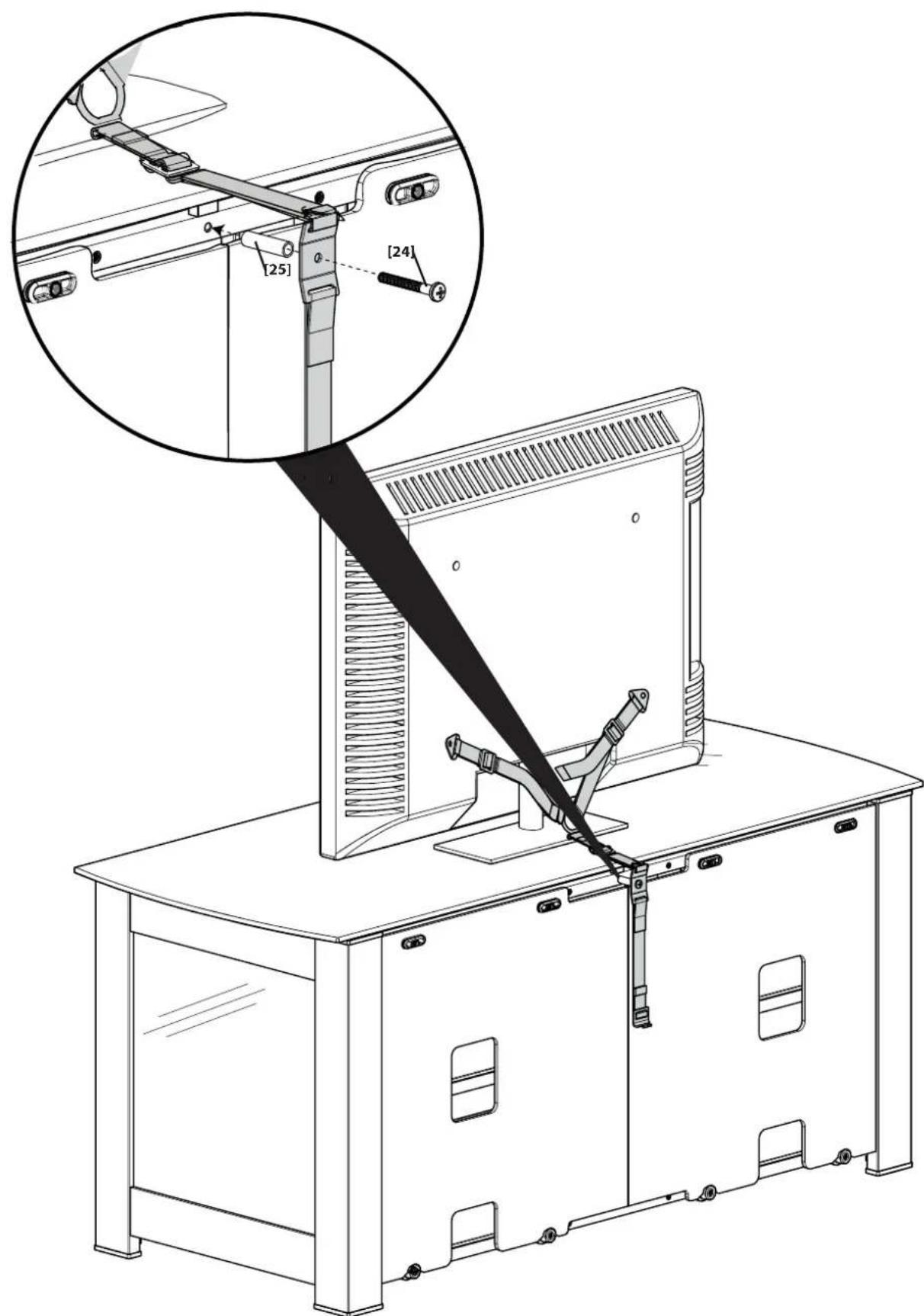

Attach the ELM701 Anti-tip Strap

NOTE: Hardware included, strap sold separately.

ATTENTION:

INFORMATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ – CONSERVEZ CES INSTRUCTIONS – VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

Tablette supérieure [06]: 68 kg (150 lbs)
Tablette centrale [07]: 31.75 kg (70 lbs)
Tablette inférieure [07]: 31.75 kg (70 lbs)

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
