USER MANUAL BFV546 SANUS

natural_image 3D rendering of a simple cabinet with two drawers and a shelf, no text or symbols visible

We are here to help! Please contact Customer Service with any questions.

Customer Service

Americas: 800-359-5520 · 952-225-6013 · info@sanus.com

Europe, Middle East, and Africa: +31 (0) 495 580 852 • europe.sanus@milestone.com

Asia Pacifi c: 86 755 8996 9226 • sanus.ap@milestone.com

SANUS • 6436 City West Parkway • Eden Prairie, MN • 55344

©2012 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Sanus is a division of Milestone. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

English - How to use this manual

For best results, reference both the text and illustrations.

OR Select one item or the other.

OPT This item is optional

English Text Pages 3-9

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Specifications

Weight capacity-DO NOT EXCEED:

■ Top shelf: 59 kg (130 lb.)
Middle shelf: 23 kg (50 lb.)
Drawers: 7 kg (15 lb.)

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose not explicitly specified by manufacturer.
If you do not understand these instructions, or have doubts about the safety of the assembly or use of this product, contact Customer Service or call a qualified contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Before You Begin

SANUS BFV546 - Before You Begin - 1

natural_image Technical line drawing of a mechanical clamp or bracket component with a key inserted (no text or symbols)

SANUS BFV546 - Before You Begin - 2

natural_image Technical illustration of a mechanical component with a knob and internal structure, no visible text or symbols

Most of the steps in this installation use cams. The steps that use cams instruct you to open the cams before connecting the parts, then to close the cams when the step is complete.

Cams are open when the tab is NOT flush with the front surface fo the cam. Cams are closed when the clasp is flush with the front surface of the cam.

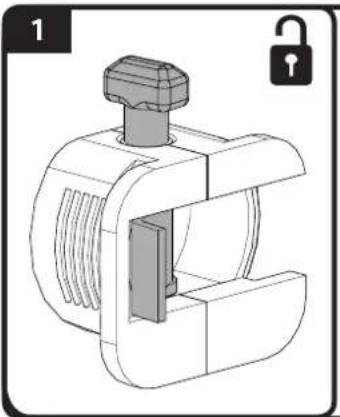

Image 1 shows the cam in the open position. When you see this icon, open the shaded cams before completing the step.

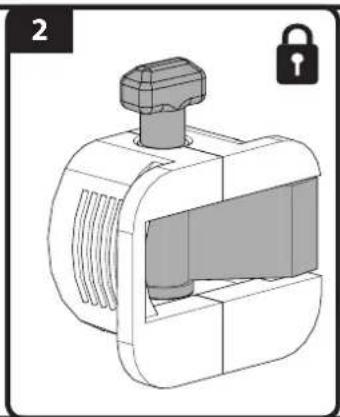

Image 2 shows the cam closed.

SANUS BFV546 - Before You Begin - 3

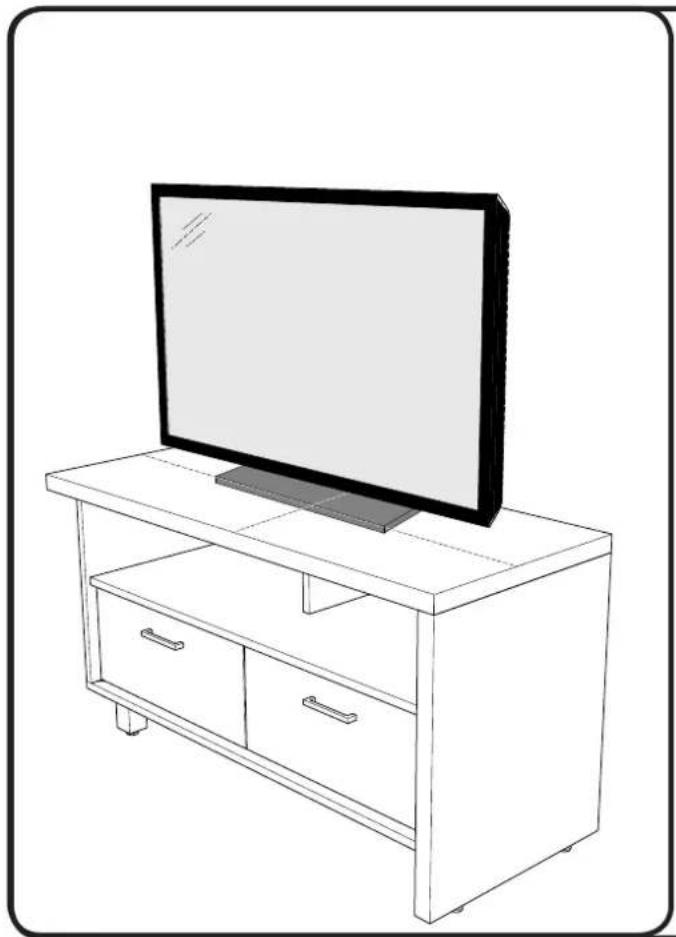

natural_image Line drawing of a modern flat-screen TV with a mounted monitor and two drawers (no text or symbols)

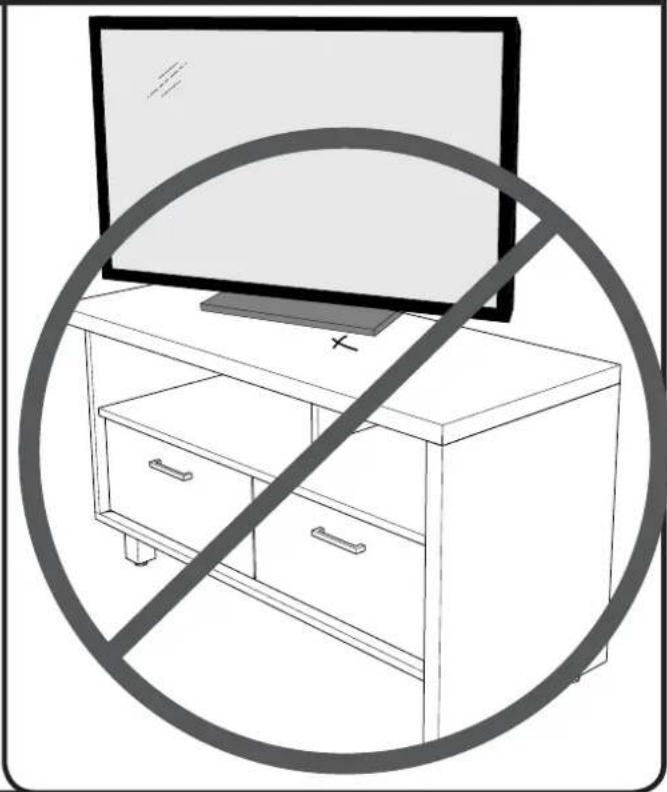

CAUTION: This product is designed for use with flat panel TVs ONLY. To prevent tipping, be sure to center your fl at panel TV (NO CRTs) on top of your furniture.

SANUS BFV546 - Before You Begin - 4

natural_image Simple line drawing of a TV setup with a monitor and cabinet, crossed out by a diagonal line (no text or symbols)

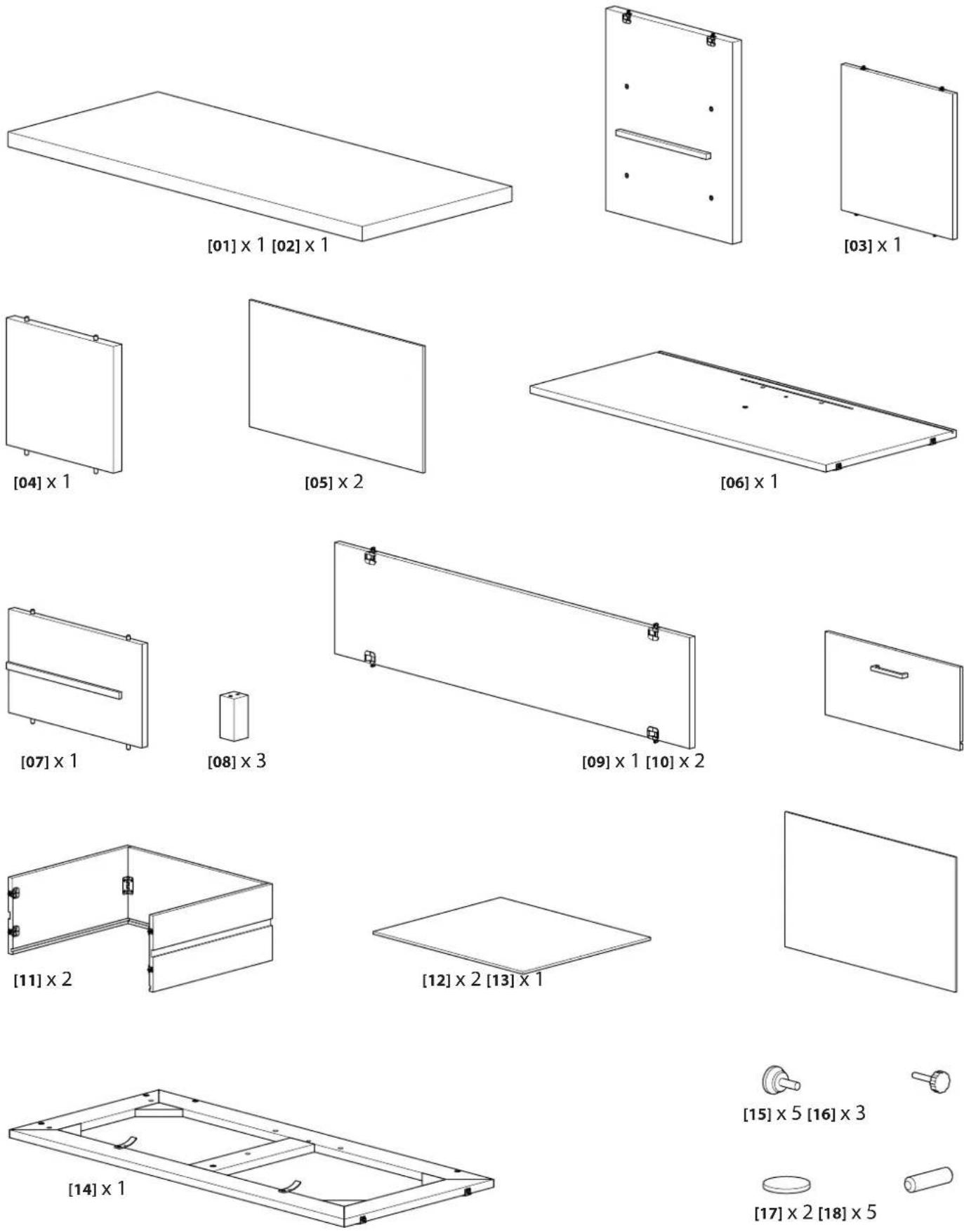

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

SANUS BFV546 - ⚠ WARNING: This product contains small items that could be a choking hazard if swallowed. - 1

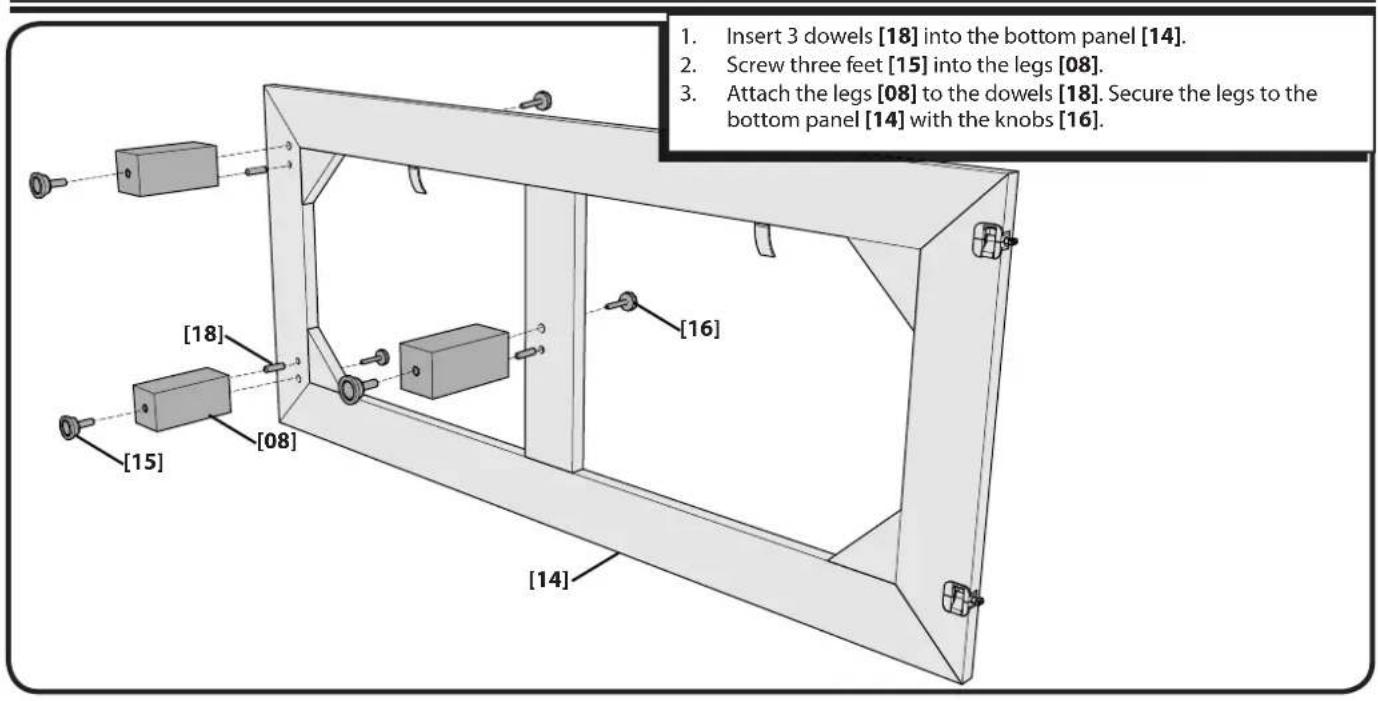

1 Attach Feet

1. Insert 3 dowels [18] into the bottom panel [14]. 2. Screw three feet [15] into the legs [08]. 3. Attach the legs [08] to the dowels [18]. Secure the legs to the bottom panel [14] with the knobs [16]. [16] [18] [08] [15] [14]

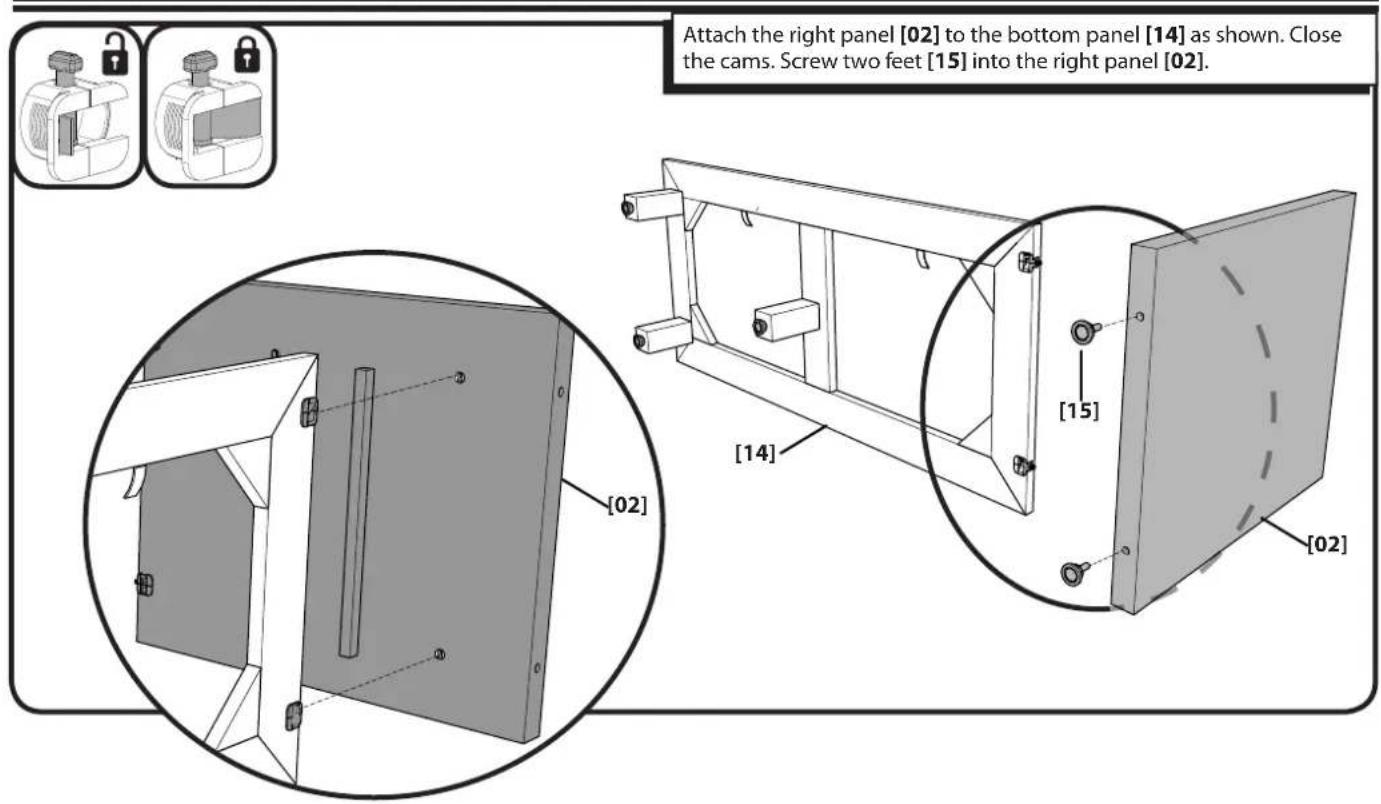

2 Attach Right Panel

Attach the right panel [02] to the bottom panel [14] as shown. Close the cams. Screw two feet [15] into the right panel [02]. [02] [14] [15] [02]

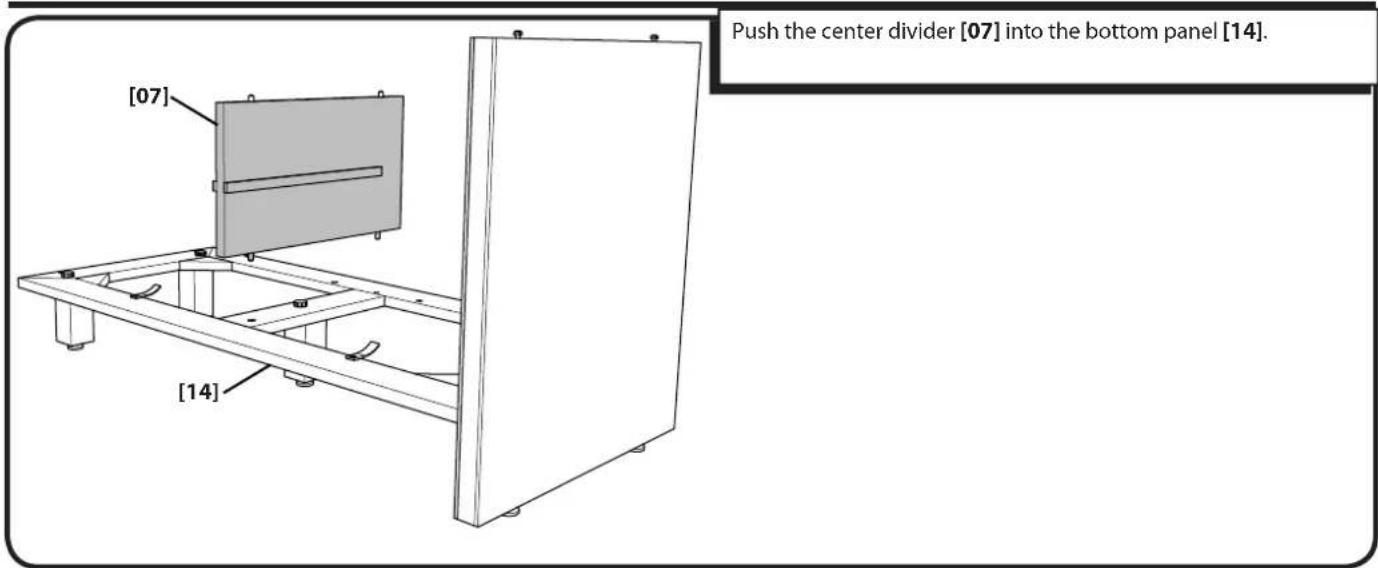

3 Attach Center Divider

[07] Push the center divider [07] into the bottom panel [14]. [14]

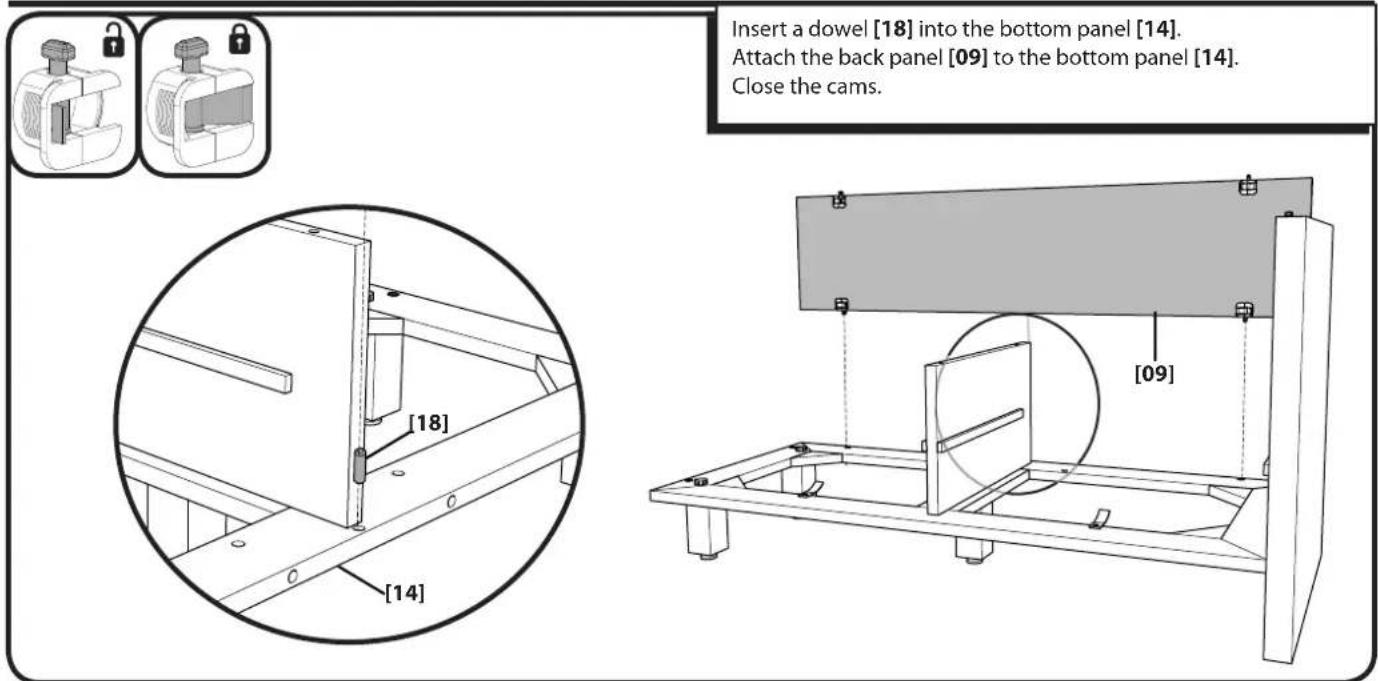

4 Attach Back Panel

Insert a dowel [18] into the bottom panel [14]. Attach the back panel [09] to the bottom panel [14]. Close the cams. [18] [09] [14]

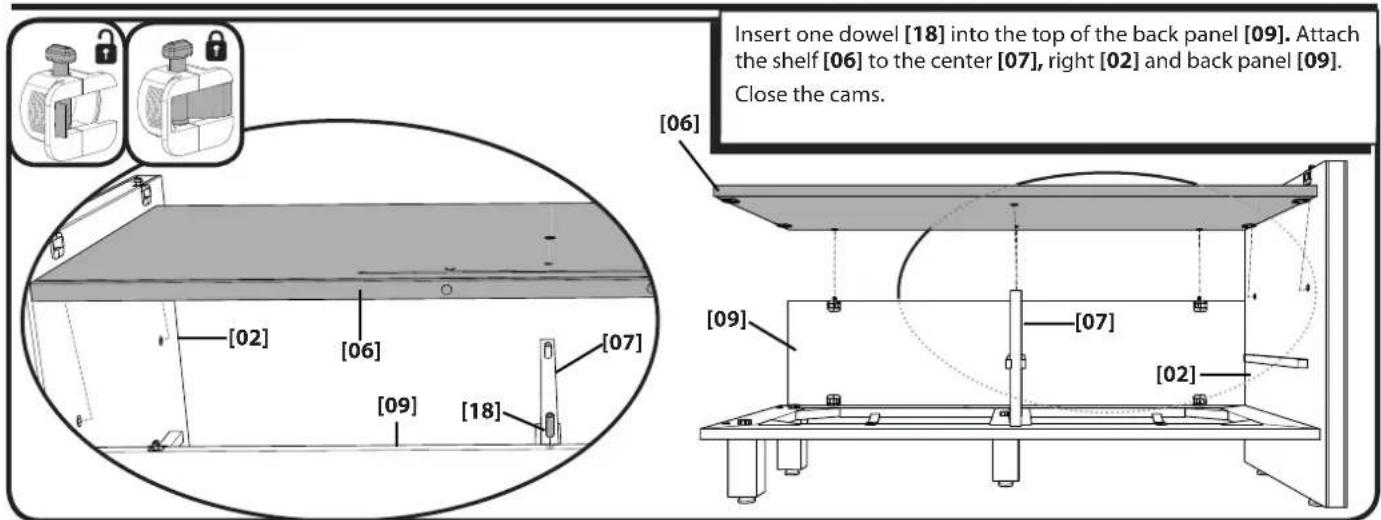

5 Attach Shelf

Insert one dowel [18] into the top of the back panel [09]. Attach the shelf [06] to the center [07], right [02] and back panel [09]. Close the cams. [06] [02] [06] [07] [09] [18] [09] [07] [02]

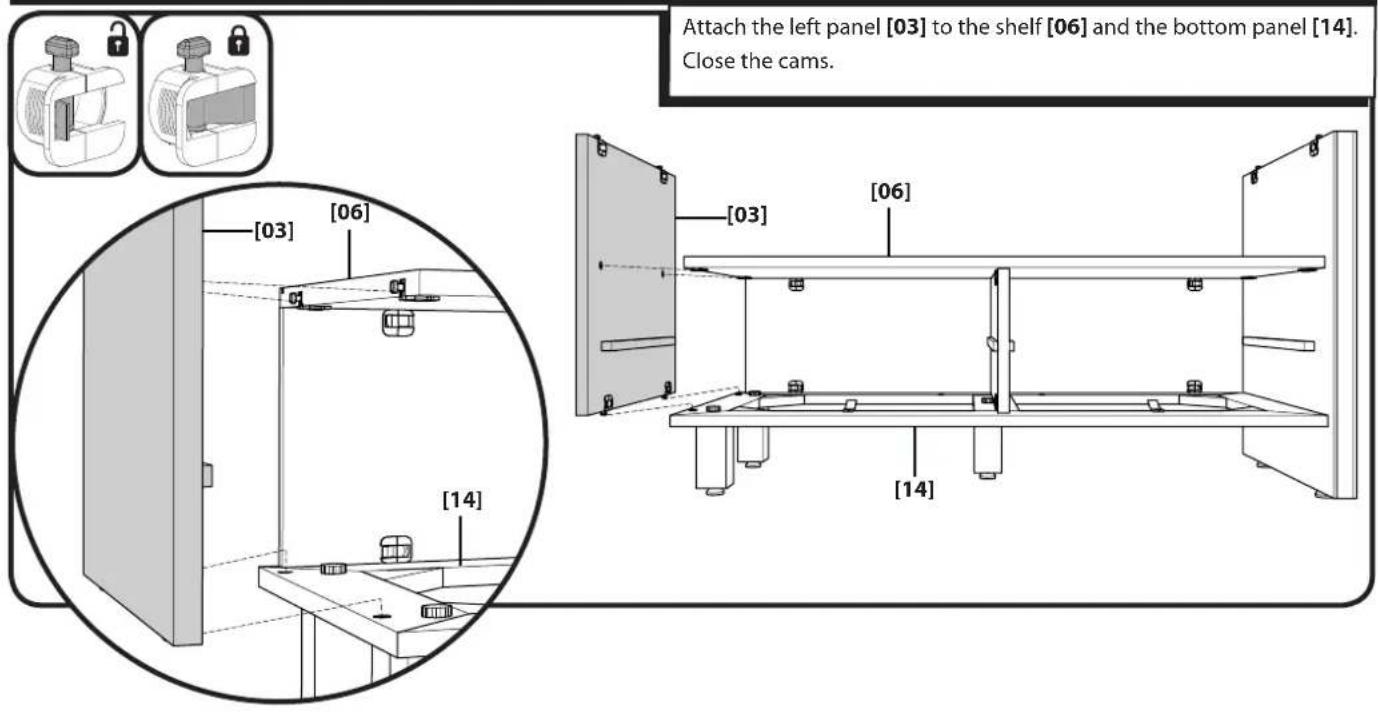

6 Attach Left Panel

Attach the left panel [03] to the shelf [06] and the bottom panel [14]. Close the cams. [03] [06] [03] [06] [14]

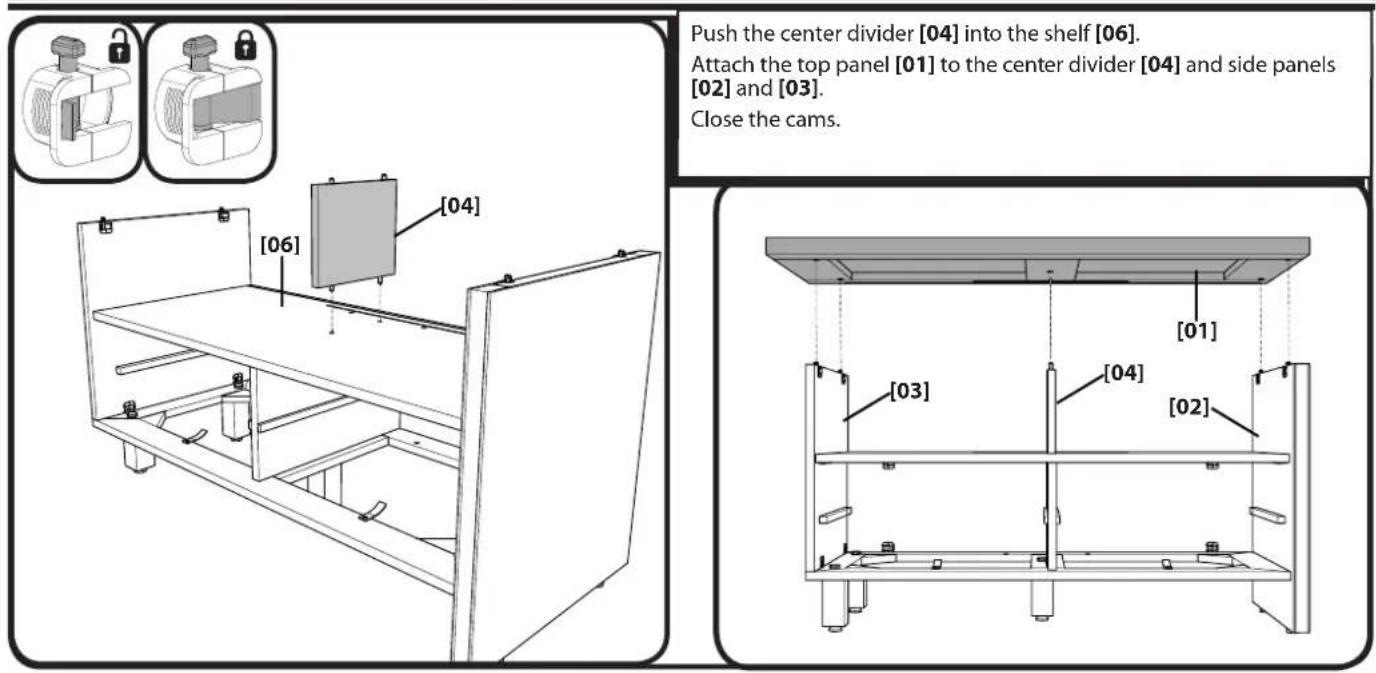

7 Attach Divider and Top Panel

Push the center divider [04] into the shelf [06]. Attach the top panel [01] to the center divider [04] and side panels [02] and [03]. Close the cams.

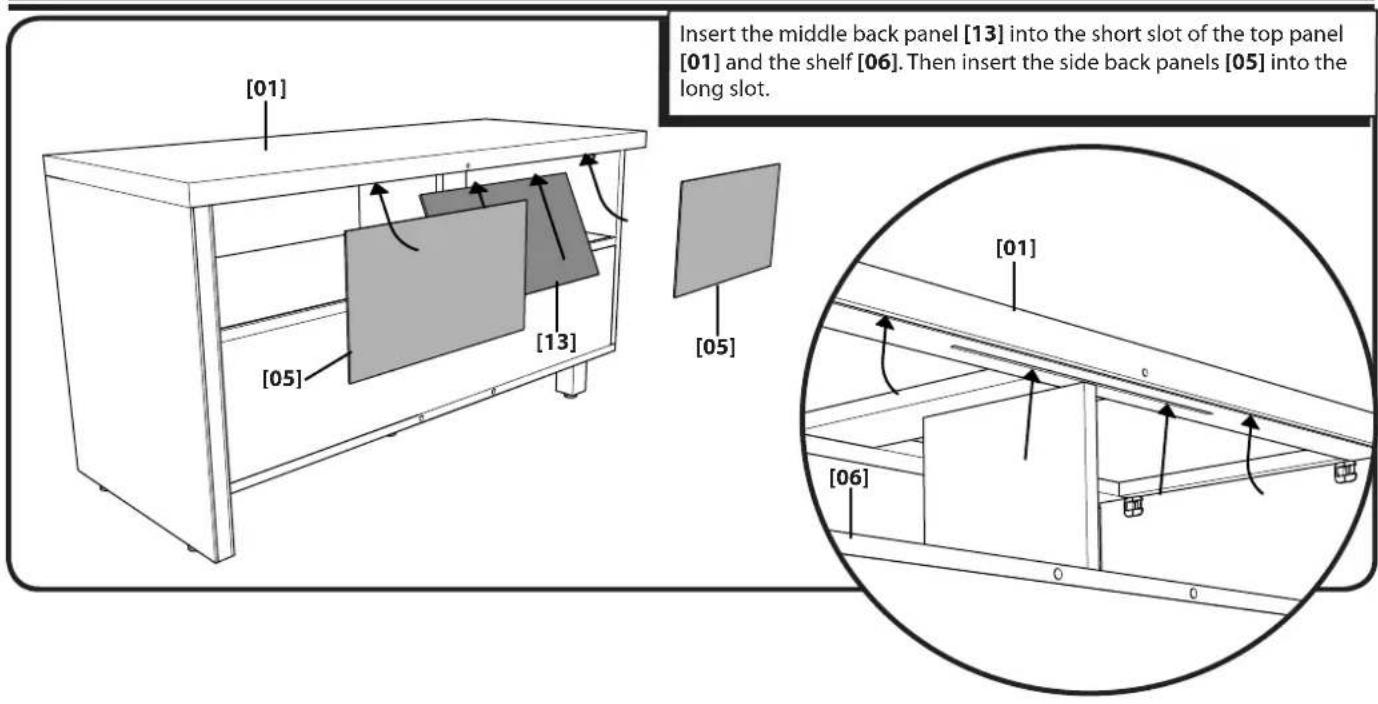

8 Insert Back Panels

[01] [05] [13] Insert the middle back panel [13] into the short slot of the top panel [01] and the shelf [06]. Then insert the side back panels [05] into the long slot. [05] [01] c [06] 0 0

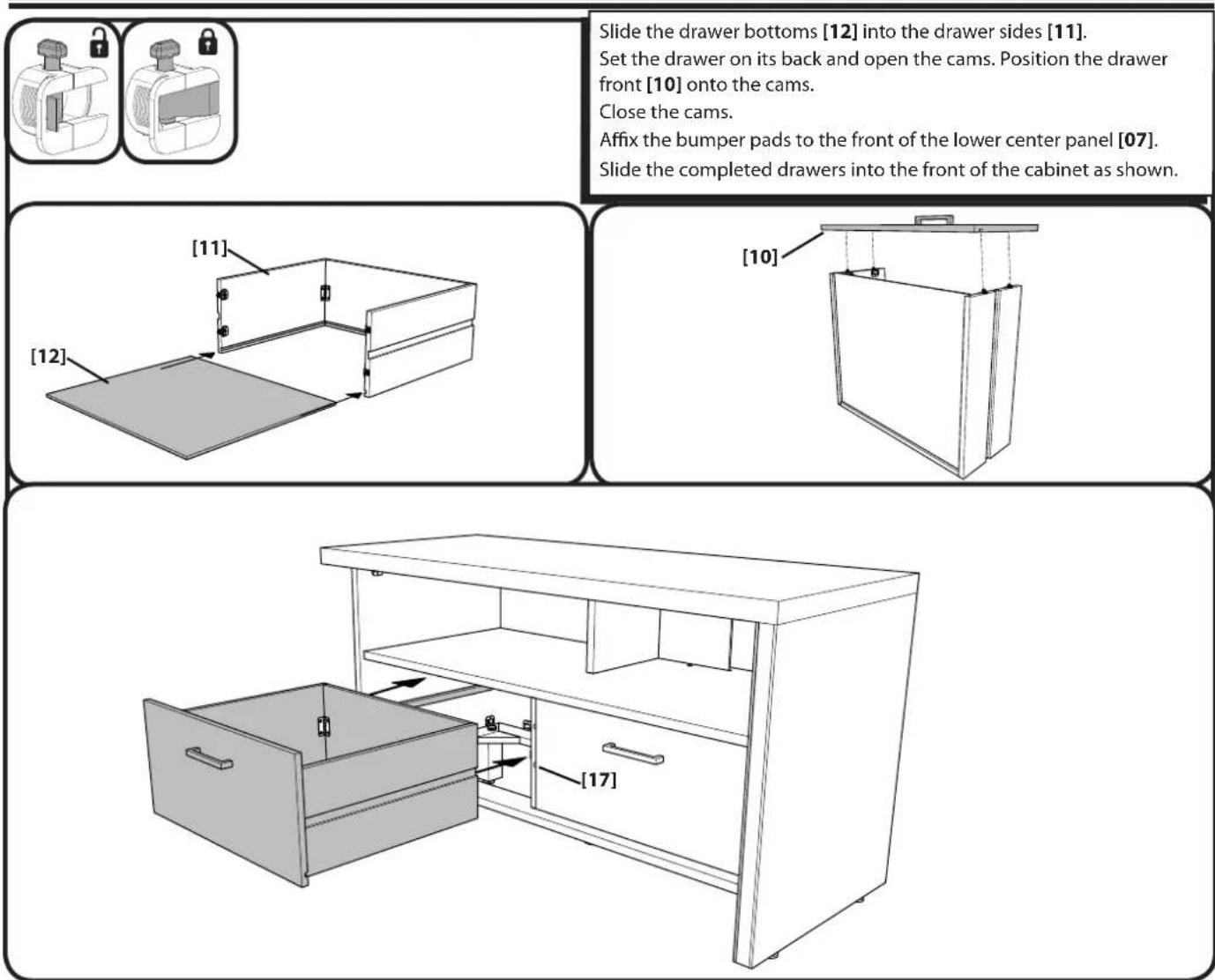

9 Assemble and Insert Drawers

Slide the drawer bottoms [12] into the drawer sides [11]. Set the drawer on its back and open the cams. Position the drawer front [10] onto the cams. Close the cams. Affix the bumper pads to the front of the lower center panel [07]. Slide the completed drawers into the front of the cabinet as shown. [11] [12] [10] [17]

For wood with a natural finish dust regularly with a soft dry cloth. When needed wipe with a moist cloth, not wet, and wipe dry.

OPT

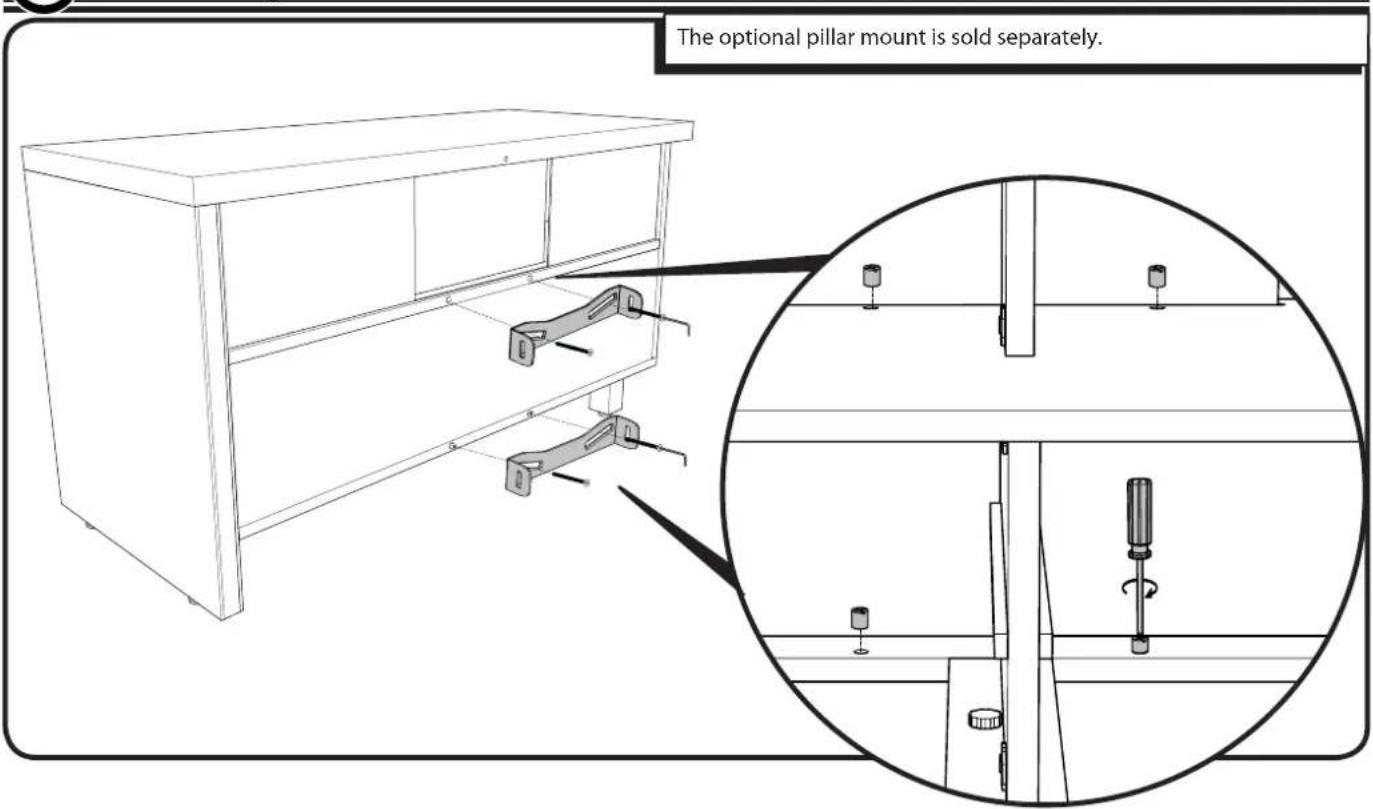

Attach Optional Pillar Mount

The optional pillar mount is sold separately.

OPT

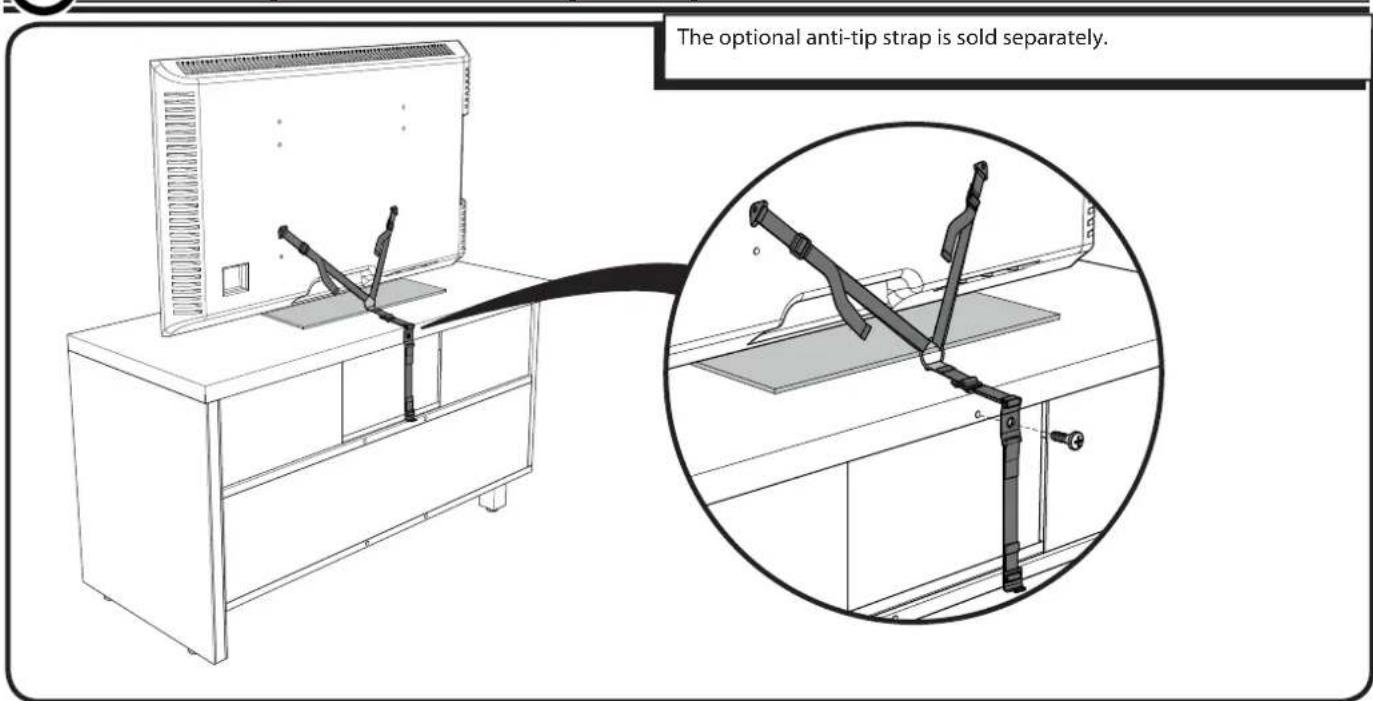

Attach Optional Anti-Tip Strap

The optional anti-tip strap is sold separately.
