Product TypeTV Cabinet / TV Stand
BrandSanus
ModelBFAV48
Total Load Capacity136 kg (300 lb)
Top Load Capacity68 kg (150 lb)
Upper Fixed Shelf Capacity22.7 kg (50 lb)
Lower Adjustable Shelf Capacity22.7 kg (50 lb)
Base Section Capacity22.7 kg (50 lb)
Main MaterialParticle Board with Laminate Finish
Approximate Dimensions (W x H x D)120 x 60 x 40 cm (estimated)
Approximate Weight35 kg (estimated)
Number of Doors2 hinged doors
Adjustable ShelfYes, height adjustable
Anti-tip StrapOptional (sold separately)
Assembly RequiredYes, instructions included
Hardware ProvidedPins, dowels, screws, handles, shelf supports
Care and CleaningWipe with a soft, dry cloth. Do not use abrasive products.
SafetyUse the anti-tip strap to prevent tipping
Replacement PartsContact Sanus customer service for missing or damaged parts
WarrantyCheck the Sanus website for warranty details

Frequently Asked Questions - BFAV48 SANUS

What are the dimensions of the BFAV48 cabinet?
The exact dimensions are not provided in the manual, but a TV cabinet in this category typically measures approximately 120 cm wide, 60 cm high, and 40 cm deep. Check the available space before purchasing.
What is the maximum weight the top can support?
The top can support up to 68 kg (150 lb). Make sure your television does not exceed this limit.
Are special tools needed to assemble this cabinet?
No, the necessary hardware is provided and assembly is done with a Phillips head screwdriver (not included). Follow the illustrated steps in the manual.
Is the adjustable shelf included?
Yes, an adjustable shelf is provided. It can be positioned at different heights using the included supports.
How do I secure the cabinet to the wall to prevent tipping?
Use the optional anti-tip strap (sold separately). Attach it to the wall and the cabinet according to the instructions. This improves safety, especially with a heavy television.
What are the dimensions of the doors?
The door dimensions are not specified. They fit the cabinet openings. The manual indicates how to hang them on the hinges.
Can I use this cabinet for a 65-inch television?
Yes, as long as the television's weight does not exceed 68 kg. Also verify that the television's feet or stand fit on the top surface.
How do I clean the cabinet?
Wipe with a soft, dry cloth. For stubborn stains, use a slightly damp cloth. Avoid abrasive or ammonia-based products.
What should I do if a part is missing or damaged?
Contact Sanus customer service. Do not return the product to the store. The manual provides contact information for replacement parts.
Is it possible to move the cabinet once assembled?
Yes, but it is heavy (about 35 kg). Move it carefully, preferably with another person, and remove any items placed on it to avoid damage.

User questions about BFAV48 SANUS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your TV Stand in PDF format for free! Find your manual BFAV48 - SANUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BFAV48 by SANUS.

USER MANUAL BFAV48 SANUS

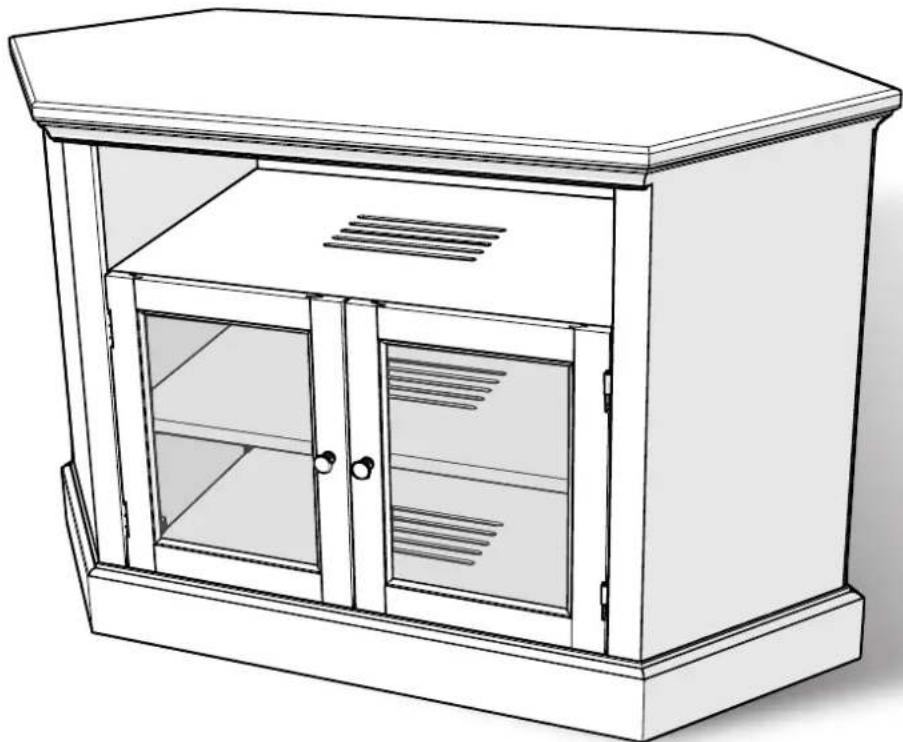

BFAV48 Instruction Manual

SANUS BFAV48 - BFAV48 Instruction Manual - 1

natural_image Line drawing of a simple cabinet with open doors and glass doors (no text or symbols)

We are here to help!

Please contact Customer Service with any questions.

Customer Service

Americas: 800-359-5520 • 651-484-7988 • info@sanus.com

Europe, Middle East, and Africa: +31 (0) 495 580 852 • europe.sanus@milestone.com

Asia Pacifi c: 86 755 8996 9226 • sanus.ap@milestone.com

SANUS • 6436 City West Parkway • Eden Prairie, MN 55344 USA

©2011 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Sanus is a division of Milestone. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

English - How to use this manual

For best results, reference both the text and illustrations.

SANUS BFAV48 - English - How to use this manual - 1

Select one item or the other.

SANUS BFAV48 - English - How to use this manual - 2

This item is optional

English Text Pages 3-11

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Specifications

Weight capacities-DO NOT EXCEED:

Complete unit total weight capacity: 136 kg (300 lbs)
Top: 68 kg (150 lbs)
■ Upper fixed shelf: 22.7 kg (50 lbs)
- Lower adjustable shelf: 22.7 kg (50 lbs)
Base section: 22.7 kg (50 lbs)

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose not explicitly specified by manufacturer.
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service or call a qualified contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

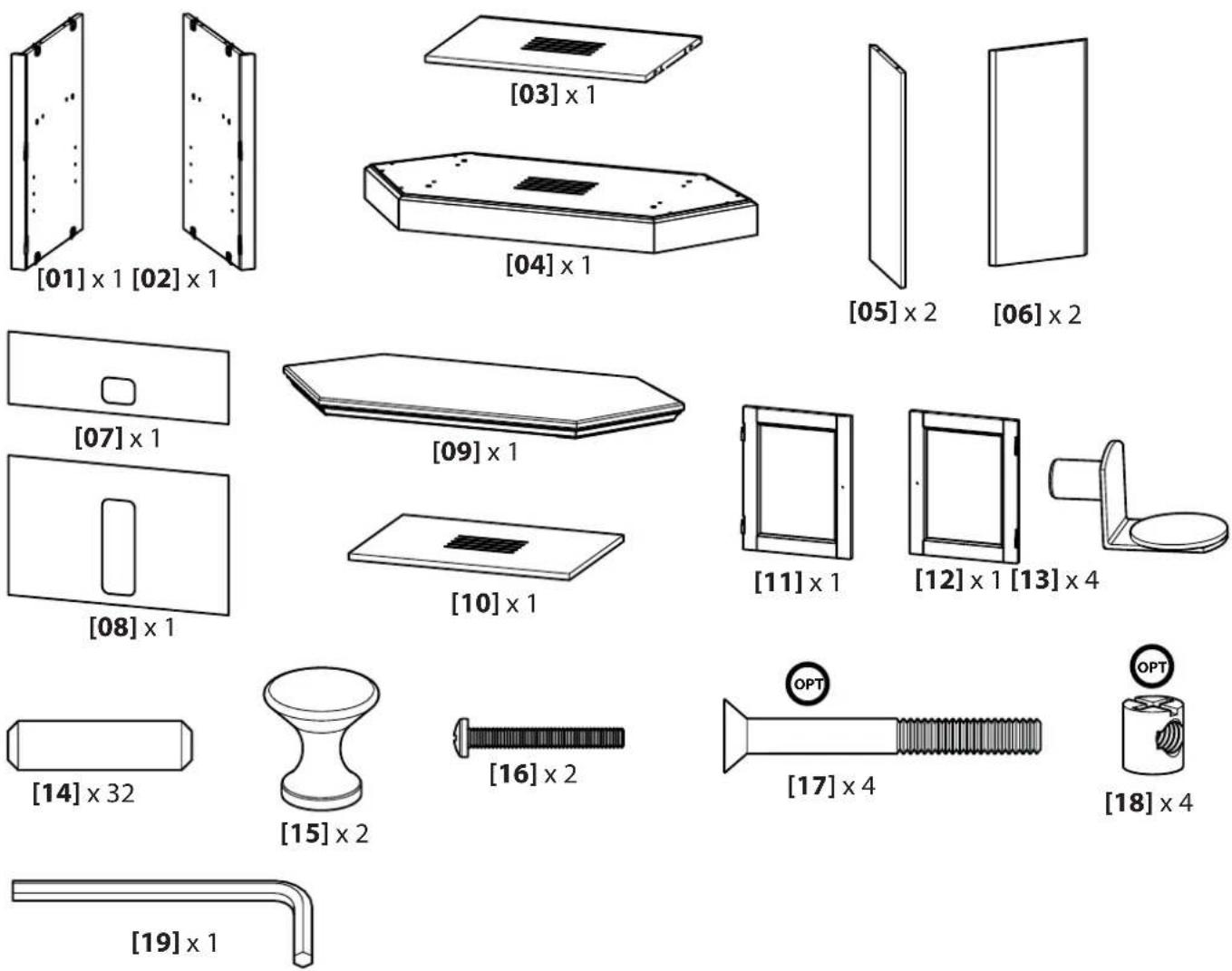

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

SANUS BFAV48 - WARNING: This product contains small items that could be a choking hazard if swallowed. - 1

1-1
Insert dowels [14] into holes in the inside of the left [01] and right [02] side panels. [01] [02] [14]

1-3

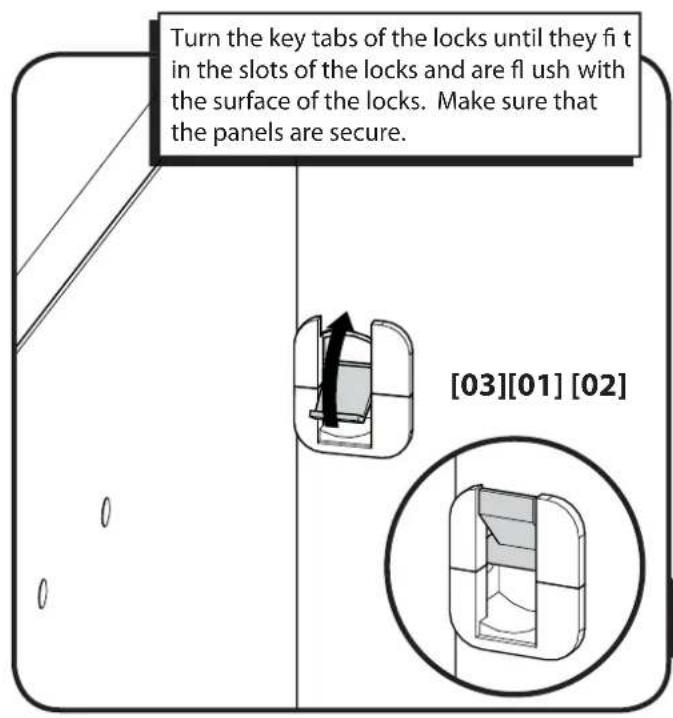

Turn the key tabs of the locks until they fit in the slots of the locks and are fl ush with the surface of the locks. Make sure that the panels are secure. [03][01] [02]

1-2

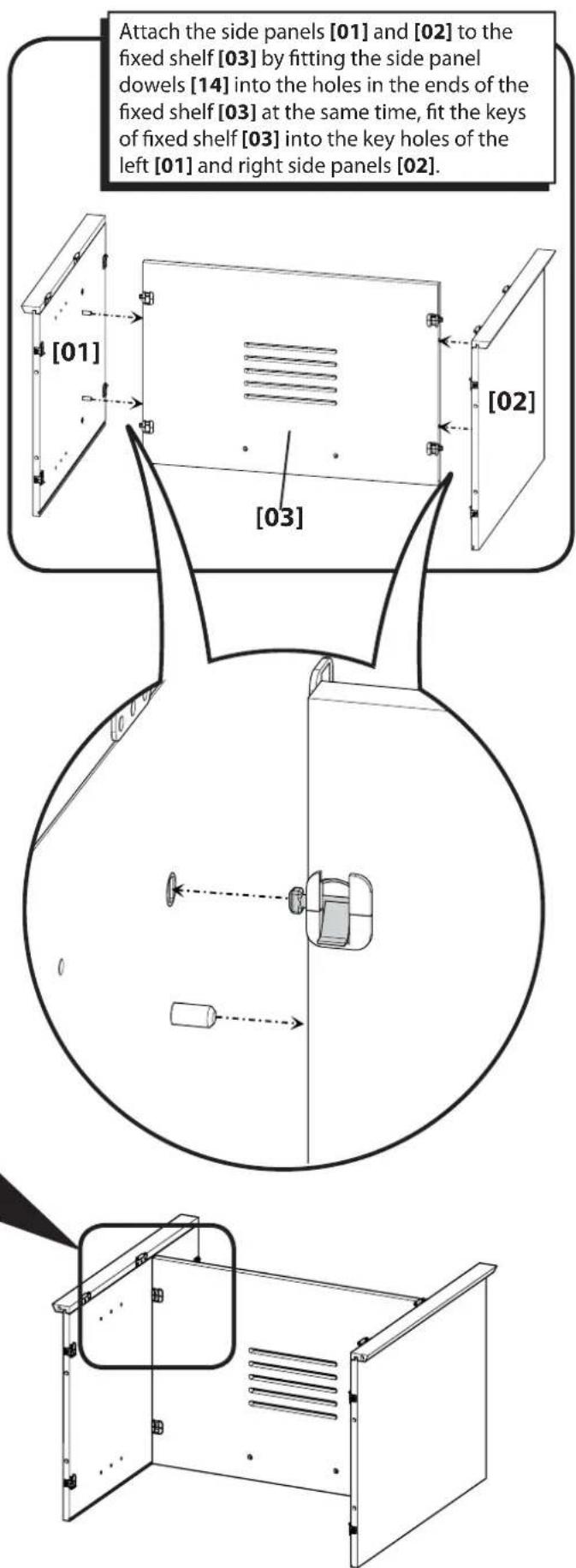

Attach the side panels [01] and [02] to the fixed shelf [03] by fitting the side panel dowels [14] into the holes in the ends of the fixed shelf [03] at the same time, fit the keys of fixed shelf [03] into the key holes of the left [01] and right side panels [02]. [01] [02] [03]

2-1

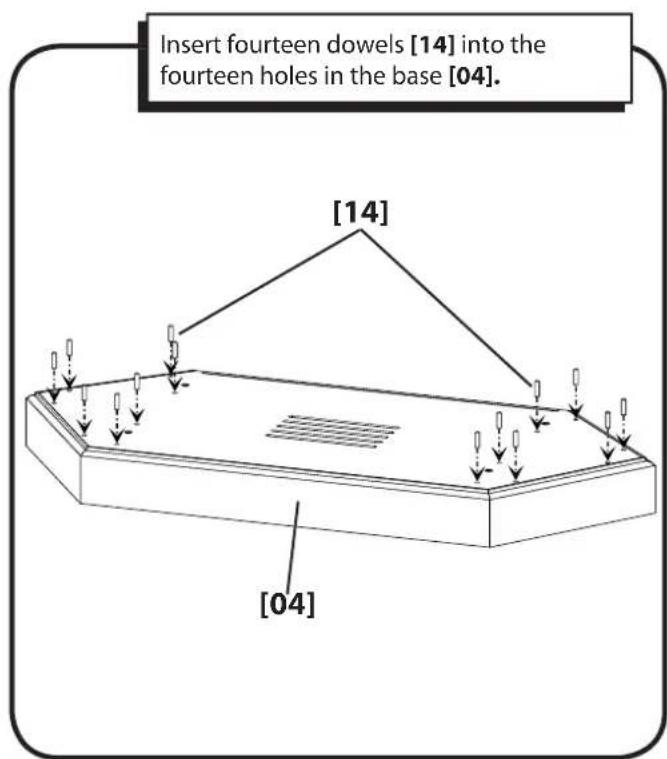

Insert fourteen dowels [14] into the fourteen holes in the base [04]. [14] [04]

2-2

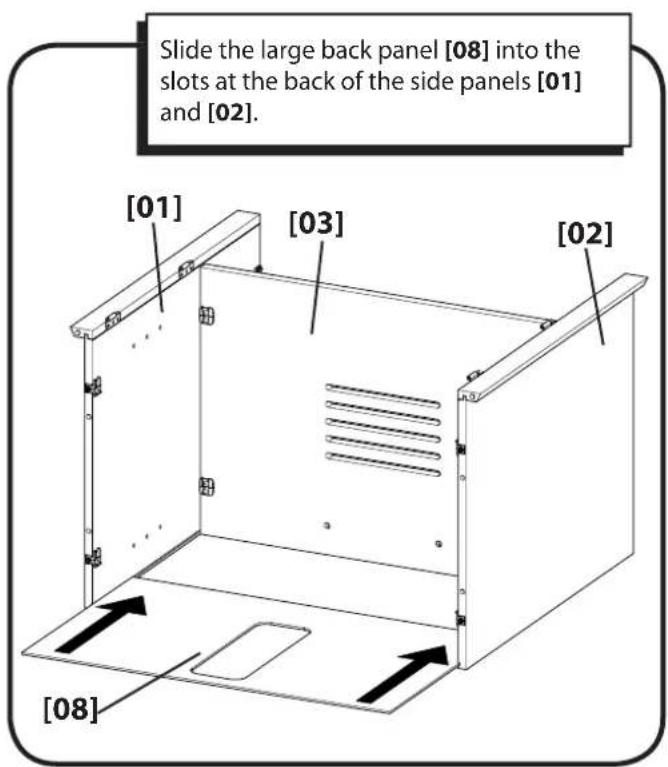

Slide the large back panel [08] into the slots at the back of the side panels [01] and [02]. [01] [03] [02] [08]

2-3 2-4

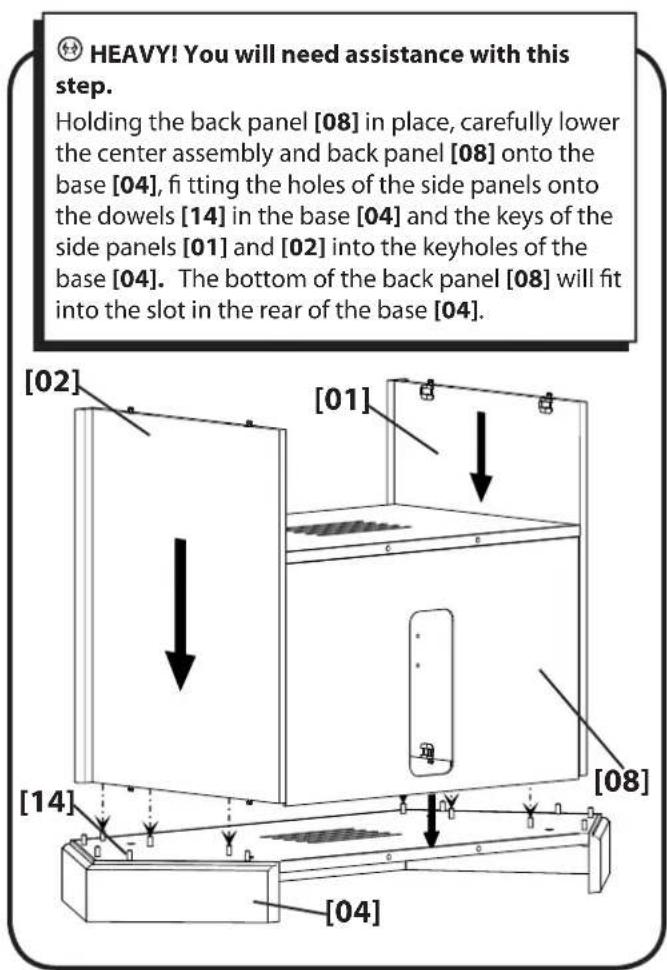

HEAVY! You will need assistance with this step. Holding the back panel [08] in place, carefully lower the center assembly and back panel [08] onto the base [04], fitting the holes of the side panels onto the dowels [14] in the base [04] and the keys of the side panels [01] and [02] into the keyholes of the base [04]. The bottom of the back panel [08] will fit into the slot in the rear of the base [04]. [02] [01] [08] [14] [04]

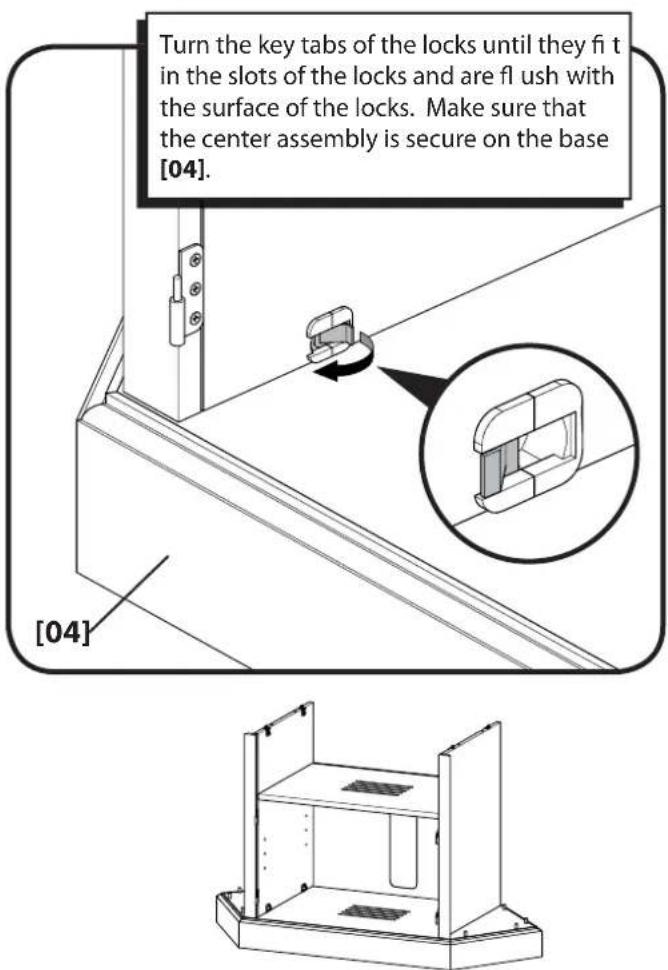

Turn the key tabs of the locks until they fit in the slots of the locks and are flush with the surface of the locks. Make sure that the center assembly is secure on the base [04]. [04]

3-1

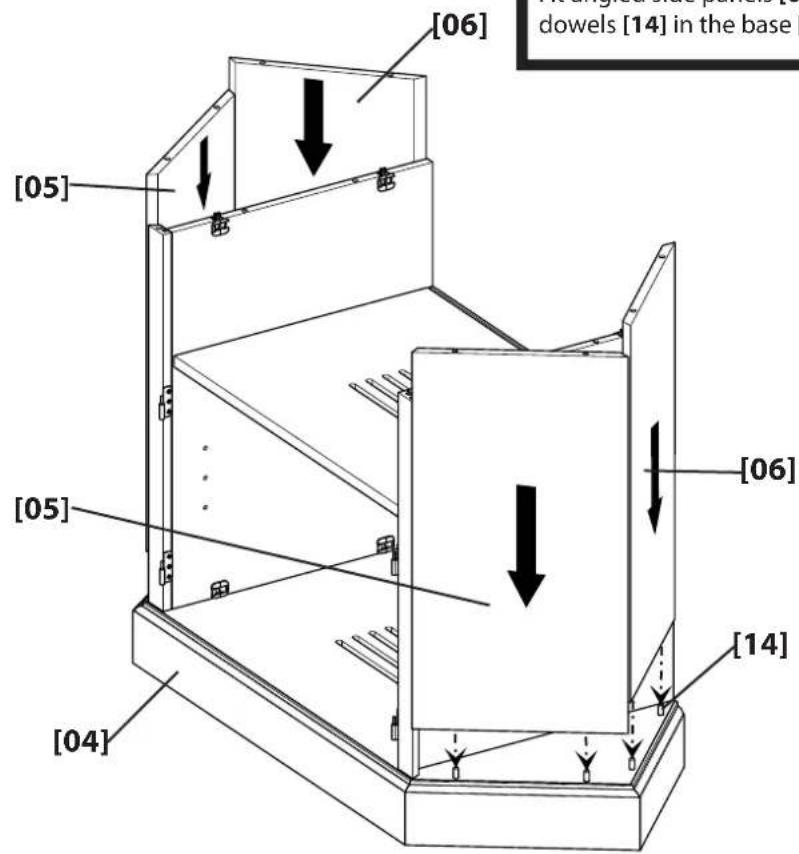

[06] [05] [05] [04] [14] dowels [14] in the base [06]

Fit angled side panels [05] and [06] onto dowels [14] in the base [04].

3-2

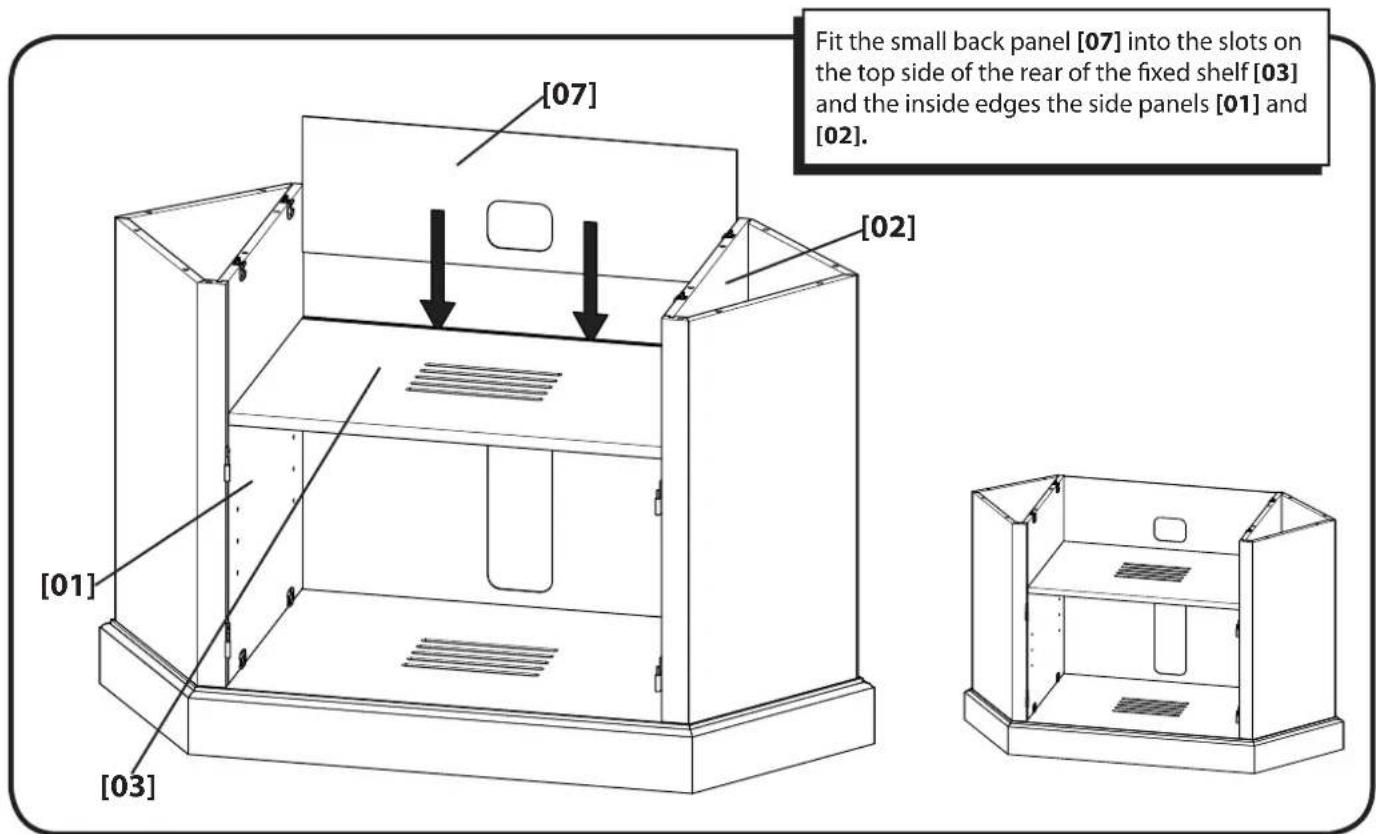

[07] [02] Fit the small back panel [07] into the slots on the top side of the rear of the fixed shelf [03] and the inside edges the side panels [01] and [02]. [01] [03]

4-1

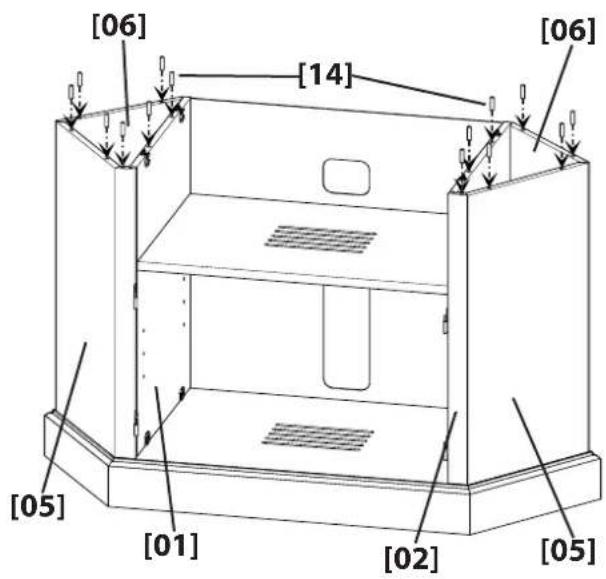

Insert fourteen dowels [14] into the holes in the tops of the left [01], right [02], and angled side panels [05] and [06].

[06] [14] [06] [05] [01] [02] [05]

4-2

HEAVY! You will need assistance with this step.

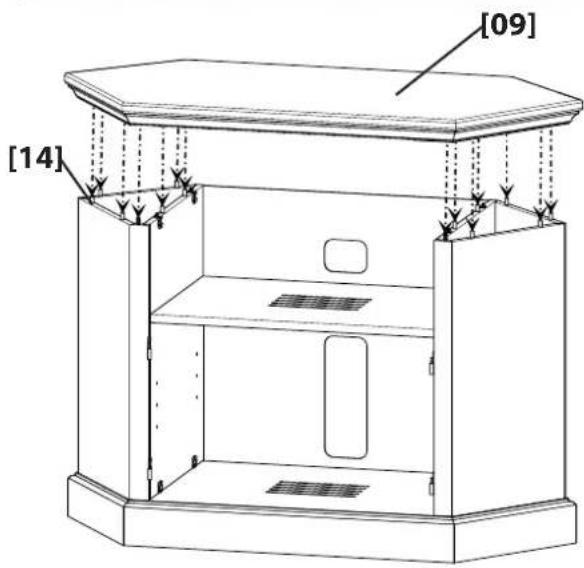

Carefully fit the top [09] onto the base structure fitting the holes in the underside of the top [09] onto the dowels [14] of the side panels and fitting the keys of the side panels into the slots of the top [09].

[09] [14]

4-3

Turn the key tabs of the locks until they fit in the slots of the locks and are flush with the surface of the locks. Make sure that the top [09] is secure.

SANUS BFAV48 - 4-3 - 1

natural_image Technical line drawing of a structural frame with mounting brackets and hanging clips (no text or symbols)

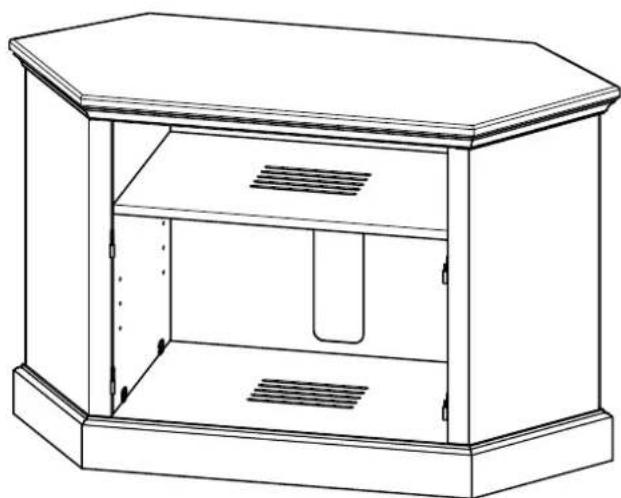

SANUS BFAV48 - 4-3 - 2

natural_image Line drawing of a cabinet with open lid and internal compartments (no text or symbols)

5-1

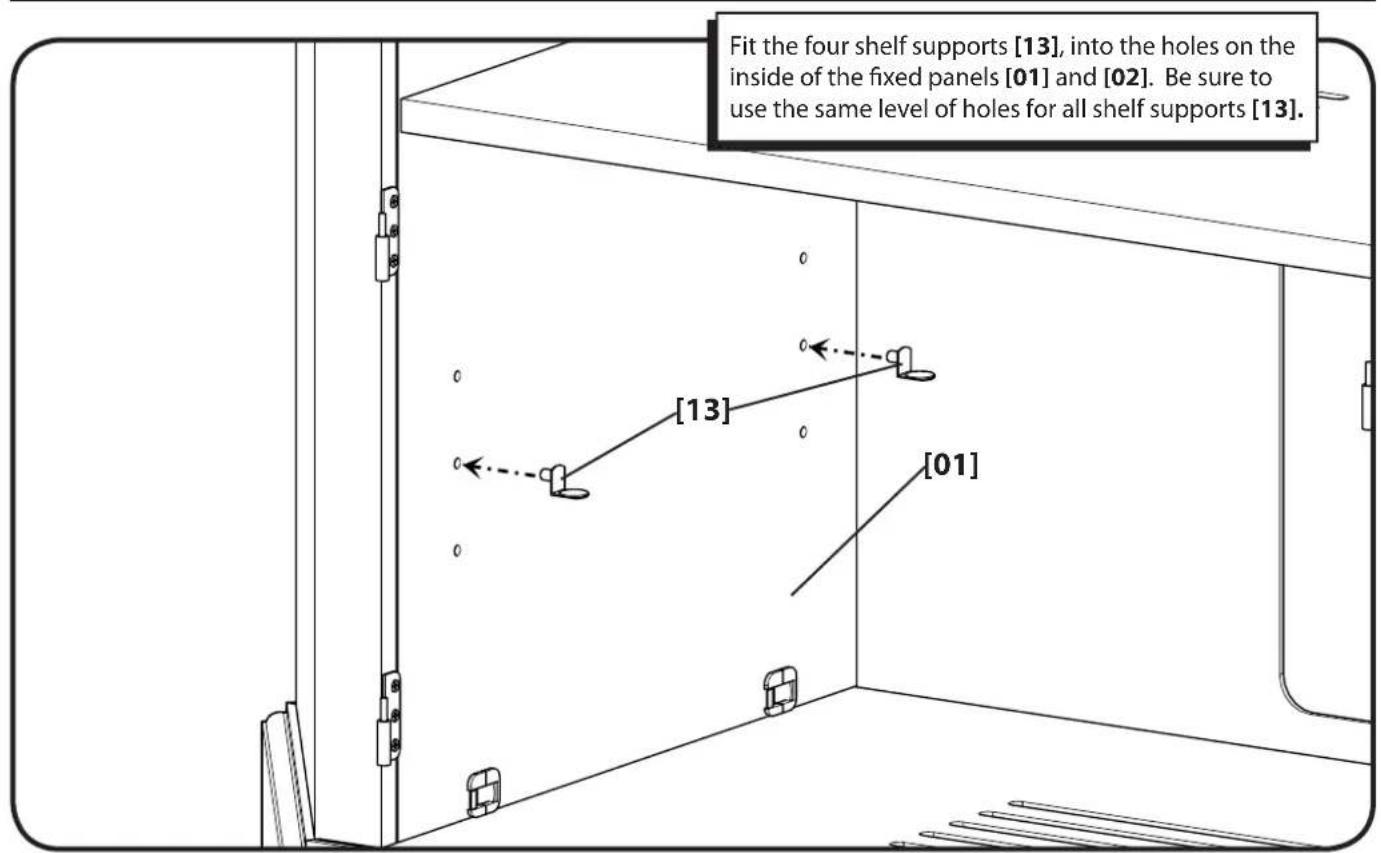

Fit the four shelf supports [13], into the holes on the inside of the fixed panels [01] and [02]. Be sure to use the same level of holes for all shelf supports [13]. [13] [01]

5-2

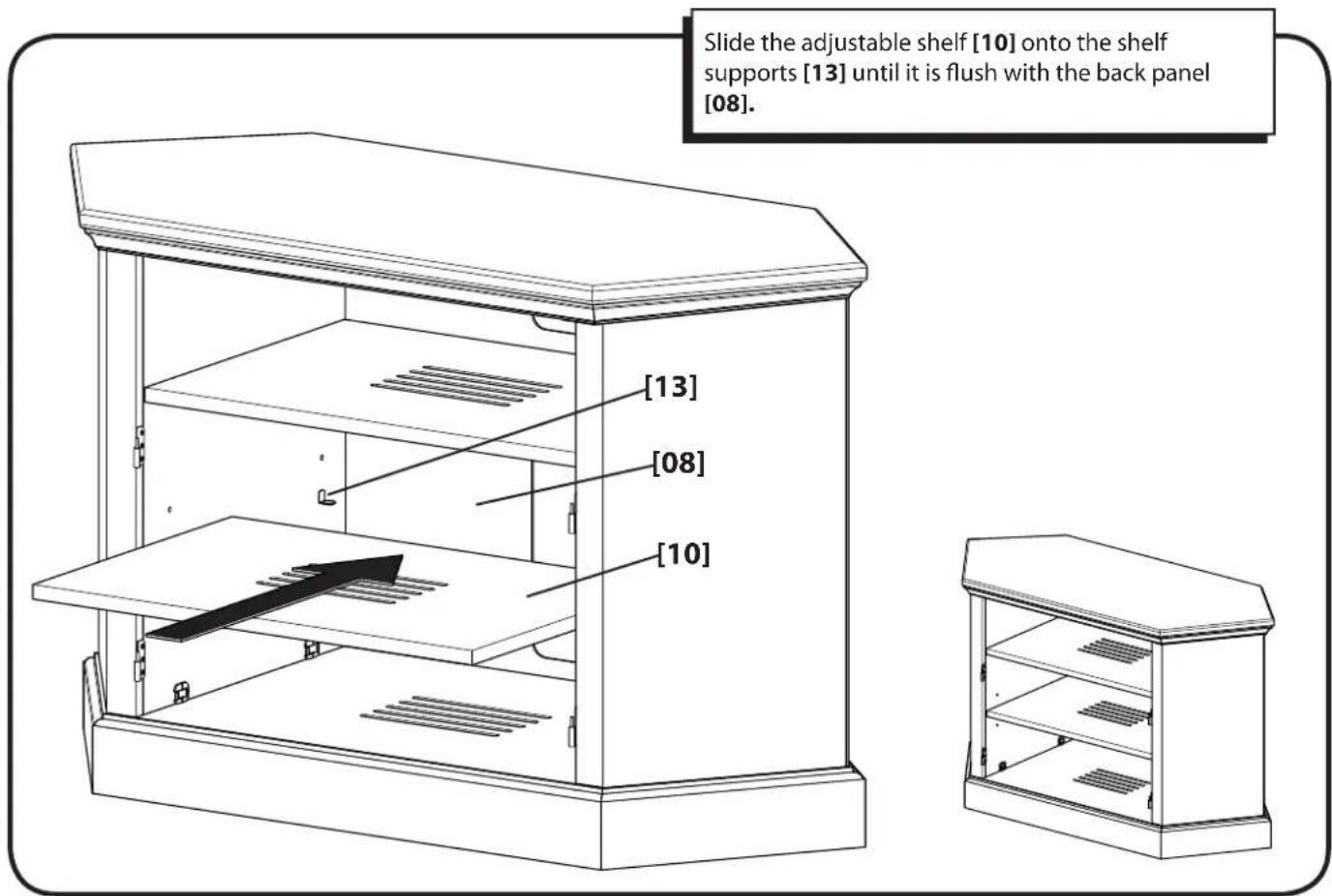

Slide the adjustable shelf [10] onto the shelf supports [13] until it is flush with the back panel [08].

6-1

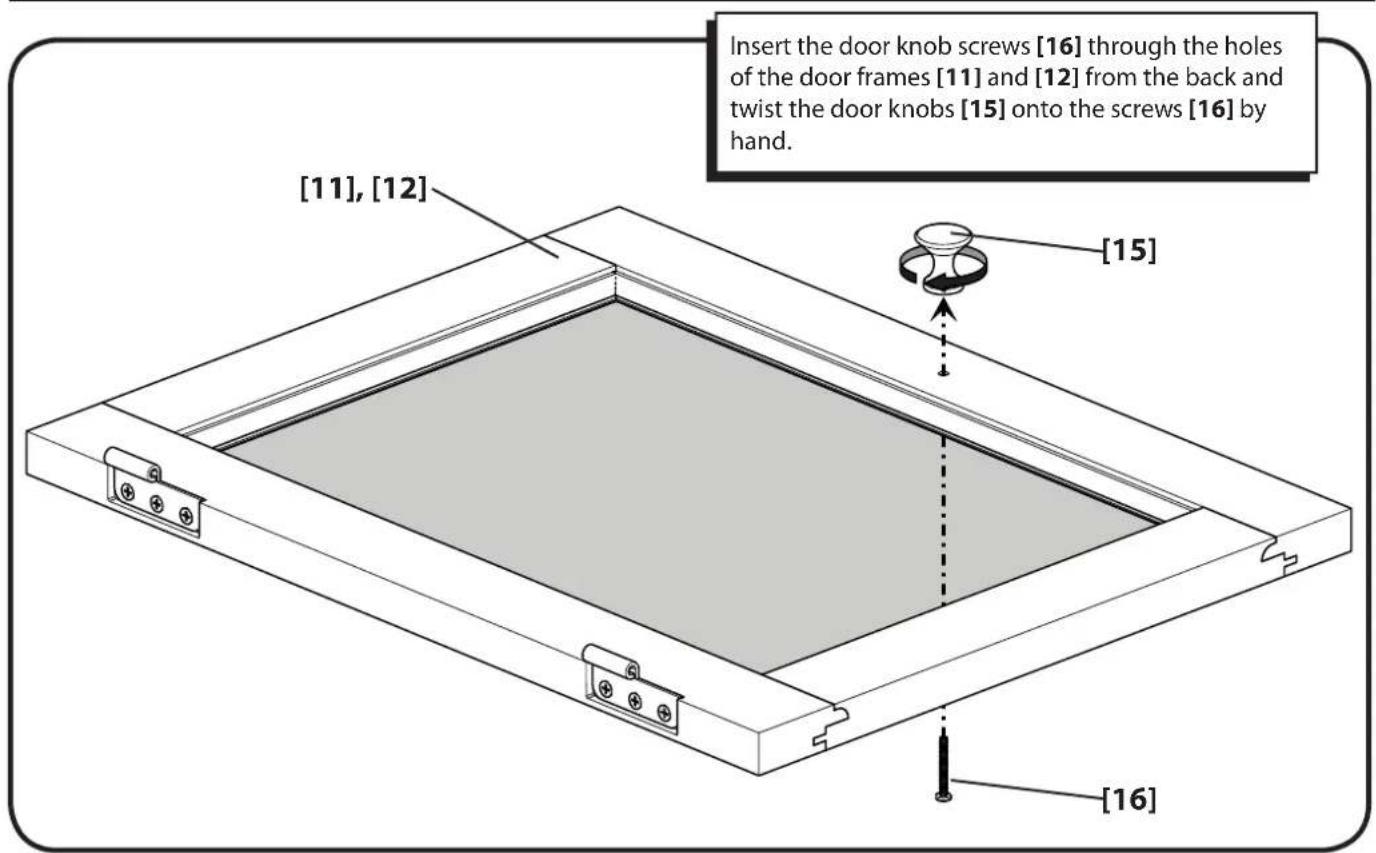

[11], [12] Insert the door knob screws [16] through the holes of the door frames [11] and [12] from the back and twist the door knobs [15] onto the screws [16] by hand. [15] [16]

6-2

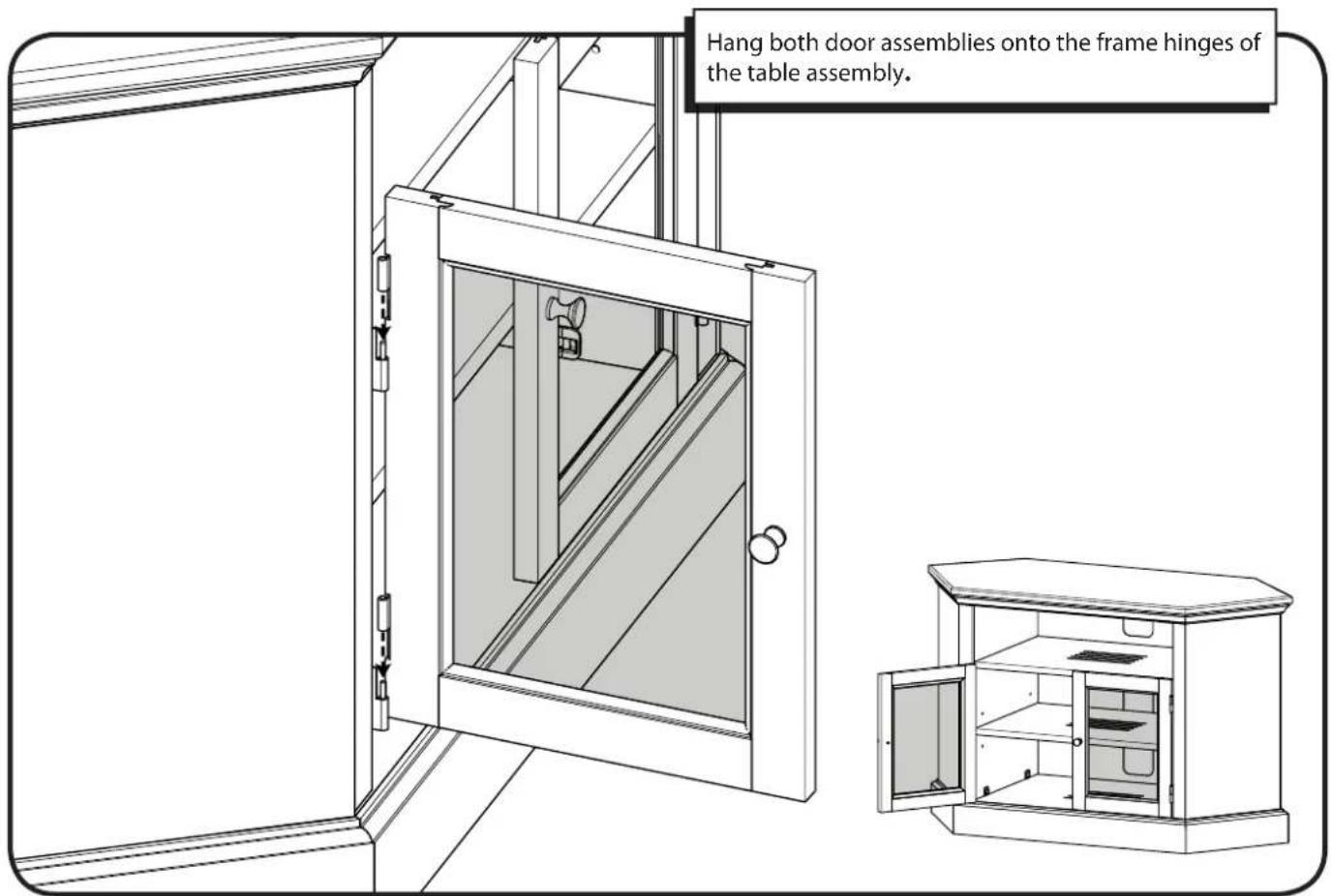

Hang both door assemblies onto the frame hinges of the table assembly.

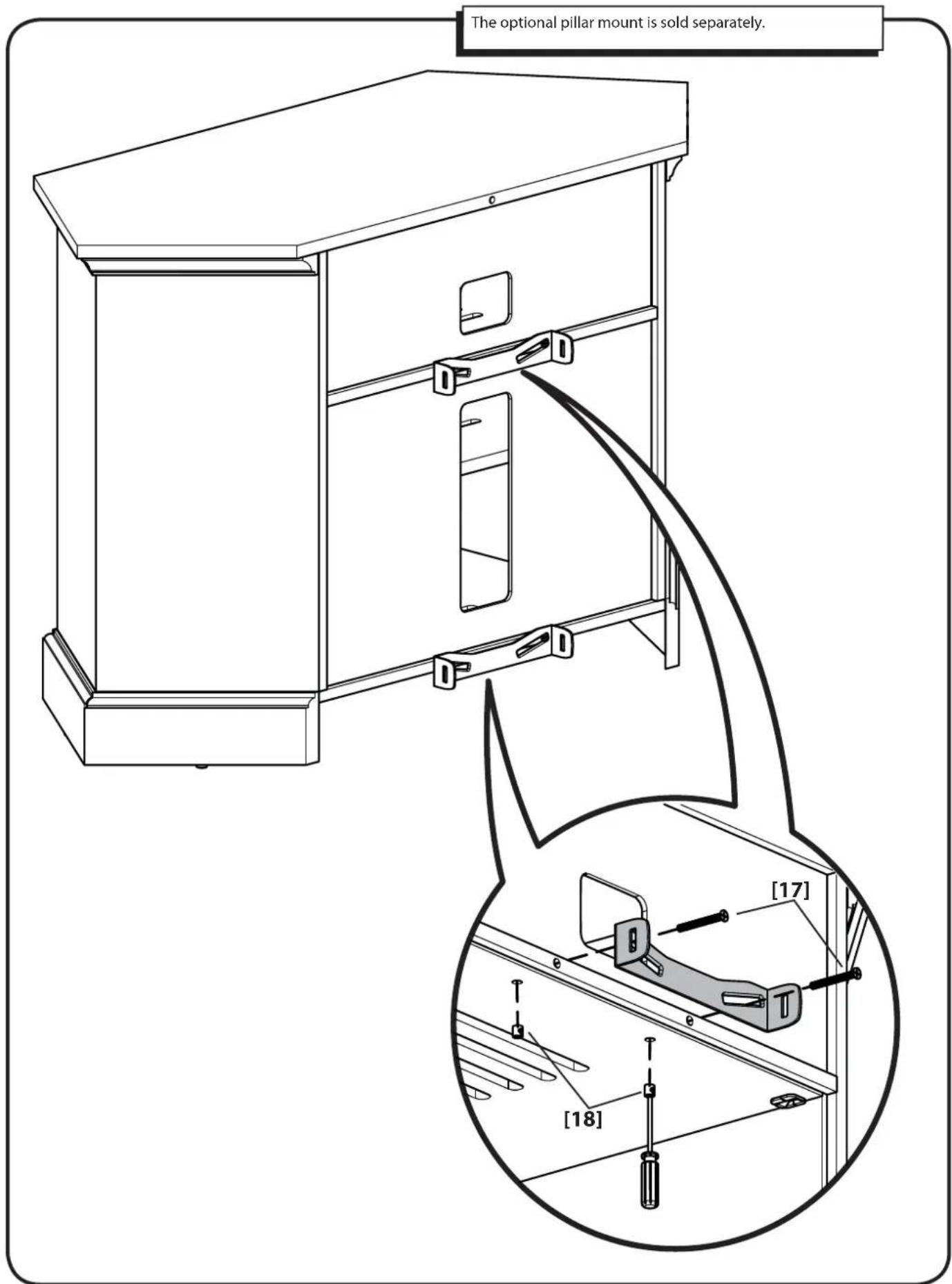

The optional pillar mount is sold separately. [17] [18]

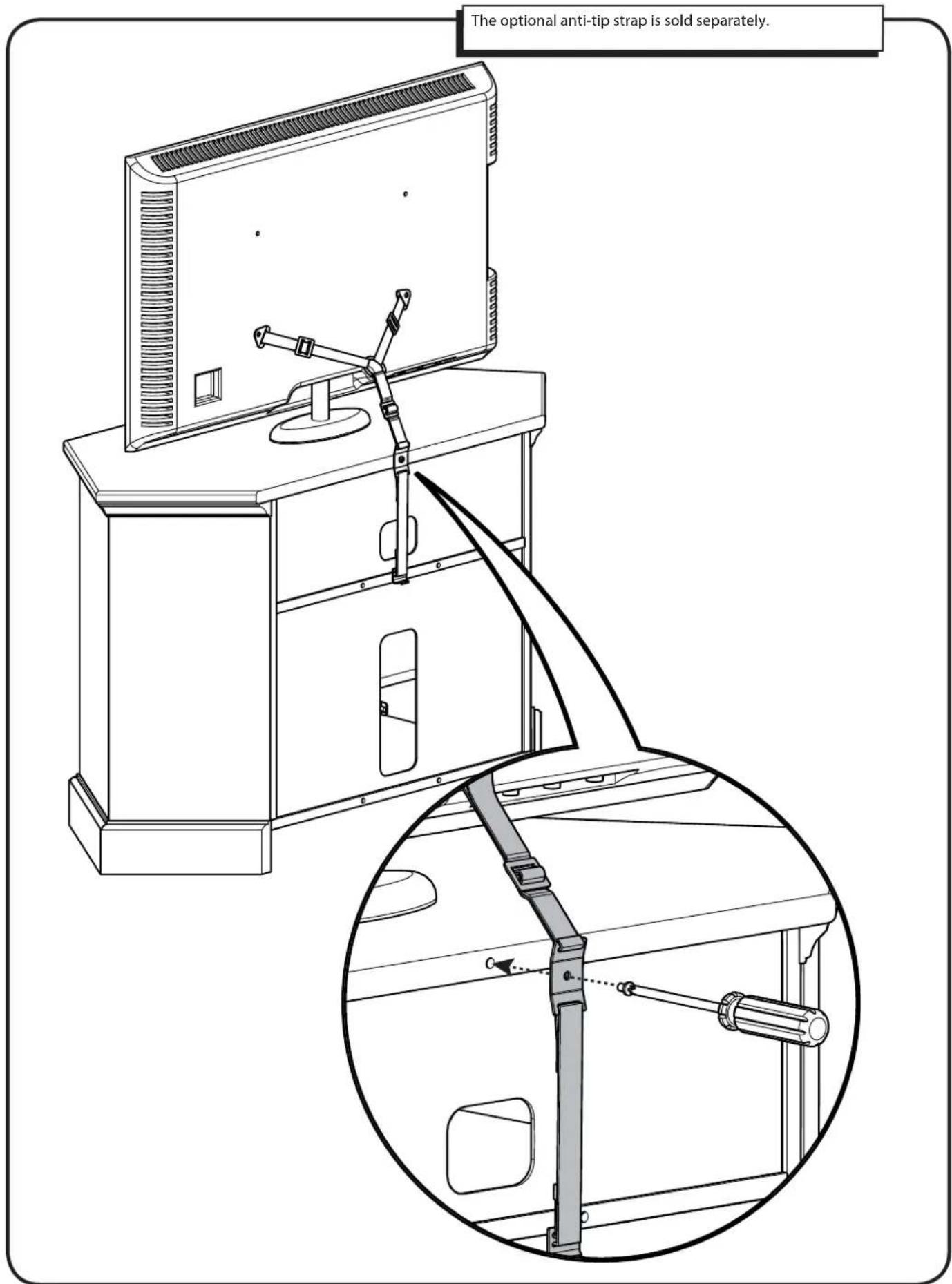

The optional anti-tip strap is sold separately.

Français

CONSIGNES DE SÉCURITÉ IMPORTANTES - CONSERVEZ CES INSTRUCTIONS - VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

FIXATION DE LA PARTIE CENTRALE AU SOCLE

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
