DCF550W1 - Freezer DANBY - Free user manual and instructions

Product Type	Compact Chest Freezer
Brand	Danby
Model	DCF550W1
Capacity	5.5 ft³ (156 L)
Thermostat	Front-mounted control, adjustable from 0 (off) to maximum
Temperature range	Storage at -18°C (0°F) recommended
Drain plug	Yes, for easy defrosting
Interior walls	Rust-proof aluminum
Power supply	120 V, 60 Hz, grounded plug
Power consumption	Not specified in the manual
Dimensions (approx.)	Not provided in the manual
Weight (approx.)	Not provided in the manual
Defrosting	Manual, recommended 1 to 2 times per year
Cleaning	Warm soapy water, baking soda for odors
Child safety	Instructions to prevent entrapment (remove doors from old appliances)
Grounding	Required, plug and outlet with ground
Warranty	1 year parts and labor (conditions apply)
Customer service	1-800-263-2629 (Danby)

Frequently Asked Questions - DCF550W1 DANBY

How to adjust the freezer temperature?

Turn the thermostat knob located on the front clockwise to the maximum position (dark blue) for quick cooling. After 3 to 4 hours, return to a position equivalent to 2 o'clock on a dial. To stop, turn to '0'.

How often should the freezer be defrosted?

It is recommended to defrost once or twice a year, or when the frost layer exceeds 6 mm (1/4 inch). Use a wooden or plastic spatula and hot water to speed up the process.

How to clean the interior of the freezer?

Unplug the appliance, remove food, and clean the walls with warm water and mild soap. Sprinkle baking soda to eliminate odors. Rinse and dry thoroughly.

What to do in case of a power outage?

Minimize opening the lid. If the outage lasts more than an hour, place a block of dry ice on the food. If possible, wrap the freezer in blankets to keep the cold.

How to install the freezer correctly?

Place the freezer in a temperate location, at least 5 inches from the wall for air circulation. Avoid heat sources and direct sunlight. Use a dedicated grounded electrical circuit.

What to do if the freezer does not work?

Check that the power cord is plugged in and the outlet has power. Ensure the voltage is correct (120 V). Consult the troubleshooting guide in the manual.

The freezer runs continuously, is that normal?

This may be due to high ambient temperature, a poorly sealed lid, or adding warm food. Check the thermostat setting and minimize openings. If the problem persists, contact service.

What are the important safety instructions?

The appliance must be grounded. Never use an extension cord. Before discarding an old appliance, remove the doors to prevent child entrapment. Follow all safety instructions.

How to put the freezer on standby for long absences?

Remove all food, unplug the appliance, clean it completely, and leave the lid open to prevent odors.

Where to find the model and serial number?

They are located on the identification plate inside the freezer on the back wall. Note this information before contacting customer service.

USER MANUAL DCF550W1 DANBY

Owner's Use and Care Guide 1-7

• Safety Instructions
  • Installation Instructions
• Operating Instructions
  • Care and Maintenance
• Troubleshooting
• Warranty

CONGÉLATEUR HORIZONTAL COMPACT

Read and follow all safety rules and operating instructions before first use of this product.

PRECAUTION:

Line drawing of a Danby air conditioner unit with lid and control buttons (no text or symbols on body)

Welcome to the Danby family. We're proud of our quality products, and we believe in dependable service; like you will find in this owner's use and care guide, and like you will receive from our friendly customer service department. Best of all, you will experience these values each and every time you use your Danby Chest Freezer. That's important, because your new appliance will be a part of your family for a long time.

For easy reference, may we suggest that you attach a copy of your sales receipt to this page, and note the information below; you will need this information to obtain service under warranty.

Model No:

Serial No:

Date Purchased:

Need Help?

Before you call for service, there are a few things you can do to help us serve you better.

Read this Owner's Use and Care Guide:

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance:

Immediately contact the builder (or dealer) that sold you the unit.

Save time and money:

Check the Trouble shooting section before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax knowing help is only a phone call away.

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

Tel: 1-800-26-Danby

(1-800-263-2629)

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

ELECTRICAL REQUIREMENTS

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

IMPORTANT WARNING

An empty refrigerator/freezer is a very dangerous attraction to children. Remove either the gasket or lid from unused appliances, or take some other action that will guarantee it harmless.

WARNING

Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

DO NOT USE AN EXTENSION CORD

Use an exclusive wall outlet. Do not connect your refrigerator to extension cords or together with any other appliance in the same wall outlet.

DANGER: Risk off child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
- Leave the shelves in place so that children may not easily climb in.

DON'T WAIT DO IT NOW!

Installation Instructions

LOCATION

Remove exterior and interior packaging, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Avoid placing the unit in a narrow recess or near any heat source, direct sunlight, or moisture. Let air circulate freely around the unit. Keep the rear of the freezer 5 inches away from the wall.

1) Locate the freezer in such a manner that extension cords are not necessary.
2) Due to lid and hinge arrangement, it is impossible to install your freezer directly against the wall. The spacing on the back is essential for maintaining proper air circulation around the freezer.
3) Select a location with reasonable year round temperatures. We do not recommend operating the freezer when surrounding air temperature is below 0^ C ( 32^ F), though it will not harm the freezer to stand in any temperature below 0^ C ( 32^ F), provided the temperature control is set to avoid running the unit. In order to keep operating cost down, do not place freezer near a stove, furnace, heat register or in direct sunlight. If the place selected for your freezer is damp or moist, as in basements, place freezer on wooden blocks (two or three 2x4's under entire length will ensure adequate support).

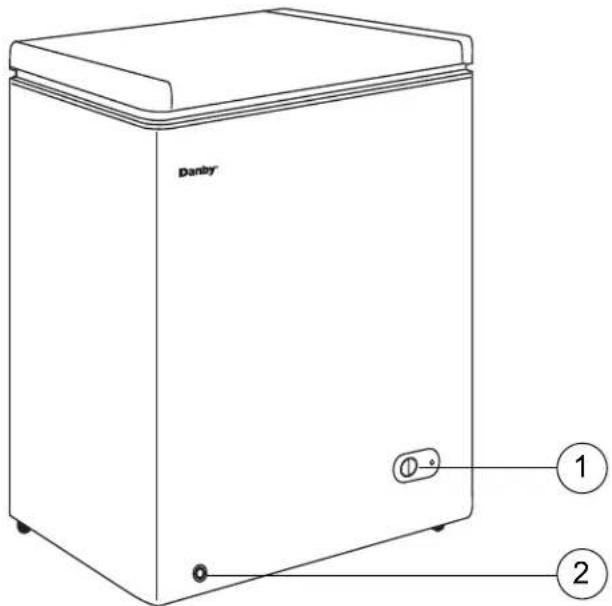

FEATURES

1) Front Mounted Thermostat: Easily accessible control knob controls the desired temperature inside the freezer. The proper food storage temperature is -18^ (0°F). The thermostat engages the motor when the temperature rises above the set temperature.
2) Defrost Drain: For easy removal of melted ice during defrosting. It is recommended that you defrost your freezer once or twice a year.
3) Rust Resistant Interior (not shown): Aluminum liner for long lasting durability.
5.5 cu. ft. (156L)

Operating Instructions

The freezer is ready to operate as received, when connected to the power supply. After connecting to power supply, close lid and allow freezer to operate. The unit will run from 1 to 2 hours (possibly longer, depending on conditions) before operating temperature is reached. It will then start and stop (cycle) at fairly regular intervals. It is recommended that food not be placed in the freezer until you are satisfied that it is operating (cycling) regularly and no final adjustments are necessary.

Once your freezer is starting and stopping (cycling) regularly, it is ready to freeze and store foods. The proper food storage temperature is -18°C (0°F). Do not operate freezer at temperatures below -19°C (-3°F), as this does not improve food preservation and only results in longer unit (cycle) running time. It is not advisable to freeze more than 25 kg.(50 lbs.) of food in any 24 hour period. It will take 15 or more hours of unit running time to freeze this amount of food.

When adding fresh, unfrozen food packages, store them against the walls. The sensing bulb of the thermostat is fastened to the liner wall on the "insulation side" of the freezer. In view of the value of the contents of your freezer, it is advisable to inspect contents and check freezer operation regularly.

TEMPERATURE CONTROL

The temperature of the freezer compartment is controlled by adjusting/setting the thermostat control knob, located on the front of the freezer cabinet. To start the freezer and achieve maximum cooling quickly;

• Turn the temperature control knob clockwise to the furthest (maximum) setting on the darker blue (wide) section of the graduated control dial.
• Allow the freezer to run at this setting for 3-4 hours.
• When maximum cooling is achieved, turn back the temperature control knob setting to the 2 o'clock position on the graduated blue control dial. See Fig.1.
• To turn off the freezer (no cooling), rotate the control knob to the "0" (off) position. See Fig.2.

Abstract circular graphic with curved lines and a small black dot, no text or symbols present.

Fig. 1

Abstract circular design with curved lines and a vertical line, no text or symbols present.

Fig. 2

Care and Maintenance

DEFROSTING

Moisture will be introduced to the liner during lid openings and the addition of unfrozen food packages. The moisture will accumulate in the form of frost, mostly on the upper part of the liner walls. Accumulation of frost up to 6 mm (1/4") on the liner is not harmful. However, when it becomes heavier, it should be removed as it slows cooling, resulting in longer running (cycle) times. Under average conditions, defrosting will not be necessary more than once or twice a year. Besides frost, food particles and other foreign substances may accumulate and soil the liner.

For proper defrosting and cleaning, the following method is recommended:

a) Unplug freezer.
b) Quickly remove all frozen food and store in baskets, cartons or other suitable containers. Keep food well covered with blankets to avoid excessive temperature rise.
c) A kettle/pot of hot water placed in the center of the cabinet will greatly accelerate defrosting.
d) With the help of a wooden spatula or a plastic defrosting scoop, remove the frost and ice off the liner walls as soon as it becomes loose (approximately 15 minutes from start) - do not use any sharp instruments as this may result in damage to the liner wall and/or sealed system, voiding any and/or all warranties which may be in effect. Using a piece of cloth soaked in hot water, the process can be considerably accelerated. As soon as the ice has fallen to the bottom, remove it. Do not let it melt in the freezer as this will increase defrosting and cleaning time.

CLEANING

Now the liner is ready to be cleaned. Sprinkle baking soda on the bottom and walls. This will help in cleaning and odor removal. In order to retain the finish of the freezer cabinet inside and outside, wash only with warm water and mild soap, then rinse and dry. Do not under any circumstances use a gritty soap or a kitchen scouring cleanser, as these tend to scratch the finish.

VACATION TIME

For short vacation periods, leave the control knob at its normal setting. During longer absences,

(a) remove all foods.
(b) disconnect power cord from electrical outlet.
(c) defrost and clean the freezer thoroughly.
(d) leave lid open to avoid possible formations of condensate, mold or odors.

ELECTRICAL AND MECHANICAL FAILURE

In the event of a general power failure, it is important to keep the contents of your freezer frozen. For your protection, it is recommended to locate a dealer of dry ice (solidified carbon dioxide) as soon as possible in order to know where to go in case of an emergency. Many ice cream manufacturers use dry ice and this will keep the contents of your freezer at safe temperatures until the emergency has passed.

In case of failure, it is recommended to keep the freezer well covered with blankets. This will help preserve the "cold" inside the freezer. If no help is available within 12 hours, the freezer contents should be transferred into a neighbors freezer (if available).

In the event of mechanical or electrical failure of the freezer, contact a service agent immediately and give complete information of your freezer, the model number and the serial number. These are shown on the serial plate located on the exterior (rear) cabinet wall.

POWER FAILURE

Most power failures are corrected within an hour or two and will not affect your freezer temperatures. However, you should minimize the number of lid openings while the power is off. During power failures of longer duration, take steps to protect your food by placing dry ice on top of packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the unit. To avoid damaging the leveling legs, turn them all the way into the base.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE FREEZER

• Never place hot foods in the freezer.
• Never place spoiled foods in the unit.
• Don't overload the unit.
• Don't open the lid unless necessary.

- Should the freezer be stored without use for long periods, it is suggested, after a careful cleaning, to leave the lid open to allow the air to circulate inside the unit in order to avoid the possibility of condensation, mold or odors.

Occasionally, a problem is minor and a service call may not be necessary- use this troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized service depot or Danby's Toll Free Number 1-800-263-2629 for assistance.

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTION
1) Does not work.	No power to unit.Power cord is unplugged.Wrong voltage is being used.	Check connection of power cord to power source.Plug in unit.Use proper voltage.
2) Freezer runs continuously.	Temperature set too low.Lid is not closed.Hot food inserted.Lid opened too long or too often.Close proximity to heat source or direct sunlight.	Set temperature control to warmer settingClose lid securely.Be sure food is at room temperature before inserting.Minimize lid openings/ duration.Do not place unit close to heat sources or direct sunlight.
3) Internal temperature not cold enough.	No power to unit.Power cord is unplugged.Temperature set too high.Lid is not closed.Hot food inserted.Lid opened too long or too often.Air flow obstruction.Wrong voltage is being used.Close proximity to heat source or direct sunlight.	Check connection of power cord to power source.Plug in unit.Check setting and increase as needed.Close lid securely.Be sure that food is at room temperature.Minimize lid openings/ duration.Allow room for air to circulate around unit.Use proper voltage.Do not place unit close to heat sources or direct sunlight.

Danby®

LIMITED IN-HOME APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

First Year During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the ORIGINAL purchaser.

To obtain Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an Authorized Service Depot. Any appliance requiring service outside the limited boundaries of "In Home Service", it will be the consumer's responsibility to transport the appliance their own expense) to the original retailer (point of purchase) or a service depot for repair. See "Boundaries of In Home Service" below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician.

If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under this warranty shall be void.

Boundaries of In Home Service If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualified and certified for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application).

Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

04/09

Beinvenue

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

Tel: 1-800-26-Danby (1-800-263-2629)

Abstract circular graphic with curved lines and a small black line, no text or symbols present.

Fig. 3

Abstract circular design with concentric arcs and a central vertical line (no text or symbols)

Fig. 4

Soins Et Entretien

DEGIVRAGE

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

04/09

Bienvenido

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

Tel: 1-800-26-Danby

(1-800-263-2629)

Abstract circular graphic with curved lines and a small black line, no text or symbols present.

Fig. 5

Abstract circular design with concentric arcs and a central vertical line (no text or symbols)

Fig. 6

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

04/09

COMPACT CHEST FREEZER

The model number can be found on the serial plate located on the back panel of the unit.

All repair parts available for purchase or special order when you visit your nearest service depot. To request service and/or the location of the service depot nearest you, call Danby toll free.

When requesting service or ordering parts, always provide the following information:

• Product Type
• Model Number
• Part Description
