USER MANUAL trave Palmer

re-amplification box passive

trave

DE BEDIENUNGSCANLEITUNG
EN USER MANUAL
IT MANUAL DE USUARIO
FR MANUEL D'UTILISATEUR
ES MANUAL DE INSTRUCCIONES
PL INSTRUKCJA OBSLUGI

re-amplification box passive

re-amplification box passive

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

Let your signals flow, naturally and powerfully like a river! The River Series embodies this claim down to the last detail: Featuring high-precision circuits, designed by our award-winning engineers to ensure your sound reaches its destination – the hearts of your listeners.

That's exactly what Palmer® stands for. We have been manufacturing audio tools for professional use on stage, in broadcasting and in the studio since 1980. Musicians and sound engineers around the world value our solutions developed in Germany for their unhindered signal flow and pure sound - as crystal clear and vibrant as water! So what was more logical than naming the River Series models after German rivers?

On the map of Germany you can see where the Trave flows: 124 kilometres through Schleswig-Holstein.

Thank you for purchasing the travel! We hope you enjoy this piece of German engineering. Be true to your sound!

Yours, the Palmer Team

Trave

re-amplification box passive

INTENDED USE

This product is a device for event technology, as well as studio, TV and broadcast!

This product has been developed for professional use in the field of event technology, studio, TV and broadcast. It is not suitable for household use!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology, as well as studio, TV and broadcast!

Use of the product outside the specified technical data and operating conditions is considered inappropriate! Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

This product is not suitable for:

• Persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
  Children (children must be instructed not to play with the device).

SAFETY INSTRUCTIONS

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.

CHOKING HAZARD! KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT CONTAINS SMALL PARTS AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!

INTRODUCTION

The Trave re-amplification box is used as an essential tool for high-quality electric guitar recording in both professional and home sound studios. As a connecting link, it allows an already recorded, dry guitar signal to be reproduced unadulterated and transmitted with appropriate adaptation to a guitar amplifier, where it can, in turn, be picked up and recorded by microphone. This allows the sound engineer to experiment with the instrument sound using different amplifiers, guitar effects, microphones, and microphone positions at their leisure, and record multiple versions of the processed guitar signal on separate tracks of a DAW without the need for a guitarist to be present. The re-amplification box also has an internal transformer that can effectively prevent ground loops.

trave

re-amplification box passive

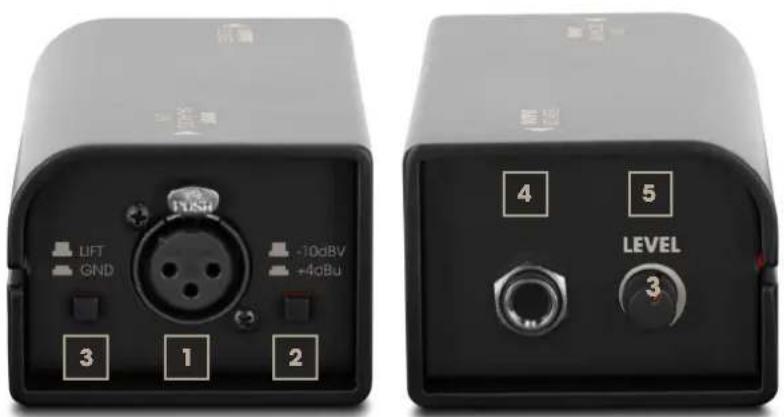

CONNECTIONS AND OPERATING ELEMENTS

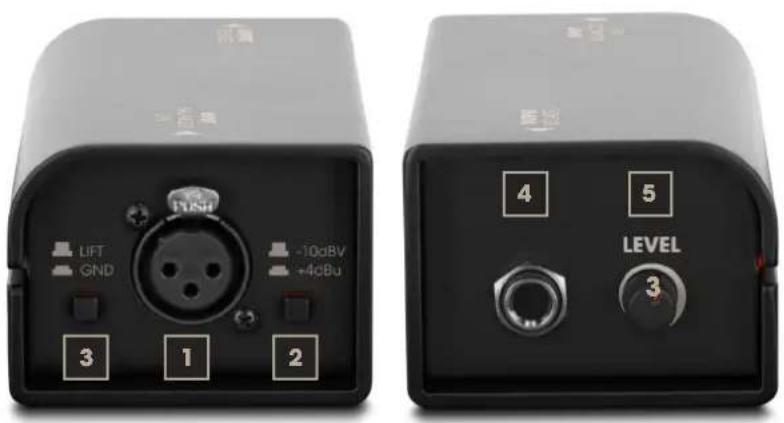

CONNECTIONS AND OPERATING ELEMENTS

1. INPUT

Balanced microphone input with a female 3-pin XLR socket. Connect the line output of your recording system and the line input of the re-amplification box using a high-quality microphone cable. If the recording system does not have an XLR output, a cable with an appropriate connector must be used.

2.SWITCH-10 dBV/ +4 dBu

Pressure switch for selecting the working level:

Consumer equipment, switch not pressed (-10 dBV).

Professional equipment, switch pressed (+4dBu)

3. LIFT/GND

Switch for disconnecting the ground connection from the input and output (ground lift). In the non-pressed position, the ground connection is disconnected; the connection is established when the switch is pressed. The ability to prevent a humming loop using the ground lift switch depends on the grounding of the connected device. It is therefore possible that both one and the other switch position is able to effectively reduce or eliminate humming.

4. OUTPUT

High-impedance audio output with an unbalanced 6.3mm jack socket. Use a high-quality guitar cable to connect the re-amplification box to the instrument input of a guitar amplifier.

5. LEVEL

Level controller for adjusting the output level.

ATTENTION: Connecting signal cables can cause a lot of noise. Please ensure that the input channel (mixer, audio interface, etc.) is muted during plugging. Otherwise, noise levels may cause damage.

PLEASE NOTE: Strong magnetic fields can cause humming. Therefore, do not position the re-amplification box near strong magnetic fields (e.g. mains transformer).

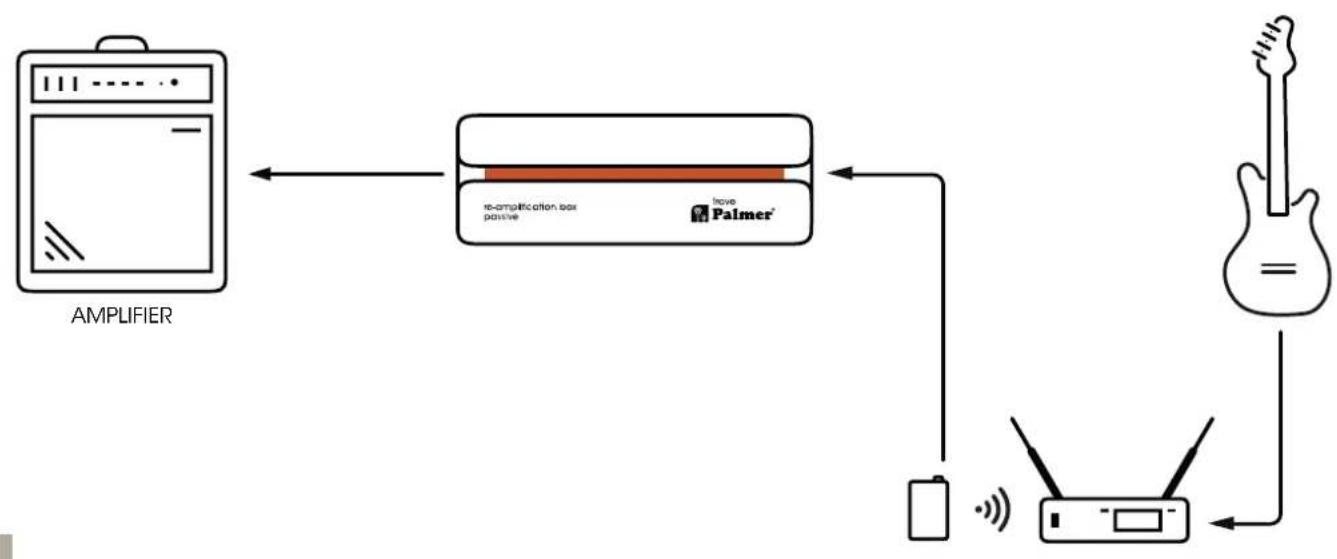

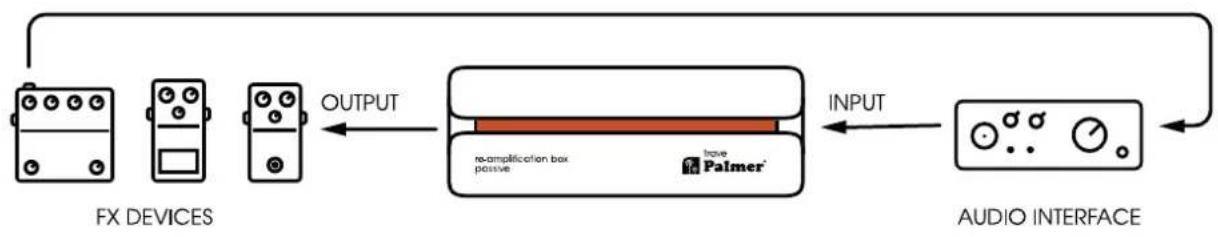

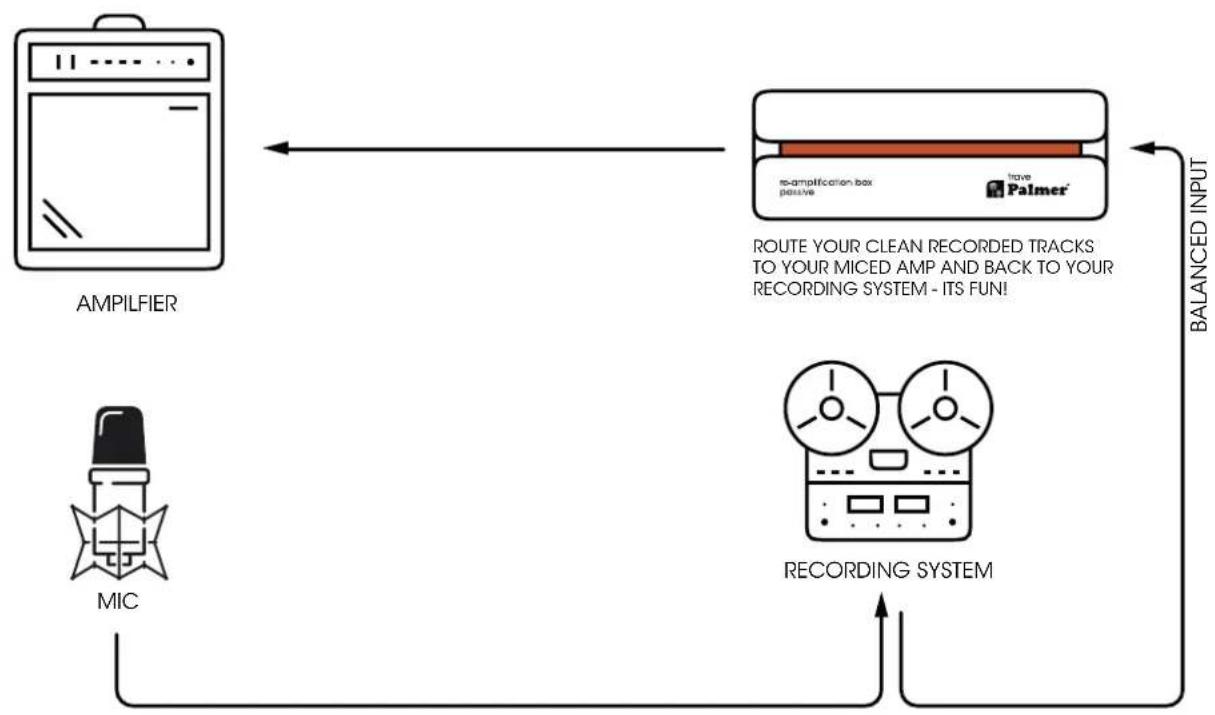

WIRING EXAMPLES

TECHNICAL DATA

GENERAL

Product number PTRAVE
Product type DI box
No. of channels 1
Type passive
Transformer isolated yes
No. of inputs 1
Input type balanced
Input connections XLR
No. of outputs 1
Output type unbalanced
Output connections 6.3 mm jack
Ground/lift switch yes
Additional functions	Input level switch, output level potentiometer
Housing	Aluminium continuous casting
Dimensions (H/W/D)	140 x 50 x 68 mm
Weight	0.395 kg
Ambient temperature for operation	-20°C...70°C
Relative air humidity	<80%, non-condensing
Included accessories	Rubber feet
AUDIO
Max. input level (<1% THD, 20 Hz)	+19 dBu
Max. input level (<1% THD, 1 kHz)	+32 dBu

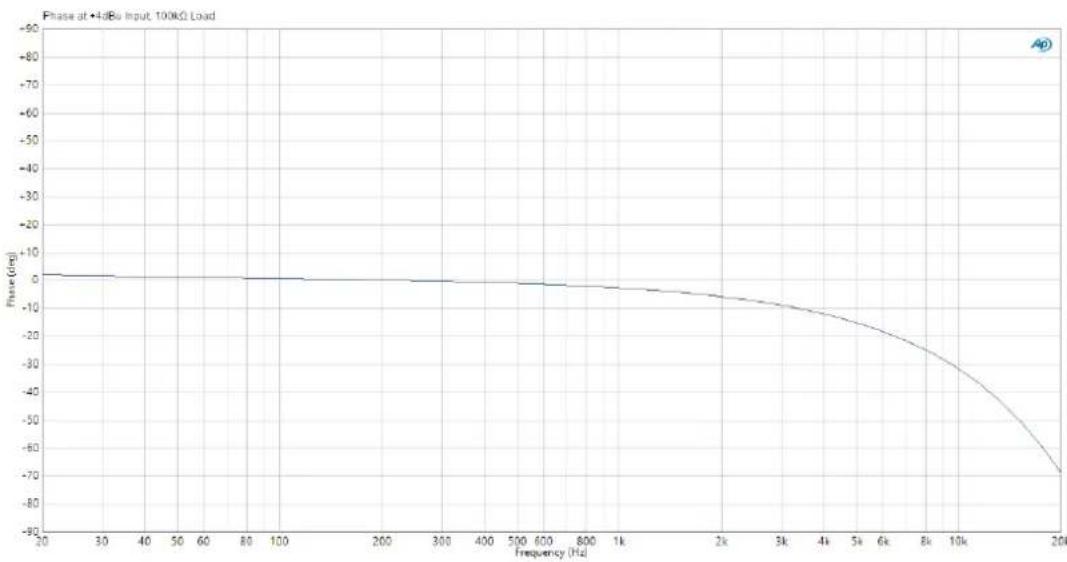

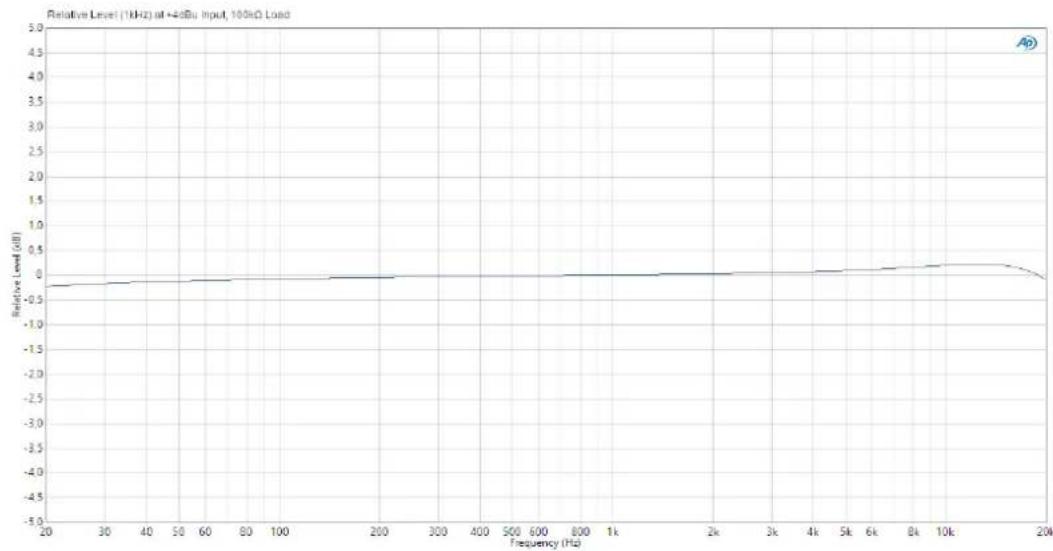

Frequency response (±1 dB, relative 1 kHz)	10 Hz to 20 kHz
Input impedance (1 kHz, setting: max. level, -10 dBV)	5 kΩ
Output impedance (1 kHz, setting: max. level, -10 dBV)	4.2 kΩ

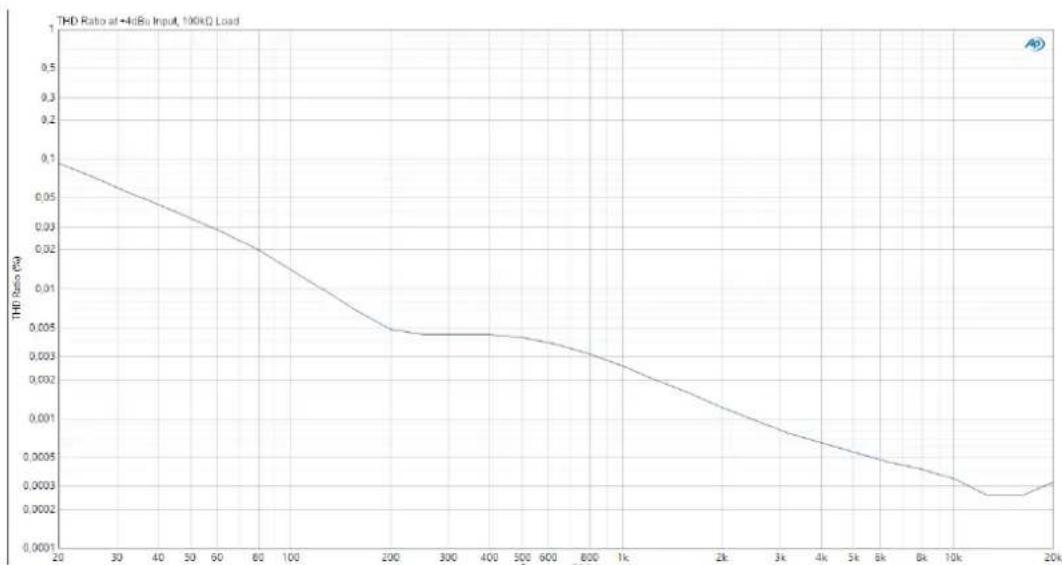

THD (30 Hz, +4 dBu, unity, unweighted)	< 0.08%
THD (1 kHz, +4 dBu, unity, unweighted)	< 0.003%
IMD (SMPTE) (60 Hz/7 kHz, 4:1, +4 dBu)	< 0.004%
Transformer ratio	1:3

All measurements were performed with a generator with 100 output impedance and 100k balanced load.

DISPOSAL

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Waste Electrical and Electronic Equipment

Directive in the currently valid version. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility.

Please observe the applicable regulations in your country!

1. Observe all disposal laws applicable in your country.
2. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

BATTERIES:

1. Batteries should not be disposed of in household waste. Batteries and rechargeable batteries must be disposed of via an approved disposal company or a municipal disposal facility.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.
4. Devices with batteries that cannot be removed by the user must be taken to a collection point for electrical appliances.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability Adam Hall GmbH Adam-Hall-Str.1 61627 Neu-Anspach, Germany

Email: [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER DE EN ES FR.pdf

Contact your distribution partner for service.

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU) EMC Directive (2014/30/EU) RoHS (2011/65/EU) RED (2014/53/EU)

EC DECLARATION OF CONFORMITY

Declarations of conformity for products that are subject to the LVD, EMC, RoHS Directives, can be requested at [e-mail]. Declarations of conformity for products that are subject to the RED Directive can be downloaded at www.adamhall.com

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

UKCA-CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines (where applicable)
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/3032) Radio Equipment Regulations 2017 (SI 2016/2015)

UKCA-DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety) Regulation 2016, EMC Regulation 2016 or RoHS Regulation can be requested at [e-mail].

Products that are subject to the Radio Equipments Regulations 2017 (SI2017/1206) can be downloaded from www.adamhall.com/compliance/

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!
