Product Type	Directional Condenser Microphone
Brand	Nowsonic
Model	Kamikaze
Polar Pattern	Cardioid
Frequency Response	50 Hz - 16 kHz
Sensitivity	-32 dB ± 3 dB (0 dB = 1 V/Pa at 1 kHz)
Output Impedance	2000 Ω ± 30%
High-Pass Filter	60 Hz, 10 dB/octave
Boost	+10 dB (switchable)
Power Supply	1 AA 1.5 V battery
Battery Life	Up to 100 hours
Connector	3.5 mm Mini-Jack
Mounting	Camera Shoe Mount
Housing Material	Aluminum
Shock Mount	Yes
Battery Status Indicator	Yes
Included Accessories	Windscreen, carrying case, AA battery
Recommended Usage	Interviews, podcasts, web TV, outdoor shoots

Frequently Asked Questions - Kamikaze Nowsonic

How do I install the battery in the Kamikaze microphone?

Open the battery compartment on the microphone, insert an AA battery following the indicated polarity, then close the compartment.

How do I mount the Kamikaze microphone on a camera?

Unscrew the locking screw of the shoe adapter, slide the microphone onto the camera's shoe, then tighten the screw to secure it.

What is the purpose of the 60 Hz high-pass filter?

The high-pass filter reduces low-frequency ambient noise (such as wind or vibrations) by attenuating frequencies below 60 Hz, thereby improving recording clarity.

What does the +10 dB switch do?

The +10 dB switch increases the microphone's gain by 10 dB, which is useful for capturing distant or quiet sound sources.

What is the battery life of the microphone?

With a 1.5 V alkaline AA battery, the Kamikaze can operate for up to 100 hours.

How can I reduce handling noise during recording?

The microphone is equipped with a shock mount that dampens vibrations and mechanical noise. Also use the included windscreen to reduce wind noise.

Can I use the Kamikaze with a DSLR camera?

Yes, the Kamikaze is compatible with most DSLR cameras that have a shoe mount and a 3.5 mm mini-jack microphone input.

How do I clean the Kamikaze microphone?

Keep the microphone dry and clean. To clean it, use a soft, dry cloth. Avoid moisture and strong magnetic fields.

What should I do if the battery indicator does not light up?

Check that the battery is inserted correctly (polarity) and that it is not depleted. Replace it with a new battery if necessary. If the problem persists, contact customer service.

Where can I find the full user manual for the Kamikaze?

The user manual is available in PDF format on the website notice-facile.com or from the retailer. You can also download it from the Nowsonic product page.

USER MANUAL Kamikaze Nowsonic

Directional microphone for cameras

User manual

Bedienungsanleitung

Mode d'emploi

Manual del usuario

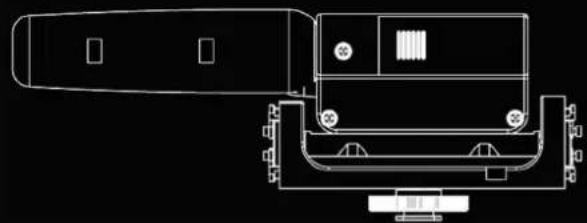

Technical line drawing of a mechanical component with mounting holes and internal compartments (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and housing (no text or symbols)

NOWSONIC

AUDIO FOR NOW

User manual 4 4

Directional microphone for cameras

www.nowsonic.com

Contents

■ Introduction
■ Technical characteristics
■ Features
■ Operating manual
■ Specifications
■ Frequency response diagram
■ Polar diagram
■ Scope of supply
■ Warning
■ Service

Introduction

Thank you very much for purchasing the Nowsonic Kamikaze condenser microphone. The Kamikaze is primarily intended for use with cameras. The highly sensitive condenser capsule provides you with an extra low-noise sound for interviews, podcasting, web tv, location recording, and other applications. Kamikaze can be used with almost every video or DSLR camera and is easily mounted via the hot shoe adapter.

Please read this user manual carefully before using the equipment for the first time to get the most out off it and to achieve the best possible sound quality.

Technical characteristics

■ Highly sensitive condenser microphone for use with cameras
■ Candiolid polar patterim reduces ambient moisture
■ Switchable +10 dB gain
■ Switchable 60 Hz roll-off filter
■ Standard connector for easy connection to any camera
■ Microphone shock mount reduces mechanical noise
■ Rugged aluminium mic housing for noise protection
■ Up too 1000 hours operating time from a single 1,5W/AAA alkaliene battery
■ Battery indicator

GB Kamikaze

Directional microphone for cameras

www.nowsonic.com

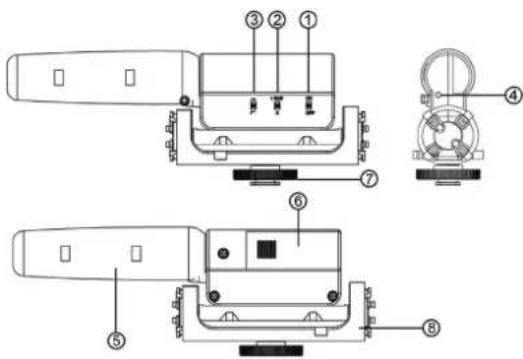

Features

1) Power switch: Set the switch to the "ON" position to turn on the microphone and vice versa to switch it off.
2) Switch for higher sensitivity: increases the volume of the microphone
3) Roll-off filter: reduces ambient noise in the low frequency range
4) Battery indicator: ggeenn=unitsppowered redd=batterysidow

1) Windscreen
2) Battery compartment
3) Hot shoe adapter
4) Elastic suspension: reduces mechanical noise

Operating manual

■ Open the battery compartment and insert the battery observing the polarity indicated inside the compartment.
■ Open the clamping screw of the hot shoe adapter and mount the microphone to the hot shoe adapter of your camera. Fix the microhome by tightening the clamping screw of the hot shoe adapter.
- Plug the 3.5 mm jack of the microphone to the microphone input of your camera. Turn on the microphone to make it work.
■ If required, adjust the sound with the +10dB and the roll-off filter switches.

Specifications

■ Transducer principle: electret condenser
■ Polar pattern: cardioid
■ Frequency range: 50Hz - 16kHz
■ Sensitivity: -32dB +/- 3dB (0dB = 1V/Pa @ 1kHz)
■ Roll-off filter: 10dB/octave at 60Hz
■ Output impedance: 2000Ω +/- 30%
■ Supply voltage: 1.5V AA battery

Frequency response diagram (dB ref. 1W/PA)

Polar diagram

GB Kamikaze

Directional microphone for cameras

www.nowsonic.com

Scope of supply

■ Windscreen: 1 pc
■ Microphone: 1 pc
■ Battery: 1 pc
■ User manual: 1 pc
■ Pouch: 1 pc

Warning

1) The sensitivity of the microphone is not designed for heavy shock or falling from great height.
2) Store your microphone in a dry and clean location. To prevent the sensitivity and tone color of your microphone from degradation, do not store the equipment in locations subject to high temperature or strong magnetic fields.
3) In order to conserve battery power, please switch off your micro phone after use.
4) When not using the microphone for an extended period, remove the battery from the battery compartment in order to prevent any possible damage from battery leakage.

Service

If you have any question or technical issues, please first contact your local dealer from whom you have purchased the microphone.

If servicing is required, your local dealer will also support you. Otherwise you may contact us directly. Please find our contact data on our website under www.nowsonic.com.

Legal information

Copyright for this user manual © 2012: Nowsonic

Nowsonic is a brand of Sound Service Musikanlagen-Vertriebsgesellschaft mbH. All other brand names mentioned in this document are the property of their respective owners.

Product features, specifications and availability are subject to change without prior notice.

Edition v1.0, 11/2012
