USER MANUAL MediaMaster MM105-HR JL Audio

White wireless device labeled 'MovieMeister iOS HR' with a logo and black connector pins (no readable text beyond branding)

MediaMaster® 105-HR

OWNER'S MANUAL

MANUEL D'UTILISATION

MANUAL DEL PROPIETARIO

BEDIENUNGSANLEITUNG

MANUALE DEL PROPRIETARIO

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna. - Increase separation between the equipment and the receiver.

- Connect the equipment to an outlet on a circuit different

from that to which the receiver

is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

FCC RADIATION EXPOSURE STATEMENT

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and any part of your body.

CANADA STATEMENT

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS-102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

SAFETY CONSIDERATIONS

• Only use this product in vehicles with 12 volt, negative-ground electrical systems. This product is not certified or approved for use in aircraft.
• Mount this product securely to prevent damage or injury in severe conditions.
• Do not replace the power wire fuse with one of a different value. Never bypass the fuse.
• Listen to your audio system at levels appropriate for operating conditions and hearing safety.

INSTALLATION CONSIDERATIONS

• Installation requires appropriate tools and safety equipment. Professional installation is recommended.
• This product is water-resistant. Do not submerge or subject to high-pressure water spray.
- Before installation, turn off the audio system and disconnect the battery system from the audio system.
- Install in a dry, well-ventilated location that does not interfere with your factory-installed systems. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.
- Before cutting or drilling, check for potential obstacles behind mounting surfaces. - Carefully route all system wiring away moving parts and sharp edges; secure with cable ties or wire clamps and use grommets and loom where appropriate to protect from sharp edges.

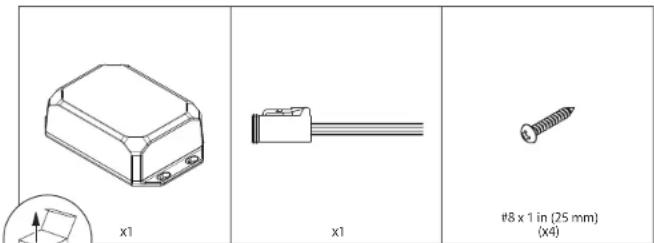

x1 x1 t8 x 1 in (25 mm) (x4)

MM105-HR CONTROL OPTIONS ^1

To operate, the MM105-HR must be connected with a compatible NMEA 2000 ^® device (not included) using applicable NMEA 2000 ^® cables and connectors (sold separately).

MMR-40

NMEA 2000® Network Controller with Full-Color LCD Display

Full-function, water-resistant (IP66 rated) controller

NMEA 2000 ^® MFD Control

Achieve control capabilities from compatible multi-function displays (MFD). Functionality requires compatible NMEA 2000° entertainment protocols (PGN) and may require a software upgrade of connected MFD devices. Refer to your MFD's manufacturer for device compatibility info.

1. Control functionality will vary depending on the connected MFD and/or remote controller. Full SiriusXM® functionality requires connection to an MMR-40 Network Controller (sold separately).

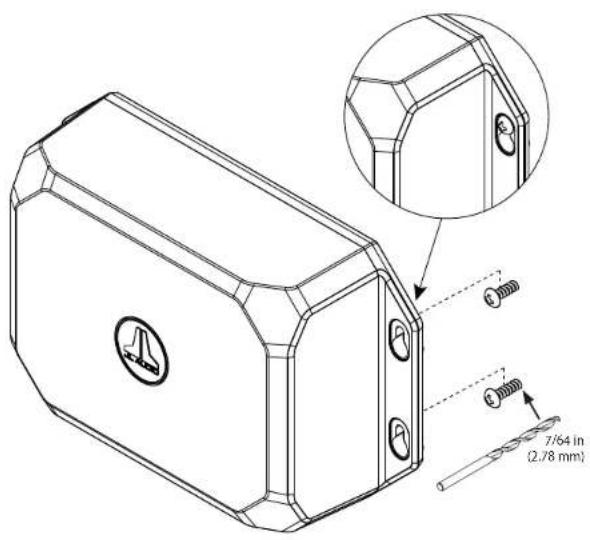

GENERAL MOUNTING

7/64 in (2.78 mm)

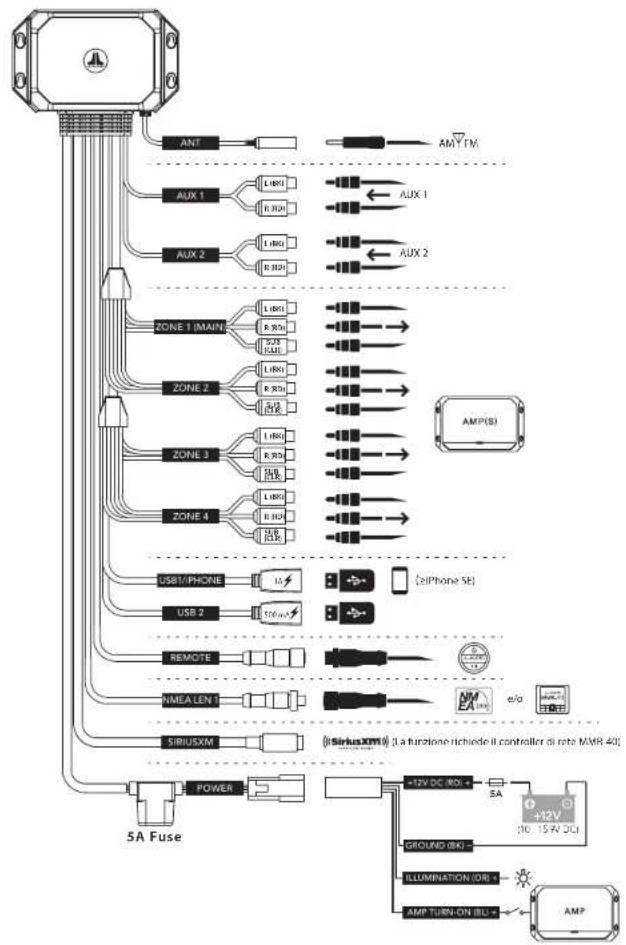

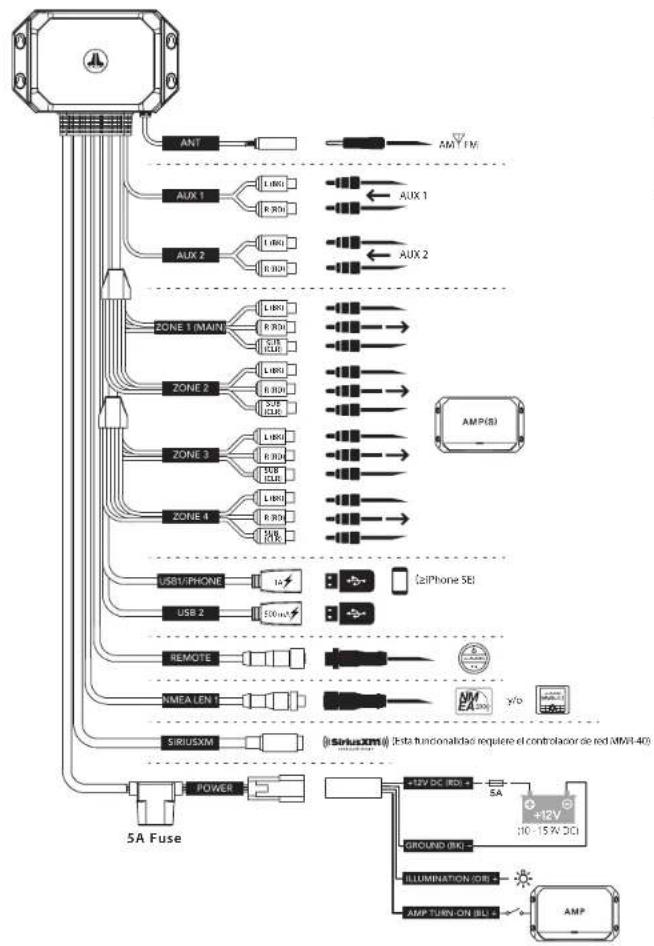

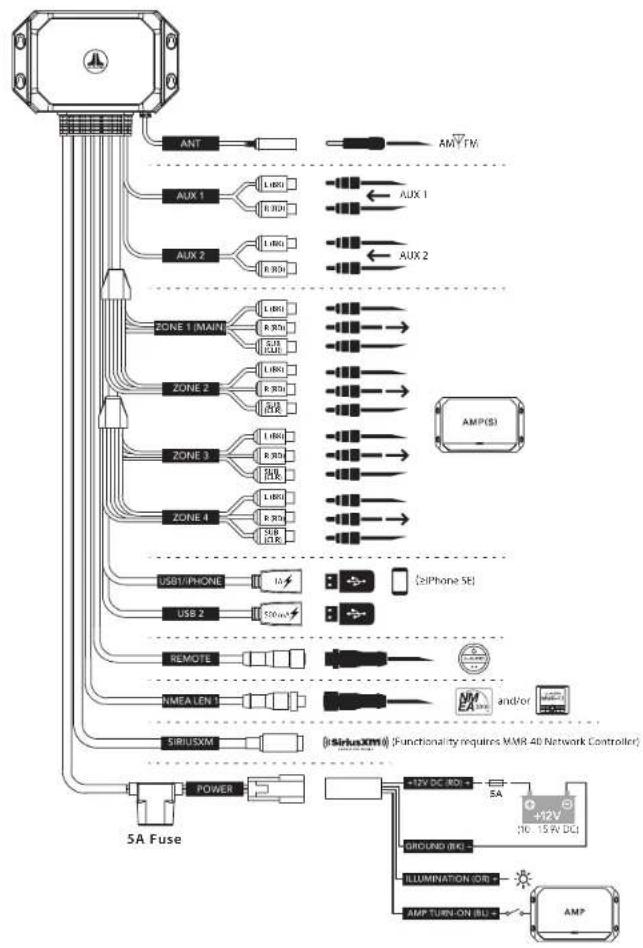

GENERAL CONNECTIONS


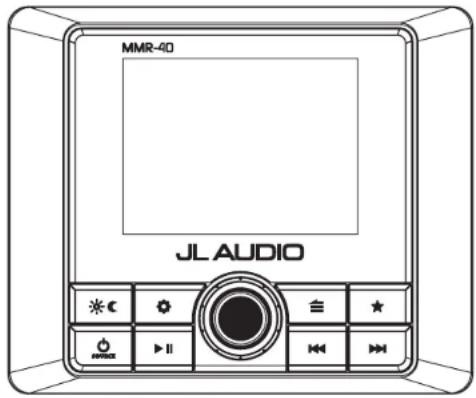

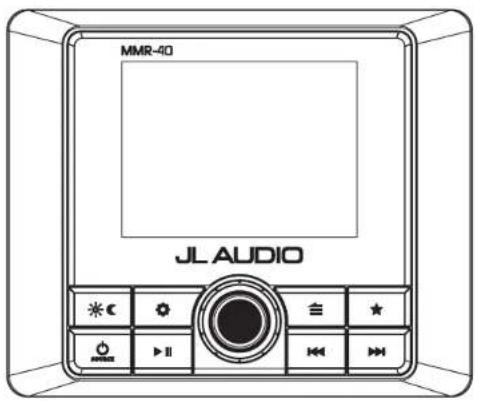

CONTROL PANEL (using MMR-40)

MMR-40 JLAUDIO

GENERAL CONTROL FUNCTIONS (using MMR-40)

Control Function
	Source/Power	• Short press to turn ON; Long press to turn OFF• When on, short press to display the SOURCE: Select menu
	Volume/Select	• Rotate to adjust volume• Rotate/press for navigation and making selections• Long press to access Subwoofer Trim Level settings
	Settings	• Short press to access the Tone & Balance settings• Long press to access the System Settings: Main Menu
	Back/Menu	• Short press to go back one step or access source specific menus
	Favorites	• Short press to access stored presets• Long press to store a frequency as a preset (up to 24)
	Mute/Pause	• Short press to mute/unmute audio (AM/FM/SiriusXM/DAB+/AUX1/AUX2) or pause/resume the current selection (USB1/USB2/Bluetooth)• When the Audio Zone Levels screen is displayed, press to mute all audio (AM/FM/SiriusXM/DAB+/AUX1/AUX2/USB1/USB2/Bluetooth)
	Forward	Short press to:• Manually adjust tuner forwards (AM/FM/SiriusXM/DAB+)• Select the next track (USB1/USB2/Bluetooth)Long press to:• Seek to the next channel (FM); Skip forward ten frequency steps (AM)• Initiate Rapid Channel Browsing forward (SiriusXM)• Fast-forward (USB1/USB2)
	Backward	Short press to:• Manually adjust tuner backwards (AM/FM/SiriusXM/DAB+)• Restart track/select the previous track (USB1/USB2/Bluetooth)Long press to:• Seek to the previous channel (FM); Skip backwards ten frequency steps (AM)• Initiate Rapid Channel Browsing backward (SiriusXM)• Fast-rewind (USB1/USB2)
	Day/Night	• Short press to switch between Day/Night display settings• Long press to access the System Settings: Display menu
SYSTEM MENU SETTINGS (using MMR-40)
	• Long press to access the System Settings: Main Menu
	• Rotate to navigate• Press to make selections
Setting Function
Name this Device	Create a custom name to display on connected Bluetooth devices and NMEA 2000° networks
Audio Zone Setup Configures each set of audio zone outputs
AUX Input Sensitivity	Configures AUX input sensitivity: 2V or 1V RMS (default)
Diagnostic Displays serial number, hardware and software version info
Display Configures display and brightness settings
Battery Monitor	Built-in alert notifies when +12VDC supply voltage drops below 10 volts or above 16 volts	If triggered, the unit will enter Safe Mode with a message to turn the unit off until normal operating voltage is restored.
Scrolling Text Enables continuous scrolling of available RDS/track text info
Tuner Region	Configures AM/FM tuner range/scale for a specific region; DAB+ replaces SiriusXM outside of North America
Power-up Settings	Configures display activation upon connection to power

AUDIO ZONE MENU SETTINGS (using MMR-40)
	• Long press to access the System Settings: Main Menu
	• Rotate to navigate• Press to make selections
Zone Function Setting 1 Setting 2
Z1: Zone 1Z2: Zone 2Z3: Zone 3Z4: Zone 4	Level Control Mode	Absolute: Creates an independent level control for selected zones, each with its own separate volume level slider.
		Relative: Links the volume levels of Zones 2 - 4 with the level of Zone 1. (Linked zones will proportionally follow Zone 1's volume.) Each zone's offset level is independently adjustable, allowing you to create a customized level controller, specific to a vessel's layout.
		Fixed	4V RMS Max (default)2V RMS Max1V RMS Max
		Off
	Max Volume Limit Max Vol Limit
	Rename Zone	Bow, Bridge, Cabin, Cockpit, Galley, Helm, Stateroom 1, Stateroom 2, Tower, Transom
		Custom Alphanumeric Input
		Factory Default
	Sub 1Sub 2Sub 3Sub 4	LPF ( Low Pass Filter)	Off (default)60 Hz80 Hz100 Hz
		Sub Off
Z2: Zone 2Z3: Zone 3Z4: Zone 4	Tone Control Mode	Same as Zone 1
		Independent Tone Control

BLUETOOTH®AUDIO

You may wirelessly stream audio from a Bluetooth compatible device from up to 35 ft. away (11 m). Up to 8 devices can be paired to the MM105-HR, but only one streaming device can connect at one time.

BLUETOOTH MENU SETTINGS (using MMR-40)
	With Bluetooth selected as a source, short press to display the Bluetooth: Main Menu
	Rotate to navigatePress to make selections
Setting Function
Now Playing Return to the Now Playing Screen
Pair New Device Initiates Pairing Mode (connected devices will be disconnected)
Connect Paired Device	Display all paired devices for connection
Set Primary Device Assign priority to a paired device for automatic connection
Delete a Paired Device	Select from paired devices for removal
Delete All Paired Devices	Removes all paired devices from memory

NOTE: When connected to +12V DC, the MM105-HR will automatically connect to any previously paired device. If a paired device is out of range, or if there are no previously paired devices, the MM105-HR will enter Bluetooth ^® device pairing mode for sixty seconds.

USB CONNECTIONS

The MM105-HR includes two ports to connect with USB storage class devices (thumb drive, digital audio player, etc.).

USB 1: High-speed connection for use with iPhone*/iPod® (MFi Certified) or USB storage device (1 A charging output)

USB 2: Full-speed USB storage device connection (500 mA charging output)

USB MENU SETTINGS (using MMR-40)
	With USB1 or USB2 selected as a source, short press to display the USB: Main Menu
	Rotate to navigatePress to make selections
Setting Function
Now Playing Return to the Now Playing Screen
Shuffle Activate Shuffle: On or Off (default)
Repeat Activate Repeat: All, Song or Off (default)
Playlists Displays Playlists in library
Artists Displays Artists in library
Songs Displays Songs in library
Albums Displays Albums in library
Genres Displays Genres in library
Composers Displays Composers in library

! IMPORTANT

• Properly secure the connected device before driving to prevent damage from dropping or sudden acceleration/braking.
• Control, functionality and display may vary depending on the model and version of iPhone® connected.
• When connected via USB port, make sure to unpair or disable the Bluetooth connection to avoid possible playback conflicts.
• If you experience abnormal performance during operation, disconnect the iPhone ^® and check its condition. Restart your iPhone ^® if performance does not improve.
• "Made for iPhone" means that an electronic accessory has been designed to connect specifically to an iPhone® and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an iPhone* may affect wireless performance.
• iPhone® and all related marks and logos are trademarks of Apple Inc., registered in the U.S. and other countries.

SIRIUSXM® SATELLITE RADIO

(Note: Functionality requires MMR-40 Network Controller.) Only SiriusXM ^® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com. (SiriusXM service is only available in the continental US and Canada.)

Activating Your SiriusXM Subscription After installing your SiriusXM Connect tuner and antenna, power on your MM105-HR and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM Connect tuner is properly installed.

After you can hear the preview channel, tune to Channel 0 to find the Radio ID of your tuner. In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging. You will need this number to activate your subscription. Write the number down for reference. Note: the SiriusXM Radio ID does not include the letters I, O, S or F.

In the USA, you can activate online or by calling SiriusXM Listener care:

- Visit www.siriusxm.com/activatenow

• Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

- Visit www.siriusxm.ca/activate

• Call SiriusXM Customer Care at 1-888-539-7474

As part of the activation process, the SiriusXM satellites will send an activation

message to your tuner. When your radio detects that the tuner has received the activation message, your radio will display: "Subscription Updated". Once subscribed, you can tune to channels in your subscription plan.

Note: The activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be powered on and receiving the SiriusXM signal to receive the activation message.

Parental Controls

Some SiriusXM channels contain mature content. When the Parental Controls feature is enabled, channels with mature content are restricted and will require a 4-digit lock code to access.

Enabling Parental Controls

1. Press BACK/MBNU

SiriusXM: Main Menu.

1. Turn vOb/Setal Controls and press to enter.
2. Press vOU/SELock

Mature Channels. After, you must enter a 4-digit lock code to lock mature content channels. (Parental Control default passcode: 0000)

1. Use v@b1/SEthe 4-digit lock code and select Save when finished.

Changing the Lock Code

1. Press BACK/MENU
   SiriusXM: Main Menu.
2. Turn vOb/Setal Controls and press to enter.
3. Turn v/OD/SEck Code and press enter.
4. Use tv@hISE the current 4-digit lock code and select Enter when finished.
5. Use VB/SEthe new lock code and select Enter to confirm. Make sure to save your 4-digit lock code for future reference.

SIRIUSXM MAIN MENU

This allows access to the SiriusXM operational menu options. Refer to the table below for available settings and functionality.

1. Press BACK/MENU
   SiriusXM: Main Menu.
2. Turn VOLg/SEght one of the menu settings listed in the table below and press to enter.
3. Use VOL/SEL to make selections.

Setting Function

Now Playing Return to the Now Playing Screen
Browse By Channel View list of available SiriusXM channels
Browse By Category View list of available SiriusXM channels by category
My Account	View your SiriusXM account status, Radio ID and Reset SiriusXM command
Parental Controls	Settings for access to Lock and Unlock Mature SiriusXM channels
Direct Tune	Allows entry for direct channel selection

Resetting SiriusXM Settings

A reset will restore all presets and settings, including parental controls, back to their factory defaults.

1. Press BACK/MENU

SiriusXM: Main Menu.

1. Turn MOV/SEcount and press to enter.
2. Turn MODESE SiriusXM and press to enter.
3. Use VOL/SEL to select Confirm.

Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

SIRIUSXM TROUBLESHOOTING

Advisory messages may appear on the display when a SiriusXM-Connect Vehicle Tuner is connected to the MM105-HR. Refer to the table below for an explanation and suggested corrective actions.

Advisory Message	Description
Check Antenna	The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged.· Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner.· Inspect the antenna cable for damage and kinks. Replace the antenna if the cable is damaged.· SiriusXM products are available at your local audio retailer or online atwww.shop.siriusxm.com.
Check Tuner	The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged.· Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio.
No Signal	The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal.· Verify that your vehicle/vessel is outdoors with a clear view of the sky.· Verify that the SiriusXM antenna is mount on the exterior.· Move the SiriusXM antenna away from any obstructions.· Inspect the antenna cable for damage and kinks.· Consult the SiriusXM Connect Vehicle tuner installation manual for more information on antenna installation. Replace the antenna if the cable is damaged. SiriusXM products are available at your local audio retailer or online atwww.shop.siriusxm.com.
Subscription Updated	The radio has detected a change in your SiriusXM subscription status. Press VOL/SEL to clear the message.In the U.S.A., visitwww.siriusxm.comor call 1-866-635-2349 if you have questions about your subscription.In Canada, visitwww.siriusxm.caor call 1-888-539-7474 if you have questions about your subscription.
Channel Unavailable	The channel that you have requested is not a valid SiriusXM channel or the channel you were listening to is no longer available. You may also see this message briefly when first connecting a new SiriusXM Connect Vehicle tuner. Visitwww.siriusxm.comfor more information about the SiriusXM channel lineup.
Channel Unsubscribed	The channel that you have requested is not included in your SiriusXM subscription package of the channel that you were listening to is no longer included in your SiriusXM subscription package.In the U.S.A., visitwww.siriusxm.comor call 1-866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel.In Canada, visitwww.siriusxm.caor call 1-877-438-9677.
Channel Locked	The channel that you have requested is Locked by the radio Parental Control feature. See Parental Controls, page 13 for more information on the Parental Control feature and how to access locked channels.

SPECIFICATIONS

Electrical
Operating Voltage	14.4V DC (10V – 15.9V)
Operating Temp Range	4 F to +158 F (-20 C to +70 C)
Current Draw / Fuse Value	5 A (max) / 120 mA (standby) / 1.5 A
NMEA 2000* LEN	1 (Micro-C connector)
Compatible MFDs	Simrad, Lowrance, Raymarine, Garmin
Audio Outputs/Inputs
Output Channels	One stereo pair and mono subwoofer RCA plugs per zone
Output Configuration	Relative, Absolute, Fixed or Off
Maximum Output Voltage	Relative or Absolute: 4V RMSFixed: Selectable 4V/2W/1V RMS
Output Impedance	250 Ω
Auxiliary Input Channels	Two stereo pairs of RCA plugs (2V/1V RMS Input Sensitivity)
Tuner
FM Tuner with RDS	87.5 MHz to 107.9 MHz (0.2 MHz step)
AM Tuner	530 kHz to 1710 kHz (10 kHz step)
DAB+ Tuner	170 MHz to 230 MHz
Favorites	24 presets across all tuners/bands
Bluetooth ^a
Profile	A2DP v1.2, AVRCP v1.4
Core Specification	Version 2.1 + EDR
Codec	SBC, Qualcomm® aptXTM audio
Connection Range	Up to 35 ft / 11 m
USB
Interface	USB 2.0
Charging Output	USB1: 1 A / USB2: 500 mA
Supported Audio Formats	MP3, MP4, WAV, AAC, M4A, M4B
Apple Compatibility	iPhone SE (2nd generation), iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8 (functionality contingent upon compatible iOS release)
Dimensions
Unit W x H x D	7.70 in. x 2.32 in. x 4.96 in. (196 mm x 59 mm x 126 mm)

CONTROL OPTIONS

The MM105-HR includes various options for adding control capabilities from auxiliary locations. Refer to the supplied Owner's Manual of each controller (sold separately) for specific user and installation instructions.

NMEA 2000® Connection

NMEA 2000 ^® , Micro-C connector interfaces directly with NMEA 2000 ^® networks using applicable NMEA 2000 ^® cables and connectors (sold separately).

NMEA 2000 ^® MFD Control

Achieve control capabilities from compatible multi-function displays (MFD). Functionality requires compatible NMEA 2000° entertainment protocols (PGN) and may require a software upgrade of connected MFD devices. Refer to your MFD's manufacturer for device compatibility info.

MMR-40

NMEA 2000® Network Controller with Full-Color LCD Display

Full-function, water-resistant (IP66 rated) controller

MMR-5N2K

NMEA 2000 ^® Volume Controller

Auxiliary, water-resistant

(IPX7 rated) volume controller

BTLE Connection

Ultra-efficient Bluetooth® Low Energy technology permits wireless control from up to 35 ft (11 m) away. Add up to eight remotes (sold separately) to a single MediaMaster®.

MMR-25W

Bluetooth ^® Remote Controller

Auxiliary, water-resistant (IP68 rated) controller.

MediaMaster® Remote Controller App

Free, full-function, app based controller using your compatible wireless device. Note: App functionality requires update of source unit software. Visit: www.jlaudio.com/support

REMOTE Connection

Permits direct connection of MediaMaster ^® wired controllers (sold separately) using accessory controller cables and splitters (sold separately). Add up to three remotes to a single MediaMaster ^® , at up to 75 ft (23 m) away.

MMR-20-BE

Wired Remote Controller

Auxiliary, water-resistant (IP67 rated) controller

White electronic device with black connectors and a circular logo, no visible text or symbols on the device itself.

MediaMaster® 105-HR

MANUEL D'UTILISATION

Bluetooth

H2 Radio

(SiriusXM)

strib

©R-D-S

DÉCLARATION DE COMPATIBILITÉ FCC

Technical diagram of a mechanical housing with labeled components and dimensions

BRANCHEMENTS GÉNÉRAUX

PANNEAU DE COMMANDE (illustration du MMR-40)

MMR-40 JLAUDIO

OPTIONS DES COMMANDES

White electronic device labeled 'Microbeaver 125-48' with black connectors and a logo (no readable text beyond branding)

MediaMaster® 105-HR

MANUAL DEL PROPIETARIO

Bluetooth

H) Radio

(SiriusXM)

debo

ORD-S

7/64 in (2,78 mm)

CONEXIONES GENERALES

    subgraph Capacitors
        P["AMP(S)"] --> Q["(iPhone 5B)"]
        R["+12V DC I/O"] --> S["5A"]
        T["GROUND (BI) --> U[+12V (10-15kV DC)"]
        V["ILLUMINATION (I/O)"] --> W["AMP TURN ON (BL)"]
        X["AMT (M)"] --> Y["AMP"]
    end

    style A fill:#f9f,stroke:#333
    style P fill:#ccf,stroke:#333
    style Q fill:#cfc,stroke:#333
    style R fill:#fcc,stroke:#333
    style T fill:#cff,stroke:#333
    style V fill:#ffc,stroke:#333
    style W fill:#fcc,stroke:#333
    style X fill:#ffc,stroke:#333
    style Y fill:#fcc,stroke:#333

White electronic device with black connectors and a logo, no visible text or symbols on the device itself.

MediaMaster® 105-HR

BEDIENUNGSANLEITUNG

Bluetooth

H2 Radio

(SiriusXm)

drib+

R·D·S

Technical diagram of a mechanical housing with labeled components and a magnified detail showing internal structure details.

White electronic device labeled 'MicroAlbiter 25-40' with black connectors and a logo, no readable text beyond branding.

MediaMaster®105-HR

MANUALE DEL PROPRIETARIO

Bluetooth

H) Radio

(SiriusXM)

d270+

ORD-S

7/64 in (2,78 mm)

COLLEGAMENTI GENERALI

    B --> P["AM/FM"]
    C --> Q["AUX 1"]
    D --> R["AUX 2"]

    E --> S["AMP(S)"]

    F --> T["10 iPhone 5E"]

    G --> U["10 iPhone 5E"]

    H --> V["eia"]

    I --> W["(Sirius XM)"]
    J --> X["(Sirius XM)"]
    K --> Y["(Sirius XM)"]

    L --> Z["(Sirius XM)"]

    M --> AA["(Sirius XM)"]

    N --> AB["+12V DC (RS)"]
    N --> AC["+12V +10 - 15V DC"]

    O --> AD["Ground (BI)"]
    O --> AE["ILLUMINATION (OR)"]

    P --> AF["AMP TURN ON (BL)"]

    Q --> AG["AMP"]

PANNELLO DI CONTROLLO (utilizzando MMR-40)

MMR-40 JLAUDIO
