USER MANUAL DO7117DR DOMO

Metal ladder rack with multiple horizontal bars, no visible text or symbols

DO7117DR

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Two gray plastic mechanical components with a numbered label '3' on one end (no text or symbols on the parts themselves)

4 5 6 7 8 9 10

Pure diagram of a Y-shaped mechanical component with no text or symbols

WANDMONTAGE

Technical illustration of a ladder structure with a tool and bracket, shown in two views (no text or symbols)

Technical illustration showing a screw fastening tool interacting with a mechanical component (no text or symbols present)

Two-panel image showing a white PVC pipe fitting attached to a wall, with no visible text or symbols.

Technical illustration of a metal ladder assembly with a support structure (no text or symbols)

Illustration showing a hand holding a small object and a right-pointing arrow labeled 'A' (no text or symbols on the objects)

Pure electrical circuit lines without any symbols

Close-up of a white electrical outlet with a cable and a wall-mounted component (no visible text or symbols)

Pure 3D geometric shape resembling a Y-shaped bracket or pipe (no text or symbols)

GEBRUIK

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

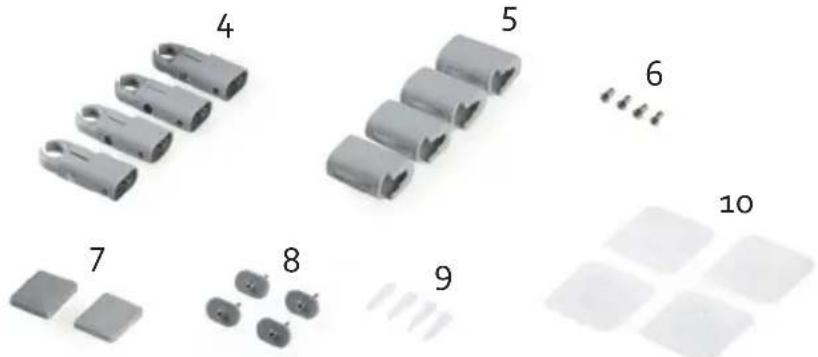

Two gray plastic mechanical components with labeled parts (3), no visible text or symbols on the parts themselves.

4 5 6 7 8 9 10

AVANT LA PREMIÈRE UTILISATION

Metal ladder and two curved metal supports arranged on a white background (no text or symbols)

Diagram of a vertical ladder structure with multiple horizontal bars extending outward, alongside a grid of small square symbols (no text or labels)

PERÇAGE

Diagram of a horizontal ladder with multiple ladders and a vertical wall, alongside scattered small rectangular components (no text or symbols)

AUTOPORTANT

Pure diagram of a Y-shaped mechanical component with no text or symbols

MONTAGE MURAL

Technical illustration of a ladder assembly with a hand holding a tool, shown in two views: one with a dashed line and the other with a bracket (no text or symbols present)

Technical illustration of a mechanical assembly with a spring-loaded component and a cylindrical component inserted into a housing (no text or symbols)

Two-panel image showing a white PVC pipe joint with a small cylindrical component inserted, mounted on a wall against a hatched background (no text or symbols visible)

Technical line drawing of a mechanical assembly with a cylindrical component and a ladder-like structure (no text or symbols)

Illustration showing a hand pressing a piece of material before and after a transformation (no text or symbols)

Pure diagram of a pipe joint with a rectangular component and a small sensor or sensor attached (no text or symbols)

Close-up of a white electrical outlet with a cable and switch (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

3D diagram of a metal ladder structure with labeled components (no text or symbols beyond labels 1 and 2)

Two gray plastic mechanical components with a numbered label '3' pointing to one (no text or symbols on the parts themselves)

Collection of gray plastic electronic components with numbered labels (4, 7, 8) and no visible text or symbols.

Four gray cylindrical mechanical components arranged in a row, labeled with the number 5 on the top right (no other text or symbols visible)

Four white square tiles arranged in a 2x2 grid (no text or symbols visible)

Metal ladder structure with two curved metal supports below (no text or symbols visible)

Diagram of a vertical ladder structure with multiple horizontal bars and a series of small square icons arranged vertically (no text or symbols)

BOHRLÖCHER

Diagram of a horizontal ladder with multiple ladders and scattered square components (no text or symbols)

FREISTEHEND

Pure diagram of a Y-shaped mechanical component with no text or symbols

Technical illustration of a ladder assembly with a tool and bracket, shown in two views (no text or symbols)

Technical illustration of a mechanical assembly with a spring-loaded component and a cylindrical housing (no text or symbols)

Two-panel image showing a white PVC pipe mounted on a wall, with no visible text or symbols.

Pure mechanical assembly diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a ladder with two hanging weights (no text or symbols)

Illustration showing a hand pressing a small object and then moving to a square button with a black arrow (no text or symbols)

Close-up of a hand holding a cylindrical object next to a small rectangular device (no visible text or symbols)

Close-up of a white wall-mounted cable or connector with a separate electrical outlet (no visible text or symbols)

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

· Do not place near flammable materials, gases or explosives.
· Do not use or store this appliance outdoors.
- You can use the appliance either free-standing or wall-mounted. Always ensure you place a free-standing appliance on a flat, stable and dry surface. When wall-mounting this appliance, it must be installed so that the lowest heating pipe is at least 60 cm above the floor to ensure there is no danger to children.
- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

· Do not use the appliance to dry down jackets and duvets.
- After the appliance has run for 5 minutes, the temperature in the heating area remains constant at 45\~55 °C when there is nothing on it (depending on the environment).
· The appliance has a maximum load-bearing capacity of 10 kg.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

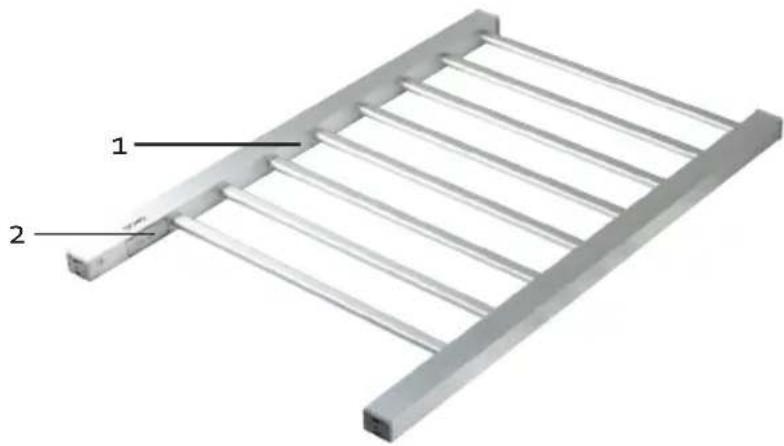

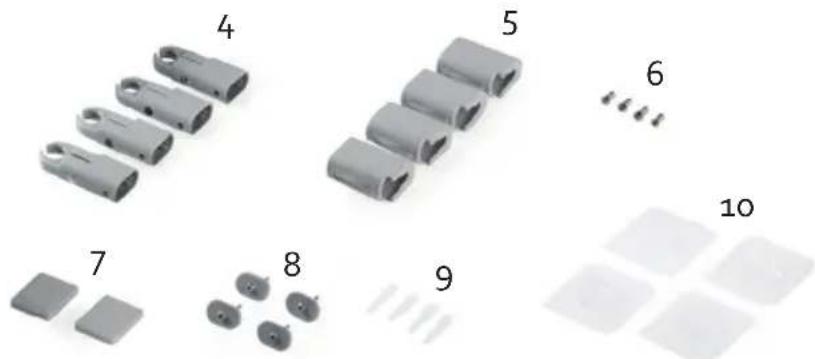

PARTS

1. Towel rack
2. Controller
3. Feet with screws
4. Wall mounting brackets
5. Wall fasteners
6. Short bolts
7. Cover plates
8. Oval plates with long screws
9. Plugs
10. Fixing adhesives

3D diagram of a metal ladder structure with labeled components (no text or symbols present)

Two gray plastic mechanical components with a numbered label '3' pointing to one (no text or symbols on the parts themselves)

4 5 6 7 8 9 10

BEFORE THE FIRST USE

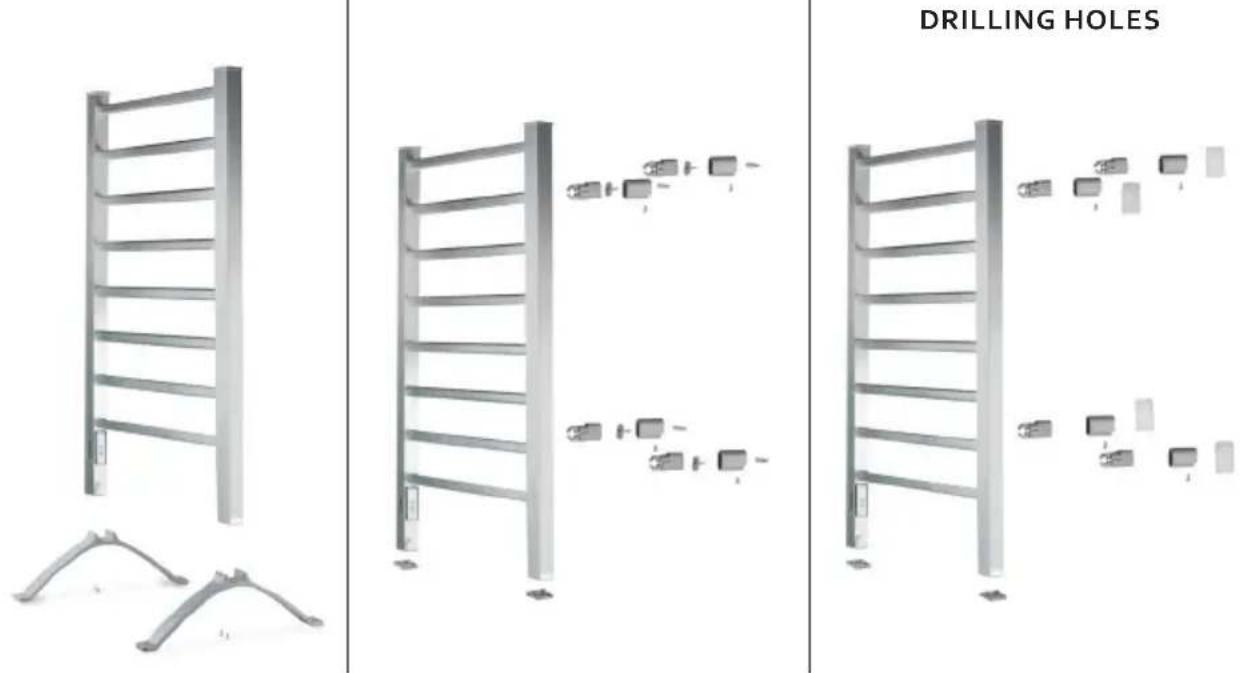

You can mount the appliance in 3 different ways:

FREE-STANDING WALL MOUNTING WALL MOUNTING WITHOUT

DRILLING HOLES

FREE-STANDING

Align the feet with the holes under the towel rack and tighten the screws.

Pure diagram of a Y-shaped mechanical component with no text or symbols

WALL MOUNTING

1. Remove the wall mounting brackets from the wall fasteners.
2. Attach the wall mounting brackets to the towel rack using the longest bolts and their nut. Note: the brackets have a top and a bottom side. When you can see the screw thread in the rear hole that is the bottom side. Choose the desired position where you want to attach the 4 corners of the towel rack. We recommend that you attach the mounting brackets on the highest and lowest heating pipe, with a horizontal distance between them of 35 to 42 cm.
3. To avoid danger to children, this appliance should be installed so that the lowest heating pipe is at least 60 cm above the floor. Hold the appliance exactly level (horizontally) against where you want to mount it and mark 4 ovals on the wall for each corner. Drill holes in the centre of each marked oval.

Technical illustration of a ladder structure with a tool and component, shown in two views (no text or symbols)

1. Insert the plugs into the 4 holes. Attach the wall fasteners to the wall using the oval plates and the long screws.

Technical illustration showing a screw fastening tool interacting with a mechanical component (no text or symbols present)

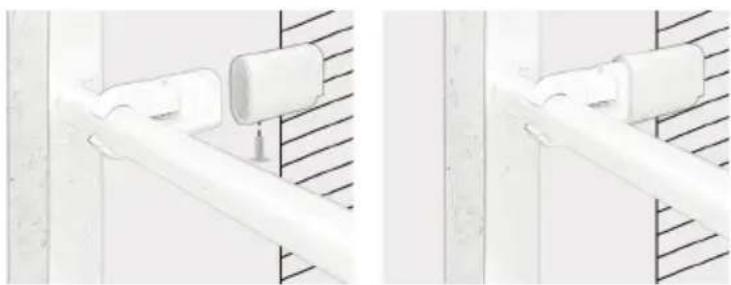

1. Use the extendable wall mounting brackets to attach the appliance to the wall fasteners, then adjust these to the desired position and secure with the short bolts.

Two-panel image showing a white pipe fitting attached to a wall, with no visible text or symbols.

1. Click the cover plates onto the bottom of the towel rack for the finish.

WALL MOUNTING WITHOUT DRILLING HOLES

1. Remove the wall mounting brackets from the wall fasteners.

2. Attach the wall mounting brackets to the towel rack using the longest bolts and their nut. Note: the brackets have a top and a bottom side. When you can see the screw thread in the rear hole that is the bottom side. Choose the desired position where you want to attach the 4 corners of the towel rack. We recommend that you attach the mounting brackets on the highest and lowest heating pipe, with a horizontal distance between them of 35 to 42 cm.

3. To avoid danger to children, this appliance should be installed so that the lowest heating pipe is at least 60 cm above the floor. Hold the appliance exactly level (horizontally) against where you want to mount it and mark 4 ovals on the wall for each corner.

Technical line drawing of a ladder assembly with a pulley and support structure (no text or symbols)

1. Remove the film from the fixing adhesives, then press the fixing adhesives firmly against the wall at the markings. Wait 24 hours for the fixing adhesives to stick.

Illustration showing a hand holding a piece of paper and a separate arrow pointing to a labeled object (no text or symbols present)

1. Attach the extendable wall mounting brackets to the wall fasteners, adjust these to the desired position and then secure these with the short bolts.

Pure electrical circuit lines without any symbols

1. Now hang the towel rack on the wall for use.

Close-up of a white plastic electrical plug inserted into a wall, next to a square electrical outlet (no visible text or symbols)

1. Click the cover plates onto the bottom of the towel rack for the finish.

USE

1. Plug into a power socket.

2. ☎ Press the on/off button. The red indicator lamp lights up and the appliance heats up. Turn the device off with the on/off button.

3. ☒ Set the timer when you want to switch off the appliance automatically after 2 or 4 hours. Press the timer button. The blue indicator lamp lights up for the set time.

CLEANING AND MAINTENANCE

1. Before cleaning, unplug the appliance and allow it to cool down.

2. Clean the surface with a damp cloth and then dry with a soft cotton cloth.

Please note:

· Never clean the appliance with alcohol or aggressive cleaning agents.
Do not use a metal or rough cloth to clean the device. You may damage the surface of the product.
· Never immerse the appliance, power cord, or plug in water or any other liquid.

ENVIRONMENTAL GUIDELINES

Prohibition sign with a trash bin crossed out by two diagonal lines, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Two gray plastic mechanical parts with labeled section '3' (no text or symbols on the parts themselves)

Diagram showing 10 labeled electronic component parts including connectors, capacitors, and switches

Pure diagram of a Y-shaped mechanical component with two legs and a small mark at the base (no text or symbols)

MONTAJE EN PARED

Technical illustration of a pole-mounted lever mechanism and its corresponding ladder structure (no text or symbols)

Technical illustration of a screw fastener and its internal components (no text or symbols)

Two-panel image showing a white PVC pipe fitting attached to a wall, with no visible text or symbols.

Technical line drawing of a ladder structure with a cylindrical component and a separate view showing its ladder extension (no text or symbols)

Illustration showing a hand pressing down on a surface next to a directional arrow pointing to a small object (no text or symbols present)

Simple line drawing of a pipe joint with a cylindrical component attached (no text or symbols)

Close-up of a white plastic electrical plug inserted into a wall-mounted power outlet (no text or symbols visible)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two gray plastic mechanical components with a numbered label '3' on one end (no text or symbols on the parts themselves)

Collection of gray plastic components with numbered labels (4, 5, 6, 7, 8, 9, 10) and a grid pattern on the right, no readable text or symbols.

PRIMA DELL'USO

Pure diagram of a Y-shaped mechanical component with no text or symbols

MONTAGGIO

Technical illustration of a ladder structure with a tool and component, shown in two views (no text or symbols)

Technical illustration of a screw fastener and its assembly with a cylindrical component (no text or symbols)

Two identical white pipe fittings mounted on a wall, with no visible text or symbols.

Technical line drawing of a mechanical assembly with a cylindrical component and a ladder structure (no text or symbols)

Illustration showing a hand holding a small object and a right-pointing arrow pointing to a wall-mounted device (no text or symbols present)

Pure electrical circuit lines without any symbols

Simple line drawing of a pipe joint with a wall-mounted electrical outlet (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

3D diagram of a metal ladder structure with labeled components (no text or symbols beyond labels)

Two gray plastic mechanical components with a numbered label '3' pointing to one (no text or symbols on the parts themselves)

Collection of gray plastic electronic components with numbered labels (4, 7, 8) and no visible text or symbols on parts.

Four gray plastic cylindrical objects arranged in a row, labeled with numbers 5 and 9 (no text or symbols on the objects themselves)

Four white square tiles arranged in a 2x2 grid, with the number '10' above them (no text or symbols on tiles)

PŘED PRVNÍM POUŽITÍM

Pure diagram of a Y-shaped mechanical component with no text or symbols

NÁSTĚNNÉ

Technical illustration of a ladder assembly with a tool inserted, shown from two different angles (no text or symbols present)

Technical illustration of a screw fastener and a cylindrical component inserted into a wall, with no visible text or symbols.

Two-panel image showing a white plastic pipe fitting attached to a wall, with no visible text or symbols.

Technical line drawing of a wooden ladder assembly with a vertical support and base plate (no text or symbols)

Illustration showing a hand holding a small object and a resulting arrow pointing to a square with a small figure (no text or symbols)

Simple line drawing of a pipe with a cylindrical component attached, no text or symbols present

Close-up of a white plastic pipe attached to a wall-mounted electrical outlet (no text or symbols visible)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

3D diagram of a metal ladder structure with labeled components (no text or symbols present)

Two gray plastic mechanical components with a numbered label '3' pointing to one (no text or symbols on the parts themselves)

4 5 6 7 8 9 10

PRED PRVÝM POUŽITÍM

Metal ladder structure with two curved arms, no text or symbols visible

Diagram of a ladder structure with multiple horizontal bars and a vertical panel, alongside a grid of small square symbols (no text or labels)

Diagram of a horizontal ladder with multiple ladders and a vertical wall, alongside scattered small rectangular blocks (no text or symbols)

VOL'NE STOJÚCE

3D diagram of a Y-shaped mechanical component with internal dashed lines indicating measurement or alignment (no text or symbols)

NÁSTENNÉ

Technical illustration of a ladder structure with a roller and support frame (no text or symbols)

Technical illustration of a screw fastener and a cylindrical component inserted into a wall, with no visible text or symbols.

Two identical white pipe fittings mounted on a vertical wall, with no visible text or symbols.

Illustration showing a hand holding a small object and a directional arrow pointing to a labeled object (no text or symbols present)

Pure diagram of a pipe joint with a cylindrical component attached, no text or symbols present

Simple line drawing of a pipe joint with a wall-mounted electrical outlet (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
