Product type	Air purifier
Brand	OZONOS
Model	AC-1 plus
Dimensions (L x diameter)	400 mm x 130 mm
Weight	2.7 kg
Power supply	230 V / 50 Hz, grounded plug
Power consumption	14 W
UV-C lamp	1 x 8 W, lifespan 8,000 hours
Maximum treatment area	50 m²
Treated air volume	55 m³/h (for 25 m²)
Noise level	37 dB
Ozone concentration	0.115 ppm
UVC coating	25%
Remote control	Yes
Available colors	Silver, black, white (powder coated)
Main functions	Disinfection by UV-C radiation, odor neutralization by ozone
Purification type	Physical, filterless, chemical-free
Maintenance	Periodic cleaning of the casing and UV-C tube
Casing cleaning	With a slightly damp microfiber cloth, without chemicals
UV-C tube cleaning	With a soft dry brush
Lamp replacement	Every 8,000 hours or 36 months depending on usage
Safety	Do not look at the UV lamp, unplug before maintenance, do not use outdoors
Warranty	2 years (excluding UV-C tube)
Certifications	CE, production according to ISO 9001:2015

Frequently Asked Questions - AC-1 plus OZONOS

How to clean the UV-C tube?

Before any operation, unplug the device. Open the casing from the bottom by loosening the two screws with a Torx 10 key. Lift the cover then open the cover above the lamp. Disconnect the connector and remove the tube from the clips. Clean the tube with a soft dry brush. Also clean the fan with a brush. Put the tube back in place, close and reconnect.

How to replace the UV-C tube?

Turn off the device and unplug the power cord. Open the casing, remove the old tube by disconnecting the connector. Insert the new tube into the clips and reconnect. Reset the hour counter to zero by simultaneously pressing the on/off button and the ON button on the remote control. Close the casing.

What to do if the indicator light turns yellow/orange?

The yellow/orange indicator light indicates that the UV-C tube lifespan (8,000 hours) has been reached. It is recommended to replace the tube to ensure efficiency. If performance decreases before this time, check if the tube is dirty and clean it.

How long does it take to purify a room?

For a room of 55 m³ / 25 m², a treatment of 2 to 4 hours is sufficient depending on the degree of contamination. For continuous use (24/7) for allergy sufferers, the device can operate permanently. For the Plus and Pro models, do not exceed 8 hours of continuous human presence.

Can I stay in the room during operation?

For the standard AC-1 model, 24/7 use is possible with human presence. For the AC-1 Plus and AC-1 Pro models, it is not recommended to stay more than 8 hours in the room during operation. These models are intended for intensive professional use.

Is the device safe for pets?

Yes, the ozone concentration produced is lower than natural concentration (0.115 ppm for this model) and is harmless to humans and animals. However, if you smell a strong ozone odor or observe symptoms, contact customer service.

How to reset the hour counter after tube replacement?

After installing the new tube, press simultaneously the on/off button (switch B) and the ON button on the remote control. This resets the operating hour counter to zero.

What is the minimum room size?

The room must have a volume of at least 55 m³ to ensure optimal air circulation. The maximum recommended area is 50 m².

Does the device eliminate cigarette odors?

Yes, the OZONOS Aircleaner neutralizes odors from cigarette, kitchen, pets, paint, solvents thanks to ozone oxidation. It also eliminates bacteria, viruses, mold, pollen, and dust mites.

How to use the remote control?

The remote control allows you to control the device from a distance. Use the ON button to turn on, and the OFF button to turn off. It is also used to reset the hour counter in combination with the device's on/off button.

USER MANUAL AC-1 plus OZONOS

Exterior view of two OZONOS cylindrical devices with blue and white casing (no text or symbols visible)

INHALT

1. General safety regulations and warnings .... 10
2. General 10
   2.1. General description.... 10
   2.2. Function...... II

▶ Sterilisation using UV-C radiation ....... II
▶ Odour neutralisation using ozone ....... II

1. Technical data .... 11
2. Construction .....12
3. Operation .....12
   5.1. Placement....12
   5.2. Commissioning and operation....12
   5.3. Treatment duration....12
4. Lifespan of the UV-C bulb ....13
5. Maintenance....13
   7.1. Cleaning the housing and the UV-C bulb ....13

▶ Cleaning the housing ....13
▶ Cleaning the UV-C bulb ....13

7.2. Changing the UV-C bulb 14
7.3. What to do in case of malfunction .... 14
7.4. Operating instructions.... 14
7.5. Information about disposal 14

ONLY FOR EU COUNTRIES: 14

Warranty conditions 14

Read this manual carefully before using your OZONOS Aircleaner. A digital version can be found at

www.ozonos.com/anleitung

I. GENERAL SAFETY REGULATIONS AND WARNINGS

WARNING

Read the operating instructions carefully before using your OZONOS Aircleaner. It is crucial for

you to observe the following safety regulations:

• Only connect the OZONOS Aircleaner to an earthed 230-volt mains connection.
• The device is not suitable for outdoor use and must not come into contact with water.
• The device must not be used in areas with strong dust formation and explosive vapour mixtures.
• The device must not come into contact with lubricants.
  • The OZONOS Aircleaner should be kept dirt and dust-free.
• Remove the plug from the mains socket before carrying out any work on the housing or the UV-C bulb.
• Do not wet-clean the housing.
• Use only a brush to clean the fan.

2. GENERAL

2.1. General description

The OZONOS Aircleaner is designed for indoor spaces up to a maximum of 50 m^2 . After just a short period of use it improves the air in the room and removes things such as bacteria, germs, viruses, mould spores, pet and mite allergens, pollen, paint smells, pet odours, solvent, kitchen and cigarette odours. Odour neutralisation and air sterilisation by the OZONOS Aircleaner has the following advantages:

• Purely physical process
- No use of chemicals
- Ozone formation below naturally occurring concentrations
• Completely harmless to humans and animals
• No environmental pollution
- No formation of harmful by-products
- No use of filters
• No microbiological processes
- Low energy consumption with the highest operational safety
- Easy to maintain
- CE certificate
· TÜV certified (OZONOS AC-I)
• Produced in accordance with ISO 9001: 2015

2.2. Function

▶ Sterilisation using UV-C-radiation

Air is sterilised and cleaned within the OZONOS Aircleaner. Bacteria, viruses, germs, mould spores, yeasts and microorganisms are eliminated. The special wavelength of the UV-C radiation in the OZONOS Aircleaner has the same effect as natura solar radiation.

▶ Odour neutralisation using ozone

Inside the OZONOS Aircleaner the UV-C radiation turns some of the oxygen in the air into ozone. Ozone is able to oxidise organic substances in the air. This completely eliminates microorganisms, bacteria and odours in the ambient air.

1. TECHNICAL DATA

	OZONOS AC-I OZONOS AC-I PLUS* OZONOS AC-I PRO*
DIMENSIONS L 400mm · Diameter 130 mm · Weight 2,7 kg
UV-C BULB I x 8 watts I x 8 watts I x 8 watts
POWER CONSUMPTION I4 watts I4 watts I4 watts
UVC COATING 10% 25%		50%
OZONE CONCENTRATION	0,048 ppm	0,115 ppm	0,210 ppm
UV-C BULB	Service life of the UV-C bulb: 8,000 operating hours
AIR FLOW RATE P.H.	Approx. 55 m3 | 25 m2	Approx. 55 m3 | 25 m2	Approx. 55 m3 | 25 m2
VOLUME	37 db	37 db	37 db
REMOTE CONTROL	yes	yes	yes
COLOURS	silver powder coatedblack powder coatedwhite powder coated

*The OZONOS AC-I PLUS and AC-I PRO are not designed for 24/7 use where people are always in the same room. We recommend not staying more than 8 consecutive hours in the room in which the device is in operation. The OZONOS AC-I PLUS and AC-I PRO are particularly suitable for professional use and for faster, more intensive cleaning.

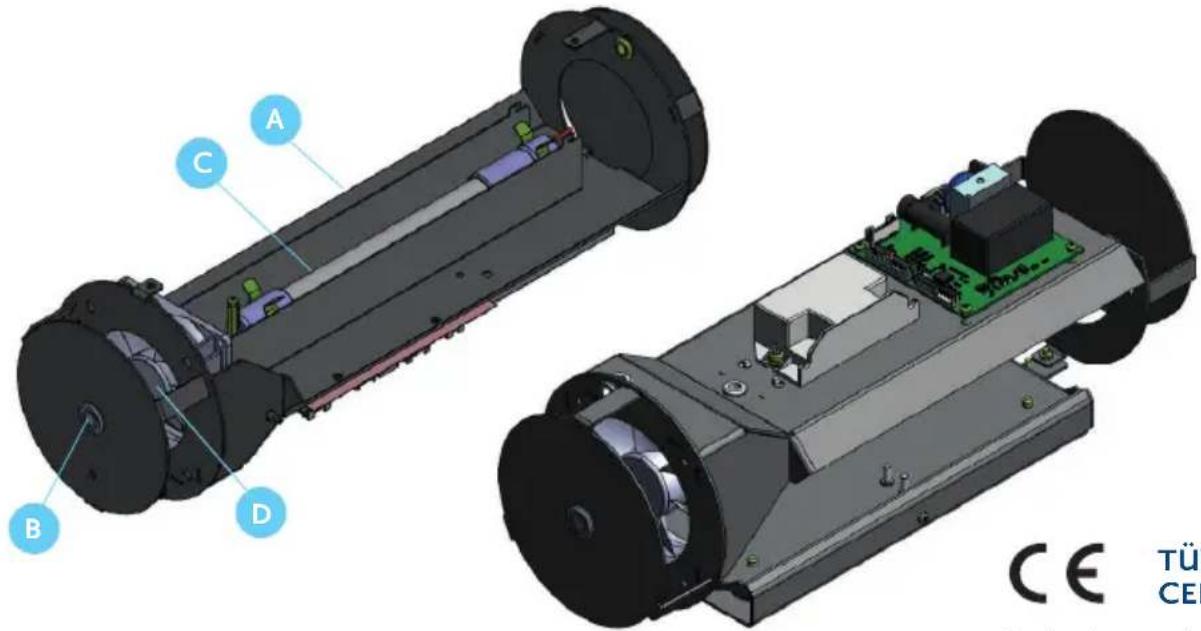

4. CONSTRUCTION

A Housing | B On/Off switch with blue indicator light | C UV-C special bulb | D Fan

A C B D CE TÜN CEI

CE TÜV SÜD CERTIFIED*

Produced in accordance with ISO 9001: 2015

*Our OZONOS AC-I model has been certified and approved by TÜV SÜD via our manufacturer „Digital Elektronik GmbH“. We are currently in the process of subcertification and because of legal purposes are not allowed to use the TÜV SÜD logo until further notice.

5. OPERATION

5.1. Placement

Place the device on a firm surface approx. 2 metres above the floor (if possible on something such as a shelf or cabinet) to allow for optimal air circulation. Warm, stuff y air rises. For maximum effect the device should not be placed near an exhaust fan. Note that the minimum room size should be 55m^3 .

5.2. Commissioning and operation

1. Connect the OZONOS Aircleaner to an earthed 230-volt mains connection.

2. Press the switch (B) to turn on the air purifier. The indicator light on the switch lights up. The status light of the UV-C bulb (C) glows blue. After 8,000 operating hours the lamp must be changed, the status lamp now lights yellow/orange.

3. It emits a gentle hum.

4. The device may heat up during operation.

5. To switch off, press the switch (B), the indicator light turns off.

5.3. Treatment duration

The OZONOS Aircleaner is designed for long-term indoor use. The optimum use of the OZONOS Air-cleaner depends on the type of application, the type and degree of internal air contamination, and the room size. Depending on the level of contamination, two to four hours of treatment time is sufficient to remove odours in a 55 m ^3 / approx. 25 m ^2 room. We recommend uninterrupted use for people prone to allergic and asthmatic reactions.

The OZONOS AC-I PLUS and AC-I PRO are not designed for 24/7 use where people are always in the same room. We recommend not staying more than 8 consecutive hours in the room in which the device is in operation. The OZONOS AC-I PLUS and AC-I PRO are particularly suitable for professional use and for faster, more intensive cleaning.

6. LIFESPAN OF THE UV-C BULB

The lifespan of the UV-C bulb (C) is 8,000 operating hours. After 8,000 operating hours have been reached, the status lamp lights up yellow/orange. The bulb must then be replaced in order to ensure the device's continued effectiveness. If performance drops before the bulb has reached around 8,000 operating hours or 36 months, it must be checked for dust or other contamination. To do this, please follow the instructions in point 7.1 or send the device to OZONOS GmbH for inspection.

7. MAINTENANCE

Device maintenance must be carried out by a qualified electrician.

7.1. Cleaning the housing and the UV-C bulb

The OZONOS Aircleaner should be kept dirt- and dust-free.

Remove the plug from the mains socket before carrying out any work on the housing or the UV-C bulb.

WARNING

This device contains a UV emitter.

Do not look directly at the light source.

UV-C radiation

Before the housing of the OZONOS Aircleaner is opened, the device must be switched off and the plug removed from the power supply.

There is the risk of optical radiation from UV rays if the housing is opened while the device is in operation. This can lead to extremely painful conjunctivitis and skin irritation!

Cleaning the housing

Please do not clean the OZONOS Aircleaner wet (it is best to use a slightly damp microfibre cloth). Do not use any chemical cleaning agents.

Cleaning the UV-C bulb

The UV-C bulb inside the OZONOS Aircleaner should be cleaned as needed – after around 36 months of normal operation. To do this, follow these steps:

1. Switch off the OZONOS Aircleaner using the switch (B); the blue indicator light goes out. Unplug the mains plug.
2. Open the housing on the bottom by loosening the two fixing screws using a size 10 Torx key and lift the cover off.
3. Using the Torx key, open the cover above the UV-C bulb.
4. Disconnect the connector from the UV-C bulb (C).
5. Remove the UV-C bulb from the two clip brackets.
6. Use a dry, soft, fine brush to remove dust from the bulb.
7. Use a brush to clean the fan.
8. Put the cleaned UV-C bulb back into the clip brackets. Then replace the cover and secure it with the screws.
9. The OZONOS Aircleaner is now ready for use again.

7.2. Changing the UV-C bulb

1. Switch off the OZONOS Aircleaner using the switch (B); the indicator light goes out. Unplug the mains plug.

2. Open the housing on the bottom by loosening the two fixing screws using a size 10 Torx key and lift the cover off.

3. Using the Torx key, open the cover above the UV-C light.
4. Disconnect the connector from the used UV-C bulb (C) and remove it from the two clip brackets.
5. Put the new UV-C bulb into the clip brackets and connect it using the connector.
6. Reset the operating hours counter to zero by simultaneously pressing the power button and the ON button on the remote control.
7. Replace the cover on the housing and secure it using the two screws. The room air purifier is now ready for use again.

7.3. What to do in case of malfunction

Remove the plug from the mains socket before carrying out any work on the housing or the UV-C bulb.

If the device's mains connection is damaged, it must be replaced by the manufacturer or its service department or by a similarly qualified person in order to avoid hazards..

If the device malfunctions (no power, no sound) or is an anomalous state (foreign object inside, water spilled on it, producing smoke or odours), immediately turn the device off, remove the mains plug and contact your retailer.

7.4. Operating instructions

This device may be used by children aged 8 and over, as well as by those with reduced physical, sensory or mental abilities or those who lack experience and knowledge, as long as they are supervised or have been instructed in the safe use of the device and understand the resulting dangers. Children must not play with the device. Cleaning and User maintenance must not be carried out by children without supervision.

Our devices are fully tested and leave our company after an ozone test has been conducted.

However, if you experience very strong ozone odour or notice any symptoms such as (sudden) headaches, watery eyes, nasal irritation or difficulty breathing when near the product (60 cm away from the device), please contact our customer service department immediately.

7.5. Information about disposal

Electrical appliances, accessories and packaging should be recycled in an environmentally sound manner.

ONLY FOR EU COUNTRIES:

Do not dispose of electrical devices in normal household waste. Recycle them in accordance with EU guidelines.

WARRANTY CONDITIONS

The manufacturer provides a two-year warranty for the faultless condition and proper processing of materials by the OZONOS Aircleaner. The invoice receipt is valid as a warranty. Warranty claims are void if the defect in question is due to improper handling or normal wear and tear, or if a third party has interfered with or altered the device. For warranty claims, please contact your OZONOS retailer. The UV-C bulb is excluded from the warranty. It has a lifespan of 8,000 operating hours.

Subject to change without notice.
