Product type	Flow pump for water filtration
Model	DC Runner 3.3
Brand	Aqua Medic
Category	Water filter
Power supply	Via controller with power connector (voltage not specified)
Control	Aqua Medic app (iOS/Android) via WiFi 2.4 GHz
Flow range	30% to 100% in manual mode
Operating modes	Manual, Feed, Timer programming
Group function	Ability to group multiple pumps via the app
Controller display	Screen with WiFi indicator, power percentage
WiFi button	Press 5s: WiFi configuration mode; 10s: AP mode
Error codes	Er01 overcurrent, Er02 overheating, Er03 dry run, Er04 blocked pump, Er05 overvoltage
Maintenance	Clean the rotor, bearings and pump; check water level
Precautions	Do not use in 5 GHz mode; keep pump, phone, and router close during setup
Compatibility	Smartphone only (tablets may cause display errors)
Registration	Account required via app with email address
Password reset	Via "Forgot password" in the app
Manual available in	French, English, German, etc. (multilingual)

Frequently Asked Questions - DC Runner 3.3 Aqua Medic

How to connect the DC Runner 3.3 pump to WiFi?

Make sure your phone is connected to a 2.4 GHz WiFi network. Press the WiFi button on the controller for about 5 seconds until the WiFi symbol flashes. Open the Aqua Medic app, add a device and select Smart Config mode. Follow the instructions, checking the network name and entering the password.

What does error code Er01 mean on the app?

The code Er01 indicates regulator overcurrent. Check if the pump is under voltage or if the controller is defective. If the problem persists, contact after-sales service.

How to set the feeding mode (FEED)?

On the pump control screen, press and hold the FEED symbol for two seconds to access the settings. You can set the duration during which the pump stops to allow fish feeding.

Can I control multiple DC Runner pumps at the same time?

Yes, the app allows you to create groups. From the 'My Groups' menu, click on 'ADD', give a name to the group and select the pumps you want to group. You can then program them together.

How to reset the password of the Aqua Medic app?

On the login page, press 'Forgot password'. Enter your email address and click 'Send link'. Follow the instructions in the email to create a new password.

Which WiFi band is supported by the pump?

Only the 2.4 GHz band is supported. Connection is not possible on the 5 GHz band. Make sure your router broadcasts a 2.4 GHz network.

How to clean the DC Runner 3.3 pump?

Unplug the pump. Clean the rotor, bearings and the inside of the pump with fresh water. Make sure the rotor rotates freely before reassembling. Refer to the manual for more details.

What to do if the WiFi symbol does not flash after pressing the button?

Make sure the controller is powered on. If the WiFi symbol does not flash after pressing for 5 seconds, try holding the button for 10 seconds to switch to AP mode (although this mode is not currently available). If the problem persists, check the power supply.

How to program operating schedules for the pump?

On the control screen, press and hold the 'PROGRAM' symbol for two seconds. You can set time ranges and choose the mode (STOP, AUTO or FEED) for each period. Press 'SAVE' to save.

Does the Aqua Medic app work on tablets?

It is recommended to use the app exclusively on smartphones. Its use on tablets may cause display errors.

USER MANUAL DC Runner 3.3 Aqua Medic

ENG Operation manual

Please read the manual carefully before use! P. 8-13

F Mode d'emploi

Login AGUA.MEDIA Create your account Enter your email Create Account Delete Password Delete Password CREATE EXIT RESET at USE THIS

Reset your password Enter your email and won't send you a link to need your password. Finish your email address NEXT EXIT FREE

Abb. 3: Passwort Reset

Add device AF Network Press the power button for 5 seconds Until the red and green lights blinking alternately. Device is in smart configuration mode. CANCEL NEXT

Add My devices My groups Settings AQUA MEDIC

AQD_DFDIFA 82 30 100 OK Please select previous to program media. Fixed Program AQUA MEDIC

AQO_OF01FA 82 30 100 OK Please click / import of program minutes Feed Program AQUA MEDIC

Program AQUA MEDIC Tap inside slot or too any place on time circle today to add! EXP APPS ADD AQUA MEDIC

Menu Rename > Delete Device >

My Devices My Groups No groups ADD EXIT Add My Groups My Groups Settings AQUA MEDIC

Operation Manual for the App to control Aqua Medic pumps of the DC Runner x.3 series

1. APP Download

The APP name "Aqua Medic", is available in App Store for Apple users and Google Play for Android system users. User can search "Aqua Medic" in either APP Store or Google Play to download the application. Alternatively, user can scan the barcode on the package or on our homepage (www.aqua-medic.de) to download the application. (Note: Scan function in certain countries or areas may not be able to read the barcode properly.) We recommend to only use the APP on smartphones, since using it on tablets can lead to errors in the display.

2. User registration, login and password reset

2.1. Account registration

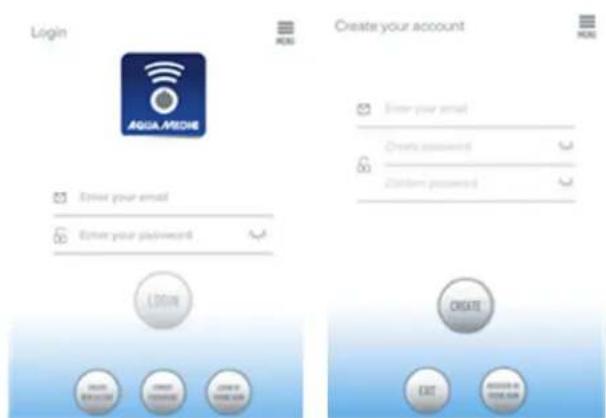

Login AGUA.MEDIA Create your account Enter your email Create accounts Custom passwords CREATE EXIT

Fig. 1: Aqua Medic App for controlling current, circulation and dosing pumps

Open Aqua Medic App and tap „CREATE NEW ACCOUNT“.

Fill in the information as required and tap „CREATE NEW ACCOUNT“.

After registration, return to the login page and create an account and password to log in.

Note: Please only use your e-mail address to register (no phone number), because registration by telephone number cannot be used in Europe.

After successful registration, the desired pump can be installed and connected to the power supply via the controller.

79% 9W

Fig. 2: Display pump controller

Press the WiFi button for about 5 seconds and the flashing icon indicates entering the smart network distribution mode (WLAN). Press the WiFi button for about 10 seconds and the flashing icon and AP word in the lower right corner indicate entering the AP network distribution mode.

The smartphone used has to be in the same WiFi network as the pump to be linked to.

2.2. Reset password

Tap "Forgot password" on the login page. Enter your e-mail address and tap "Send link". Check your e-mail and follow the instructions to reset your password.

AQUA MEDIC

Reset your password Enter your email bird, we'll need you a link to reset your password. Make your email attributes NEXT EXIT EXIT OR SELECT

Fig. 3: Reset password

3. Add a pump to a network

Click on "Add" in the lower left corner of the APP and on the following page select the device type to be added. In case of a circulation pump of the DC Runner x.3 series, choose the pump symbol "Pump".

Configuration mode: Make sure your phone is connected to 2.4 G band WiFi before configuration. It doesn't work in the 5 G band WiFi.

There are two types of configuration modes: Smart configuration and AP configuration modes. Choose the „Smart Configuration Mode“ to link your device. The AP-mode is not available at the moment.

Add device AP Network Press the power button for 5 seconds Until the red and green lights blinking alternately. Device is in smart configuration mode. CANCEL NEXT

Fig. 4: The desired mode is confirmed by tapping on the circle above the lower arrow. By tapping on "AP Network" or "Smart Network" next to the upper arrow (the arrow is not available in the APP), you can switch between the two modes. (The "Smart Configuration Mode" must be selected here. The green and red LEDs only flash in the case of dosing pumps; in the case of pumps, the blue WiFi symbol flashes in the controller).

3.1. Smart configuration (WiFi-mode)

This is the mode for pump control via WiFi. Press the WIFI button for about 5 seconds and the WIFI indicator flashes. The device is in WiFi configuration mode.

When the WIFI symbol flashes in the upper right corner of the pump controller, tap "Device is in smart configuration mode" and click "NEXT". Positioning must be switched on in the settings of the smartphone used. Follow the instructions. Check that the network name is correct (if not, the smartphone is in the wrong network), then enter the correct WiFi password and tap "NEXT".

Make sure your pump, phone, and router are as close together as possible during the configuration process.

AQUA MEDIC

Fig. 5: The tick must be set after the device's name before tapping on "NEXT".

Now, select the device in the APP that you want to add, tap on the device's name (a tick appears after the device's name) and then tap on "NEXT".

AP network: Not available at the moment.

4. Pump control

Aqua Aqua MEDIC Aqua Healthcare Aqua Healthcare Aqua Healthcare Aqua Healthcare

Fig. 6: Page „My Devices“

In the APP, on the page "My Devices", tap the device's symbol of the desired pump for two seconds to call up the device control. If you only briefly tap the symbol, the respective device is switched on (blue symbol) or off (grey symbol). After successfully adding the pump, press and hold the pump icon for two seconds to enter the pump control page.

4.1. Manual mode

AQD_OFID1FA 82 30 100 OK Planesuitable version of a program code Feed Program AQUA MEDIC

Fig. 7: Pump control

AQUA MEDIC

By adjusting the semicircular bar, the pump power can be varied between 30 and 100%. The selected power is displayed in the circle.

Manual feeding mode (FEED):

Within this time, the pump stops operating according to the set feeding time. Touch the FEED icon for two seconds to enter the feeding settings.

AQD_0FD1FA Feed Turn-on Feed Feed Pause Time 10 minutes ? OFF NOB Please check if to close your home. Feed Program AQUA MEDIC

Fig. 8: Feeding settings

Program mode:

AQD_OF01FA 82 30 100 Phone:com/rented to program.AQUA MEDIC Feed Program AQUA MEDIC

Fig. 9: The "PROGRAM" button takes you to the programming function.

Press the "PROGRAM" icon for two seconds to enter the settings page and set the pump's operating mode at different times of the day including pump stop, automatic and feeding.

Program AQUA MEDIC Tap music icon or tap any plots on time circle local to add. STOP ADD FREE AQUA MEDIC

Fig. 10: Touch the "STOP, AUTO, FEED" symbol or double-touch the circle to edit the respective period.

AQUA MEDIC

Double-tap the circle to go to the time setting page. The time can be set by using the slider or the time buttons below. Then, select the working mode for the set period (STOP, AUTO, FEED). Tap "SAVE" to save the setting made. If you want to delete the current adjustment, tap "DELETE".

After completing the settings, return to the main page and tap the program icon to enter Program mode. Program mode is exited when you make manual settings.

AQU.OFO/IFA 82 30 100 OK Please select / manual at transparent start Event Program AQUA MEDIC

Fig. 11: In the menu at the top right it is possible to rename or delete pumps.

Menu Rename > Delete Device >

Fig. 12: Rename pumps or delete

5. Group operation

Aqua MEDIC

Fig. 13: Under the menu item "My groups" it is possible to combine several pumps into a group and to program them jointly.

AQUA MEDIC

My Devices My Groups No groups ADD EXIT Aua3 My Documents My Documents Settings AQUA MEDIC

Fig. 14: First of all, select „ADD“ ...

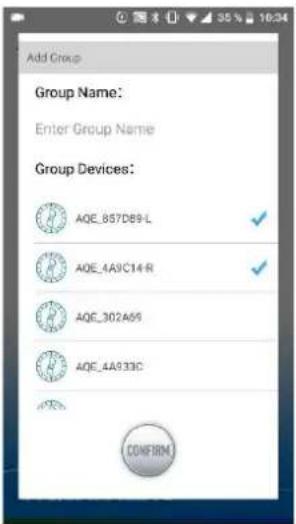

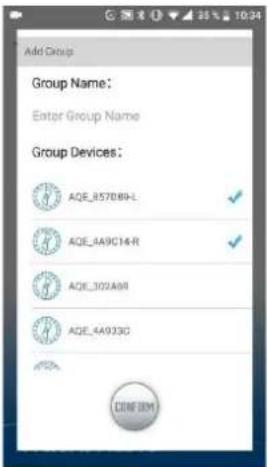

Add Group Group Name: Enter Group Name Group Devices: AQE_857089-L AQE_4A9C14-R AQE_302A68 AQE_4A933C CODE IBM

Fig. 15: ... and then select the pumps from the list that are to be combined into a group.

6. Error code and APP error description

Er01: Controller overcurrent. Abnormal working current. Check whether the pump is live or the controller is defective.

Er02: Controller overheated. Check if the controller is exposed to sunlight or in a high temperature environment.

Er03: Pump is running dry or idling. Check the water level, clean the pump.

Er04: The pump blocked. The impeller stops running. Clean the impeller, bearings and pump. The impeller must be able to turn freely.

Er05: Controller overvoltage. Abnormal working voltage. Check the input supply voltage.

AB Aqua Medic GmbH - Gewerbepark 24 - 49143 Bissendorf/Germany - Technical changes reserved - 02/2021/v4

Login HERE Create your account HERE Arquas.MEDIS Enter your email Enter your password CREATE password OK Cancel password CREATE EXIT PRODUCED BY HOME WITH

Reset your password Enter your email and won't send you a link to reset your password. I have your personal address NEXT EAT 2019-2020

Add device AP Network Press the power button for 5 seconds Until the red and green lights blinking alternately. Device is in short configuration mode CANCEL Next

AQD_DF01FA 82 30 100 File Edit Print to program print Feed Program AQUA MEDIC

AQD_DTORFA 82 Feed Turn-on-Feed Feed Pause Time 10 minutes > SBT SBRL Balance, sweet, double in your head level. Feed Program AQUA MEDIC

Mode programme (PROGRAM):

AQO.OFD1FA 82 30 100 Prevent online input/12 program Fed Program AQUA MEDIC

Program AQUA MEDIC Tap mobile room or tap any phone on time toggle twice to exit. STOP AUTO STOP AQUA MEDIC

AQD_0FD1FA 82 30 100 OK Please preview progress at your start point. Fixed Program AQUA MEDIC

Menu Rename > Delete Device >

Login AQUA MEDHE Create your account Enter your email Enter your password Enter your password CREATE password Custom password CREATE EXIT EXIT

AQUA MEDIC Reset your password NEW Enter your email and we'll send you a link to insert your password. Cancel your email password MOST OK Next or Your Email

Fig. 3: Reset password

Add device → AP Network Press the power button for 5 seconds Until the red and green lights blinking alternately. Device is in smart configuration mode. CANCEL NEXT

Add My disease My genuin Savings AQUA MEDIC

Fig. 6: Pagina „My Devices“

Physical asset, manual or program tools Fixed Program AQUA MEDIC

Fig. 7: Pump aansturing

AQUA MEDIC

AQD_DFOISA 82 Feed Turn on Feed Feed Pause Time 10 minutes > OFF 3MEL Sleep sweet, Direction of Cigarette Drink. Feed Program AQUA MEDIC

Fig. 8: Voeder instellingen

Programma mode (PROGRAM):

AQO_OF01FA 82 30 100 5% Pre-saved: field in project tools. Field Program AQUA MEDIC

Program AQUA MEDIPE Tap mobile from or keep any phone on time circle twice to add. STOP AND STOP AQUA MEDIPE

AQD_DFD1FA 82 30 100 OK Progress: 100% (No progress) Options: Feed Program AQUA MEDIC

Menu Rename > Delete Device >

My Devices AQL C18A09 ADD My device My group Settings AQUA MEDIC

My Devices My Groups No groups ADD EXIT A3D My Documents My Course Savings AQUA MEDIC

Fig. 14: Allereerst, kies „ADD“ ...

Add Group Group Name: Enter Group Name Group Devices: AQE_857D89-L AQE_4A9C14-R AQE_302A69 AQE_4A933C CONFIRM

Login AGUA.MEDIA Create your account Enter your email Create password Edit your password Enter your email Enter your password CREATE CREATE EXIT ACCESS OR YOUR WIN

AQUA MEDIC Reset your password Enter your email and we'll send you a link to have your password. Enter your email solution NEXT EXIT ANY YOU NOW

Add device AP Network Press the power button for 5 seconds Until the red and green lights blinking alternately. Device is in smart configuration mode. CANCEL NEXT

AQO.OFOIFA 82 30 100 OK Please select features in your own account Fand Program AQUA MEDIC

Fig. 7: Control de la bomba

AQUA MEDIC

AQO_QFD1FA 82 Feed Turn on Feed Feed Route Time 50 minutes > OK Cancel AQUA MEDIC

AQO_OF01FA 82 30 100 OK Please request feedback or program needs Feed Program AQUA MEDIC

Program AQUA /MEORE Tap mobile app or tap any phone on time inside since to add STOP AIDS FUS AQUA MEDIC

Menu Rename > Delete Device >

My Devices AQL C18A95 Aqua MEDIC My group Sunshine

My Devices My Groups No groups ADD EXIT Add Not Features My Groups AQUA MEDIC

- Technical changes reserved - 02/2021/v4
