USER MANUAL D25981 DEWALT

English (original instructions) 5

Technical diagram of a mechanical device with numbered components for identification

Figure B

B شکل

Line drawing of a person using a DeWALT power tool, no text or symbols present

Figure C

C شکل 7 8 9 10 11 12 13 14

Figure D
D شکل

Line drawing of a hand holding a pen or tool, no text or symbols present

Figure E
E شكل

Technical diagram of a mechanical assembly with numbered components labeled 3, 4, and 5

Figure F FJL

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Figure G G شكل

10 60° 8 ±40° 60° 4 ±60° 7 60° 20°

Figure H H شکل

Technical diagram of a mechanical assembly with numbered components and directional arrow indicating motion or force

30 KILO BREAKER

D25981

Congratulations!

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

		D25981
Voltage V	AC	220/240
Type 1
Frequency Hz 50-60
Current A 8.9
Power input W 2100
Impact rate min	-1	960
Impact energy (EPTA 05/2009) J 62
Max Impact energy J 72
Tool holder		28 mm hex
Weight	kg	31

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

WARNING: To reduce the risk of injury, read the instruction manual.

General Power Tool Safety Warnings

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying

English

the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Specific Safety Rules for Demolition Hammers

• Ensure the chisel is secured in place before operating the tool.
• In cold-weather conditions or when the tool has not been used for a longer period of time, let the tool run with no load for several minutes before use.
  • Always hold the tool firmly with both hands and ensure a secure stance. Always operate the tool with the side handle properly mounted.
• When working above ground level ensure the area below is clear.
• To prevent electric shock, check the working area for live wires before operation.
• Do not touch the chisel or the parts close to the chisel immediately after operation, as they may be extremely hot and cause burns to the skin.
  • Always direct the power cable to the rear, away from the chisel.
• Keep the power cable away from the accessory. A power cable wrapped around the bit may cause electric shock.
• Do not wrap the power cable around your body.
• Do not allow inexperienced users to use this tool.
• Wear ear protectors. Exposure to noise can cause hearing loss.
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Do not strike jammed accessories with a hammer to dislodge them. Fragments of metal or material chips could dislodge and cause injury.
  • Always switch off the tool when work is finished and before unplugging.
• Do not recondition accessories yourself. Chisel reconditioning should be done by a qualified specialist. Improperly reconditioned accessories could cause injury. Only slightly worn accessories can be resharpened by grinding.

WARNING: We recommend the use of a residual current codes with a residual current rating of 30mA or less.

Residual Risks

The following risks are inherent to the use of demolition hammers:

• Injuries caused by touching the hot parts of the tool. In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:
• Impairment of hearing.
• Risk of squeezing fingers when changing the accessory.
  • Health hazards caused by breathing dust developed when working in concrete and/or masonry.
  • Physical trauma due to inappropriate lifting and carrying of heavy equipment.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with IEC60745; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.

Mains Plug Replacement (Middle East and Africa)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made to the terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Using an Extension Cable

If an extension cable is required, use an approved 3-core extension cable suitable for the power input of this tool (see

Technical Data). The minimum conductor size is 1.5 mm ^2 ; the maximum length is 30 m.

When using a cable reel, always unwind the cable completely.

Package Contents

The package contains:

1 Breaker
1 Instruction manual
- Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

Wear ear protection.

Wear eye protection.

Date Code Position (Fig. A)

The date code 19, which also includes the year of manufacture, is printed into the housing.

Example:

2017 XX XX

Year of Manufacture

Description (Fig. A)

WARNING: Never modify the power tool or any part of it. Change or personal injury could result.

1 On/off switch
2 Side handle(s)
3 Tool retainer
4 Tool holder
5 Handle screws
6 Air vents

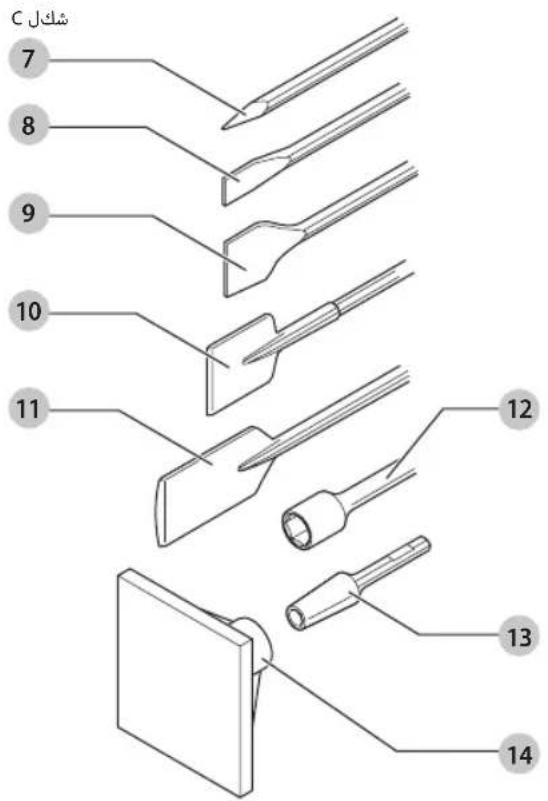

Optional accessories (Fig. C)

Various types of 28 mm hex. chisels are available as an option.

7 Pointed chisel
8 Cold chisel
9 Scaling tool
10 Spade chisel
11 Asphalt cutter
12 Driver ground rod
13 Shank tamper
14 Plate tamper

Consult your dealer for further information on the appropriate accessories.

Intended Use

Your breaker has been designed for professional heavy duty demolition, chipping and chasing applications in concrete, brick, stone and other masonry materials.

DO NOT use under wet conditions or in the presence of flammable liquids or gases.

These demolition hammers are professional power tools.

DO NOT let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

- This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

Soft Start Feature

The soft start feature allows the impact rate to build up more slowly, thus preventing the chisel or point from "bouncing" around on the masonry when starting up.

Fully Vibration-dampened Handles (Fig. A)

The dampers in the handles 2 absorb the vibrations transmitted to the user. This improves user comfort during the operation.

Active Vibration Control

The active vibration control neutralises rebound vibration from the hammer mechanism. Lowering hand and arm vibration, it allows more comfortable use for longer periods of time and extends the life of the unit.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

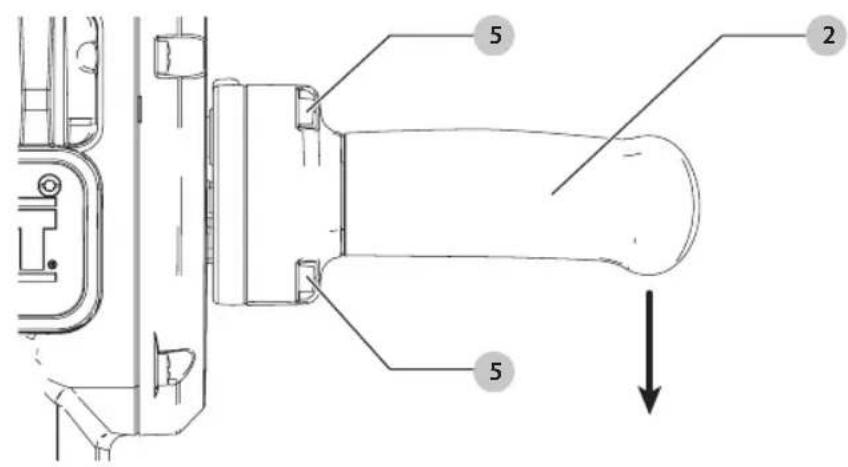

Side Handle (Fig. A, H)

CAUTION: ALWAYS operate the tool with the side handle. We properly assembled. Hold tool with both hands to maximize control.

Attach left side handle 2 with four hex head screws 5 (supplied). Tighten with hex wrench supplied. nOTE: Side handle must be installed in the proper orientation with the nub on the end of the grip facing down.

Inserting And Removing 28 mm Hex Accessories (Fig. D–F)

This machine uses chisels with a 28 mm hex. shank. We recommend to use professional accessories only.

WARNING: Since accessories other than those offered by DEWALT have not been tested with this product, the use of such accessories may entail hazardous situations. To reduce the risk of injury, use only accessories recommended by DEWALT.

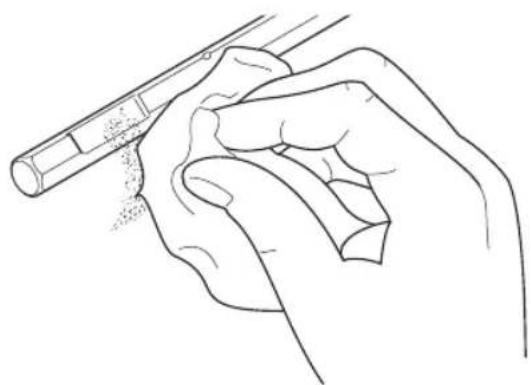

Clean the chisel shank.

WARNING: Do not apply lubricant to the machine.

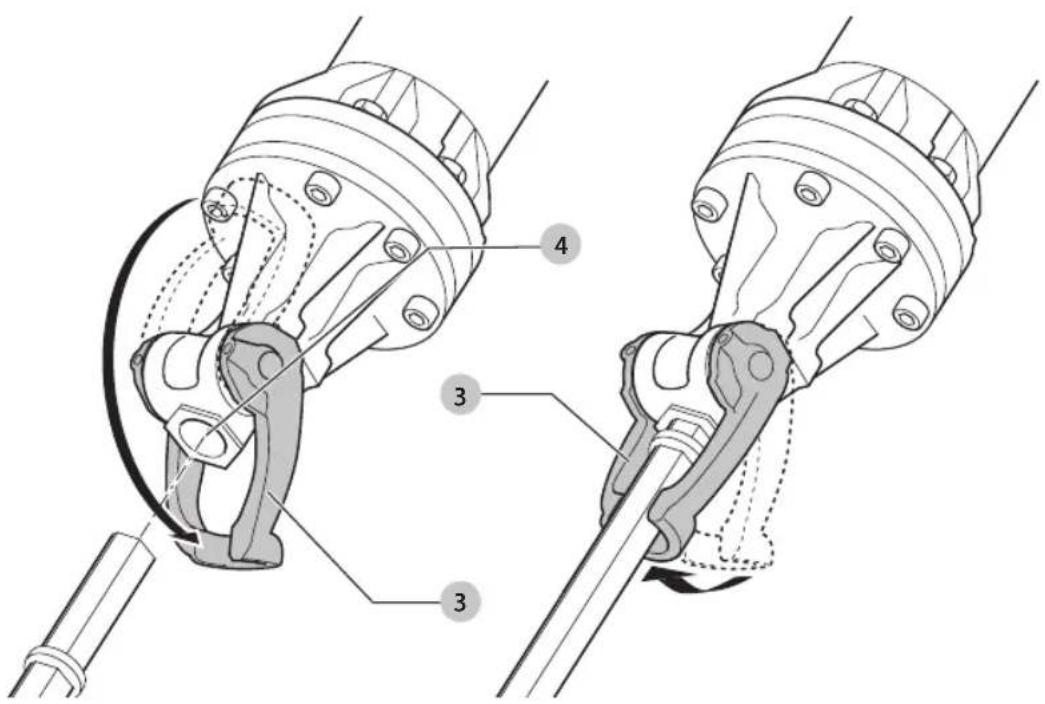

To fit a chisel with collar on the shank, proceed as follows (Fig. E)

1. Pull the tool retainer 3 to the unlock position.
2. Insert the chisel shank into the tool holder 4.
3. Push the retainer 3 in line with the accessory shank to lock the accessory in position.
4. Pull on the chisel to check if it is properly locked. The hammering function requires the chisel to be able to move axially several centimetres when locked in the tool holder.

To remove a chisel pull back the retainer 3 and pull the chisel out of the tool holder.

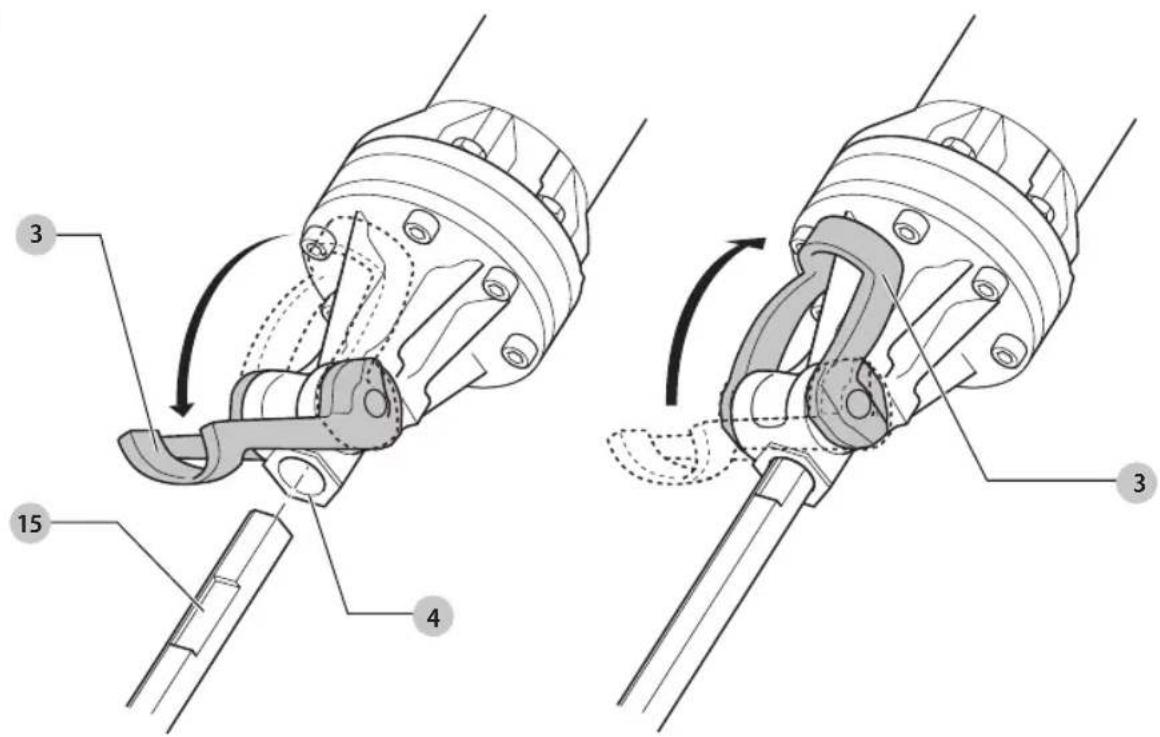

To fit a chisel with notch in the shank, proceed as follows (Fig. F)

1. Pull the tool retainer 3 to the unlock position.
2. Hold the chisel in front of the tool holder with the groove 15 facing upwards.
3. Insert the chisel shank into the tool holder 4
4. Push the retainer3 backwards to lock the accessory in position.

WARNING: Always wear gloves when you change accessories. The exposed metal parts on the tool and accessory may become extremely hot during operation.

OPERATION

Instructions for Use

WARNING:

Always observe the safety instructions and applicable regulations.

• Be aware of the location of pipework and wiring.
• Apply a pressure of approx.20–30 kg to the tool. Excessive force does not speed up chiselling but decreases tool performance and may shorten tool life.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

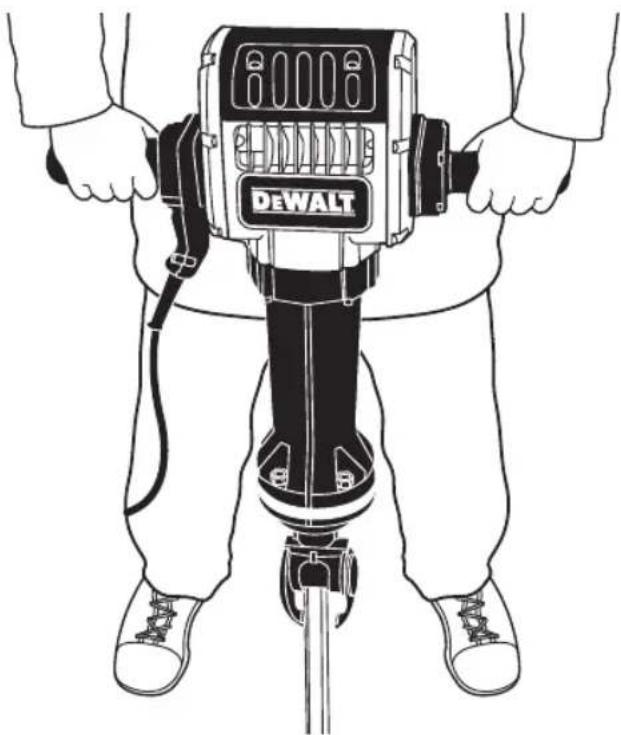

Proper Hand Position (Fig. A, B)

WARNING: To reduce the risk of serious personal injury, MYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on each side handle 2.

Switching On and Off (Fig. A)

To run the tool, press the on/off switch 1. To stop the tool, release the switch.

Demolition, Chasing and Channelling (Fig. A–F)

1. Select the appropriate chisel and clean its shank.
2. Insert the chisel and check whether it is properly locked.
3. Hold of the tool at both handles 2 and turn on. The tool now runs in continuous operation.

MAINTENANCE

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

This machine is not user-serviceable. Take the tool to an authorised DeWALT repair agent after approximately 200 hours of use.

If problems occur before this time contact an authorised DEWALT repair agent.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure. WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

WARNING: These chisels can be reground only a listed number of times. If in doubt, contact your dealer for recommendations.

WARNING: Ensure that the cutting edge does not show discolouration caused by too much pressure. This may impair the hardness of the accessory.

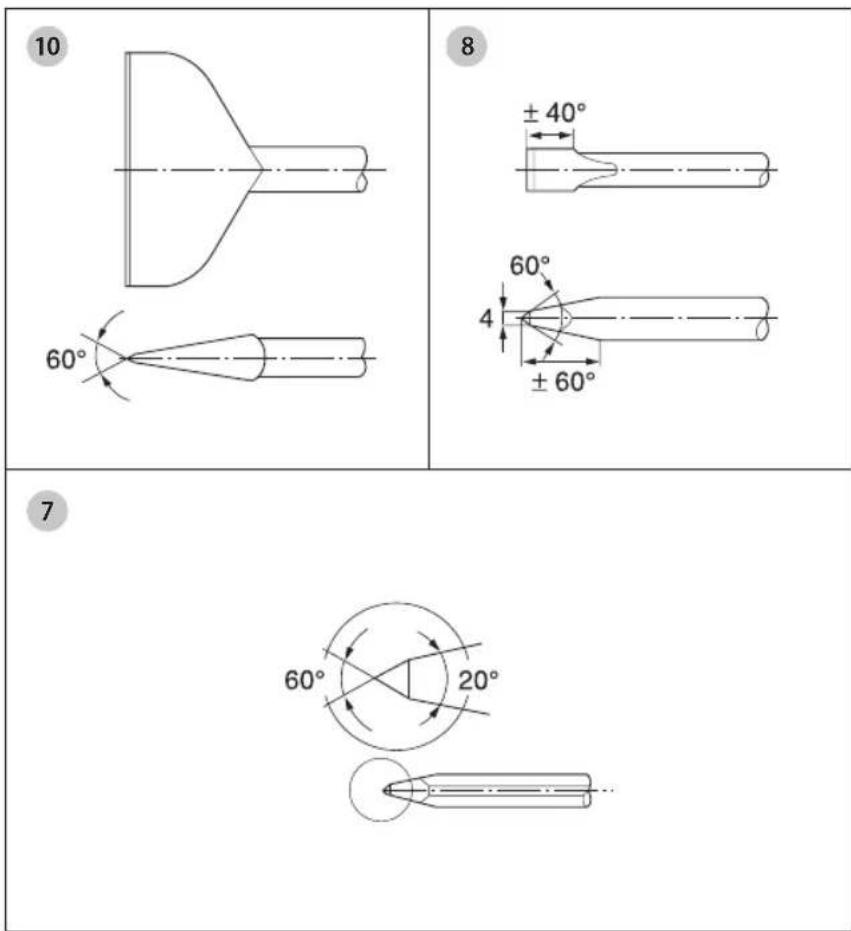

Accessory Maintenance (Fig. G)

Accessory maintenance at the right time guarantees optimal results in application and a long and efficient accessory life. Grind the chisels on grinding discs. Refer to Figure G for the appropriate angles of the following chisels:

7 Pointed chisel
8 Cold chisel
10 Spade-shaped chisel

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.
