USER MANUAL HMM 81504 BX BEKO

Stylized black-and-white icon of a flame or water droplet above a crown (no text or symbols)

HMM 81504 BX

EN/FR/IT/PL/SL/CS/SRB/SQ/MK/RO/AR

CONTENTS

ENGLISH	03-16
FRANÇAIS	17-31
ITALIANO	32-45
POLSKI	46-61
SLOVENŠČINA	62-75
CZECH	76-89
СРБИН	90-103
SHQIPTARE	104-117
MAKEДОНСКИ	118-133
ROMÂNĂ	134-149
ARABIC	150-163

Please read this guide first!

Dear Customer,

Thank you for choosing a BEKO product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and recommendations regarding the use of the appliance.

Warnings on personal injury or property damage.

Suitable for contact with food.

Do not immerse the appliance, the power cord or the plug in water or in any other liquids.

Electric shock protection rating

This product has been manufactured at modern facilities respectful to the environment without harming nature.

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

- This appliance complies with international safety standards.

- For the appliance to be used by persons with limited physical, emotional, or mental capacity or lacking knowledge and experience, such person must be supervised and have understood the instructions about the safe usage of the appliance and potential risks. Children should not tamper with the device. Cleaning and user maintenance operations should not be carried out by children.

•This appliance cannot be used by children.

- Store the appliance and its power cord out of the reach of children.

- Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service.

1 Important safety and environmental instructions

• Unplug the appliance when it is left unattended, during attaching/removing accessories, and cleaning.
• Use only original parts or parts recommended by the manufacturer.
• Do not disassemble the appliance.
  -Your mains power supply shall be in align with the specified information on the type tag.
• Do not use the appliance with an extension cord.
• Do not unplug the appliance by pulling on the cord.
• Unplug the appliance before cleaning, disassembly, accessory fitting and wait until it is completely stopped.
• Do not touch the plug of the appliance while your hands are damp or wet.
• Do not use the appliance for hot foods.
  •To avoid damage on the appliance, remove bones and seeds from foods.
  •The appliance is not suitable for dry and hard foods.

1 Important safety and environmental instructions

•To prevent overheating, do not use the beaters function continuously for more than 10 minutes. Between each 10 minutes of use, leave the appliance to cooling for 30 minutes.
•To prevent overheating, do not use the beater function continuously for more than 5 minutes. Between each 5 minutes of use, leave the appliance to cooling for 20 minutes.
- Follow each instruction to prevent injuries caused by misuse.
•After cleaning, dry the appliance and every part before plugging in and attaching the parts.
- Do not immerse the appliance, the power cord or the plug in water or in any other liquids.
- Do not use the appliance or its parts on or near hot surfaces or put them on such surfaces.
- If you keep the packaging materials, keep them out of the reach of children.
•Always use the appliance on a stable, flat, clean and dry surface.

1 Important safety and environmental instructions

•This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments,
• farm houses, by clients in hotels, motels and other residential type environments,

• bed and breakfast type environments

• Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.

• Before using the appliance for the first time, clean all parts carefully which come into contact with food. Please see full details in the “Cleaning” section.
• Do not touch any moving parts of the appliance. Do not attach or remove the parts until the device comes to a complete stop.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a black rectangular bar below (no text or labels)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Packaging information

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities.

1.4 What to do for energy saving

Follow the times recommended in the manual during use. Unplug the cord of appliance after use.

2 Your blender

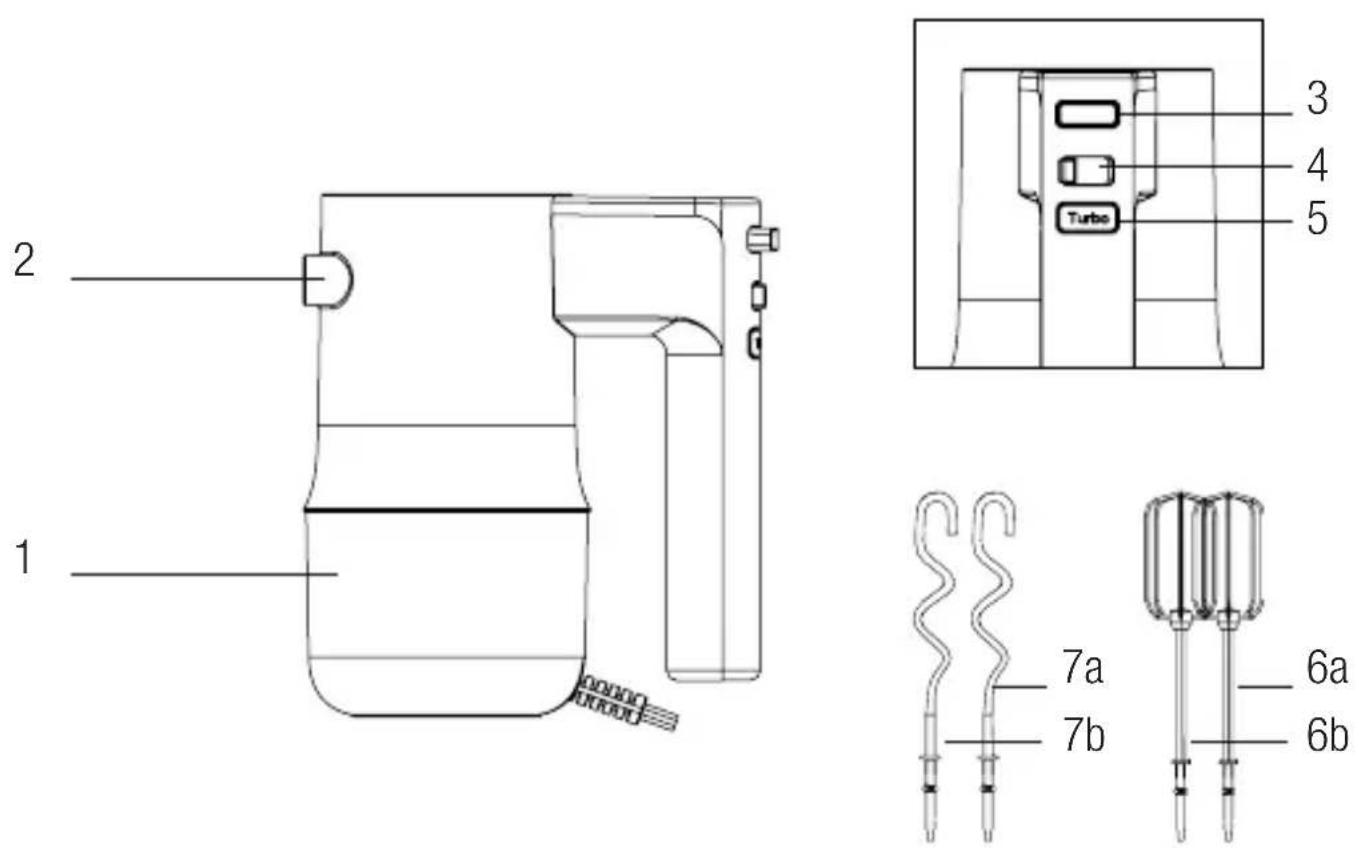

2.1 Overview

1. Motor unit
2. Accessory inlets
3. Accessory release button
4. Speed setting button
5. TURBO button
6. Beaters (6a/6b)
7. Dough hooks (7a/7b)

2.2 Technical Data

Voltage: 220-240 V\~, 50-60 Hz Power: 500 W

The rights to make technical and design changes are reserved.

2 Operation

2.1 Intended use

The appliance is intended for home use only, it is not suitable for professional use.

2.2 First operation

Clean the parts of the appliance before the first use.

2.3 Beater / Mixer

Illustration of a hand operating a handheld device with a spring and tool, no text or symbols present

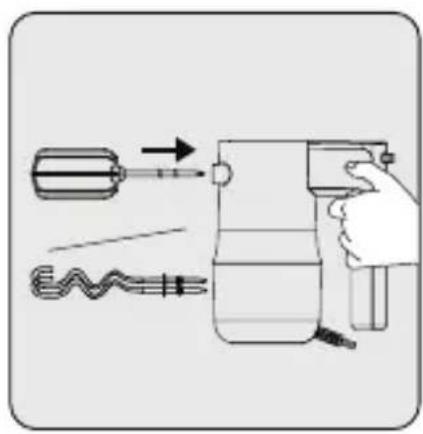

Insert beaters (6) or kneading hooks (7) into the inlets for beater (5) or kneading hook until they settle.

Diagram illustrating a mechanical device with a spring scale and a wall-mounted socket, accompanied by an arrow indicating direction.

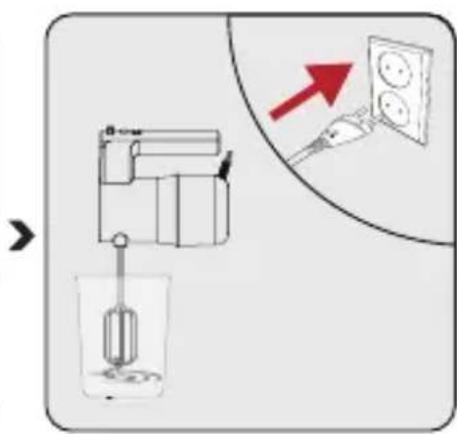

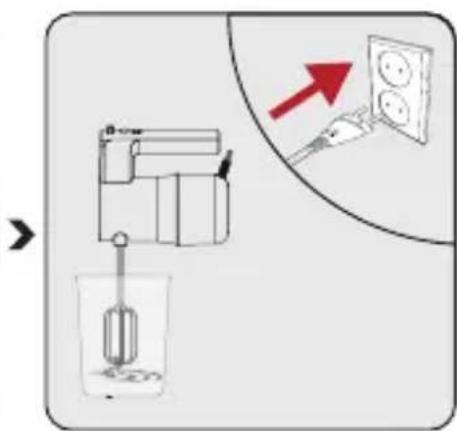

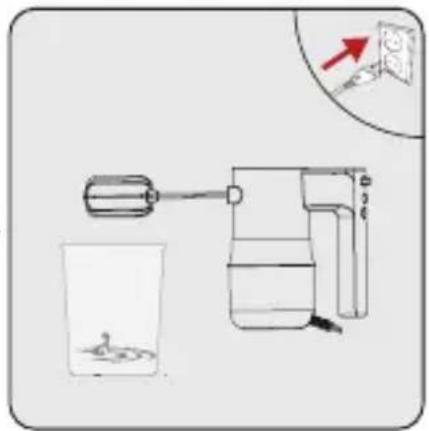

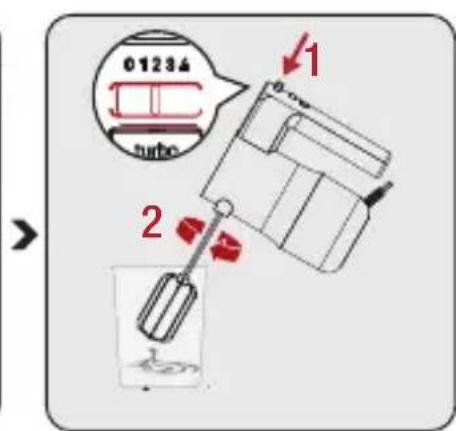

Plug in the power cord. Put the beaters (6) and the kneading hooks (7) into the batter before turning on the stick blender.

01234 turbo 1 2

Speed setting is between 1 and 4. Increase the speed starting from level 1.

Do not use the beater and dough hooks together.

When mixing ingredients, start with a lower speed. Foods may spatter around if you start with high speed.

2 Operation

01234 turbo

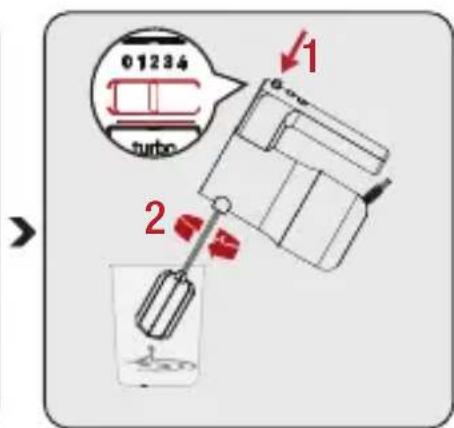

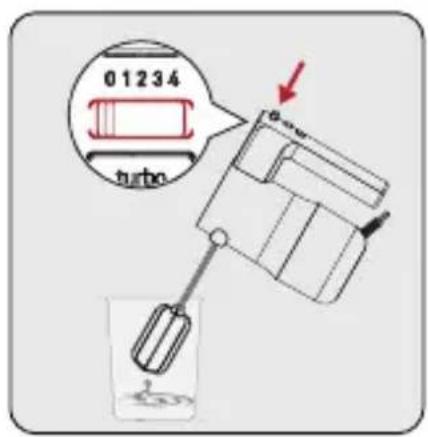

When the process is completed, leave the speed setting button at "0" position.

Diagram illustrating a laboratory setup with a beaker, a syringe, and a beaker with liquid, accompanied by an inset showing a device with a red arrow.

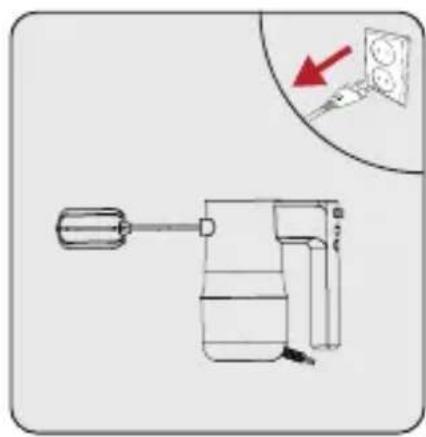

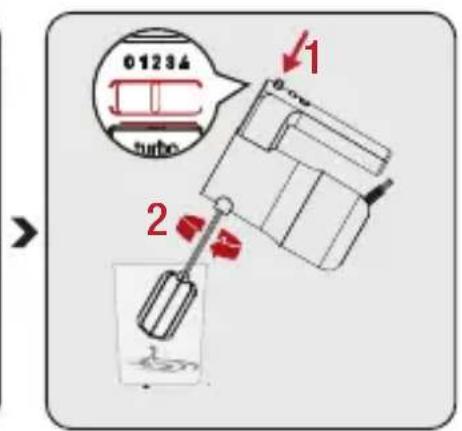

Wait until your appliance is completely stopped. Unplug and remove the beater/mixer accessories from the batter.

Diagram illustrating a soldering or measuring tool with labeled components and a green checkmark indicating approval.

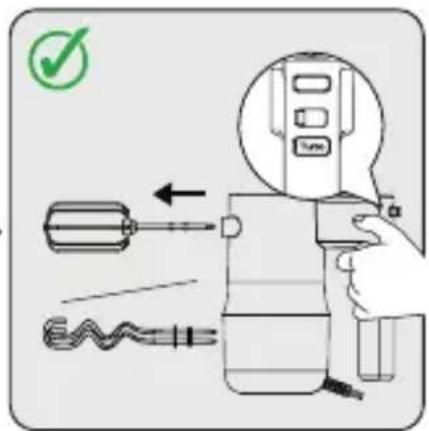

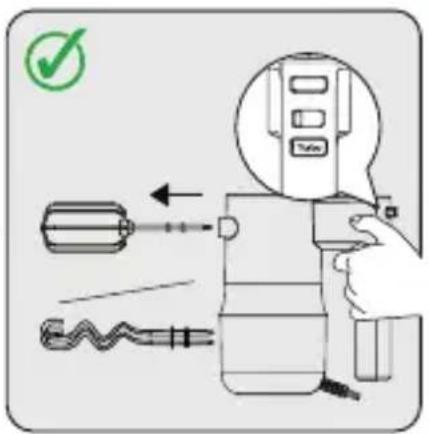

You can remove the beater and mixer accessories by pushing the accessory release button (3) when the power button is on "0" position.

2.3.1 Beaters

• Always use both beaters.
- Teflon coated containers may be scratched.

Use it to beat liquid ingredients like cake batter, sauce, soup.

2.3.2 Dough Hooks

• Always use both dough hooks.
- Teflon coated containers may be scratched.
- Use it for dough kneading.

2.4 TURBO button

Push and hold the TURBO button when you need sudden high speed, and unhold when you no longer need.

Do not use the TURBO feature for longer than 1 minute.

3 Recipes

Cake Recipe

Ingredients:

• 3 Eggs
- 150 g butter
- 150 g white sugar
- 150 g wheat flour
- 3 g dry yeast

Preparation:

Separate egg whites and yolks.

Pour the egg whites into a mixing bowl and attach the mixer accessory of your appliance. Beat the egg whites for 1 to 2.5 minutes on speed level 3.

Dice the butter into 20 mm pieces.

Add the butter, sugar, and egg yolks to the bowl and mix for 1 to 2.5 minutes on speed level 3.

In a different bowl mix the wheat flour and dry yeast. Add the dry ingredients to the egg mixture and beat for 1 to 2.5 minutes on speed 3.

Pour the batter into a cake pan and bake in a preheated 200°C oven until it's gold on top. Enjoy!

3 Recipes

Cookie Recipe

Ingredients:

• 1 egg
• 100 g butter, diced into 200 mm pieces
- 100 g oats
- 100 g honey
- 100 g wheat flour
- 20 g water
- 175 g chocolate chips

Preparation:

Beat the egg, honey and butter diced into 200 mm pieces on Turbo speed until creamy.

Add flour and water, mix for 1.5 to 2 minutes.

Finally, add the oats and chocolate chips, stir with a spoon.

Take 30 g (approximately 1 tablespoon) from your dough and shape into balls, and place them on an oven tray.

Bake in a preheated oven at 160 °C for 30 minutes or at 180 °C for 25 minutes. Enjoy!

3 Recipes

Bread Recipe

Ingredients:

• 350 g wheat flour
• 5 g salt
• 10 g white sugar
• 10 g butter
• 200 g water
• 3 g dry yeast

Preparation:

Mix flour, salt and sugar in a mixing bowl.

Add dry yeast, butter and water to the mixture.

Attach the dough hook and mix the ingredients for 10 to 15 seconds on speed level 1. Then, set the speed to 3 and continue mixing for 20 to 30 seconds.

Set the speed to 4 and continue mixing for 2,5 to 3,5 minutes.

Rest the dough on a 35^ C environment for 45 minutes.

Then, shape the dough to your preference and place on a baking tray. Bake it on a 180 °C preheated oven until it's golden on top. Enjoy!

Please do not knead food that contains more than 350 grams of flour in this appliance. More flour may cause overloading of the appliance.

4 Cleaning and maintenance

4.1 Cleaning

Do not use benzene, solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

Diagram of a hand tool with a magnified inset showing a close-up of a socket (no text or symbols present)

Turn the appliance off and unplug it. Wait for the appliance to completely cool down.

Line drawing of a hand cleaning a mechanical component with a cloth (no text or symbols)

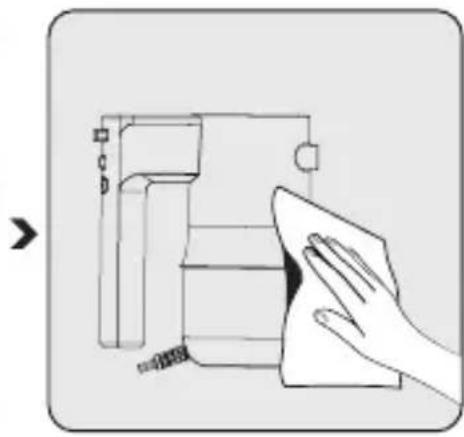

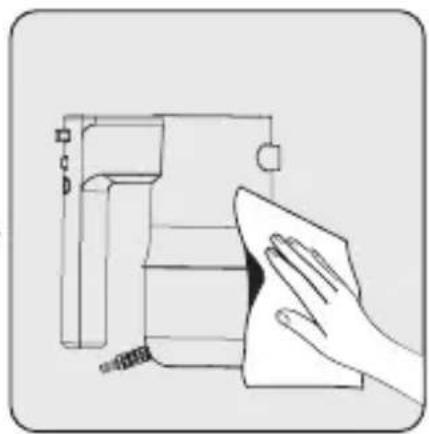

- Use a soft, damp cloth to clean the engine unit.

Illustration showing a faucet cleaning water with a hand cleaning a surface (no text or symbols)

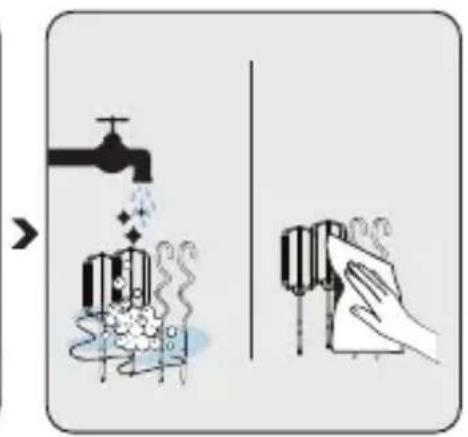

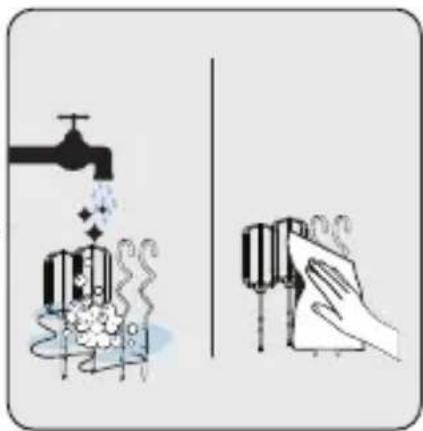

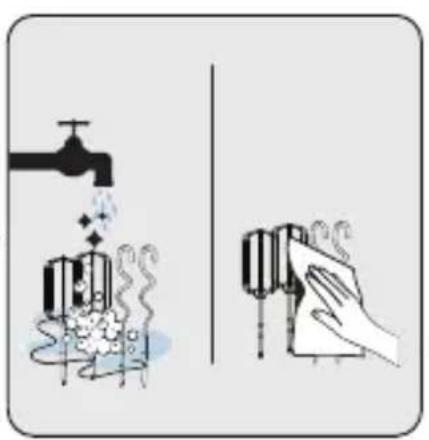

You may clean the beaters (6) and dough hooks using some dish washing soap and hot water or in dishwasher. Afterwards, completely dry each part.

Beaters and dough hooks are dishwasher-safe.

4 Cleaning and maintenance

4.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before putting away.
• Store the appliance in a cool dry place.
• Store the appliance and its cord out of the reach of children.

4.3 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Prohibition sign with crossed-out battery and no text or symbols

Illustration of a hand operating a handheld device with a spring and tool, no text or symbols present

Diagram showing a device being inverted over a wall socket with a red arrow indicating direction or force.

Diagram showing a mechanical device with liquid and a beaker, accompanied by an inset image of a device with a red arrow indicating direction.

Diagram illustrating a soldering or measuring tool with labeled components and a green checkmark indicating approval.

Diagram of a mechanical device with a pull rod and a magnified inset showing a close-up of its internal components (no text or symbols)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Diagram illustrating a water treatment process with faucet, condenser, and cleaning tool, showing environmental change and cleaning steps.

Prohibition sign with crossed-out machine and battery symbol, indicating no protection or disapproval

Illustration of a hand operating a handheld device with a spring and tool, no text or symbols present

Diagram showing a device being inverted over a wall socket with a red arrow indicating direction or force.

Diagram illustrating a laboratory filtration setup with labeled components and an inset showing a magnified view of the device.

Diagram showing a hand operating a mechanical device with a checkmark indicating selection, alongside a magnified view of the device's internal structure.

Diagram of a hand pump device with an inset showing a close-up of its internal components (no text or symbols present)

Illustration of a hand cleaning a machine with a cloth (no text or symbols)

Diagram illustrating a water treatment procedure with faucet, condenser, and cleaning tool, showing step-by-step steps.

Prohibition sign with crossed-out and unexposed symbols, indicating no waste or discharge

Illustration of a hand using a handheld device to interact with a tool, showing mechanical components and motion arrows (no text or symbols)

Diagram showing a device being inverted over a wall socket with a red arrow indicating direction or force.

Diagram illustrating a laboratory setup with a beaker, a syringe, and a beaker with liquid, accompanied by an instructional arrow.

Diagram illustrating a soldering or measuring tool with labeled components and a green checkmark indicating approval.

Diagram of a hand pump device with an inset showing a close-up of its electrical outlet (no text or symbols present)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Diagram illustrating a water treatment procedure with faucet, condenser, and cleaning tool

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Illustration of a hand operating a handheld device with a spring and tool, no text or symbols present

Metlice za stepanje (6) ali metlice za gnetenje (7) vsta-vite v vhode (5) za stepalnik ali za metlice za gnetenje, dokler se ne usedejo.

Diagram showing a device being placed in a beaker with an arrow pointing to a wall-mounted electrical socket, indicating a process or operation.

Diagram of a hand pump device with an inset showing a close-up of its internal components (no text or symbols present)

Illustration of a hand cleaning a machine with a cloth (no text or symbols)

Diagram illustrating a water treatment procedure with faucet, condenser, and cleaning tool, showing step-by-step steps.

Symbol of a waste bin crossed out by a diagonal line, with no text or numbers present.

Illustration of a hand operating a handheld device with a spring and tool, no text or symbols present

Diagram showing a device being placed in a beaker with an arrow pointing to a wall-mounted power outlet, indicating process or operation.

Diagram illustrating a mechanical device with liquid, showing a lever and beaker, alongside an inset image of a device with a red arrow.

Diagram showing a hand holding a device with a magnified view of the device's internal structure, including a checkmark and directional arrows.

Diagram of a hand pump device with an inset showing a close-up of its internal components (no text or symbols present)

Illustration of a hand cleaning a machine with a cloth (no text or symbols)

Diagram illustrating a water treatment procedure with faucet, condenser, and cleaning tool, showing step-by-step steps.

Prohibition sign with crossed-out construction machinery and a blank rectangular area below

Ovaj simbol označava da se ovaj proizvod ne sme odlagati zajedno s ostalim kućnim otpadom na kraju njegovog radnog veka. Korišćeni uređaj mora se vratiti na službeno mesto za sakupljanje za recikliranje električnih i elektronskih uređaja. Da biste pronašli ove sisteme za sakupljanje, obratite se lokalnim vlastima ili prodavcu gde je proizvod kupljen. Svako domaćinstvo ima važnu ulogu u vraćanju i recikliranju starih uređaja. Odgovarajuće odlaganje iskorišćenog aparata pomaže u sprečavanju potencijalnih negativnih posledica po životnu sredinu i zdravlje ljudi.

1.3 Informacije o pakovanju

Ambalaža proizvoda je napravljena od materijala koji mogu da se recikliraju, u skladu sa nacionalnim propisima o zaštiti životne sredine. Ambalažu ne odlăžite sa kućnim otpadom ili drugim vrstama otpada već je odložite u sabirne centre za ambalažu koje su navele lokalne vlasti.

1.4 Kako se štedi energija

Tokom upotrebe poštujte vremena preporučena u priručniku. Nakon upotrebe, iskopčajte kabl uređaja.

2 Vaš blender

2.1 Prikaz

1. Jedinica motora
2. Ulazi za dodatke
3. Dugme za otpuštanje dodataka

4. Dugme za podešavan uključivanja/isključivanja i brzine

5. Dugme za funkciju TURBO

6. Mutilice (6a/6b)

7. Spiralne mutilice za mešenje testa (7a/7b)

2.2 Tehnički podaci

Napon: 220-240 V\~, 50-60 Hz

jSnaga: 500 W

Prava na tehničke i dizajnerske promene su zadržana.

2 Rad

2.1 Predviđena namena

Illustration of a hand using a handheld device to interact with a tool, showing mechanical components and motion arrows (no text or symbols)

Ubacite mutilice (6) ili spirale za mešenje (7) u ulaze (5) za mutilice ili spirale za mešenje dok ih ne umetnete u odgovarajući položaj.

Diagram showing a device being inverted over a wall socket with a red arrow indicating direction or force.

Priključite kabl za napajanje. Stavite mutilice (6) ili spirale za mešenje (7) u testo pre nego što uključite štapni blender.

01234 turbo 1 2

Brzina se može podesiti između 1 i 4. Povećavajte brzinu počev od nivoa 1.

Diagram showing a hand tool measuring liquid in a beaker with an inset image of a device and a red arrow indicating direction.

Diagram showing a hand operating a handheld device with a checkmark and directional arrow, indicating inspection or operation.

Line drawing of a hand pump with an inset showing a close-up of the next component (no text or symbols)

Line drawing of a hand cleaning a mechanical component with a cloth (no text or symbols)

- Za čišćenje jedinice motora koristite samo mekanu, vlažnu krpu.

Illustration showing a faucet spraying water with steam rising, and a hand cleaning a surface with a cloth (no text or symbols)

Mutilice (6) i spirale za mešenje testa možete očistiti deterdžentom za pranje posuđa i vrućom vodom ili ih možete prati u mašini za pranje posuđa. Posle toga svaki deo potpuno osušite.

Mutilice i spirale za mešenje testa mogu se prati u mašini za pranje posuđa.

4.3 Transport i otprema

• Za vreme transporta i otpreme, uređaj nosite u originalnom pakovanju. Ambalaža uređaja ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na uređaj ili njegovu ambalažu. U suprotnom, uređaj se može oštetiti.
• Ako uređaj padne, uređaj možda neće raditi ili može doći do trajnih oštećenja.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Illustration of a hand using a handheld device to interact with a tool, showing mechanical components and motion arrows (no text or symbols)

Diagram showing a device being inverted over a wall socket with a red arrow indicating direction or force.

Diagram illustrating a laboratory setup with a beaker, a syringe, and a beaker with liquid, accompanied by an inset image showing a device with a red arrow.

Diagram illustrating a soldering or measuring tool with labeled components and a green checkmark indicating approval.

Diagram of a hand pump device with an inset showing a close-up of its internal components (no text or symbols present)

Illustration of a hand cleaning a machine with a cloth (no text or symbols)

Diagram illustrating a water filtration or disinfection process with labeled components and directional arrows

Prohibition sign with crossed-out machine and prohibition symbol, commonly used in safety or hazard prevention.

Illustration of a hand operating a handheld device with a spring and tool, no text or symbols present

Diagram illustrating a mechanical device being inverted over a wall-mounted electrical socket, with an arrow indicating the process.

01234 turbo 1 2

Diagram illustrating a mechanical device with liquid, showing a lever and beaker, accompanied by an instructional arrow.

Diagram showing a hand operating a mechanical device with a checkmark indicating selection, alongside a tool and spring.

Diagram of a hand pump device with an inset showing a switch and a magnified view of the switch (no text or symbols present)

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

Illustration showing a faucet spraying water with a hand cleaning a surface (no text or symbols)

Symbol of a waste bin crossed out by a diagonal line, with no text or numbers present.

Illustration of a hand using a handheld device to interact with a tool, showing mechanical components and motion arrows (no text or symbols)

Diagram showing a device being lifted by a spring into a beaker, with an arrow indicating the process and a magnified view of the device's electrical socket.

Diagram illustrating a laboratory setup with a beaker, a syringe, and a device, accompanied by an inset showing a device with a red arrow.

Diagram showing a hand operating a handheld device with a checkmark indicating selection, alongside labeled parts of the device.

Diagram of a hand pump device with an inset showing a close-up of its internal components (no text or symbols present)

Line drawing of a hand cleaning a mechanical component with a cloth (no text or symbols)

Illustration showing a faucet spraying water and cleaning a container with steam, next to a hand cleaning a cloth (no text or symbols)

Diagram of a hand tool with a magnified inset showing a switch and electrical socket (no text or symbols)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Illustration showing a faucet spraying water with a hand cleaning a wall (no text or symbols)

Diagram illustrating a mechanical device with liquid, showing a lever and beaker, with an inset image showing a magnified view of the device.

Diagram showing a hand operating a handheld device with a checkmark and directional arrow, indicating inspection or testing process.

Illustration of a hand operating a handheld device with a spring and tool, no text or symbols present

Diagram illustrating a mechanical setup with a pump, submerged object, and an electrical outlet, accompanied by a red arrow indicating direction.

Warning sign with crossed-out device and black rectangle, indicating no liability or hazard

1-3 معلومات التغليف

Stylized black-and-white icon of a flame or water droplet above a crown (no text or symbols)

HMM 81504 BX

AR
