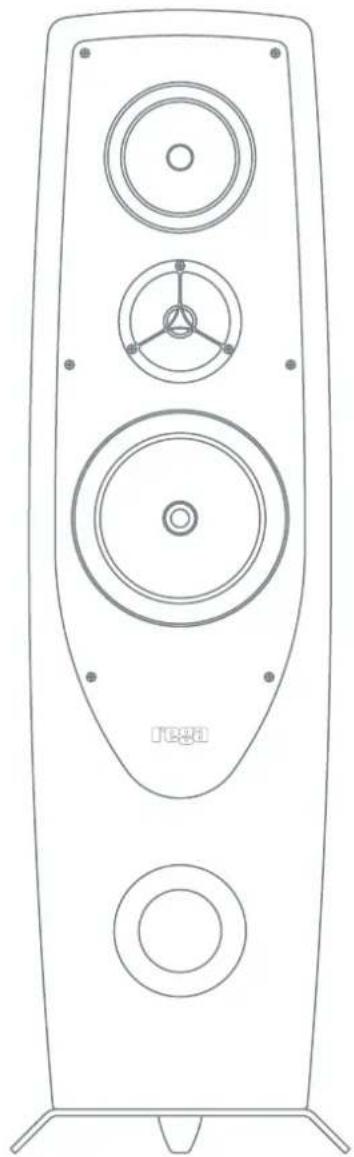

AYA Loudspeakers
User Manual

Your user manual

Please be sure to carefully read this manual before using this product. This ensures that you are getting the most out of your product.

Please scan the QR Code to access the multilingual user manual via the product web page.

QR code image containing encoded data, no visible human-readable text

For user instructions in your language, please visit www.rega.co.uk and go to the download section of your chosen product page.

With the unit disconnected from the mains, clean only with a micro fibre cloth (lightly damp if necessary). Do not remove any coverings, there are no user serviceable parts inside. If the unit performs erratically or emits smoke or odour, disconnect from the power supply and take it to a qualified service technician.

Lifetime Limited Warranty

Every product we make is designed and assembled in the UK to the highest possible standard. This warranty covers confirmed manufacturing defects. This warranty does not cover wear and tear, or parts that are considered consumable. Any unauthorised modifications or failure to follow the Rega recommended guidelines in the product manual may invalidate the warranty. Due to local laws, warranties may vary by country in which units are sold. Please contact your Rega retailer or distributor for warranty details. Your statutory rights are not affected.

Please do not dispose of the product packaging. The original packaging must be used if returning a product to your dealer or distributor for inspection or repair.

Please visit the homepage of www.rega.co.uk for further warranty details.

Safety Instructions

Do not use this unit near liquids or expose to moisture. Do not use near sources of heat such as radiators, vents, stoves, or candles. Ensure adequate ventilation around the product, at least 10cm in all directions, and avoid placing the unit on soft surfaces such as long carpet and fabric. Do not open the product enclosure or force objects into openings in the unit. Place the unit on a fixed level surface where it will not fall or tip. The unit should only be used in moderate climates between 5°C (41°F) and 35°C (95°F). Keep packaging material and small pieces out of reach of children.

Français

Service

This symbol indicates that the electronic equipment bearing it should not be disposed of as general household waste at the end of its life. The equipment should be disposed of at a collection point for waste electrical and electronic equipment in accordance with national legislation and Directive 2012/19/EU. For more information about how to dispose of your waste electronic equipment, please contact your local authority or retailer where you purchased the product. In the UK, please return your product to the retailer.

Français

This symbol indicates that this product complies with the relevant European Directives.

UKCA Mark

This symbol indicates that this product complies with the UK conformity safety requirements.

Eurasian Conformity Mark (EAC)

This product meets Russia, Byelorussia and Kazakhstan electronic safety approvals.

Regulatory Compliance Mark (RCM)

This symbol indicates that this product meets Australia, New Zealand Safety, EMC and Radio Communications requirements.

Thank you for purchasing the AYA loudspeakers.

Developed over ten years by a team of Rega designers including the founder Roy Gandy, the AYA loudspeakers promise to deliver a detailed, balanced, and accurate performance no matter which genre of music you decide to play.

Using handmade Rega designed drive units, coupled with our ZRR high frequency tweeter and a new crossover, our engineers have fine-tuned every aspect to deliver the best possible performance.

Breaking the mould

If Rega was to continue with our customer promise to deliver exceptional performance and value for money, the ever-increasing cost of real wood veneered MDF cabinets meant we had no choice but to investigate other options.

After a decade of trials and development, the AYA loudspeakers are housed in a unique, UK manufactured cabinet moulded from glass reinforced cement. The glass fibres that make up the construction reduce the weight whilst increasing the structural integrity of this 2.5 way band pass enclosure.

This technique creates the perfect loudspeaker enclosure that enhances performance whilst offering exceptional value for money. The process of moulding the AYA loudspeaker cabinets was developed alongside Yeovil based company Lazenby, who are best known for bespoke concrete furniture and flooring.

Thanks to the combination of the new enclosure and drive unit configuration the AYA loudspeakers delivery tight accurate bass, the Rega signature midrange and accurate detailed highs. We hope you enjoy listening to this unique loudspeaker system for many years.

Line drawing of a device setup with a vertical panel and connected cables, no text or symbols present

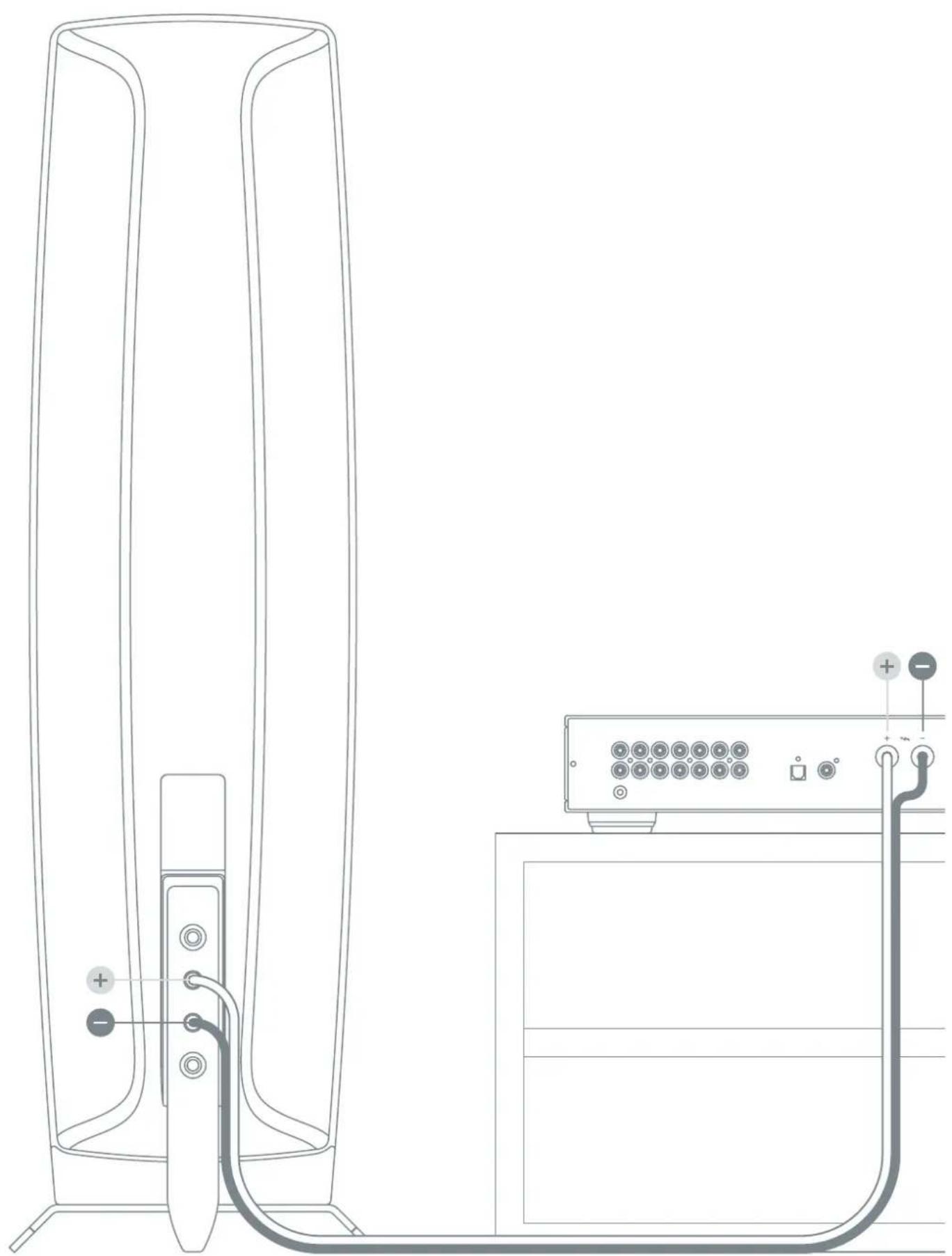

Connection

Ensure the colour terminals RED (+) and BLACK (-) are connected to the correct terminals at both loudspeaker and amplifier bind posts. We recommend using high quality loudspeaker cables such as the Rega SC1.

Always use the same length speaker cable for each loudspeaker.

Positioning

The AYA loudspeakers are medium sized floor standing cabinets with a front port. Bass response and imaging can be tuned by adjusting the distance of the speaker from the rear and side walls. As with all loudspeakers, this will be dependent on the size of your room, flooring and furniture. Trying different distances will help optimise the performance to suit your surroundings.

Specifications

Construction
Design			Band	pass	enclosure
Cabinet			Glass	reinforced	cement
Reflex Port	Front ported
Drive Units
High	Frequency	Unit		Rega	ZRR
Mid-Bass	Driver		Rega	MX-125
Bass Driver	Rega RR7.8
Performance
Impedance	6Ω
Sensitivity	89.5dB
Power	Handling		110W	per	channel
Dimensions/Weight
Dimensions (W x H x D)		258 x 871 x 215mm (10.2 x 34.3 x 8.5in)
Weight	14.1kg (31.1lbs) (each)

Introduction

Line drawing of a device setup with a vertical panel and connected cables (no text or symbols)

Connexion

Line drawing of a device setup with a vertical panel and connected cables, no text or symbols present

Anschluss

Line drawing of a device setup with a vertical panel and connected cables (no text or symbols)

Connessione

Line drawing of a device setup with a vertical panel and connected cables (no text or symbols)

Conexión

Line drawing of a device setup with a vertical panel and connected cables, no text or symbols present

Ligação

Line drawing of a device setup with a vertical panel and connected cables (no text or symbols)

Aansluiting

Line drawing of a device setup with a vertical panel and connected cables (no text or symbols)

Tilslutning

Line drawing of a device setup with a vertical panel and connected cables (no text or symbols)

Anslutning

Line drawing of a device setup with a vertical panel and connected cables, no text or symbols present

Połączenie

Line drawing of a vertical cylindrical device with three circular buttons at the base (no text or symbols)

Line drawing of a vertical rectangular device with four circular buttons on the side (no text or symbols)
