View 86890 - Fan UNOLD - Free user manual and instructions

USER MANUAL View 86890 UNOLD

Instructions for use Model 86890

Technical Specifications. 15
Explanation of the symbols 15
For your safety. 15
Assembly 17
Explanation of the buttons. 18
Operation. 19
Cleaning and care. 20
Guarantee Conditions 21
Waste Disposal/
Environmental Protection 21
Service 14

MaBe: ca. 28,0 x 28,0 x 111,0 cm (L/B/H)

Weight: approx. 3.95 kg

Degree of

protection: 11

Power cord length: approx. 185 cm

Colour: white/black

Features: 3 speed levels, 3 wind types, timer (0,5 to 7,5 hours), oscillation up to 60^

Accessories: Operating instructions, remote control

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF THE SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

FOR YOUR SAFETY

Please read the following instructions and keep them on hand for later reference.

Instructions for persons in the household

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance must not be performed by children, unless they are older than 8 years and are supervised.
4. Keep the appliance and the power cord out of the reach of children under 8 years.

Safety instructions for set-up and operation of the appliance

1. Only switch the appliance on when it has been properly assembled.
2. Ensure that there is sufficient space where the appliance is located. A minimum distance of 50~cm must be maintained between the appliance and other objects.
3. Do not use the appliance in rooms that are extremely dusty or in the vicinity of flammable substances.
4. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
5. This appliance must not be operated with an external timer or a remote control system (included remote control is not affected).
6. Never immerse the appliance or the power cord in water or other liquids - life-threatening danger!
7. Do not open the motor housing under any circumstances, there is danger of electric shock!
8. The appliance is intended for household use only, or for similar areas of use, such as in kitchenettes in businesses, offices or other workplaces, for use by guests in hotels, motels or other lodgings, in private guest houses or holiday homes.
9. Ensure that the power cord is laid out in such a manner that there is no possibility of stumbling over it.
10. To avoid damage to the cord, never wrap the power cord around the appliance.
11. To avoid damage to the cord, always unplug the mains plug from the electrical outlet by grasping the plug, never pull the power cord to unplug the appliance.
12. Ensure that the electrical outlet used is easily accessible, in order to unplug the appliance in an emergency.
13. To avoid damage to the power cord, ensure that it is not pinched or pulled over corners.
14. If possible, do not use an extension cord. If you must use an extension cord, completely unwind the extension cord and comply with the power limits of the respective extension cord.
15. Never place the appliance directly under an electrical outlet.

16. The appliance must never be used in wet/wet and cold or damp rooms - danger of electric shock!

17. Keep the appliance out of direct sunlight.

18. Never stick objects such as fingers, needles, pins, etc. through the openings into the interior of the appliance - danger of injury!
19. Check the appliance, the plug and the power cord regularly for wear or damage. If there is damage, please send the appliance for inspection and repair to our customer service organization. Unauthorised repairs can result in serious hazards for the user and void the guarantee.
20. If the power cord is damaged, it must only be repaired by the manufacturer, the manufacturer's customer service organization, or some other person with the appropriate technical qualifications to avoid hazards.
21. To avoid damage, do not use the appliance with accessories from other manufacturers or of other brands.
22. Unplug the mains plug from the electrical outlet after use and before cleaning. Never leave the appliance unattended when the mains plug is plugged in.

Never stick objects such as fingers, needles, pins, etc. through the openings into the interior of the appliance - danger of injury!

Only operate the appliance on a level, stable substrate, so that it does not tip over.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

ASSEMBLY

1. Before assembling, ensure that you are assembling the appliance on a level, dry, substrate.
2. Remove all packaging materials and transport safeguards. Keep the packaging material, such as plastic bags or Styrofoam away from small children - danger of suffocation!

3. Check whether all needed parts are present.

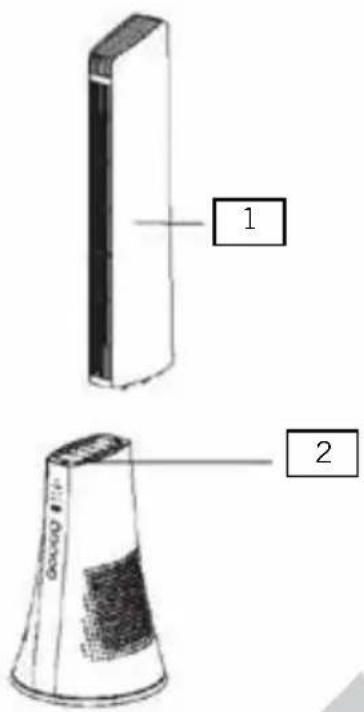

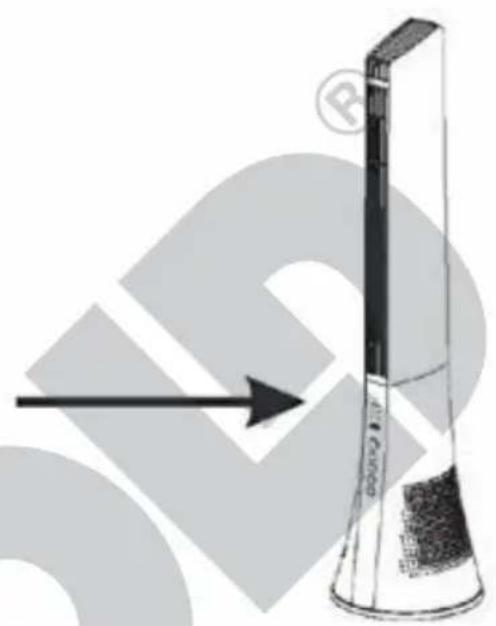

4. Fit the housing (1) onto the base (4). In this process, ensure that the lower end of the motor housing fits precisely onto the holes intended for this purpose.

5. Check whether all parts have been correctly assembled and fixed in place.

EXPLANATION OF THE BUTTONS

1

Speed

For adjusting the three different speed levels

2

Timer

For selecting the time after which the appliance switches off, adjustable between 0,5 and 7,5 hours

3

ON/OFF

For switching the appliance on and off

4 Mode

For selecting the desired mode. Standard mode, Near-Natural Mode or Sleep Mode.

5 Oscillation

For switching the Swing Function/Oscillation On and Off

OPERATION

1. Ensure that the appliance is standing on a suitable, level substrate, and has been set up so that it is safe and stable.
2. Plug the power cord into an electrical outlet.
3. Press the „ON/OFF“ button once. The appliance starts. In the basic setting the appliance runs at medium speed in normal mode.

Setting the speed

1. Press the „Speed“ button until the appliance is working at the desired speed. The setting is shown by the respective indicator light:

Low speed Low

Medium speed Mid.

High speed

Hi.

Setting the mode

Press the „Mode“ button and select the desired operating mode. You can select Standard mode, Near Natural mode, and Sleep mode. Press the „Mode“ button repeatedly until the desired setting is shown through the appropriate indicator light.

Normal mode: Nor.

Near Natural mode: Nat.

The appliance works with alternating speeds that feel like the natural movement of air.

Sleep mode: Sleep

The appliance works in Near Natural mode with permanently set speeds that decrease incrementally.

Swing function/oscillation

1. Press the „Oscillation (Swing)“ button to switch on the swing function. Press the button again to stop the appliance in the current position, the fan however continues to run.

Timer

1. Via the Timer button you can select the desired runtime of the appliance. This is possible in the range 0.5 to 7.5 hours in increments of 30 minutes (e.g. 0.5 hours, 1 hour, 1.5 hours, etc.). Press the „Timer“ button until the indicator light for the selected time is illuminated. After this time elapses the appliance switches off automatically. If you do not make a time setting, the appliance will run continuously.

Switching off

1. Press the „ON/OFF“ button again or the „ON/OFF“ button on the remote control unit to switch off the appliance. When you are no longer using the appliance, unplug the plug from the electrical outlet.

CLEANING AND CARE

Switch off the appliance, by pressing the "ON/OFF" button, and unplug it from the electrical outlet.

Never immerse the appliance in water. The motor or electrical components of the appliance must not get wet.

1. Never use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants.
2. Wipe off the housing and grille of the fan with a slightly damp cloth.
3. Store the fan in a dry, safe place so that it is protected from dust, impact, heat and moisture.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Do not dispose of used batteries as household waste. Dispose of this product via your appliance dealer or take it to the municipal collection point.

NOTICE D'UTILISATION MODELE 86890

SPÉCIFICATION TECHNIQUE

Puissance: 40 Watts, 220-240 V~, 50-60 Hz

Dimensions: env. 28,0 × 28,0 × 111,0 cm (L / l / h)

Poids:env.3,95kg

Indices de

protection : II

Longueur du

cable:env.185cm

CONDITIONS DE GARANTIE

Misure: circa 28,0 x 28,0 x 111,0 cm (lungh./largh./alt.)

Peso: circa 3,95 kg

Classe di

isolamento: II

Medidas: aprox. 28,0 x 28,0 x 111,0 cm (L/An/Al)

Peso: aprox. 3,95 kg

Clase de

protección: II
