INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Required

• Drill
• 1/8" Drill Bit

• Tape Measure

• Level

• Stud Finder
  • Phillips Head Screwdriver

Parts Supplied

• Backsplash
• Shelf

• Shelf brackets

• Wall brackets

• Screws, 8-18 x 12 "
• Screws, 10-2 x 2"

Location Requirements

The backsplash can be installed on the backwall behind a commercial style range or cooktop. Appliance must be level side to side and front to back. Proper installation is your responsibility.

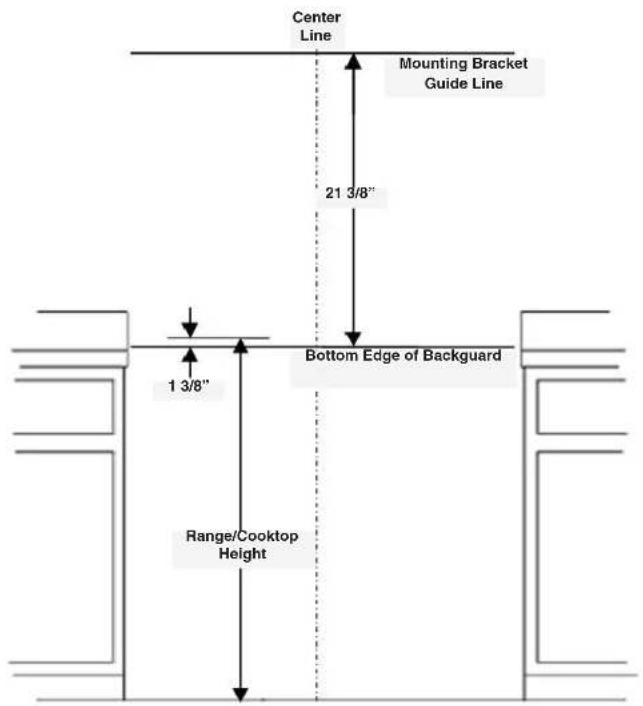

Center Line Mounting Bracket Guide Line 21 3/8" Bottom Edge of Backguard 1 3/8" Range/Cooktop Height

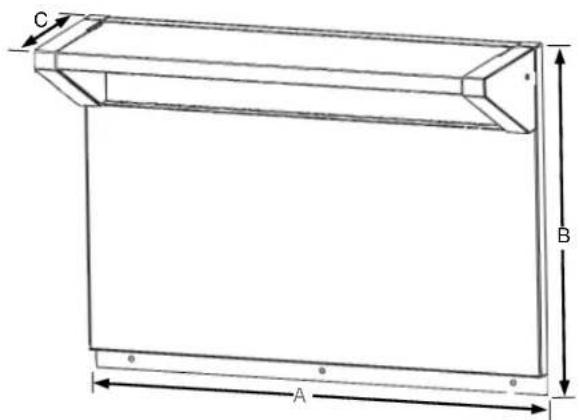

Backsplash Dimensions

C B A

A. Backsplash width

W10225950: 30"
W10225949: 36"
W10225948: 48"

B. Backsplash height, 22 3/8"

C. Backsplash depth

■ 10 1/2" with shelf
■ 1 3/8" without shelf

INSTALLATION INSTRUCTIONS

Mark Guide Lines

1. Mark a small line on the backwall at the height of the range or cooktop.
2. Measure 1 3/8" down from this line and scribe a level line the full length of the installation space. This line represents the lower edge of the backsplash.
3. Position the bottom edge of the flange along the bottom edge of backsplash line. Align the center of the backsplash with the center of the appliance. Mark each mounting hole (3 locations) with a pencil. Set panel aside.
4. Measure up 21 3/8" from the bottom edge of backsplash line and draw a level line the full length of the installation space. This line represents where the mounting brackets will attach to the wall.

Install Mounting Brackets

1. Using a stud finder, locate the edges of the wall studs within the installation space.
2. Mark the center of each stud and draw a line down the center of the stud.
3. Line up the top of the wall mounting bracket along the top edge line from "Mark Guide Lines" section.
4. Center a bracket along the centerline of each wall stud.
5. Mount each bracket to wall using two 10-12 x 2" screws per bracket (included with kit). A minimum of two mounting brackets should be installed for the 30" and 36" models. The 48" model requires three mounting brackets.

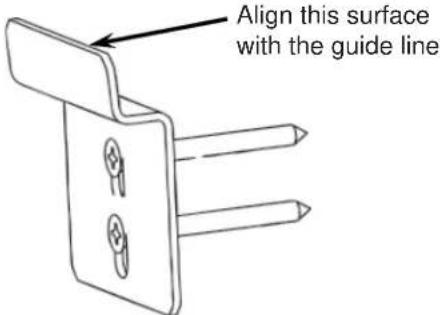

Align this surface with the guide line

Attach Shelf Brackets

1. Place the shelf brackets on the top of the Backsplash as shown in the picture.
2. Attach the bracket to the Backsplash using two 8-18 x 1/2" screws.

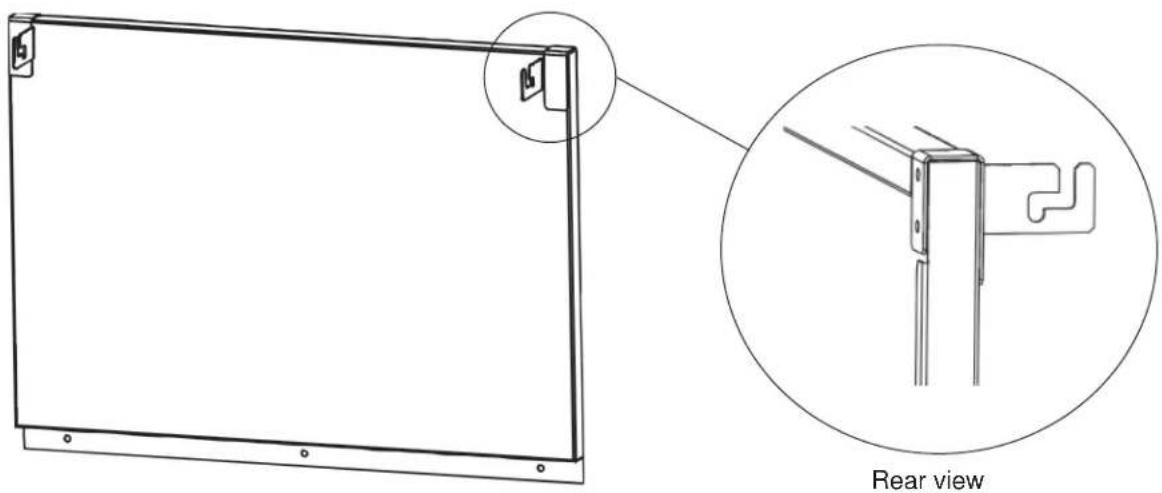

Technical line drawing of a rectangular frame with mounting holes and an inset close-up showing a side view of a bracket detail (no text or symbols)

Install Backsplash

1. Hook the flange on the back of the Backsplash over the mounting brackets attached to the wall.
2. Center the Backsplash and align the three holes at the bottom of the Backsplash with the marks on the wall made in the "Mark Guide Lines" section.
3. Attach bracket to wall using the three 10-12 x 2" screws through the holes at the bottom of the flange.

Install Shelf

The shelf included with the backsplash can be installed in two different positions.

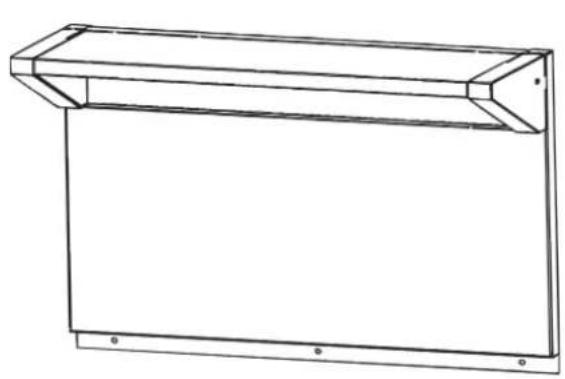

Technical line drawing of a rectangular frame with mounting holes and a sloped top (no text or symbols)

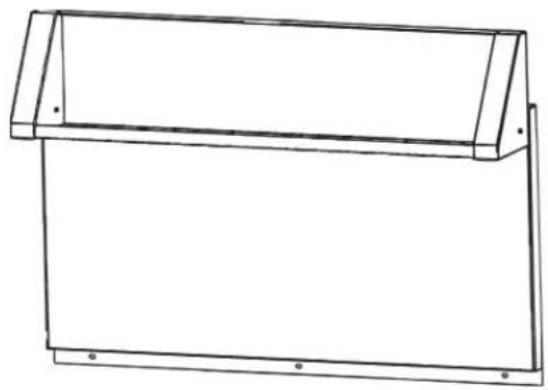

Simple line drawing of a rectangular frame with mounting holes and a sloped top (no text or symbols)

1. Locate the hinge pin in each end of the shelf. View into the slot on either end of the shelf and the hinge pin is visible.

SHELF ENDCAP SLOT HINGE PIN SHELF (REAR VIEW)

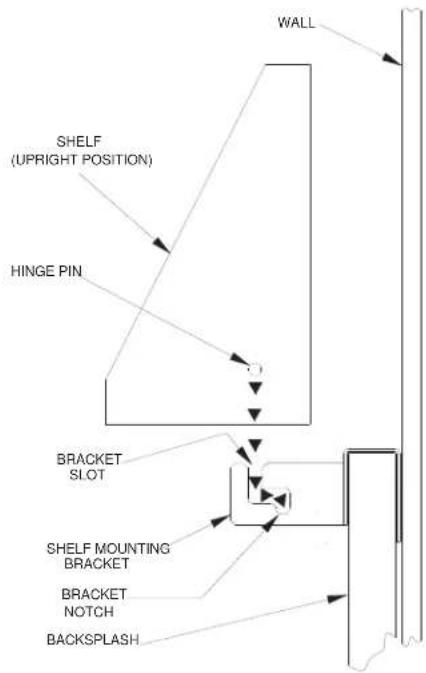

WALL SHELF (UPRIGHT POSITION) HINGE PIN BRACKET SLOT SHELF MOUNTING BRACKET BRACKET NOTCH BACKSPLASH

1. Grasp the shelf on each end with the shelf in the desired orientation.
2. Align the slots of the shelf with the shelf brackets and insert the hinge pins into the shelf bracket slot.
3. Slide shelf back until both hinge pins on each end are positioned into notch of the bracket.

BACKSPLASH USE & CARE

Change Shelf Orientation

1. Grasp the shelf on each end and pull shelf forward while lifting up. Shelf will be removed from the backsplash.
2. Determine desired shelf orientation.
3. See "Install Shelf" section for re-installation detail.

General Cleaning

Do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel-wool pads, gritty washcloths or abrasive paper towels. Damage may occur, even with one-time or limited use. Rub in direction of grain to avoid damaging.

Cleaning Method:

• KitchenAid® Stainless Steel Cleaner and Polish: Follow the instructions found on the label of the cleaner.
• Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth.

PANNEAU ANTI-ÉCLABOUSSURE AVEC ÉTAGÈRE

INSTRUCTIONS D'INSTALLATION....8

UTILISATION ET ENTRETIEN DU PANNEAU ANTI-ÉCLABOUSSURE...10

EXIGENCES D'INSTALLATION

Outils et pièces

Technical line drawing of a rectangular frame with labeled dimensions A, B, and C (no text or symbols beyond labels)

Two technical line drawings of rectangular metal frame components with mounting holes (no text or symbols)
