USER MANUAL CSP 412 T/EN FBT

Exterior view of a modern recessed ceiling light fixture with a perforated grille and internal components (no text or symbols visible)

EN 54-24:2008

EN 54-24:2008, EN 60849

Safety: Compliant to EN 60065

TYPE A: Application outdoor environment

Protection degree: IP 32

Declaration of Performance (DoP) available on the website: www.fbt.it

In-ceiling Speakers

CODE: 37788

12-2024

ITA / MANUALE D'USO

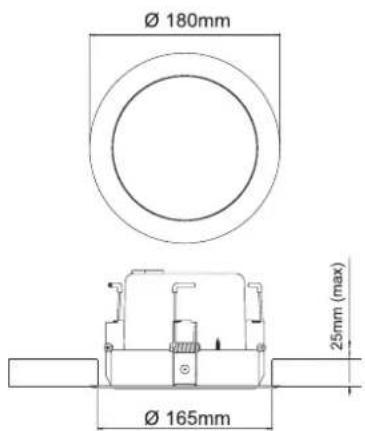

Ø 180mm 25mm (max) Ø 165mm

CSP 412 T/EN

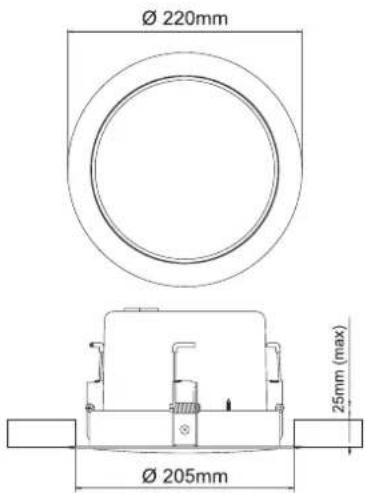

Ø 220mm 25mm (max) Ø 205mm

Please read this instruction sheet carefully.

FBT Elettronica S.p.A. will accept no liability for personal injury and/or damage to property resulting from incorrect installation or improper use of the product.

The speaker unit must be set up by trained personnel. Incorrect installation could result in the risk of electric shocks.

Important information for correct disposal of the product in accordance with EC Directive 2002/96/EC This product must not be disposed of as urban waste at the end of its working life. It must be taken to a special waste collection centre licensed by the local authorities or to a dealer providing this service. Separate disposal

of electric and/or electronic equipment (WEEE) will avoid possible negative consequences for the environment and for health resulting from inappropriate disposal, and will enable the constituent materials to be recovered, with significant savings in energy and resources. As a reminder of the need to dispose of this equipment separately, the product is marked with a crossed-out wheeled dustbin.

CE

This product is in keeping with the relevant European Community Directives.

These speaker units have been developed specifically for use in emergency and evacuation systems and each has its own ceramic terminal strip and thermal fuse. These ensure the protection of the line connecting the loudspeakers if a fire puts one or more of the speaker units connected to it out of use. The spring-based fixing system and the bayonet coupling cut the installation time.

This ceiling fixture has a steel flame-proof cap, in order to comply with fire-fighting safety standards.

NOTE:

It is advisable to carry out these operations with the panel of the false ceiling resting on a supporting surface.

After making the hole in the false ceiling (see table with technical specifications), proceed as follows:

• Remove the screw (A);
• Unhook the perforated grille from the housing of the speaker unit by turning it in a CLOCKWISE direction.
• Pass the cables for connection to the line through the holes provided for them in the flame-proof cap.
• Connect the cable ends of the line to the terminal strip, based on the indications in Figures 2 and 3.
• Fit the ceiling fixture into the supporting ring so that the slots in the perforated grille correspond to the internal protrusions on the ring and secure it in place by turning it in an ANTICLOCKWISE direction into it locks into place.
  • Tighten the screw (A);
• Insert the housing of the speaker unit into the hole in the false ceiling, with the springs for hooking it in place pointing upwards. Release the springs from their locked position so that the ring remains hooked to the panel.

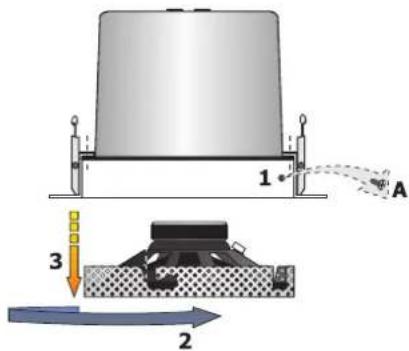

1 A 3 2

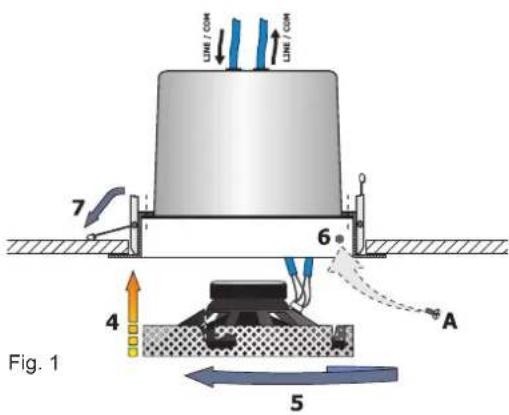

LINE / CON LINE / CON 7 6 Fig. 1 4 5 A

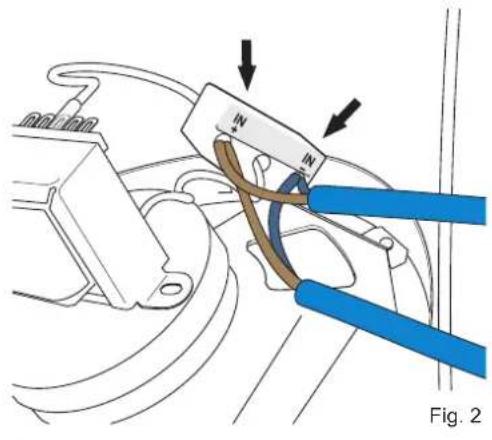

Fig. 2

Technical diagram of a mechanical assembly with no visible text or symbols

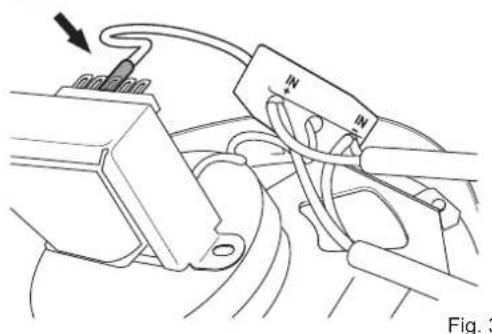

Fig. 3

CSP 406 T/EN

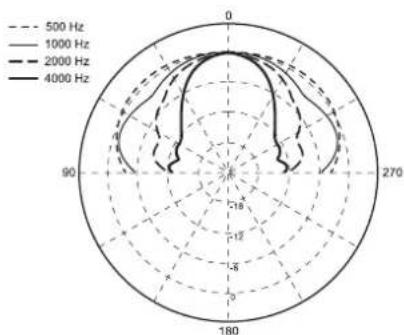

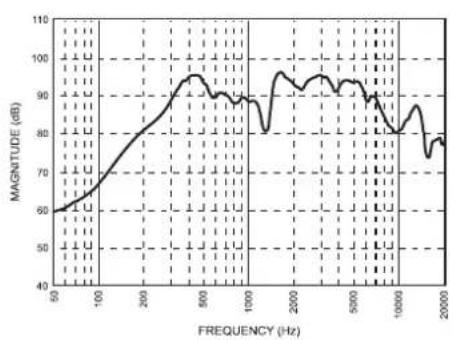

Simulated free-field measurements

Ø 180mm Ø 165mm 25mm (max)

CSP 412 T/EN

Ø 220mm Ø 205mm 25mm (max)

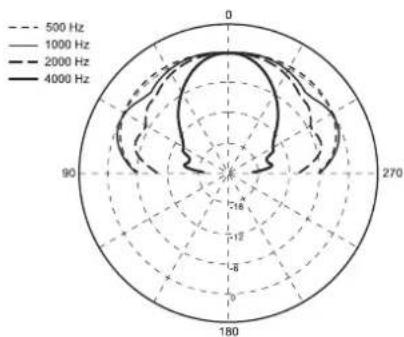

Simulated free-field measurements

Ø 180mm Ø 165mm 25mm (max)

CSP 412 T/EN

Ø 220mm Ø 205mm 25mm (max)

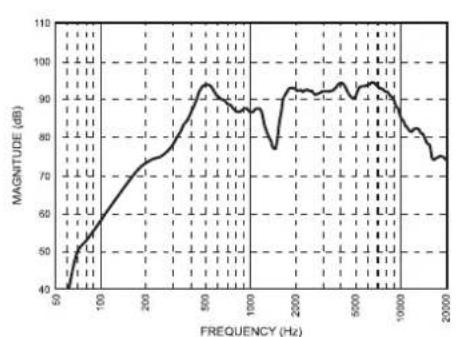

Simulated free-field measurements

Ø 180mm Ø 165mm 25mm (max)

CSP 412 T/EN

Ø 220mm Ø 205mm 25mm (max)

C:EN
0068FBT ELETTRONICA S.p.A. Via Paolo Soprani, 162019 RECANATI (MC) - ITALY130068-CPR-040/2013 (Rev. 1)EN 54-24Loudspeaker for voice alarm systemsfor fire detection and fire alarm systems for buildingsCSP 406 T/ENType A		0068FBT ELETTRONICA S.p.A. Via Paolo Soprani, 162019 RECANATI (MC) - ITALY130068-CPR-040/2013 (Rev. 1)EN 54-24Loudspeaker for voice alarm systemsfor fire detection and fire alarm systems for buildingsCSP 412 T/ENType A
	CSP 406 T/EN	CSP 412 T/EN
Potenza nominaleRated output	6 W(100 V)	12 W(100 V)	Puissance nominaleNennleistung
Impedenza nominale (linea 100V)Nominal impedance (100 V line)	1667 Ω (6W)3333 Ω (3W)6667 Ω (1.5W)	833 Ω (12W)1667 Ω (6W)3333 Ω (3W)	Impédance nominale (100 V)Nennimpedanz (Leitung 100V)
Impedenza nominale (linea 70V)Nominal impedance (70 V line)	817 Ω (6W)1633 Ω (3W)3267 Ω (1.5W)	408 Ω (12W)817 Ω (6W)1633 Ω (3W)	Impédance nominale (70 V)Nennimpedanz (Leitung 70V)
SensibilitàSensitivity	92 dB (1W/1m)	94 dB (1W/1m)	SensibilitéEmpfindlichkeit
Massima pressione sonora SPL*Max. sound pressure SPL*	100 dB (6W/1m)	105 dB (12W/1m)	Pression sonore maximum SPL*Maximaler Schalldruck SPL*
Risposta in frequenzaFrequency response	350 ÷ 15.000 Hz (peak -10 dB)	250 ÷ 15.000 Hz (peak -10 dB)	Réponse en fréquenceFrequenzgang
Angolo di dispersione orizzontale (- 6 dB)Horizontal angle of dispersion (- 6 dB)	180° (500 Hz)180° (1 kHz)160° (2 kHz)70° (4 kHz)	180° (500 Hz)180° (1 kHz)110° (2 kHz)60° (4 kHz)	Angle de dispersion horizontale (-6 dB)Horizontaler Dispersionswinkel (-6 dB)
Angolo di dispersione verticale (- 6 dB)Vertical angle of dispersion (- 6 dB)	180° (500 Hz)180° (1 kHz)160° (2 kHz)70° (4 kHz)	180° (500 Hz)180° (1 kHz)110° (2 kHz)60° (4 kHz)	Angle de dispersion verticale (-6 dB)Vertikaler Dispersionswinkel (-6 dB)
Temperatura d'esercizio / stoccaggioOperating/storage temperature	-25°C ÷ +55°C / -40°C ÷ 70°C		Température de fonctionnement/stockageBetriebs-/ Lagerungstemperatur
Umidità relativaRelative humidity	< 95%		Humidité relativeRelative Feuchtigkeit
Foro per montaggioMounting hole	∅ 165 mm ^13	∅ 205 mm ^13	Trou de fixationBefestigungsoffnung
DimensioniSize	∅ 180 mm	∅ 220 mm	DimensionsAbmessungen
Peso (completo di calotta)Weight (inclusive of the flame-proof cap)	1.30 kg	1.76 kg	Poids (avec calotte)Gewicht (gesamt, mit Haube)

0068
CE 0068 CE 0068
A S.p.A. V
A S.p.A. V
CANATI (M
13
R-040/201
EN 54-24
for voice a
fire alarm
SP 412 T/B
Type A

	CSP 406 T/EN	CSP 412 T/EN
Potenza nominaleRated output	6 W(100 V)	12 W(100 V)	Puissance nominaleNennleistung
Impedenza nominale (linea 100V)Nominal impedance (100 V line)	1667 Ω (6W)3333 Ω (3W)6667 Ω (1.5W)	833 Ω (12W)1667 Ω (6W)3333 Ω (3W)	Impédance nominale (100 V)Nennimpedanz (Leitung 100V)
Impedenza nominale (linea 70V)Nominal impedance (70 V line)	817 Ω (6W)1633 Ω (3W)3267 Ω (1.5W)	408 Ω (12W)817 Ω (6W)1633 Ω (3W)	Impédance nominale (70 V)Nennimpedanz (Leitung 70V)
SensibilitàSensitivity	92 dB (1W/1m)	94 dB (1W/1m)	SensibilitéEmpfindlichkeit
Massima pressione sonora SPL*Max. sound pressure SPL*	100 dB (6W/1m)	105 dB (12W/1m)	Pression sonore maximum SPL*Maximaler Schalldruck SPL*
Risposta in frequenzaFrequency response	350 ÷ 15.000 Hz (peak -10 dB)	250 ÷ 15.000 Hz (peak -10 dB)	Réponse en fréquenceFrequenzgang
Angolo di dispersione orizzontale (- 6 dB)Horizontal angle of dispersion (- 6 dB)	180° (500 Hz)180° (1 kHz)160° (2 kHz)70° (4 kHz)	180° (500 Hz)180° (1 kHz)110° (2 kHz)60° (4 kHz)	Angle de dispersion horizontale (-6 dB)Horizontaler Dispersionswinkel (-6 dB)
Angolo di dispersione verticale (- 6 dB)Vertical angle of dispersion (- 6 dB)	180° (500 Hz)180° (1 kHz)160° (2 kHz)70° (4 kHz)	180° (500 Hz)180° (1 kHz)110° (2 kHz)60° (4 kHz)	Angle de dispersion verticale (-6 dB)Vertikaler Dispersionswinkel (-6 dB)
Temperatura d'esercizio / stoccaggioOperating/storage temperature	-25°C ÷ +55°C / -40°C ÷ 70°C		Température de fonctionnement/stockageBetriebs-/Lagerungstemperatur
Umidità relativaRelative humidity	< 95%		Humidité relativeRelative Feuchtigkeit
Foro per montaggioMounting hole	∅ 165 mm ^13	∅ 205 mm ^13	Trou de fixationBefestigungsöffnung
DimensioniSize	∅ 180 mm	∅ 220 mm	DimensionsAbmessungen
Peso (completo di calotta)Weight (inclusive of the flame-proof cap)	1.30 kg	1.76 kg	Poids (avec calotte)Gewicht (gesamt, mit Haube)

All information included in this operating manual have been scrupulously controlled; however FBT is not responsible for eventual mistakes. FBT Elettronica S.p.A. has the right to amend products and specifications without notice.
