USER MANUAL SHADOW 142L FBT

Line Array Speaker System IP55 WEATHER RESISTANT

INDICE
ITA

AVVERTENZE	1
DESCRIZIONE	2
CARATTERISTICHE TECNICHE	3
DIMENSIONI	4
INSTALLAZIONE	5-6-7-8
COLLEGAMENTI	9
CONNETTORI	10

INDEX
EN

WARNING	11
DESCRIPTION	12
TECHNICAL SPECIFICATIONS	13
DIMENSIONS	14
INSTALLATION	15-16-17-18
CONNECTIONS	19
CONNECTORS	20

INDEX
F

ATTENTION	21
DESCRIPTION	22
CARACTÉRISTIQUES TECHNIQUES	23
DIMENSIONS	24
INSTALLATION	25-26-27-28
CONNEXIONS	29
CONNECTEURS	30

Interior view of a speaker chamber with visible sound waves and mounting holes (no text or symbols)

Exterior view of a rectangular metal panel with grid pattern and two hanging connectors (no text or symbols)

Close-up of a black grid-patterned surface with a textured base (no text or symbols visible)

Exterior view of a black rectangular electronic device with mesh grille and metal bracket (no text or symbols visible)

Technical drawing of a rectangular frame with dimension标注 (615 mm), no readable text or symbols present.

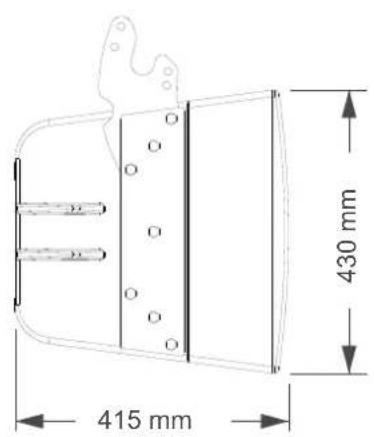

415 mm 430 mm

Top-down schematic of a multi-level electronic device or enclosure with no visible text, labels, or symbols.

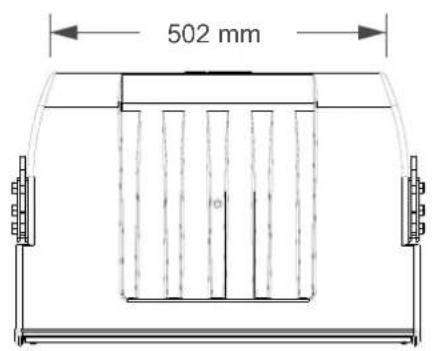

502 mm

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

B

C D A

A

E

MODALITÀ FULL-RANGE
①

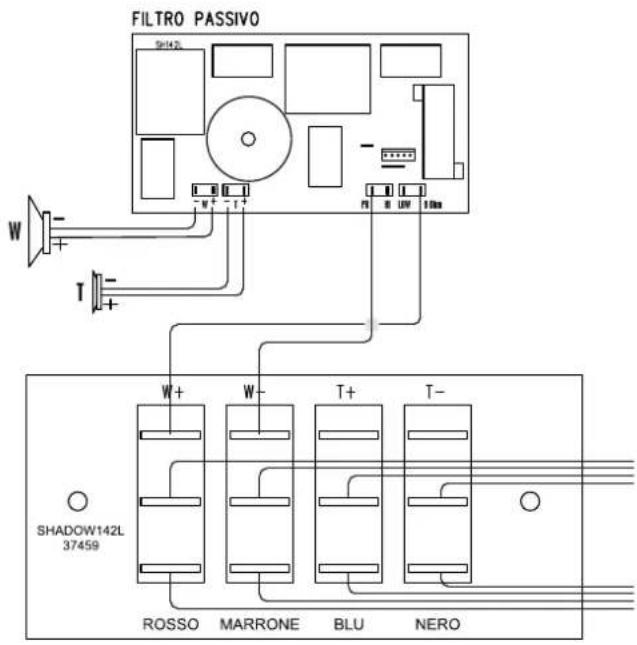

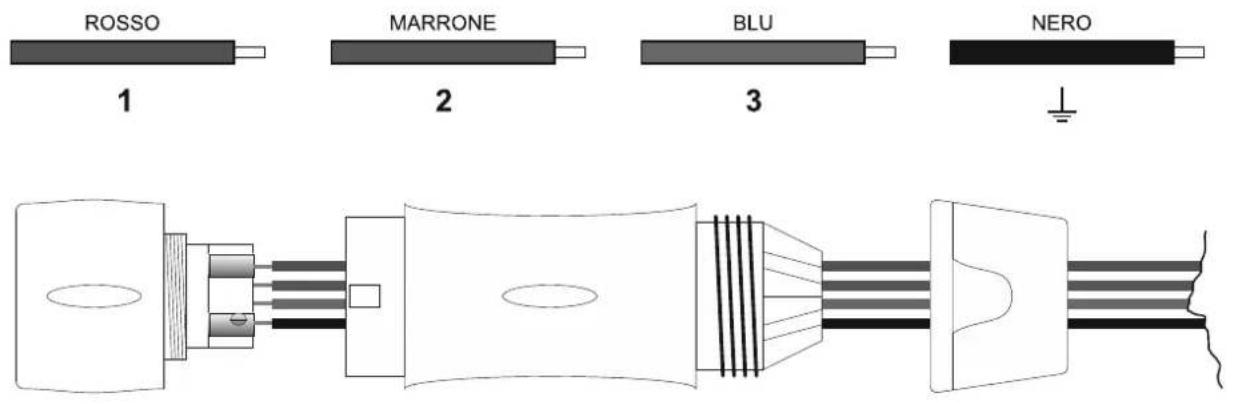

FILTRO PASSIVO SH142L W+ T- W+ W- T+ T- SHADOW142L 37459 ROSSO MARRONE BLU NERO

LINK

1 = ROSSO IN+
2 = MARRONE IN-
3 = BLU NC
⊥=NERO NC
1 = ROSSO IN+
2 = MARRONE IN-
3 = BLU NC
⊥=NERO NC

MODALITÀ BI-AMP
②

W + - W+ W- T+ T- SHADOW142L 37459 ROSSO MARRONE BLU NERO

LINK

1 = ROSSO LF+
2 = MARRONE LF-
3 = BLU HF+
⊥=NERO HF-
1 = ROSSO LF+
2 = MARRONE LF-
3 = BLU HF+
⊥ = NERO HF-

Close-up of a mechanical gear assembly with a checkmark indicating selection (no text or symbols present)

Close-up of a mechanical gear assembly with no visible text or symbols

Top-down schematic of a device layout with labeled components and an arrow indicating direction (no text or symbols present)

Wherever this symbol appears it warns of the presence of important instructions for use and maintenance in the attached documents. Please consult the manual.

IMPORTANT SAFETY WARNINGS

• Read with care all warnings, in particular the safety ones, since they contain important information.
• Make sure that speaker impedance is suitable for amplifier output features.
• Prevent foreign bodies from entering the product since they could provoke a short circuit.
• Refer all servicing to qualified service personnel or to authorised service centres. Technical servicing is required when the unit has been damaged in any way, such as due to foreign bodies fallen inside it, to malfunctions or falls.
• Please use only optional devices or accessories recommended by the manufacturer.
• Exposure to high sound pressure levels may provoke permanent deafness; anybody exposed to high sound pressure levels shall wear suitable protection equipment to avoid potentially hazardous exposure to such levels.
• Do not use solvents, alcohol, benzine or any other volatile substance to clean external parts.

SHADOW speakers have beeb designed for indoor and outdoor use; thanks to a polyethylene covering resistant to UV rays and with an IP55 protective degree against dust and water.

Curves and rounded edges of the SHADOW speaker reduce acoustic reflections and standing waves inside the box, improving low frequency performance; they also keep water from settling on the covering and wind diffraction.

Interior view of a speaker chamber with visible sound waves and mounting brackets (no text or symbols)

Front view of a perforated metal panel with a small 'w' mark on the side (no text or symbols visible)

The SHADOW series was designed primarily to provide extreme water resistance.

Therefore the metal protective grid was also designed to meet this requirement.

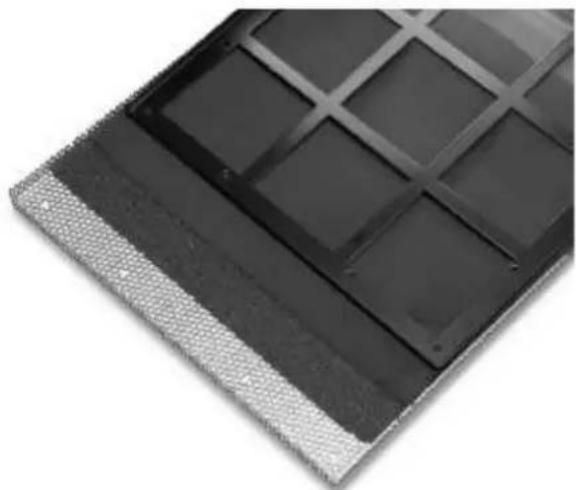

The grid consists of three layers with an external stainless steel perforated metallic part treated with a special protection, a central layer with cross-linked foam and a layer formed of a special waterproof polyester mesh.

Close-up of a black grid-patterned surface with a textured base (no text or symbols visible)

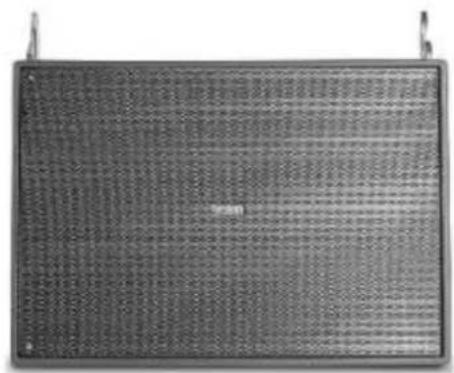

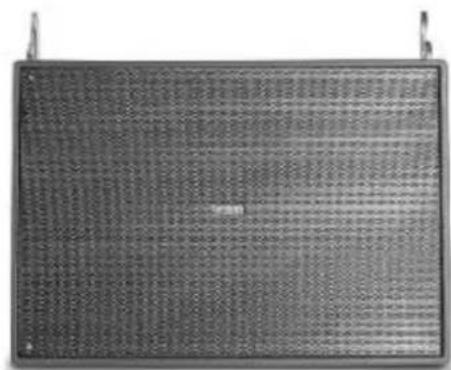

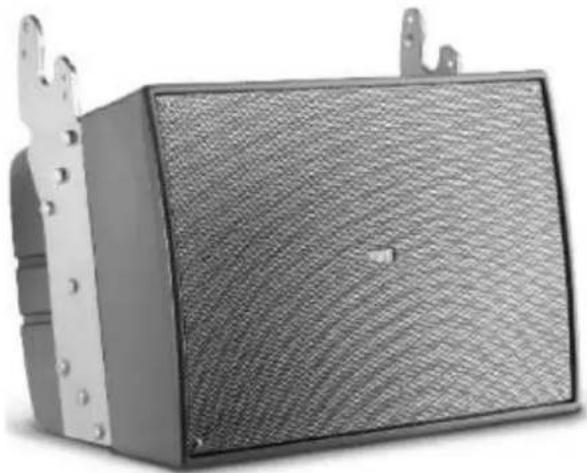

Exterior view of a black rectangular electronic device with mesh grille and metal bracket (no visible text or symbols)

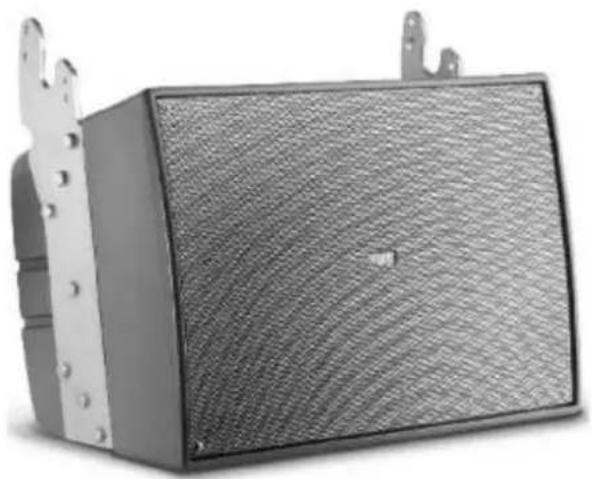

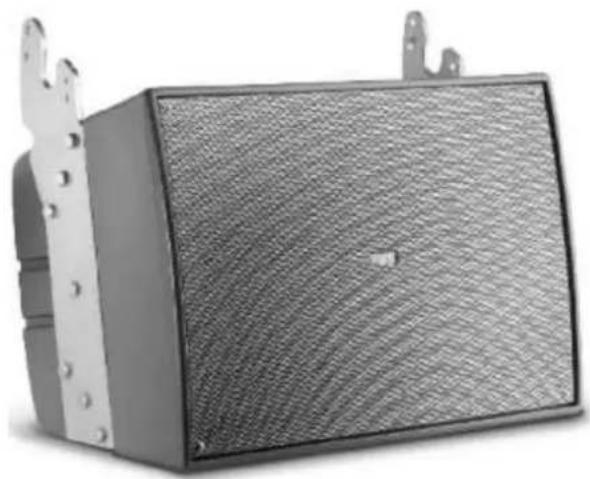

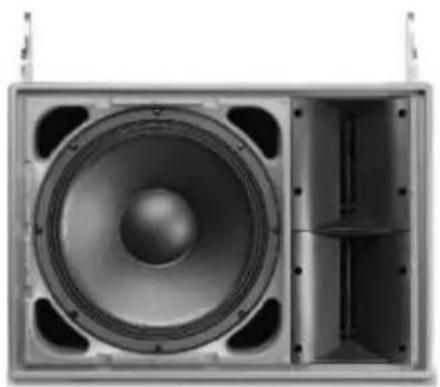

SHADOW 142L is weatherproof full range two way loudspeaker system offering high performance and efficiency for a wide range of professional indoor or outdoor applications. This horn loaded design with its smooth frequency response and very high efficiency product ensures excellent quality music reproduction and clear intelligible speech.

Line array configuration make SHADOW 142L perfect for convention centers, stadiums, arenas and many other indoor and outdoor installations, where long throw full range sound reproduction is required.

The cabinet of this loudspeaker is a single piece rotomolded enclosure, made in polyethylene, full UV protected and manufactured applying the most severe standard expected from a classification of International Protection Rating IP55.

FBT's SHADOW loudspeakers are completely designed and manufactured in Italy, assuring an elegant and attractive aesthetic to a very high technical system and featuring an high degree of quality standard.

• 14" woofer with a 3" coil
• HF section is a wave guide horn loaded 2 x 1.4" compression driver with a 2.5" coil for smooth, wide dispersion
• Sturdy molded polyethylene curved enclosure, full UV protection
• Water-stop grill with 3 layers of protection
• IP55 weather resistant
• 100° x 15° coverage
• 7.5° or 15° adjustable angle
• Standard grey finishes

CONFIGURATION	2 way
RECOMMENDED AMPLIFIER	1000W RMS
LONG TERM POWER OF SYSTEM	500W
SHORT TERM POWER OF SYSTEM	2000W
NOMINAL IMPEDANCE	8 Ohm
FREQUENCY RESPONSE	60Hz - 20kHz
LOW FREQUENCY WOOFER AES POWER	14" - coil 3" 350W
HIGH FREQUENCY DRIVER AES POWER	2x1.4" - coil 2.5" 150W
SENSITIVITY (@1W/1M)	98 / 110dB
MAX SPL cont/peak	126.5 / 137dB
DISPERSION	100°H x 15°V
CROSSOVER FREQUENCY	1.2kHz
RECOMMENDED HP FILTER	40Hz - 24dB oct.
INPUT CONNECTORS	2 x Souriau
DIMENSIONS (W x H x D) inch	24.21x16.92x16.33
WEIGHT lb	83.77

AES LONG TERM APPLICABLE POWER denotes the thermal power that can be dissipated by the individual drivers

This value is measured in accordance with the AES standard, which involves a 2 hour test with pink noise signal, crest factor of 2.

IEC 268-5 SHORT TERM APPLICABLE POWER corresponds to the power that the loudspeaker can withstand for a very short time interval; it is calculated on the basis of the maximum peak voltage that the recommended amplifier can supply to the loudspeaker.

THE RECOMMENDED AMPLIFIER is not measured; it takes account of the dynamic capacities of the speakers to withstand short duration power peaks.

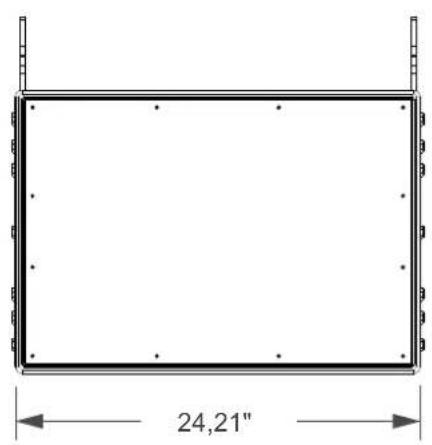

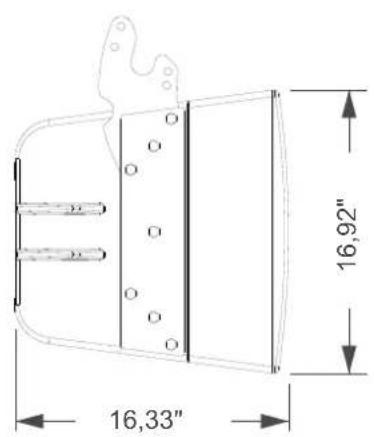

24,21"

16,33" 16,92"

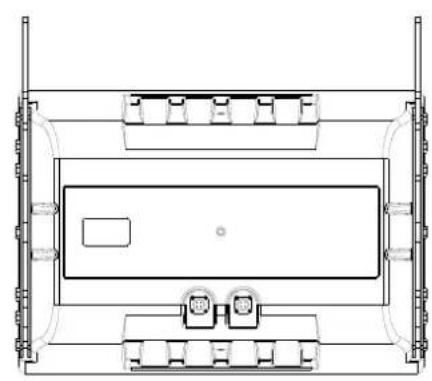

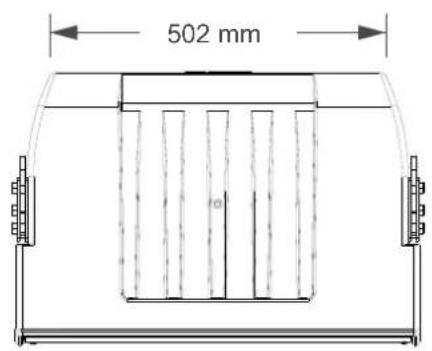

Top-down schematic of a multi-level electronic device or enclosure with no visible text, labels, or symbols.

19,76"

SHADOW sound speakers must be installed using the flying accessories described in this manual and following the special assembly instructions by qualified staff only, strictly complying with the current regulations and safety standards in force in the country of installation.

FBT flying accessories are manufactured for their exclusive use with SHADOW systems and have not been designed for being used with any other speaker or device.

Any possible elements of the ceiling, floor or further supports where SHADOW systems are to be installed shall be able to safely bear the load. The flying accessories in use are to be coupled and secured safely to both the sound speaker and the ceiling (or the other support).

When components are fitted to ceilings, floors or beams, always make sure that all couplers and fixing elements are properly sized and have an adequate load capacity.

Besides the main suspension system, all flying speakers in theatres, indoor stadiums or in several other work and/or leisure facilities shall be provided with an additional independent safety system with the adequate load capacity. Only steel cables and chains with certified load capacity can be used as an additional safety device.

° Hang SHADOW speakers using only original accessories
° When choosing the place of installation, the suspension cable and the mounting supports make sure they are able to bear speaker and flying accessories' weight with the proper safety factor
° As for fixed installations, always schedule and carry out special inspections on a regular basis in order to check all the parts that have to guarantee system safety over time
° Do not hang the system by the handles: handles have been designed for speaker transport, and are not suitable for its suspension
° Never lean on/hang from the flying speaker

ACCESSORIES

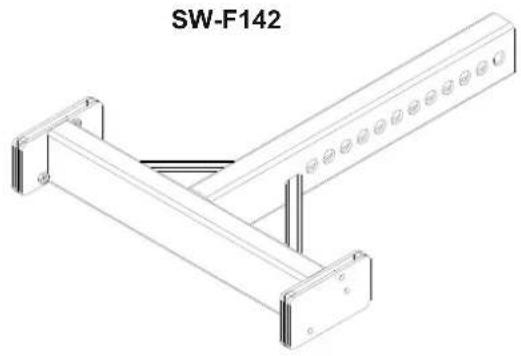

The SHADOW speakers use only with FBT mount for wall installation.

USE WITH OTHER MOUNTS IS CAPABLE OF RESULTING IN INSTABILITY CAUSING POSSIBLE INJURY.

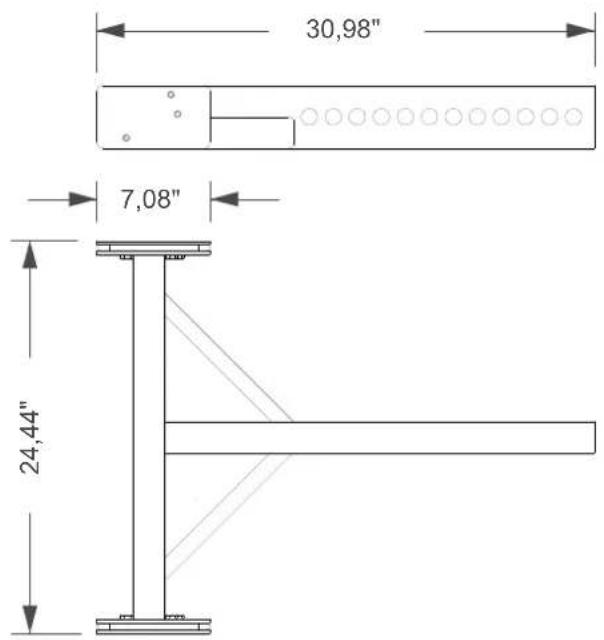

30,98" 7,08" 24,44"

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

SHADOW 142L model features a suspension system embedded in the bearing structure.

The only element to be added (accessories) to realize complete arrays is the flying bar model SW-F 142.

The configuration suggested by this manual were verified through computer modelling and operational testing; even in recommended configurations, before hanging any SHADOW 142L system check the relevant load limits.

Special attention was paid to the selection of materials and the manufacturing so as to permit high safety levels.

The staff in charge of hanging the arry system must be skilled and qualified; the installer/user will be responsible of ascertaining limits and lifting procedures for the structures to which the array will be attached.

An improper use of the array suspension system may cause major damage to persons and things.

OPERATIONS TO BE CARRIED OUT:

• Inspect the hanging material before every use.
• Observe all laws, local and national regulations about safety of installations.
• Hang the system to the attachment points indicated in the manual.
• Use skilled staff only.
• Ensure all locking devices are perfectly fitted.
• Ensure the capacity of lifting points and devices is greater than the load to be lifted.

OPERATIONS TO BE AVOIDED:

• Do not hang anything before reading the manual.
• Do not use unskilled staff.
• Never exceed load limits.
• Do not use non-original spare parts.
• Do not use damaged or worn materials.

FBT accepts no responsibility for any damage to people or objects if these instructions are not complied with or if the safety factor of all elements related to system suspension are not properly checked.

UNPACKING

Before connecting the system in array configuration, follow the instructions to secure the two joints (A) of each speaker.

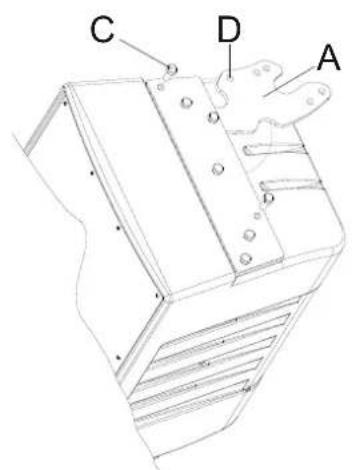

1) Remove the screw (B)

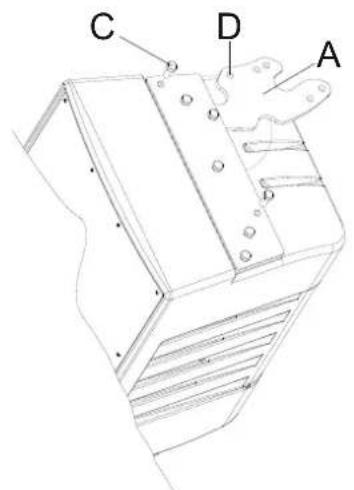

1) Remove the joint (A) and secure it with the screw (C) in the corresponding hole (D).
2) Tighten all the fixing screws in the flange (E) properly.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

B

C D A

Diagram of a mechanical or electrical component with labeled point A and internal features (no text or symbols beyond label)

E

The pictures in this page show the array configurations allowed to meet the maximum weight and angle safety parameters.

FBT accepts no responsibility for any damage to people or objects if these instructions are not complied with or if the safety factor of all elements related to system suspension are not properly checked.

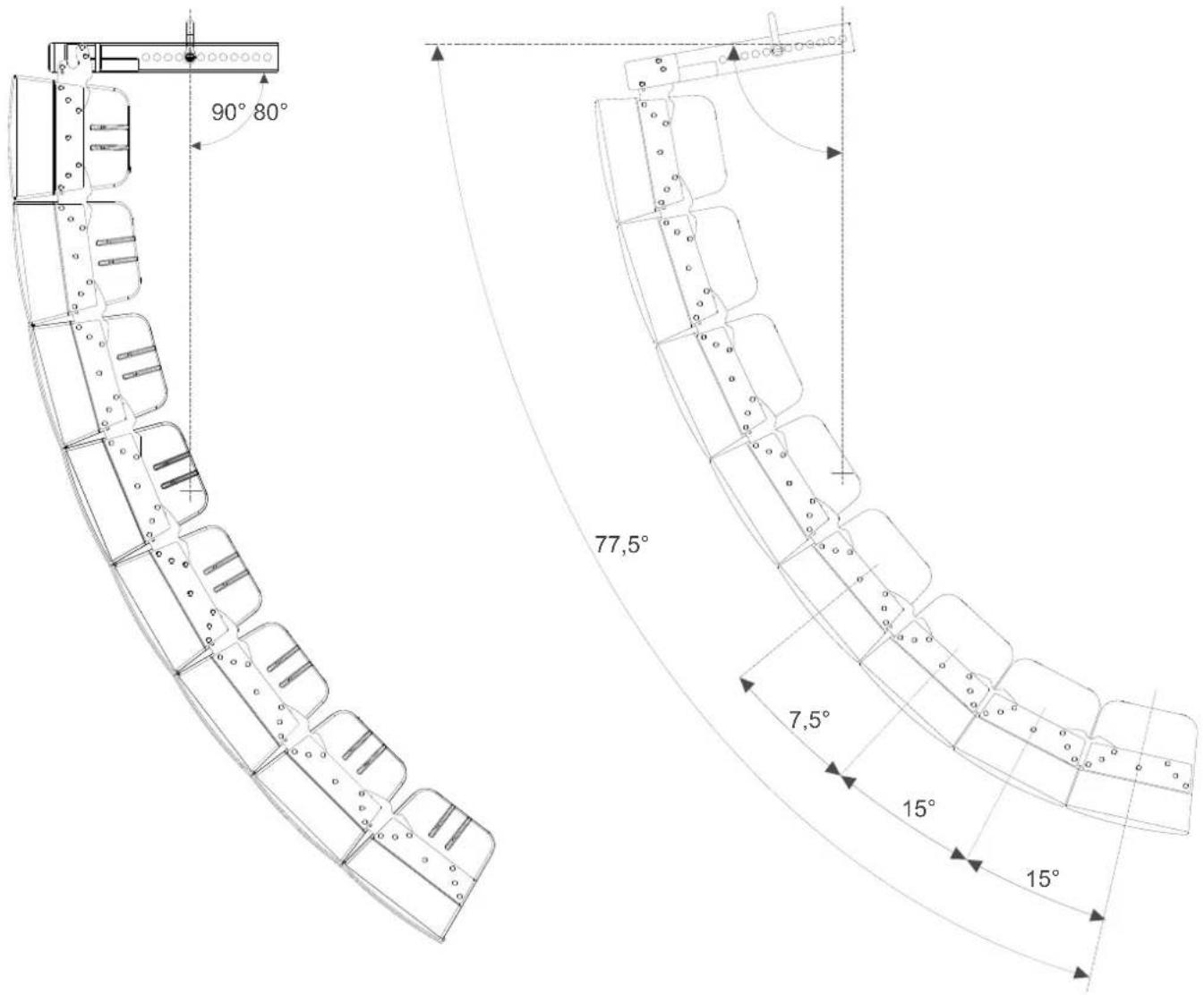

Maximum configuration with N.8 SHADOW 142L units (7,5°) and minimum inclination

Maximum configuration with N.8 SHADOW 142L units (7,5°) and maximum inclination

90° 80° 77,5° 7,5° 15° 15°

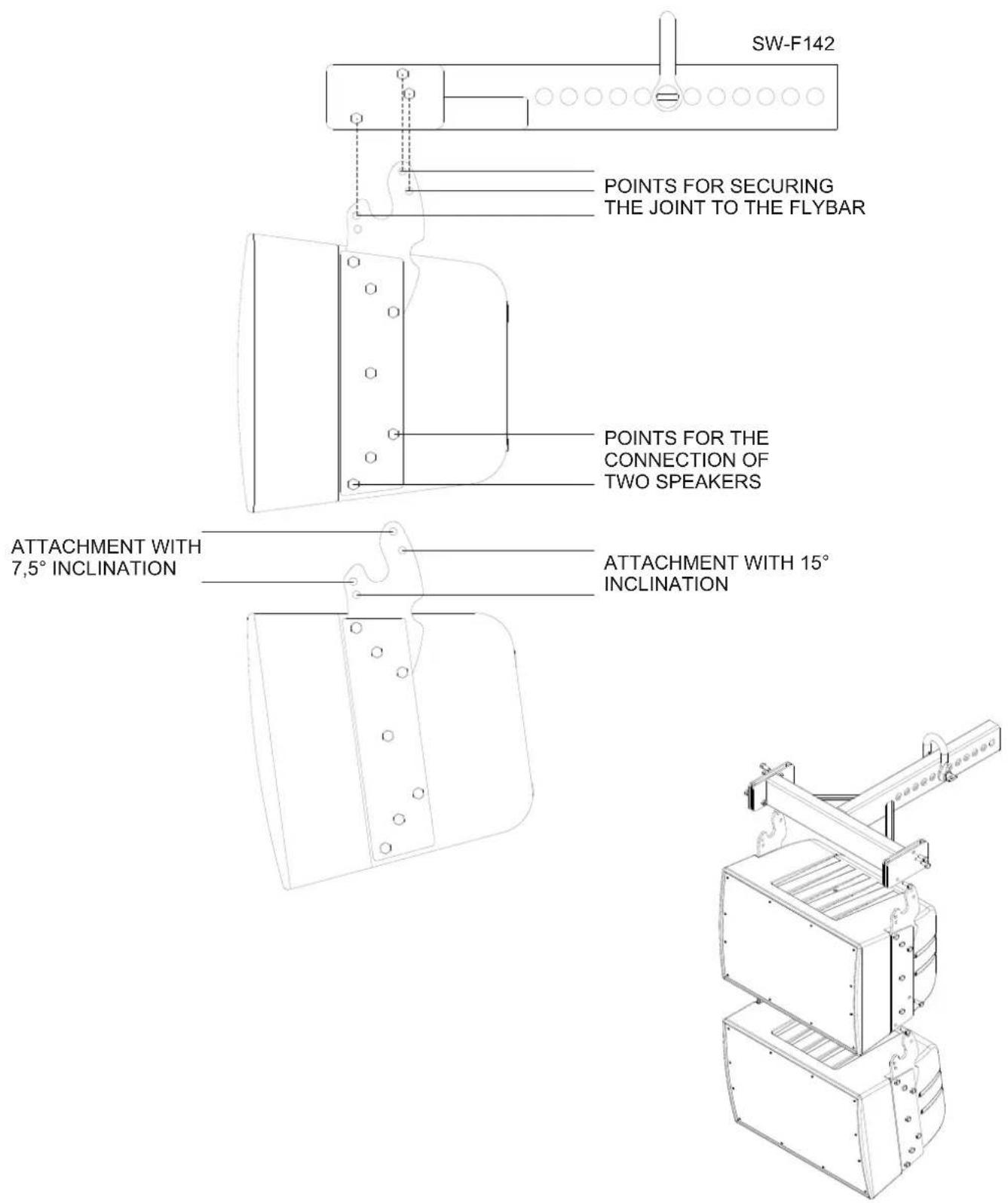

ATTACHMENT TO THE FLYBAR AND ADJUSTMENT OF VERTICAL ANGLE

N.B.: The mechanical systems are designed for 7.5° and 15° inclination only and for a maximum of 8 speakers.

ATTENTION

• Seek qualified personnel to connect the speaker
• Do not connect the speaker with the amplifier on the avoid the risk of electrical shock
• Check all connections several times before switching the system on, making sure there are no short-circuits
• Implement the system in compliance with standards in force concerning electric installations
• If the speaker is installed outdoors, therefore with an IP55 protective degree, wiring must be done inside watertight protective boxes
• Use cables with conductors having an appropriate cross-section considering their lenght and the power of the speakers
• To prevent humming or disturbances which could cause the system malfunction, do not channel electric lines together with the speaker cables

The speaker is configured in full-range mode (pic.1). For bi-amp mode configuration make the connections as shown in picture 2.

FULL-RANGE MODE

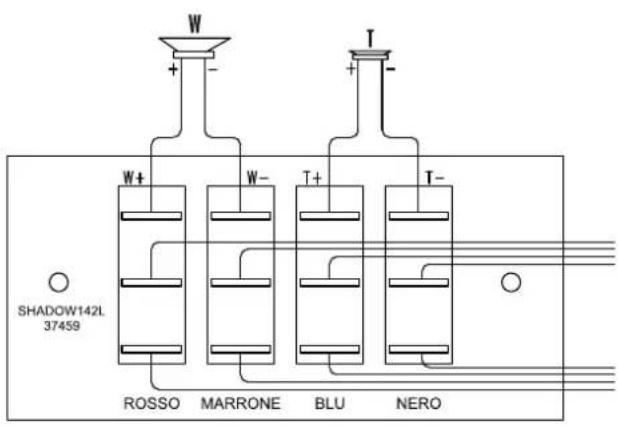

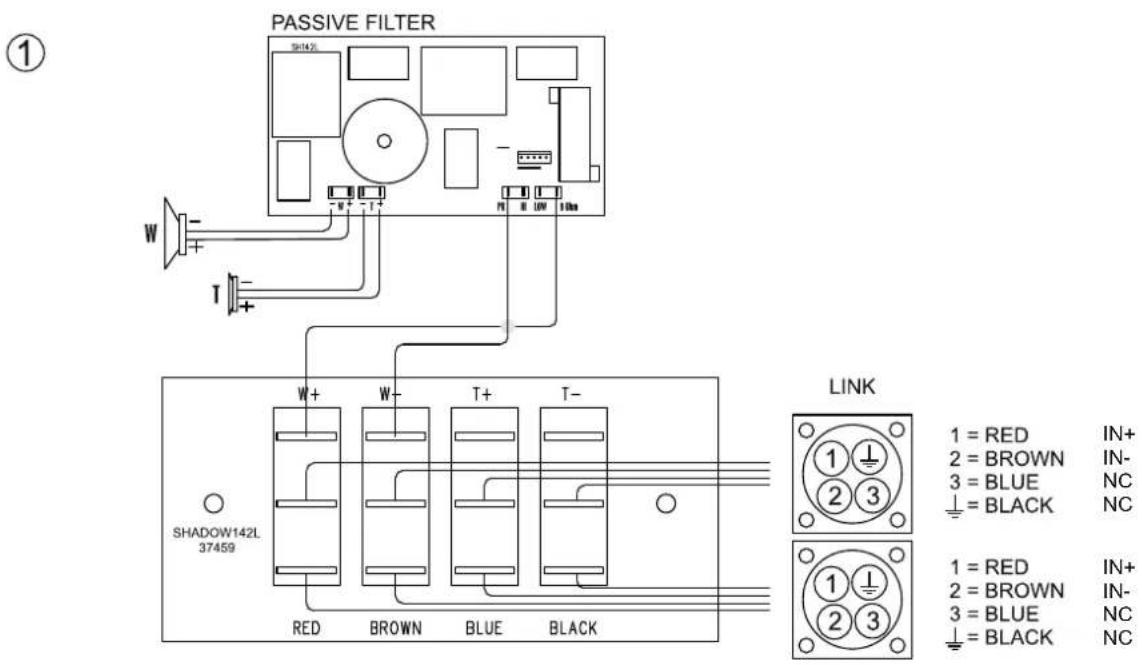

PASSIVE FILTER 1 W- T+ W+ W- T+ T- SHADOW142L 37459 LINK 1 = RED IN+ 2 = BROWN IN- 3 = BLUE NC ↓ = BLACK NC 1 = RED IN+ 2 = BROWN IN- 3 = BLUE NC ↓ = BLACK NC

BI-AMP MODE

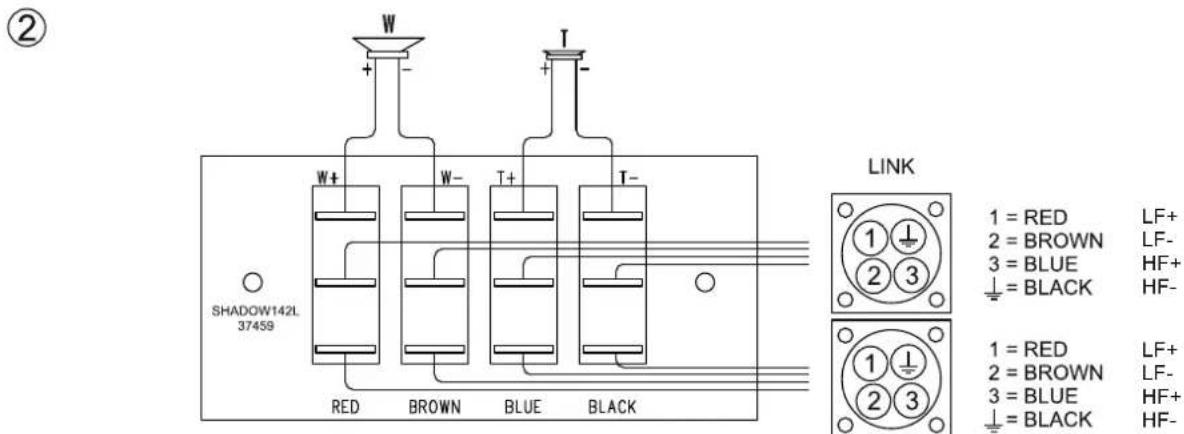

SHADOW142L 37459 W+ W- T+ T- RED BROWN BLUE BLACK LINK 1 = RED 2 = BROWN 3 = BLUE ↓ = BLACK LF+ LF- HF+ HF- 1 = RED 2 = BROWN 3 = BLUE ↓ = BLACK LF+ LF- HF+ HF-

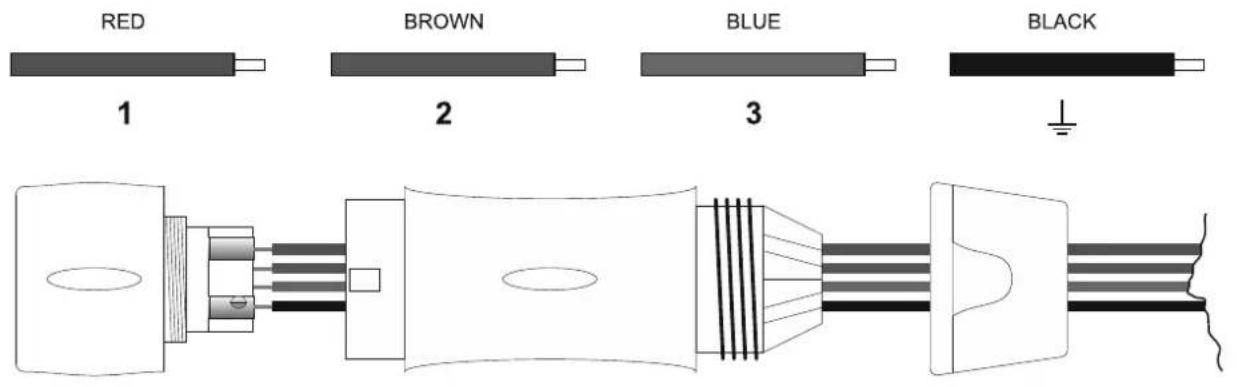

Close-up of a mechanical gear assembly with a checkmark indicating selection (no text or symbols present)

Close-up of a mechanical gear assembly with no visible text or symbols

Make sure the seal is positioned as shown

LAYOUT

FBT

SHADOW

142L

Nominal Impedance: 8 Ohm

Recommended amplifier: 1000W
System long term power: 500W
Dispersion: 100° x 15°
Transformer: 100V / 300W

MADE IN ITALY

Top-down schematic of a vehicle or vehicle assembly with no visible text, numbers, or symbols.

Interior view of a speaker chamber with visible sound waves and mounting holes (no text or symbols)

Exterior view of a rectangular metal panel with grid pattern and two hanging connectors (no text or symbols visible)

Close-up of a black grid-patterned surface with a textured base (no text or symbols visible)

Exterior view of a black rectangular electronic device with textured surface and metal bracket (no visible text or symbols)

Technical diagram of a rectangular frame with dimension标注 (615 mm), no readable text or symbols present.

415 mm 430 mm

Top-down schematic of a multi-level electronic device or enclosure with no visible text, labels, or symbols.

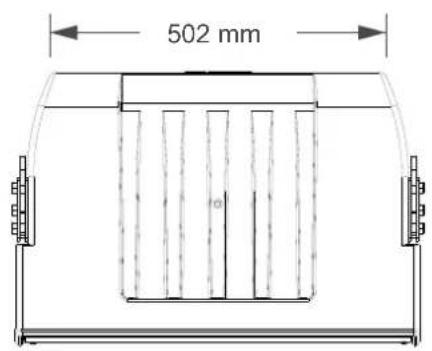

502 mm

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Technical line drawing of a mechanical component with labeled section A (no text or symbols present)

B

C D A

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

E

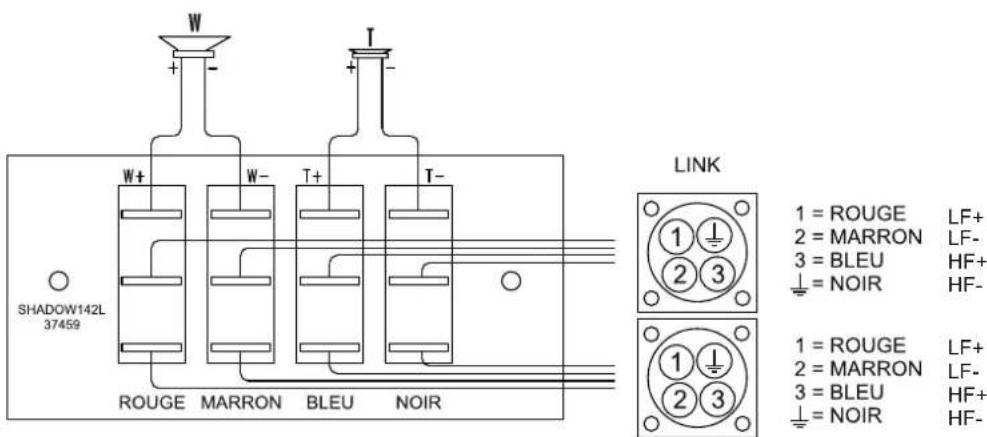

FILTRE PASSIF SHADOW142L 37459 W+ T- W+ T+ T- ROUGE MARRON BLEU NOIR LINK 1 = ROUGE IN+ 2 = MARRON IN- 3 = BLEU NC ↓ = NOIR NC 1 = ROUGE IN+ 2 = MARRON IN- 3 = BLEU NC ↓ = NOIR NC

BI-AMP MODE
②

SHADOW142L 37459 W+ W- T+ T- ROUGE MARRON BLEU NOIR LINK 1 = ROUGE LF+ 2 = MARRON LF- 3 = BLEU HF+ ↓ = NOIR HF- 1 = ROUGE LF+ 2 = MARRON LF- 3 = BLEU HF+ ↓ = NOIR HF-

Close-up of a mechanical gear assembly with a checkmark indicating selection (no text or symbols present)

Close-up of a mechanical gear assembly with no visible text or symbols

Top-down schematic of a vehicle or vehicle assembly with no visible text, numbers, or symbols.

Interior view of a speaker chamber with visible sound waves and mounting holes (no text or symbols)

Front view of a rectangular electronic device with grid pattern and two suspended wires (no visible text or symbols)

Close-up of a black rectangular electronic component with grid pattern, resting on a textured surface (no text or symbols visible)

Exterior view of a black rectangular electronic device with mesh grille and metal bracket (no visible text or symbols)

Technical drawing of a rectangular frame with dimension标注 (615 mm), no readable text or symbols present.

415 mm 430 mm

Top-down schematic of a multi-level electronic device or enclosure with no visible text, labels, or symbols.

502 mm

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a labeled section A (no text or symbols beyond label)

B

C D A

Diagram of a mechanical or electrical component with labeled point A and internal vertical structure (no text or symbols beyond label)

E

Close-up of a mechanical gear assembly with a checkmark indicating selection (no text or symbols present)

Close-up of a mechanical gear assembly with no visible text or symbols

Top-down schematic of a vehicle or vehicle assembly with no visible text, numbers, or symbols.

WARNING: where affixed on the equipment or package, the barred waste bin sign indicates that the product must be separated from other waste at the end of its working life for disposal. At the end of use, the user must deliver the product to a suitable recycling centre or return it to the dealer when purchasing a new product. Adequate disposal of the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes in preventing potentially negative effects on the environment and health and promotes the reuse and/or recycling of equipment materials. Abusive product disposal by the user is punishable by law with administrative sanctions.

All informations included in this operating manual have been scrupulously controlled; however FBT is not responsible for eventual mistakes. FBT Elettronica SpA has the right to amend products and specifications without notice.

FBT elettronica SpA can not be considered responsible for damages which may be caused to people and things when using this product.
