USER MANUAL SW7535 SAMSUNG

Vacuum Cleaner user manual

* Before operating this unit, please read the instructions carefully.

* For indoor use only.

ENGLISH

imagine the possibilities

Thank you for purchasing a Samsung product.

SAFETY INFORMATION

- Before operating the appliance, please read this manual thoroughly and retain it for your reference.

- Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

WARNING	Indicates that a danger of death or serious injury exists.
CAUTION	Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

	Represents something you must NOT do.
	Represents something you must follow.
	Indicates that you must disconnect the power plug from the socket.

This vacuum cleaner is designed for domestic household use only.

Do not use this vacuum cleaner to clean building waste and debris.

Regularly keep the filters in clean conditions to prevent of collecting fine dust in them.

Do not use this vacuum cleaner with any of the filters removed.

Failure to meet these requirements could cause damage to the internal parts and void your warranty.

IMPORTANT SAFEGUARDS

1. Read all instructions carefully.
   Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the side of the cleaner.
2. WARNING : Do not use the vacuum cleaner when rug or floor is wet. Do not use to suck up water.
3. Close supervision is necessary when any appliance is used by or near children.

Do not allow the vacuum cleaner to be used as a toy.

Do not allow the vacuum cleaner to run unattended at any time.

Use the vacuum cleaner only for its intended use as described in these instructions.

1. Do not use the vacuum cleaner without a dust bin.

Empty the dust bin before it is full in order to maintain the best efficiency.

1. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts.

Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

Also do not use your vacuum cleaner to pick up sugar, salt, dust of building materials (e.g. cement, metal shavings and so on).

1. Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.

Do not stand on the hose assembly.

Do not put weight on the hose.

Do not block the suction or the exhaust port.

1. Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet.

Disconnect the plug from the electrical outlet before emptying the dust bin.

To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
   Children shall not play with the appliance.
   Cleaning and user maintenance shall not be made by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
4. The use of an extension cord is not recommended.
5. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
7. Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set.
8. Unplug the cleaner when not in use. Turn off the power switch before unplugging.

ASSEMBLING THE CLEANER

06

06 Assembling the cleaner

10 Cleaning the dust filter

11 Maintain tools

11 Power cord

11 Dust bin

TROUBLESHOOTING

12

assembling the cleaner

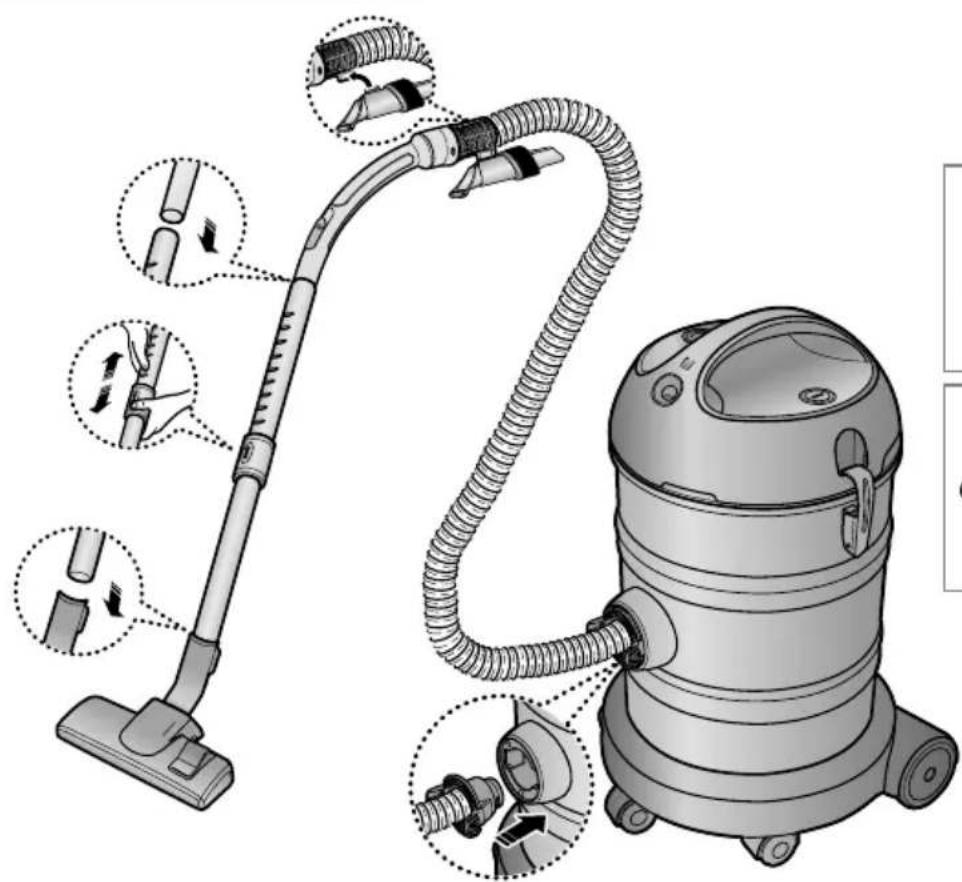

ASSEMBLING THE CLEANER

Diagram of a vacuum cleaner with labeled parts and instructions for assembly or repair.

Optional

Three parallel cylindrical rods, no text or symbols present

Illustration of a mechanical clamp or clip device (no text or symbols visible)

- Features may vary according to model.

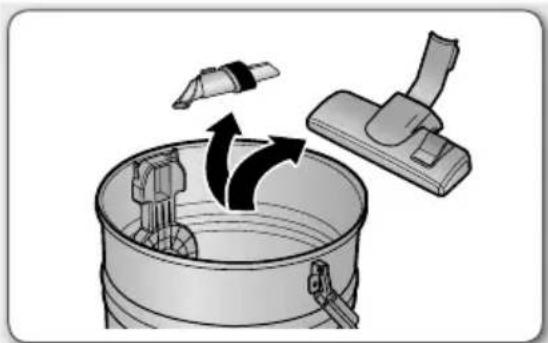

- Before using the vacuum cleaner put the brush and cleaner, accessory out of the dust bin.

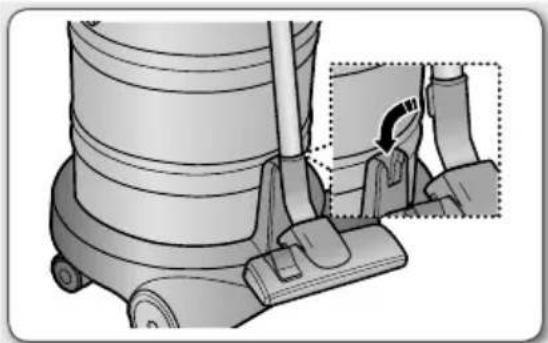

• For storage, park the floor nozzle.

Diagram showing a container with internal components and directional arrows indicating flow or movement (no text or symbols)

Illustration of a vacuum cleaner with a close-up inset showing the component (no text or symbols present)

operating the cleaner

POWER CONTROL

- BODY

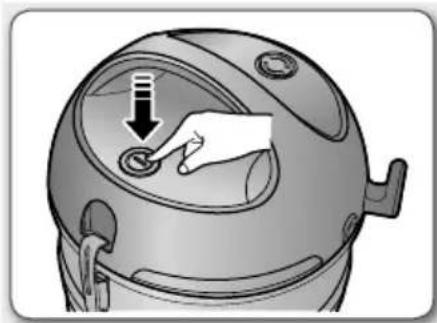

Press the power control button repeatedly to select the correct mode.

$$ (\mathrm{ON} \leftrightarrow \mathrm{OFF}) $$

Illustration of a hand pressing down on a circular button inside a device (no text or symbols)

The Power control button operates the vacuum cleaner or stops it.

- HOSE

To reduce suction for cleaning draperies, small rugs and other light fabrics, pull the tap air until the hole is open.

Diagram of a curved mechanical component with an arrow indicating direction (no text or symbols)

- BRUSH

FLOOR NOZZLE

Diagram showing a wet pavement being cut with a tool, and a close-up of a device with rotating arrows (no text or symbols)

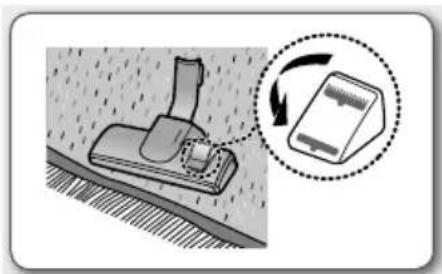

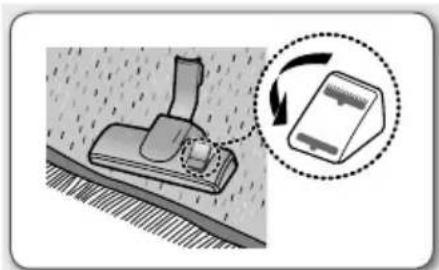

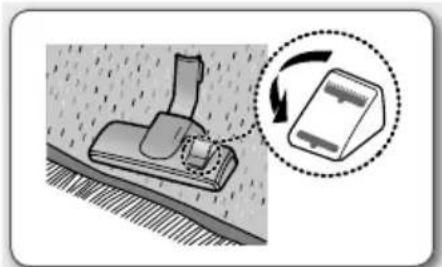

Using on carpet

3D diagram of a mechanical component with a magnified inset showing rotational motion (no text or symbols)

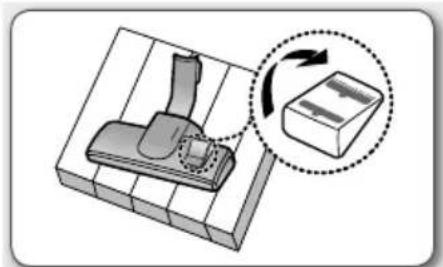

Using on tile or floor

USING ACCESSORY

Accessory

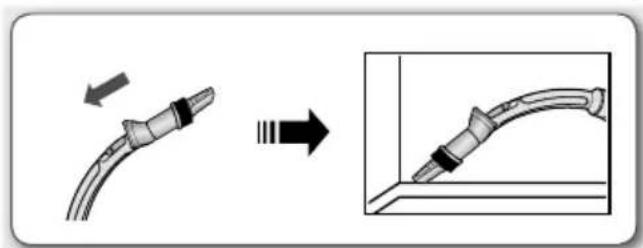

- Push the accessory on to the end of the hose handle.

Diagram showing a cable being inserted into a connector, with an arrow indicating the process (no text or symbols present)

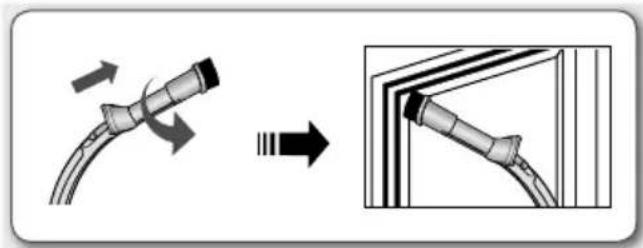

- To use the dusting tool, push the accessory on to the end of the hose handle.

Diagram showing cable installation process with directional arrows and magnified detail view (no text or symbols)

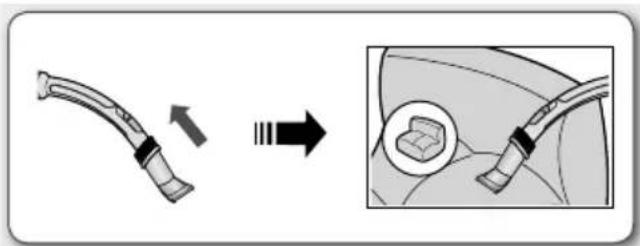

- To use the upholstery tool, push the accessory on to the end of the hose handle.

Diagram showing a car body with a cable being inserted, followed by a close-up of the cable inside a vehicle (no text or symbols present)

Pipe (Optional)

- Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

Illustration of a cylindrical tool with directional arrows indicating motion or movement (no text or symbols)

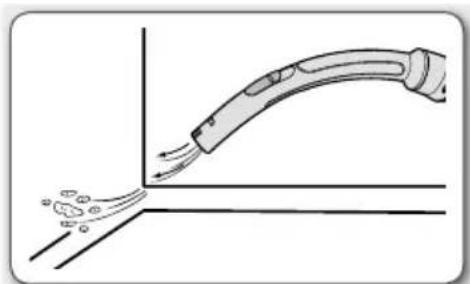

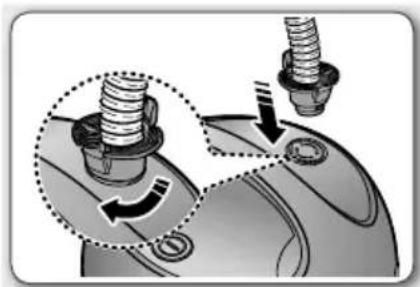

Using the blower

1. Disconnect the hose from the body of the cleaner.

2. Connect the hose clamper to the blow hole.

3. Turn the hose clamper to the clockwise and lock the clamper properly.

- To use the blower, disassemble the pipe and the brush.

Mechanical assembly diagram showing two bolts inserted into a housing with a rotation arrow indicating clockwise motion (no text or symbols)

Diagram of a robotic arm interacting with a surface, showing motion lines and spray particles (no text or symbols)

maintain tools and filter

EMPTYING THE DUST BIN

Diagram showing a pipe fitting attached to a cylindrical device with a black arrow indicating assembly (no text or symbols present)

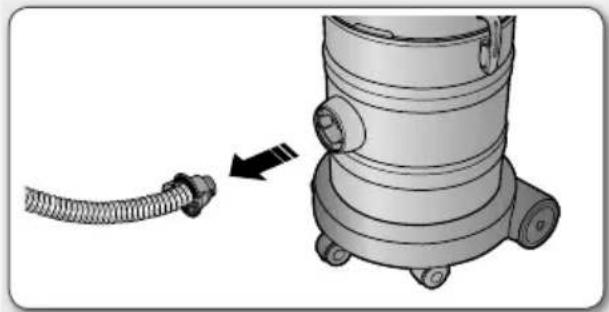

1. Disassemble the suction hose clamper.

Diagram illustrating the step of using a device to adjust its internal components, with numbered instructions and directional arrows.

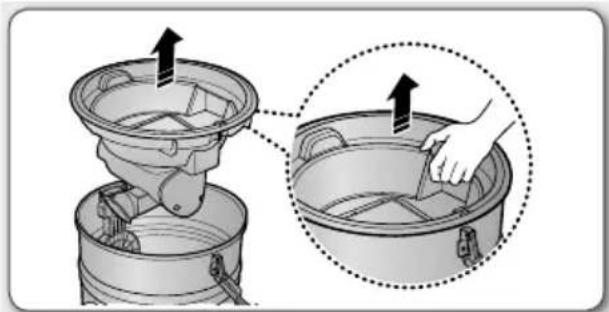

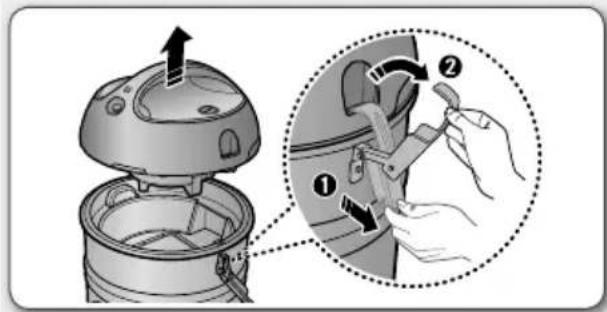

1. Unlock the body clamper at both side and lift the upper body to disassemble it from the dust tank.

Diagram showing a mechanical device being processed into a bowl, with an arrow indicating the process (no text or symbols present)

1. Lift the dust cover to open and put it down carefully. Please beware of dust falling off from the dust cover.

Illustration of a mechanical device pouring liquid into a cylindrical container (no text or symbols)

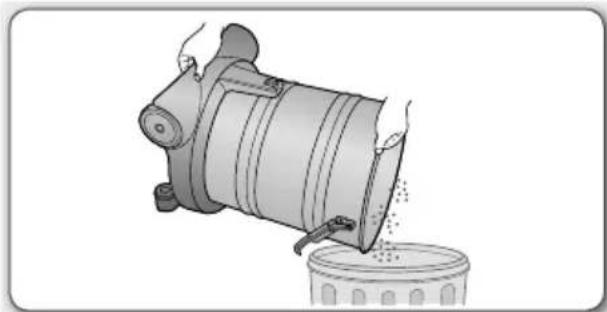

1. Dispose dust materials.

Diagram of a mechanical device with a downward arrow indicating motion or force, no text or symbols present

1. Assemble the dust cover properly.

Diagram showing a hand operating a device with labeled parts, including a magnified view of the component being turned into a container.

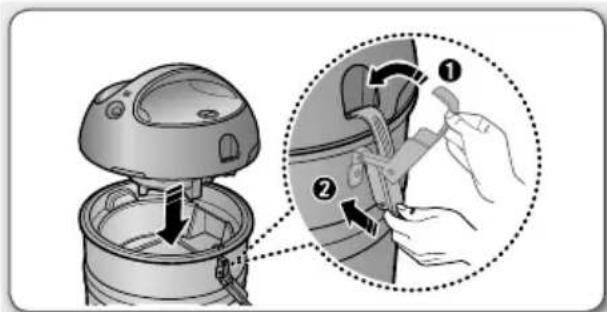

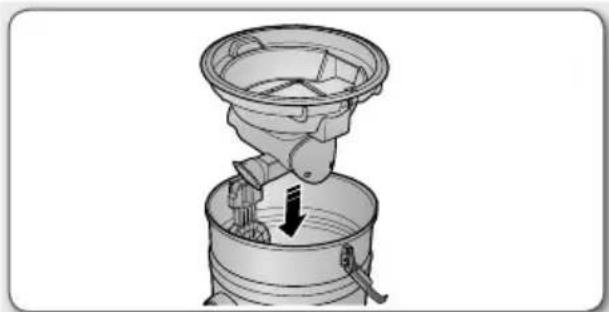

1. Assemble the upper body and lock the body clamper at both side.

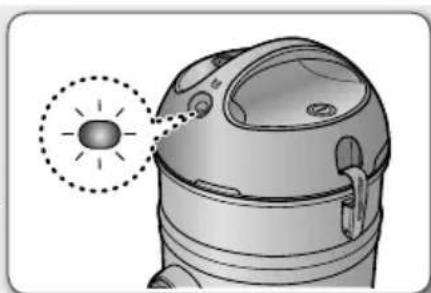

CHECK DUST FILTER INDICATOR

If the indicator turns to yellow color while you are cleaning, the dust filter is required to be cleaned.

If the indicator continues to display yellow color even after cleaning the dust filter, turn the vacuum cleaner off and check if there is any clogging in the hose, tube, floor nozzle or inlet of the dust cover.

Illustration of a vacuum cleaner emitting a sun, with no text or symbols present.

When to clean the dust filter

• When suction is noticeably reduced continuously.
• When the sponge is heavily polluted.

Diagram showing a mechanical device with an arrow indicating direction, alongside a magnified inset of its internal components (no text or symbols present)

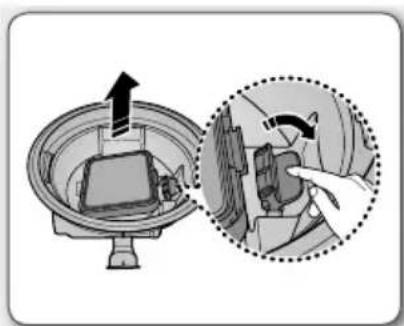

1. Pull the lever and disassemble the dust filter.

Illustration showing two steps of cleaning a stone or stone block: one with a hand placing it into a container, the other with a hand washing it (no text or symbols present)

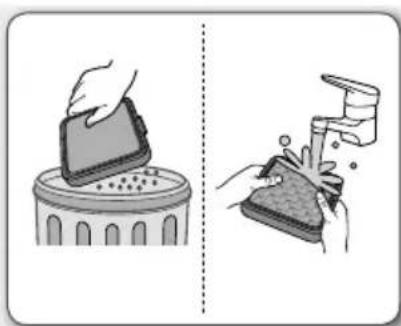

1. Wash the dust filter with water.

Isometric illustration of a brick wall next to a small rectangular object on a flat surface (no text or symbols)

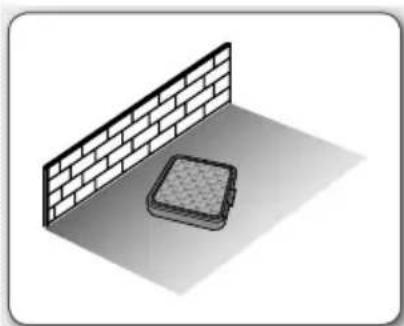

1. Let the dust filter dry in the shade for more than 12 hours.

O X

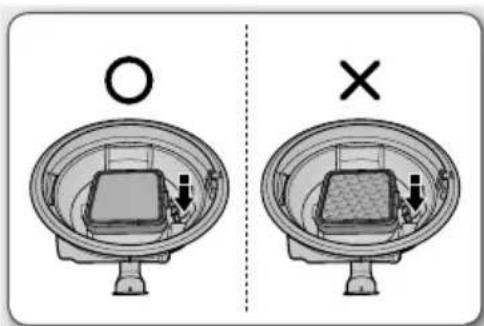

1. Please assemble dust filter with the direction as shown.

Diagram illustrating two steps of a computer monitor setup with labeled arrows and components

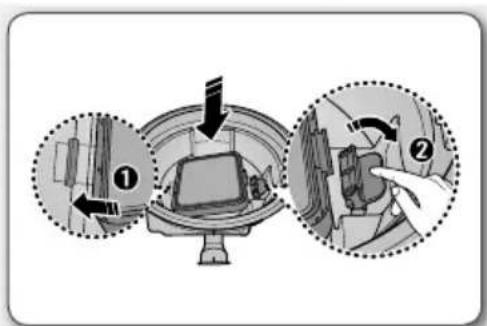

1. Assemble the dust filter after pulling the lever and insert the dust filter properly.

Make sure that the dust filter is changed once a year.

If you use a vacuum cleaner very often, resource filter can be reduced. In this case it is recommended to change the dust filter with greater frequency.

Try to keep the dust filter clean constantly. Regularly check its condition. Ignoring this requirement can lead to motor and body overheating, failure and reduce the service life of the appliance.

maintain tools and filter

MAINTAIN TOOLS

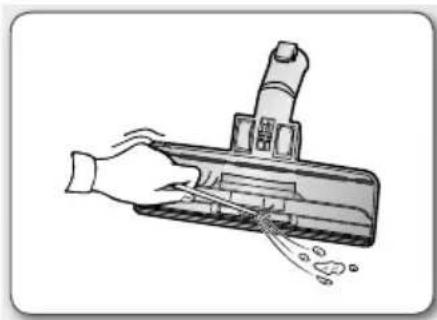

2-step brush

- Remove waste matter completely if the inlet is blocked

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pipe (Optional)

- To check for blockages, separate the telescopic pipe and adjust to shorten.

This allows for easier removal of waste clogging the tube.

Illustration of a hand holding a syringe with a spring, emitting vapor (no text or symbols)

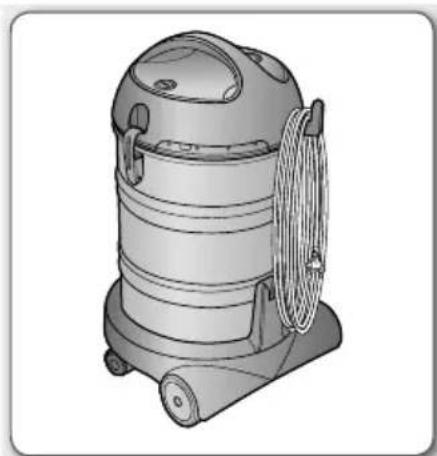

POWER CORD

After cleaning, wind the power cord and hang it on the hanger.

Illustration of a vacuum cleaner with coiled hose and circular base (no text or symbols)

DUST BIN

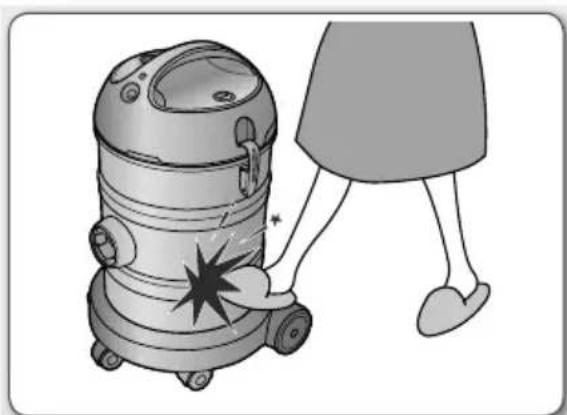

Do not give any impact to the dust bin. The dust bin can be dented by external impact.

Illustration of a person using a vacuum cleaner with a starburst effect, no text or symbols present

troubleshooting

PROBLEM SOLUTION
Motor downs and does not start.	Check cable, plug and socket.Leave to cool.
Suction force is gradually decreasing.	Check for blockage and remove.
Vacuum cleaner downs, does not pick up dirt	Check hose and replace if required.
Low or decreasing suction.	Please check dust filter.If required clean it as illustrated in the instruction.
Body overheating	Please check dust filter.If required clean it as illustrated in the instruction.
Unpleasant smell during vacuuming	Please note that there may be a slight smell during vacuuming when the cleaner is new (4-5 days).
