Product Type	Emptying station for cordless vacuum cleaner
Brand	Samsung
Model	VCA-SAE901
Power Supply	230 V, 50 Hz
Weight	5.6 kg
Dimensions (L x W x H)	180 x 185 x 600 mm
Dust Bag Capacity	2 bags included (1 installed, 1 spare)
Bag Type	Dust bag VCA-ADB90
Main Function	Automatic emptying of the Jet vacuum dust bin
Status Indicator	LED indicator (blue when operating, red when bag needs replacing)
Intended Use	Indoor use only
Compatibility	Samsung Jet cordless vacuums (with supplied dust bin)
Filter Cleaning	Washable pre-motor filter, shakeable ultra-fine dust filter (replace once a year)
Dust Bin Maintenance	Clean with water and dry completely before reuse
Safety	Auto shut-off if motor overheats when bag is full
Included Accessories	Power cord, user manual, Jet dust bin
General Information	Designed for use with Samsung Jet cordless vacuums; do not use for other purposes

Frequently Asked Questions - VCA-SAE901 SAMSUNG

How to install the Clean Station?

Place the Clean Station on a stable floor, at least 10 cm from the wall. Store the power cord in the lower groove, run it along the wall, and plug it in. The indicator turns blue then off.

How to empty the vacuum's dust bin into the Clean Station?

Press the PUSH button to open the top cover. Insert the dust bin. Emptying is automatic. The indicator turns blue. Press Start/Stop to stop. Close the cover until it clicks.

When should I replace the dust bag in the Clean Station?

Replace the dust bag when the status indicator turns red. Open the front cover, pull the PULL lever, insert a new bag (model VCA-ADB90), and close.

Can I use the Clean Station with any vacuum cleaner?

No, the Clean Station is designed only for Samsung Jet cordless vacuums. Use the dust bin supplied with the appliance.

How to maintain the pre-motor filter?

Lift and remove the filter inside the Clean Station. Detach the non-woven fabric, shake it to remove dust, then reinstall the filter.

How to clean the ultra-fine dust filter?

Do not wash this filter with water. Simply shake it to dust it off. Replace it once a year for optimal performance.

What to do if the dust bin does not empty correctly?

If the bin is full, press the top of the washable micro-filter with one hand, then start the Clean Station. If residues persist, clean the bin according to the maintenance instructions.

The Clean Station smells bad, what to do?

Replace the dust bag. If the odor persists even though the bag is not full, replace it anyway. Also clean the filters.

Can I use an extension cord?

No, do not use a power strip or extension cord. Plug the Clean Station directly into a wall outlet with the correct voltage (230 V, 50 Hz).

Where to buy a replacement dust bag?

Check the model VCA-ADB90 and the Samsung logo. Contact your Samsung Electronics dealer or an authorized service center.

USER MANUAL VCA-SAE901 SAMSUNG

• Before operating this unit, please read the instructions carefully.
• For indoor use only

SAMSUNG

Contents

PREPARATION

Safety Information 3

INSTALLATION

Installing the clean station 7

Installation guide 7

OPERATION

Using the clean station 8

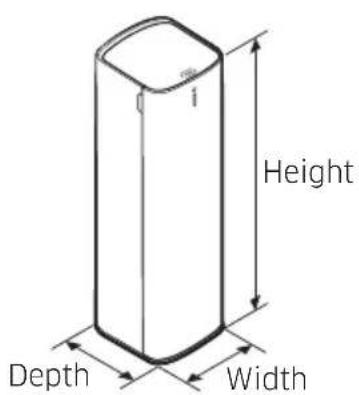

Product specifications

Height Depth Width

MAINTENANCE

Maintaining the clean station 10

Dust bag 10

Dustbin 11

Premotor Filter 11

Ultra fine Dust Filter 11

Model	VCA-SAE90AVCA-SAE90B	VCA-SAE901, VCA-SAE902VCA-SAE903, VCA-SAE904
Power	230 V, 50 Hz
Weight	5.6 kg
Size	W 180 mm x D 185 mm x H 600 mm
Dust bag	3 units	2 units

NOTE

- The wave pattern on the exterior of the product is a natural appearance due to the use of pearl plastic materials and its pearl distribution.

Accessories

* VCA-SAE90A, VCA-SAE90B

Dust bag: 3 units (Inside the product: 1 unit / Spare: 2 units)

Dustbin Dust

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

bag: 2 units (Inside the product: 1 unit / Spare: 1 unit)

Power cord

User manual

NOTE

- If you want to purchase an additional dust bag, check the model name (VCA-ADB90) and Samsung logo (SAMSUNG) first, then contact your nearest Samsung Electronics retailer or Samsung service center.

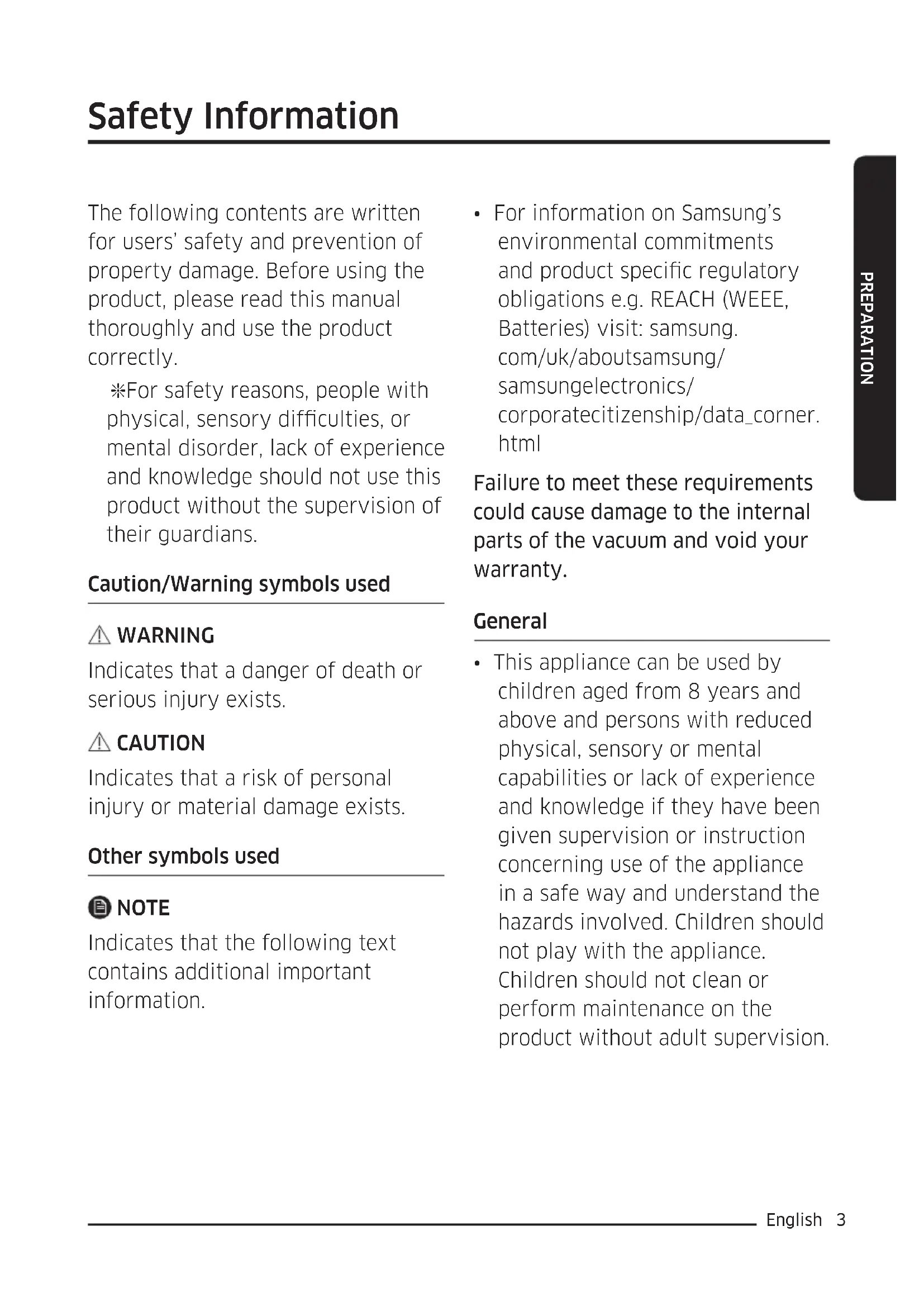

The following contents are written for users' safety and prevention of property damage. Before using the product, please read this manual thoroughly and use the product correctly.

*For safety reasons, people with physical, sensory difficulties, or mental disorder, lack of experience and knowledge should not use this product without the supervision of their guardians.

Caution/Warning symbols used

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

Other symbols used

NOTE

Indicates that the following text contains additional important information.

- For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH (WEEE, Batteries) visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

Failure to meet these requirements could cause damage to the internal parts of the vacuum and void your warranty.

General

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Children should not clean or perform maintenance on the product without adult supervision.

Installation

CAUTION

- The clean station should be placed and used on a stable floor.

- If the product falls over, an injury or product and floor damage may occur.

- Do not place or use the product on an uneven floor, a carpet, a living room table, or a desk etc.

- If the product falls over, an injury or product and floor damage may occur.

- Do not place the product at a wall behind which pipes (gas or water etc.) or electrical cables are installed.

- Do not install the product near water, in an area with excessive moisture, or near window, etc.

- Do not install the product in a place where people frequently pass by, near an entrance, or a narrow passage.

- If people trip over the product, an injury or product damage may occur.

Power related

WARNING

- Do not bend the power cord with excessive force or put heavy objects on the power cord.

- Otherwise, electric shock or fire may occur.

- If there is dust, water, etc. on a contact point of the power plug pins, wipe them carefully.

- Otherwise, abnormal operation or electric shock may occur.

- Do not pull the power cord and do not touch the power plug with wet hands.

- Otherwise, electric shock or fire may occur.

- Do not use a power source with the incorrect voltage. Do not use a multi-plug outlet or power strip for the product. Do not leave the power cord lying on the floor.

Attach the cord close to a wall.

- Otherwise, electric shock or fire may occur.

- Do not use a damaged power plug, power cord, or loose power outlet.

- Otherwise, electric shock or fire may occur.

• If the power cord is damaged, have a Samsung authorized service center's qualified repairman replace the power cord with a new power cord.
• Otherwise, electric shock or fire may occur.
• Except for an authorized repairman, do not disassemble or modify the clean station.
• When using the product in a veranda, make sure the power cord and the power plug do not touch water.

Operation

WARNING

- Static electricity may occur depending on the humidity, temperature, or floor material, etc. of your operating environment. If it happens repeatedly, contact a Samsung service center.

- Do not cause a short circuit by touching the power terminal with chop sticks, metal screw drivers, etc.

- Otherwise, product malfunction or electric shock may occur.

• Make sure that any liquid such as water or juice does not touch inside or outside the product.
• Otherwise, electric shock or fire may occur.

- The clean station is manufactured for Samsung Jet wireless vacuum cleaner only, so do not use the clean station for other purposes.

- Do not use the product near heating appliances such as heaters, or in areas containing combustible sprays, or flammable materials.

- Otherwise, fire or product deformation may occur.

- If there is a gas leak, or a combustible spray is used such as a dust remover, do not touch the power outlet and open the window for ventilation.

- Otherwise, an explosion or fire may occur.

- If the product makes a strange sound or emits a smell or smoke, turn off the product immediately, and then contact a Samsung service center.

- Otherwise, electric shock or fire may occur.

CAUTION

• Do not allow children or a pet to ride on or play with the product.
• If the product falls over, an injury or product and floor damage may occur.
• When moving the product, you should grip it with both hands.

NOTE

• When the dust bag of the clean station is filled with dust, the product may stop temporarily due to the overheating prevention device of the motor. Replace the dust bag and operate the product again.
• As a new product, it may have a slight odor for the first 3 months after purchase.

Maintenance

WARNING

- When cleaning the exterior of the product, unplug the product first and then wipe it with a dry towel. Do not spray water directly onto the product or wipe it with volatile materials such as benzene, thinner, or alcohol.

- Otherwise, product damage such as plastic breakage, deformation, discoloration, printing deterioration, etc. may occur.

CAUTION

• Do not push the clean station in case it falls over.
• Personal injury, floor and product damage may occur.
• When the clean station emits bad odor, replace the dust bag or clean the filters.
• When you pull the power cord out of the groove at the bottom of the clean station, do not pull it hard. Turn the cord gently on its side so that it can come out without interruption.

- Otherwise, the power cord may get damaged and could cause an electric shock or fire.

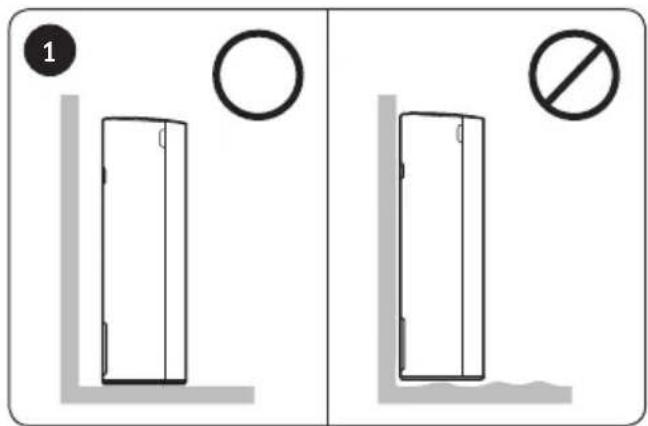

Installation guide

1 ○ ○

As the outlet is at the rear of the product, do not put the product close against a wall, allow 10 cm space between the wall and the product, and place the product on a stable floor.

Diagram illustrating the installation of an electric vehicle charging station, showing two configurations with a power outlet and no/no signage.

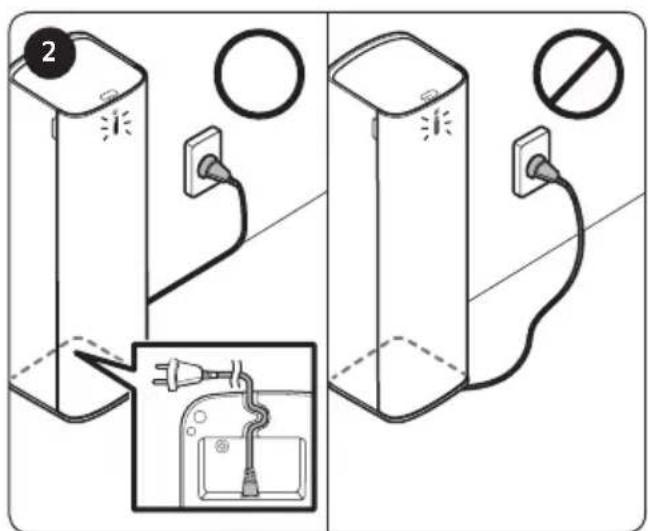

Put the power cord into the groove at the bottom of the clean station, arrange the cord neatly along the wall and plug the product in.

• When the cord is placed on the floor carelessly, the power cord may be damaged or a person can trip over the cord.
• When the clean station is plugged in, the product status indicator turns to 'blue' and then goes off.

* Please refer to the QR code for detailed information on the use of product and cleaning methods.

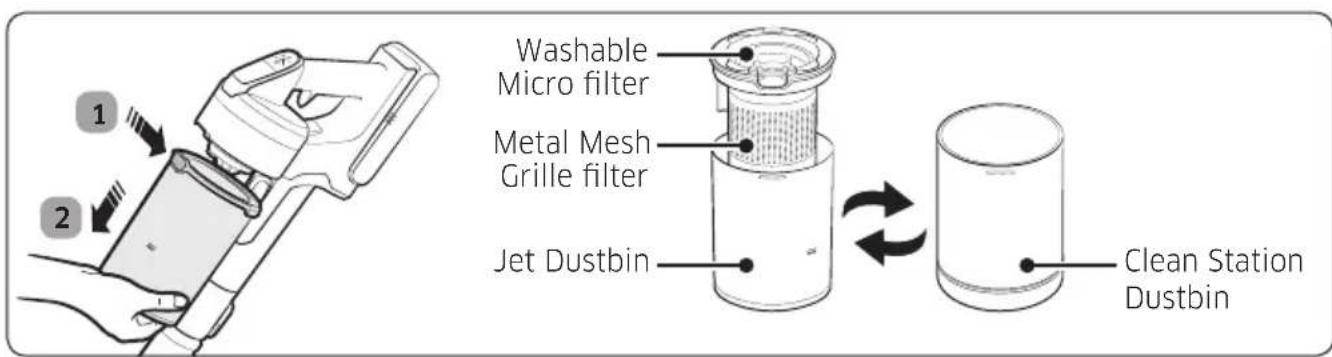

1 2 Washable Micro filter Metal Mesh Grille filter Jet Dustbin Clean Station Dustbin

* VCA-SAE901, VCA-SAE902, VCA-SAE903, VCA-SAE904 includes only the transparent Dustbin. * Need to detach the Metal Mesh Grille filter and Washable Micro filter from the Jet Dustbin and then attach them to the Clean Station Dustbin.

The clean station is compatible with the provided dustbin only.

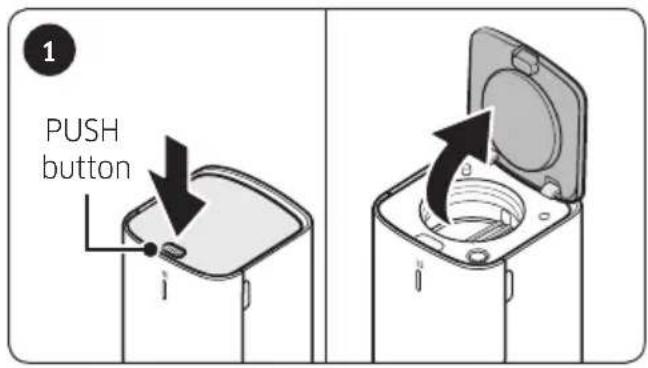

1 PUSH button i

Press the [PUSH] button on the upper cover of the clean station.

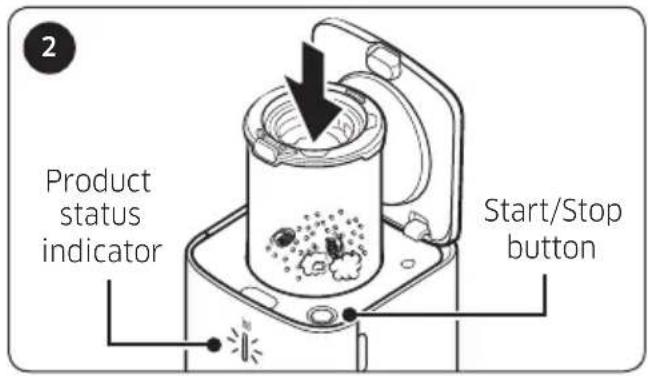

Product status indicator Start/Stop button

Insert the dustbin into the clean station. Dust is ejected automatically.

• When the clean station is in operation, the product status indicator turns to 'blue'.
• Press the [Start/Stop] button to stop operation.

Diagram of a mechanical device with a rotating component and an arrow indicating rotation (no text or symbols)

When the clean station's operation stops completely, pull the dustbin out and close the clean station by pressing the upper cover firmly.

Illustration of a hand pressing down on a cylindrical container with granular material, showing a magnified view of the lid (no text or symbols present)

Diagram showing a cylindrical container with internal layers and an arrow indicating a process or transformation (no text or symbols present)

NOTE

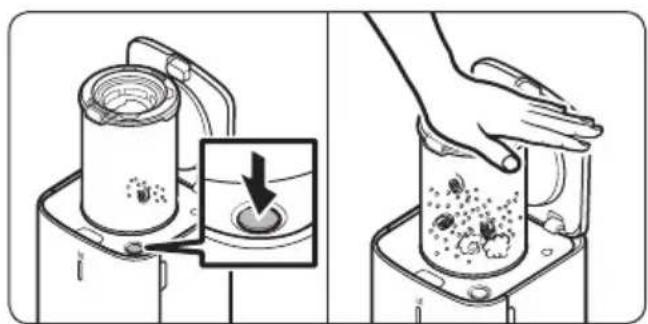

- When dust still remains inside the dustbin even after using the clean station, press the [Start/Stop] button to operate the clean station. - Press the button again to stop operation.

- If the dustbin is filled with dust and will not eject it properly, use a hand to push down the top of the washable micro filter, and then operate the clean station. - When there are foreign object residues, remove them by referring to 'Maintaining the clean station' section of the manual.

CAUTION

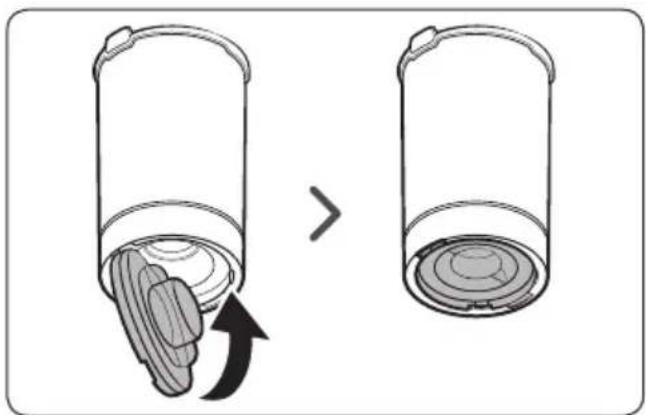

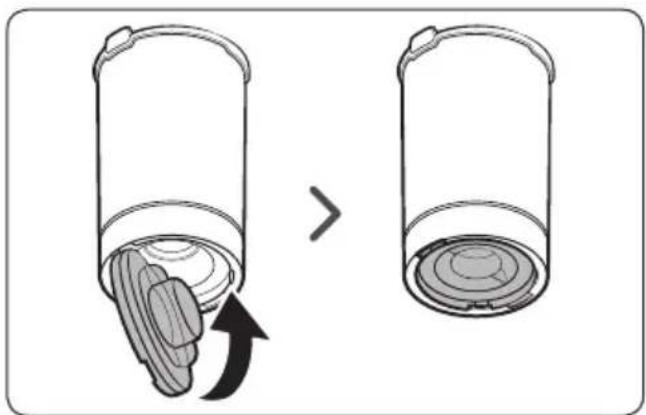

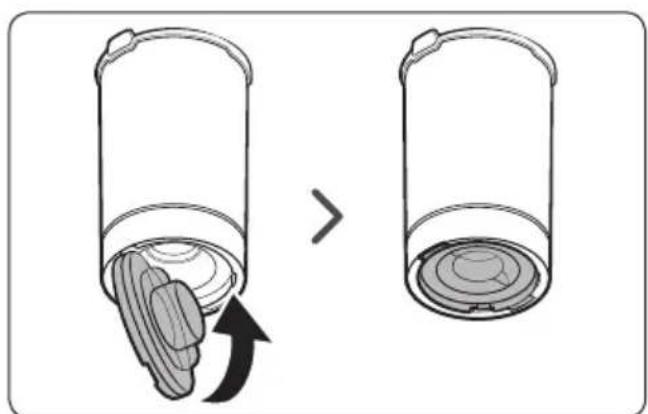

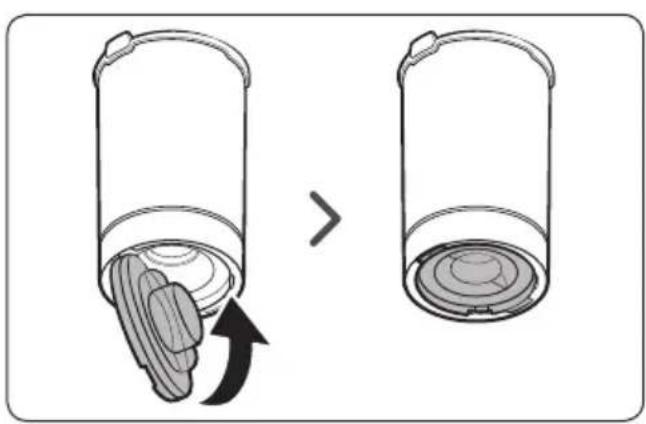

• After using the clean station, you should close the dustbin by pressing the bottom cover firmly until you hear it 'click'.

Dust bag

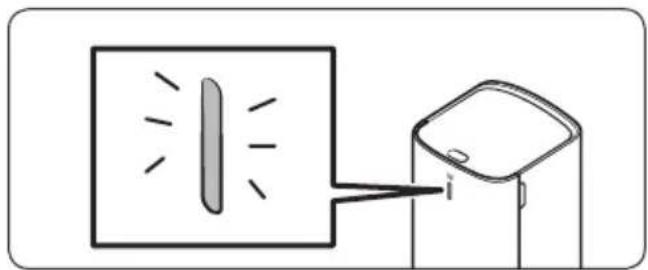

Time to replace a dust bag

Simple line drawing of a device emitting light into a screen (no text or symbols)

* When the product status indicator turns to 'red', you should replace the dust bag.

1 PULL button 2

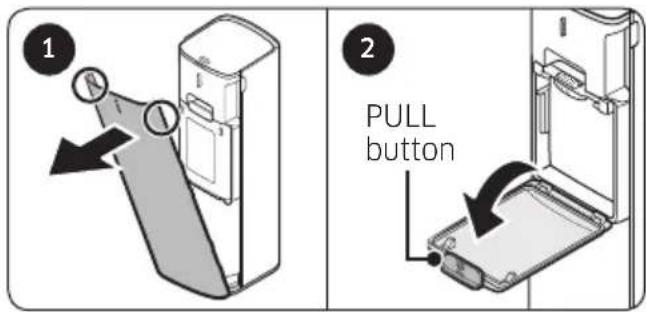

1 Grip both sides of the front cover and pull the cover towards you.
2 Open the cover by pulling the [PULL] button.

3 PUSH

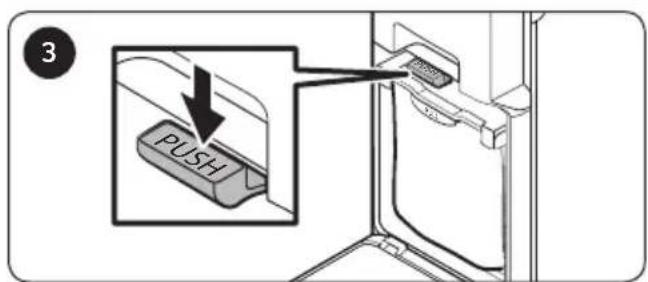

Press the [PUSH] lever. Pull the [PULL] lever out in a diagonal direction and remove the dust bag.

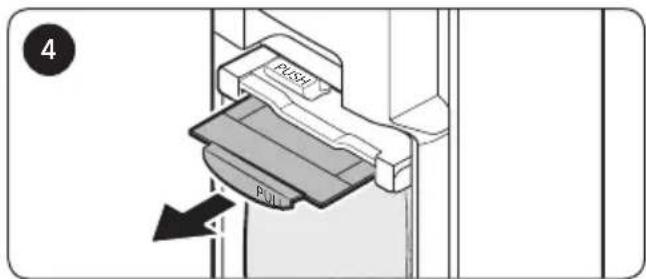

4 FLASH PUL

5 1 2

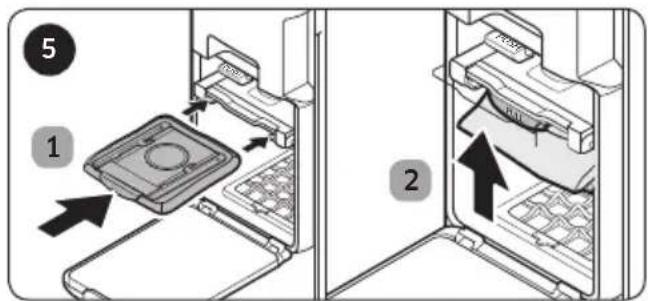

Insert a new dust bag towards the back and push the [PULL] lever upward firmly until you hear it 'click'.

Diagram showing two steps of a refrigerator door opening, labeled with arrows and numbered parts.

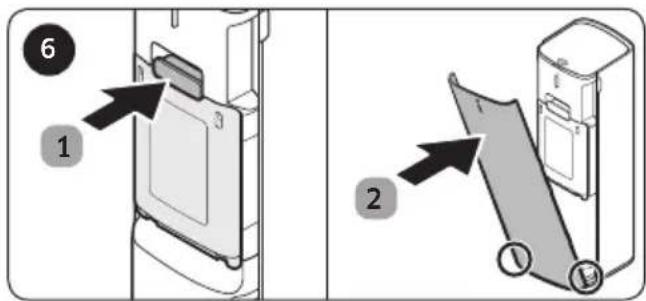

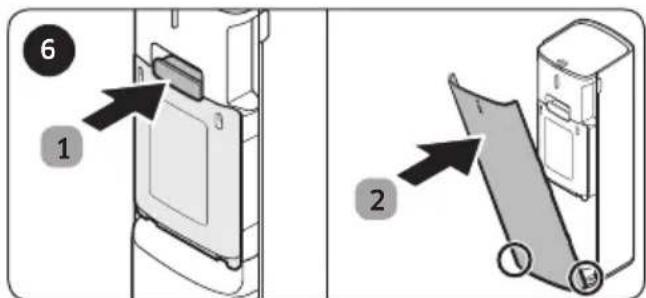

After replacing the dust bag, assemble the clean station in reverse order.
* Be cautious not to assemble incorrectly when inserting the dust bag.

NOTE

• If the dust bag emits a bad odor even though it is not filled with dust, replace the dust bag.
• When you operate the clean station after replacing the dust bag, the status indicator changes from red to blue.

Illustration of household cleaning and sanitation process with buckets, a faucet, and tools under a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand holding a food item, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with labeled parts 1 and 2.

Dustbin

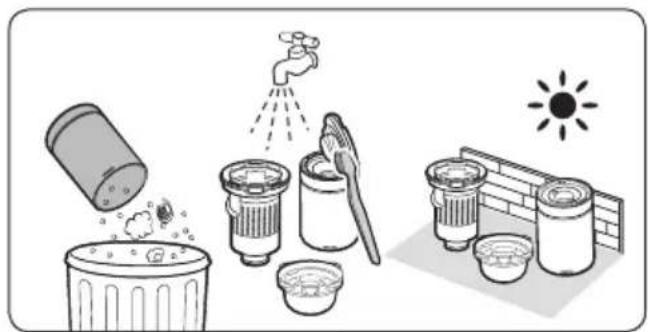

After emptying the dustbin, clean it with water and dry completely before use.

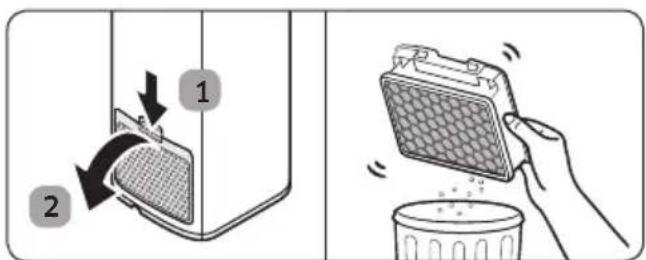

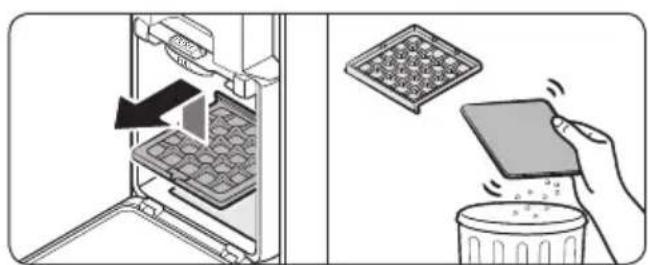

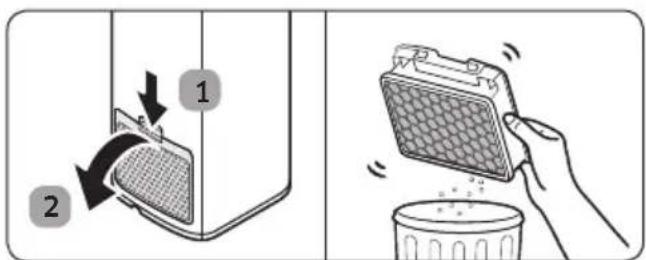

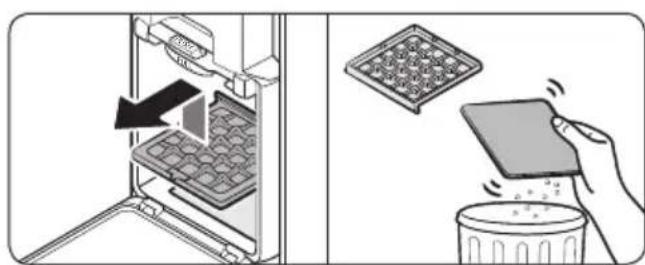

Premotor Filter

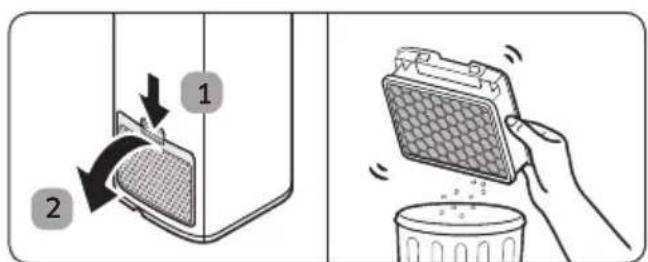

• Lift up the Premotor Filter inside the product and pull it out. Then, detach the nonwoven fabric from the filter.
• Remove the dust on the nonwoven fabric by shaking it and reassemble the Premotor Filter.

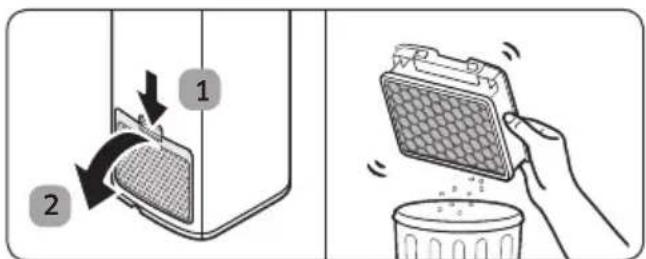

Ultra fine Dust Filter

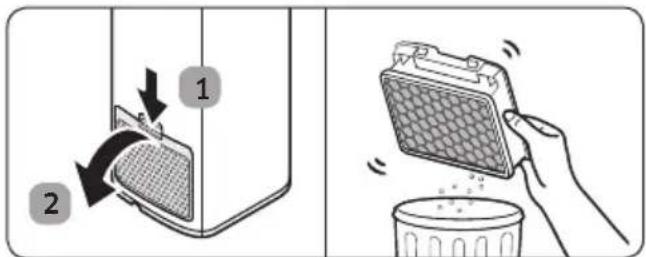

• Do not clean the Ultra fine Dust Filter with water. Shake the filter.
• To maintain the best performance of the Ultra fine Dust Filter, replace the filter once a year.

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Customer Care Center Web Site
LITHUANIA 8-800-77777 www.samsung.com/lt/support
LATVIA 8000-7267 www.samsung.com/lv/support
ESTONIA 800-7267 www.samsung.com/ee/support

Puhastusjaam

Kasutusjuhend

VCA-SAE90*

* VCA-SAE90A, VCA-SAE90B

Technical line drawing of a cylindrical component with three square flanges and a top cap (no text or symbols)

Tolmukotte: 3 tk (Toote sees: 1 tk / varuks: 2 tk)

Tolmukamber

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Tolmukotte: 2 tk (Toote sees: 1 tk / varuks: 1 tk)

Tolmukamber

Toitejuhe

Kasutusjuhend

MÄRKUS

Diagram illustrating two electric vehicle charging stations connected to a power outlet, with no signage or text present.

Diagram of a mechanical device with an open lid and internal cavity, showing a black arrow indicating rotation (no text or symbols present)

Illustration of a blender being placed on top, showing the lid and base with contents (no text or symbols)

Diagram showing a cylindrical container with internal layers and an arrow indicating a transformation or change (no text or symbols present)

MÄRKUS

Simple line drawing of a device emitting light into a screen (no text or symbols)

Diagram showing two steps of a refrigerator interior with labeled parts and directional arrows indicating movement.

Illustration of household cleaning and sanitation process with buckets, a faucet, and tools under a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand placing a tray into a trash bin (no text or symbols)

Diagram illustrating a food storage or cleaning process with labeled steps and a hand holding a container.

Tolmukamber

* VCA-SAE90A, VCA-SAE90B

Puteklu maisiņš:

3 vienības

(izstrādājumā:

1 vienība /

rezerves dala:

2 vienības)

Puteklu

tvertne

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Puteklu maisiņš:

2 vienības

(izstrādājumā:

1 vienība /

rezerves dala:

1 vienība)

Puteklu

tvertne

Barošanas

kabelis

Diagram illustrating the installation of a water heater with labeled components and an electrical outlet, including a warning symbol.

1 Poga PUSH

Diagram of a mechanical device with a rotating component and a black arrow indicating rotation (no text or symbols)

Illustration of a blender being placed on top, showing the lid and base with liquid and particles (no text or symbols)

Diagram showing a cylindrical container with internal layers and an arrow indicating a process or transformation (no text or symbols present)

PIEZIME

Simple line drawing of a device emitting light into a screen (no text or symbols)

Diagram showing two steps of a device interior with labeled components and directional arrows indicating movement or assembly.

levietojiet jaunu puteklu maisinu un stingri spiediet sviru [PULL] uz augšu, līdz atskan klikškis.

6 1 2

Illustration of household cleaning and sanitation process with buckets, a faucet, and containers under a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand holding a tray, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with numbered components and directional arrows.

Puteklu tvertne

* VCA-SAE90A, VCA-SAE90B

Dulkių maišelis:

3 vienetai

(gaminio viduje:

1 vienetas / atsarginis:

2 vienetai)

* VCA-SAE901, VCA-SAE902

VCA-SAE903, VCA-SAE904

Dulkių maišelis:

2 vienetai (gaminio viduje:

1 vienetas / atsarginis:

1 vienetas)

Maitinimo laidas

Naudotojo vadovas

PASTABA

Diagram illustrating the installation of a water heater with labeled components and an electrical outlet, including a hand-drawn inset showing the plug.

Diagram of a mechanical device with an open lid and internal cavity, showing a black arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a cylindrical container with granular contents, showing a magnified view of the lid (no text or symbols present)

Diagram showing a cylindrical container with internal components and an arrow indicating transformation (no text or symbols)

PASTABA

Simple line drawing of a device emitting light into a screen (no text or symbols)

Diagram showing two steps of a door opening process: step 1 indicates opening, step 2 indicates cutting or disassembly.

Illustration of household cleaning and sanitation process with buckets, a faucet, and a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand holding a tablet, next to a trash bin (no text or symbols)

Diagram illustrating a food storage or cleaning process with labeled steps and a hand holding a container.

Dulkių indas

* VCA-SAE90A, VCA-SAE90B

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Diagram illustrating two electric vehicle charging stations connected to a power outlet, with no signage or text present.

Diagram of a mechanical device with a rotating component and an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a cylindrical container with granular contents, showing a magnified view of the lid (no text or symbols present)

Diagram showing a cylindrical container with a lid and an arrow indicating transformation or change, no text or symbols present.

NOTA

Simple line drawing of a device emitting light into a screen (no text or symbols)

4 PUSH Pull

Illustration of household cleaning and sanitation process with buckets, a faucet, and tools under a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand holding a food item, next to a trash bin (no text or symbols)

Diagram illustrating two steps of a food storage or cleaning procedure: adding a mesh component to a container and removing it into a trash bin.

www.samsung.com/it/support

* VCA-SAE90A, VCA-SAE90B

Three identical rectangular plastic containers with circular cutouts, arranged in a staggered row (no text or symbols)

Bolsa de polvo:

3 unidades

(dentro del

producto: 1 unidad

/ repuesto:

2 unidades)

Contenedor de polvo

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Diagram illustrating two electric vehicle charging stations connected to a power outlet, with no signage or text present.

Diagram of a device with an open lid and internal components, showing a black arrow indicating rotation (no text or symbols present)

Illustration of a blender being placed on top, showing the lid and base with liquid and particles (no text or symbols)

Diagram showing a cylindrical container being shifted to a lid, with an arrow indicating the process (no text or symbols present)

NOTA

Simple line drawing of a device emitting light into a screen (no text or symbols)

Diagram showing two steps of a refrigerator interior with labeled parts and directional arrows indicating movement.

Illustration of household cleaning and sanitation process with buckets, a faucet, and a sun (no text or symbols)

Illustration showing a refrigerator interior with a tray and a hand holding a tablet, next to a trash bin (no text or symbols)

Diagram illustrating a food cleaning or packaging process with labeled steps and a hand holding a container.

Contenedor de polvo

* VCA-SAE90A, VCA-SAE90B

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Diagram illustrating two electric vehicle charging stations connected to a power outlet, with no signage or text present.

Diagram of a mechanical device with a rotating component and an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a cylindrical container with granular contents, showing a magnified view of the lid (no text or symbols present)

Diagram showing a cylindrical container with a lid and an arrow indicating a change or transformation (no text or symbols present)

NOTA

Simple line drawing of a device emitting light into a screen (no text or symbols)

Diagram showing two steps of a device interior with labeled components and directional arrows indicating movement or assembly.

Illustration of household cleaning and sanitation process with buckets, a faucet, and tools under a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand holding a food item, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with labeled parts 1 and 2.

Reservatório do pó

www.samsung.com/pt/support

Reinigungsstation

Benutzerhandbuch

VCA-SAE90*

* VCA-SAE90A, VCA-SAE90B

Staubbeutel:

3 Stück (Ins

Gerät eingesetzt:

1 Stück / Ersatz:

2 Stück)

Staubbehälter

* VCA-SAE901, VCA-SAE902

VCA-SAE903, VCA-SAE904

Staubbeutel:

2 Stück (Ins

Gerät eingesetzt:

1 Stück / Ersatz:

1 Stück)

Staubbehälter

Netzkabel

Benutzerhandbuch

HINWEIS

Diagram illustrating the installation of a water heater with labeled components and an electrical outlet, including a hand-drawn inset showing the plug.

Diagram of a mechanical device with a rotating component and a black arrow indicating rotation (no text or symbols)

Illustration of a blender being placed on top, showing the lid and base with liquid and particles (no text or symbols)

Diagram showing a cylindrical container being shifted to a lid, with an arrow indicating the process (no text or symbols present)

HINWEIS

Simple line drawing of a device emitting light into a screen (no text or symbols)

Illustration of household cleaning and sanitation process with buckets, a faucet, and tools under a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand holding a food item, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with labeled parts 1 and 2.

Staubbehälter

* VCA-SAE90A, VCA-SAE90B

Stofopvangzak:

3 stuks (in het

product: 1 stuk/

reserve: 2 stuks)

Stofopvangbak

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Stofopvangzak:

2 stuks (in het

product: 1 stuk/

reserve: 1 stuk)

Stofopvangbak

Netsnoer

Diagram illustrating the installation of a water heater with labeled components and an electrical outlet, including a hand-drawn inset showing the plug.

Diagram of a mechanical device with an open lid and internal components, showing a black arrow indicating rotation (no text or symbols present)

Illustration of a blender being placed on top, showing the lid and base with liquid and particles (no text or symbols)

Diagram showing a cylindrical container with a lid and an arrow indicating a change or transformation (no text or symbols present)

OPMERKING

Simple line drawing of a device emitting light into a screen (no text or symbols)

Diagram showing two steps of a refrigerator door opening, labeled with arrows and numbered parts.

Illustration of household cleaning and sanitation process with buckets, a faucet, and tools under a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand holding a tray, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with labeled parts 1 and 2.

Stofopvangbak

* VCA-SAE90A, VCA-SAE90B

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Diagram illustrating the installation of a water heater with labeled components and an electrical outlet, including a warning symbol.

Diagram of a mechanical device with a rotating component and an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a cylindrical container with granular contents, showing a magnified view of the lid (no text or symbols present)

Diagram showing a cylindrical container with a lid and an arrow indicating a change or transformation (no text or symbols present)

REMARQUE

Simple line drawing of a device emitting light from a screen, with no text or symbols present.

Diagram showing two steps of a refrigerator interior with labeled parts and directional arrows indicating movement.

Diagram showing two steps of a refrigerator door opening, labeled with numbered arrows and numbered parts.

Illustration of household cleaning and sanitation process with buckets, a faucet, and tools under a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand placing a tray into a trash bin (no text or symbols)

Diagram illustrating a food cleaning or storage procedure: adding a filter into a container and removing a dish into a trash bin.

* VCA-SAE90A, VCA-SAE90B

Two identical rectangular plastic containers with circular holes, arranged in a triangular pattern (no text or symbols)

Dammpåse: 3 st (inuti produkten: 1 st / reserv: 2 st)

Dammbehållare

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

nmpåse: 2 st (inuti produkten: 1 st / reserv: 1 st)

Diagram illustrating the installation of a power outlet with labeled components and an electrical outlet, including a disconnection symbol.

Diagram of a mechanical device with an open lid and internal cavity, showing a black arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a cylindrical container with granular material, showing a magnified view of the lid (no text or symbols present)

Diagram showing a cylindrical container with a lid and an arrow indicating transformation (no text or symbols)

OBS!

Simple line drawing of a device emitting light into a screen (no text or symbols)

Illustration of household cleaning and sanitation process with buckets, tools, and a sun symbol (no text or labels)

Illustration showing a refrigerator with a tray and a hand holding a food item, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with labeled parts 1 and 2.

Dammbehållare

* VCA-SAE90A, VCA-SAE90B

Three identical rectangular plastic containers with circular holes, arranged side by side (no text or symbols)

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Diagram illustrating the installation of a water heater with labeled components and an electrical outlet, including a hand-drawn inset showing the plug.

Mechanical diagram showing a device with a rotating knob and mounting base, no text or symbols present

Illustration of a hand pressing down on a container with granular material, showing a magnified view of the lid (no text or symbols present)

Diagram showing a cylindrical container with a lid and an arrow indicating transformation (no text or symbols)

BEMÆRK

Simple line drawing of a device emitting light into a screen (no text or symbols)

Diagram showing two steps of a refrigerator interior with labeled parts and directional arrows indicating movement.

Illustration of household cleaning and sanitation process with buckets, tools, and a sun symbol (no text or labels)

Illustration showing a refrigerator with a tray and a hand holding a food item, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with labeled parts 1 and 2.

Støvbeholder

* VCA-SAE90A, VCA-SAE90B

Three identical rectangular plastic containers with circular cutouts, arranged in a triangular pattern (no text or symbols)

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Diagram illustrating two electric vehicle charging stations connected to a power outlet, with one station showing no power and the other showing disconnection.

Diagram of a mechanical device with an open lid and internal components, showing a black arrow indicating rotation (no text or symbols present)

Illustration of a blender being placed on top, showing the lid and base with liquid and particles (no text or symbols)

Diagram showing a cylindrical container with a lid and an arrow indicating rotation, no text or symbols present

MERK

Simple line drawing of a device emitting light into a screen (no text or symbols)

Diagram showing two steps of a refrigerator interior with labeled parts and directional arrows indicating movement.

Illustration of household cleaning and sanitation process with buckets, tools, and a sun symbol (no text or labels)

Illustration showing a refrigerator with a tray and a hand holding a food item, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with labeled parts 1 and 2.

Støvbeholder

* VCA-SAE90A, VCA-SAE90B

* VCA-SAE901, VCA-SAE902 VCA-SAE903, VCA-SAE904

Pölypussi:

3 kappaletta

(tuotteen sisällä

1 kappale / varalla

2 kappaletta)

Pölysäiliö

Pölypussi:

2 kappaletta

(tuotteen sisällä

1 kappale / varalla

1 kappale)

Diagram illustrating the principle of electric shock resistance, showing two battery cells connected to a power outlet and a dislocation symbol.

1 PUSH- painike

Diagram of a mechanical device with an open lid and internal cavity, showing a black arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a cylindrical container with granular material, showing a magnified view of the lid (no text or symbols present)

Diagram showing a cylindrical container with internal components and an arrow indicating transformation (no text or symbols)

HUOM.

Simple line drawing of a device emitting light into a screen (no text or symbols)

1 PULL- painike

Diagram showing two steps of a refrigerator interior with labeled parts and directional arrows indicating movement.

Illustration of household cleaning and sanitation items including a toilet, water spray, buckets, and a sun (no text or symbols)

Illustration showing a refrigerator with a tray and a hand holding a tablet, next to a trash bin (no text or symbols)

Diagram illustrating a device's internal structure and its application in a waste bin, with numbered parts and directional arrows.

Pölysäiliö
