USER MANUAL PIXMA TS3440 CANON

Read Safety and Important Information (addendum) first.

Icon showing a printer with a paper airplane and a document, symbolizing file transfer or sync (no text present)

Illustration of a laptop and smartphone on a solid red background (no text or symbols)

Line drawing of a printer with hands holding the lid (no text or symbols)

Diagram showing a printer with a prohibition symbol, indicating no usage or prohibition of the printer.

Настройка принтера

Diagram of a printer with red arrows indicating process flow (no text or symbols)

Diagram of a printer's internal structure with a red arrow indicating compression or disassembly (no text or symbols present)

3 Закройте крышку.

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Diagram showing a printer with a power button and a 0-segment display, likely illustrating a digital control or status.

Внимание!

Line drawing of a printer with a red arrow indicating the paper's edge, showing internal components (no text or symbols)

Осторожно!

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

① Color ②

Внимание!

Diagram of a mechanical component with a red arrow pointing to a specific part (no text or symbols present)

Внимание!

Diagram showing a hand pressing a component with a red arrow indicating direction, alongside a close-up of the component being rotated.

Diagram of a mechanical component with three internal compartments (no text or symbols)

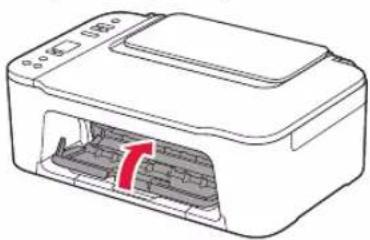

7 Закройте крышку.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Illustration of a printer with a red arrow indicating the process (no text or symbols present)

Technical diagram showing a mechanical component with an arrow indicating direction, alongside a close-up view of a device (no text or symbols present)

Diagram showing a device with labeled components and a prohibition symbol, likely illustrating a mechanical or electrical hazard.

Diagram showing printer operation with OK button and blank sheet, alongside a separate image of a printer with a blank sheet.

Diagram showing two steps of a printer or printer device with red arrows indicating motion, no text or symbols present.

Line drawing of a rectangular container with side handles (no text or symbols)

Diagram of a printer with red arrows indicating process flow (no text or symbols)

Diagram of a device interior with red arrows indicating flow or movement, no text or symbols present

3 Закрийте кришку.

Diagram of a printer with internal structure and red arrow indicating a component (no text or symbols)

Diagram showing a printer with a power button and a 0-segment display, likely illustrating a digital control or status.

Важливо

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

① Color ②

Важливо

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Важливо

Diagram showing a hand pressing a component with a red arrow indicating direction, before and after assembly.

Diagram of a mechanical component with three stacked parts, no visible text or symbols

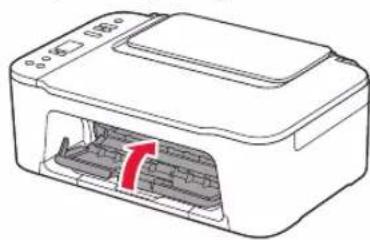

7 Закрийте кришку.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Illustration of a printer with a red arrow indicating the process (no text or symbols present)

Technical diagram showing a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Diagram showing two steps of installing a device with a prohibition symbol, labeled with arrows and a red dashed line.

Diagram showing printer operation with OK button and blank sheet, alongside a separate image of a printer with a blank sheet.

Two-step diagram showing a printer's internal structure before and after assembly, with no text or symbols present.

Line drawing of a rectangular container with a handle and side slots (no text or symbols)

Setting Up the Printer

For Setup, visit the URL

https://ij.start.canon/TS3440

or scan the code with your mobile device

- Follow the instructions below if you do not have an internet connection.

1. Box Contents

• FINE cartridges

Color Black

Power Cord
- Setup CD-ROM
• Safety and Important Information
• Getting Started (this manual)

2. Removing Packing Materials

1 Remove the orange tape on the right and open the cover.

Diagram of a printer with red arrows indicating process flow (no text or symbols)

2 Remove the orange tape on the left.

Diagram of a printer internal structure with red arrows indicating flow direction (no text or symbols)

3 Close the cover.

Line drawing of a printer with a red arrow indicating a process or operation (no text or symbols present)

3. Turning on the Printer

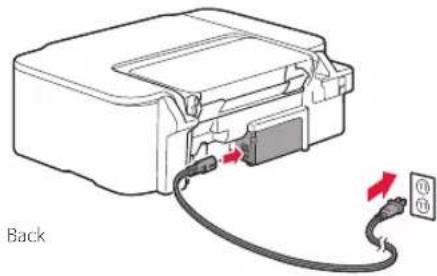

1 Connect the power cord.

Diagram of a device with cable and connector, showing connection to a wall-mounted power outlet (no text or symbols)

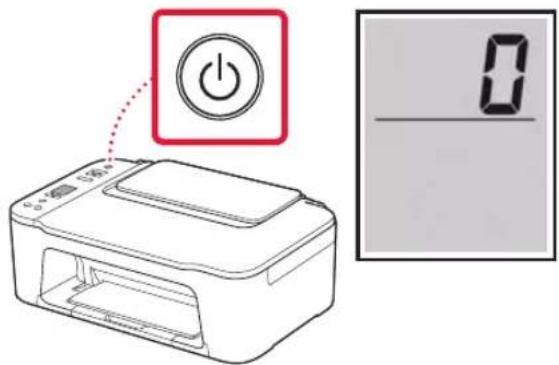

2 Press the ON button.

Diagram showing a printer with a power button and a 0-segment display, likely illustrating a digital status or status change.

Important

If another screen appears, see "If any of the following screens appear" on page 3 and follow the instructions.

Setting Up the Printer

4. Installing the FINE Cartridges

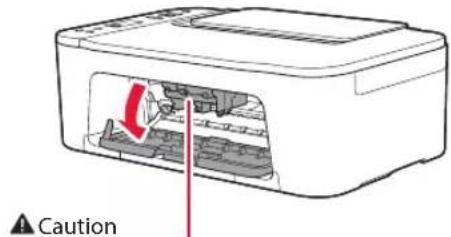

1 Open the cover.

Caution

Do not touch the FINE cartridge holder until it stops moving.

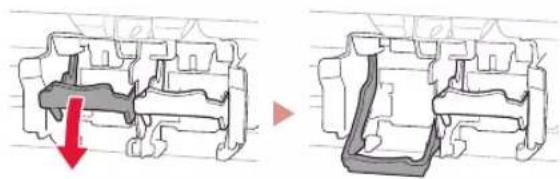

2 Lower the ink cartridge lock lever on the left-hand side.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

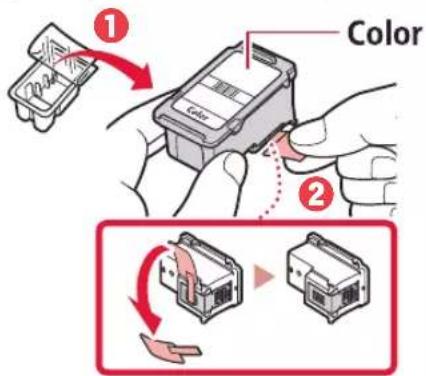

3 Remove the Color FINE cartridge from the package and remove the protective tape.

① Color ②

Important

• Do not touch the ink on the protective tape. It could stain your hands or surrounding objects.
• Do not touch the areas shown in the figure. Otherwise, the printer may not print correctly.

4 Insert the Color FINE cartridge in the FINE cartridge holder.

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols)

Important

Do not bump the FINE cartridge. Doing so may cause a malfunction.

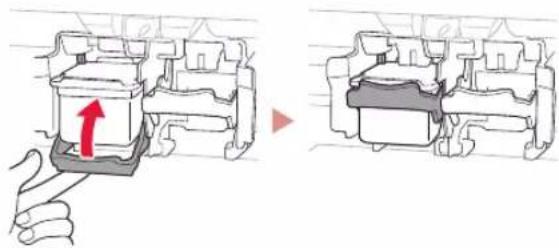

5 Raise the ink cartridge lock lever.

Diagram showing a hand pressing a component with a red arrow indicating direction, alongside a close-up of the component's internal structure.

6 Repeat steps 2 to 5 and install the Black FINE cartridge on the right-hand side.

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

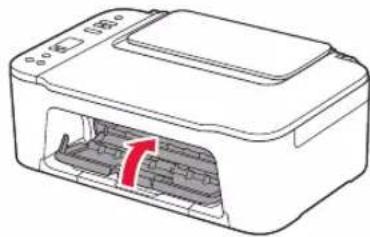

7 Close the cover.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

8 Check that the following screen appears.

0 —

Important

If E > 0 > 4 appears on the screen, see "If any of the following screens appear" on page 3 and follow the instructions.

Select the connection method that best matches how you will use the printer.

• To use the printer without connecting to any other devices

→ Setup is now complete.

• To use the printer connecting to a computer or smartphone

→ Proceed to the next page.

If any of the following screens appear

Numbers or letters

Check the screen, and then follow the corresponding instructions below.

Install the FINE cartridges.

→ "4. Installing the FINE Cartridges" on page 2

Protective material remaining.

→ "2. Removing Packing Materials" on page 1

FINE cartridges are not installed correctly.

→ "4. Installing the FINE Cartridges" on page 2

For all other cases, refer to the Online Manual.

Setting Up the Printer

What device are you connecting?

Computer Smartphone

Computer and smartphone

5-a

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from your computer.

https://ij.start.canon

2 Select Set Up.
3 Enter your printer's model name and click Go.
4 Click Start.
5 Click (B) Connecting to a Computer/Smartphone.

• The following steps are for Windows users.

6 Click Download.
7 Run the downloaded file.

• Follow the on-screen instructions.
• These operations may take some time.
• To connect to a smartphone as well, see "5-b. Connecting to a Smartphone" on page 5.

Using the Setup CD-ROM

Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install the printer driver.

5-b

Connecting to a Smartphone

If you are using multiple smartphones, perform these steps on each smartphone.

1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.

• Search for "Canon PRINT" in App Store, or Google Play.

- Access the Canon website to download the app.

2 Open your smartphone's Wi-Fi settings. Check that the network name (SSID) that starts with "Canon_ij_" appears.

(Example of iOS screen)

Settings Wi-Fi Wi-Fi Canon_ij

The network name (SSID) that starts with "Canon_ij_"

• If "Canon_ij_" appears - Proceed to step 3.
• If "Canon_ij_" does not appear - Proceed to step

3 Tap the network name (SSID) that starts with "Canon_ij_".
4 Open the installed app, and follow the on-screen instructions in the app to add your printer.

Once you have added your printer, you can print from your smartphone.

To print photos, see "Loading Paper" on page 6.

Loading Paper

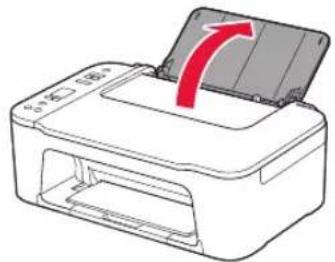

1 Open the paper support.

Illustration of a printer with an open lid and red arrow indicating rotation (no text or symbols)

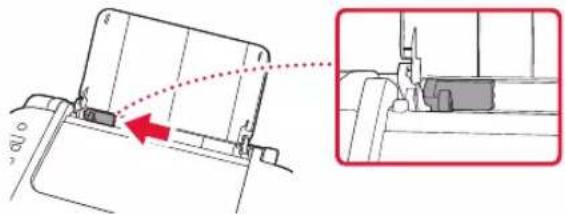

2 Slide the paper guide to the left.

Diagram of a mechanical component with a red arrow indicating direction, showing internal structure and assembly (no text or symbols)

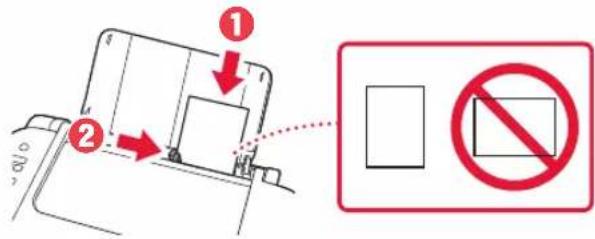

3 Load several sheets of paper against the right edge with the print side facing up and align the paper guide to the width of the paper.

Diagram showing two labeled components (① and ②) with arrows indicating movement, alongside a prohibition symbol.

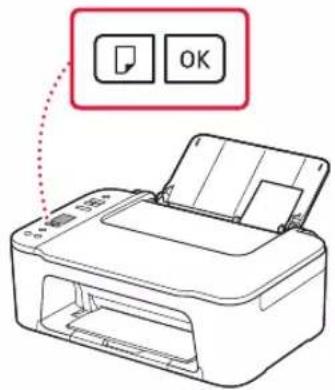

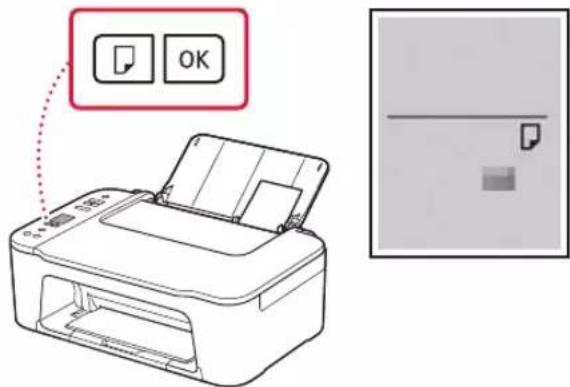

4 Press the Paper Select button, select a paper size, and then press the OK button.

Diagram showing printer operation with 'OK' button and blank sheet, alongside a separate image of a printer.

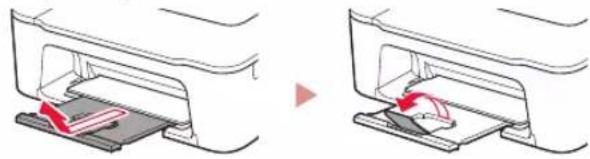

5 Extend the paper output tray, and open the output tray extension.

Two-step diagram showing a printer's internal structure before and after assembly, with no visible text or symbols.

- Look at it from the side to confirm it looks like the diagram.

Line drawing of a mechanical component or housing with handle and base (no text or symbols)

If Print Results Are Unsatisfactory

Perform Print Head Alignment if straight lines are crooked or colors are inconsistent, or print results are otherwise not what you expected.

For details, click Maintenance on the Online Manual and refer to If Printing Is Faint or Uneven > Aligning the Print Head. Refer to the back cover for how to access the Online Manual.

■ Lines Are Misaligned

■ Uneven or Streaked Colors

Configuration de l'imprimante

Diagram of a printer with red arrows indicating process flow (no text or symbols)

Diagram of a printer's internal structure with a red arrow indicating compression or disassembly (no text or symbols present)

3 Fermez le capot.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Diagram showing a printer with a power button and a 0-segment display, likely illustrating a digital control or status.

Important

Attention

Diagram showing a mechanical component before and after assembly, with a red arrow indicating a downward motion (no text or symbols present)

① Color ②

Important

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols)

Important

Diagram showing a hand pressing a component with a red arrow indicating direction, before and after assembly.

Diagram of a mechanical component with two stacked parts, one highlighted in gray (no text or symbols)

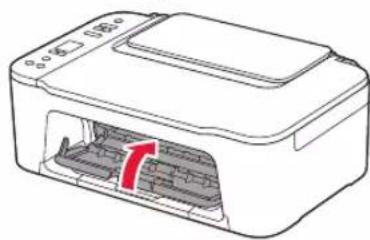

7 Fermez le capot.

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Illustration of a printer with a red arrow indicating the process (no text or symbols present)

Technical diagram showing a mechanical assembly with a red arrow indicating direction, no visible text or symbols

Diagram showing a device with labeled components and a prohibition symbol, likely illustrating a mechanical or electrical hazard.

Diagram showing printer operation with OK button and blank sheet, alongside a separate image of a printer.

Diagram showing two steps of a printer or printer device with red arrows indicating motion, no text or symbols present.

Line drawing of a rectangular container with side handles (no text or symbols)

Simple geometric diagram with a horizontal line and two small squares (no text or symbols)

Diagram of a printer with two buttons labeled 'OK' and a document icon, showing a paper airplane sketch.

4

1 افتح دعامة الورق.

Illustration of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with a red arrow indicating direction, no visible text or symbols

Diagram of a printer printer with a paper feeding into a slot (no text or symbols)

Illustration of a printer with a paper feeding into a slot (no text or symbols visible)

Line drawing of a rectangular container with a side handle and two curved handles extending outward (no text or symbols)

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or process, possibly illustrating a mechanical or electrical assembly.

Two prohibition symbols: a blank rectangle and a red circle with a diagonal line.

3

三

Simple line drawing of a smartphone inside a rounded rectangle (no text or symbols)

Diagram of a mechanical component with a red arrow pointing to a specific part (no text or symbols present)

Diagram illustrating a mechanical component being adjusted to form a larger part, with a red arrow indicating the direction of change.

Line drawing of a printer with internal circuitry and a red arrow indicating a component (no text or symbols)

Diagram of a printer with internal components and a red arrow indicating a specific part (no text or symbols present)

Diagram showing two mechanical component cross-sections with a red arrow indicating a downward motion (no text or symbols present)

① Color ②

3

三

Line drawing of a printer with internal structure and a red arrow indicating a component (no text or symbols)

1. تشغيل الطبعة

Diagram of a printer with red arrows indicating process flow (no text or symbols)

Diagram of a printer with internal structure and red arrow indicating motion (no text or symbols)

Товарные знаки

• Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
• App Store is a trademark of Apple Inc., registered in the U.S. and other countries.
  • Google Play is a registered trademark of Google LLC.

Marques

https://ij.start.canon
