USER MANUAL CT718L1W0 SIEMENS

IQ700: CT7..., CT9...

Simple white line drawing of a stylized yin-yang symbol on dark background (no text or symbols)

Exploded view diagram of a refrigerator internal components with numbered labels

3

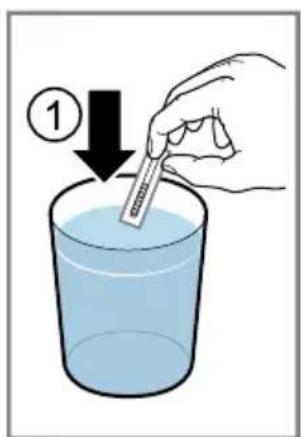

Diagram showing a hand pouring liquid into a glass with a labeled step indicator (1) pointing to the drop.

4

Diagram of a mechanical or electrical component with labeled parts 1 and 2, showing directional arrows indicating flow or movement.

5

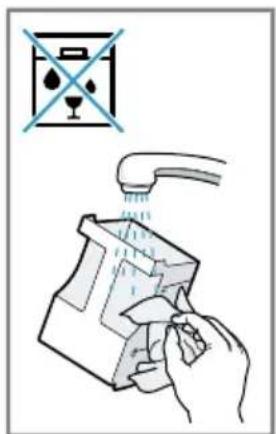

Diagram showing a hand washing a water bottle with a faucet, accompanied by a crossed-out refrigerator icon.

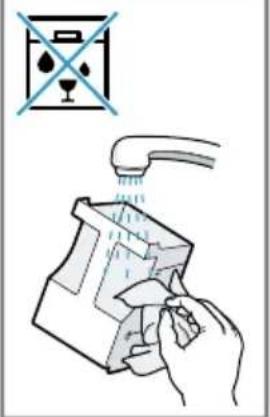

Diagram showing a hand washing a container with a water drop, accompanied by a cross symbol indicating the chemical process.

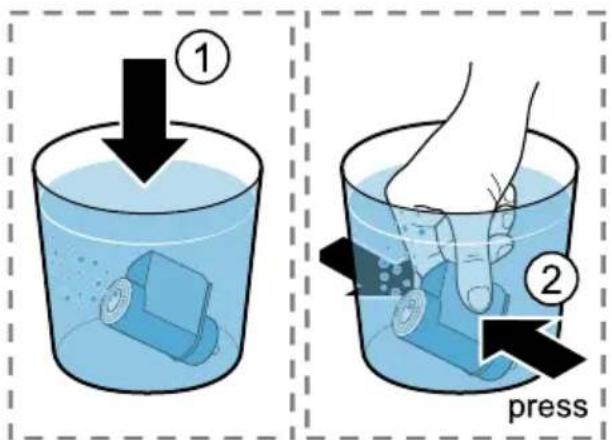

① press ②

6

Diagram illustrating a mechanical device operation with labeled components and directional arrows indicating rotation and assembly steps.

7

Diagram showing a kitchen sink with water being washed, and a washing machine with numbered arrows indicating process steps.

8

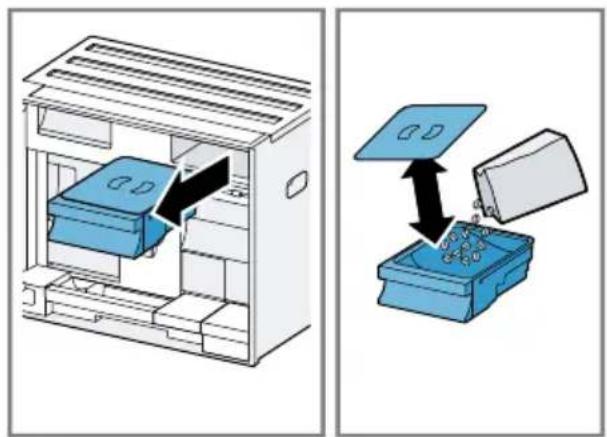

Diagram showing a device with a blue box inside a storage unit and its corresponding internal component being inserted into a blue container.

9

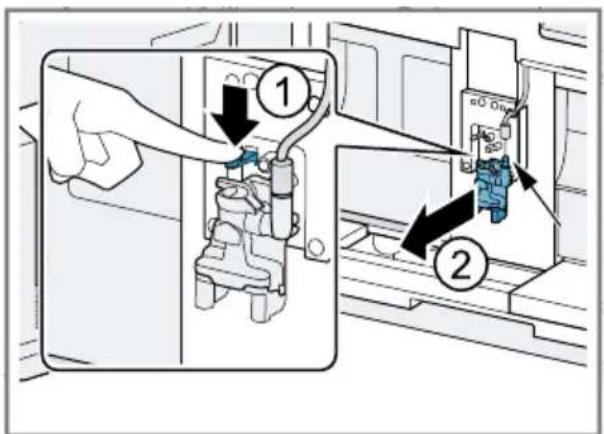

Diagram of a mechanical device interior showing internal components and a blue box with an arrow indicating direction (no text or symbols present)

10

Diagram showing a mechanical assembly with labeled parts, including a hand operating a component and a device with arrows indicating direction.

The image is too blurry to recognize any text content.

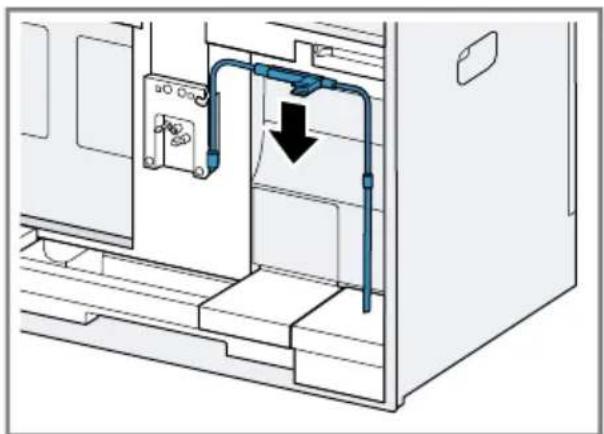

Technical diagram of a mechanical or electrical device interior showing internal components and a downward arrow indicating a specific connection (no text or symbols present)

12

Diagram illustrating a mechanical assembly process with directional arrows and component placement, alongside a hand holding a device.

The image is too blurry to recognize any text content.

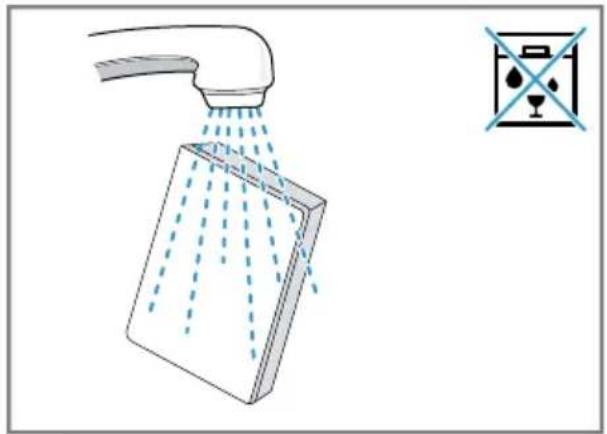

Diagram showing a showerhead spraying water with a showerhead and a water level indicator (no text or symbols)

14

Diagram illustrating a shower system with labeled components and a checkmark indicating inspection or clearance.

The image is too blurry to recognize any text content.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating movement or flow.

The image is too blurry to recognize any text content.

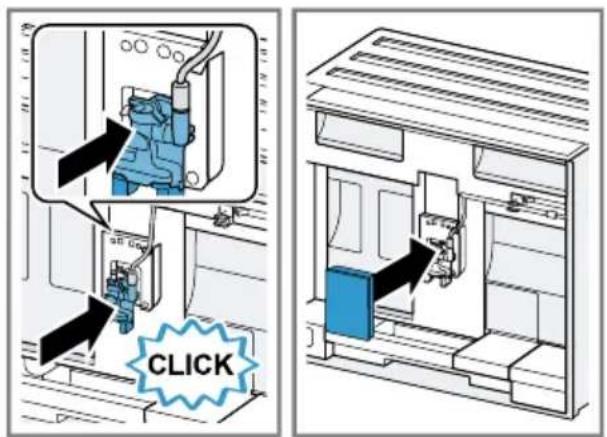

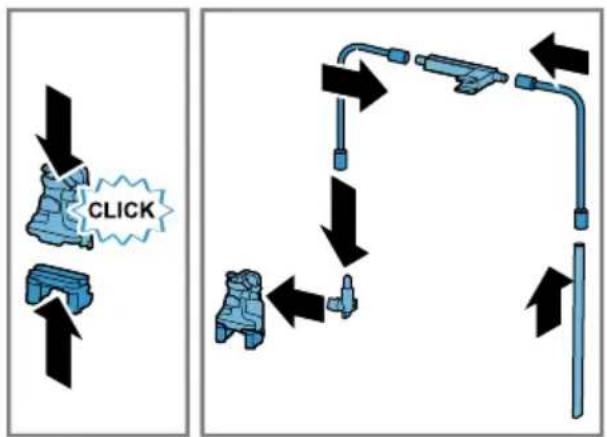

CLICK

18

Diagram illustrating a mechanical or fluidic process with numbered components and directional arrows indicating flow or movement.

The image is too blurry to recognize any text content.

Illustration of a kitchen sink with water spray and a hand pump, showing liquid transfer from a bottle to a lid (no text or symbols)

20

The image is too blurry to recognize any text content.

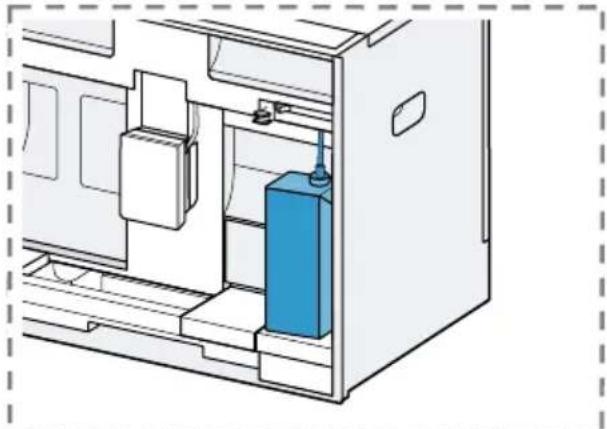

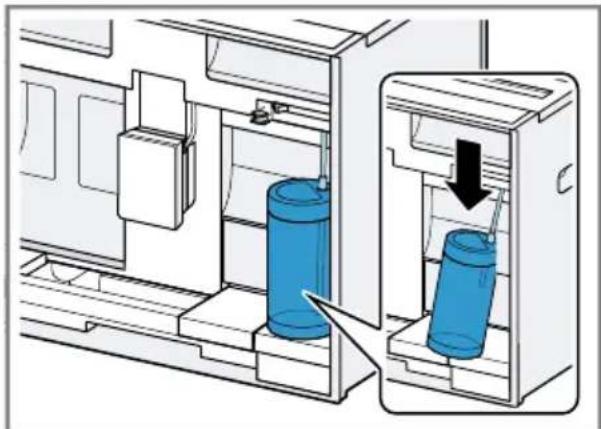

Diagram of a refrigerant unit with two blue cylindrical tanks inside, showing internal compartments and a downward arrow indicating flow or movement (no text or symbols present)

22

Diagram of a refrigerator interior showing internal compartments and a blue cylindrical container (no text or symbols)

The image is too blurry to recognize any text content.

Technical diagram showing a device interior with labeled components and an inset view of a device inside.

24

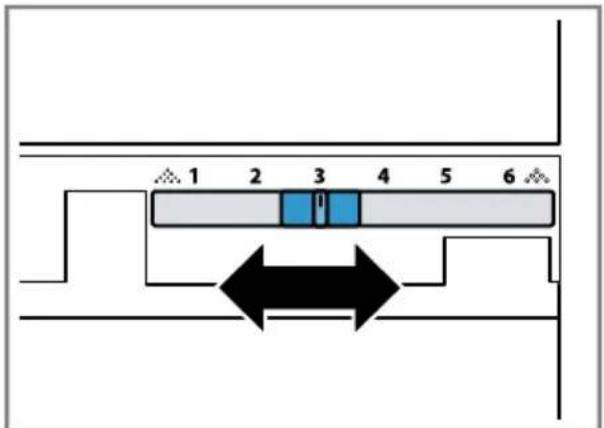

1 2 3 4 5 6

The image is too blurry to recognize any text content.

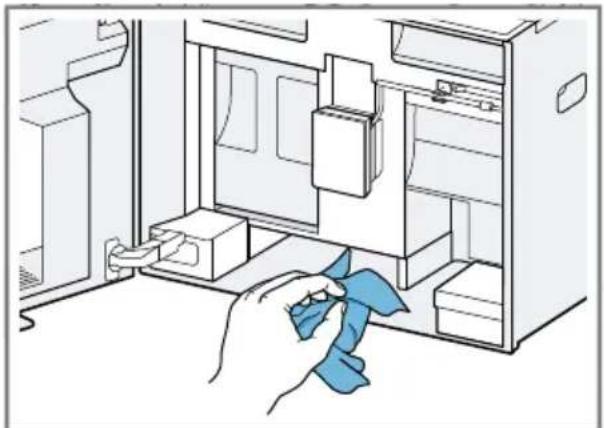

Architectural diagram showing a room interior with furniture and two blue 3D blocks with arrows indicating movement or assembly (no text or symbols)

26

Line drawing of a hand cleaning a refrigerator interior with a blue cloth (no text or symbols)

27

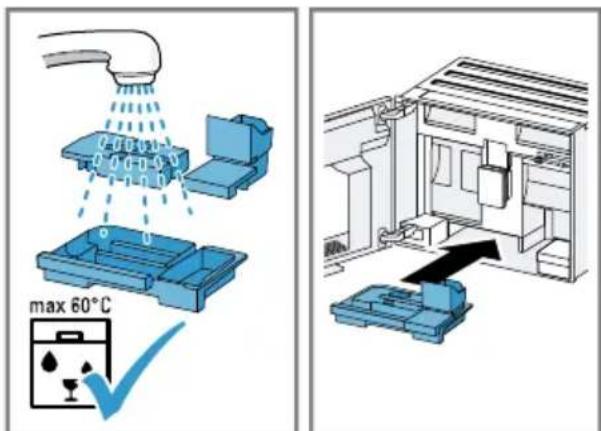

max 60°C

28

Illustration of a hand cleaning a window with a blue cloth, showing a tool interacting with the window (no text or symbols present)

29

QR code image containing encoded data, no visible human-readable text

Inhaltsverzeichnis

1 Sicherheit 9

QR code image containing encoded data, no visible human-readable text

Four symbolic illustrations: a rolled-up document, a rectangular block with X marks, a rolled-up dough, and a textured bread-like object (no text or symbols present)

Tipps

Further information and explanations are available online:

QR code image containing encoded data, no visible human-readable text

Table of contents

1 Safety...... 42

1.1 General information...... 42
1.2 Intended use.... 42
1.3 Restriction on user group...... 42
1.4 Safe installation 42
1.5 Safe use 43

2 Preventing material damage .... 46

3 Environmental protection and saving energy...... 46

3.1 Disposing of packaging ..... 46

3.2 Tips for saving energy...... 46

4 Installation and connection..... 46

4.1 Scope of delivery.... 46
4.2 Installing and connecting the appliance.... 47
4.3 Connecting the appliance to the electricity supply..... .. 47

5 Familiarising yourself with your appliance.... 47

5.1 Appliance 47
5.2 Control panel.... 48
6 Accessories...... 48

7 Before using for the first time .. 49

7.1 Preparing and cleaning the appliance.... 49
7.2 Checking the water hardness.... 49
7.3 Overview of water hardness levels 50
7.4 Water filter ^1 50

7.5 Performing initial start-up ..... 51
7.6 General information...... 51

8 Basic operation 51

8.1 Switching the appliance on or off 51
8.2 Dispensing beverages ..... 52
8.3 doubleShot and tripleShot..... 52
8.4 Slow Brew and Cold Brew ..... 52
8.5 Dispensing a coffee beverage with milk 52
8.6 Dispensing two cups at once.. 53

9 Grinder.... 53
9.1 Setting the grinding level...... 53

10 Milk container shelf.... 54

10.1 Using the milk container shelf.... 54
10.2 Using your own milk container ^1 54

11 Childproof lock.... 54

11.1 Activating the child-proof lock.... 54
11.2 Deactivating the childproof lock.... 54

12 Favourites.... 54

12.1 Creating favourites from Favourites menu.... 54
12.2 Create favourites from Classic or coffeeWorld...... 55
12.3 Changing a favourite...... 55
12.4 Deleting a favourite 55
12.5 Sorting favourites 55

13 Home Connect 55

13.1 Setting up the Home Connect app 55
13.2 Setting up Home Connect..... 56
13.3 Home Connect settings...... 56
13.4 Data protection.... 56

14 Basic settings.... 57

14.1 Changing the basic settings.... 57
14.2 Overview of the basic settings.... 57

15 Cleaning and servicing...... 59

15.1 Dishwasher-safe components.... 59
15.2 Cleaning agent 59
15.3 Cleaning the appliance ..... 60
15.4 Cleaning the drip tray and coffee dregs container ..... 60
15.5 Cleaning the milk container .. 61
15.6 Service programmes...... 61

16 Troubleshooting...... 63

17 Transportation, storage and disposal 68

17.1 Activating frost protection ..... 68
17.2 Disposing of old appliance ... 68

18 Customer Service...... 68

18.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) 68

19 Technical specifications...... 69

19.1 Information regarding Free and Open Source Software... 69

20 Declaration of Conformity ..... 69

20.1 Statement of Compliance for Great Britain.... 70

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ for preparing hot drinks.
■ To make cold-brewed drinks.
■ in private households and in enclosed spaces in a domestic environment.
■ up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safe installation

⚠ WARNING – Risk of electric shock!

Incorrect installation is dangerous.

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

▶ Always use the supplied power cable for the new appliance.
- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
- The protective conductor system of the domestic electrical installation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 68

Improper repairs are dangerous.

- Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

- If the power cord or the appliance power cable of this appliance is damaged, it must be replaced with a special power cord or special appliance power cable, which is available from the manufacturer or its Customer Service.

1.5 Safe use

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.

en Safety

▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of fire!

The appliance will become hot.

▶ Ventilate the appliance adequately.
▶ Never operate the appliance with the cupboard door closed. It is dangerous to use an extended power cord and non-approved adapters.
- Do not use extension cables or multiple socket strips.
- Only use adapters and power cords approved by the manufacturer.
- If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

WARNING – Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
▶ After use, allow hot appliance parts to cool down before touching.

⚠ WARNING – Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.

A remote start via the Home Connect app while the appliance is unattended may cause scalding to third parties.

- Do not reach under the beverage outlet when dispensing drinks.

- Keep persons, particularly children, away from the appliance.

⚠ WARNING – Risk of injury!

Improper use of the appliance may endanger the user.

- To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

▶ Be careful of your fingers when closing the appliance door.

The grinder rotates.

▶ Never reach into the grinder.

WARNING – Danger: Magnetism!

Caution: Magnetism!

Warning for wearers of pacemakers

The appliance contains permanent magnets. They may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ People with electronic implants must stand at least 10 cm away from the appliance and appliance door.
- Keep a minimum distance of 10 cm from the water tank, milk container, coffee dregs container, beverage outlet cover, beverage dispenser, beverage outlet, milk system holder, brewing chamber cover and brewing unit.

WARNING – Risk of harm to health!

Soiling on the appliance may be harmful to health.

- To ensure hygiene, follow the cleaning instructions for the appliance.

Water from the hot water circuit can be harmful to health.

- Only ever use the appliance with fresh, cold, non-carbonated drinking water.

2 Preventing material damage

ATTENTION!

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

▶ Use the appliance in frost-free rooms only.
▶ If the appliance has been transported or stored below 0 °C, wait 3 hours at room temperature before starting it up.

▶ After plugging in, always wait approx. 5 seconds.

Improper installation may cause material damage.

- Observe the installation instructions for the appliance installed above or below.

- When installing the appliance above a warming drawer, observe a niche height of 590 mm.

Unsecured units may fall over.

- Secure units to the wall using a standard bracket.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

3.2 Tips for saving energy

If you follow these instructions, your appliance will use less energy.

Set the interval for automatic switch-off to the smallest value.

√ If the appliance is not being used, it will switch itself off earlier.
→ "Basic settings", Page 57

Do not interrupt the dispensing process prematurely.

√ The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

√ Limescale deposits increase the appliance's energy consumption.

4 Installation and connection

4.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

→ Fig. 1

A Fully automatic coffee machine

B Milk container

C Installation instructions

D Water filter ^1

E Water hardness testing strip

F User manual

^1 Depending on the appliance specifications

4.2 Installing and connecting the appliance

The installation instructions describe various models that may differ with regard to scope of supply and installation.

Note: Observe the information on safety → Page 42 and preventing material damage → Page 46.

- Install and connect the appliance properly in accordance with the installation instructions enclosed in the box.

4.3 Connecting the appliance to the electricity supply

1. Insert the non-heating appliance plug of the power cable into the appliance.
2. Insert the mains plug of the appliance's power cable in a socket nearby.
3. Check the mains plug is inserted properly.

5 Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

Exterior view

→ Fig. 2
1	Shelf, removable
2	Lights

3	Control panel
4	Beverage outlet, height-adjustable
5	Cup lighting
6	Appliance door
7	Beverage dispenser
8	Beverage outlet cover

Interior view

→ Fig. 3
9	Collecting tray
10	Rating plate
11	Water tank with lid
12	Mains switch
13	Accessory drawer
14	Bean container with lid
15	Interior lighting ^1
16	Grinding level adjustment
17	Brewing chamber cover
18	Brewing unit
19	Milk container
20	Milk system
21	Milk container shelf, removable
22	Coffee dregs container
23	Drip tray
24	Drip tray cover

^1 Depending on the appliance specifications

5.2 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

	Switch the appliance on or off.
Favour-ites	Select saved beverages with personal settings. → Page 54
Classic Select standard bever-ages.
coffee-World	Select basic beverages which can be extended in conjunction with Home Connect.
Care & maintenance	Call up service pro-grammes.
	Open or exit the set-tings.

Information

	Customer service
	Appliance is connected to Home Connect.
	Appliance is not connected to Home Connect.
	Appliance is not connected to the server.

=	Playlist function is activated in the Home Connect app.
	Origin
	Check the milk container.
	Add beans.
	Fill with water.

Beverage settings

∅	Strength
	Quantity
	Share of milk
	Temperature
	Aroma

Operation

←	Go back in the menu.
☆	Add favourite.
★	Delete favourite.
i	Call up information about the respective mode.
	Dispense two cups.

Quick selection

	Activate or deactivate childproof lock.
	Switch WiFi on or off.

6 Accessories

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer service
Cleaning tablets TZ80001A		00312097
	TZ80001B	00312098
Descaling tablets TZ80002A		00312094
	TZ80002B	00312095
Water filter TZ70003 17004340
Water filter pack of 3 TZ70033A 17005980
Microfibre cloth - 00312289
Care set TZ80004A		00312105
	TZ80004B	00312106
Milk container made of glass - 12043068
Limit stop for 92° opening angle - 10020041
Power cord extension Europe, 5 m - 12022522

7 Before using for the first time

Prepare the appliance for use.

7.1 Preparing and cleaning the appliance

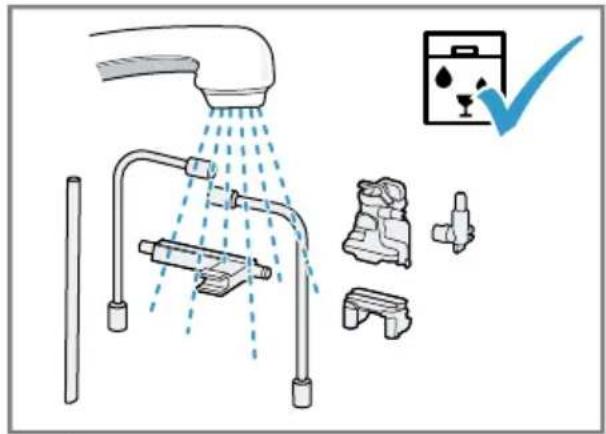

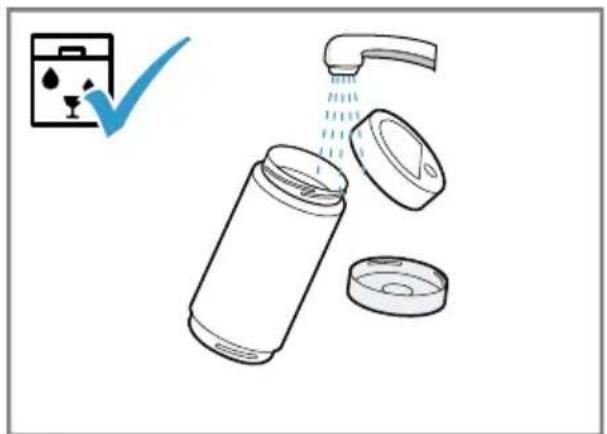

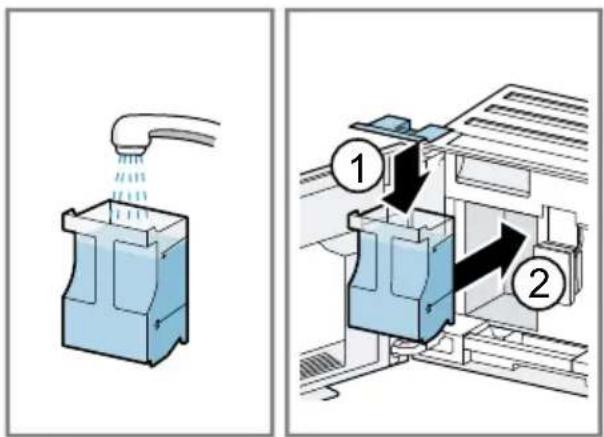

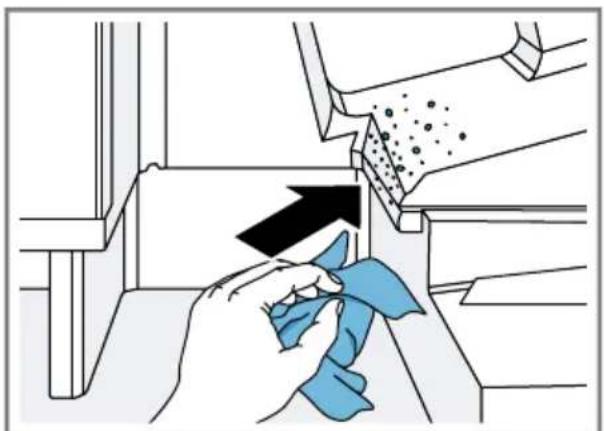

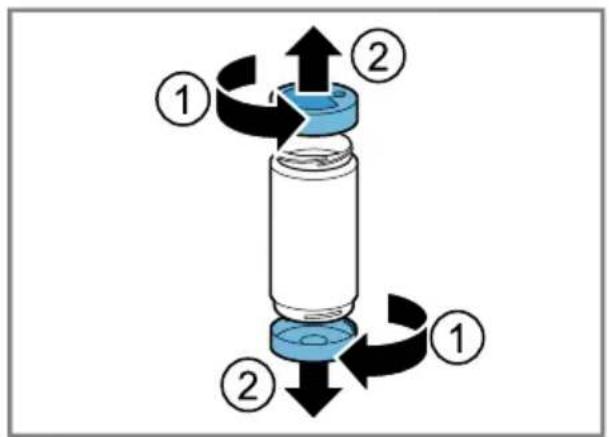

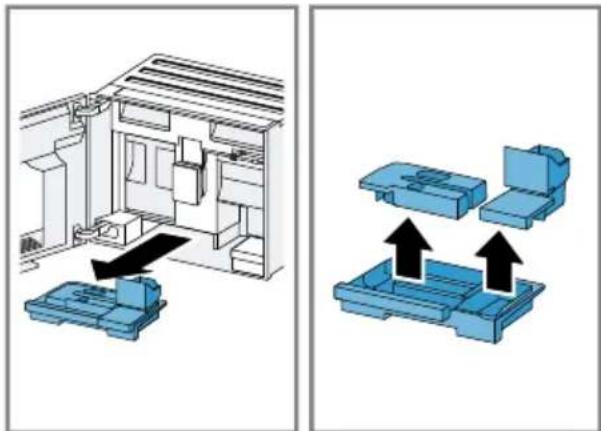

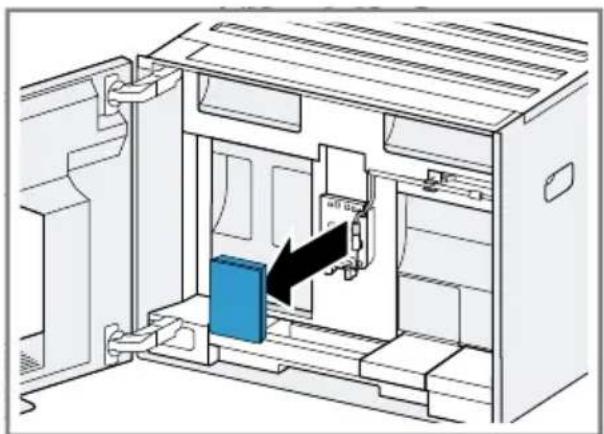

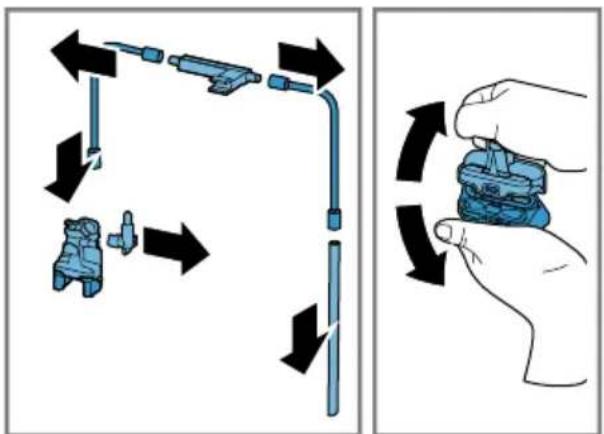

Clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

ATTENTION!

Unsuitable beans can block the grinder.

▶ Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
- Do not use glazed coffee beans.
- Do not use caramelised coffee beans.
- Do not use coffee beans that have been treated with additives containing sugar.
▶ Do not add instant coffee.

→ Fig. 4 - 23

Note: Fill the water tank with fresh, cold, non-carbonated drinking water every day.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place.

You can keep the coffee beans in the bean container for several days without them losing their aroma.

7.2 Checking the water hardness

It is important to set the water hardness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

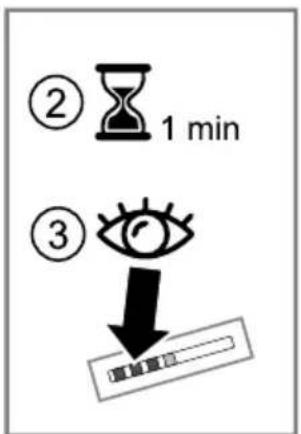

1. Briefly dip the test strip in fresh tap water.
2. Allow the water to drain off the test strip.
3. Read the water hardness off the test strip after 1 minute.
   → "Overview of water hardness levels", Page 50

Note: If a water softening system is installed in your house, you can select "Water softening system".

Tips

■ You can change the settings at any time.
→ "Basic settings", Page 57

en Before using for the first time

■ If the water hardness exceeds 21 °dH (3.8 mmol/l), you can fill the water tank with prefiltered water to reduce limescale deposits.

7.3 Overview of water hardness levels

The table shows allocation of the levels to the different degrees of water hardness.

Setting Ring setting on INTENZA filter		German degrees in °dH	Total hardness in mmol/l
1 A 1 - 7 < 1.3
2 A 8 - 14 1.3 - 2.5
3 B 15 - 21 2.5 - 3.8
4^1	C 22 - 30 > 3.8
^1 Factory setting

7.4 Water filter ^1

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

The limescale content of the water influences the aroma and crema of coffee. There is an aroma ring on the underside of the BRITA INTENZA water filter. Turn the aroma ring to set the optimum aroma level for your mains water.

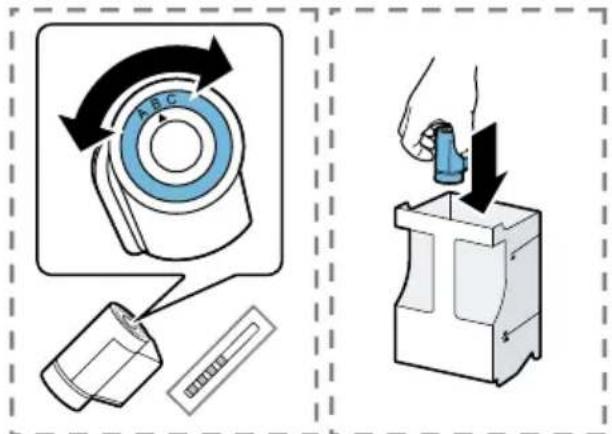

Inserting the water filter

ATTENTION!

Possible damage to the appliance due to limescale build-up.

• Change the water filter in good time.
  ▶ Change the water filter after 2 months at the latest.
  ▶ Observe the display messages.

• Press "Care & maintenance".

• Press "INTENZA filter" and follow the instructions on the display.

Changing or removing the water filter

You can also operate your appliance without a water filter.

1. Press "Care & maintenance".
2. Press "INTENZA filter".
3. Press "Replace" or "Remove" and follow the instructions on the display.

Notes

■ Dispose of spent water filters according to local regulations.
■ Always store replacement water filters in a cool and dry place in their original sealed packaging.

Tips

■ You should also change your water filter for reasons of hygiene.
■ With a water filter you need to de-scale your appliance less frequently.
■ If you use a water filter, your coffee will be more flavoursome.

■ If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water.
■ The water filter can be purchased from retailers or customer service. → "Accessories", Page 48

7.5 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for first use. First use appears when switching on for the first time or after resetting to the factory settings.

1. Open the appliance door.

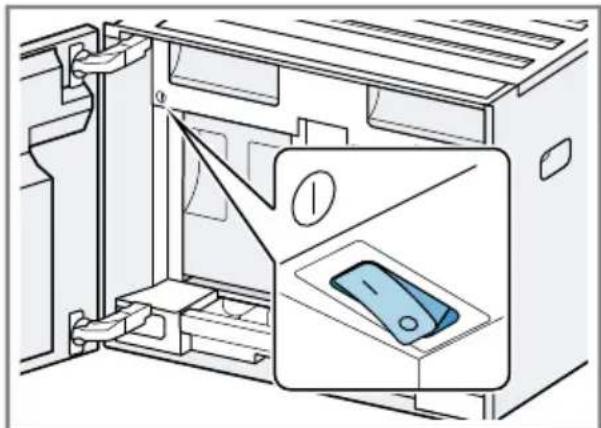

2. Check that the mains switch is set to I.

→ Fig. 24

1. Close the appliance door.

2. Press to switch the appliance on and wait until the appliance has rinsed.

3. Follow the instructions on the display.

√ The display will guide you through the programme.

Tip: To call up brief information, press ⓘ

Notes

■ If you want to set up Home Connect now, follow the instructions in the Home Connect app.
→ "Setting up Home Connect", Page 56
■ If "Demo mode" is selected, only the displays will work. You cannot dispense a beverage or run a programme.

7.6 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

■ The appliance has been programmed at the factory with standard settings for optimum operation.
■ The integrated fan switches on each time a beverage is dispensed and switches off again after around 5-7 minutes.
■ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level. → "Setting the grinding level", Page 53
■ If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings. → Page 57
■ The first beverage will not yet have its full aroma if:
- You are using the appliance for the first time.
- You have run a service programme.
- You have not used the appliance for a long time.
Do not drink the beverage.

8 Basic operation

8.1 Switching the appliance on or off

Notes

■ Do not press the power switch while the appliance is operating.
■ Before switching off the power switch, switch the appliance off with ⏻. This is the only way for the appliance to rinse automatically.
▶ Press ⏻

When the appliance switches on, the display shows the logo. When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off.

8.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

• Leave drinks to cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.

Notes

■ With a number of settings your coffee is prepared in several steps. Wait until the process is fully completed.
■ If you are dispensing a beverage with milk, always connect a container filled with milk to the milk hose and suction pipe.
■ The milk container is specially designed for this appliance. Only use the milk container for storing milk in the refrigerator and in the house.
■ If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed.

8.3 doubleShot and tripleShot

Your appliance grinds the coffee two or three times.

To ensure that only pleasant-tasting and easily digestible aromatic substances are released, coffee beans are freshly ground and brewed again by the appliance.

The longer coffee brews, the more bitter substances and undesirable aromas are released. These bitter substances and undesirable aromas affect the taste and digestibility of coffee.

Note: The functions "doubleShot" and "tripleShot" depend on the beverage strength and beverage size selected.

8.4 Slow Brew and Cold Brew

Slow Brew and Cold Brew are slowly brewed beverages that your appliance dispenses in a pulsating beverage flow that is not continuous. This type of coffee preparation exists as a hot and a cold version. Dispensing of the beverage takes several minutes.

Note: Fill the water tank with fresh, cold, non-carbonated drinking water before dispensing drinks.

8.5 Dispensing a coffee beverage with milk

An example explains how to make a latte macchiato.

WARNING

Risk of burns!

The milk system can become extremely hot.

• Never touch the milk system when it is hot.
• Allow the hot milk system to cool down before touching it.

Requirements

■ The milk container is inserted.
■ The milk system is connected to the beverage dispenser.
■ The milk container has been filled with sufficient milk.

1. Place a glass underneath the beverage outlet.

2. Press "Classic".

3. Select and press the beverage symbol for latte macchiato.

4. Set the beverage parameters.

5. To change the strength, press ①

6. To change the per-cup quantity, press ☐.

7. To change the milk ratio, press

8. Press "Start".

9. To completely stop dispensing the beverage, press "Stop".

10. To only stop the current dispensing step, press "Skip".

√ The beverage is prepared and then runs into the glass.

Notes

■ If you do not change any settings for approx. 30 seconds, the appliance will exit settings mode.
■ The appliance saves the settings automatically.

Tips

■ You can also pre-heat cups before dispensing using hot water.
■ You can also use plant-based alternatives to milk, e.g. soya milk.
■ The quality of the milk froth depends on the type of milk or plant-based alternative used.

8.6 Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

Note: If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

1. Press the symbol for your desired drink.

2. Press

√ The display shows the setting.

1. Place two cups on the left and right underneath the beverage outlet.

2. Press "Start".

The drink is prepared in 2 steps. The beans are ground in 2 grinding operations.

√ The beverage is brewed and then runs into the cups.

1. Wait until the process is complete.

9 Grinder

Your appliance has an adjustable grinder, which you can use to customise the grinding level of your coffee beans.

9.1 Setting the grinding level

• Use the slider to set the grinding level to between very fine and very coarse
  → Fig. 25
  Only change grinding level setting slightly.
  The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level.

If the coffee is dispensed too quickly and with too little crema, set a finer grinding level.

10 Milk container shelf

Your appliance detects when there is a milk container on the shelf.

Note: If you are using the milk container supplied or a milk carton, the appliance detects this automatically.

10.1 Using the milk container shelf

1. Connect the milk container or milk carton and place it on the shelf.
2. Start dispensing.

Note: If the message "Please insert milk container." appears, dispensing is not possible.

10.2 Using your own milk container ^1

With certain appliance series, you can use your own milk container.

1. Put out your own milk container.
2. Tare your own milk container. → "Overview of the basic settings", Page 57 The appliance uses the weight to detect the quantity of milk in the milk container or the milk carton. If there is not enough milk in the milk container, a message will appear.

Note: If you use the standard milk container or a milk carton, the appliance detects this automatically.

11 Childproof lock

You can lock the appliance, to protect children against scalding and burns.

11.1 Activating the child-proof lock

Requirement: The appliance is switched on.

1. Press

1. Press

√ The childproof lock is activated.

11.2 Deactivating the child-proof lock

1. Press ⚙️
2. Press and hold for 4 seconds.

√ The childproof lock is deactivated.

12 Favourites

Save individual beverages as favourites so that you can dispense them more quickly.

A favourite is a beverage with personal settings. You can change the settings at any time.

Note: To exit the settings, press ← or start dispensing the beverage.

12.1 Creating favourites from Favourites menu

1. Press "Favourites".
2. Press +
3. Select a beverage.
4. Set the beverage parameters.
5. Press "Apply".
6. Enter the name.
7. Press "Save".

12.2 Create favourites from Classic or coffeeWorld

1. Select a beverage from "Classic" or "coffeeWorld".
2. Set the beverage parameters.
3. Press ☆
4. Enter the name.
5. Press "Save".

12.3 Changing a favourite

1. Press "Favourites".
2. Select favourite.
3. Make the changes.
4. Press
5. Press "Apply".

12.4 Deleting a favourite

1. Press "Favourites".
2. Select favourite.
3. Press ★
4. Press "Delete".

12.5 Sorting favourites

You can change the sequence of your favourites.

1. Press "Favourites".

2. Select favourite.

√ The favourite is highlighted and you can slide it with your finger.
√ The appliance saves the new sequence automatically.

Tip: You can also use the Home Connect app to create, change, delete, or sort favourites.

13 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status. The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi ^1 ) and to the Home Connect app.

The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tip: Please also follow the instructions in the Home Connect app.

Notes

■ Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 42
■ Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

13.1 Setting up the Home Connect app

1. Install the Home Connect app on your mobile device.

en Home Connect

1. Start the Home Connect app and set up access for Home Connect. The Home Connect app guides you through the entire login process.

13.2 Setting up Home Connect

Requirements

■ The Home Connect app has been installed on your mobile device.
■ The appliance is receiving signals from the WLAN home network (Wi-Fi) at its installation location.

1. Open the Home Connect app and scan the following QR code.

QR code image containing encoded data, no visible human-readable text

1. Follow the instructions in the Home Connect app.

13.3 Home Connect settings

Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings

You can find an overview of the Home Connect settings and network settings here.

Basic setting Selection Description
Home Connect assistant	Start Disconnect	Add mobile device.Disconnect appliance from network.
WiFi On	Off	Switch off the wireless module during long absences or to save energy.Note: In networked standby mode your appliance requires max. 2 W.
Remote start On	Off	Switch remote start on the appliance on and off.Note: With the Home Connect app only switch-off is possible.
Software update - Note: This setting is only available with a software update.

Note: When "WiFi" and remote start are switched on, 🔊 and □ appear on the display.

13.4 Data protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
■ The current software and hardware version of your appliance.
■ Status of any previous resetting to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

14 Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

14.1 Changing the basic settings

1. Press ⚙️

√ The display shows the list of basic settings.
2. Change the required basic setting.
√ The appliance saves the basic setting automatically.
3. To go back to the menu, press ←
4. To exit the basic settings, press ✗

Tip: To call up brief information, press ⓘ

14.2 Overview of the basic settings

You can find an overview of the basic settings here.

Language Set language.
Home Connect Home Connect assist-ant	→ "Setting up Home Connect", Page 56
Time Set the current time or auto-	matically display via Home Connect.
Date Set current date or display	automatically via Home Con-nect.
Display settings Display brightness Set the brightness in steps.
^1 Depending on the appliance specifications

	Clock display Set the clock display so it is limited or unlimited in terms of time or switch off. Note: If you do not limit the clock display in terms of time, the energy consumption will increase.
	Time Set the time display.
	Adjustment ■ Set the horizontal and vertical alignment of the display. ■ Adjust the optimisation and centring of the display to the viewing angle.
Sounds Button tone Switch sound off and on.
	Volume Adjust volume in steps.
	Welcome tune Switch sound off and on when the appliance is started.
	Signal tone Switch sound off and on.
Beverage setting Brewing temperature Set the brewing temperature.
	Milk sequence Select the sequence for milk and coffee.
	Latte macchiato pause	Select the pause between milk and coffee.
Appliance settings Automatic switch-off Set the time after which the appliance switches off.
	Water hardness Set the water hardness.
	Illumination brightness Adjust brightness of the illumination in steps.
	Milk container^1	Set milk carton or individual milk container. Note: If you use the standard milk container, the appliance automatically detects it.
Personalisation Start category Set the menu display after switching on, e.g. "Classic".
Factory settings Factory settings Reset appliance to factory settings.
Mode	Mode for demo purposes	Switch "Demo mode" on or off.
^1 Depending on the appliance specifications
Appliance information Beverage counter Display the number of beverages dispensed.
Cleaning information Time until the water filter should next be changed or a service programme started.
Version information Display appliance information.
Network information Display network information.
^1 Depending on the appliance specifications

15 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

15.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION!

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

- Follow the operating instructions of the dishwasher.

• Only clean dishwasher-safe components in the dishwasher.
• Only use programmes that do not heat the components above 60 °C.

Suitable:

■ Drip tray
■ Drip tray cover
■ Coffee dregs container
■ Collecting tray
■ Milk container with lid and base
■ Milk container shelf
■ Beverage dispenser
■ Milk system

Not suitable:

■ Water tank
■ Water tank lid
■ Brewing unit
■ Beverage dispenser cover
■ Brewing unit cover
■ Bean container
■ Bean container lid
■ Shelf

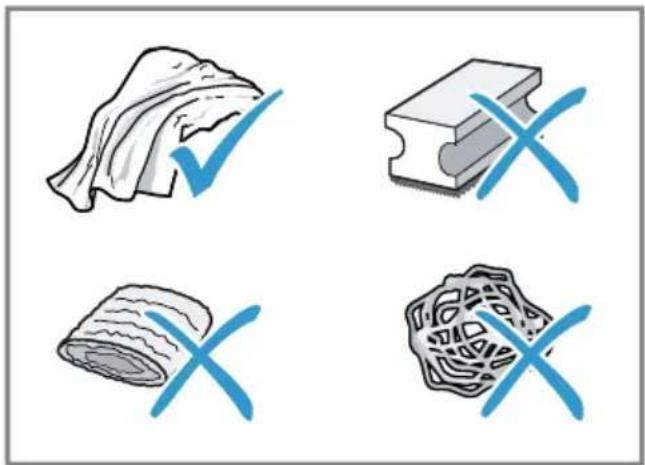

15.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appli-ance.

• Do not use harsh or abrasive detergents.
• Do not use cleaning agents containing alcohol or spirits.

en Cleaning and servicing

- Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning and descaling agents may damage the appliance.

• Do not use pure citric acid, vinegar or any vinegar-based agents to de-scale the appliance.
• Do not use descaling agent with phosphoric acid.
  ▶ Only use cleaning tablets and de-scaling tablets that have been specially developed for the appliance. → "Accessories", Page 48

Four abstract icons with checkmarks, no text or symbols present

Tips

■ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces.
■ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

15.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.

- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
▶ After use, allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss surfaces and the control panel with a microfibre cloth.
2. Clean the beverage outlet with a soft, damp cloth after beverages have been dispensed.
3. Rinse the water tank with fresh, clean water.
4. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

15.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits. Follow the illustrated instructions at the beginning of this manual.

→ Fig. 26 - 28

15.5 Cleaning the milk container

Clean the milk container regularly for hygiene reasons. You can clean the milk container in the dishwasher. Follow the illustrated instructions at the beginning of this manual.

→ Fig. 19 - 22

15.6 Service programmes

Use the service programmes if you insert or remove a water filter or in order to clean your appliance thoroughly. Your appliance will tell you when you need to perform a service programme, e.g. cleaning.

ATTENTION!

Improper cleaning and descaling or a delay in doing so may damage the appliance.

- Immediately perform the descaling process in accordance with the instructions.

• Only put cleaning tablets in the brew chamber of the brewing unit.
• Do not put descaling tablets or other products in the brew chamber of the brewing unit.

Notes

■ The display indicates the progress of the descaling or cleaning process.
■ If your appliance has been locked, you can only operate it again once the descaling process has been carried out.

Tip: In addition to the automatic rinsing process, regularly also remove and clean the brewing unit.

Using the service programmes

1. Press "Care & maintenance".
2. Press the symbol for the required programme.
   √ Display indicates progress of the programme.

Overview of service programmes

You can find an overview of the service programmes here.

Note: The start image shows the remaining number of beverages that can be dispensed until running the programme and the duration.

	INTENZA filter Insert, replace or remove the water filter.
	Cleaning milk system Rinse the milk system automatically.
	calc'nClean Combine cleaning and descaling. Remove residues of limescale and coffee from the pipes.
	Cleaning Remove residues of coffee from the pipes.
	Descaling Remove residues of limescale from the pipes.
	Cleaning brewing unit The display shows optimum cleaning of the brewing unit step by step.
	Cleaning beverage system	The display shows optimum manual cleaning of the beverage dispenser and milk system step by step.
	Frost protection Drain the pipes to protect the appli-ance during transport or storage.
	Special rinsing If a service programme is interrupted, e.g. due to a power failure, it will rinse itself automatically. The appliance is then ready for use again.

Tips

■ If you are starting the "Descaling" or "calc'nClean" programme, keep a container with a capacity of min. 0,5 l at the ready.
■ If you use a water filter, this will prolong the time until you have to run a service programme.
- You can combine "Descaling" and "Cleaning" with the "calc'nClean" service programme.

16 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  ▶ If the power cord or the appliance power cable of this appliance is damaged, it must be replaced with a special power cord or special appliance power cable, which is available from the manufacturer or its Customer Service.

Fault Cause and troubleshooting

Home Connect is not working properly.	Different causes are possible.► Go to www.home-connect.com.
Appliance only dispenses water, not coffee.	Empty bean container is not detected by the appliance.► Pour in coffee beans.
	Coffee shaft on brewing unit is blocked.► Clean the brewing unit.
	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly.1. Check whether the brewing unit is inserted correctly and is securely locked.2. Push the red lever up to the left.3. Insert the brewing unit cover.
Appliance is not dispensing milk froth.	Milk system is soiled.► Clean the milk system in the dishwasher.
	Milk tube not immersed in milk.► Use more milk.► Check whether the milk tube is immersed in the milk.

Heavy build-up of limescale in the appliance.

Fault Cause and troubleshooting
Appliance is not dispensing milk froth.	▸ Descale the appliance.
No milk intake by the milk system.	The milk system is assembled incorrectly.▸ Assemble the milk system correctly.
	Milk tube not immersed in milk.▸ Use more milk.▸ Check whether the milk tube is immersed in the milk.
Milk froth is too cold. Milk is too cold.▸ Use lukewarm milk.
Cold-brewed beverage is not cold enough.	Water in water tank is warm.1. Fill the water tank with fresh, cold, non-carbonated drinking water.2. You can add ice cubes to cool the beverage down even more.
Appliance is not dispensing hot water.	Beverage dispenser is soiled.▸ Clean the beverage dispenser in the dishwasher.
Appliance is not dispensing drinks.	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.▸ Firmly press the water filter straight down into the tank connection.
	Residues of limescale remover are blocking the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
There is dripping water on the inner floor of the appliance.	Drip tray was removed too soon.▸ Wait a few seconds after the last drink was dispensed before removing the drip tray.
There is brown water under the coffee grounds container or the drip tray.	Coffee grounds on the invisible side of the drip edge causes water to run under the coffee grounds container or the drip tray.1. Remove the drip tray and the coffee grounds container.2. Remove the brewing unit cover.3. Remove the coffee grounds on the drip edge.→ Fig. 29
Brewing unit cannot be removed.	Locking device cannot be released, brewing unit is jammed.► Switch the appliance off and back on after 3 minutes.
Grinder won't start. Appliance is too hot.1. Disconnect the appliance from the mains.2. Wait 1 hour so the appliance can cool down.
Grinder is not grinding any coffee beans despite full bean container.	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.► Descale the appliance.
Milk froth quality varies widely.	Milk froth quality depends on the type of milk or plant-based alternative used.► Optimise the result through the selection of the milk or vegetable-based drink type.
Coffee is not dispensed or has slowed to a trickle.Set quantity is not reached.	Grinding level is set too fine.► Set a coarser grinding level.
	Heavy build-up of limescale in the appliance.► Descale the appliance.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
	Appliance is soiled.► Clean the brewing unit.► Descale and clean the appliance.
Coffee has no crema. Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.► Use beans with a darker roast.
Coffee is too acidic. Grinding level is set too coarse. ▶ Adjust the grinder to a finer setting.
Coffee is too bitter. Grinding level is set too fine. ▶ Set a coarser grinding level.
Coffee tastes burnt. Grinding level is set too fine. ▶ Set a coarser grinding level.
Coffee grounds are not compact and are too wet.	The grinding level is not set optimally. ▶ Adjust the grinder to a coarser or finer setting.
	Coffee beans are too oily. ▶ Use a different type of bean.
Display shows "Please insert brewing unit."	Brewing unit is not inserted properly.1. Check whether the brewing unit is inserted correctly and is securely locked.2. Push the red lever up to the left.3. Insert the brewing unit cover.
Display shows "Please fill water tank." despite the fact that the water tank is full.	Water tank is wrongly inserted. ▶ Insert the water tank correctly.
	Carbonated water is in the water tank. ▶ Fill the water tank with fresh drinking water.
	Float is stuck in the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions.1. Rinse the water filter according to the instructions.2. Place the water filter into operation.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.
Display shows "Please fill water tank." despite the fact that the water tank is full.	2. Reinsert the filter.
	Water filter is old.► Insert a new water filter.
	Limescale deposits in the water tank are blocking the system.1. Clean the water tank thoroughly.2. Start the descaling programme.
Display shows "E61: Please clean brewing unit.".	Brewing unit is soiled.► Clean the brewing unit.
	Mechanism of brewing unit is stiff.► Clean the brewing unit.
Display shows "Incorrect voltage".	There are problems with the power supply.► Only operate the appliance at 220 - 240 V.
Display shows "Re-start appliance".	Appliance has a fault.1. Set the mains switch to and wait 60 seconds.2. Set the mains switch to J
Display shows calc'nClean very frequently.	Decalcified water still contains small amounts of lime.1. Insert a new water filter.2. Set the corresponding water hardness.
	Incorrect or too little descaling agent used.► When descaling, only use suitable tablets.
	Service programme has not been carried out in its entirety.► Start the "Special rinsing" service programme.→ "Service programmes", Page 61

17 Transportation, storage and disposal

17.1 Activating frost protection

Protect your appliance from frost during transport and storage.

ATTENTION!

Residues of liquid in the appliance may damage it during transport or storage.

- Empty the pipe system before transport or storage.

1. Run the "Frost protection" programme.

→ "Overview of service programmes", Page 61

1. Disconnect the appliance from the power supply.

17.2 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

18 Customer Service

Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

18.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

You can find the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

19 Technical specifications

Voltage 220-	240 V ~
Frequency 50 / 60 Hz
Connection rating 1500 W
Maximum static pump pressure	20 bar
Maximum capacity of water tank (without filter)	2,2 l
Maximum capacity of bean container	400 g
Length of the power cable	170 cm
Appliance height 45,5 cm
Appliance width 59,4 cm
Appliance depth 37,7 cm
Weight, empty 20,6 kg
Type of grinder Ceramic

This product contains light sources from energy efficiency classes D and F. These light sources are available as spare parts and may only be replaced by trained specialist staff.

19.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software.

The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your Home Connect app: "Profile -> Legal information -> Licence Information".¹ You can download the licence information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany.

The source code will be made available to you on request.

Please send your request to [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany.

Subject: „OSSRÉQUEST“

The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

20 Declaration of Con- formity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the

essential requirements and other relevant provisions of Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at siemens-home.bsh-group.com among the additional documents on the product page for your appliance.

Hereby, BSH Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements. ^1

A detailed Declaration of Conformity can be found online at siemens-home.bsh-group.com/uk/ among the additional documents on the product page for your appliance. ^1

2.4 GHz band (2400–2483.5 MHz): Max. 100 mW

5 GHz band (5150–5350 MHz +

5470-5725 MHz): max. 200 mW

BE BG CZ DK DE EE IE EL ES

FR HR IT CY LI LV LT LU HU

MT NL AT PL PT RO SI SK FI

SE NO CH TR IS UK (NI)

5 GHz WLAN (Wi-Fi): For indoor use only.

5 GHz WLAN (Wi-Fi): For indoor use only.

20.1 Statement of Compliance for Great Britain

The full Statement of Compliance according to the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 can be found online at www.siemens-home.bsh-group.com/uk/home among the additional documents on the product page for your appliance.

Product type

This statement of compliance covers the products described in this information for use whose model identifier

group is seen on the title page. The full model identifier is made up of the characters before the slash in the product number (E no.) which can be found on the rating plate. Alternatively, you can also find the model identifier in the first line of the UK Energy Label.

Name and address of manufacturer

This statement of compliance is prepared by the manufacturer.

The manufacturer, BSH Hausgeräte GmbH deems that it has complied with

■ provision 5.1-1 of ETSI EN 303 645 v2.1.1 and, where relevant, provision 5.1-2 of ETSI EN 303 645 v2.1.1;
■ provision 5.2-1 of ETSI EN 303645 v2.1.1;
■ provision 5.3-13 of ETSI EN 303645 v2.1.1.

Support period

BSH Hausgeräte GmbH will provide security updates that are necessary to maintain the main functions free of charge until at least 28/02/2034.

QR code image containing encoded data, no visible human-readable text

Indice

1 Sicurezza 74

8.3 doubleShot e tripleShot...... 86

8.4 Slow Brew e Cold Brew 86

8.3 doubleShot e tripleShot

8.4 Slow Brew e Cold Brew

QR code image containing encoded data, no visible human-readable text

Four symbolic icons: a rolled-up document, a block with X marks, a rolled-up cloth, and a textured object (no text or symbols)

Consigli

QR code image containing encoded data, no visible human-readable text

Table des matières

1 Sécurité.... 108

13.2 Configurer Home Connect

Conditions

QR code image containing encoded data, no visible human-readable text

Four hand-drawn icons showing different types of objects: a rolled paper, a block, a rolled cloth, and a textured object with X marks (no text or symbols)

Conseils

usagés (waste electrical and electronic equipment - WEEE).

QR code image containing encoded data, no visible human-readable text

Inhoudsopgave

1 Veiligheid.... 143

⚠ WAARSCHUWING – Kans op verstikking!

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

8 De Bediening in essen- tie

13.1 Home Connect app in-stellen

QR code image containing encoded data, no visible human-readable text

Four hand-drawn icons showing different types of objects: a rolled food item, a rectangular block, a rolled cake, and a patterned cake with blue X marks (no text or symbols)

Tips

QR code image containing encoded data, no visible human-readable text

Tabla de contenidos

1 Seguridad 176

13.2 Ajustar Home Connect

Requisitos

QR code image containing encoded data, no visible human-readable text

Four hand-drawn icons showing different types of household items: a towel, a block, a rolled-up cloth, and a patterned box, each with a blue checkmark (no text or symbols)

Consejos

QR code image containing encoded data, no visible human-readable text

Bmict

1 Безпека 211

8.3 doubleShot ta tripleShot

8.4 Slow Brew ta Cold Brew

QR code image containing encoded data, no visible human-readable text

Four hand-drawn icons showing different types of construction materials: a rolled sheet, a rectangular block, a rolled metal sheet, and a cross symbol (no text or labels)

Поради

QR code image containing encoded data, no visible human-readable text

İçindekiler tablosu

1 Güvenlik.... 246

8.3 doubleShot ve tripleShot

8.4 Slow Brew ve Cold Brew

QR code image containing encoded data, no visible human-readable text

Four symbolic illustrations: a rolled-up shell, a rectangular block with X marks, a rolled-up flatbread, and a textured flatbread (no text or symbols)

ipuçları

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

siemens-home.bsh-group.com

8001320618

(040611)

de, en, it, fr, nl, es, uk, tr
