USER MANUAL EQ700 classic TQ705D03 SIEMENS

Register your product on My Siemens and discover exclusive services and offers.

siemens-home.bsh-group.com/welcome

The future moving in.

2

Diagram showing a device with arrows indicating process flow, labeled with number 1 and directional arrows.

Diagram illustrating a process of lifting a device into a box, with numbered arrows indicating sequence.

CLICK

3

Diagram showing a hand pouring liquid into a glass with a label indicating step 1

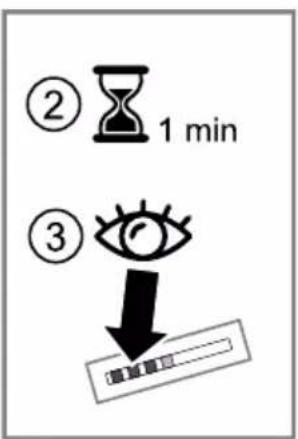

② 1 min ③ ↓

4

Illustration of a blue toolbox with arrows indicating upward movement, no text or symbols present

Illustration showing a hand cleaning a small bag with a water drop, accompanied by a safety symbol and a crossed-out device.

5

①

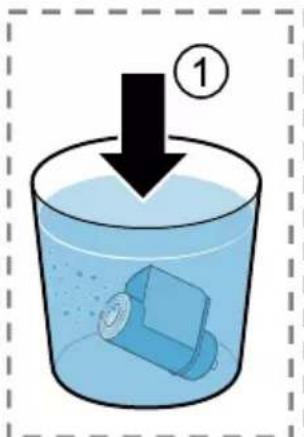

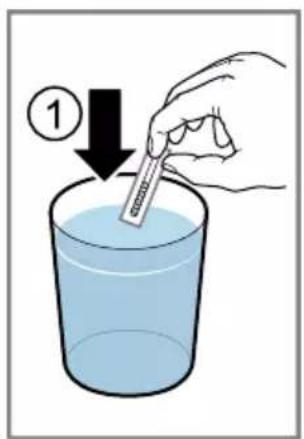

Diagram showing a hand pressing down on a blue liquid in a container with arrows indicating motion or pressure direction.

6

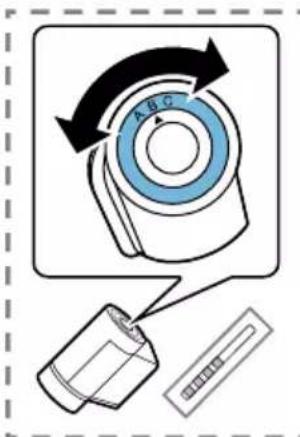

ABC

Illustration of a laboratory bag with a pipette inserted into it, no text or symbols present

7

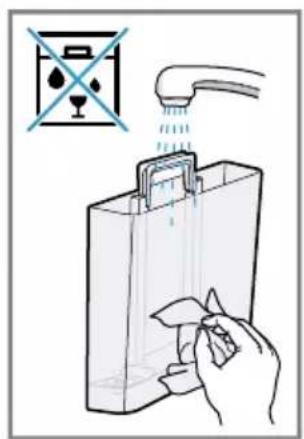

Illustration of a hand washing a small rectangular object with a faucet above it (no text or symbols)

Diagram showing a blue tool pressing down an open box with downward arrows indicating process flow or reduction.

8

Illustration of a kitchen appliance with a blue lid and black arrows indicating process (no text or symbols)

Line drawing of a printer with coins spilling out from its cover (no text or symbols)

9
10

Diagram illustrating a process with numbered steps and directional arrows, showing a laptop screen and a box labeled 'box' containing electronic components.

Mechanical component diagram showing a housing with internal parts and directional arrows indicating motion (no text or symbols)

11

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

12

Diagram illustrating a shower system with labeled components and a water level indicator

13

The image is too blurry to recognize any text content.

Diagram showing a mechanical component with highlighted parts and directional arrows, no text or symbols present.

15

Diagram showing a blue plastic device with internal components and directional arrows labeled ① and ②, indicating process flow or assembly.

16

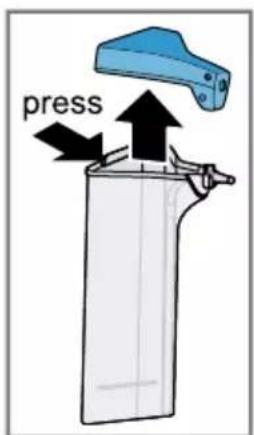

press

Simple line drawing of a container with a faucet and an upward arrow, no text or symbols present.

Simple diagram showing a pipe with a valve and an upward arrow, next to a vertical rod (no text or symbols)

17

Illustration showing a cleaning or disinfection procedure with a hand holding a spray bottle, water droplets, and a tool.

The image is too blurry to recognize any text content.

Diagram illustrating three steps of a water pump installation: inlet, outlet, and drain with downward arrows indicating flow direction.

19

CLICK

The image is too blurry to recognize any text content.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

21

Diagram illustrating a water tap and pipe system with labeled components and directional arrows indicating flow or movement.

The image is too blurry to recognize any text content.

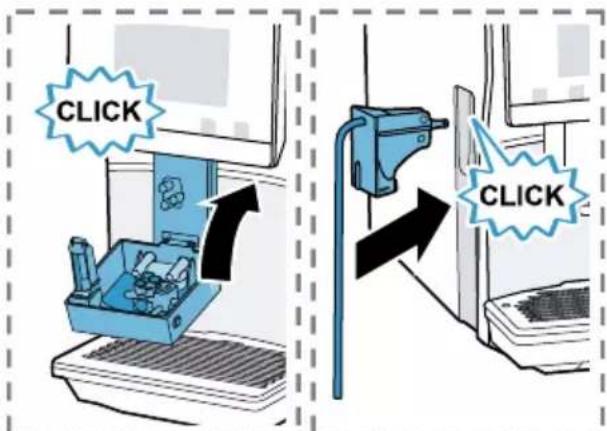

CLICK CLICK

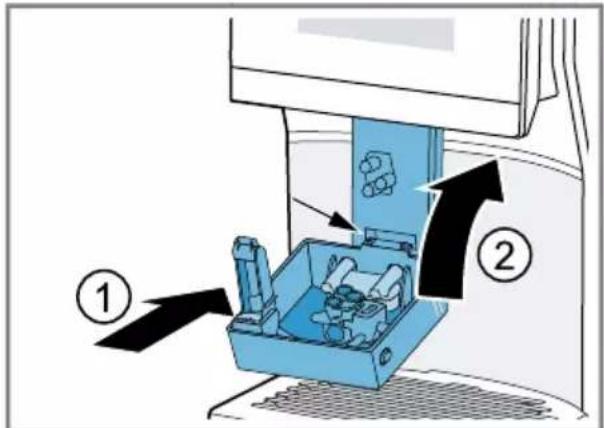

23

Diagram showing two views of a refrigerator with blue pipes and a white base, no text or symbols present

The image is too blurry to recognize any text content.

Diagram illustrating a device's internal structure with arrows indicating movement or force, showing a monitor and tray assembly.

25

Diagram illustrating a cleaning or disinfection process with labeled components and a magnified view of the device's interior.

The image is too blurry to recognize any text content.

QR code image containing encoded data, no visible human-readable text

Inhaltsverzeichnis

1 Sicherheit 8

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

Four hand-drawn icons showing different types of household items: towel, wooden block, rolled-up cloth, and patterned fabric (no text or symbols)

Tipps

5-GHz-Band (5150–5350 MHz + 5470–5725 MHz): max. 100 mW

For further information, please refer to the Digital User Guide.

QR code image containing encoded data, no visible human-readable text

Table of contents

1 Safety.... 39

1.1 General information...... 39
1.2 Intended use.... 39
1.3 Restriction on user group...... 39
1.4 Safety information.... 39

2 Environmental protection and saving energy.... 43

2.1 Disposing of packaging ..... 43
2.2 Tips for saving energy...... 43

3 Installation and connection..... 43

3.1 Scope of delivery.... 43
3.2 Installing and connecting the appliance.... 43

4 Familiarising yourself with your appliance.... 44

4.1 Appliance 44
4.2 Controls 44

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories......

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

5 Accessories...... 45

7.4 Dispensing a coffee beverage with milk 47
7.5 Dispensing two cups at once... 48

8 Grinder...... 48

8 Grinder.... 48

8 Grinder...... 48

8 Grinder...... 48

8 Grinder.... 48

8 Grinder...... 48

8 Grinder.... 48

8 Grinder...... 48

8 Grinder 48

8 Grinder...... 48

8 Grinder...... 48

8 Grinder...... 48

8 Grinder.... 48

8 Grinder...... 48

8 Grinder.... 48

8 Grinder.... 48

8 Grinder...... 48

8 Grinder...... 48

6 Before using for the first time ... 45

8.1 Adjusting the grinding level..... 48

8.1 Adjusting the grinding level..... 48

8.1 Adjusting the grinding level..... 48

8.1 Adjusting the grinding level..... 48

8.1 Adjusting the grinding level..... 48

10 Childproof lock.... 49

10 Childproof lock.... 49

10 Childproof lock.... 49

10.1 Activating the child-proof lock.... 49

10.1 Activating the child-proof lock.... 49

10.1 Activating the child-proof lock.... 49

10.1 Activating the child-proof lock.... 49

10.1 Activating the child-proof lock.... 49

11 Cup heater ^1 50

10.2 Deactivating the childproof lock.... 50

10.2 Deactivating the childproof lock.... 50

11.1 Activating and deactivating the cup heater ^1 50

11.1 Activating and deactivating the cup heater ^1 50

11.1 Activating and deactivating the cup heater ^1 50

11.1 Activating and deactivating the cup heater ^1 50

11.1 Activating and deactivating the cup heater ^1 50

12.1 Saving beverages from the beverage selection.... 50

12.1 Saving beverages from the beverage selection.... 50

12.2 Saving the beverage in the menu 50

12.2 Saving the beverage in the menu 50

12.3 Changing beverage settings.... 50

12.3 Changing beverage settings.... 50

12.4 Deleting favourites...... 51

12.4 Deleting favourites...... 51

12.5 Sorting favourites 51

12.4 Deleting favourites.... 51 12.5 Sorting favourites .... 51

13 Home Connect 51

13.1 Home Connect settings...... 51

13.1 Home Connect settings...... 51

13.1 Home Connect settings...... 51

13.1 Home Connect settings...... 51

13.1 Home Connect settings...... 51

13.2 Data protection.... 52

6.1 Preparing and cleaning the appliance.... 45

6.2 Checking the water hardness.... 45

6.3 Performing initial start-up ..... 46

6.4 General information...... 46

7 Basic operation 47

7.1 Switching the appliance on or off 47

7.2 Dispensing beverages ..... 47

7.3 doubleShot and tripleShot...... 47

en

14 Basic settings.... 52

14.1 Changing the basic settings.... 52

14.2 Overview of the basic settings.... 52

15 Cleaning and servicing...... 54

15.1 Dishwasher-safe components.... 54

15.2 Cleaning agent 54

15.3 Cleaning the appliance ..... 55

15.4 Cleaning the drip tray and coffee dregs container ..... 55

15.5 Cleaning the milk container ... 55

15.6 Service programmes...... 55

16 Troubleshooting.... 58

17 Transportation, storage and disposal 63

17.1 Activating frost protection ..... 63

17.2 Disposing of old appliance .... 63

18 Customer Service.... 63

18.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) 64

18.2 Warranty conditions...... 64

19 Technical specifications...... 64

19.1 Information regarding Free and Open Source Software.... 64

20 Declaration of Conformity ..... 65

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ for preparing hot drinks.
■ In private households and in enclosed spaces in a domestic environment.
■ Up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Children must not play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safety information

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

en Safety

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of electric shock!

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 63

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
▶ Liquids must not be spilled on the appliance plug connection.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of fire!

The appliance will become hot.

▶ Ventilate the appliance adequately.

▶ Never operate the appliance in a cupboard.

It is dangerous to use an extended power cord and non-approved adapters.

- Do not use extension cables or multiple socket strips.

▶ If the power cord is too short, contact Customer Service.

▶ Only use adapters approved by the manufacturer.

⚠ WARNING – Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.

- Allow hot appliance parts to cool down before touching.

⚠ WARNING – Risk of scalding!

Freshly prepared drinks are very hot.

▶ Leave drinks to cool down if necessary.

- Do not let escaping liquids or steam come into contact with your skin.

A remote start via the Home Connect app while the appliance is unattended may cause scalding to third parties.

- Do not reach under the coffee outlet during the dispensing of drinks.

- Keep other persons, in particular children, away from the appliance.

⚠ WARNING – Risk of injury!

Improper use of the appliance may endanger the user.

▶ To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

▶ Be careful of your fingers when closing the appliance door. The grinder rotates.

▶ Never reach into the grinder.

⚠ WARNING – Danger: Magnetism!

The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ People with electronic implants must stand at least 10 cm away from the appliance.
This minimum distance of 10 cm must also be observed for the water tank when removed.

⚠ WARNING – Risk of harm to health!

Soiling on the appliance may be harmful to health.

▶ To ensure hygiene, follow the cleaning instructions for the appliance.

2 Environmental protection and saving energy

2.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

2.2 Tips for saving energy

If you follow these instructions, your appliance will use less power.

Set the interval for automatic switch-off to the smallest value.

√ If the appliance is not being used, it will switch itself off earlier.
→ "Basic settings", Page 52

Do not interrupt the dispensing process prematurely.

√ The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

√ Limescale deposits increase the appliance's energy consumption.

3 Installation and connection

3.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

→ Fig. 1

A	Fully automatic coffee machine
B	Milk container
C	Milk tube and suction pipe
D	Adapter for milk containers1
E	User manual
F	Insertion aid for water filter
G	Descaling tablet1
H	Cleaning tablet1
I	Water filter1
J	Water hardness testing strip
K	Microfibre cloth

^1 Depending on the appliance specifications

3.2 Installing and connecting the appliance

ATTENTION!

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

▶ Use the appliance in frost-free rooms only.
- If the appliance has been transported or stored below 0 °C, wait 3 hours at room temperature before starting it up.
▶ After plugging in, always wait approx. 5 seconds.

1. Place the appliance on a level, water-resistant surface that is capable of bearing its weight.

2. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

4 Familiarising yourself with your appliance

4.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→ Fig. 2

1	Milk container
2	Touch fields
3	Cup heater ^1
4	Aroma lid
5	Bean container
6	Rotary selector for grinder setting
7	Tablet compartment
8	Cover for water tank
9	Water tank
10	Touch display
11	Brewing chamber door
12	Rating plate
13	Milk system
14	Beverage outlet cover
15	Drip tray

^1 Depending on the appliance specifications

4.2 Controls

You can find an overview of the controls for your appliance here.

Touch fields

Here you can find an overview of the symbols that are always visible.

	Switch the appliance on or off.
	Dispense two cups.
	Open or close the service programmes.
	Open or close the set- tings.

Touch display

The touch display functions both as a display and a control.

Favourites	Select saved beverages with personal settings. → Page 50
Class-sics	Select standard bever-ages.
coffee-World	Select basic beverages which can be extended in conjunction with Home Connect.
	Cup warmer is switched on.
	Appliance is connected to Home Connect.

Note: When the appliance is switched on, you have additional operating options with relevant displays and messages, e.g. beverage settings.

∅	Set strength.
	Set per-cup quantity.
	Set milk ratio.
	Set aroma.
	Set temperature.

5 Accessories

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer service
Cleaning tablets TZ80001A	TZ80001B	0031209700312098
Descaling tablets TZ80002A	TZ80002B	0031209400312095
Water filter TZ70003 00575491
Water filter pack of 3 TZ70033A -
Microfibre cloth - 00460770
Care set TZ80004A	TZ80004B	0031210500312106
Adapter for milk containers TZ70001 17006005

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing and cleaning the appliance

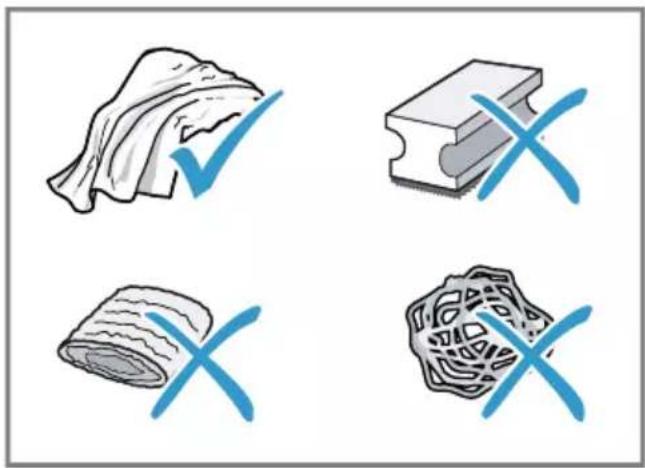

Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

ATTENTION!

Unsuitable beans can block up the grinder.

• Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
  ▶ Do not use glazed coffee beans.
• Do not use caramelised coffee beans.
• Do not use coffee beans that have been treated with additives containing sugar.

▶ Do not add ground coffee.

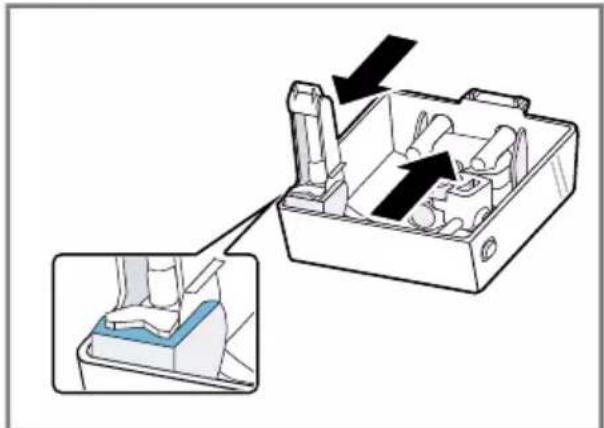

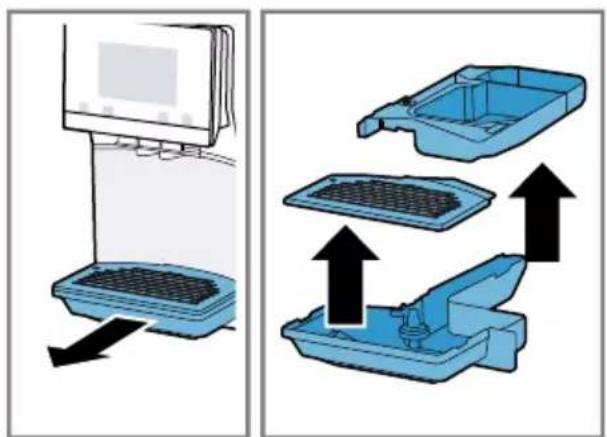

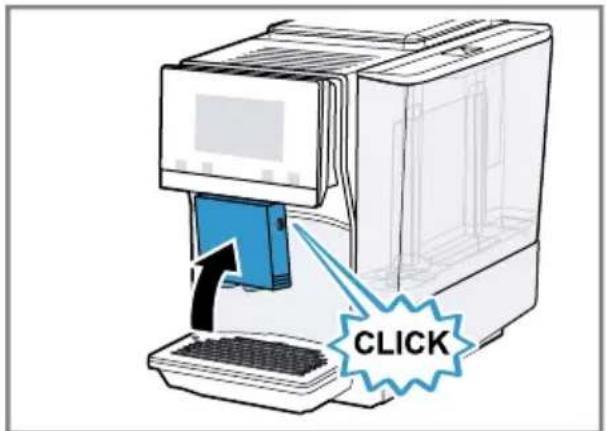

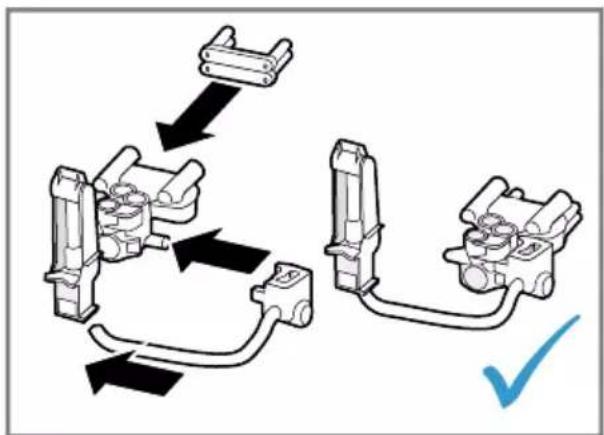

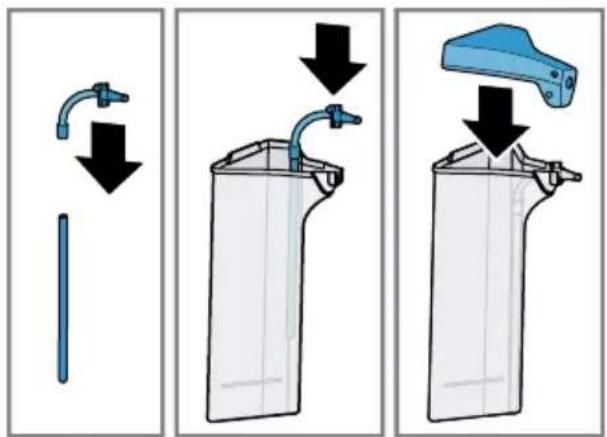

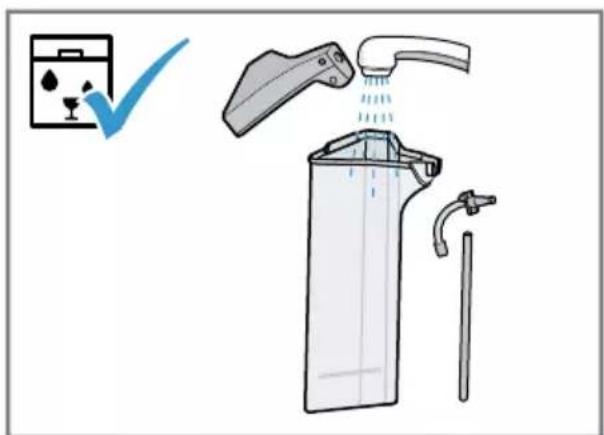

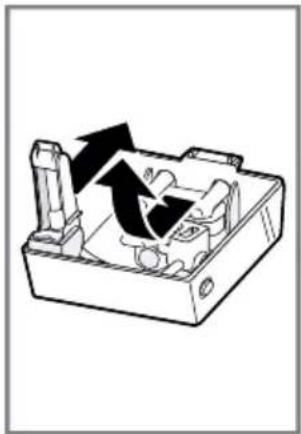

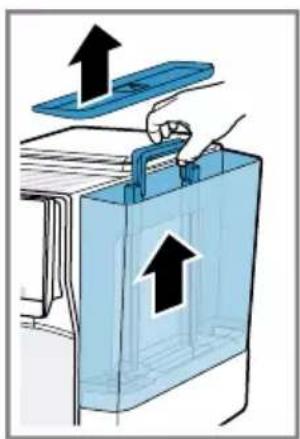

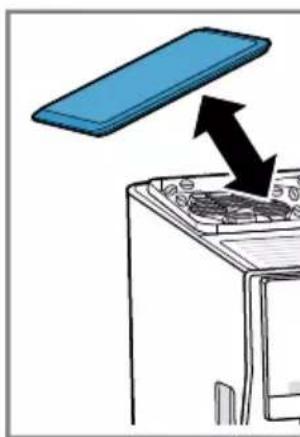

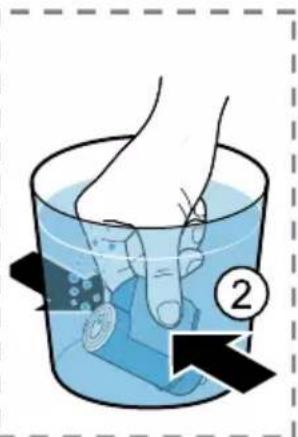

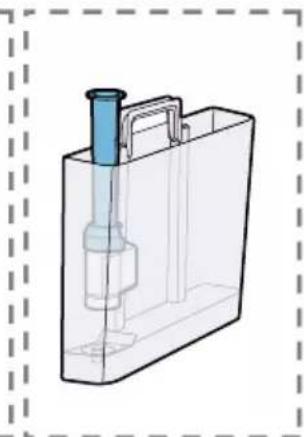

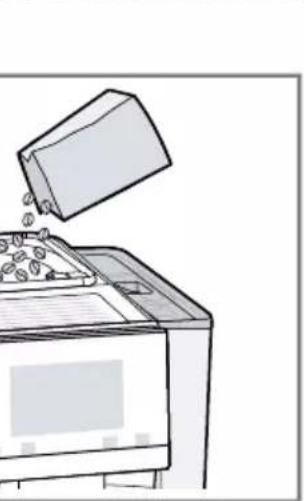

→ Fig. 3 - 24

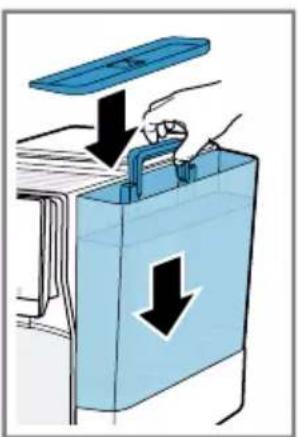

Note: Fill the water tank each day with fresh, cold, non-carbonated water.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place.

You can keep the coffee beans in the bean container for several days without them losing their aroma.

6.2 Checking the water hardness

It is important to set the water hardness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

1. Briefly dip the test strip in fresh tap water.
2. Allow the water to drain off the test strip.
3. Read the water hardness off the test strip after 1 minute.

en Before using for the first time

The table shows allocation of the levels to the different degrees of water hardness:

Level German degrees in °dH	Total hard-ness in mmol/l
1 1-7 < 1.3
2 8-14 1.3-2.5
3 15-21 2.5-3.8
4^1 22-30 > 3.8

^1 Factory setting

Note: If a water softening system is installed in your house, you can select "Softening device".

Tip: You can change the settings at any time.

→ "Basic settings", Page 52

6.3 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for initial start-up. Initial start-up only appears when switching on for the first time.

1. Press to switch the appliance on.

2. Follow the instructions on the display.

√ The display will guide you through the programme.

Notes

■ To set up Home Connect, refer to the documents on Home Connect supplied with the appliance.
If "Demo mode" is selected, only the display screens will work. You can not dispense a beverage or run a programme.

6.4 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

■ The appliance has been programmed at the factory with standard settings for optimum operation.
■ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running.

→ "Adjusting the grinding level", Page 48

■ During operation water droplets may form at the ventilation slits and on the lid of the tablet compartment.
■ If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings. → Page 52

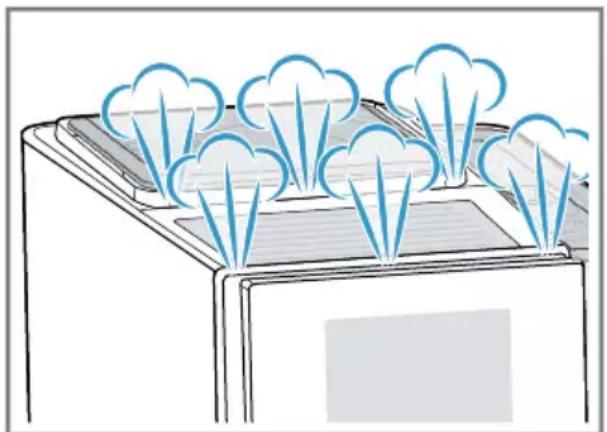

■ For technical reasons steam can escape from the appliance.

Illustration of a roof structure with cloud-like patterns above it, no text or symbols present

■ The first beverage will not yet have its full aroma if:

• You are using the appliance for the first time.
• You have run a service programme.
• You have not used the appliance for a long time.

Do not drink the beverage.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

7 Basic operation

7.1 Switching the appliance on or off

▶ Press ⏻

When the appliance switches on, the display shows the Siemens logo. When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance does not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off.

7.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

• Leave drinks to cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.

Notes

■ With a number of settings your coffee is prepared in several steps. Wait until the process is fully completed.

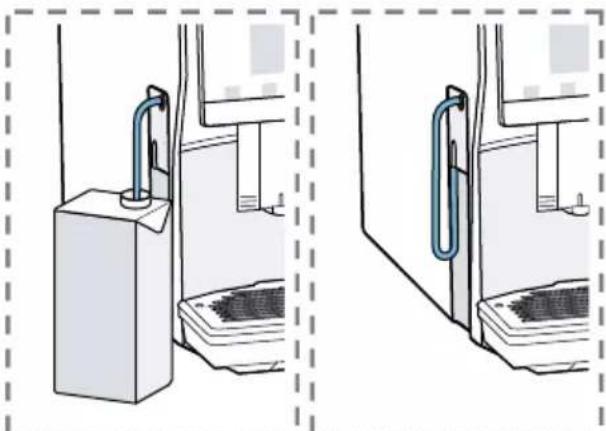

■ If you are dispensing a beverage with milk, always connect the milk container filled with milk or the milk adapter to a milk carton.
- You can only connect the milk container or milk adapter if the milk system is fitted with the adapter and the hose in the beverage outlet cover.

■ The milk container is specially designed for this appliance. Only use the milk container for storing milk in the refrigerator and in the house.
■ If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed.

Tips

■ You can also use plant-based alternatives to milk, e.g. soya milk.
■ The quality of the milk foam depends on the type of milk or the plant-based alternative used.

7.3 doubleShot and tripleShot

Your appliance grinds the coffee two or three times.

To ensure that only pleasant-tasting and easily digestible aromatic substances are released, coffee beans are freshly ground and brewed again by the appliance.

The longer coffee brews, the more bitter substances and undesirable aromas are released. These bitter substances and undesirable aromas affect the taste and digestibility of coffee.

Note: The functions "doubleShot" and "tripleShot" depend on the beverage strength and beverage size selected.

7.4 Dispensing a coffee beverage with milk

An example explains how to make a latte macchiato.

WARNING

Risk of burns!

The milk system can become extremely hot.

▶ Never touch the milk system when it is hot.

en Grinder

- Allow the hot milk system to cool down before touching it.

Requirements

■ The milk container or milk adapter is connected.
■ The milk container is filled with milk or the milk adapter hose is immersed in milk.

1. Place a glass underneath the beverage outlet.
2. Press "Classics".

3. Select and press the beverage symbol for latte macchiato.

4. To change the strength, press ①.

5. To change the per-cup quantity, press 📄

6. To change the milk ratio, press .

7. Press "Start" and wait until the process is complete.

8. To completely stop dispensing the beverage, press "Stop".

9. To only stop the current dispensing step, press "Skip".

After preparing the beverage, the milk system will automatically clean itself with a short jet of steam.

Notes

■ If you do not change any settings for approx. 30 seconds, the appliance will exit settings mode.
■ The appliance saves the settings automatically.

Tip: You can also pre-heat cups before dispensing using hot water or the cup heater.

7.5 Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

Note: If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

1. Press the symbol for your desired drink.
2. Press
   √ The setting is shown on the display.
3. Place two cups on the left and right underneath the beverage outlet.
4. Press "Start".
   The beverage is prepared in 2 steps. The beans are ground in 2 grinding operations.
   √ The beverage is brewed and then runs into the cups.
5. Wait until the process is complete.

8 Grinder

Your appliance has an adjustable grinder, which you can use to customise the grinding level of your coffee beans.

8.1 Adjusting the grinding level

Set the desired grinding level while the coffee beans are being ground.

WARNING

Risk of injury!

The grinder rotates.

▶ Never reach into the grinder.

ATTENTION!

Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly.

▶ Only set the grinding level when the grinder is running.
- Select the grinding level using the rotary selector step by step.

Grinding level Setting

Fine grinding level for dark-roasted beans.	Turn rotary selector anticlockwise.
Coarse grinding level for light-roasted beans.	Turn rotary selector clockwise.

The grinding level setting only has an effect after the second cup of coffee.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level. If the coffee is too thin with too little crema, set a finer grinding level.

9 Water filter

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

9.1 Inserting the water filter

ATTENTION!

Possible damage to the appliance due to limescale build-up.

- Change the water filter in good time.

▶ Change the water filter after 2 months at the latest.
▶ Observe the display messages.

1. Press
2. Press "INTENZA filter" and follow the instructions on the display.

9.2 Changing or removing the water filter

You can also operate your appliance without a water filter.

1. Press
2. Press "INTENZA filter".
3. Press "Replace" or "Remove" and follow the instructions on the display.

Tips

■ You should also change your water filter for reasons of hygiene.
■ With a water filter you need to de-scale your appliance less frequently.
■ If you use a water filter, your coffee will be more flavoursome.
■ If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water.
■ The water filter can be purchased from retailers or customer service. → "Accessories", Page 45

10 Childproof lock

You can lock the appliance, to protect children against scalding and burns.

10.1 Activating the child-proof lock

Requirement: The appliance is switched on.

en Cup heater

• Press and hold ⚙ for at least 3 seconds.
  √ The childproof lock is activated.

10.2 Deactivating the child-proof lock

- Press and hold ⚙ for at least 3 seconds.

√ The childproof lock is deactivated.

11 Cup heater ^1

You can use the cup heater to pre-heat your cups.

11.1 Activating and deactivating the cup heater ^1

WARNING Risk of burns!

The cup heater ^1 can become very hot.

▶ Never touch the cup heater ^1 while hot.
- Allow the hot cup heater ^1 to cool down before touching it.

Tip: Place the cups with their base on the cup heater to heat them to optimum effect.

• You can activate or deactivate the cup heater ^1 in the basic settings.
  → "Overview of the basic settings", Page 52

12 Favourites

Save beverages with your personal settings as a favourite. You can mark your favourites with a colour. A favourite is a beverage with personal settings. You can change the settings at any time.

Note: To exit the settings, press ←

12.1 Saving beverages from the beverage selection

1. Select a beverage from "Classics" or "coffeeWorld".
2. Select the personal beverage settings.
3. Press "Favourite".
4. Select the required colour for the beverage.
5. Press "Save".

12.2 Saving the beverage in the menu

1. Press "Favourites".
2. Press
   √ The display shows all available beverages.
3. Select the required beverage.
4. Select the personal beverage settings.
5. Press "Next".
6. Select the required colour for the beverage.
7. Press "Save".

12.3 Changing beverage settings

1. Press "Favourites".
2. Select the beverage and press briefly.
3. Change the beverage settings.
4. Press "Apply".
   √ The new settings are saved.

12.4 Deleting favourites

1. Press "Favourites".
2. Select the beverage.
3. Press the beverage for at least 3 seconds.
4. Confirm "Delete".

12.5 Sorting favourites

1. Press "Settings".
2. Press "Personalisation".
3. Press "Sort favourites".
4. Sort favourites, e.g. by name or colour.

13 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status. The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com.

The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tips

■ Please consult the documents supplied by Home Connect.
■ Please also follow the instructions in the Home Connect app.

Notes

■ Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 39
■ Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

13.1 Home Connect settings

Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings

Here you can find an overview of the "Home Connect" settings and network settings.

Basic setting Selection Description
WiFi connection OnOff		Switch off the wireless module with prolonged absence or to save energy.Note: In networked standby mode your appliance requires max. 2 W.
Remote start On	Off	Switch remote start on the appliance on and off.Note: With the "Home Connect" app only switch-off is possible.
Add mobile device	- Connect the appliance to the "Home Connect" app or additional accounts.
Network information	- Display network information and appliance information.
Delete network settings	- Note: You cannot operate your appliance via the "Home Connect" app without a network connection.
Software update - Note: This setting is only available with a software update.

13.2 Data protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
■ The current software and hardware version of your appliance.
■ Status of any previous reset to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

14 Basic settings

You can configure your appliance to meet your needs and call up additional functions.

14.1 Changing the basic settings

1. Press

√ The display shows the list of basic settings.
2. Change the required basic setting.
√ The appliance saves the basic setting automatically.
3. To exit the basic settings, press ←.

14.2 Overview of the basic settings

You can find an overview of the basic settings here.

Beverage setting Brewing temperature Set the brewing temperature.
	Milk sequence Select the sequence for milk and coffee.
	Latte macchiato pause Select the pause between milk and coffee.
	Resetting beverage parameters Reset the beverage settings.
Appliance setting Cup heater1	Switch the cup heater1on or off.
	Automatic switch-off Set the time after which the appliance switches off.
	Display brightness Set the brightness in levels.
	Sounds ■ Switch sounds on and off.■ Set the volume.
	Water hardness Set the water hardness.
	Language Set the language.
	Factory settings Reset the appliance to the factory settings.
Personalisation
	Operation after switch-on Set the display screen for "Favourites", "Class-sics" or "coffeeWorld".
	Sort favourites Set the sequence of favourites.
Home Connect Information on Home Connect	To start, scan the QR code.→ "Home Connect settings", Page 51
Appliance information Beverage counter Display the number of beverages dispensed.
	Cleaning information Time until the water filter should next be changed or a service programme started.
	Version information Display network information and appliance information.
1 Depending on the appliance specifications

	Licence information Display FOSS licence text.
Mode Mode for demonstration purposes		Switch "Demo mode" on or off.
^1 Depending on the appliance specifications

15 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

15.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION!

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

- Follow the operating instructions of the dishwasher.

▶ Only put dishwasher-safe components in the dishwasher.
- Only use programmes that do not heat the water above 60 °C.

Suitable:

■ Drip tray
- Drip plate
- Coffee dregs container
- Mechanical fill level indicator

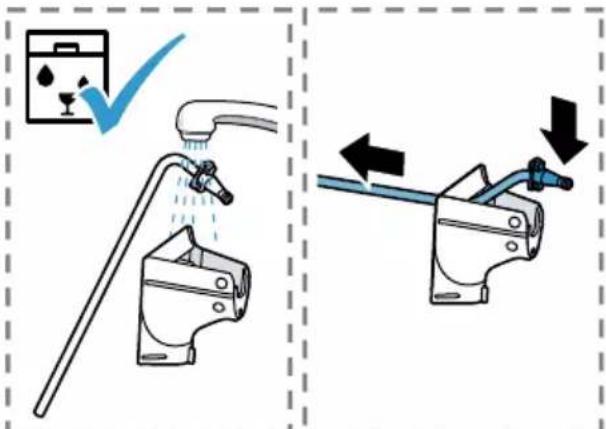

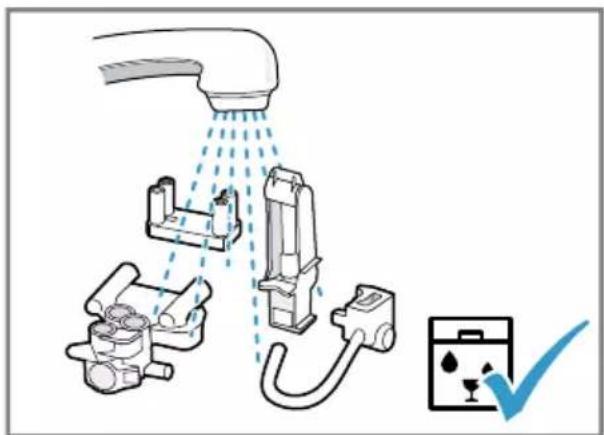

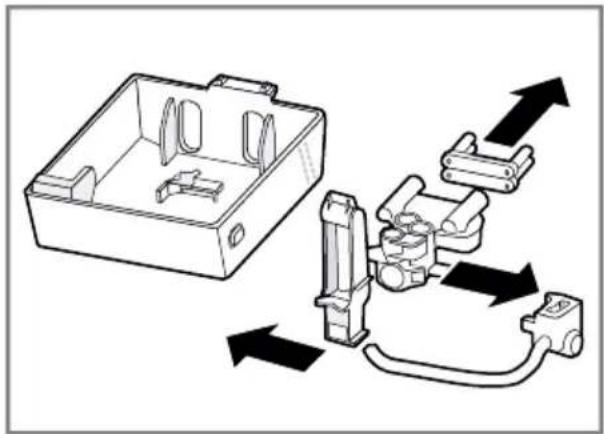

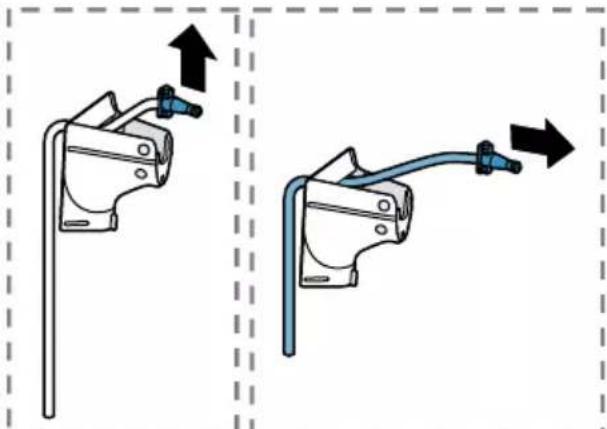

■ Milk system with adapter

■ Milk container with lid

Not suitable:

■ Water tank
■ Water tank lid
■ Aroma lid
■ Brewing unit
■ Beverage dispenser cover

15.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appli-ance.

• Do not use harsh or abrasive detergents.
• Do not use cleaning agents containing alcohol or spirits.
• Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning agents and descalers may damage the appliance.

• Do not use pure citric acid, vinegar or any vinegar-based agents to de-scale the appliance.
  ▶ Only use suitable tablets for cleaning and descaling.
• Do not use descaling agent with phosphoric acid.
  ▶ Only use cleaning tablets and de-scaling tablets that have been specially developed for the appliance.
  → "Accessories", Page 45

Four abstract icons: a rolled document, a rectangular block with X marks, a rolled cloth, and a textured circular object (no text or symbols)

Tips

■ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces.
■ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

15.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss surfaces and the control panel with the enclosed microfibre cloth.

2. Clean the outlet system with a soft, damp cloth after beverages have been dispensed.

3. Rinse the water tank with fresh, clean water.
4. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

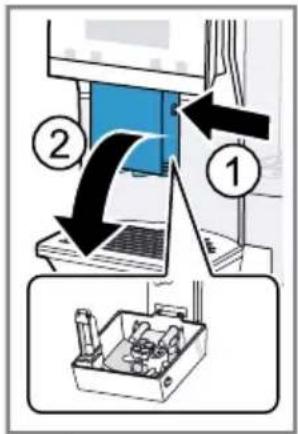

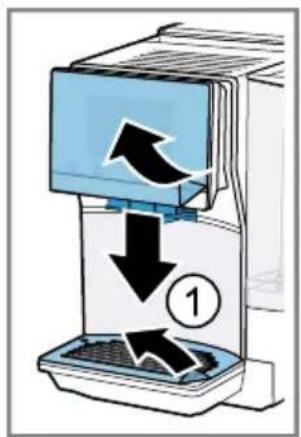

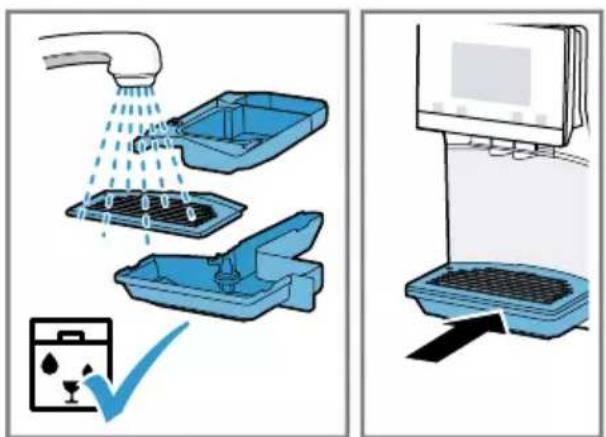

15.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits. Follow the illustrated instructions at the beginning of this manual.

$$ \rightarrow \text { Fig. } 2 5 - 2 6 $$

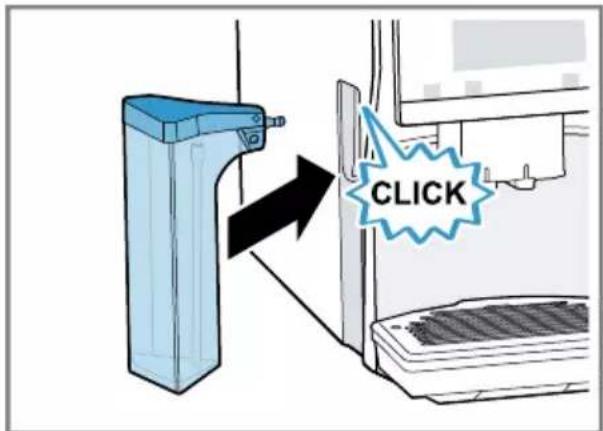

15.5 Cleaning the milk container

Clean the milk container regularly for hygiene reasons. You can clean the milk container in the dishwasher. Follow the illustrated instructions at the beginning of this manual.

$$ \rightarrow \text { Fig. } 1 7 - 1 8 $$

15.6 Service programmes

Use the service programmes if you insert or remove a water filter or in order to clean your appliance thoroughly. Your appliance will tell you when you need to perform a service programme, e.g. cleaning.

ATTENTION!

Improper cleaning and descaling or a delay in doing so may damage the appliance.

• Immediately perform the descaling process in accordance with the instructions.
  ▶ Only use cleaning tablets in the tablet compartment.
• Do not put descaling tablets or other products in the tablet compartment.

Notes

■ The display indicates the progress of the descaling or cleaning process.
■ If your appliance has been locked, you can only operate it again once the descaling process has been carried out.

Using the service programmes

1. Press
2. Press the symbol for the required programme.
   √ The display will guide you through the programme.

Overview of service programmes

You can find an overview of the service programmes here.

Note: The start image shows the remaining number of beverages that can be dispensed until running the programme and the duration.

	INTENZA filter Insert, replace or remove the water filter.
	Milk system cleaning Rinse the milk system automatically.
	calc'nClean Combine cleaning and descaling. Remove residues of limescale and coffee from the pipes.
	Cleaning Remove residues of coffee from the pipes.
	Descaling Remove residues of limescale from the pipes.
	Brewing unit cleaning The display shows optimum cleaning of the brewing unit step by step.
	Beverage outlet cleaning The display shows optimum cleaning of the outlet step by step.

Frost protection Drain the pipes to protect the appli- ance during transport or storage.

Special rinsing If a service programme is interrupted, e.g. due to a power failure, it will rinse itself automatically. The appliance is then ready for use again.

Tips

■ If you are starting the "Descaling" or "calc'nClean" programme, keep a container with a capacity of min. 1 l at the ready.
■ If you use a water filter, this will prolong the time until you have to run a service programme.
■ You can combine "Descaling" and "Cleaning" with the "calc'nClean" service programme.

16 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

Appliance no longer responds.	Appliance has a fault.1.Pull out the mains plug and wait 10 seconds.2.Re-insert the mains plug.
HomeConnect is not working correctly.	Different causes are possible.► Go to www.home-connect.com.
Appliance only dispenses water, not coffee.	Empty bean container is not detected by the appliance.► Pour in coffee beans.
	Coffee shaft on brewing unit is blocked.► Clean the brewing unit.
	Beans are too oily and are not falling into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly.1.Check whether the brewing unit is inserted correctly and is securely locked.2.Push the red lever up to the left.3.Insert the brewing unit cover.
Appliance is not dispensing milk froth.	Milk system is soiled.► Clean the milk system in the dishwasher.
	Milk tube not immersed in milk.► Use more milk.
Fault Cause and troubleshooting
Appliance is not dispensing milk froth.	▶ Check whether the milk tube is immersed in the milk.
	Heavy build-up of limescale in the appliance. ▶ Descale the appliance.
No milk intake by the milk system.	The milk system is assembled incorrectly. ▶ Assemble the milk system correctly.
	Order for connecting the milk container and milk system is wrong. ▶ First insert the milk system into the outlet and then the milk container.
	Milk tube not immersed in milk. ▶ Use more milk. ▶ Check whether the milk tube is immersed in the milk.
Milk froth is too cold. Milk is too cold. ▶ Use lukewarm milk.
Appliance is not dispensing hot water.	Milk system is soiled. ▶ Clean the milk system in the dishwasher.
Milk system cannot be assembled or disassembled.	Order of assembly is wrong. ▶ First connect the milk system and then the milk container. When disassembling, you must first remove the milk container and then the milk system.
Appliance is not dispensing drinks.	Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter. ▶ Firmly press the water filter straight down into the tank connection.
	Residues of limescale remover are blocking the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly.
There is dripping water on the inner floor of the appliance.	Drip tray was removed too soon. ▶ Wait a few seconds after the last drink was dispensed before removing the drip tray.
Brewing unit cannot be removed.	Locking device cannot be released, brewing unit is jammed. ▶ Switch the appliance off and back on after 3 minutes.
Grinder won't start. Appliance is too hot.1. Disconnect the appliance from the mains.2. Wait 1 hour so the appliance can cool down.
Grinder is not grinding any coffee beans despite full bean container.	Beans are too oily and are not falling into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.► Descale the appliance.
Milk froth quality varies widely.	Milk froth quality depends on the type of milk or plant-based alternative used.► Optimise the result through the selection of the milk or vegetable-based drink type.
Coffee is not dispensed or has slowed to a trickle.Set quantity is not reached.	Grinding level is set too fine.► Set a coarser grinding level.→ "Adjusting the grinding level", Page 48
	Heavy build-up of limescale in the appliance.► Descale the appliance.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
	Appliance is soiled.► Clean the brewing unit.► Descale and clean the appliance.
Coffee has no crema. Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.► Use beans with a darker roast.
Coffee is too acidic. Grinding level is set too coarse.► Adjust the grinder to a finer setting.→ "Adjusting the grinding level", Page 48
Coffee is too acidic.	► Use a coffee variety with a higher proportion of Robusta beans.► Use beans with a darker roast.
Coffee is too bitter. Grinding level is set too fine.► Set a coarser grinding level.→ "Adjusting the grinding level", Page 48
Type of coffee is not optimal.► Change the coffee variety.
Coffee tastes burnt. Grinding level is set too fine.► Set a coarser grinding level.→ "Adjusting the grinding level", Page 48
Coffee grounds are not compact and are too wet.	The grinding level is not set optimally.► Adjust the grinder to a coarser or finer setting.→ "Adjusting the grinding level", Page 48
Beans are too oily.► Use a different type of bean.
Display shows "Please insert brewing unit.".	Cover is wrongly inserted.1. Check whether the brewing unit is inserted correctly and is securely locked.2. Push the red lever up to the left.3. Insert the brewing unit cover.
Display shows "Please fill water tank." despite the fact that the water tank is full.	Water tank is wrongly inserted.► Insert the water tank correctly.
	Carbonated water is in the water tank.► Fill the water tank with fresh tap water.
	Float is stuck in the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions.1. Rinse the water filter according to the instructions.2. Place the water filter into operation.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
Display shows "Please fill water tank." despite the fact that the water tank is full.	Water filter is old.► Insert a new water filter.
	Limescale deposits in the water tank are blocking the system.1. Clean the water tank thoroughly.2. Start the descaling programme.
Display shows "Please clean brewing unit.".	Brewing unit is soiled.► Clean the brewing unit.
	Mechanism of brewing unit is stiff.► Clean the brewing unit.
Display shows "Over-voltage or under-voltage".	There are problems with the power supply.► Only operate the appliance at 220 - 240 V.
Display shows "Error in water system.Please restart appli-ance.".	Appliance has a fault.1. Pull out the mains plug and wait 10 seconds.2. Re-insert the mains plug.
Display very frequently shows "Please run calc'nClean pro-gramme!".	Decalcified water still contains small amounts of lime.1. Insert a new water filter.2. Set the corresponding water hardness.
	Incorrect or too little descaling agent used.► When descaling, only use suitable tablets.
	Service programme has not been carried out in its en-tirety.► Start the "Special rinsing" service programme.→ "Service programmes", Page 55

17 Transportation, storage and disposal

You can find out here how to prepare your appliance for transportation and storage. You will also find out how to dispose of old appliances.

17.1 Activating frost protection

Protect your appliance from frost during transport and storage.

ATTENTION!

Residues of liquid in the appliance may damage it during transport or storage.

▶ Empty the pipe system before transport or storage.

1. Run the "Frost protection" programme.

→ "Overview of service programmes", Page 56

1. Disconnect the appliance from the mains power supply.

17.2 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and elec-

tronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

18 Customer Service

If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

The contact details for Customer Service can be found in the Customer Service directory at the end of the manual or on our website.

18.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

You can find the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

18.2 Warranty conditions

You can make warranty claims for your appliance under the following conditions.

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

19 Technical specifications

Voltage 220-	240 V ~
Frequency 50 Hz
Connection rating 1500 W
Maximum static pump pressure	20 bar
Maximum capacity of water tank (without filter)	2,6 l

Maximum capacity of bean container	350 g
Length of the power cable	100 cm
Appliance height 38 cm
Appliance width 30 cm
Appliance depth 46,7 cm
Weight, empty 9 kg
Type of grinder Ceramic

19.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software.

The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your Home Connect app: "Profile -> Legal information -> Licence Information".¹ You can download the licence information on the brand product website.

(Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany.

The source code will be made available to you on request.

Please send your request to [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany.

Subject: „OSSRÉQUEST“

The cost of performing your request will be charged to you. This offer is valid for three years from the date of

purchase or at least as long as we offer support and spare parts for the respective appliance.

20 Declaration of Con- formity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the basic requirements and other relevant provisions of Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.siemens-home.bsh-group.com among the additional documents on the product page for your appliance.

CE

Hereby, BSH Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements. ^1

A detailed Declaration of Conformity can be found online at www.siemens-home.bsh-group.com/uk/ among the additional documents on the product page for your appliance. ^1

UK CA

Only applies to Great Britain

2.4 GHz band (2400–2483.5 MHz): Max. 100 mW

5 GHz band (5150–5350 MHz +

QR code image containing encoded data, no visible human-readable text

Table des matières

1 Sécurité...... 68

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

Four hand-drawn icons showing different types of household items: a rolled-up sheet, a rectangular block, a rolled-up cake, and a cross mark (no text or symbols)

Conseils

QR code image containing encoded data, no visible human-readable text

Indice

1 Sicurezza 99

Illustration of a cabinet with cloud-shaped spray effects (no text or symbols)

7.3 doubleShot e tripleShot

Four symbolic illustrations: a rolled-up cloth, a rectangular block with X marks, a rolled-up flatbread, and a textured flatbread (no text or symbols present)

Consigli

Central Service Contacts

AU Australia BSH Home Appliances Pty. Ltd. Gate 1, 1555 Centre Road Clayton, Victoria 3168 Tel.: [phone]* mailto:[e-mail] www.siemens-home.bsh-group.com/au *Mon-Fri 24 hours

GB Great Britain BSH Home Appliances Ltd. Grand Union House, Old Wolverton Road, Wolverton Milton Keynes MK12 5PT To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.siemens- home.bsh-group.com/uk Or call Tel.: [phone]* *Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IE Republic of Ireland BSH Home Appliances Ltd. M50 Business Park, Ballymount Road Upper, Walkinstown Dublin 12 To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: [phone]* www.siemens-home.bsh-group.com/ie *Calls are charged at the basic rate, please check with your telephone service provider for exact charges

IT Italia, Italy BSH Elettrodomestici S.p.A. Via. M. Nizzoli 1 20147 Milano (MI) Tel. [phone] mailto:[e-mail] www.siemens-home.bsh-group.com/it

LU Luxembourg BSH électroménagers S.A. 13-15, ZI Breedeweues 1259 Senningerberg Tel.: [phone] Reparaturen: [e-mail] Ersatzteile: [e-mail] www.siemens-home.bsh-group.com/lu

MT Malta Aplan Limited The Atrium The Atrium Mriehel by Pass BKR3000 Birkirkara Tel.: [phone] mailto:[e-mail]

ZA South Africa BSH Home Appliances (Pty) Ltd. 96 Fifteenth Road, Randjespark 1685 Midrand - Johannesburg Tel.: [phone] mailto:[e-mail] mailto:[e-mail] www.siemens-home.bsh-group.com/za

BSH group is a Trademark Licensee of Siemens AG. Manufacturer's Service for Siemens Home Appliances.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München

GERMANY

www.siemens-home.bsh-group.com

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom
