USER MANUAL EQ.9 Plus Connect s700 TI9575X7DE SIEMENS

TI955...connect, TI957...connect

Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome

The future moving in.

Siemens Home Appliances

1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 E-Nr. ....FD... ... 9

2

Diagram of a laboratory apparatus with labeled parts and directional arrows indicating flow or movement

4 5

Diagram of a mechanical device with internal components and connected tubing (no text or symbols)

Mechanical assembly diagram showing a housing with internal components and connected tubing (no text or symbols)

Mechanical assembly diagram showing two connected components with blue arrows indicating motion direction (no text or symbols)

Mechanical assembly diagram showing a component with arrows indicating motion, including a magnified inset of a small component (no text or symbols present)

click 2 1

1 2 IV

2 1

Diagram of a computer interior showing two labeled components with arrows indicating flow or movement.

Diagram of an appliance internal structure with labeled parts and directional arrows indicating lock and switch functions.

Diagram of a mechanical device with labeled parts and directional arrows indicating lock mechanism

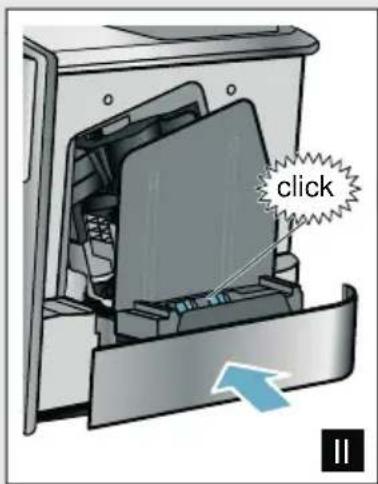

click II

Diagram showing two labeled arrows (1 and 2) pointing to a device casing or drawer, likely indicating directional flow or movement.

4

Illustration of a microwave oven with cooling fins and internal compartments, showing airflow direction (no text or symbols)

5

Illustration of a kitchen sink with a faucet pouring liquid, accompanied by a crossed-out refrigerator (no text or symbols)

Diagram illustrating a water drain system with labeled components and a checkmark indicating inspection or repair.

6

Illustration of a handwashing device with a blue arrow indicating the process (no text or symbols present)

Diagram illustrating a mobile phone device being handled, showing step 1, step 2, and step 3 of the device's internal structure.

3D rendering of a cylindrical spray can with a handle and lid, shown in grayscale (no text or symbols)

Illustration of a vertical cylindrical container with a faucet and an upward arrow indicating flow or movement (no text or symbols)

Simple diagram showing a vertical rod with a curved pipe and two blue arrows indicating upward and downward motion (no text or symbols)

7

Diagram illustrating a mechanical device with labeled parts and water flow, including a faucet and cleaning device.

Cross-sectional diagram of a mechanical device with water spray and valve (no text or symbols)

8

de

Inhaltsverzeichnis

Home Connect .....28

Einrichten 29

Störungen, was tun? .....39

Kundendienst .....42

Illustration of a gray electronic device with a button-like sensor and a blue arrow indicating rotation (no text or symbols)

Illustration of a stylized device with a blue arrow indicating rotation (no text or symbols)

Hinweise

Diagram illustrating a step-by-step installation of a kitchen grater, showing hand positioning and cutting process.

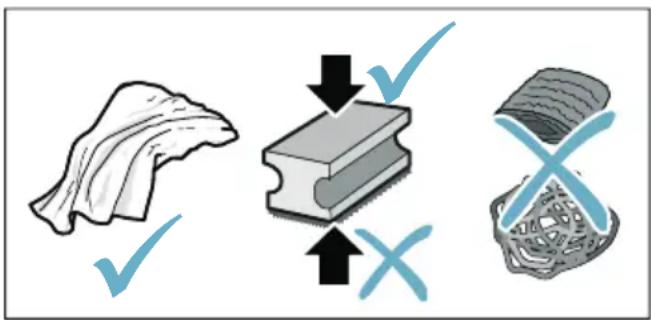

Diagram showing three labeled objects: a cloth, a block with checkmark and cross, and a mesh-like object with X.

Hinweise

de Störungen, was tun?

Important safety information. . 45

Environmental protection .... 47

Saving energy ....47 Environmentally-friendly disposal ....47

Getting to know your appliance 48

Included in delivery .....48 Assembly and components .....48 Controls .....49

Accessories. 50

Before using for the first time . 51

Installing and connecting the appliance....51 Commissioning the appliance....51

Operating the appliance..... 53

Selecting a drink .....53 Preparing coffee using freshly ground beans.....55 Preparing coffee using ground coffee.55 Preparing drinks with milk .....56 Dispensing hot water .....57 Adjusting beverage settings .....58 Setting the grinding level .....60 Cup warmer.....60

Customising 61

Creating a user profile .....61 Editing or deleting user profile.....61 Saving individual drinks .....62

Childproof lock 62

Activating the child-proof lock . . . . .62 Deactivating the child-proof lock . . . .62

Menu settings .....63

Changing settings 63 Starting the "Water filter" or "frost protection" programme. 65

Home Connect .....66

Setting up. 67
Switching Wi-Fi on and off. 68
Additional settings. 68
Device info. 69
Display. 70
Remote diagnostics. 70
About data protection. 70
Declaration of Conformity. 70

Daily care and cleaning .....71

Cleaning agent....71 Cleaning the appliance....72 Cleaning the milk system....72 Cleaning the brewing unit....73

Service programmes .....74

Rinse milk system 75
Descaling 75
Cleaning 76
calc'nClean 76

Trouble shooting .....77

Customer service .....80

Technical data 80 E number and FD number 80 Guarantee 80

Intended use

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read carefully, follow and retain the operating instructions. When passing on the appliance, enclose these instructions.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Warning

Danger of electric shock!

■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic electricity supply has been correctly installed.

■ Connect and operate the appliance only in accordance with the specifications on the rating plate. If the power cord of this appliance is damaged, it must be replaced by customer service.

- Do not use if the power cable or appliance is damaged. If a fault occurs, pull the mains plug or switch off the mains voltage immediately.

■ To prevent hazards, the appliance may be repaired by our customer service only.

■ Never immerse the appliance or mains cord in water.

■ The plug and socket connection of the appliance must not come into contact with liquids.

■ Please note the special information on cleaning in the instructions.

Warning

Risk of scalding (Home Connect)!

If an unattended remote start takes place, third parties might be scalded if they reach under the coffee dispenser during drinks dispensing. You should therefore make sure that with an unattended remote start there is no risk to other people, in particular not to children, or to property.

Warning

Hazard due to magnetism!

The appliance contains permanent magnets which may affect electronic implants, e.g. heart pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10 cm from the appliance and from the following parts upon removal: milk container, milk system, water tank and brewing unit.

Warning

Risk of suffocation!

Do not let children play with packaging material. Store small parts safely as they can be easily swallowed.

Warning

Risk of burns!

■ The milk system becomes very hot. After use, allow it to cool down first before touching it.
■ After use, surfaces such as the cup warmer may still be hot for a certain period.
■ Freshly prepared beverages are very hot. Leave to cool a little if necessary.

Warning

Risk of injury!

■ Improper use of this appliance may result in injury.
■ Do not reach into the grinding unit.

Warning

Fire hazard!

■ The appliance will become hot.
■ Never operate the appliance in a cupboard.

Environmental protection

Saving energy

■ If the appliance is not being used, switch it off.
■ Set the interval for automatic switch-off to the smallest value.
If possible, do not interrupt coffee or milk froth dispensing. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.
■ Descale the appliance regularly to avoid a build-up of limescale. Limescale residue results in higher energy consumption.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your dealer about current disposal routes.

Getting to know your appliance

This section provides an overview of the scope of delivery, the assembly and the components of your appliance. It also introduces you to the different controls.

Note: Depending on the appliance model, individual details and colours may differ.

The operating instructions refer to two product variants:

■ Appliance with one bean container
■ Appliance with two bean containers

How to use these instructions:

The cover pages of the operating instructions can be folded out towards the front. The illustrations are identified using numbers that are referred to in the operating instructions.

Example: Fig. 1

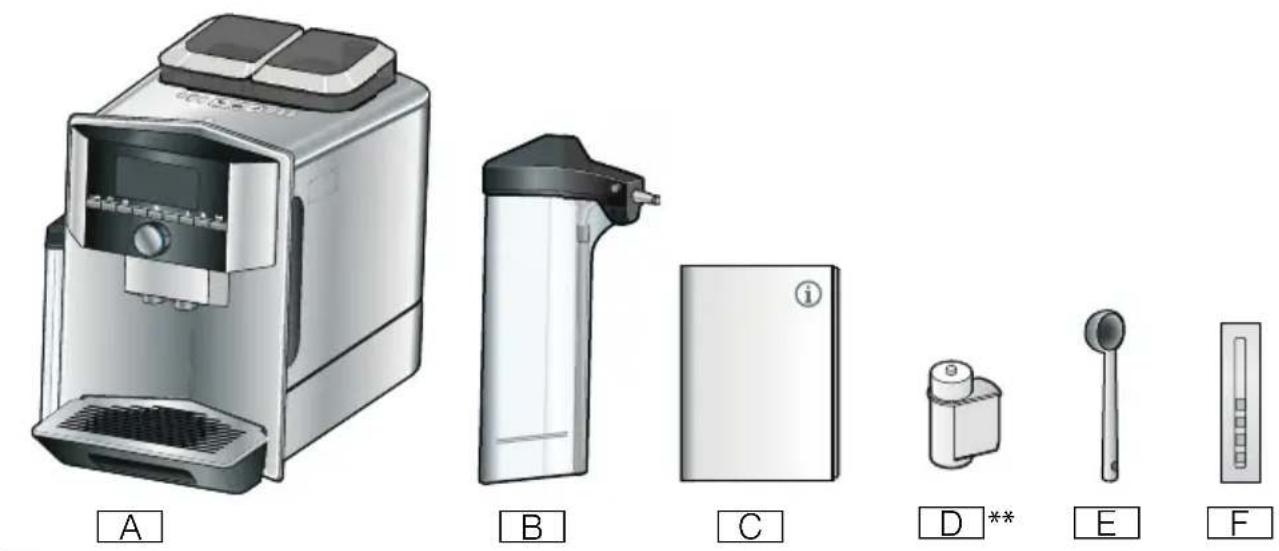

Included in delivery

→ Fig. 1

A Fully automatic coffee machine
B Milk container (container, lid, riser, connection hose)
C Operating instructions
D** Water filter
E Measuring spoon
F Water hardness testing strip

The item marked with ** is only supplied with certain appliances.

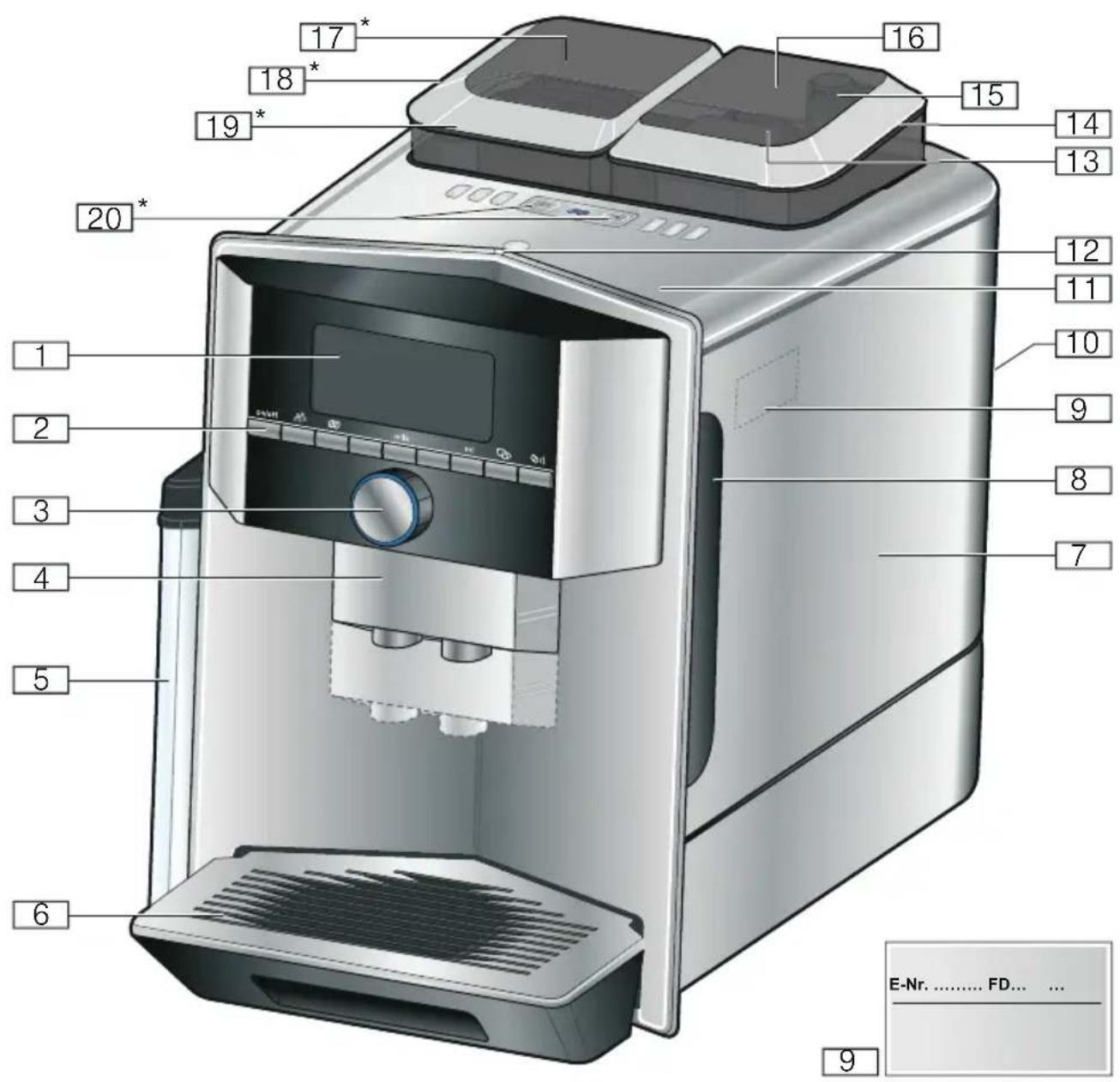

Assembly and components

→ Fig. 2

1 Display
2 Control panel
3 Rotary selector/start-stop (rotate and press to navigate)

4 Outlet system (coffee, milk, hot water), height adjustable

5 Milk container (container, lid, riser, connection hose)

6 Drip tray (coffee grounds container, drip plate)

7 Brewing chamber cover

8 Water tank

9 Rating plate

10Recessed grip on water tank

11 Cup warmer

12 Cup warmer LED display

13 Grind compartment (ground coffee/cleaning tablet)

14 Bean container

15 Rotary selector for grinding level setting

16 Aroma lid

17* Aroma lid

18* Bean container

19* Rotary selector for grinding level setting

20* Bean container selector buttons, illuminated

Depending on the model:

Items marked with * are only present in the appliance with two bean containers.

Controls

Button Meaning

on/off Switches the appliance on and offThe appliance rinses automatically when it is switched on and off.The appliance is not rinsed if:■ it is still warm when switched on, or■ coffee was not dispensed before the appliance was switched off.The appliance is ready for use when the symbols for drink selection and the on/off button light up on the display.

CustomisingThe appliance provides the option of saving and calling up customised settings for coffee drinks. → "Customising" on page 61

Coffee strengthAdjusting the coffee strength. → "Adjusting beverage settings" on page 58

milk Briefly press:Setting for share of milk in the drink in %As a drink or as an ingredient in certain coffee drinks. → "Adjusting beverage settings" on page 58Press and hold for at least 4 seconds:Child-proof lock → "Childproof lock" on page 62

ml Drink quantity in millilitres. → "Adjusting beverage settings" on page 58

Two drinksPreparation of two drinks simultaneously. Position cups next to one another under the coffee dispenser. → "Adjusting beverage settings" on page 58

i Menu settings/service programmesPress i button briefly to call up menu settings, Home Connect settings, cup warmer, service programmes, water filter and frost protection. Briefly press i button again to return to the drink selection. If no selection is made within approx. 10 seconds, the appliance will automatically return to the drink selection.

Navigation buttonsFor navigating in the display.In "barista mode" additional functions are assigned to the navigation buttons. In this setting, further adjustments can be made to the drink, for example. → "Adjusting beverage settings" on page 58

Display

The display 1 shows the selected drinks, settings and setting options, as well as messages about the appliance's operating status.

Additional information is shown in the display; this is hidden after a short period of time or once the information is confirmed by pressing a button.

The display also prompts the user to perform certain actions.

The individual steps for performing the action are shown in the display. If the action required was carried out, e.g. "Fill water tank", the corresponding message will disappear.

Rotary selector

The rotary selector 3 has a range of different functions.

■ Rotation: navigate in the display and change settings.
- Pressing: start beverage preparation or service programme, confirm menu selection.
- Pressing while drink is being dispensed: prematurely stop dispensing.

Accessories

The following accessories are available from retailers or from customer service:

Accessory Order number

	Retail Customer service
Cleaning tablets TZ80001A 00312097	TZ80001B 00312098
Descaling tablets TZ80002A 00312094	TZ80002B 00312095
Water filter TZ70003 00575491
Care set TZ80004A 00312105	TZ80004B 00312106
Adapter for milk car- ton	TZ90008 00577862

The contact data for customer service in all countries can be found at the back of these instructions.

Before using for the first time

In this section, you will learn how to commission your appliance. Before you can use your new appliance, you must make some settings.

Note: Only use the appliance in frost-free areas. If the appliance was transported or stored at temperatures below 0 °C, you must wait for at least 3 hours before using it.

Installing and connecting the appliance

1. Remove any protective plastic film.
2. Place the appliance on a level, water-resistant surface which can bear the weight.
3. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

Commissioning the appliance

Selecting language

Notes

■ The language selection appears automatically when the appliance is switched on for the first time.
■ You can change the language at any time. → "Menu settings" on page 63

1. Switch on the appliance with the on/off button. The preset language appears in the display.
2. Use the rotary selector to select the desired display language.
3. Confirm with the right navigation button.

The setting has been saved.

Selecting water hardness

It is important to set the water hardness correctly so that the appliance indicates in good time when the descaling programme should be run. The preset water hardness is level 4.

You can check the water hardness using the enclosed test strip or by asking your local water supplier. If a water softening system is installed in the house, please select "Softening device".

The table shows the allocation of the levels to the different degrees of water hardness:

Level Water hardness
German (°dH) French (°fH)
1 1-7 1-13
2 8-14	14-25
3 15-21	26-38
4 22-30	39-54

Subsequent changes to the water hardness can be made at any time. → "Menu settings" on page 63

1. Briefly immerse the enclosed test strip in fresh tap water, leave it to drip and read off the result after one minute.
2. Use the rotary selector to set the water hardness determined.
3. Confirm with the right-hand navigation button.

The setting has been saved.

en Before using for the first time

Do you want to connect to Home Connect?

■ To now connect the appliance to the WLAN network (home network), confirm "yes" with the right-hand navigation button.
■ To connect the appliance to the WLAN network later, select "no" with the left-hand navigation button.

Note: When selecting "yes", please read the detailed description in the section "Home Connect".

Do you want to insert a water filter?

If you want to insert a water filter now, confirm "yes" with the right-hand navigation button.
■ To insert a water filter later, select "no" with the left-hand navigation button.

Note: If selecting "yes", please read the detailed description in the section "Starting the "Water filter" or "Frost protection" programme" from the item "Inserting or replacing a water filter".

The reminder "Fill bean container" lights up briefly.

Either confirm with the right-hand navigation button or wait a few seconds.

The reminder "Please fill water tank" lights up. Fill the water tank.

Filling the bean container

This appliance can be used to prepare coffee drinks from coffee beans or ground coffee (not instant coffee).

1. Open the lid 16 of the bean container 14 .
2. Add beans.
3. Close the lid again.

Notes

■ Coffee beans that have been glazed or caramelised or treated with other sugary additives will block the brewing unit. Only use pure bean mixes that are suitable for use in fully automatic coffee or espresso machines.
■ Never use unroasted coffee beans.
■ The coffee beans are freshly ground for each brewing operation.
■ Store coffee beans in a sealed container in a cool place to ensure optimum quality.
■ Coffee beans can be kept in the bean container for a number of days without losing their aroma. Only ever add the ground coffee shortly before beverage preparation. → "Preparing coffee using ground coffee" on page 55

In models with two bean containers 14, 18* you can pour in two different types of coffee beans. Select the desired bean container using the selection button 20*. The LED of the active bean container lights up.

The appliance memorises the most recently used bean container for each drink. This presetting can be modified.

→ "Menu settings" on page 63

Filling the water tank

Important: Fill the water tank with fresh, cold, still water on a daily basis. Prior to operation, check whether the water tank has been sufficiently filled.

1. Hold the recessed grip 10 on the side of the water tank 8 and gently tilt out the water tank to the side.
2. Use the handle to remove the water tank and then rinse out.
3. Fill the water tank with water up to the "max" marking.
4. Re-insert the water tank in the holder and tilt back to the starting position. The brand logo lights up on the display. The appliance heats up and rinses. Some water will run out of the outlet system.
   The appliance is ready for use when the symbols for the beverages and the on/off button light up on the display.

Notes

• When the appliance is used for the first time, after running a service programme or if it has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed.
  ■ After starting up the appliance for the first time, you will consistently achieve a suitably thick and stable "crema" only after the first few cups have been dispensed.
  If the appliance is in use for a long period of time, water droplets will form on the ventilation slots. This is normal.

Operating the appliance

In this section, you will learn how to prepare your appliance for beverage preparation and how to prepare hot drinks. It features information on adjusting the beverage settings and adjusting the grinding level.

Selecting a drink

■ Use the rotary selector to select the desired beverage.
■ The display shows the name of the drink and the values currently selected (e.g. strength or cup size).
■ The drink selected can be prepared with the pre-set values or first adjusted to your individual taste. → "Adjusting beverage settings" on page 58 → "Menu settings" on page 63
If no controls are activated within approx. 5 seconds, the appliance will exit settings mode. The settings made will be automatically stored.

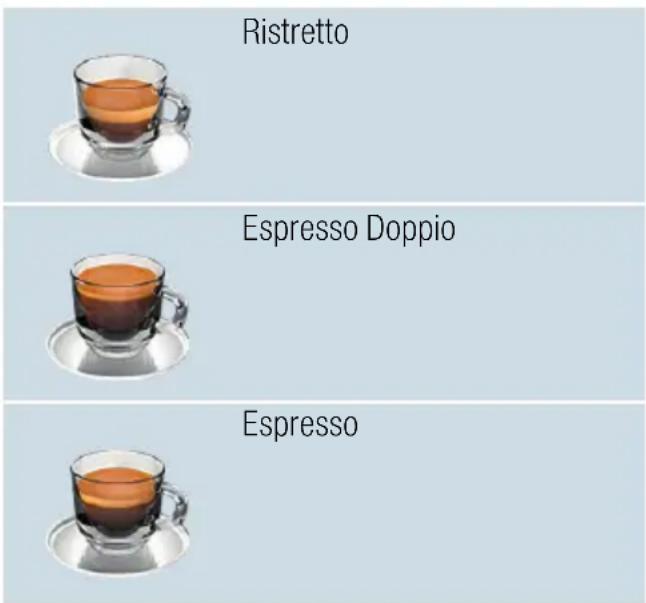

You can choose from the following drinks:

Operating the appliance

	Espresso Macchiato
	Coffee
	Coffee XL
	Cappuccino
	Latte Macchiato
	Caffe Latte
	Flat White
	Café cortado
	Americano

	Milk froth
	Warm milk
	Hot water
	Pot function(not available in all product variants)
	coffeeWorld

If the appliance is connected to Home Connect, additional drinks can be selected from "coffeeWorld" and adjusted in the app. The last "coffeeWorld" drink selected in the app is shown in the display and can also be adjusted and dispensed directly at the appliance.

Note: With some settings the coffee is prepared in two steps, or Coffee XL in three (aroma setting). Wait until the process is fully completed.

Tip: Cups, particularly small, thick espresso cups, should be placed with their base on the cup warmer. → "Cup warmer" on page 60

Preparing coffee using freshly ground beans

You can choose between Ristretto, Espresso Doppio, Espresso, Coffee, Coffee XL and Americano. The preparation of coffee drinks with milk is explained in a separate section.

→ "Preparing drinks with milk" on page 56

The appliance is switched on. The water tank and bean container have been filled.

1. Place a cup under the outlet system.
2. Use the rotary selector to select the desired drink.

The name of the drink and the currently active values are shown on the display.

1. To change the settings for the selected drink.

→ "Adjusting beverage settings" on page 58 → "Menu settings" on page 63

1. To begin dispensing the drink, press the rotary selector.

The coffee is brewed and then dispensed into the cup.

Note: To prematurely stop dispensing the drink, press the rotary selector again.

Tip: In models with two bean containers and if one is empty, it is possible to switch to the full bean tank during dispensing. Dispensing will then continue.

Preparing coffee using ground coffee

You can also operate this appliance using ground coffee. Do not use instant coffee. The preparation of coffee drinks with milk is explained in a separate section. → "Preparing drinks with milk" on page 56

The appliance is switched on. The water tank has been filled.

1. Place a cup under the outlet system.
2. Use the rotary selector to select the desired drink.
3. Press the 🔒 button.
4. Use the rotary selector to select "Ground coffee".
5. Press the Ⓞ button.
6. Remove the aroma lid 16 of the bean container 14 and open the grounds compartment 13.
7. Add the ground coffee; do not press firmly. Add no more than two level measuring spoons.

Caution!

Do not place coffee beans or instant coffee in the grounds compartment.

1. Close the grounds compartment and the aroma lid.

The name of the drink and the currently active values are shown on the display.

1. To change the settings for the selected drink.

→ "Adjusting beverage settings" on page 58 → "Menu settings" on page 63

1. To begin dispensing the drink, press the rotary selector.

The coffee is brewed and then dispensed into the cup.

Notes

■ Any grounds residue in the grounds shaft should be directed down the shaft using a soft brush.
■ To prematurely stop dispensing the drink, press the rotary selector again.
■ For another drink with ground coffee, repeat the procedure.
- When ground coffee is used, the aromaDoubleShot function is not available.

Preparing drinks with milk

This appliance features an integrated milk system. The milk system can be used to prepare coffee drinks with milk, as well as milk froth and warm milk. You can choose between Espresso Macchiato, Cappuccino, Latte Macchiato, Caffe Latte, Café cortado and Flat White.

Tip: You can also use plant-based alternatives to milk, e.g. soya milk.

Notes

■ While milk is being prepared, you may hear a whistling sound. These noises are emitted for technical reasons and are normal.
■ Dried milk residues are difficult to remove so always perform cleaning. → "Cleaning the milk system" on page 72
■ The quality of the milk froth depends on the type of milk or the plant-based alternative used.

Warning

Risk of burns!

The milk system becomes very hot. After use, always let it cool down before you touch it.

Using the milk container

The milk container 5 has been designed especially for use together with this appliance. It is intended solely for use in the household and for storing milk in the refrigerator.

Important: The milk container can only be connected if the milk system is installed in the outlet system with an adapter and hose. (→ Fig. 3)

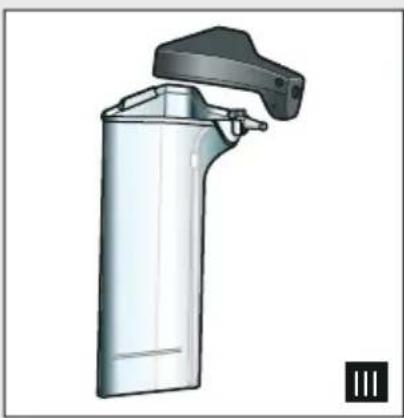

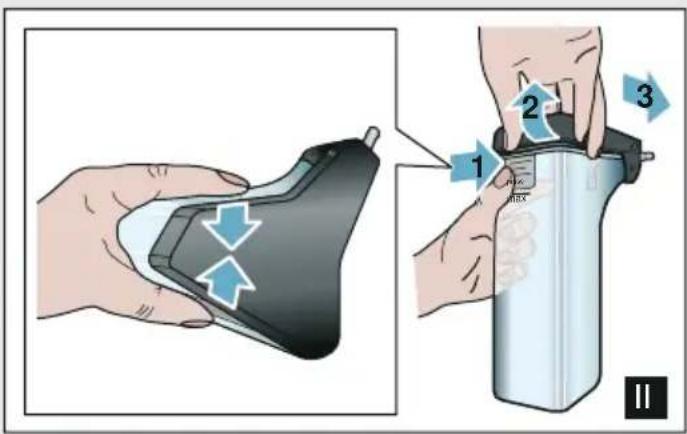

1. To remove the lid, press the marking and remove the lid. (→ Fig. 7)
2. Pour in the milk.
3. Press the lid onto the milk container until it engages.
4. Connect the milk container on the left of the appliance. The milk container must engage.

Tip: If the milk container runs empty during dispensing, it can be filled and connected again. Dispensing continues automatically.

Coffee drinks with milk

The appliance is switched on. The water tank and bean container have been filled. The milk container filled with milk is connected.

1. Place a cup or a glass under the outlet system.

2. Use the rotary selector to select the desired drink.
   The name of the drink and the currently active values are shown on the display.

3. To change the settings for the selected drink. → "Adjusting beverage settings" on page 58 → "Menu settings" on page 63

4. To begin dispensing the drink, press the rotary selector.

The milk is dispensed into the cup or glass first. The coffee is then brewed and dispensed into the cup or glass. The sequence can be changed for Cappuccino and Espresso Macchiato. → "Menu settings" on page 63

Note: Pressing the rotary selector once can prematurely stop the dispensing of milk or coffee; pressing the rotary selector twice stops the drink dispensing completely.

Milk froth or warm milk

The appliance is switched on. The water tank has been filled.

The milk container filled with milk is connected.

1. Place a cup or a glass under the outlet system.
2. Select "Milk froth" or "Warm milk" with the rotary selector.
   The name of the drink and the currently active values are shown on the display.
3. To change the settings for the selected drink.
   → "Adjusting beverage settings" on page 58 → "Menu settings" on page 63
4. To begin dispensing the drink, press the rotary selector.
   Milk froth or warm milk is dispensed into the cup or glass.

Note: To prematurely stop dispensing the drink, press the rotary selector again.

Dispensing hot water

Note: Before dispensing hot water, clean the milk system and remove the milk container. If the milk system is not cleaned, the dispensed water may contain small quantities of milk. → "Cleaning the milk system" on page 72

Warning

Risk of burns!

The outlet system becomes very hot. After use, always let the outlet system cool down before you touch it.

The appliance is switched on. The water tank has been filled.

1. Place a cup under the outlet system.
2. Remove the milk container, if connected.

3. Select "Hot water" with the rotary selector.

4. To change the settings for the selected drink. → "Adjusting beverage settings" on page 58 → "Menu settings" on page 63

5. To begin dispensing the drink, press the rotary selector. Hot water is dispensed into the cup.

Note: To prematurely stop dispensing the drink, press the rotary selector again.

Adjusting beverage settings

Once you have selected a drink, you can adjust certain values depending on the drink. To do so, please use the following buttons and the rotary selector:

Button Function Selection

Selecting coffee strength, ground coffee

very mild *mildmild + *normalnormal + *strongstrong + *very strongvery strong + *extra strong

doubleShot strongdoubleShot strong +doubleShot strong ++ *TripleShot strong *TripleShot strong + *Ground coffee

milk Milk/coffee mixing ratio Setting share of milk in %(only for coffee drinks with milk)

ml Cup size Adjustment of volume in ml increments.

Not available for Ristretto.

Two cups at once Place two cups under the outlet.

Navigation button, left	Water Temperature* e.g. for tea drinks:		>80°C (green tea)
		>60°C (special tea preparation)	>85°C (rooibos tea)
		>70°C (white tea)	>90°C (black tea)
			>97°C (fruit tea)
Navigation button, right	aromaIntense* normal		intense +
		intense

Selection marked with * is only available for certain drinks or when in "barista mode".

The appliance is set to "barista mode" by default. Additional values can therefore be set using the two navigation buttons. "Barista mode" can also be switched off. → "Menu settings" on page 63

The factory settings are shown in orange on the display. The currently selected settings are backlit.

Adjusting the coffee strength or selecting ground coffee

A coffee drink is selected.

1. Press the Ⓞ button.
2. Use the rotary selector to set the coffee strength or select ground coffee.
3. Press the Ⓞ button or the rotary selector to confirm.

Aroma setting

The longer coffee is brewed, the more bitter substances and undesirable aromas are released. This has a negative effect on the taste and makes the coffee less easily digestible. The appliance therefore offers special aroma settings for extra strong coffee: doubleShot and TripleShot. Depending on the setting, once half or a third of the volume has been prepared, a second portion of coffee beans is ground and brewed, so that in each case only the pleasant and beneficial flavours and aromas are released.

Notes

■ The doubleShot setting can be selected for all coffee drinks except for:
- drinks with a small volume of coffee, e.g. Ristretto
- coffee drinks with milk and a small volume of coffee
- a small volume of coffee, e.g. setting 200 ml "Caffe Latte" with a 90% share of milk (10% share of coffee)
- preparation with ground coffee
- dispensing two cups
■ The aroma setting TripleShot can only be selected for Coffee XL.
- Dispensing two cups is not possible

Adjusting the milk/coffee mixing ratio

A coffee drink with milk is selected.

1. Press the milk button.

2. Use the rotary selector to set the share of milk in %.
   Example: When a value of 30% is configured, 30% milk and 70% coffee will be dispensed.

3. Press the milk button or the rotary selector to confirm.

Selecting cup size

A drink is selected.

1. Press the ml button. The preset volume depends on the type of beverage.
2. Use the rotary selector to adjust the desired volume in ml increments.
3. Press the ml button or the rotary selector to confirm.

Notes

■ The volume cannot be changed for ristretto.
■ The volume dispensed can fluctuate depending on the quality of the milk.

Preparing two cups at once

A coffee drink or a coffee drink with milk is selected.

1. Press 📋 button.
2. Place two pre-heated cups on the left and right below the outlet system.
3. To begin dispensing the drink, press the rotary selector.
   The selected drink will be brewed and then dispensed into the two cups.

Notes

■ The drink is prepared in two steps (two grinding operations). Please wait until the process is fully completed.
- When selecting □, the aroma settings are not available.
■ The setting ☐ for Coffee XL is not available.

Adjusting the drink temperature

Only available in "barista mode". → "Menu settings" on page 63

A drink of your choice is selected.

1. Use the left navigation button to call up the temperature setting.
2. Turn the rotary selector to set the desired temperature.
3. Press the left navigation button or the rotary selector to confirm.

Setting aromalntense

Only available in "barista mode". → "Menu settings" on page 63

The intensity of the taste of a coffee drink can be individually adjusted using the aromalntense setting. When milk is dispensed, this selection does not influence the warm milk or the milk froth.

A coffee drink is selected.

1. Use the right navigation button to call up the menu.
2. Make the desired setting using the rotary selector.
3. Press the right navigation button or the rotary selector to confirm.

Setting the grinding level

This appliance features an adjustable grinder. This enables the grinding level of the coffee to be individually changed.

Warning

Risk of injury!

Do not reach into the grinding unit.

Caution!

The appliance may be damaged! Only adjust the grinding level when the grinder is running!

When the grinder is in operation, use the rotary selector 15, 19* to set the grinding level.

■ Finer grinding level: turn anticlockwise. (Fig. a)
■ Coarser grinding level: turn clockwise. (Fig. b)

Illustration of a gray electronic device with a button-like sensor and a blue arrow indicating rotation (no text or symbols)

Illustration of a stylized device with a blue arrow indicating rotation (no text or symbols)

Notes

■ The new setting will not become apparent until the second cup of coffee.
■ For dark roast coffee beans, choose a finer grinding level; for lighter beans, choose a coarser grinding level.

Cup warmer

Caution!

The cup warmer becomes very hot!

The fully automatic coffee machine features a cup warmer 11. If the cup warmer is switched on, the cup warmer LED display 12 lights up.

Tip: For optimal cup heating, position the cups with the base of the cup on the cup warmer.

Note: This function can be activated and deactivated in the menu (press 🔒/i and turn the rotary selector to the left) or in the "Settings menu". → "Menu settings" on page 63

Customising

User profiles can be created in the customising menu. In the user profiles, individual beverages can be stored under names of your choice.

Creating a user profile

1. Press 📄 button. The menu appears.
2. Use the rotary selector to select a new profile.
3. Press the right-hand navigation button to confirm the selection. The user name can be entered.
4. Use the rotary selector to select the desired letter. Press the rotary selector to save the letter. The letter is saved.

Once the user name has been entered in full:

1. Press the right-hand navigation button to save the user name.

2. Use the rotary selector to select a background picture.

3. Press the right-hand navigation button to save the selection.

4. Use the rotary selector to select a silhouette.

5. Press the right-hand navigation button to save the selection.

6. Use the rotary selector to select "default mode" or "barista mode".

7. Press the right-hand navigation button to save the selection. The selection prompt appears.

8. Press the right-hand navigation button again to confirm the profile. The user profile picture appears.

9. Press 📄 button to exit the menu or to save an individual beverage for the user created immediately afterwards.

Saving individual beverages:

1. Press the rotary selector. The display shows "change beverages".
2. Press the right-hand navigation button to create the beverage.
3. Use the rotary selector to select the desired beverage.
   The selected beverage can be adjusted in line with personal preference.
   → "Adjusting beverage settings" on page 58
4. Press the rotary selector. A prompt appears for you to confirm the selection.
5. Press the right-hand navigation button to confirm the selection.
6. Press 📄 button. The settings are completed.
7. Press 📂 button to exit the menu. The appliance is ready for use again.

Note: The appliance can store up to 10 profiles each with 10 drinks.

Editing or deleting user profile

1. Press the 📄 button. The menu appears.
2. Use the rotary selector to select the desired profile.
3. Press the left navigation button to delete the profile.
4. or - Press the right navigation button to edit the settings in the profile.
   The settings in the profile can be changed as described. → "Creating a user profile" on page 61
5. Press the 📄 button. The appliance is ready for use again.

Saving individual drinks

A drink that is currently being dispensed can be saved directly in a new or an existing profile using the individual settings.

1. Press and hold 📄 button for at least 5 seconds.
   If profiles have not yet been saved, a new profile appears immediately.
2. If profiles are already saved and the individual drink is to be saved in a new profile, use the rotary selector to select a new profile.
3. Or -
   If the individual drink is to be saved in an existing profile, use the rotary selector to select the desired profile.
4. Press the right-hand navigation button to save. If a new profile is being created, enter the name and select the background picture, silhouette and usermode. Save the entries. Info: If a profile is already available, select it and save the drink.
5. Press 📞 button.
   The settings are completed. The appliance is ready for use again.
6. Press 📄 button to exit the menu.

Note: To exit the menu automatically, select "Leave profiles automatically" under "User profiles". → "Menu settings" on page 63

Childproof lock

The appliance can be locked to protect children against scalding and burns.

Activating the child-proof lock

Press and hold the milk button for at least 4 seconds.

"Child-proof lock activated" appears in the display.

It is no longer possible to operate the appliance.

Deactivating the child-proof lock

Press and hold the milk button for at least 4 seconds.

"Child-proof lock deactivated" appears in the display.

The appliance can be used in the usual way.

Menu settings

This menu is used for changing settings individually, accessing information and starting a programme.

Changing settings

1. Press 🔒/i button, turn the rotary selector to the left and select "Settings". Press the rotary selector. The different setting options will appear in the display.

2. Select the desired setting using the rotary selector. The current setting is highlighted in colour on the display.

3. Press the navigation button under "select".

4. Use the rotary selector to change the setting.

5. Press the navigation button under "confirm". The setting has been saved.

6. Press 🔒/ī button to exit "Menu". The drink selection appears on the display.

Notes

• You can switch to the previous level by pressing the navigation button under "back".
  ■ The setting procedure can be aborted by pressing the navigation button under "abort".
  ■ Press ⬇/i button to exit the menu at any time.
  If no entry is made within approx. 2 minutes, the menu closes automatically and the settings are not saved.

The following settings are available:

Settings Possible settings Explanation
Language Different languages Setting the language to be used for display texts.
Water hardness ■ 1 (soft)■ 2 (medium)■ 3 (hard)■ 4 (very hard)■ Water-softening system	Setting in line with the hardness of the local water supply.The preset water hardness is level 4 (very hard).The water hardness can be requested for example from your local water supplier.It is important to set the water hardness correctly so that the appliance indicates in good time when the descaling programme must be run.If a water softening system is installed in the house, please select "Softening device".
Home Connect* Settings for connection to WLAN network (home network) and mobile devices (see section "Home Connect").
Switch off after 5 minutesup to to3 hours	Setting that determines how long the appliance should wait after the last beverage preparation before it automatically switches itself off.The factory setting is 30 minutes.
Brightness display Level 1 up to level 10Standard setting 7	Setting that governs the brightness of the display

en Menu settings

Select usermode■ default mode■ barista mode	In the "barista mode" setting, the following can be performed directly in the display:■ The temperature can be set by pressing the left navigation button.■ The aromalntense (brew speed) can be set in three levels by pressing the right navigation button.
Beverage info Shows the volume of drinks dispensed since the appliance was commissioned.For technical reasons, the counter does not represent a precise number of cups.
Factory settings Appliance reset to factory settings	Resets all your own settings to the condition when delivered.
Demo mode■ on■ off	For presentation purposes only. The setting "off" must be activated for normal operation. The setting is only possible in the first 3 minutes after switching on the appliance.
Beverage settings
Cappuccino sequence■ first milk■ first coffee	Setting that determines whether milk or coffee should be brewed and dispensed first.
Espresso Macchiato sequence■ first milk■ first coffee	Setting that determines whether milk or coffee should be brewed and dispensed first.
Latte Macchiato pause■ min■ 5s■ 10s	Setting the pause between milk and coffee dispensing.
Espresso / Cof-fee temperature*■ normal■ high■ max.	Setting the temperature for coffee drinks.The setting is effective for all preparation types.Applies only to "default mode" -in "barista mode" directly adjustable via drink selection.→ "Adjusting beverage settings" on page 58
User profiles■ Leave profiles automatically■ Delete all profiles	Setting that determines whether user profiles are to be exited automatically or deletion of all user profiles.
Cup warmer*■ on■ off	If the cup warmer is switched on, the cup warmer LED lights up.
Bean container Setting that determines which bean container is automatically active. The bean container can be selected directly before each dispensing operation using the "Bean container" selection buttons.
■ most recently selected bean container	The appliance remembers the most recently used bean container.
■ default bean container right	Each time a beverage is dispensed, the appli-ance automatically returns to the right-hand bean container.
■ default bean container left	Each time a beverage is dispensed, the appli-ance automatically returns to the left-hand bean container.
■ Save container with bever-age	The appliance remembers the most recently used bean container and the most recently set beverage.

Settings marked with * can also be selected directly in the menu.

Starting the "Water filter" or "frost protection" programme

1. Briefly press the 🔒/i button.
2. The rotary selector can be used to select the "Water filter" or "frost protection" programme. The current setting is marked on the display.

Note: The rotary selector can also be used to select a service programme. → "Service programmes" on page 74

Water filter

A water filter lessens limescale deposits and reduces impurities in the water. The appliance also does not need to be descaled so often. Water filters are available from retailers or from customer service. → "Accessories" on page 50

If a water filter is inserted, the appliance will show when it needs to be changed. The display shows the relevant prompt.

Inserting or replacing a water filter

A new water filter must be rinsed before it can be used.

1. Select "Water filter" in the Settings menu.

2. Use the navigation button to select "insert" or "replace".

3. Use the measuring spoon to press the water filter firmly into the empty water tank.

Diagram illustrating the step-by-step installation of a toaster oven, showing hand positioning and cutting process.

1. Fill the water tank with water up to the "max" marking.
2. Place a container with a capacity of at least 1.0 l under the outlet and confirm. Water will now flow through the filter. The filter is rinsed.
3. Then empty the container. The appliance is ready for use again.

Notes

■ Rinsing the filter automatically activates the interval for display of the filter change. After this interval or after 2 months at the latest the filter will no longer be effective. It needs to be replaced for reasons of hygiene and to prevent a build-up of limescale (which could damage the appliance).
If the appliance has not been used for a prolonged period (for example, while you are on holiday), the inserted filter should be rinsed before the first time the appliance is used again. To do this, simply dispense a cup of hot water.

Removing the water filter

If a new water filter is not inserted, the "Water filter" function must be deactivated.

1. Select "Water filter" in the Settings menu.
2. Select and confirm the setting "remove".
3. Remove the water filter from the water tank.
4. Re-insert the water tank. The appliance is ready for use again.

Frost protection

A service programme to prevent frost damage during transportation and storage. This programme completely empties the appliance. The appliance must be ready for use.

1. Press the rotary selector to start the programme.
2. Empty the water tank and re-insert it.
3. The appliance emits steam.
4. Empty the drip tray and thoroughly clean the appliance.

The appliance can now be transported or stored.

Home Connect

This fully automatic coffee machine is Wi-Fi-capable and can be remotely controlled using a mobile device (e.g. tablet, smartphone).

The Home Connect app offers extra functions that complement the networked appliance perfectly. If the appliance is not connected to the WLAN network (home network), it functions in the same way as a fully automatic coffee machine with no network connection and can be operated as usual via the display.

Important:

The home network router must be operated in the 2.4 GHz frequency range (band: 100 mW max.). Please check and adjust it if necessary.

The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on this at www.home-connect.com.

Note: Please ensure that you follow the safety instructions given at the beginning of this instruction manual and that they are also observed when operating the appliance via the Home Connect app and when away from home. Please also follow the instructions in the Home Connect app. Operation on the appliance itself always takes priority, and during this time it is not possible to operate the appliance using the Home Connect app.

Setting up

To implement settings via Home Connect, you must have installed the Home Connect app on a mobile device (e.g. tablet PC, smartphone).

When doing so, observe the Home Connect installation instructions supplied, which are also available to download in additional languages at http://www.siemens-home.com.

Follow the steps specified by the app to implement the settings. Login of the appliance in the WLAN network can be carried out on initial set-up of the fully automatic coffee machine either directly or using the menu (press ⏻/± button to open "Menu"):

1. Turn the rotary selector to the left and select "Home Connect setting".
2. Press the rotary selector.
3. The display shows the Home Connect menu, with "Turn on Wi-Fi" highlighted in colour.
4. Press the right-hand navigation button under "select" to start the radio link.
5. Use the rotary selector to select "Connect to network".
6. Press the right-hand navigation button under "select".
7. The following selection appears: "Connect automatically" and "Connect manually".

Note: If the router has WPS functionality, please select "Connect automatically", otherwise use "Connect manually".

Automatic registration in the home network

1. Use the rotary selector to select "Connect automatically" on the display.
2. Press the right-hand navigation button under "confirm".
3. The display shows "Automatic network connection".
4. Press the WPS button on the home network router within a few minutes and wait until the display of the fully automatic coffee machine shows "Network connection successful".
5. Open the app on the mobile device.
6. Use the rotary selector to select "Connect to app".
7. Press the right-hand navigation button under "select". The fully automatic coffee machine connects to the app. Follow the instructions on the app.
8. Wait until "Successfully connected to app" lights up briefly in the display.
9. Use the rotary selector to select "Turn on remote start".
10. Press the right-hand navigation button under "select". A warning message appears.
11. Press the right-hand navigation button under "continue" and read the warning message.
12. Press the right-hand navigation button under "confirm".
13. Press the Ⓠ/± button to close the menu. With the mobile device the functions of the fully automatic coffee machine can now be used to their full extent via the app.

Note: If "Turn off remote start" is selected, only the modes of the fully automatic coffee machine are displayed in the Home Connect app. You can specify settings but not start drinks dispensing.

Manual registration in the home network

1. Use the rotary selector to select "Connect manually" on the display.

2. Press the right-hand navigation button under "confirm". The fully automatic coffee machine sets up a separate WLAN network which can be accessed with a tablet or smartphone. The display shows the SSID (the name) and the key (the password) of this network.

3. Log the mobile device in to the network of the fully automatic coffee machine with the "HomeConnect" SSID and the "HomeConnect" key.

4. Start the app on the mobile device and follow the instructions for network login in the app and the Home Connect documents supplied. The login process is complete when "Network connection successful" lights up briefly in the display of the fully automatic coffee machine.

5. Use the rotary selector to select "Connect to app" on the display.

6. Press the right-hand navigation button under "select". The fully automatic coffee machine connects to the app.

7. Wait until "Successfully connected to app" lights up briefly in the display.

8. Use the rotary selector to select "Turn on remote start".

9. Press the right-hand navigation button under "select". A warning message appears.

10. Press the right-hand navigation button under "continue" and read the warning message.

11. Press the right-hand navigation button under "confirm".

12. Press the 🔒/i button to close the menu. With the mobile device the functions of the fully automatic coffee machine can now be used to their full extent via the app.

Note: If "Turn off remote start" is selected, only the modes of the fully automatic coffee machine are displayed in the Home Connect app. You can specify settings but not start drinks dispensing.

Switching Wi-Fi on and off

Wi-Fi can be switched "on" or "off" as required (e.g. when on holiday).

Note: Network information is retained after the appliance is switched off. After switching on, wait a few seconds until the fully automatic coffee machine has connected to the WLAN network again. In networked standby mode the appliance requires a maximum of 2 W.

1. Press 🔒/i button to open "Menu".

2. Turn the rotary selector to the left and select "Home Connect setting".

3. Press the rotary selector.

4. Use the rotary selector to select "Turn on Wi-Fi" or "Turn off Wi-Fi".

5. Press the right-hand navigation button under "select" to switch the radio module "on" or "off".

6. Press 🔒/i button to close the menu.

Additional settings

Home Connect can be adapted to your individual needs at any time. Note: The fully automatic coffee machine must be connected to the WLAN network.

Disconnecting

The fully automatic coffee machine can be disconnected from the WLAN network at any time.

Note: If the fully automatic coffee machine is disconnected from the WLAN network, it cannot be operated using Home Connect.

1. Press ⏻/i button, turn the rotary selector to the left and select "Home Connect setting".
2. Press the rotary selector.
3. Press the right-hand navigation button under "select".
4. Use the rotary selector to select "Disconn. from network".
5. Press the right-hand navigation button under "select". The appliance is disconnected from the network and app.
6. Press 🔒/i button to close the menu.

Note: Information about the WLAN network is cleared.

Connect to the app

The Home Connect app can be installed on any number of mobile devices, which can then be used to connect to the fully automatic coffee machine. The fully automatic coffee machine must already be connected to the WLAN network.

1. Open the app on the mobile device.
2. Press ⬤/i button, turn the rotary selector to the left and select "Home Connect setting".
3. Press the rotary selector.
4. Press the right-hand navigation button under "select".
5. Use the rotary selector to select "Connect to app".
6. Press the right-hand navigation button under "select" to connect the appliance to the app.
7. Press 🔒/i button to close the menu.

Remote Start

If you wish e.g. to start drinks dispensing on the fully automatic coffee machine via a mobile device, Remote start must be activated.

Caution!

Risk of scalding!

In the event of an unintentional remote start, third parties may be scalded if they insert their hands under the coffee outlet. Therefore, please ensure that no persons, in particular children, or objects are endangered if the appliance is started remotely by accident.

Note: The text field "Turn on remote start" is only visible if connection with Home Connect has been successfully completed. If Remote start is switched off, only the modes of the fully automatic coffee machine are displayed in the Home Connect app.

1. Press ⬇/i button, turn the rotary selector to the left and select "Home Connect setting".
2. Press the rotary selector.
3. Press the right-hand navigation button under "select".
4. Use the rotary selector to select "Turn on remote start" in the display.
5. Press the right-hand navigation button under "select".
6. Press 🔒/i button to close the menu.

Device info

Display for network and device information

1. Press ⬇/i button, turn the rotary selector to the left and select "Home Connect setting".
2. Press the rotary selector.
3. Press the right-hand navigation button under "select".
4. Use the rotary selector to select "Appliance info" on the display.
5. Press the right-hand navigation button under "select". The SSID, IP, MAC address and serial number of the appliance are displayed for a few seconds.
6. Press 🔒/i button to close the menu.

Display

The top right-hand corner of the display shows the Home Connect status with a symbol:

Connected to the network
Not connected to the network
No connection to server

Remote diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance.

Note: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com

About data protection

When the fully automatic coffee machine is connected for the first time to a WLAN network which is connected to the Internet, the appliance transmits the following categories of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
■ The current software and hardware version of the fully automatic coffee machine.

■ Status of any possible previous resetting to factory settings. This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be used in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.

Declaration of Conformity

BSH Hausgeräte GmbH hereby declares that the appliance which features Home Connect is in accordance with the basic requirements and the other relevant provisions of the directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.siemens-home.bsh-group.com on the product page of your appliance with the additional documents.

2.4 GHz band: max. 100 mW

Daily care and cleaning

With good care and cleaning, your appliance will remain fully functioning for a long time to come. In this section, you will learn how to correctly clean and care for your appliance.

Warning

Risk of electric shock!

Before cleaning the appliance, pull out the mains plug. Never immerse the appliance in water. Do not use a steam cleaner.

Cleaning agent

Please observe the following information to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent.

Do not use:

■ Harsh or abrasive cleaning agents.
■ Any cleaning agents containing alcohol or spirits.
- Hard scouring pads or sponges.

Diagram showing three labeled icons: a rolled-up document, a cross-shaped block with arrows indicating process or alignment, and a textured object with checkmark.

Notes

■ New sponge cloths may contain salts. Salts can cause rust film on stainless steel. Wash new sponge cloths thoroughly before use.
■ Always remove any limescale, residues of coffee or milk, cleaning or descaling solution immediately. This residue may cause corrosion to form.

Caution!

Not all of the appliance's components can be cleaned in the dishwasher.

Fig. 5 - 8

Not dishwasher-safe:

Outlet system cover

Brewing chamber cover

Brewing unit

Water tank

Aroma lid

Dishwasher- safe:

Drip plate

Drip tray

Coffee grounds container

max. 60°C

Coffee grounds slider, red

Brewing unit cover, red

Measuring spoon

Milk system, all parts

Milk container, all parts

Cleaning the appliance

1. Wipe down the outside of the appliance with a soft, damp cloth.
2. Clean the display using a micro-fibre cloth.
3. Any grounds residue in the powder compartment should be pushed down using a soft brush.

Notes

If the appliance is cold when switched on or if it is switched off after dispensing coffee, it rinses automatically. The system is therefore self-cleaning.
If the appliance has not been used for a prolonged period of time (e.g. while you are on holiday), clean the entire appliance thoroughly, including the coffee outlet, water tank, milk system, brewing unit and trays.

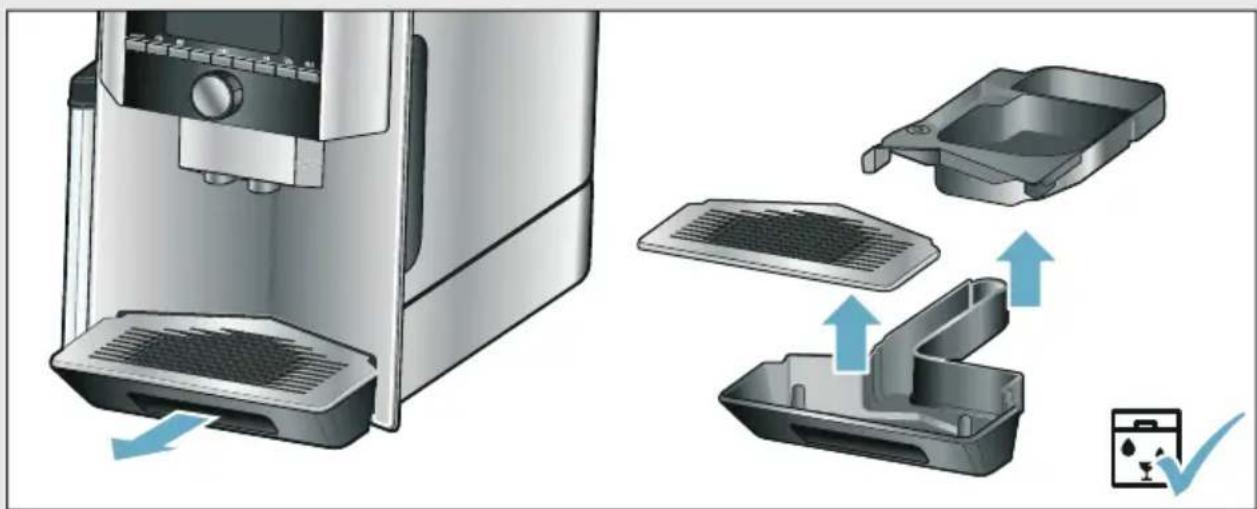

Cleaning the drip tray and coffee grounds container

→ Fig. 5

Note: The drip tray and coffee grounds container should be emptied and cleaned every day in order to prevent deposits.

1. Pull the drip tray with the coffee grounds container forwards and out.
2. Remove the drip plate and clean with a brush.
3. Empty and clean the drip tray and coffee grounds container.
4. Wipe out the interior of the appliance (intake trays).

Cleaning the milk container

→ Fig. 7

Note: For reasons of hygiene, the milk container must be cleaned regularly

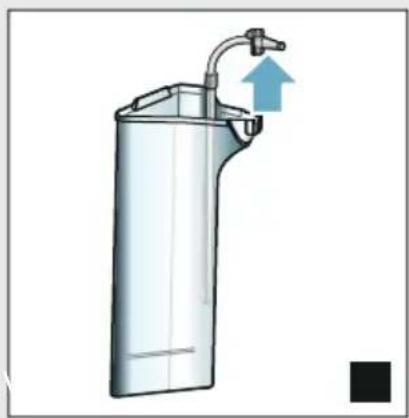

1. Dismantle the milk container into its individual parts.
2. Clean all parts of the milk container or put them in the dishwasher.

Cleaning the milk system

The milk system is automatically cleaned with a short jet of steam directly after preparing a milk drink.

Warning

Risk of burns!

The outlet system becomes very hot. After use, always let the outlet system cool down before you touch it.

Manually clean the milk system on a weekly basis or more frequently if required. For particularly thorough cleaning, the milk system can be additionally rinsed with water. → "Rinse milk system" on page 75

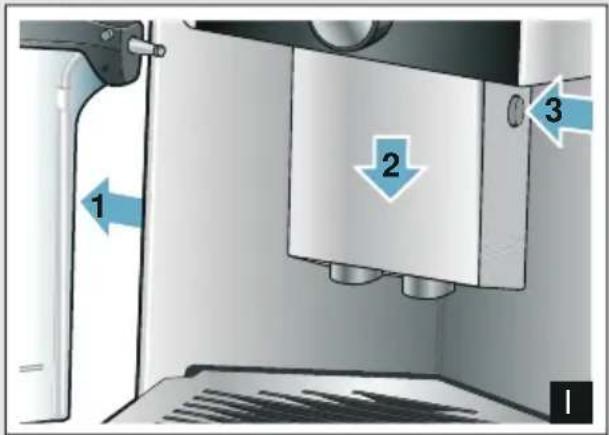

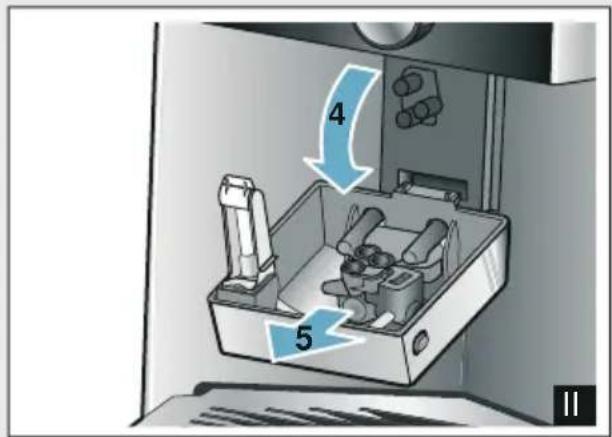

Removing the milk system → Fig.3:

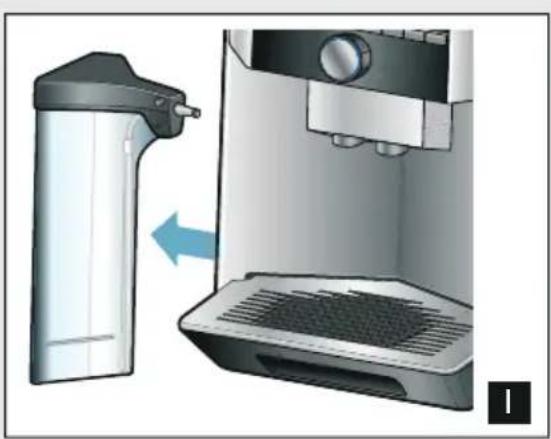

1. Remove the milk container from the appliance.
2. Slide the outlet system to the bottom position.
3. Press the unlocking mechanism at the top right.
4. Fold the cover down towards the front and remove.

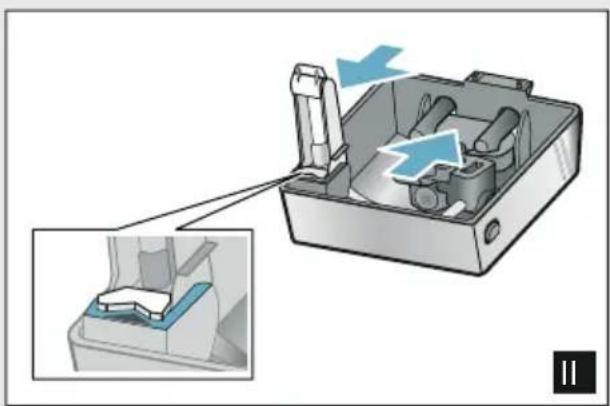

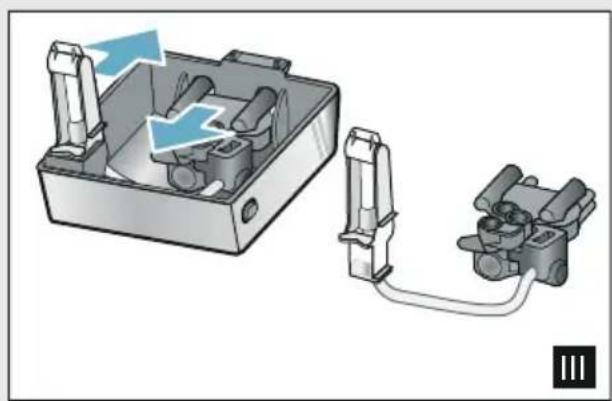

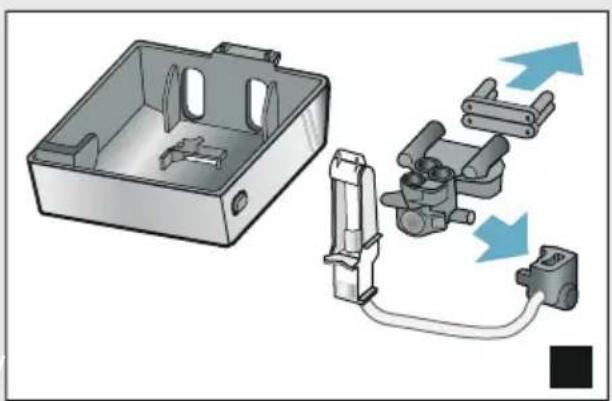

5. Remove the milk system and dismantle into individual parts.

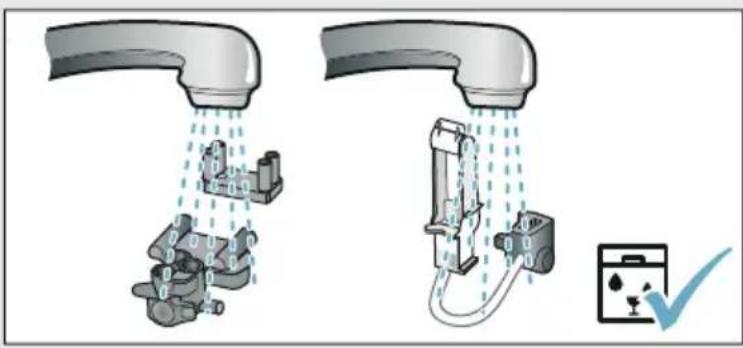

6. Clean the individual parts with detergent solution and a soft cloth → Fig. 6.
7. Rinse all parts with clean water and leave to dry.

Notes

■ All parts of the milk system can be cleaned in the dishwasher. Detergent residues in the milk system must be thoroughly removed following the rinsing process.
■ Important: The outlet system cover is not dishwasher-safe.

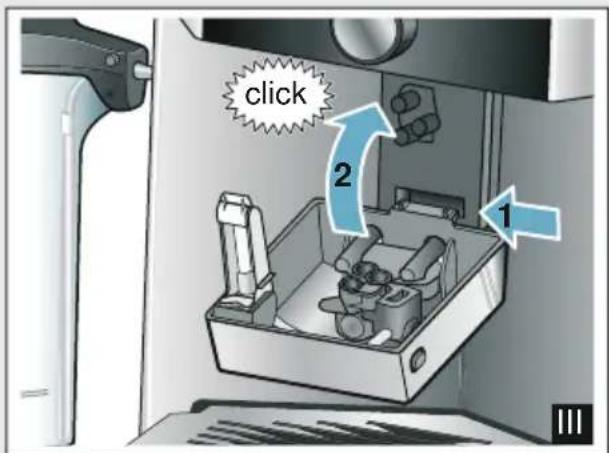

Inserting the milk system: → Fig. 3:

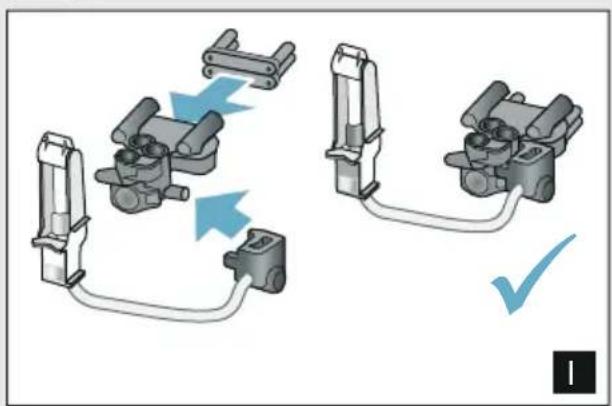

1. Assemble the individual parts of the milk system.
2. Insert the milk system into the cover.
3. Slide the outlet system to the bottom position.
4. Position the cover at the bottom and pivot it upwards until it engages.

Cleaning the brewing unit

→ Fig. 4, → Fig. 8

In addition to the automatic cleaning programme, the brewing unit should be removed regularly for cleaning.

Caution!

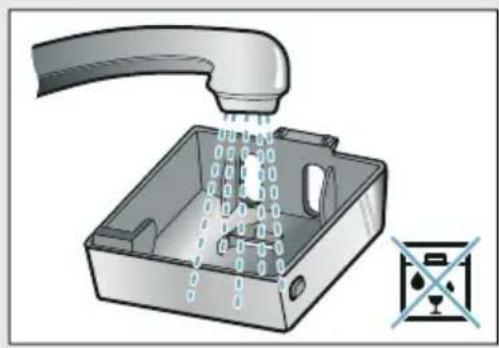

Clean the brewing unit without detergent and do not put it in the dishwasher.

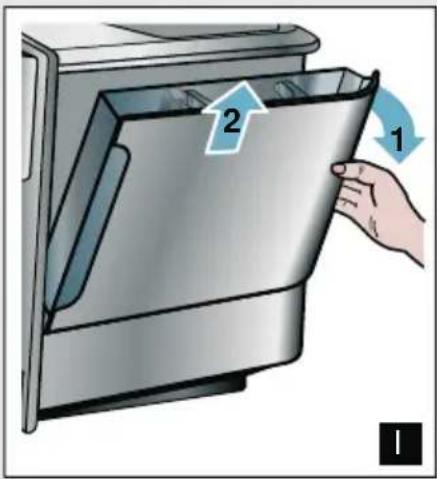

Remove the brewing unit:

1. Switch the appliance off.
2. Remove the water tank.

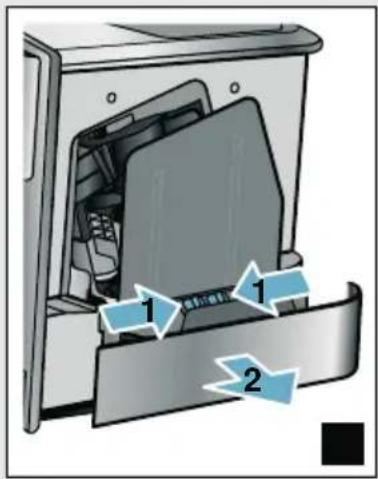

3. Slide both red locking sliders towards one another and remove the cover.

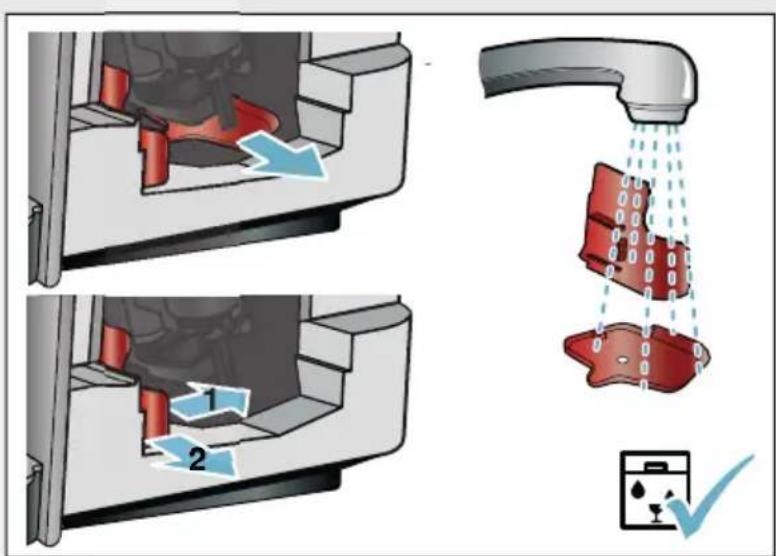

4. Remove, clean and dry the coffee grounds slider (red) and the brewing unit cover (red).

5. Slide the red lock to the right across the brewing unit.

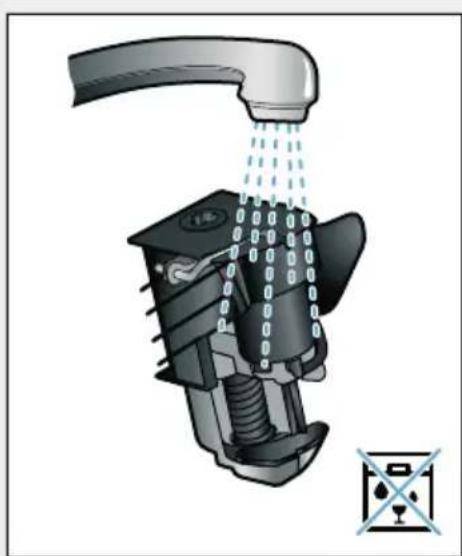

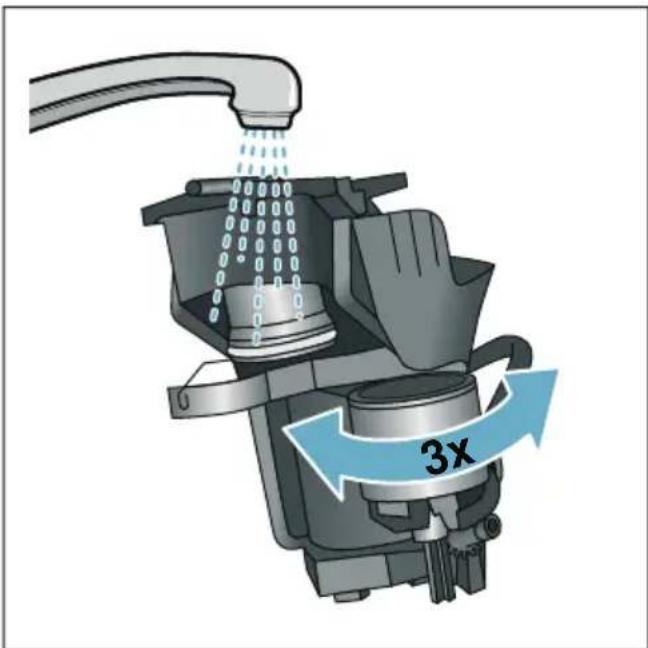

6. Carefully remove the brewing unit and clean thoroughly under running water.

3X

1. Clean the interior of the appliance thoroughly with a damp cloth, removing any coffee residues.
2. Allow the brewing unit and the interior of the appliance to dry.

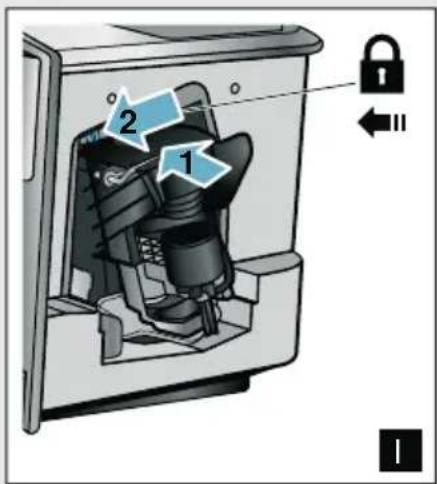

Insert the brewing unit:

1. Push the brewing unit into the appliance in the direction of the arrow. The arrow is located on top of the brewing unit. Position the brewing unit from above, suspend on the guide rails and push into the appliance.
2. Slide the red lock to the left across the brewing unit.
3. Insert the coffee grounds slider (red) and the brewing unit cover (red).

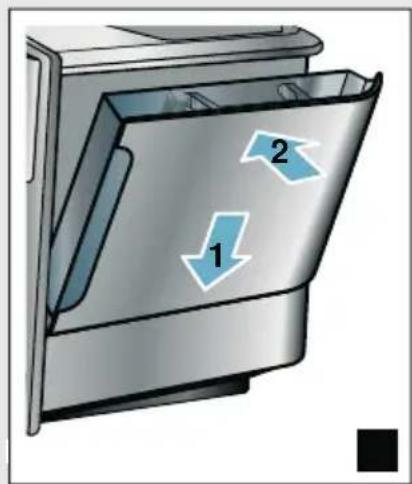

4. Insert the cover until it engages.
5. Insert the water tank.

Service programmes

Every so often – the exact frequency depends on usage and water hardness – one of the following messages will appear in the display in place of the coffee selection:

• Rinse milk system
  ■ Run descaling program urgently!
  ■ Run cleaning program urgently!
  ■ Run calc'nClean program urgently!

The appliance should immediately be cleaned or descaled using the appropriate programme. Alternatively, the two processes Descale and Clean can be carried out together using the calc'nClean function. Failure to carry out the service programme according to the instructions may damage the appliance.

You can also start the service programmes at any time without having to wait for a reminder to appear in the display. Press the ⏻/i button, select the desired programme and run it.

Notes

■ Important: If descaling is not performed on the appliance in good time, the following appears "Descaling programme overdue. Device will shortly be locked!". Immediately perform the descaling process in accordance with the instructions. If the appliance is locked, it can only be operated again once descaling has been carried out.
■ Caution! For each of the service programmes, use descaling and cleaning agents as described in the instructions and observe the (relevant) safety information.
■ Do not drink the liquids.
■ Never use citric acid, vinegar or any vinegar-based agents to descale the appliance.

For cleaning and descaling, only use the tablets intended for such purpose. They have been specially developed for this appliance, and new stocks can be ordered through customer service. → "Accessories" on page 50
■ Never insert descaling tablets or other products into the grounds compartment.
■ Never interrupt the service programme.
■ Prior to starting a service programme, remove, clean and re-insert the brewing unit. Rinse the milk system.
At the end of a service programme, wipe down the appliance using a soft, damp cloth to immediately remove any descaler residue. This residue may cause corrosion.
■ New sponge cloths may contain salts. Salts can cause rust film on stainless steel, so cloths must always be washed out thoroughly before use.
■ Using a water filter increases the intervals until a service programme needs to be performed.
If one of the service programmes is interrupted, e.g. by a power failure, proceed as follows: The appliance automatically starts a special rinsing process.
1. Rinse out the water tank.
2. Pour in fresh, still water up to the "max" marking and confirm. The programme starts and rinses the appliance.Duration: approx. 2 minutes.
3. Empty, clean and re-insert the drip tray.
4. Empty, clean and re-insert the milk container. The programme has finished. The appliance is ready for use again.
5. Press 🔒/i button to close the programme.

Rinse milk system

The milk system is automatically cleaned with a short jet of steam directly after preparing a milk drink.

For particularly thorough cleaning, the milk system can be additionally rinsed with water.

Duration: approx. 2 minutes

1. Press the 🔒/i button to open the menu.
2. Use the rotary selector to select "Rinse milk system".
3. Press the rotary selector to start the programme.
4. Empty, clean and re-connect the milk container.
5. Place an empty glass under the outlet system and confirm.
   The programme runs.
6. Empty, clean and re-connect the milk container.
7. Empty the glass.
   The programme has finished. The appliance is ready for use again.
8. Press the Ⓞ/i button to exit the programme.

The milk system should also be subject to thorough manual cleaning at regular intervals. → "Cleaning the milk system" on page 72

Descaling

Duration: approx. 21 minutes

The line at the bottom of the display indicates in how many minutes the water tank will need to be rinsed and refilled with water, for example.

1. Press the 🔒/i button to open the menu.
2. Use the rotary selector to select "Descale".
3. Press the rotary selector to start the programme.

The instructions in the display guide you through the programme.

1. Empty the drip tray and re-insert.

2. Empty, clean and re-connect the milk container.

3. Remove the water filter (if present) and confirm.

4. Fill the empty water tank with lukewarm water up to the marking "0.5 l". Dissolve 1 descaling tablet in the water.

5. Place a container with a capacity of at least 1.0 l under the outlet system and confirm.

6. Press the rotary selector.

The programme runs.

Duration: approx. 19 minutes

Info: If there is not enough descaling solution in the water tank, you will be asked to: Refill with still water and confirm.

1. Rinse out the water tank and (if removed) re-insert the water filter.

2. Pour in fresh still water up to the "max" marking and re-insert the water tank.

The programme runs.

Duration: approx. 2 minutes

1. Empty the container and confirm.

2. Empty the drip tray and re-insert.

3. Empty, clean and re-connect the milk container.

The programme has finished. The appliance is ready for use again.

1. Press the ⏻/i button to exit the programme.

Cleaning

Duration: approx. 6 minutes

1. Press the Ⓧ/i button to open the menu.
2. Use the rotary selector to select "Clean".
3. Press the rotary selector to start the programme.
   The instructions in the display guide you through the programme.
4. Empty the drip tray and re-insert.
5. Open the grounds compartment, add a cleaning tablet, close the grounds compartment and confirm.
6. Place a container with a capacity of at least 1.0 l under the outlet system and confirm.
   The programme runs.
   Duration: approx. 5 minutes
7. Empty the container and confirm.
   The programme has finished. The appliance is ready for use again.
8. Press the ⬤/i button to exit the programme.

calc'nClean

Duration: approx. 26 minutes

calc'nClean combines the functions "Descale" and "Clean". If the two programmes are due close together, the appliance suggests this service programme automatically.

The line at the bottom of the display indicates in how many minutes the water tank will need to be rinsed and refilled with water, for example.

1. Press the Ⓧ/i button to open the menu.
2. Use the rotary selector to select "calc'nClean".
3. Press the rotary selector to start the programme.
   The instructions in the display guide you through the programme.

4. Empty the drip tray and re-insert.

5. Empty, clean and re-connect the milk container.

6. Open the grounds compartment, add a cleaning tablet, close the grounds compartment and confirm.
7. Remove the water filter (if present) and confirm.
8. Fill the empty water tank with lukewarm water up to the marking "0.5 l". Dissolve 1 descaling tablet in the water.
9. Place a container with a capacity of at least 1.0 l under the outlet system and confirm.
   The programme runs.
   Duration: approx. 19 minutes
   Info: If there is not enough descaling solution in the water tank, you will be asked to: Refill with still water and confirm.
10. Rinse out the water tank and (if removed) re-insert the water filter.
11. Pour in fresh still water up to the "max" marking and re-insert the water tank.
    The programme runs.
    Duration: approx. 7 minutes
12. Empty the container and confirm.
13. Empty the drip tray and re-insert.
14. Empty, clean and re-connect the milk container.
    The programme has finished. The appliance is ready for use again.
15. Press the 🔒/i button to exit the programme.

Trouble shooting

Faults often have simple explanations. Before calling the customer service,

please refer to the fault table and attempt to correct the fault yourself.

Please read through the safety information at the beginning of these instructions.

If you are unable to solve the problem, always call the hotline. You will find the telephone numbers at the back of these instructions
Fault table

Problem Cause Solution
Coffee or milk froth quality var-ies widely.	Build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
The quality of the milk froth var-ies.	The quality of the milk froth depends on the type of milk or the plant-based alternative used.	Optimise the result by selecting your milk or plant-based alternative as appropriate.
No hot water dispensed. The milk system or the intake of the milk system is soiled.		Clean the milk system or the intake.→"Cleaning the milk system" on page 72
Too little or no milk froth. The milk system or the intake of the milk system is soiled.		Clean the milk system or the intake.→"Cleaning the milk system" on page 72
		Unsuitable milk. Do not use milk that has already been boiled. Use cold milk with a fat content of at least 1.5%.
		Build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
No intake of milk by the milk system.	The milk system is assembled incorrectly.	Correctly assemble all parts.→Fig.3
	Incorrect connection sequence for milk container and milk sys-tem.	Connect the milk system in the outlet system first, then the milk container.
The milk/blended milk drinks are too cold.	The milk used is too cold. Use lukewarm milk.
The individually selected per-cup quantity is not reached. Coffee dispensing slows to a trickle or stops completely	The grinding level is too fine. The ground coffee is too fine.	Set a coarser grinding level. Use coarser ground coffee.
	Heavy build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
	Air in the water filter. Immerse the water filter in water until no more air bubbles escape, then insert the filter again.
No coffee dispensed, only water.	The bean container is empty. Add coffee beansNote: The appliance will adjust to the coffee beans on the next dispensing process.
	The coffee shaft on the brewing unit is blocked.	Clean the brewing unit. →"Cleaning the brewing unit" on page 73
Problem Cause Solution
The appliance no longer responds.	Fault in the appliance. Press and hold on/off button for 10 seconds.
The grinder will not start. The appliance is too hot. Disconnect the appliance from the mains and leave to cool for 1 hour.
Coffee has no "crema". Unsuitable type of coffee. Use a type of coffee with a higher proportion of robusta beans.
The outlet system cannot be assembled or disassembled.	Incorrect sequence Connect the outlet system (with milk system) first, then connect the milk container. Alternatively, on disassem-bly first remove the milk container and then the outlet system.
Display shows "Fill bean con-tainer". Displayed although the bean container 14 is already full, or the grinder is not grind-ing any coffee beans.	Beans are not falling into the grinding unit (beans too oily).	Gently tap the bean container.Possibly change the type of coffee. When the bean container is empty, wipe it with a dry cloth.
Display shows: "Empty drip tray" even if the drip tray is empty - what to do?	Emptying is not detected when the appliance is switched off.	When the appliance is switched on, remove and re-insert the drip tray.
	The drip tray is soiled. Clean the drip tray thoroughly.
Display shows "Refill with still water" or "Remove filter"	Water tank wrongly inserted. Insert water tank correctly.
	Carbonated water in the water tank.	Fill the water tank with fresh tap water.
	Float is stuck in the water tank.	Remove the water tank and clean thor-oughly.
	New water filter not rinsed according to the instructions.	Rinse the water filter according to the instructions and then switch on.
	Air in the water filter. Immerse the water filter in water until no more air bubbles escape, then insert the filter again.
	Water filter is old. Insert a new water filter.
Very frequent display that des-caling is necessary.	Water is too hard. Check whether the correct water hard-ness is set in the menu. Insert water fil-ter and activate according to the instructions. → "Starting the "Water filter"or "frost protection" programme" on page 65
Home Connect is not working correctly.		Go to www.home-connect.com
Display shows "Clean brewing unit".	Brewing unit soiled. Clean the brewing unit.
	Too much ground coffee in the brewing unit.	Clean the brewing unit.Add no more than 2 level measuring spoons of ground coffee.
	The brewing unit mechanism is stiff.	Clean the brewing unit. → "Daily care and cleaning" on page 71

Customer service

Technical data

Electrical connection (voltage - frequency)	220-240 V~, 50/60 Hz
Power rating 1500 W
Maximum static pump pressure 19 bar
Maximum capacity of water tank (without filter) 2.3 l
Maximum capacity of right/left bean container 250/270 g
Maximum capacity of appliance with one bean container 290 g
Length of power cable 1000 mm
Dimensions (H x W x D) 392 x 299 x 470 mm
Weight, empty 10-12 kg
Type of grinder	Ceramic

E number and FD number

When calling us, please give the full product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate 9. (→ Fig. 2)

To save time, you can make a note of the data for your appliance and the telephone number for customer service here, should this be required.

E no.

FD Number

Customer service

The contact data for customer service in all countries can be found at the back of these instructions.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Changes reserved.

Table des matières

Exemple : → figure 1

Illustration of a stylized device with a handle and button, emitting a blue arrow (no text or symbols)

Illustration of a stylized object with circular elements and a blue arrow indicating rotation (no text or symbols)

Remarques

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating three types of material processing: a roll, a block with checkmark and cross, and a mesh with X.

Remarques

→ Figure 4, → Figure 8

Home Connect .....142

Per collegarsi a Home Connect

Illustration of a gray electronic device with a button and a blue arrow indicating rotation (no text or symbols)

Illustration of a stylized device with a blue arrow indicating rotation (no text or symbols)

Avvertenze

Diagram illustrating a step-by-step installation of a kitchen appliance, showing hand positioning and cutting process.

Diagram showing three symbolic items: a shell, a book with checkmark and cross, and a textured object with X.

Avvertenze

Service-Hotlines
www.siemens-home.bsh-group.com

AE	04 803 0501	LI	05 274 1788
AL	066 206 47 94	LU	26 349 300
AT	0810 550 522	LV	067 425 232
AU	1300 368 339	ME	050 432 575
BA	033 213 513	MK	02 2454 600
BE	070 222 142	NL	088 424 4020
BG	02 931 50 62	NO	22 66 06 00
CH	043 455 4095	PL	801 191 534
CN	400 889 9999Call rates depend on the network used	PT	21 4250 720
CZ	0251 095 546	RO	021 203 9748
DE	0911 70 440 044	RU	8 800 200 29 62
DK	44 89 89 85	SE	0771 11 22 77 (local rate)
EE	0627 8730	SK	02 444 520 41
ES	902 11 88 21	SL	01 200 70 17
FI	020 7510 700Lankapuhelimesta 8,28 snt/puhelu + 7 snt/min (alv 24%)Matkapuhelimesta 8,28 snt/puhelu + 17 snt/min (alv 24%)	TR	444 6688Çağrı merkezini sabit hatlardan aramanın bedeli şehir içiücretlendirme. Cep telefonlarından ise kullanılan tarifeyegore değişkenlik göstermektedir
FR	0140 10 1200	US	866 447 4363 (toll free)
GB	0344 892 8999Calls charged at local or mobile rate	XK	044 172 309
GR	18 182 (Αστική χρέωση)	XS	011 21 39 552
HR	01 3028 226
HU	0036 1 489 5461
IE	01450 26550.03 € per minute at peak. Off peak 0.0088 € per minute.
IL	08 9777 222
IS	0520 3000
IT	800 018 346 (Line Verde)

BSH group is a Trademark Licensee of Siemens AG. Manufacturer's Service for Siemens Home Appliances.

DE Deutschland, Germany

www.siemens-home.bsh-group.de

www.siemens-home.bsh-group.com/me

* Sun-Thu: 8.00 am to 5.00 pm

(exclude public holidays)

www.siemens-home.bsh-group.at

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

mailto:[e-mail]

www.siemens-home.bsh-group.com/au

* Mo-Fr: 24 hours

www.siemens-home.bsh-group.com/be

Sheikh Salman Highway,

Tubli-701; Bahrain

Manama

Tel.: [phone]

mailto:[e-mail]

* Sun-Thu: 8.00 am to 6.00 pm

(exclude public holidays)

www.siemens-home.bsh-group.com/ch

CY Cyprus, Kúπρος

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

Fax: [phone]

mailto:EGO-CYCustomerService@

bshg.com

www.siemens-home.bsh-group.com/cz/

www.siemens-home.bsh-group.com/dk

ES España, Spain

www.siemens-home.bsh-group.es

FI Suomi, Finland

BSH Kodinkoneet Oy

Itälahdenkatu 18 A

PL 123

00201 Helsinki

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/fi

siemens-home.bsh-group.com

www.siemens-home.bsh-group.fr

GB Great Britain

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts or accessories or for product advice please visit www.siemens-home.bsh-group.com/uk Or call

Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

www.siemens-home.bsh-group.com/gr

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon,

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 030 (Macao)

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/hk

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: [phone]*

www.siemens-home.bsh-group.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/il

IN India, Bhārat, भारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House,

Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 209 1850*

www.siemens-home.bsh-group.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.bsh-group.com/it

LB Lebanon, لبنان

Tehaco s.a.r.l.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LU Luxembourg

www.siemens-home.bsh-group.com/lu

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederlande, Netherlands

www.siemens-home.bsh-group.nl

NO Norge, Norway

www.siemens-home.bsh-group.com/no

PL Polska, Poland

www.siemens-home.bsh-group.pl

PT Portugal

BSHP Electrodomésticos,

www.siemens-home.bsh-group.com/pt

RO România, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect.1

13682 Bucuresti

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/ro

RU Russia, Россия

www.siemens-home.bsh-group.ru

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.siemens-home.bsh-group.com/se

SK Slovensko, Slovakia

www.siemens-home.bsh-group.com/sk/

www.siemens-home.bsh-group.com/tr

www.siemens-home.bsh-group.com/ua

XK Kosovo

Service-General SH.P.K.

rr. Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel.: 00381 (0) 290 330 723

Tel.: [phone]

mailto:[e-mail]

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/za

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München

GERMANY

siemens-home.bsh-group.com

8001161858 (9910)
