USER MANUAL EIV536BL ELICA

Isometric illustration of a rectangular electronic device with four curved cutouts on its surface (no text or symbols)

Use, care, and installation guide

READ AND SAVE THESE INSTRUCTIONS

LISEZ CES INSTRUCTIONS ET CONSERVEZ-LES

LEA Y CONSERVE ESTAS INSTRUCCIONES

Models: EIV424BL

LIB0194277 Printed in Mexico

ENGLISH

Contents

Important safety notice ....3

Electrical & installation requirements....5

List of materials 6

Cutout 6

Product dimensions 7

Installation 7

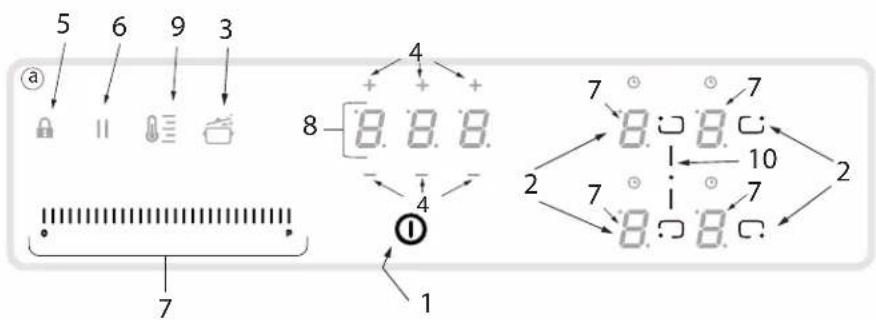

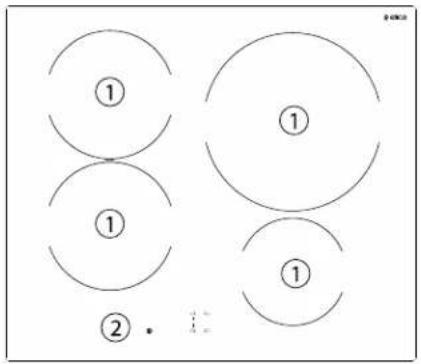

Description of the hood & controls....10

Use 11

Power tables 13

Cooking tables 14

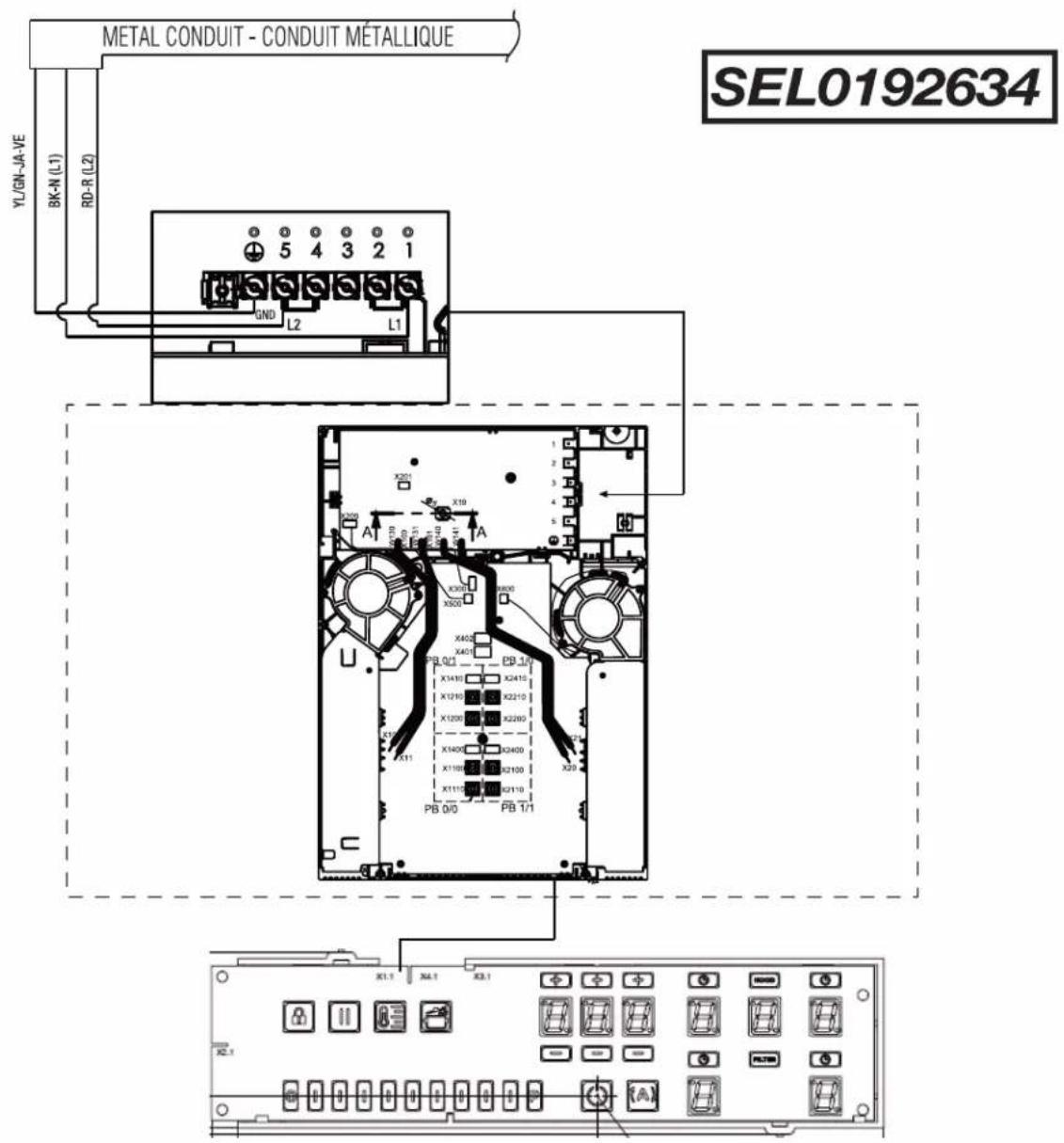

Electrical diagram 15

User servicing & maintenance intructions ....16

Troubleshooting....16

Warranty 17

READ AND SAVE THESE INSTRUCTIONS

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed.

⚠️ Important Safety Notice

WARNING

To reduce the risk of fire, electrical shock, injury to persons, or damage when using the cooktop, follow basic precautions, including the following:

CAUTION

• Do not store items of interest to children in cabinets above a cooktop – Children climbing on the cooktop could be seriously injured.
• Proper Installation – Be sure your cooktop is properly installed and grounded by a qualified technician.
• Never use your cooktop for warming the room.
• Do not leave children alone – Children should not be left alone or unattended in area where cooktop is in use. They should never be allowed to sit or stand on any part of the cooktop.
• Wear proper apparel – Loose-fitting or hanging garments should never be worn while using the cooktop.
• User servicing – Do not repair or replace any part of the cooktop unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.
• Storage on cooktop – Flammable materials should not be stored near surface units.
• Do not use water on grease fires – Smother fire or flame or use dry chemical or foam-type extinguisher.
• Use only dry potholders - Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
• DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS - Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns.

During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among those areas are the cooktop and surfaces facing the cooktop.

• Use proper pan size – This cooktop is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. Proper relationship of utensil to burner will also improve efficiency.
• Never leave surface units unattended at high heat settings – Boilover causes smoking and greasy spillovers that may ignite.
• Glazed cooking utensils - Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cooktop service without breaking due to the sudden change in temperature.

• Utensil handles should be turned inward and not extend over adjacent surface units

• To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

• Do not cook on broken cooktop - If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.
• Clean cooktop with caution - If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.
• Do not place metal objects such as knives, forks, spoons and lids on the hob surface as they may overheat.

FOR UNITS WITH COIL ELEMENTS

• Make sure reflector pans or drip bowls are in place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage
• Protective liners - Do not use aluminum foil to line surface unit drip bowls, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.
• Do not soak removable heating elements - Heating elements should never be immersed in water.

This induction cooktop generates and uses ISM frequency energy that heats cookware by using an electromagnetic field. It has been tested and complies with Part 18 of the FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to minimize interference with other devices in residential installation.

This induction cooktop may cause interference with television or radio reception. If interference occurs, the user should try to correct the interference by:

• Relocating the receiving antenna of the radio or television.
• Increasing the distance between the cooktop and the receiver.
• Connecting the receiver into a different outlet.

It is the user's responsibility to correct any interference.

NOTE: People with a pacemaker or similar medical device should use care when standing near this induction cook-top while it is on. The electromagnetic field may affect the pacemaker or similar device. Consult your doctor or the manufacturer of the pacemaker or similar medical device for additional information about its effects with electromagnetic fields of the induction cooktop.

CAUTION

Strictly observe the following instructions:

• The device must be disconnected from the electrical network before performing any installation work.
• Installation or maintenance must be performed by a qualified technician, in compliance with the manufacturer's instructions and with local safety regulations. Do not repair or replace any part of the device unless specifically stated in the operating manual.

- Earthing the device is compulsory.

- Do not use multiple sockets or extension cords.

- Once installation is complete, the electrical components must no longer be accessible by the user.

- The device and its accessible parts heat up during use.

- Be careful not to touch the heating elements.

- Ensure that children do not play with the device; keep children away and supervise them, as the accessible parts may become very hot during use.

- For people with pacemakers and active implants it is important to check, prior to using the induction hob, that their pacemaker is compatible with the device.

- During and after use, do not touch the heating elements of the device.

- Avoid contact with cloths or other flammable materials until all the device components have sufficiently cooled.

- Do not place flammable materials on or near the device.

• Overheated fats and oils easily catch fire. Supervise the cooking of foods rich in fat and oil.

- If the surface is cracked, switch off the device to avoid the possibility of an electric shock.

- The device is not intended to be run with an external timer or a separate remote control system.

- Unattended cooking on a hob with oil or fat may be dangerous and may cause a fire.

- The cooking process must be supervised. A short-term cooking process must be constantly monitored.

- NEVER attempt to put fires out using water. Instead, turn off the device and smother the flames, for example with a lid or a fire blanket. Fire hazard: do not rest objects on the cooking surfaces.

- Do not use steam cleaners.

- Before connecting the device to the electrical network: check the data plate (on the bottom of the device) to ensure that the voltage and power correspond to the network values and that the connection socket is suitable. If in doubt, consult a qualified electrician.

▲IMPORTANT

• After use, turn off the cooktop and do not rely on the pan detector.

- Prevent liquids from boiling over, so turn the heat down when boiling or heating liquids.

- Do not leave the heating elements turned on with empty pots and pans or with no pans.

- Switch off the relevant hot plate when you have finished cooking.

- Never use aluminium foil for cooking and never place products packaged in aluminium on the hob. The aluminium would melt and irreparably damage your device.

• Never heat a tin or can containing foods without opening it first: it might explode!
• This warning also applies to all other types of cook-tops.
• High power levels such as the Booster function should not be used to heat certain liquids, such as oil for frying. Excessive heat may be dangerous. In these cases, we recommend the use of a lower power level.
• Containers must be placed directly on the hob center. Under no circumstances may any other objects be placed between the pan and the hob.
• If the temperature becomes high, the device automatically decreases the power level of the cooking zones.
• Before doing any cleaning or maintenance work, disconnect the device from the mains power supply by removing the plug or turning off the mains switch
• Wear protective gloves for all installation and maintenance operations.
• The device can be used by children over the age of eight and by people with impaired physical, sensory or mental abilities or lacking in experience or the necessary knowledge provided that they are supervised or after they have received instruction about how to safely use the device and understand the inherent dangers.
• Cleaning and maintenance must never be performed by children unless they are properly supervised. The room must be properly ventilated when the device is used at the same time as other gas-powered devices, or powered by other fuel.

The device must be regularly cleaned both internally and externally (AT LEAST ONCE A MONTH), in strict accordance with the maintenance instructions. Failure to follow the rules for device cleaning and filter replacement and cleaning may result in a fire hazard. Food must never be cooked flambè. Using a naked flame may damage the filters and cause a fire hazard; it must, therefore, be avoided under all circumstances. Extra care must be taken when frying to prevent the oil from overheating and catching fire.

PLEASE NOTE:

• The accessible parts of the device may become hot when hob is switched on.
• Do not connect the device to the electric power supply until installation has been fully completed. The regulations laid down by local authorities must be strictly followed with regard to the technical and safety measures to adopt for fume extraction.
• When the device is used together with other devices powered with non-electrical energy, the negative pressure of the room must not exceed 4 Pa (4 x 10 • 5 bar).
• This manual must be stored for future consultation at any time. If sold, transferred or moved, it must remain with the device.

ELECTRICAL & INSTALLATION REQUIREMENTS

ELECTRICAL REQUIREMENTS

240 V 2 wire 60Hz

RED BLACK YELLOW/GREEN L1 L2 240V

• Disconnect the cooktop from the electrical network.
• The installation must be performed by professionally qualified personnel familiar with the applicable installation and safety standards.
• The manufacturer declines any liability to people, animals or things in the case of failure to follow the guidelines provided in this chapter.
• Make sure that the voltage on the rating plate on the bottom of the device corresponds to that of the house where it will be installed.
• Do not use extension cords.
  • Earthing is required by law.

IMPORTANT

Observe all governing codes and ordinances.

It is the customer's responsibility:

• To contact a qualified electrical installer.
- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 latest edition** and all local codes and ordinances.
- If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
- Do not ground to a gas pipe.
- Check with a qualified electrician if you are not sure cooktop is properly grounded.
- Do not have a fuse in the neutral or ground circuit.

CAUTION

Risk of Electric Shock, frame grounded to neutral of appliance through a link. Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or in an area where local codes prohibit grounding through the neutral conductor. When installed where it is not permitted to ground through the neutral, the 3-conductor cord or cable assembly must be replaced by a 4-conductor cord or cable assembly.

IMPORTANT

USE COPPER OR ALUMINIUM CONDUCTORS

IMPORTANT

• Save Installation Instructions for electrical inspector's use.
• The appliance should be connected directly to the fused disconnect (Or circuit breaker) box through metal electrical conduit.
• Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. O-M91 - latest edition** and all local codes and ordinances.
• A U.L.- or C.S.A.-listed conduit connector must be provided at each end of the power supply conduit (at the appliance and at the junction box).
• Copies of the standards listed may be obtained from:
  * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269
  ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575

BEFORE INSTALLING

At least two people are necessary for installation. Wear gloves to protect against sharp edges.

Warning symbol and image showing a hand holding a protective glove with an exclamation mark

To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided.

LIST OF MATERIALS

Supplied Part Pieces

Cooktop assembly	1
Spring for installation	4
Baffle	1

Supplied Part Pieces

Adhesive tape for glass		1
	Spacers .5 mm	8
	Spacers 1mm	4
	Spacers 2 mm	4
Screws 3.5 x 5 mm		4

CUTOUT

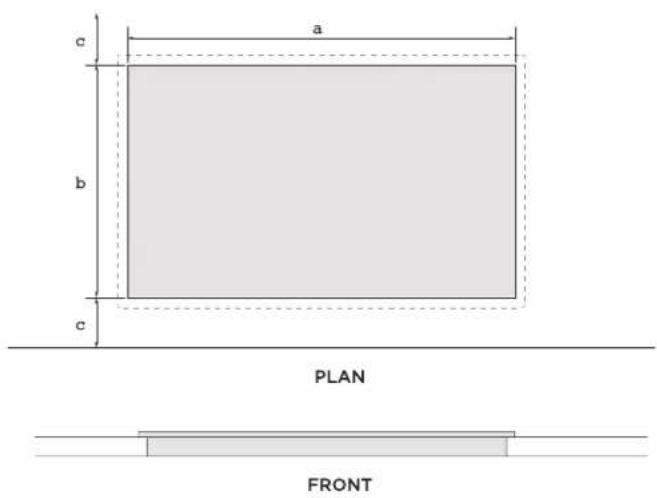

Top Installation

a b c PLAN FRONT

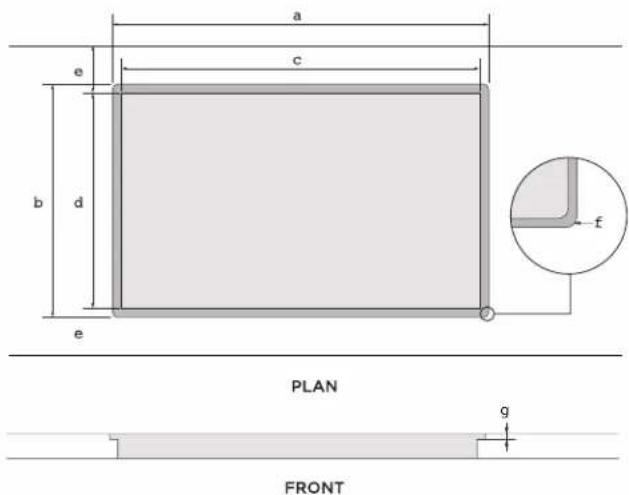

Flush Installation

a c e b d e f PLAN g FRONT

Model
	EIV424BL
a 23	18'' (58.7 cm)
b 19	12'' (49.5 cm)
c	11516'' (5 cm)minimum

Model
	EIV424BL
a 24	18" (61.3 cm)
b 20	1316" (53 cm)
c 23	18" (58.7 cm)
d 19	12" (49.5 cm)
e	1516" (5 cm)minimum
f 4 x ∅ 7
g	14" (0.63 cm)

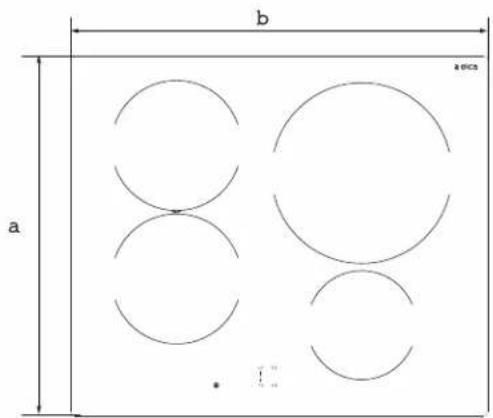

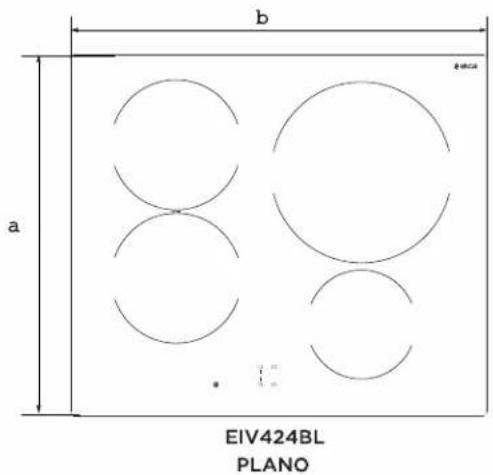

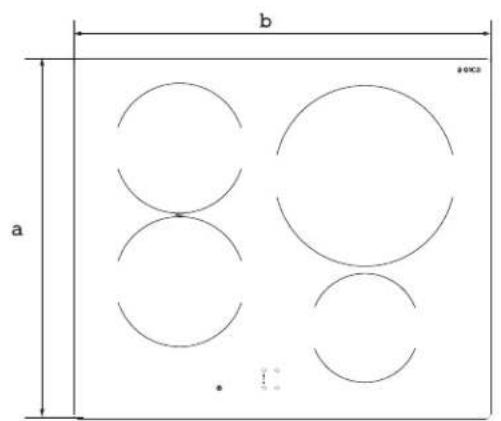

b a a a

EIV424BL PLAN

b j h

FRONT

a f d c l e

PROFILE

Model

	EIV424BL
a 20	34" (52.7 cm)
b 24	116" (61 cm)
c 2	12" (6.2 cm)
d 3	58" (9.13 cm)
e 19	516" (49 cm)
f	34" (1.85 cm)
h 22	12" (57.3 cm)
i 5	1516" (15 cm)
j 5"	(12.7 cm)

INSTALLATION

BOTH ELECTRIC AND MECHANICAL INSTALLATION MUST BE CARRIED OUT BY SPECIALISED PERSONNEL.

• The cooktop is designed to be built into a work top with a minimum thickness of 3 cm for both types of installation.
• The minimum distance between the hob and the wall must be at least 5 cm in front, at least 4 cm on the sides and at least 50 cm from overhead wall units.

NB = The recommended distances are given as examples: when planning the spaces, the indications of the kitchen manufacturer must be observed.

PREPARATION FOR INSTALLATION:

Before starting the installation:

• After unpacking the product, check that it has not been damaged during transport and in the event of problem, please contact the reseller or the customer support service before installing it.
- Check that the product is the right size for the installation area.
- Check for accessories (e.g. bags containing screws, warranty certificates, etc.) inside the packaging (placed there for transport reasons). Remove and keep them safe, if present.
- Also check that there is a power socket near the installation area.

PREPARING THE CABINET FOR INSTALLATION:

- The product cannot be installed above cooling appliances, dishwashers, heaters, ovens, washing machines and dryers.

- Create the cut-outs in the cabinet before inserting the hob and carefully remove any shavings or sawdust.

CAUTION

Failure to install screws and fasteners in accordance with these instructions may result in electrical hazards.

IMPORTANT

Use a single-component adhesive sealant (S), which withstands temperatures up to 250°; before installation, thoroughly clean the surfaces to stick and eliminate any substance that may compromise adhesion, (e.g. release agents, preservatives, fats, oil, dust, traces of old adhesives, etc.); the adhesive should be uniformly spread all around the outside of the frame; after sticking, leave the adhesive to dry for about 24 hours.

1/4" S

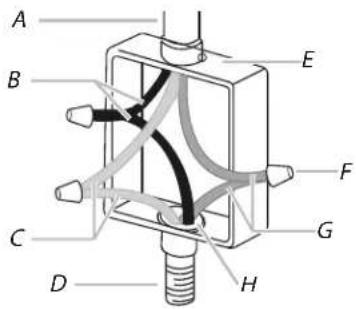

3-Wire Cable from Home Power Supply to 3-Wire Cable from Cooktop

IMPORTANT: Use the 3-wire cable from home power supply in the U.S. where local codes do not allow grounding through homes and recreational vehicles, new construction, and in Canada.

A B C D E F G H

A. Cable from home power supply
B. Black wires (Phase)
C. Green or yellow-green ground wires (ground)
D. Conduit with 3-Wire from cooktop
E. Junction box
F. UL listed wire connector (not supplied)
G. Red wires (Phase)
H. UL listed or CSA approved conduit connector (not supplied).

1. Connect the 2 black wires together using the UL listed wire connectors.
2. Connect the 2 red wires together using the UL listed wire connectors.
3. Connect the green (or yellow-green) ground from the cooktop cable to the green (or yellow-green) ground wire (in the junction box) using the UL listed wire connectors.
4. Install junction box cover.3-Wire Cable from Home Power Supply to 3-Wire Cable from Cooktop - U.S. Only.

FLUSH INSTALLATION

1. Prepare the countertop for flush installation. Use a router to cutout the edges of the countertop to specified depth (.63cm). Ensure all bare edges are sealed.

Isometric line drawing of a rectangular frame with a recessed inner square (no text or symbols)

1. Turn the cooktop upside down on a protective cover & apply adhesive foam seal around the glass overhang, 5mm from the edge of the glass. Ensure the adhesive side facing is down to form a continuous seal around the cooktop.

Technical illustration of a rectangular block with a side view showing a small inset detail (no text or symbols)

1. Trim the excess sealing material using a sharp cutter or trimmer knife. Take care not to damage the benchtop.

Diagram showing a layered structure with an inset close-up of a small mechanical component (no text or symbols)

1. Attach the four side clips to the cooktop chassis. Make sure the clips are oriented correctly, press the center tab with a flat screwdriver to pass the clip through and secure against the plate.

Technical line drawing of a mechanical assembly with mounting brackets and a magnified inset showing a component (no text or symbols)

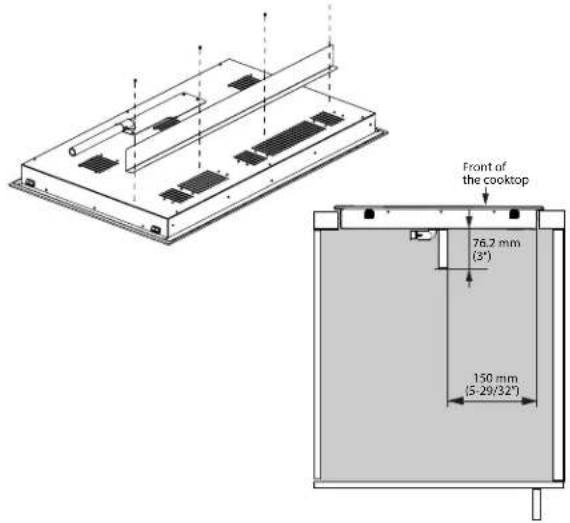

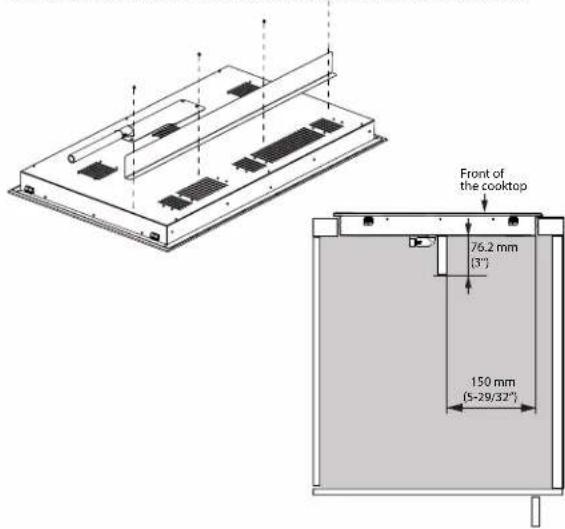

1. The included baffle should be installed with four screws of 3.4 x 5 mm as shown, to ensure that the cooling and hot air exhaust ports are separated.

Front of the cooktop 76.2 mm (3°) 150 mm (5-29/32°)

1. Lift the cooktop and place it in the center by dropping carefully both sides of the grill at the same time.
2. If necessary, spacers should be installed to adjust the height of the grill with respect to the countertop.

Technical diagram showing a mechanical assembly with an arrow indicating force or direction, alongside a magnified view of layered components (no text or symbols)

1. Apply silicone in the gap between countertop and cook-top. Wipe off any excess silicone.

cone.

1. Clean the cooktop carefully with glass cleaner and a cloth.

TOP INSTALLATION

1. Turn the cooktop upside down on a protective cover.

Isometric view of a rectangular block resting on a flat base (no text or symbols)

1. Apply adhesive foam seal around the glass overhang, 5mm from the edge of the glass. Ensure the adhesive side facing is down to form a continuous seal around the cooktop.

Technical illustration of a rectangular block with a magnified inset showing a small detail labeled '5mm' (no text or symbols present)

1. Trim the excess sealing material using a sharp cutter or trimmer knife. Take care not to damage the benchtop.

Diagram of a rectangular block with a circular inset showing a small mechanical component (no text or symbols)

1. Attach the four side clips to the cooktop chassis. Make sure the clips are oriented correctly, press the center tab with a flat screwdriver to pass the clip through and secure against the plate.

Technical line drawing of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1. The included baffle should be installed with four screws of 3.4 x 5 mm as shown, to ensure that the cooling and hot air exhaust ports are separated.

Front of the cooktop 76.2 mm (3°) 150 mm (5-29/32°)

1. Lift the cooktop and place it in the center by dropping carefully both sides of the grill at the same time.
2. Clean the cooktop carefully with glass cleaner and a cloth.

DESCRIPTION OF THE HOOD AND CONTROLS

① ① ① ② •

1 - Cooking zones

2 - Control Panel

EIV424BL

CONTROLS

Controls for models EIV424BL

Keys Display / LED

1 ON/OFF of the cooktop 7 Cooking zone display
2 Cooking zone position indicator 8 Timer display
3 Automatic activation of heating 9 Temperature manager display
4 Activación timer Increase/Decrease timer value	10 Bridge indicator active
5 Key Lock
6 Pause
7 Increase/Decrease power level

USE

The induction cooking system is based on the physical phenomenon of magnetic induction. The main characteristic of this system is the direct transfer of energy from the generator to the pot.

Advantages:

When compared to electric hobs, your induction hob is:

- Safer: lower temperature on the glass surface.

- Faster: shorter food heating times.

- More accurate: the hob immediately reacts to your commands

- More efficient: 90% of the absorbed energy is transformed into heat.

- Moreover, once the pot is removed from the hob, heat transmission is immediately interrupted, avoiding unnecessary heat losses.

COOKING CONTAINERS

Use only pots bearing the symbol

IMPORTANT

To avoid permanent damage to the hob surface, DO NOT USE:

• containers with less than perfectly flat bottoms.
• metal containers with enamelled bottoms.
• containers with a rough base, to avoid scratching the hob surface.
• never place hot pots and pans on the surface of the hob's control panel
• do not slide pans across the cooking surface.

PRE-EXISTING CONTAINERS

Induction cooking uses magnetism to generate heat. Containers must therefore contain iron. Check if the pot material is magnetic using a magnet. Pots are not suitable if they are not magnetically detectable.

RECOMMENDED PAN BOTTOM DIAMETERS IMPORTANT

If the pots are not correctly sized, the cooking zones will not turn on.

For details of the minimum pot diameter that needs to be used on each zone, see the illustrated part of this manual.

Illustration of a frying pan and its side view showing the lid and handle (no text or symbols)

ENERGY SAVING

Recommendations for best results:

• Use pots and pans with a bottom diameter equal to that of the cooking zone.
• Use only pots and pans with flat bottoms.
• Where possible, keep the lid on pots during cooking
• Cook vegetables, potatoes, etc. with a minimal amount of water to reduce cooking time.
• Use a pressure cooker, as it further reduces the energy consumption and cooking time.
• Place the pot in the centre of the cooking zone outlined on the hob.

USING THE COOKTOP

Before you begin, it is important to know:

All functions of this hob are designed in order to comply with the most stringent safety regulations.

For this reason:

• Some functions will not be activated, or will be automatically deactivated, in the absence of pots on the burners or when they are poorly positioned.
• In other cases the activated functions will be automatically deactivated after a few seconds when the specific function requires a further setting that has not been selected (e.g.: "Turn the hob on" without "Selecting the cooking zone" and the "Operating temperature", or the "Lock Function" or the "Timer" function).

IMPORTANT

In the case (for example) of prolonged use, the cooking zone may not immediately shut down because it is in the cooling phase; the “ ” symbol will appear on the cooking zone display to indicate the execution of this phase. Wait for the display to turn off before approaching the cooking zone.

COOKING ZONE DISPLAY

The cooking area display indicates:

Cooking zone on	0
Power level	1...9-P
Residual heat Indicator	H
Pot detector
Temperature manager function active
Pause function	II
Automatic heat UP function

COOKTOP CHARACTERISTICS

- Safe activation

The product is activated only in the presence of pots on the cooking zone: the heating process does not start or is interrupted if there are no pots, or if these are removed.

- Pot detector

The product automatically detects the presence of pots on the cooking zones.

- Safety shut down

For safety reasons, each cooking zone has a maximum operating time, which depends on the maximum power level set.

• Residual heat indicator

When one or more cooking zones shut down, the presence of residual heat is indicated by a visual signal on the corresponding zone display, by way of the "H" symbol.

Note: Before activating any functions, the desired zone must be activated.

- Power-on

Press (touch) ON/OFF. The indicator light will turn on to indicate that the cooktop is ready for use. Press again to turn off Note: This function has priority over the others.

- Selecting the cooking zone

Touch ON/OFF(22) press the Selection bar corresponding to the desired cooking zone.

- 9 Power levels

The hob features 9 power levels. Touch and scroll along the Selection bar: to the right to increase the level of power; to the left to decrease the level of power.

- Power booster

The product features a supplementary power level (after level 9), which remains active for 5 minutes, after which the temperature returns to the previously set value.

Touch and scroll along the Selection bar (after level9) and activate the Power Booster.

The Power Booster level is shown on the display of the selected zone with the symbol "P".

- Bridge Zones

Thanks to the Bridge function, the cooking zones are able to work in a combined manner, creating a single zone with the same power level. This function allows evenly distributed cooking with large-sized pots and pans.

The front "Master" cooking zone can be used in combination with the corresponding "Secondary" cooking zone at the back.

To activate the Bridge Function:

- simultaneously select the two cooking zones you want to use

- the Bridge indicator of the "Secondary" cooking zone lights up "☐"

- by means of the Selection bar of the "Master" cooking zone it will be possible to set the operating level (Power).

- to deactivate simply repeat same activation procedure.

• Temperature manager

Temperature Manager is a function that allows to set the most suitable pre-set temperature to achieve the desired result (see the power table at the end of this chapter).

Select the desired cooking zone.

Press once to choose the most suitable level:

Warming*

*See the Temperature Manager at the end of this chapter.

Press again to turn it off.

The following symbol appears on the display of the zone working in Temperature Manager mode "U"

- Key Lock

The Key Lock allows to block the settings of the hob to prevent accidental tampering, leaving the functions that have already been set active.

Activation:

- press 🔒

- The LED over the button will turn on, to indicate that it has been activated. Repeat the operation to deactivate.

- Timer

The Timer function is a countdown, which can be set for each cooking zone, even simultaneously.

Note: the timer is a simple warning buzzer, which at the end of the set minutes DOES NOT turn off the cooking zone.

Activation/Regulation of cooktop Timer function

- Select the cooking zone (power ^1 0).

- Press - to access the Timer function

- Regulate the duration of the Timer:

press the selector +to increase the automatic shut-down time. Press the selector -to decrease the automatic shutdown time. Repeat the operation for the other cooking zones.

Note: Each cooking zone can have a different Timer set; on the display, the countdown of the last selected hob will be shown for 10 seconds, after which the countdown with the least remaining time will be shown.

When the timer has finished the countdown, there is an acoustic signal (for 2 minutes, or it will stop when one of the buttons on the hob is pressed), while the display will flash, with the symbol "###

Note: on the side of the display of the cooking zone, the following symbol will appear ⚙

To switch off the Timer:

- select the cooking zone

- set the value of the timer to "G", by means of -

Note: the function remains active if no other key is pressed.

- Egg Timer

The Egg Timer function is a countdown independent of the cooking zones. The Egg Timer is activated by pressing - +

Note: to regulate the Egg Timer function, follow the same procedure as for the Timer function.

When the timer has finished the countdown, there is an acoustic signal (for 2 minutes, or it will stop when one of the buttons on the hob is pressed), while the display will flash, with the symbol "0.00

- Pause

The Pause function allows to suspend any function active on the hob, bringing the cooking power to zero.

Activation

- press ||

- a "is displayed.

To deactivate the function:

Note: this operation restores the settings to those prior to the pause. - press ||

- within 10 seconds scroll to the right along the Selection bar, relating to the cooking zone 2

Note: if the operation is not performed within this time the pause function will remain active.

Note: if after 10 minutes, the Pause Function is not deactivated, the cooktop will turn off automatically.

• Automatic Heat UP

The Automatic Heat UP function allows to reach the set power faster; with this function it is possible to cook food faster, but without the risk of burning it, because the temperature does not exceed the set level.

This function is available for the levels of power 1-8.

Activation:

- With the cooking zone on, press ☐, a flashing will appear on the display alternating with the power level set on the cooking zone. Increasing the power level of the cooking zone: the automatic heating function remains active, with the new temperature setting; decreasing the power level of the cooking zone: the automatic heating function is deactivated.

Note: If another cooking zone is selected at the same time, the symbol ⚙ will light up again with a slightly brighter light and the function can also be activated for this zone; however, the function remains active in the zone in which it has already been set.

Temperature Manager Description
	Warming	It identifies a suitable cooking level to allow to delicately keep the food at the same temperature, without letting it boil.

Power Level Cooking Type			Use of level (display combines the experience and cooking habits)
Max power	8	Heat quickly	Ideal to quickly increase the temperature of the food up to fast boiling in the case of water or quickly heat cooking liquids.
	8.9	Fry - boil	Ideal for browning, starting to cook, frying frozen products, boiling rapidly.
High power	8.8	Brown - fry - boil - grill	Ideal for frying, keeping the boil, cooking and grilling (for short times, 5-10 minutes).
	8.8	Brown - cook - stew - fry - grill	Ideal for frying, maintaining a simmer, cooking and grilling (for average times, 10-20 minutes), preheating accessories.
Medium power	8.6	Cook - stew - fry - grill	Ideal for stewing, maintaining a light boil, cooking (for longer times). Stir pasta.
	8.8	Cook - simmer - thicken - stir	Ideal for slow cooking (rice, sauces, roasts, fish) in the presence of liquid (e.g. water, wine, broth, milk), stirring pasta
	8.8	Cook - simmer - thicken - stir	Ideal for slow cooking (volume less than one litre: rice, sauces, roasts, fish) in the presence of liquid (e.g. water, wine, broth, milk).
Low power	8.8	Melt - thaw - keep warm - stir	Ideal for softening butter, gently melting chocolate, thawing small products.
	8	Melt - thaw - keep warm - stir	Ideal for keeping small portions of freshly cooked food warm or keeping the temperature of serving dishes and stirring risotto.
OFF	0	Support surface	Hob in stand-by or off (possible presence of residual heat from the end of cooking, signalled by H-L-O).

Category of foods	Dishes or type of cooking	Power level and cooking patterns
		First stage Powers	Second stage Powers
Pasta, rice	Fresh pasta Heating water Booster-9			Cooking pasta and maintaining the boil	7-8
	Fresh pasta Heating water Booster-9			Cooking pasta and maintaining the boil	7-8
	Boiled rice Heating water Booster-9			Cooking pasta and maintaining the boil	5-6
	Risotto Frying and roasting 7-8 Cooking 4-5
Vegetables, legumes	Boiled Heating water Booster-9 Boiling 6-7
	Fried	Heating oil	9	Frying	8-9
	Sauté	Heating water	7-8	Cooking	6-7
	Stewed	Heating water	7-8	Cooking	3-4
	Fried	Heating water	7-8	Browning fried	7-8
Meats	Roast	Meat browning with oil if with butter, power 6)	7-8	cooking	3-4
	Grilled	Pre-heating pan	7-8	Grilling on both sides	7-8
	Browning	Browning with oil (if with butter, power 6)	7-8 Cooking 4-5
	Stew	Browning with oil (if with butter, power 6)	7-8 Cooking 3-4
Fish	Grilled	Pre-heating pan	7-8	Cooking	7-8
	Stew	Browning with oil (if with butter, power 6)	7-8 Cooking 3-4
	Fried	Heating oil or fat	8-9	Frying	7-8
Eggs	Omelettes	Heating pan with butter or fat	6	Cooking	6-7
	Omelettes	Heating pan with butter or fat	6	Cooking 5-6
	Soft boiled / boiled	Heating water Booster-9		Cooking 5-6
	Pancakes	Heating pan with butter	6	Cooking	6-7
Sauces	Tomato	Browning with oil (if with butter, power 6)	6-7 Cooking 3-4
	Meat sauce	Browning with oil if with butter, power 6)	6-7 Cooking 3-4
	Béchamel	Preparing the base (melt butter and flour)	5-6	Bring to simmering point	3-4
Desserts, creams	Custard	Boil the milk	4-5	Keep simmering	4-5
	Puddings	Boil the milk	4-5	Keep simmering	2-3
	Rice pudding	Heat the milk	5-6	Keep simmering	2-3

METAL CONDUIT - CONDUIT MÉTALLIQUE SEL0192634 YL/GN-JA-VE BK-N (L1) RD-R (L2) GND L2 L1 X201 X19 X300 X500 X400 X401 X410 X2410 X2210 X1200 X2200 X400 X3400 X2100 X1100 X2110 PB 0/0 PB T/1 X1-1 X2-1 X3-1 X2-1

USER SERVICING AND MAINTENANCE INSTRUCTIONS

CAUTION

Before any cleaning or maintenance, make sure the cooking zones are switched off and the heat indicator has turned off.

CLEANING

The cooktop must be cleaned after each use.

IMPORTANT

• Do not use abrasive sponges, scouring pads. Their use, over time, may ruin the glass.
• Do not use chemical irritants, such as oven sprays or stain removers.
  • After each use, leave the cooktop to cool and clean it to remove deposits and stains caused by food residue.
• Sugar or food with a high sugar content damages the hob and must be immediately removed.
• Salt, sugar and sand may scratch the glass surface.
• Use a soft cloth, paper towel or specific products to clean the cooktop (follow the Manufacturer's instructions).

DO NOT USE STEAM JET CLEANERS

TROUBLESHOOTING

Information Code Description Possible Causes Solution
[Zx3C]	The command zone switches off due to an excessively high temperature.	The temperature inside the electronic parts is too high.	Wait for the cooktop to cool before reusing it.
+Acoustic signal	Continuous (permanent) key activation is detected. The interface switches off after 10 seconds.	Water, pots or kitchen tools are on top of the user interface.	Clean the surface, remove any objects from the surface.
For all other error signals (E...U...)	Call customer service and report the error code.

Customer Service

Before contacting Customer Service

1. Check that you cannot solve the problem yourself based on the points described in "Troubleshooting".

2. Switch the device off and on again to see if the problem resolves itself.

If the fault persists after the above checks, contact the nearest Customer Service.

Induction hob: EIV424BL

Rated Voltage: 220 V-

Frequency: 60 Hz

Power consumption: 6.1 kW

Current consumption: 28 A

Content: 1 piece.

Made in Mexico

Manufactured by: ELICAMEX S.A. de C.V.

Owner must present proof of original purchase date. Please keep a copy of your dated proof of purchase (sales slip) in order to obtain service under warranty.

PARTS AND SERVICE WARRANTY

For the period of two (2) years from the date of the original purchase, Elica will provide free of charge, non consumable parts or components that failed due to manufacturing defects. During these two (2) years limited warranty, Elica will also provide free of charge, all labor and in-home service to replace any defective parts.

WHAT IS NOT COVERED

• Damage or failure to the product caused by accident or act of God, such as, flood, fire or earthquake.
- Damage or failure caused by modification of the product or use of non-genuine parts.
• Damage or failure to the product caused during delivery, handling or installation.
• Damage or failure to the product caused by operator abuse.
- Damage or failure to the product caused by dwelling fuse replacement or resetting of circuit breakers.
• Damage or failure caused by use of product in a commercial application.
• Service trips to dwelling to provide use or installation guidance.
• Light bulbs, metal or carbon filters and any other consumable part.
• Normal wear of finish.
- Wear to finish due to operator abuse, improper maintenance, use of corrosive or abrasive cleaning products/pads and oven cleaner products.
- When the product has not been operated in accordance with the accompanying instructions for use.

WHO IS COVERED

This warranty is extended to the original purchaser for products purchased for ordinary residential use in North America (Including the United States, Guam, Puerto Rico, US Virgin Islands & Canada).

This warranty is non-transferable and applies only to the original purchaser and does not extend to subsequent owners of the product. This warranty is made expressly in lieu of all other warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose and all other obligations on the part of Elica North America, provided, however, that if the disclaimer of implied warranties is ineffective under applicable law, the duration of any implied warranty arising by operation of law shall be limited to two (2) years from the date of original purchase at retail or such longer period as may be required by applicable law.

This warranty does not cover any special, incidental and/or consequential damages, nor loss of profits, suffered by the original purchaser, its customers and/or the users of the Products.

WHO TO CONTACT

To obtain service under warranty or for any service related question:

• USA & CANADA - Western Provinces

SERVICE POWER

888 732 8018

[e-mail]

• CANADA - Ontario Province

AGI Services

888 651 2534

[e-mail]

• CANADA - Quebec & Atlantic Provinces

Ateliers G. Paquette

800 463 0119

[e-mail]

To ensure prompt after-sales service, when you call we will kindly ask you to provide the following information:

model, 12 NC and date of purchase on original invoice.

12NC:

Model:

Serial No:

Date of purchase on original invoice:

FRANÇAIS

Table des matières

Ces mots significant:

DANGER

* La National Fire Protection Association, Batterymarch Park Quincy, Massachusetts, 02269

** La CSA International, 8501 East Pleasant Valley Road, Cleveland, Ohio, 44131-5575

AVANT D'INSTALLER

Warning symbol with exclamation mark and two gloves, one open showing hand, one closed showing hand

Pure structural diagram showing a beam with a load labeled 'g' (no text or symbols beyond the label)

FRONT

Modèle

	EIV424BL
a 23	18'' (58.7 cm)
b 19	12'' (49.5 cm)
c	1156'' (5 cm)minimum

Modèle

	EIV424BL
a 24	18" (61.3 cm)
b 20	^13/_16" (53 cm)
c 23	78" (58.7 cm)
d 19	12" (49.5 cm)
e	^15/_16" (5 cm)minimum
f 4 x ∅ 7
g	14" (0.63 cm)

b a a BICS F

EIV424BL PLAN

b j h

FRONT

a f c d l e

PROFIL

Modèle

	EIV424BL
a 20	34" (52.7 cm)
b 24	116" (61 cm)
c 2	12" (6.2 cm)
d 3	58" (9.13 cm)
e 19	516" (49 cm)
f	34" (1.85 cm)
h 22	12" (57.3 cm)
i 5	1516" (15 cm)
j 5"	(12.7 cm)

INSTALLATION

A B C D E F G H

Isometric line drawing of a rectangular frame with a central recessed slot (no text or symbols)

Diagram of a rectangular block with a 5mm measurement annotation and an inset showing a corner detail (no text or symbols present)

Diagram showing a rectangular block with a magnified inset of a small mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Technical diagram showing a pipe connection and a magnified view of a layered structure with a small inset detail (no text or symbols)

Diagram showing a layered structure with an inset magnified view of a component (no text or symbols)

Isometric view of a rectangular block resting on a flat base (no text or symbols)

Technical illustration of a rectangular block with a magnified inset showing a small mechanical component (no text or symbols)

Diagram of a rectangular block with a magnified inset showing a small mechanical component inserted into a corner (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a magnified inset showing a component detail (no text or symbols)

① ① ② ① ①

EIV424BL

1 - Zones de cuisson

2 - Paneau de control

Illustration of kitchen utensils including a flat plate, cooking pan, and three panes with handles (no text or symbols)

CONTENEURS PRÉEXISTANTS

Illustration of a frying pan and its side view showing the exterior (no text or symbols)

ÉCONOMIE D'ÉNERGIE

* National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575

ANTES DE INSTALAR

DIMENSIONES DEL PRODUCTO

b a EIV424BL PLANO

b j h FRONTAL

a f c d i e PERFIL

Modelo
	EIV424BL
a 20	34" (52.7 cm)
b 24	16" (61 cm)
c 2	12" (6.2 cm)
d 3	58" (9.13 cm)
e 19	516" (49 cm)
f	34" (1.85 cm)
h 22	12" (57.3 cm)
i 5	1516" (15 cm)
j 5"	(12.7 cm)

INSTALACIÓN

A B C D E F G H

Isometric line drawing of a rectangular frame with a recessed inner square (no text or symbols)

Technical illustration of a layered rectangular structure with an inset showing a small detail labeled '5mm' (no text or symbols present)

Diagram showing a rectangular block with a magnified inset of a small mechanical component (no text or symbols)

Technical line drawing of a mechanical bracket assembly with a magnified inset showing a component detail (no text or symbols)

Technical diagram showing a mechanical assembly with an arrow indicating force application and a magnified inset of a layered structure (no text or symbols)

Diagram showing a ladder-style ladder with an arrow pointing to a ladder, and a magnified inset illustrating the ladder's path (no text or symbols present)

Isometric view of a rectangular block on a flat base (no text or symbols)

Technical illustration of a rectangular block with a 5mm measurement detail shown in an inset (no text or symbols)

Diagram showing a rectangular block with a magnified inset of a small mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a zoomed-in detail view (no text or symbols)

Illustration of various cooking utensils including a plate, pan, and pan with different interior designs (no text or labels)
