USER MANUAL Hospital Nasal Mask ResMed

ResMed Hospital Nasal Mask

USER'S GUIDE

The RESMED HOSPITAL NASAL MASK is intended for single patient use for adult patients (>30 kg) prescribed continuous positive airway pressure or bilevel therapy in hospitals or clinics.

This is a disposable mask. It is intended to be used for the short-term (7 days) treatment of a single patient only, then discarded.

MEDICAL INFORMATION

Note: The mask system does not contain latex materials. If the patient has ANY reaction to any part of the mask system, discontinue use.

WARNINGS

- This mask should be used only with CPAP or bilevel systems recommended by a physician or respiratory therapist. A mask should not be used unless the CPAP or bilevel system is turned on and operating properly.

Explanation of the Warning: CPAP or bilevel systems are intended to be used with special masks with connectors which have vent holes or separate exhalation devices to allow continuous flow of air out of the mask. When the CPAP or bilevel device is turned on and functioning properly, new air from the flow generator flushes the exhaled air out through the mask exhalation port. However, when the CPAP or bilevel device is not operating, enough fresh air may not be provided through the mask, and exhaled air may be rebreathed. Rebreathing of exhaled air for longer than several minutes can in some circumstances lead to suffocation. This warning applies to most models of CPAP or bilevel systems.

- The exhaust vent flow is lower at lower mask pressures (see Pressure/Flow curve). If the mask pressure during expiration is too low, there may not be enough exhaust vent flow to completely flush the air delivery hose of exhaled air before the start of the next inspiration.

- If oxygen is used with the CPAP or bilevel device, the oxygen flow must be turned off when the flow generator is not operating.

Explanation of the Warning: When the CPAP or bilevel device is not in operation, and

the oxygen flow is left on, oxygen delivered into the ventilator tubing may accumulate within the flow generator enclosure. Oxygen accumulated in the CPAP or bilevel device enclosure will create a risk of fire. This warning applies to most types of CPAP or bilevel flow generators.

• Please refrain from smoking while oxygen is in use.
• Using a mask may cause tooth, gum or jaw soreness or aggravate an existing dental condition. If symptoms occur, consult your physician or dentist.

Note: At a fixed rate of supplemental oxygen flow, the inhaled oxygen concentration will vary, depending on the pressure settings, patient breathing pattern, mask selection, and leak rate.

FITTING THE MASK

The RESMED HOSPITAL NASAL MASK is supplied fully assembled.

Connect one end of the main air tubing to the flow generator and the other end to the swivel. Turn the flow generator on. See “Technical Specifications” for information on which flow generator setting to use.

2 P lace the mask cushion over the patient's nose and pull the headgear over their head.

3 Unfasten and gently tighten the headgear straps to achieve a secure and comfortable fit. Adjust the top strap first. Then adjust the side straps, making sure that they pass below the patient's ears. Do not overtighten the straps.

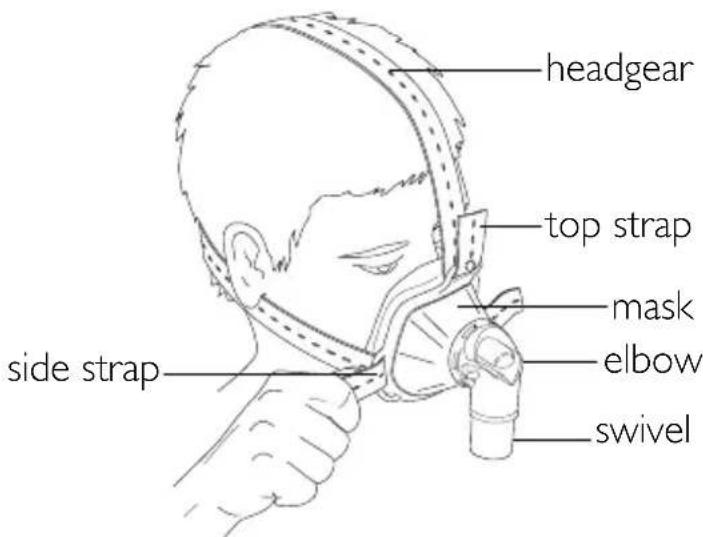

4 The fitted mask should look like this:

headgear top strap mask elbow swivel side strap

5 If the patient feels air leaks around the cushion, reposition the mask on the patient's nose to achieve a better seal. You may also need to readjust the headgear straps.

REMOVING THE MASK

To remove the RESMED HOSPITAL NASAL MASK, unfasten one of the side headgear straps and pull the mask and headgear up over the patient's head.

DAILY CLEANING OF THE MASK (OR AS REQUIRED)

Disconnect the main air tubing from the swivel.

The RESMED HOSPITAL NASAL MASK is for single patient, multi-use. The mask may be cleaned using a 70% v/v isopropyl alcohol swab or by wiping with a damp, soapy cloth. If using a damp cloth, use mild soap or diluted dishwashing detergent. Allow to air dry out of direct sunlight.

Note: Do not disassemble the mask.

CAUTIONS

• Do not use solutions containing bleach, chlorine, aromatics, moisturizers, antibacterial agents, or scented oils to clean any part of the system or air tubing. These solutions may cause damage and reduce the life of the product.
• Do not expose any part of the system or tubing to direct sunlight as it may deteriorate.
• If any visible deterioration of a component is apparent (cracking, crazing, tears, etc), replace the mask.
• Check the vent holes for blockage. Ensure the vent holes are cleaned regularly.

TECHNICAL SPECIFICATIONS

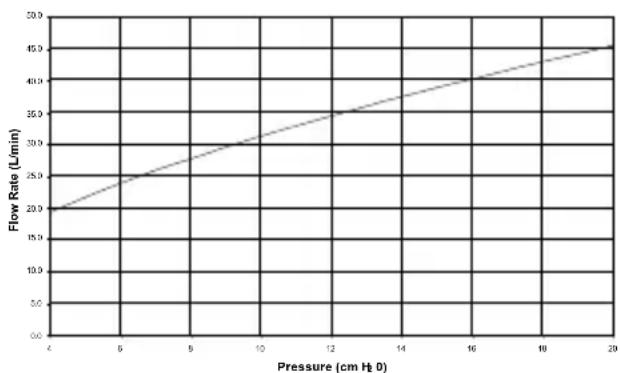

PRESSURE / FLOW CURVE

Note: As a result of manufacturing variations, the vent flow may vary from the values listed in the following table.

Pressure (cm H2O)	Flow (L/min)
4	19
8	28
12	34
16	40
20	45

FLOW GENERATOR SETTING

Select "Standard" as the mask option, when using the RESMED HOSPITAL NASAL MASK with ResMed flow generators that have mask setting options.

DEAD SPACE INFORMATION

Explanation: Dead space is the empty volume of the mask up to the swivel.

The dead space of the mask varies according to cushion sizes, but is less than 104 mL.

ENVIRONMENTAL CONDITIONS

Operating Temperature: 5°C to 40°C

Operating Humidity: 15–95% relative humidity

Storage and transport temperature: -20^ to +60^

Storage and transport humidity: 15% to 95% non-condensing

REPLACEMENT PARTS

Part No. Item

61104 ResMed Hospital Nasal Mask System-Medium

61105 ResMed Hospital Nasal Mask System-Large

61118 Headgear (10pk.)

ResMed Hospital Nasenmaske

BEDIENUNGSANLEITUNG

ResMed Hospital Nasal Mask

61104 ResMed Hospital Nasal Mask System–Medium

61105 ResMed Hospital Nasal Mask System-Large

61118 Hätta (10 st.)

See www.resmed.com for other ResMed locations worldwide.

For patent information, see www.resmed.com/ip

© 2020 ResMed.

0123

618363/1 2020-06

618363
