Product type	Espresso coffee machine
Brand	AEG
Model	EC6-1-6BST
Power supply	220-240 V ~ 50/60 Hz, 1450 W
Weight	Approx. 4 kg
Dimensions (W × D × H)	Approx. 30 × 25 × 32 cm
Water tank capacity	Approx. 1.2 L
Pump pressure	15 bar
Functions	Single espresso, Double espresso, Steam for milk frothing, Hot water
Pod compatibility	E.S.E. (Easy Serving Espresso) pods
Automatic shut-off	After 20 minutes of inactivity
Cup warmer	Yes (top surface)
Included accessories	Single filter, Double filter, Tamper/Dosing spoon, Cleaning pin
Housing material	Plastic and metal
Cleaning	Water tank, drip tray and grid are hand-washable; filters are dishwasher-safe
Descaling	Recommended when lights flash 5 times; automatic procedure with descaling agent or vinegar
Safety	Pressurized filter holder lock, burn protection, automatic shut-off
Warranty	2 years

Frequently Asked Questions - EC6-1-6BST AEG

How to prepare an espresso with the AEG EC6-1-6BST machine?

Place a single filter in the filter holder, add a scoop of ground coffee and tamp with the tamper (or use an E.S.E. pod). Attach the filter holder by turning counterclockwise to the CLOSED position. Place a warm cup under the outlet and press the 1 cup button after preheating.

What types of coffee can I use?

You can use ground coffee (espresso grind) or pre-filled E.S.E. pods. E.S.E. pods simplify preparation by avoiding dosing and tamping.

How to froth milk for a cappuccino?

Pour cold milk (preferably whole) into a carafe at least 70 mm in diameter. Press the steam button, wait for it to stop flashing, then immerse the steam wand 2 cm below the milk surface and turn the dial to the steam position. Move the carafe up and down until you get the desired foam, then turn off the steam.

How to clean the steam wand after use?

Immediately after turning off the steam, wipe the wand with a damp sponge. Caution: the wand is hot. You can also release some steam to remove milk residues.

What to do if the machine shows a rapidly flashing light and stops working?

This may indicate that the steam dial is not in the OFF position or that the water heater is too hot. Check the dial position and cool down by turning the dial to the hot water position for a few seconds.

How to descale the AEG EC6-1-6BST machine?

Fill the tank with 300 ml of water mixed with descaling agent (or white vinegar 1:1). Turn on the machine and, after preheating, press and hold the 1 cup and 2 cups buttons for 3 seconds to start the cycle. Once finished, rinse by performing the initial setup steps twice.

Why does my espresso taste acidic or vinegary?

This may be due to insufficient descaling or coffee that is too old. Perform a full descaling and use fresh coffee stored in a cool, dry place. Seal the package tightly after opening.

How to customize the water volume for each cup?

After preheating, press and hold the desired cup button (1 or 2 cups) for 3 seconds. The machine starts dispensing: press the same button again when the desired amount is reached. This volume will be memorized for future use.

What to do if there is water leaking under the machine?

First check if the drip tray is full: clean it. If the leak persists, contact an authorized AEG after-sales service.

How to restore factory settings?

Simultaneously press and hold the 1 cup and 2 cups buttons for 3 seconds after preheating. Custom volumes will be reset.

USER MANUAL EC6-1-6BST AEG

Line drawing of a modern espresso machine with control panel and buttons (no text or symbols)

GB INSTRUCTION BOOK

AR

Illustration of a coffee maker's side mirror with blue directional arrows indicating motion (no text or symbols)

Illustration of a coffee maker with a wooden stand and coffee cup (no text or symbols)

Illustration of a hand pouring milk into a glass cup (no text or symbols)

aeg.com/shop

Premium Coffee
Descaler

Ref: ECF-4-2

PNC:900167954

Premium Coffee
Tablets

Ref : TCF

PNC:950078803

CONTENTS

ENGLISH 6

ARABIC 11

BULGARIAN 16

DEUTSCH 22

ESPAÑOL

FRANÇAIS 34

ΕΛΛΗΝΙΚΑ 40

28

NEDERLANDS 46

PORTUGUÊS 52

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model number
• PNC number
• Serial number

The information can be found on the rating plate.

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS (picture page 2)

A. Power indicator button

B. One-cup indicator/button

C. Two-cup indicator/button

D. Steam indicator/button

E. Brewing head

F. One-cup/E.S.E pod filter cup

G. Two-cup filter cup

H. Filter holder

I. Tamper/dispenser measure spoon

* available in certain models only

J. Cleaning pin*

K. Water tank lid

L. Water tank handle

M. Water tank

N. Cup warmer

O. Steam knob

P. Hot water/steam nozzle (milk frother)

Q. Drip grid

R. Drip tray

SAFETY ADVICE

Read the following instructions carefully before using the appliance for the first time.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- Keep the appliance and its cord out of reach of children less than 8 years old.

- The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!

- Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

- The appliance must only be connected to an earthed socket. If necessary, an extension cable suitable for 10 A can be used.

- If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always place the appliance on a flat, level surface.

- The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.

- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.

- The mains cable must not come into contact with any hot parts of the appliance.

- Do not remove the filter holder during the brewing process as the appliance is pressurized. The risk of burns exists.

- Do not remove the water tank during the brewing process.

- Do not remove the filter holder during the brewing process or when there's steam /

hot water escaping from the filter holder. Ensure to release the pressure into water tank before removing the filter holder. DANGER! There is risk of scalding.

• Release pressure through hot water/steam nozzle before removing filter holder.
• Warning: Avoid steam burn.
• When the steam function is used there can be some hot water dripping from the brewing head. DANGER! The water is hot, there is a risk for scalding.
• When opening the steam knob there is a shot of hot water coming out. Be careful and open the steam valve slowly. DANGER! The water is hot, there is a risk for scalding.
• Do not immerse the appliance in water or any other liquid.
• Do not exceed the maximum filling volume as indicated on the appliances.
• Fill the water tank only with cold water, never with milk or other liquids.
  • Always use fresh water to brew espresso to promise the best taste.
• Do not use the appliance if the water tank has not been filled.
• Do not use the appliance without the drip tray or drip grid, unless a higher cup/mug is in use.
• Do not use or place the appliance on a hot surface or near source of heat.
• Warning: Avoid spillage on the connector.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and others working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

GETTING STARTED (picture page 3 and 4)

Start the machine for the first time

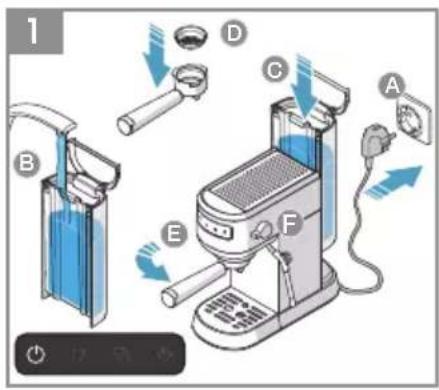

1 Place the machine on a flat surface. Plug in the machine to turn on its stand-by mode, while ⏻ button turns half on. Fill the tank with cold pure water. Put filter cup into filter holder, and then fix it onto brewing head anti-clockwise from "LOCK" to "CLOSE" position without coffee. Make sure the knob is at the horizontal position ("OFF" position).

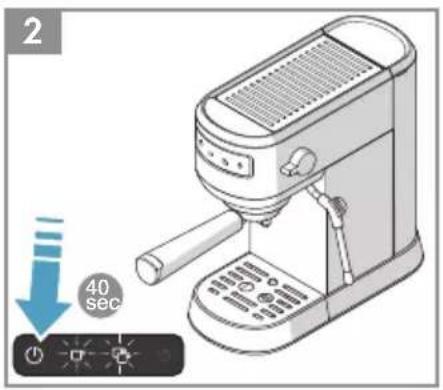

2 Start the machine with the ⏻ button, whose light turns fully on and □ and 📋 buttons start blinking.

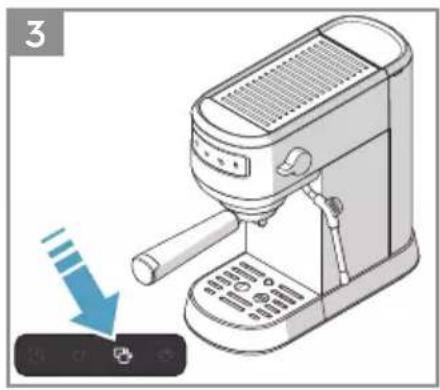

3 When buttons stop blinking, pre-heating is done. Press 📋 button to start brewing process. NOTE: There may be noise when pumping the water for the first time. It is normal. The machine is releasing the air from inside. The noise will stop after about 20 seconds.

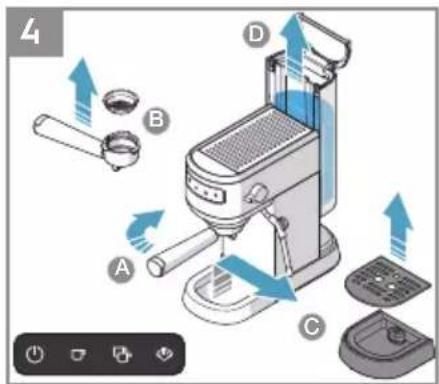

4 When brewing is finished, remove the filter holder clockwise, clean up the filter and clear up the drip tray. Now the machine is ready to use. NOTE: The machine will turn off automatically after 20 mins of no operation.

Make espresso coffee

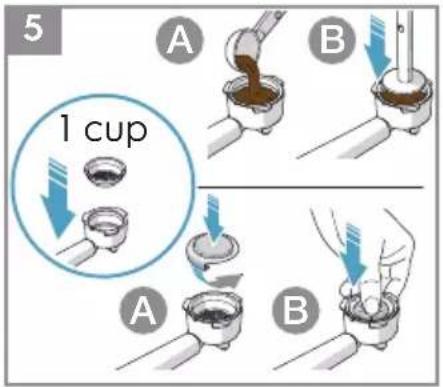

5 Put one-cup filter cup into filter holder. Add one spoon of ground coffee, press it tight with tamper; or add an E.S.E pod and put it into filter cup. E.S.E (Easy Serving Espresso) Pods can be used to simplify the espresso preparation. Each pre-packed pod contains 7 grams of coffee, already measured and pressed and sealed between 2 fine layers of filter paper.

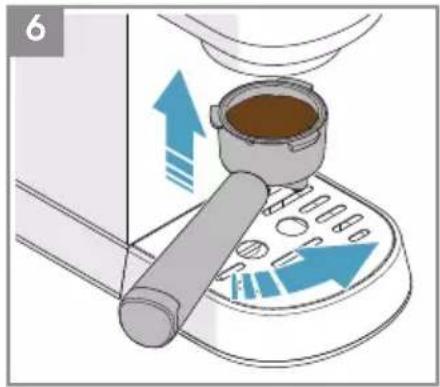

6 Fix the filter holder onto brewing head anti-clockwise from "LOCK" to "CLOSE" position.

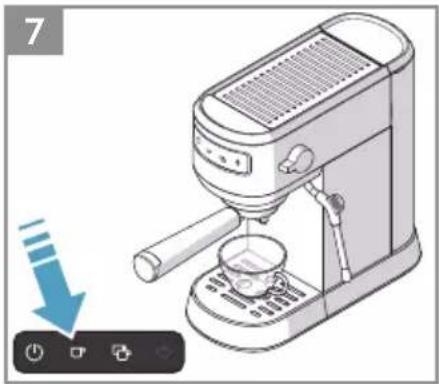

7 Put a warm cup on the drip tray. In "pre-heating done" mode when ⏻ and □ and 📋 buttons are steadily and fully light on, press button to start brewing process.

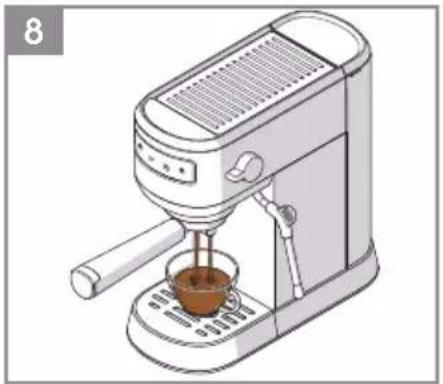

8 Wait a moment and the top-grade coffee will flow out. When the machine stops working, your coffee is now ready.

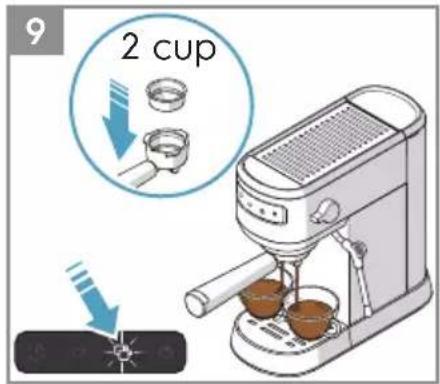

9 Now apply two-cup filter cup. Press button. Brew 2 cups of espresso at the same time.
10 NOTE: If both □ and 📋 buttons start blinking quickly, you may simply press □ or 📋 button to cancel brewing, or (step 11)

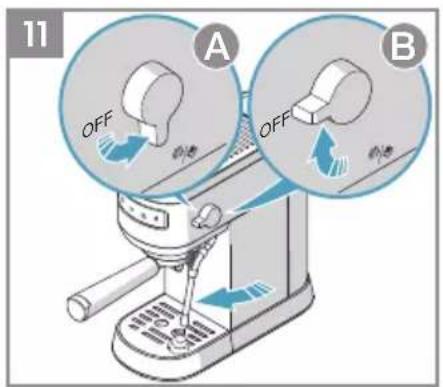

11 (step 10) you may restart brewing after cooling down the boiler. Turning the knob to // position and release hot water from steam nozzle. The pump stops working automatically when it's done cooling off. Turn the knob off and resume brewing again.

Make hot water

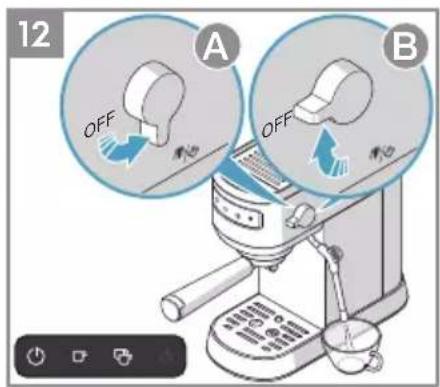

12 In "pre-heating done" mode when ⏻ and □ and 📋 buttons are steadily and fully light on, turn the knob to position. Hot water comes out of the steam nozzle. Turn the knob off when the desired amount is complete.

Froth milk and make cappuccino/latte

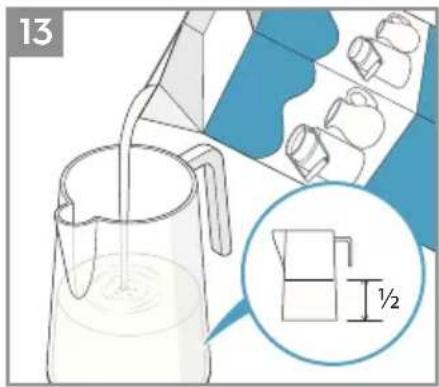

13 Fill a jug with 100ml (for cappuccino) or 200ml (for latte) milk. NOTE: make sure jug diameter is no less than 70±5mm, and jug capacity can hold twice the milk volume after it's done frothing.

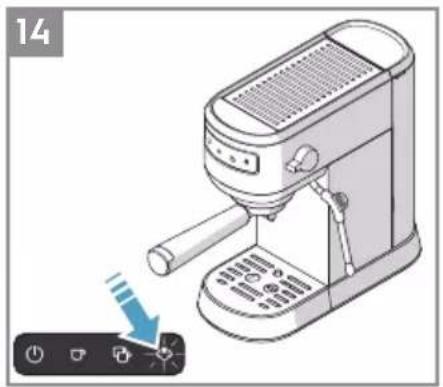

14 In "pre-heating done" mode when ⏻ and □ and 📋 buttons are steadily and fully light on, press button, it starts blinking. NOTE: Use full milk at refrigerator temperature (NOT HOT!).

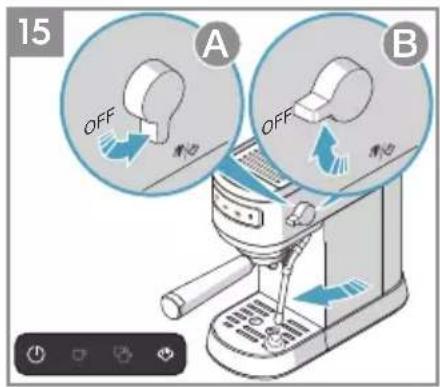

15 When the 🎨 button stops blinking, steam / milk frothing function is ready. Before frothing milk, push steam nozzle in the direction of drip tray, turn the knob to "position and release steam until there's no water coming out, then turn off steam function by turning the knob back to horizontal "OFF" position.

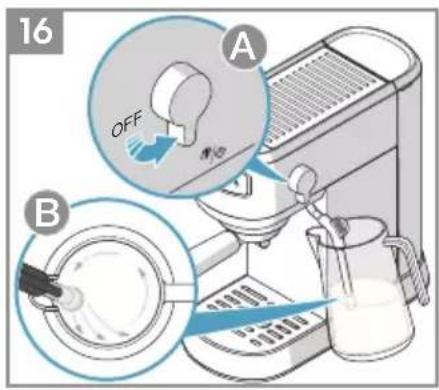

16 Immerse steam nozzle in milk about 2cm under the milk surface, turn on the knob. Make sure the steam nozzle is placed in a position that makes the milk turning in one direction inside the jug from top to bottom.

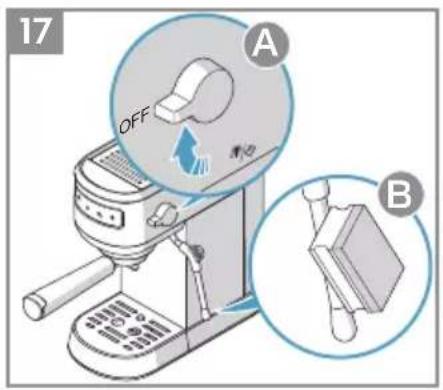

17 When the desired level of foam is reached, turn off the knob. NOTE: Clean steam nozzle with wet sponge immediately after steam stops generating, but care not to hurt! The pump automatically stops working after milk frothing for 3 minutes.

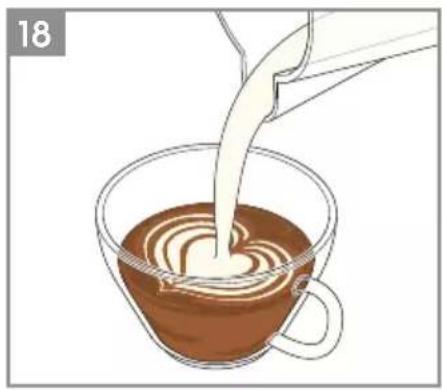

18 Pour the frothed milk into the espresso prepared, now the cappuccino/latte is ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder. NOTE: After making steam, you may immediately make espresso again by pressing or button. If both and buttons start blinking quickly, cool down the boiler and resume brewing (see step 11).

DIY / volume

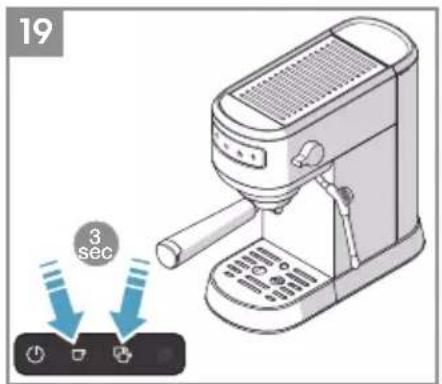

19 In "pre-heating done" mode when ⏻ and □ and 📋 buttons are steadily and fully light on, long press / button for 3 seconds to start resetting mode. Press / button to start brewing and press again to stop when the desired volume is complete. Now the volume is saved for next operation and from then on.

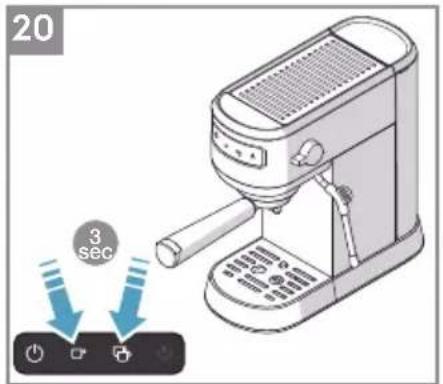

20 Restore factory volume setting simply by long pressing and buttons for 3 seconds again.

CLEANING AND CARE

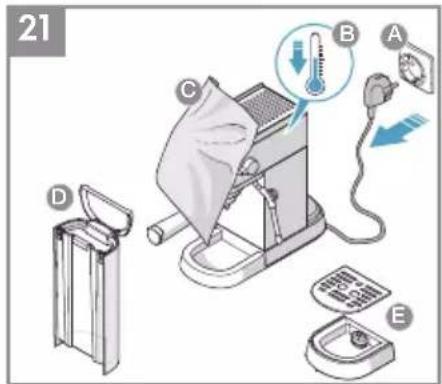

21 Turn the machine off and unplug the power cord. Let the machine cool down completely before cleaning. Wipe all outer surfaces with a damp cloth. Clean water tank, drip tray and drip grid regularly. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!

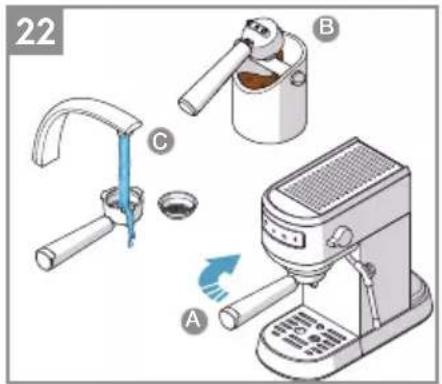

22 Detach the filter holder by turning it clockwise. Scrap coffee residue or used E.S.E pod. Extract the filter cup from the filter holder, rinse them with clean water and dry thoroughly.

DECALCIFYING

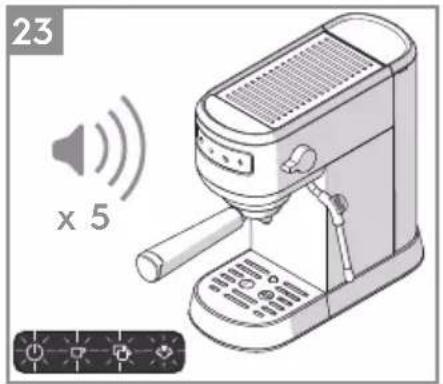

23 Descaling is recommended when all indicators blink 5 times with 5 beeps the moment machine is turned on. Descaling warning will repeat 2 more times each time when you turn on the appliance if you do not perform descaling or do not cancel by simultaneously pressing and and for 3 seconds.

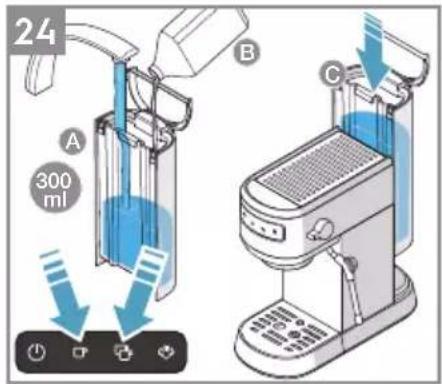

24 Fill the water tank to 300ml level with water and then add the descaling agent (or fill in water and vinegar 1:1). Use only an environmentally friendly descaling agent and always follow the manufacturer's instructions. In "pre-heating done" mode when and and buttons are steadily and fully light on, simultaneously press and for 3 seconds to start descaling process, during which and buttons blinking slowly one after another. When descaling completes, the machine will return to standby mode. Perform step 1-4 twice before using the machine

Enjoy your new AEG product!

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Water leaks from the bottom of coffee maker.	There is too much water in the drip tray. Please clean the drip tray.
	The coffee maker malfunctions. Please contact with the authorized service facility for repairing.
Water leaks outside of filter cup. There is some coffee powder on filter edge when locked into the brewing head.		Clear up the coffee powder on the filter edge.
Acid (vinegar) taste exists in espresso coffee.	Didn't perform descaling correctly. Clean up machine according to step 1-4 for "Start the machine for the first time".
	The coffee powder is stored in a hot, wet place for a long time. The coffee powder turns bad.	Please use fresh coffee powder, or store unused coffee powder in a cool, dry place. After opening a package of coffee powder, reseal it tightly and store it in a refrigerator to maintain its freshness.
The coffee maker cannot work anymore or does not respond at all.	The power outlet is not plugged well. Plug the power cord into an earthed socket correctly. If the appliance still does not work, please contact with the authorized service facility for repairing.
The steam / milk frothing does not work properly.	The white indicator is not illuminated. Only after the white indicator is illuminated, the steam station can be used to perform milk frothing.
	The container is too big or the shape is not fit.	Use high and narrow cup or professional milk frothing jug.
	You have used skimmed milk. Use whole milk or half-skimmed milk.
Steam indicator blinking quickly. Make steam for 3 minutes and the steam knob is not reset.		Reset steam knob to "OFF" position.
One-cup indicator and two-cup indicator blinking quickly.	Make hot water for 40ml and then the steam knob is not reset.	Reset steam knob to "OFF" position.
	The steam knob is not reset after cooling down.
	Boiler temperature is too high. Cool it down by perform Step 11.
One-cup indicator, two-cup indicator and steam indicator blinking quickly.	The steam knob is not reset, but the machine is turned on.	Reset steam knob to "OFF" position.
ALL indicators blinking at the same time for 5 times.	Need descaling. Perform decalcifying.
Filter holder is too tight to operate. Too much coffee powder filled in filter. Fill filter cup with less coffee powder.
Coffee flows drip by drip. Too much powder. Fill filter cup with less coffee powder.

DISPOSAL

Recycle the materials with the symbol. The packaging materials can be recycled. Please sort individual components by type and dispose them in applicable containers according to local disposal instructions. Recycling of packaging materials reduces the use of raw materials and amount of waste in landfill sites. Help protect the environment and human health by recycling your packaging.

Do not dispose appliances marked with the symbol wish the household waste. Return the product to your local recycling facility or contact your municipal office.

AEG reserves the right to change products, information and specifications without notice.

For Switzerland:

Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms. The list of official SENS collection points can be found at www.erecycling.ch
