WatchY3 - Smartwatch Lamax - Free user manual and instructions

Product Type	Smartwatch
Brand	Lamax
Model	WatchY3
Display	Color touch screen
Speaker	Built-in
Microphone	Built-in
Network connectivity	2G/3G/4G via micro SIM card (not included)
Wireless connectivity	Wi-Fi, GPS
Power	Rechargeable lithium-ion battery, magnetic charging 5V/1A
Mobile app	LAMAX Tracking (iOS 9.0+ / Android 4.4+)
Main functions	Calls, messages, GPS tracking, geofence, SOS button, real-time location
Emergency button	Dedicated button for emergency calls
SIM card slot	Micro SIM, screw access
Box contents	Watch, magnetic charging cable, power adapter, quick start guide
Care and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Use only the recommended adapter (5V/1A). Avoid any contact with water.
Spare parts and repairability	No user-serviceable parts. Contact authorized after-sales service.
Manual languages	French, English, German, Italian, Polish, Czech, etc.

Frequently Asked Questions - WatchY3 Lamax

How to insert the SIM card into the Lamax WatchY3?

Unscrew the two screws of the SIM card cover. Insert the micro SIM card with the chip facing the screen and the beveled corner towards the 'Back' button. Push the card using a screwdriver, then screw the cover back on.

Why doesn't my watch detect the mobile network?

Check that the SIM card is correctly inserted and that the PIN code is disabled. Make sure the data plan is activated. Restart the watch if the signal icon does not appear after 5 minutes.

How to set up the watch for the first time?

Install the LAMAX Tracking app on your smartphone, create an account, then register the watch using the 10-digit identifier on the packaging. Follow the setup wizard in the app to configure contacts and the administrator.

How to make a call from the watch?

Press the desired contact in the watch's contact list. To receive calls, you must first define contacts in the LAMAX Tracking app. Only registered numbers can reach you if an administrator is set.

How to charge the Lamax WatchY3?

Use the provided magnetic charging cable with a 5V/1A power adapter. Connect the cable to the magnetic connector on the back of the watch. A full charge before first use is recommended.

What to do if the watch does not turn on?

Make sure the battery is charged. Press and hold the Power/Off button for several seconds. If nothing happens, plug the watch into the charger and wait a few minutes before trying again.

How to reset the watch to factory settings?

In the LAMAX Tracking app, go to device settings and look for the reset option. You can also contact Lamax support for the exact procedure.

Is the watch waterproof?

The manual does not mention a waterproof rating. It is recommended to avoid any contact with water, rain, or humidity to prevent damage to the device.

Can I use the watch without a SIM card?

Without a SIM card, the watch cannot access the mobile network for calls or remote GPS tracking. However, some functions like time display may work, but the app requires a connection.

How to update the watch's firmware?

Updates are typically performed via the LAMAX Tracking app. When an update is available, a notification appears in the app. Follow the instructions to install the latest version.

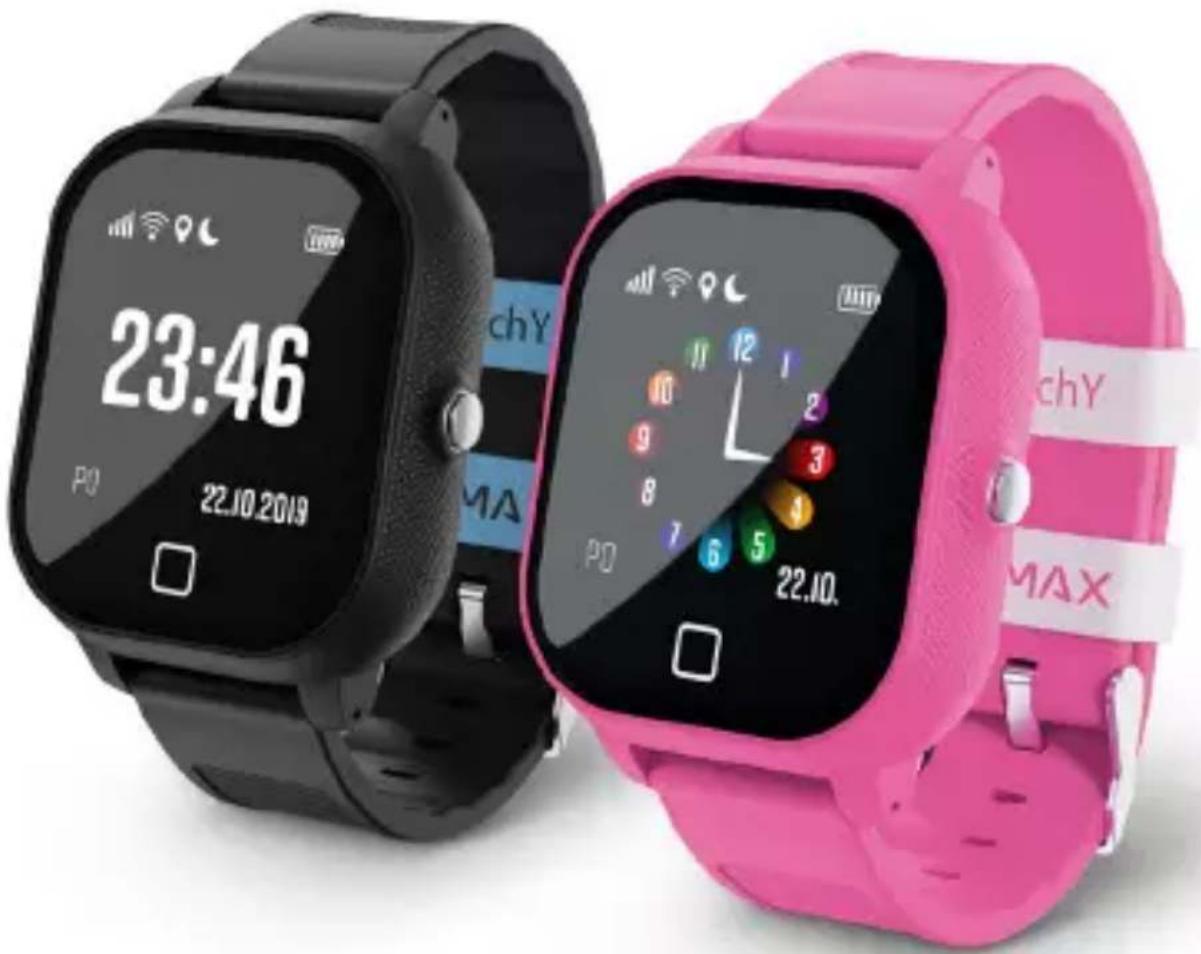

USER MANUAL WatchY3 Lamax

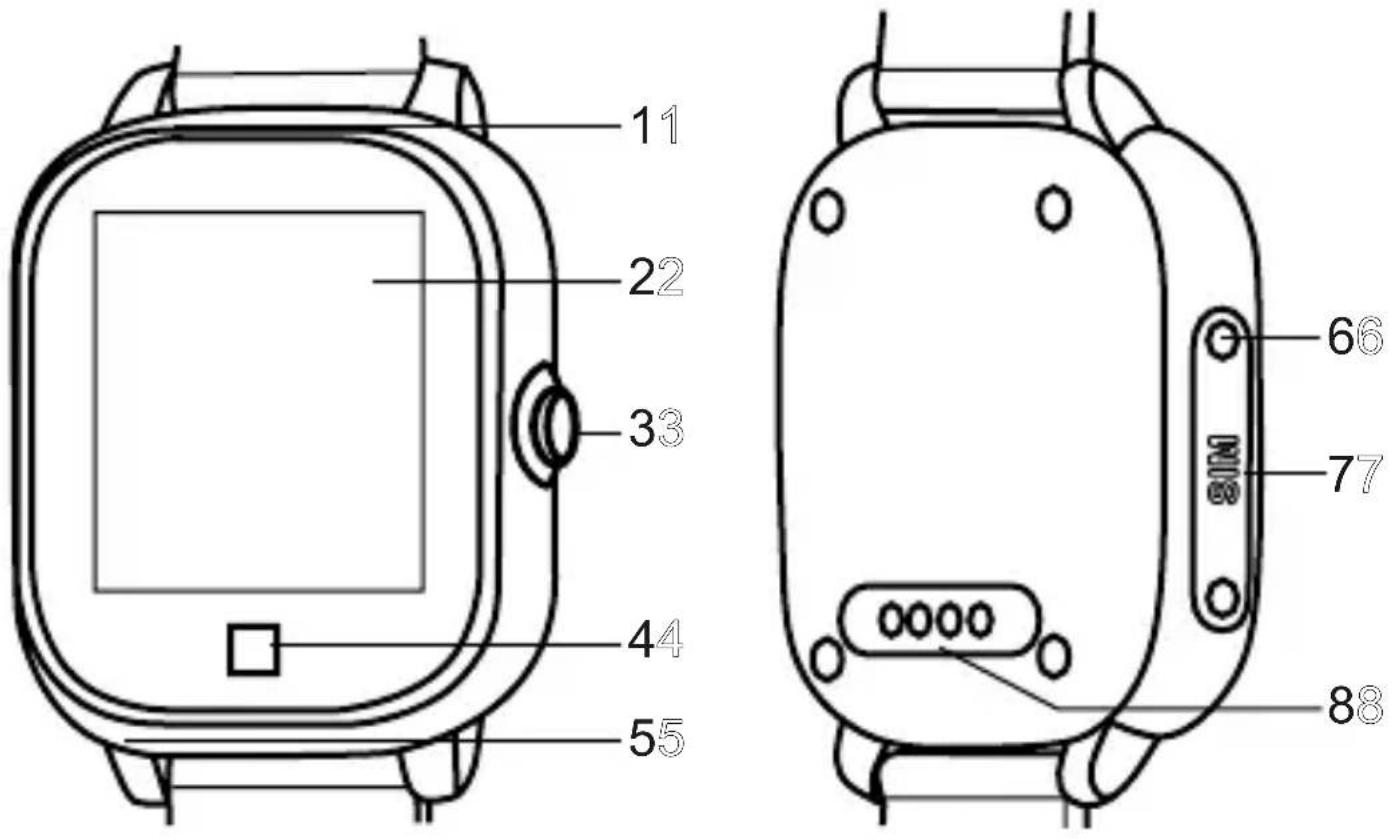

1) Speaker
2) Touch screen
3) SOS button; On/Off
4) "Back" touch button
5) Microphone
6) 2x SIM card cover screws
7) Micro SIM card slot
8) Magnetic power connector

Charging

Fully charge the device before using it for the first time. For charging, use only charging adapters with a current of 1A and a voltage of 5V along with the supplied charging cable. Using an adapter or cable other than the recommended one may damage your device.

Complete manual

The complete manual is available for download in the LAMAX Tracking application, using the QR code on the right or at the following link.

https://www.lamax-electronics.com/lamax-tracking-manual/

Getting started with the LAMAX WatchY3 1) Setting up the LAMAX WatchY3

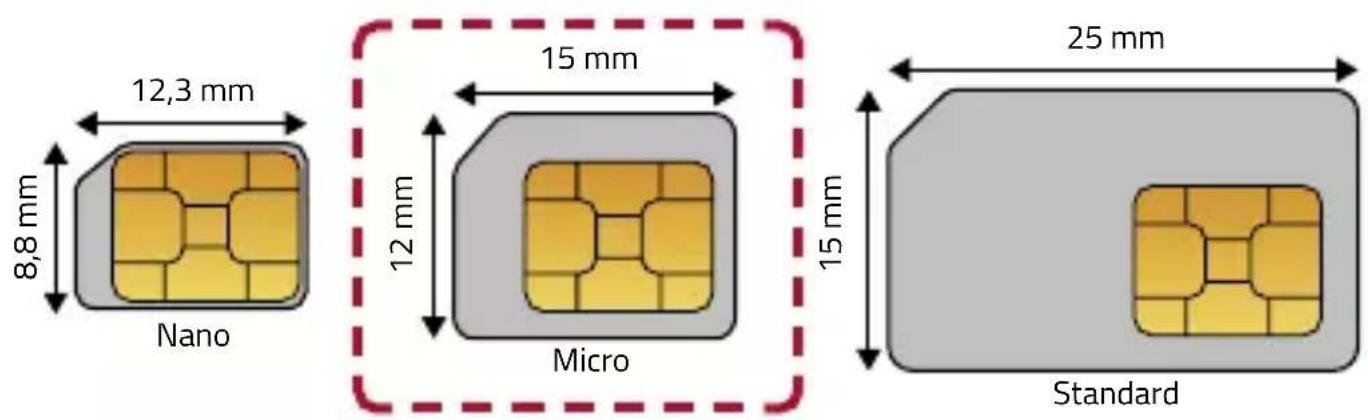

- Insert the Micro SIM card into the device, see the picture on page 6.

Notes on the SIM card

• The SIM card must have a disabled PIN and an activated data plan. ⚠️ If you are unsure, you can verify the functionality on a mobile phone.
• To receive calls on the watch, it is necessary to set contacts in the LAMAX Tracking mobile application.

Illustration of a hand holding a smartwatch with a cable inserted (no text or symbols)

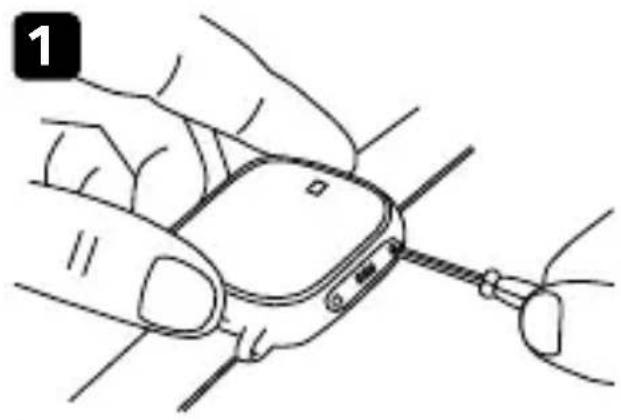

- Unscrew the protective cover.

Illustration of a hand holding a small electronic device with a cable inserted (no text or symbols visible)

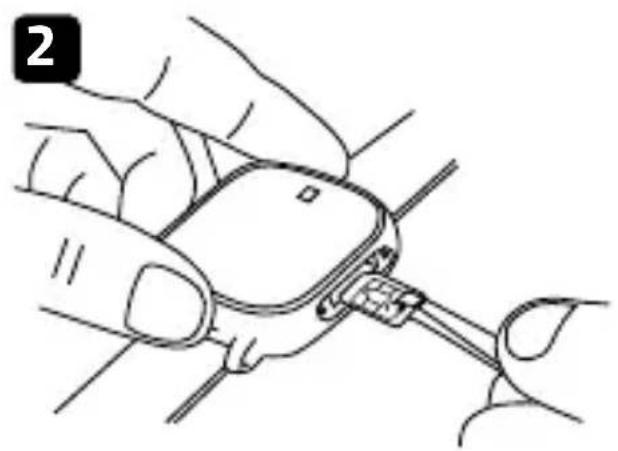

- Insert the SIM card with the chip towards the display and the bevelled corner towards the „Back“ button.

Illustration of hands holding a small electronic device with wires, no text or symbols present

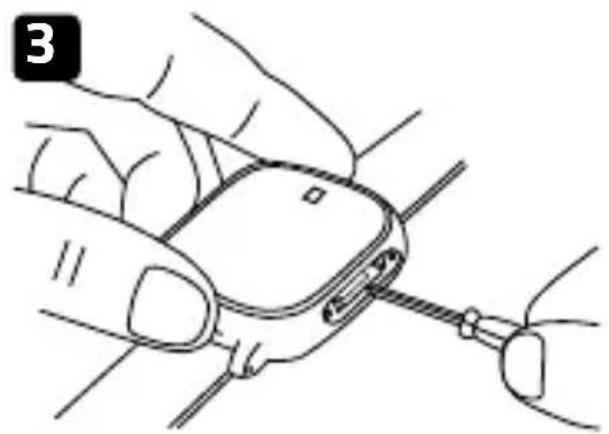

- Use a screwdriver to push the SIM card into the device and screw on the cover.

- Turn on the device by holding down the "On/Off" button.

- The device displays the loading logo on the display and boots up.

- On the display you will see icons for mobile data ↑↓, Wi-Fi 🔺, GPS 🔺.

- Mobile signal strength is indicated by the icon . If you do not see the signal strength after 5 minutes, restart the device.

- If you see the signal strength, continue with step 2.

2) Installing the LAMAX Tracking application

To take full advantage of all the device's features, you need the LAMAX Tracking mobile application, which is available for free on Google Play and the Appstore.

www.lamax-electronics.com/download/lamax-tracking/app

Abstract geometric design with a large letter 'A' and a blue arrow, set against a grid background (no text or symbols)

3) User registration

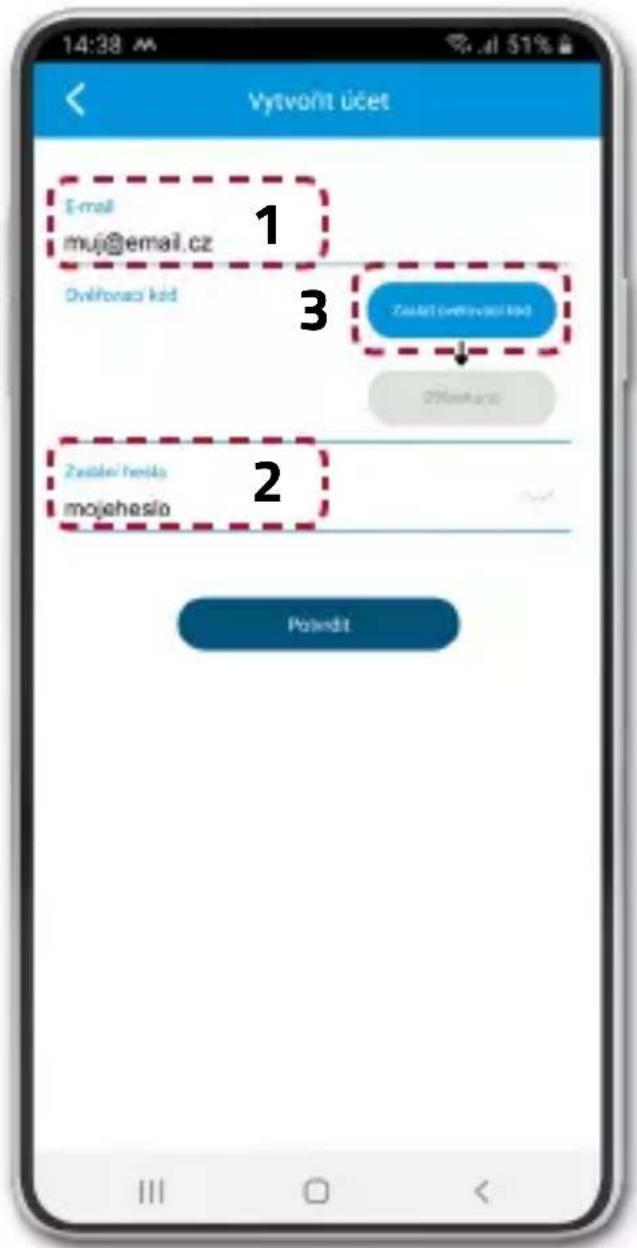

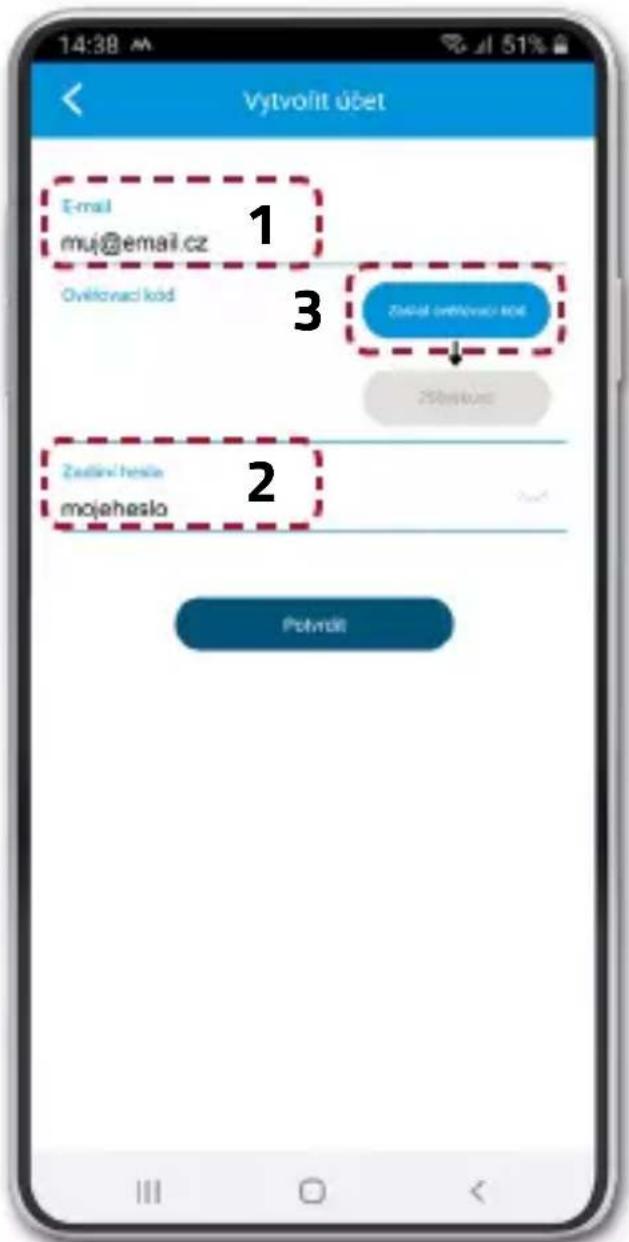

Fill in your e-mail (1) and password (2). Click „Submit Verification Code“ (3). A timer will show how long until you can send the code again. Check your email inbox, including the SPAM folder, and copy the verification code.

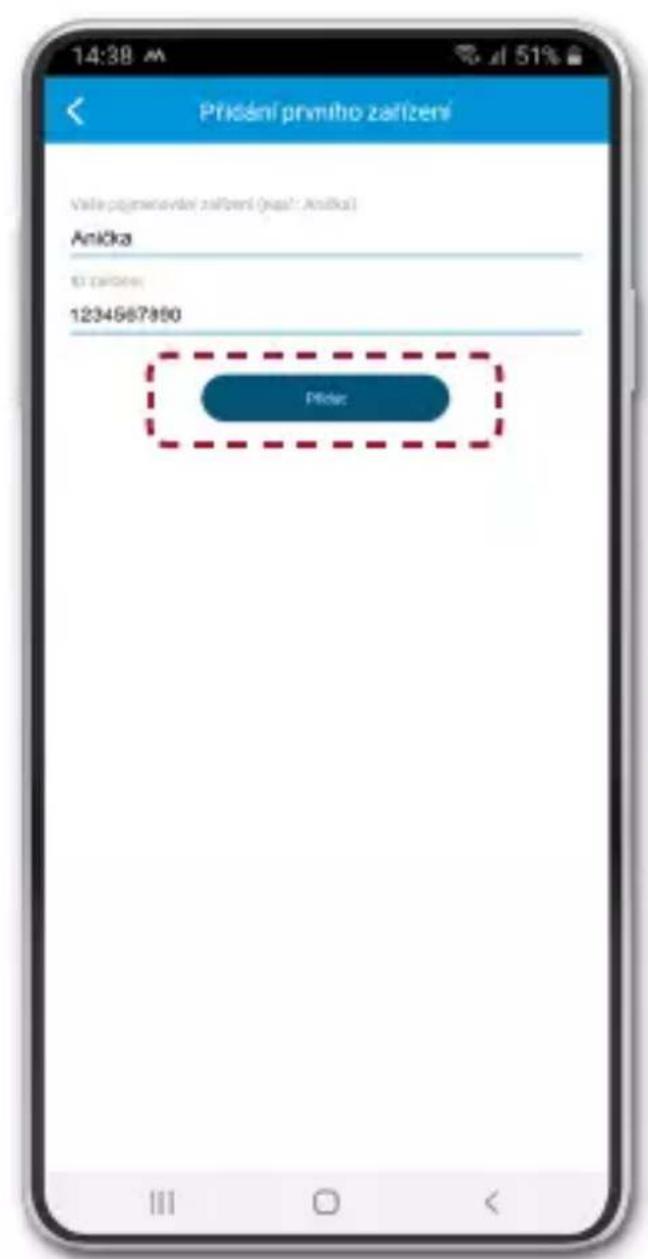

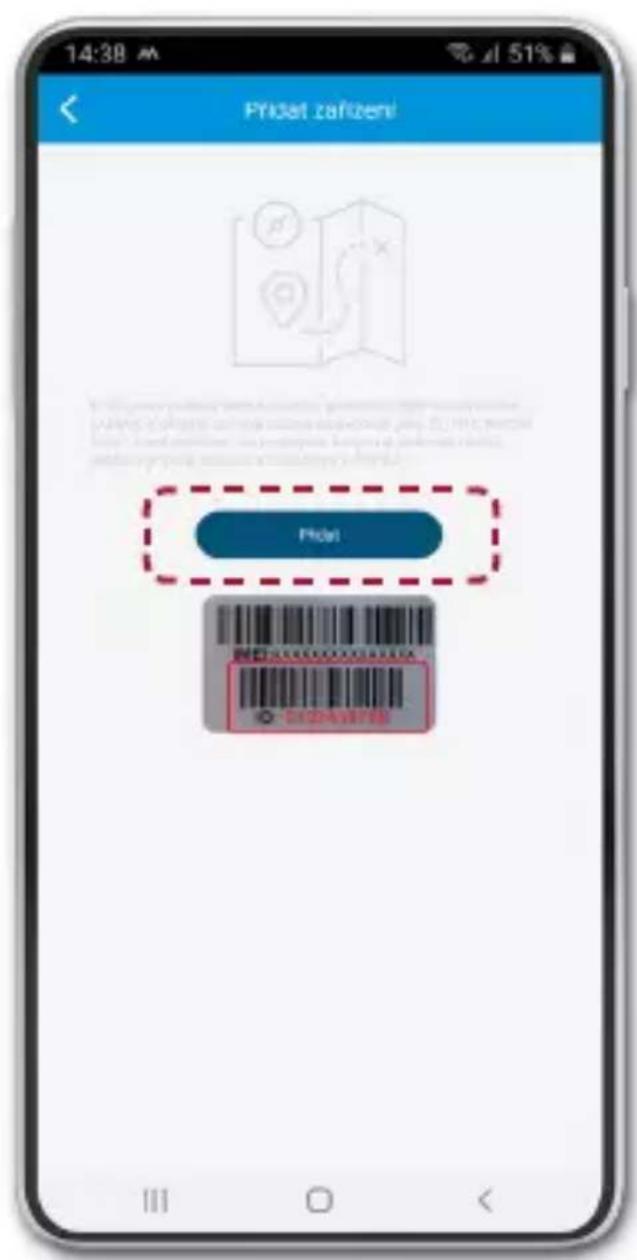

4) Device registration

To add a device to your account, prepare the 10-digit device ID, which can be found on the box on the silver label. If you have a device with a display, you will also find it under the APP & ID icon in the menu.

5) Basic device settings

After successful registration of the device, a setup wizard will be opened in the application, in which you can enter all the necessary data. If it is skipped, follow the procedure below.

On the home screen with the map, enter the "Menu" -> "Current device settings" and here set:

"Administrator phone number" - Your mobile phone number.

"Default SOS contacts" - Phone numbers that are designated as recipients of SOS calls from the LAMAX device.

"Contact list" - Phone numbers that appear on your device and can be dialled.

* Enter all telephone numbers in the international format without spaces +44XXXXXXXXX.

** If you do not enter an administrator number, you will be able to call the device from any phone number. If you enter the administrator number, it will be possible to call only from the numbers that you entered in the SOS contacts, contact list or administrator number in the application.
