Product Type	Decorative Wireless Doorbell
Brand	Honeywell
Model	RCWL3502A
Chime Power Supply	4 LR14 alkaline batteries (size C)
Push Button Power Supply	1 CR2032 battery
Maximum Range (open area)	140 m (450 ft)
Sound Level	90 dBA at 1 m
Number of Melodies	Multiple, selectable
Volume Adjustment	Yes
Reminder Function	Yes
Additional Push Button Programming	Up to 4 push buttons
Operating Temperature (Chime)	0 °C to 40 °C
Operating Temperature (Push Button)	-10 °C to 40 °C
RF Frequency	916.8 MHz
Rain Resistance (Push Button)	UL1598 compliant
Battery Life (5 activations/day)	12 months (chime), 18 months (push button)
Warranty	1 year
Package Contents	Chime, push button, CR2032 battery, screws, wall anchors, adhesive pad
Maintenance and Cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Check for cables before drilling. Use protective equipment.
Spare Parts and Repairability	No user-serviceable parts. Contact Honeywell customer service at 1-800-468-1502.

Frequently Asked Questions - RCWL3502A HONEYWELL

How to install the push button battery?

Open the push button housing by lifting the cover. Insert the CR2032 battery respecting the polarity. Close the cover.

How to change the chime melody?

Press the push button to activate the chime. While the icon is flashing, briefly press the melody button and release. Press again to scroll through melodies until you hear the desired one. The melody is saved when the icon stops flashing.

How to adjust the chime volume?

Use the volume adjustment button on the chime to set the sound to the desired level.

What to do if the chime does not ring?

Check that the chime batteries are alkaline LR14 and correctly installed. Make sure the volume is not at minimum. If the problem persists, follow the programming procedure to synchronize the push button.

Why is the range reduced?

Metal structures, thick walls, PVC-U, and radio interference can reduce range. Avoid mounting the push button or chime on metal surfaces. Weak batteries also reduce range; replace them every 12 to 18 months.

How to add a new push button to the chime?

Press and hold the programming button ● until the icons light up successively. Release when the desired icon lights up. Operate the new push button; the chime plays a melody and the icon flashes. To change the melody, refer to the corresponding procedure.

How to unprogram a push button?

Press and hold the button ● until the icons light up. Release on the icon of the push button to remove. Simultaneously press the buttons ● and until you hear a beep.

What does a beep sound mean in learning mode?

A beep indicates that the push button you are trying to program is already registered in the chime. To change the associated icon, unprogram it and then reprogram it.

Why is the yellow indicator flashing?

If the yellow light flashes every 5 seconds, the chime batteries are low. Replace the 4 batteries with new alkaline LR14 batteries.

Can the push button or chime cover be painted?

Yes, for paintable covers. Choose a suitable paint, stain, or varnish. You can unscrew the four cover screws before painting. Follow the paint manufacturer's instructions.

USER MANUAL RCWL3502A HONEYWELL

Installation Instructions

RCWL35 Series

RCWL35N, RCWL3501A, RCWL3502A, RCWL3503A, RCWL3504A, RCWL3505A, RCWL3506A Decorative Wire Free Chimes and Push

Installation Instructions

Contents

Safety 2

Checking pack contents ......2

Open bell push ....3

Install the push battery ....3

Open the chime ....3

Install the chime battery ....3

Test the kits ....4

Volume control 5

Change tunes ....5

Add new push/reprogram 6

Unlearn procedure ....6

Recall function 6

Mount chime ....7

Paint the wood cover....8

Specifications 9

Troubleshooting 9

Disposal and recycling ....12

Guarantee 12

Declaration ....13

69-2115EFS-05 ii

RCWL35 Series

Compatible with décor wireless push, converter, motion detector, and door contact. (Model No. RPWL30XXX series, and RCA901N and RCA902N.)

1 69-2115EFS-05

Installation Instructions

Safety

Before proceeding with the installation, please note the following safety warnings:

• Always follow the manufacturer's advice when using power tools and wear suitable protective equipment (e.g. safety goggles) when drilling holes, etc.
• Before drilling holes in walls, check for hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt.

Decorative Wire Free Chimes and Push

Checking Pack Contents

• Chime
  • Bell push (for chime kit only)
• CR2032 battery for bell push (for chime kit only)
• 2 x fixing screws for push (for chime kit only)
• 2 x fixing screws for chime
• Wall plugs
• Adhesive pad (for chime kit only)

69-2115EFS-05 2

You will need:

• A Phillips screwdriver
• A small flat bladed screwdriver
• A 1/4-in. (6 mm) masonry drill
• 4 X LR14 'C' Alkaline batteries

Installation

1. Open the bell push and insert the push battery (CR2032).

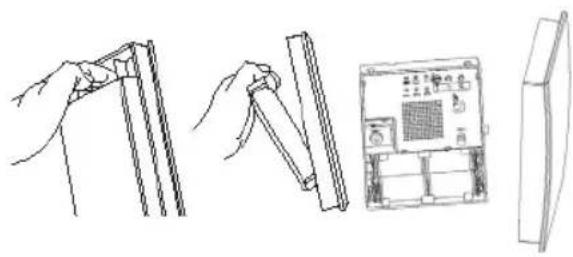

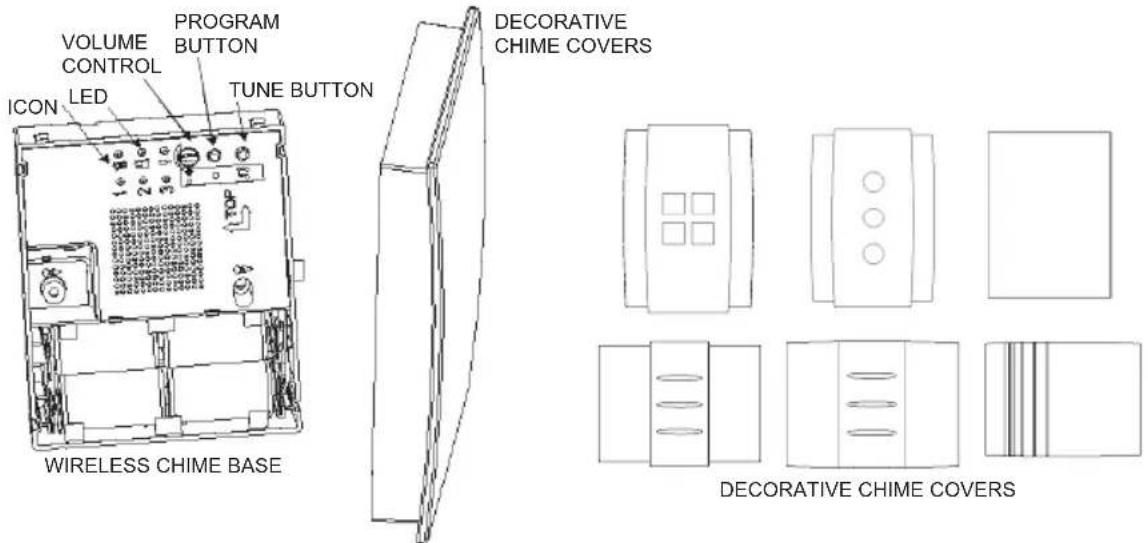

1. Open the chime cover.

Line drawings showing hands holding cylindrical objects, a close-up of a device with a grid, and a separate panel (no text or symbols)

1. Insert chime batteries (LR14 C size).

3 69-2115EFS-05

Installation Instructions

Installation

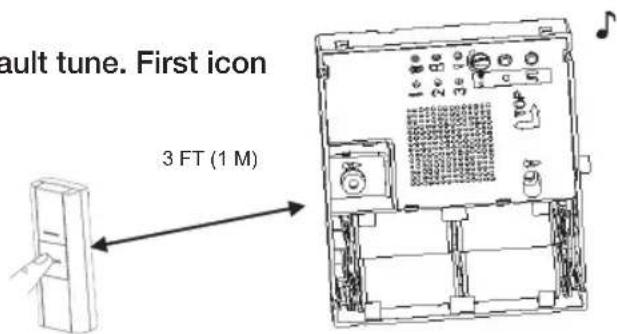

1. Operate push. Chime will play the default tune. First icon will illuminate.

Note: The bell push (if supplied) is pre-programmed to operate with the chime.

69-2115EFS-05 4

69-2115EFS_C.indd 4 12/17/2007 2:23:56 PM

Installation

1. To adjust volume.

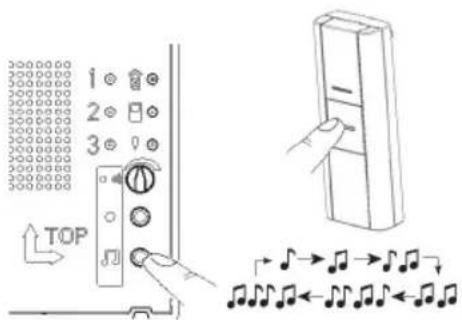

1. To change tunes Press push button, chime will play tune, while the icon on chime is flashing, press and release tune button 🎨 Press and release button again to cycle through the available tunes until you hear the tune you want. The last tune played will be stored after the icon stops flashing. To confirm, press the push button and chime will play the tune you want.

5 69-2115EFS-05

Installation Instructions

Installation

1. To add new push/reprogram

Press and hold the program button ●. The icons will illuminate in sequence. Release the program button when icon you choose is illuminated. Operate your new push and the chime will play tune, icon will flash. To change tune, refer to step 6.

1. Unlearn procedure

To remove a push from the chime's memory, press and hold the program button ●. Each icon will light in turn. When the icon

associated with the push to be un-learned is lit, release the button. Then press and hold down both ● and ⏻ buttons, until a 'beep' sound is heard.

1. Recall function

A short push of the program button ● will flash the icon that was last in use.

69-2115EFS-05 6

Installation

10. Mount the bell push

Install back cover to wall, use screws provided/adhesive pad. Close the cover.

Note: Before final installation adjust distance and position between push and chime to optimize the chime within your environment. Dense walls and metal can reduce range.

Technical line drawing of a mechanical device with an open lid and a side view showing a top view (no text or symbols)

Wall Type Range Reduction

Dry-lined partition wall 10–30%

Single-layer brick wall 20–40%

Double-layer brick wall 30–70%

Metal panel/radiator 90–100%

7 69-2115EFS-05

Installation Instructions

Installation

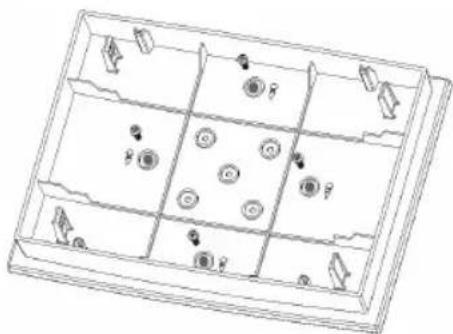

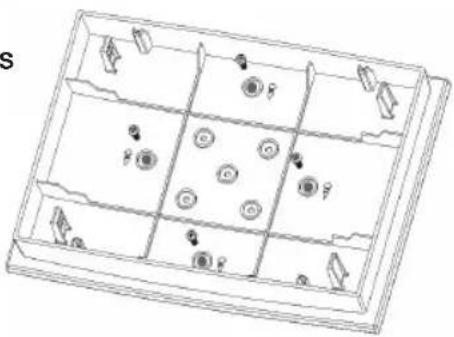

1. Mount the chime

Mounting holes are marked with screw symbol. Clip on the front cover.

Line drawing of an electronic device chassis with a side panel and control panel (no text or symbols)

1. For stainable covers only

Choose your paint, stain or varnish and then apply to the cover. Follow manufacturers' advice on the paint/vanish. It is possible to unscrew the four screws shown below for painting. Ensure you screw it back with the same screws provided!

Once completed, clip it onto the base as in step 11.

Line drawing of a multi-panel storage tray with circular and directional elements (no text or symbols)

69-2115EFS-05 8

RCWL35 Series

Specification Chime Bell push
Operating Temperature 32°F to 1	04°F	14°F to 104°F
	0°C to 40°C	-10°C to 40°C
RF Frequency- US 916.8 MHz 91	6.8 MHz
Range (open field) 450 ft. (140 m)
Sound Level (typical) 90dBA @ 3	ft. (1 m) -
RF Power - <1mW
Battery Type	LR14 (C size)	CR2032
Battery Life (5 activations/day)	12 months	18 months
Rain proof	N/A	Pass UL1598 rain test

Troubleshooting

A 'beep' sound is heard in learn mode...

• The push you are programming has already been learned by the chime.
• If you want to change the icon associated with the push, use the unlearn procedure, then program the push again.

9 69-2115EFS-05

Installation Instructions

Troubleshooting

Two 'beep' sounds are heard after the normal chime sound...

- This indicates a low battery in the bell push that activated the chime. Install a new battery, type CR2032.

When the bell push is operated, the amber confidence light does not turn on, or is only on for a short time...

- In normal operation, the amber light will turn on for 1 second. When the battery is weak, the light will only turn on for a short time. Install a new battery, type CR2032.

The chime does not work...

- Check that the batteries are the correct type, LR14 'C' cells. Only use alkaline batteries.

- Check that the batteries are fitted correctly. (No wrong polarity)

- The chime could be out of range of the bell push. Try the chime in a different location.

- The chime might not have learned the identity of the bell push. Follow the programming procedure.

69-2115EFS-05 10

Troubleshooting

The chime does not sound...

- Check that the volume control is not at the minimum setting.

Range is reduced...

• Metal structures, including uPVC door frames can reduce the range of the product. Avoid mounting the push or chime on or near metal structures.
• Other equipment can cause radio interference that affects your chime.
• Walls and ceilings will reduce the range.
• Weak batteries will reduce range. Replace every 12–18 months. In cold conditions (below 41°F [5°C]), batteries may need to be replaced more often.

Amber light flashes...

- When the chime battery is low, an amber light located at the side of the chime will flash every 5 seconds. Fit new batteries in the chime, type LR14 'C' cells. Only use alkaline batteries.

11 69-2115EFS-05

Installation Instructions

Disposal & Recycling

Batteries and waste electrical products should not be disposed of with household waste. Please recycle where these facilities exist. Check with your local authority or retailer for recycling advice.

Guarantee

Honeywell guarantees this product for 1 year from the date of purchase. Proof of purchase is required; this does not affect your statutory rights. If you require further information about your product, call the Honeywell helpline at 1-800-468-1502.

69-2115EFS-05 12

69-2115EFS_C.indd 12 12/17/2007 2:23:57 PM

Declaration

Honeywell hereby declares that this product complies with Part 15 of the FCC rules and Industrial Canada standards.

This device operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Caution:

Changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user's authority to operate the equipment.

13 69-2115EFS-05

Honeywell International Inc.

ACS, Environmental and Combustion Controls

1985 Douglas Drive, Golden Valley, MN 55422

www.honeywell.com

Printed in U.S.A. on recycled paper containing at least 10% post-consumer paper fibers.

® U.S. Registered Trademark.

© 2007 Honeywell International Inc.

69-2115EFS—05 M.S. Rev. 12-07

69-2115EFS_C.indd 14 12/17/2007 2:23:57 PM

Honeywell

Honeywell

Simple line drawing of a 3D rectangular prism with no text or symbols

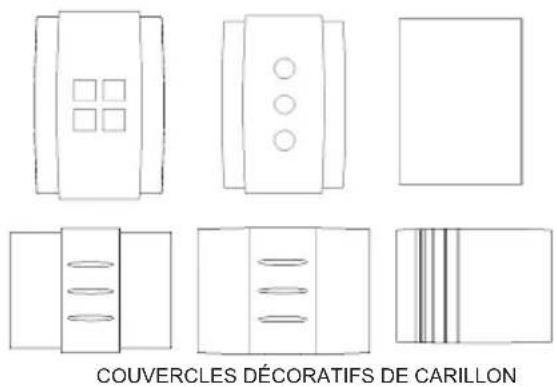

COUVERCLES DÉCORATIFS DE CARILLON
