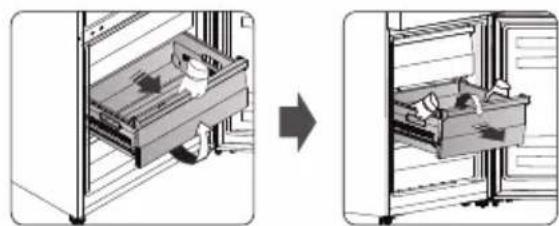

Gefrierfach

Illustration of two hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

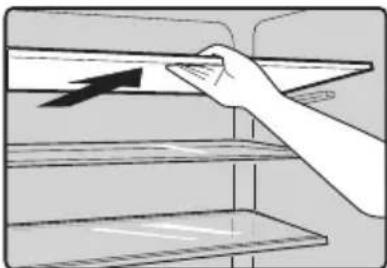

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

High Humidity Low Humidity

Gefrierschrank

Diagram showing a door opening process with a device inside, before and after (no text or symbols)

Diagram showing a hand holding a tool interacting with a door panel, with an arrow indicating direction (no text or symbols present)

Simple line drawing of a door with a hand pointing to the left side (no text or symbols)

Vorsicht!

Front Zone Fronting Zone

Thank you for choosing o We applisure you will find your new refrigerator a pleasure to use. However, before you use the appliance, we recommend that you carefully read the instructions, which provide details about installing and using the product. Please keep this manual for future reference.

Contents

Safety and warning information....3

Installing your new appliance....12

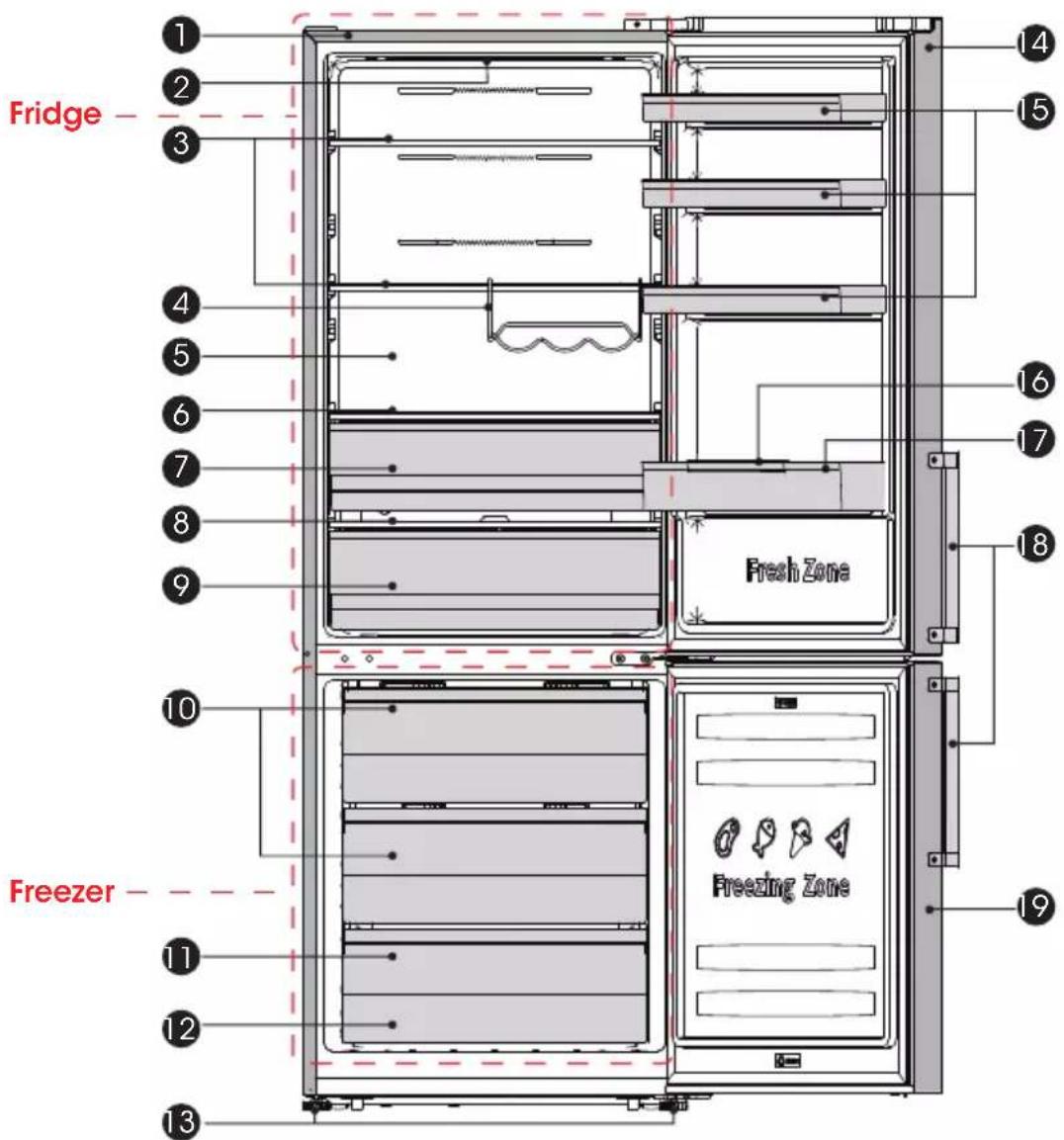

Appliance Description ....16

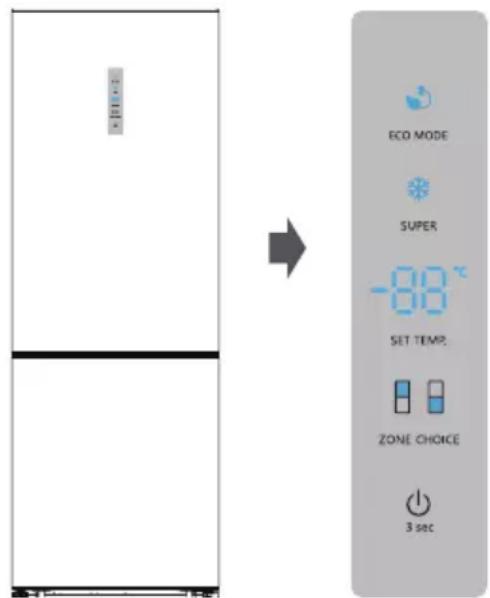

Control Panel....18

Using your appliance....20

Helpful hints and tips....23

Cleaning and Care....24

Troubleshooting....26

Disposal of the appliance 27

Safety and warning information

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER," "WARNING" or "CAUTION."

These words mean:

! DANGER

An imminently hazardous situation. You could be killed or seriously injured if you don't immediately follow

WARNING

A potentially hazardous situation which, if not avoided, could result in death or serious bodily injury.

CAUTION

A potentially hazardous situation which, if not avoided, may result in moderate or minor injury.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices.

For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

▶ According to IEC standard

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Keep all packaging away from children as there is risk of suffocation.

If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.

If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING —This appliance is intended to be used in household and similar applications such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.

WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING — Do not damage the refrigerant circuit.

WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.

WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING —Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or containers to avoid the problem that the product design structure is not easy to clean.

The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.

Warning: Risk of fire / flammable materials

Replacing the illuminating lamps

WARNING—The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

WARNING: risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

The power cord must not be lengthened.
Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
Make sure that you can access the main plug of the appliance.
Do not pull the main cable.
If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
You must not operate the appliance without the interior lighting lamp cover.
The fridge is only applied with power supply of single phase alternating current of 220\~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Daily use

Do not store flammable gas or liquids in the appliance, There is a risk of an explosion.
Do not operate any electrical appliances in the appliance (e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains socket, do not pull on the cable.
Do not place hot items near the plastic components of this appliance.
Do not place food products directly against the air outlet on the rear wall.
Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.
The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
- Frozen food can cause frost burns if consumed straight from the freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet The appliance is heavy. Care should be taken when moving it.

Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
▶ Never use the base, drawers, doors etc. to stand on or as supports.
➢ Frozen food must not be refrozen once it has been thawed out.
Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.
This refrigerating appliance is not intended to be used as a built-in appliance.

Caution!

Care and cleaning

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.
Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation Important!

For electrical connection carefully, follow the instructions given in this manual.
Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bough + it. In this case retain packing.

It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.
The appliance must not be locate close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the appliance

Service

Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.

This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

1. If the appliance is Frost Free.
2. If the appliance contains freezer compartment.

To avoid contamination of food, please respect the following instructions

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Installing your new appliance

Before using the appliance for the first time, you should be informed of the following tips.

Warning!

For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator.

The rollers, which are not castors, should be only used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

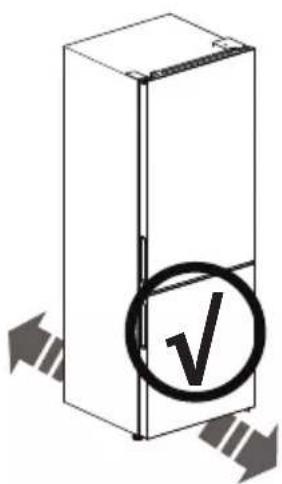

Simple line drawing of a refrigerator with a checkmark and directional arrows (no text or symbols)

Simple line drawing of a refrigerator with a prohibition symbol (no text or labels)

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

Suggest:

It is advisable for there to be 50-70mm of space from the back to the wall, at least 100mm from its top, at least 100mm from its side to the wall and a clear space in front to allow the doors to open 130°. As shown in follow diagrams.

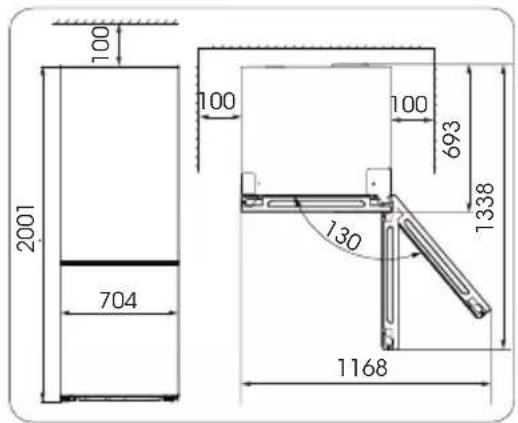

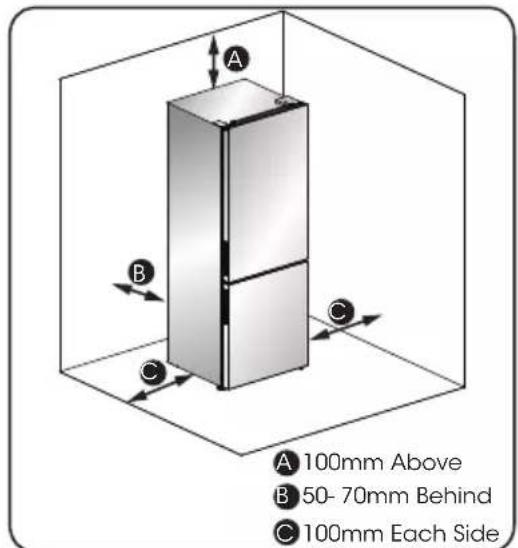

A B C A 100mm Above B 50- 70mm Behind C 100mm Each Side

2001 704 100 100 100 693 1338 130 1168

Note:

This appliance performs well within the climate class from SN to T showed in the table below. It may not work properly if being left at a temperature above or below the indicated range for a long period.

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

➢ Stand your appliance in a dry place to avoid high moisture.

Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.

For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable spanner.

To allow the doors to self-close, tilt the top backwards by 10-15mm.

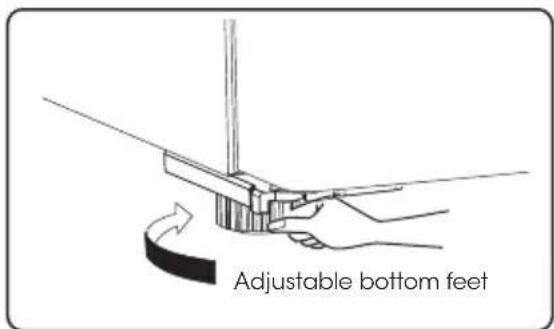

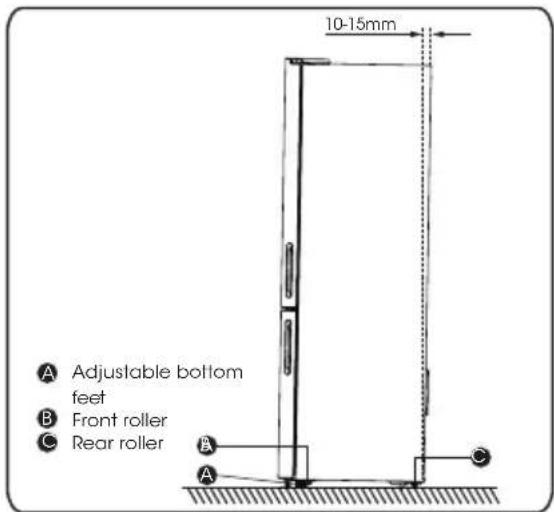

10-15mm A Adjustable bottom feet B Front roller C Rear roller A

Adjustable bottom feet

Note:

If required you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator.

Reversing the door

The side at which the door opens can be changed, from the right side (as supplied) to the left side if required.

Warning!

When reversing the door, the appliance must not be connected to the mains, Ensure that the plug is removed from the mains socket.

Not provided
8mm socket wrench	Thin-blade screwdriver	Putty knife
Cross-shaped screwdriver		8mm wrenchMc
Additional parts (in the plastic bag)
upper hinge-left hinge cover-left screw hole cover-right
middle hinge-left stop block-left*2 Door stopper-left*2
Allen Wrench(4mm)

Note: If required, you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps generally recommended.

1. Stand the refrigerator upright. Open the door to take out all door racks (to avoid damage) and then close the door.

Press in wordly Press/Box

Caution!

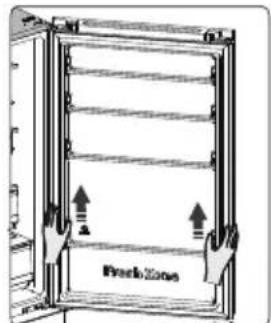

Please slightly squeeze the door rack from one side toward center, and then move it upward when taking out the door racks.

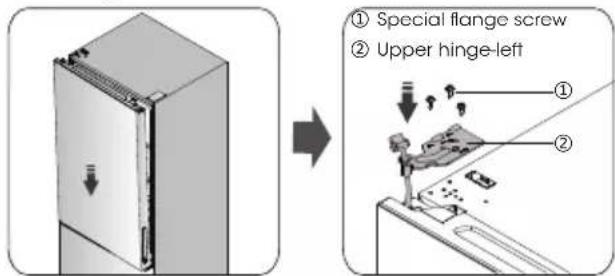

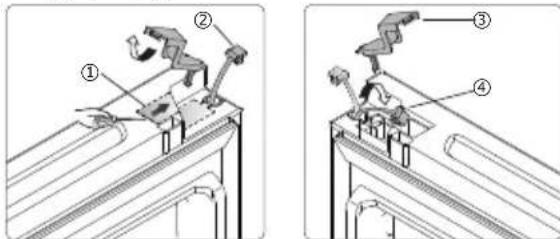

1. Remove screw①, then take down cover② from the top right side. Be careful of the electrical connector③ below, because it's still connected. Then unconnect it and remove cover②.

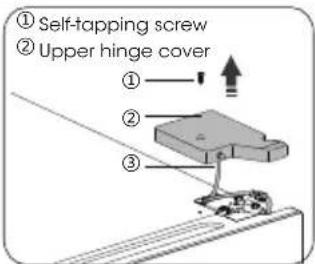

① Self-tapping screw ② Upper hinge cover ① ② ③

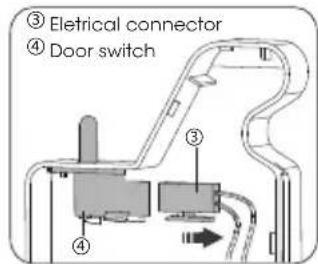

③ Eletrical connector ④ Door switch

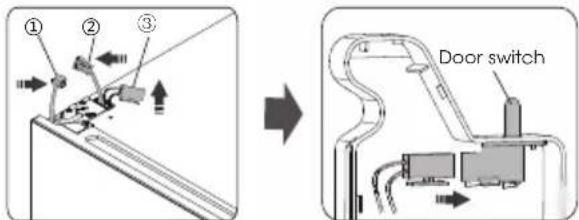

1. Press the door switch④, then remove it upward. Install switch④ into cover⑤ (provided in the plastic bag). Put the other cover② into the plastic bag.

④ ⑤ Upper hinge cover-left

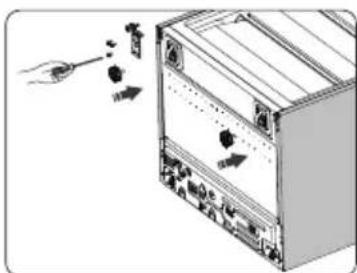

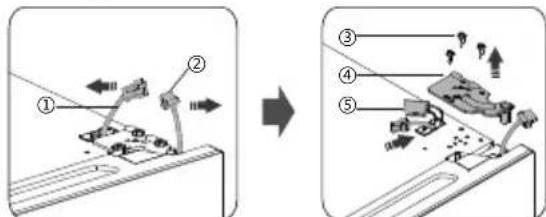

4.Disconnect the connetor① and②, then unscrew screws③ by a 8mm socket driver or a spanner, and remove hinge④. Then put the conector① and⑤ into the hole. Please hold the door by hand when installing.

Diagram illustrating a mechanical assembly or disassembly process with numbered components and directional arrows indicating movement.

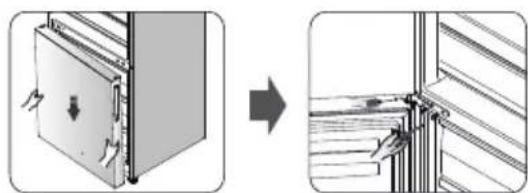

1. Remove the upper door from the middle hinge by carefully lifting the door straight up. Then Place the upper door on a smooth surface with its upper cover upwards.

Fresh Zone

1. Install cover① (provide in the plastic bag) on the top right side. Then remove cover② from top left side of the appliance, and put it into the plastic bag.

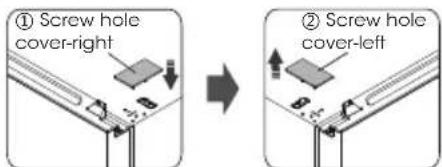

① Screw hole cover-right ② Screw hole cover-left

1. Remove cover① from the top left side of upper door and take out connector ②. Remove cover③ from the right side and put connector④ inside, reinstall the cover① and③.

Technical diagram showing mechanical assembly steps with numbered components

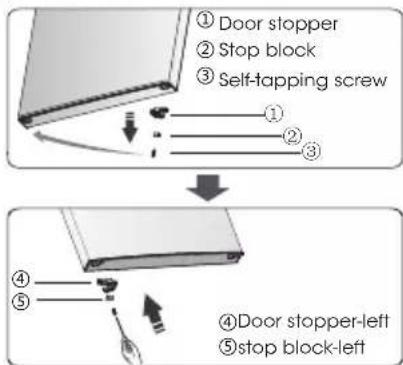

1. Loose screw③ and take down part② and part ①, Install replacement door stopper-left④ and stop block-left⑤ (provided in the plastic bag) to the left side with screw③. Keep part ① and part② with the appliance for future reference.

① Door stopper ② Stop block ③ Self-tapping screw ① ② ③ ④ ⑤ ④ Door stopper-left ⑤ stop block-left

1. Use the Allen wrench (provided in the plastic bag) and cross-shaped screwdriver to loosen the screws and remove the middle hinge-right. Then remove the lower door.

Diagram showing a structural change before and after assembly of a cabinet (no text or symbols present)

1. Place the lower door on a smooth surface with its panel upwards. Loose screw③ and take down part② and part①, then Install door stopper-left④ and stop block-left⑤ (provided in the plastic bag) to the left side, and tighten them with screw③ securely.

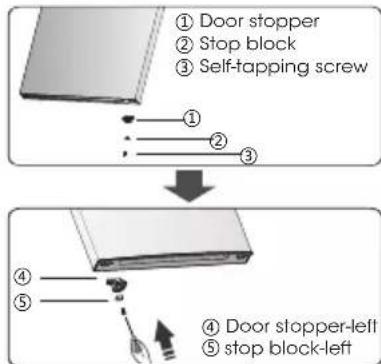

① Door stopper ② Stop block ③ Self-tapping screw ④ Door stopper-left ⑤ stop block-left

1. Change screw hole covers and screw on middle cover plate from left to right (as shown in figure below).

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

1. Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable bottom feet parts③, then remove the lower hinge part① by unscrewing screws②.

①Lower hinge part ②Special flange screw ③Adjustable bottom feet part

1. Loose out the lower hinge pin, change it to the reverse hole site, then tighten it into position follow the picture below.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

1. Replace the lower hinge part to the left side and fixing it with the special flange screws. Replace the adjustable bottom feet parts to another side and fixing it.

Illustration of a computer rack with ports and connectors, showing a hand operating a switch (no text or symbols present)

1. Stand the refrigerator upright and carefully slot the lower door onto the lower hinge pin and hold in position. Install middle hinge-left (in the plastic bag) ensuring the lower door in secured in place.

Diagram showing a door panel being removed from a wall, with an arrow indicating the process (no text or symbols present)

1. Transfer the upper door to the appropriate position. Secure the door level, make the middle hinge axis into the lower hole of the upper door. Install the hinge② (provided in the plastic bag) by screws①. Please hold the upper door by hand when installing.

① Special flange screw ② Upper hinge-left

1. Take out the connector② and③ from the top left side. Connect① with②, then connect③ with the door switch on the upper hinge cover-left.

Diagram illustrating door switch mechanism with labeled components and directional arrows

1. Install the upper hinge cover② on the left corner by screw①.

① Self-tapping screw ② Upper hinge cover-left

19.Open the upper door and install the door racks and then close it.

Note:

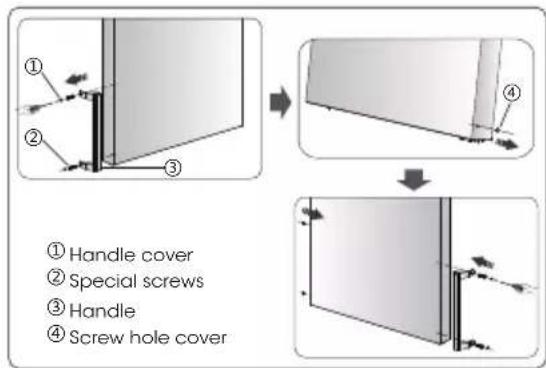

If your appliance has handle, you have to reverse handle by follow instructions below. Lever part① and part④, then loose screws②. Change handle③ to the right side, then install screws②, part① and part④ in turn.

① Handle cover ② Special screws ③ Handle ④ Screw hole cover

Appliance Description

Appliance without dispenser

Fridge 1 2 3 4 5 6 7 8 9 10 Freezer 11 12 13 14 15 16 17 18 19 Fresh Zone Freezing Zone

1 Cabinet
② LED light
3 Glass shelf
4 Flexible wine rack(optional)
5 Wind channel
6 Cool Fresh Box cover
7 Cool Fresh Box
8 Crisper cover
9 Fruit & Vegetable Crisper
10 Freezer drawer

11 Lower freezer drawer
12 Ice maker(inside)
13 Adjustable bottom feet
14 Fridge door
15 Upper rack
16 Bottles block stripe
17 Lower rack
18 Handle (optional)
19 Freezer door

Note: Your model may look different from this and other images in this manual, depending on your model's features.

Note: To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above.

Appliance Description

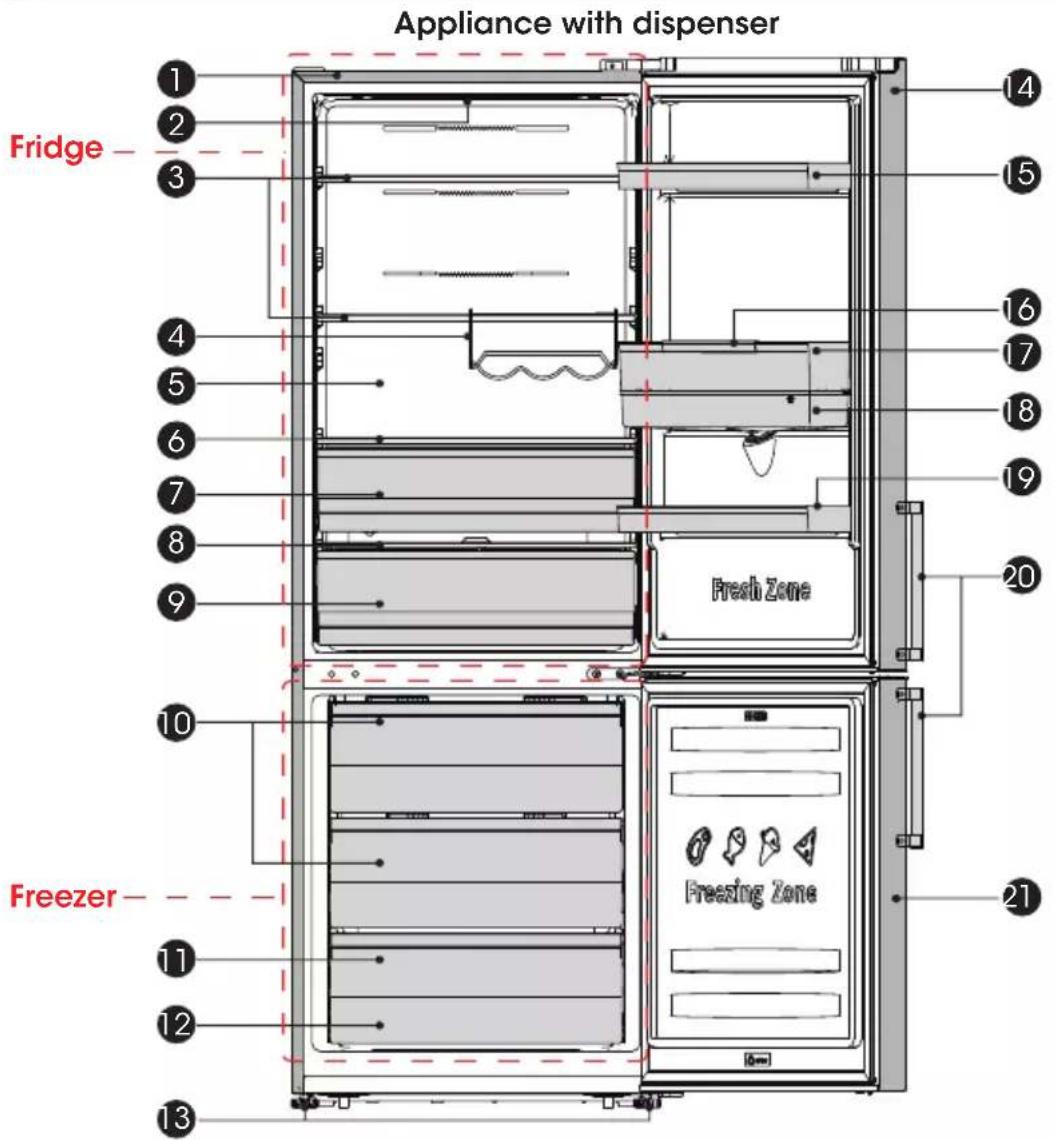

Appliance with dispenser Fridge Fresh Zone Freezer Fresh Zone

1 Cabinet
② LED light
3 Glass shelf
4 Flexible wine rack(optional)
5 Wind channel
6 Cool Fresh Box cover
7 Cool Fresh Box
8 Crisper cover
9 Fruit & Vegetable Crisper
10 Freezer drawer
11 Lower freezer drawer

12 Ice maker(inside)
13 Adjustable bottom feet
14 Fridge door
15 Upper rack
16 Bottles block stripe
17 Middle rack
18 Water storage box part
19 Lower rack
20 Handle (optional)
21 Freezer door

Note: Your model may look different from this and other images in this manual, depending on your model's features.

Note: To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above.

Control panel

Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the display panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off.

ECO MODE SUPER -88 °C SET TEMP. ZONE CHOICE 3 sec

Controlling the temperature

For optimum food preservation. We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 4^ C. If you want to change the temperature, follow the instructions below.

NOTE: High temperature setting will accelerate food waste.

Caution!

When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperature inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

Fridge

Press ZONE CHOICE repeatedly until the "☐" light turns on.

Then press SET TEMP. ,you can set fridge temperature between 2°C and 8°C as needed, and display panel will display corresponding values according to the following sequence.

Freezer

Press ZONECHOICE repeatedly until the "light turns on.

Then press SET TEMP. ,you can set freezer temperature between -14^ and -24^ as needed, and display panel will display corresponding values according to the following sequence.

Super Freeze ( ✉ )

Super Freeze will quickly lower the temperature within the freezer so food will freeze faster. This can lock in the vitamins and nutrients of fresh food and keep food fresh longer.

You can press SUPER to get into super freezer mode.

When super freeze Mode is selected, the light will be illuminated and the freezer temperature will be set at -24^ .

In case of the maximum amount of food to be frozen, please wait about 24h.

Super freeze automatically switches off after 52 hours and then the freezer temperature setting will revert back to the previous setting.

Eco energy ( )

This function makes the freezer work in a power saving mode which is useful for reducing energy consumption when you are away.

You can press ECO MODE to get into economic energy mode.

When economic energy Mode is activated, the light will be illuminated. The freezer temperature will be set at -17^ and the fridge temperature will be set at 6^ .

Switch

You can switch on or switch off your appliance by press this button.

Press "⏻" for 3 seconds, after a buzzer sound, meanwhile the digital light will show "OF", the appliance will be turned off.

Press “⏻” for 3 seconds, after a buzzer sound, the appliance will be turned on.

Alarm

When the door of fridge has been opened for over 2 minutes, the door alarm will sound. In case of door alarm, buzzer will sound 3 times every 1 minute and will stop alarming automatically after 8 minutes.

To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can also be cleared by closing the door.

Note: High temperature setting will accelerate food waste.

Using your appliance

Your appliance has the accessories as the "Description of the appliance" showed in general, with this part instruction you can have the right way to use them.. We recommend that you read through them carefully before using the appliance.

Door rack

It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks.

The door racks can be placed at different heights according to your requirements. Please take food out of the shelf before lifting vertically to reposition.

Illustration of hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

All the door racks are completely removable for cleaning.

Shelf in Refrigerator chamber

The shelves in refrigerator chamber can be taken out to be cleaned.

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Flexible wine rack(optional)

It is for storing bottled wine or drinks, and it can be taken out to clean.

Note: Do not place the bottled wine or drinks directly in front of the air outlet on the wind channel, which may cause it to freeze.

Cool fresh box

In certain mode, there will be an extra fresh box(drawer). In this drawer you can get a lower temperature to store fish, meat and other erodible food.

Normally it will be about 1°C lower than the other part of the fresh compartment. There are some commendations in the below table which you can consult.

temp. setting of fridge compartment	type of food	suggested storage period
2 or 3 or 4°C fish or meat		≤2days
5 or 6°C	fruit	<2weeks
7 or 8°C	vegetables	<5days

Note: The actual temperature of Cool fresh box may lower than zero, so it is normal that liquid in this drawer was frozen.

Fruit & Vegetable crisper

The crisper is suitable for storage of vegetables and fruit, etc.

Crisper and Humidity control

You can rotate the knob on the crisper cover to keep different humidity in the crisper. Push the knob to the left, you will keep a higher humidity which can storage vegetable and fruit long and fresh, to the right will be lower humidity. It is for controlling the temperature of the crisper and avoiding the vegetable losing moisture.

High Humidity Low Humidity

Freezer drawer

It is used to store food which need to be frozen, including meat, fish and ice cream, etc.

Diagram showing a device being processed from a left-side frame to an open door, with no visible text or symbols.

To remove the freezer drawer, tilt up the front of the drawer and pull forward, then tilt the drawer downwards, and remove it forward with both hands.

To re-install the freezer drawer, tilt the drawer downwards, put the roles of the drawer behide the roles of the rail, then tilt up the front of the drawer and push it in.

roles of the drawer roles of the rail

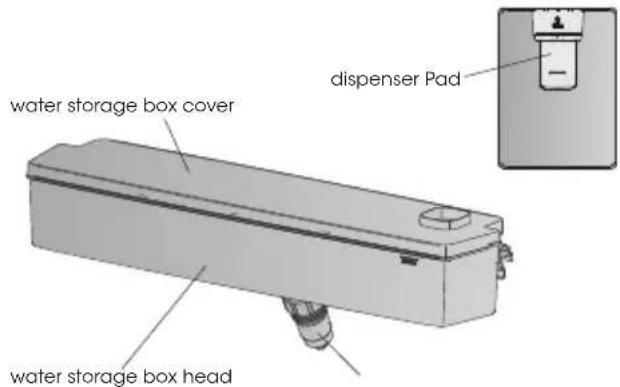

Water Dispenser(only for appliance with dispenser)

The water dispenser, located in the fridge door, is for storing drinking water. With this appliance you can obtain chilled water easily without opening the refrigerator. You should review of following tips.

water storage box cover dispenser Pad water storage box head

Before using

Before using this appliance for the first time, you should use it based on following instructions:

1. Hold the two sides of the water tank tightly, then pull up the water tank by shaking up and down.
2. Unscrew the head, then clean it and the inside of water tank.

head

Assembling

Before assembling, please drain the water inside the tank, and check whether the washer reversed or not.

1. Insert the head into the hole.
2. Fit the tank along the guides on the door.
3. Press down two side of the tank.
4. When you hear a click sound, that means the installation is completed.

① Guide Slot

Mechanical assembly diagram showing a lever mechanism with a handle and pivot point (no text or symbols)

Mechanical assembly diagram showing a lever and pivot mechanism (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a handle and pivot point (no text or symbols)

Warning!

1. Be careful not to press on the head;
2. when fitting the water tank, ensure the head inserted into the hole first.

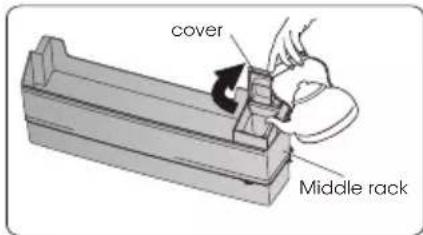

Filling water

1.Open the cover by rotating it upwards.
2. Fill the water.

cover Middle rack

Caution!

Do not Fill the water above the level suggested. Otherwise, it may overflow even when the cover is close.

Receiving water

You should use the correct cups to receive water underneath the water dispenser.

dispenser pad suggested position

Warning!

Don't push the dispenser lever forward without cup, it may cause the water leak from the dispenser.

Door handles(only for appliance with handle)

For the convenience of transportation, the door handles are separately provided in a plastic bag, you can install the handles as follows.

1. Lever screw covers on the left side of the door, and put them back to the plastic bag.
2. Match the handle on the left side of the door, keeping axes of screw holes in the handle and the door in a line.

Diagram showing a hand holding a tool interacting with a door panel, with an arrow indicating direction (no text or symbols present)

1. Fix the handle with the special screws provided in the plastic bag, then install the handle covers.

Order Compartments Type		Target storage temp.[°C]	Appropriate food
1	Fridge	+2~+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.
2	(***)*-Freezer	≤ 18-	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months ,the longer the storage time,the worse the taste and nutrition),suitable for frozen fresh food.
3	***-Freezer	≤ 18-	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months,the longer the storage time,the worse the taste and nutrition),are not suitable for frozen fresh.
4	**-Freezer	≤ 12-	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months,the longer the storage time,the worse the taste and nutrition), are not suitable for frozen fresh. food.
5		≤ 6-*-Freezer	Seafood (fish, shrimp, shellfish), freshwater aquatic product s and meat products (recommended for 1 month,the longer the storage time, the worse the taste and nutrition).
6	0-star	-6~0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than 3 days) .Partially encapsulated processed foods (non-freezable foods)
7	Chill	-2~ 3+	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days).Seafood (less than 0°C for 15 days, it is not recommended to store above 0°C)
8	Fresh Food	0~ 4+	Fresh pork,beef,fish,chicken,cooked food,etc.(Recommended to eat within the same day,preferably no more than 3 days)
9	Wine	+ +5~ 20	red wine,white wine,sparkling wine etc.

Note: please store different foods according to the compartments or target storage temperature of your purchased products.

If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips below to save energy.

▶ Try to avoid keeping the door open for long periods in order to conserve energy.
➢ Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc)
- Don't set the temperature colder than necessary.
- Don't store warm food or evaporating liquid in the appliance.
Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter.
If the diagram shows the correct combination for the dr awers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration

Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
Do cover or wrap the food, particularly if it has a strong flavor.
Place food properly so that air can circulate freely around it.

Hints for refrigeration

Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers.
▶ Cooked food, cold dishes, etc.:

They should be covered and may be placed on any shelf.

▶ Fruit and vegetables:
They should be stored in the special drawer provided.
▶ Butter and cheese:

Should be wrapped in airtight foil or plastic film wrap.

Milk bottles:

Should have a lid and be stored in the door racks.

Hints for freezing

When first starting up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting fo od in the compartment.
Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
Wrap up the food in aluminum foil or polyethylene food wraps which are airtight.

Don't allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
▶ Iced products, if consumed immediately after removal from the freezer compartment, will probably cause frost burns to the skin.
It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for the storage of frozen food

➢ Ensure that frozen food has been stored correctly by the food retailer.
Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

Cleaning and care

For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months).

Warning!

The appliance must not be connected to the mains during cleaning as there is a danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

To maintain good appearance of your appliance, you should clean it regularly.
Wipe the control panel with a clean, soft cloth.
Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

Simple line drawing of a hand holding a small object above a rectangular frame (no text or symbols)

Caution!

Don't use sharp objects as they are likely to scratch the surface.
Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or

organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

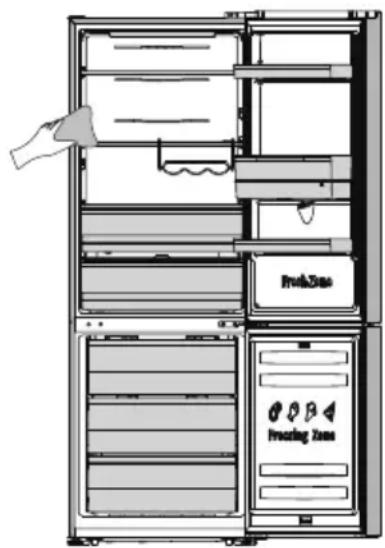

Interior cleaning

You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place.

PreVac Zone Financing Zone

Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follow:

1. Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the process.
2. When defrosting is completed, clean your freezer as described above.

Caution!

- Don't use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Door seals cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

Caution!

Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light: Warning:

The LED light should be replaced by a

competent person. If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed:

1. Unplug your appliance.
2. Remove light cover by pushing up and out.
3. Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch.
4. Replace LED light and snap it correctly in place.

Water dispenser cleaning (special for water dispenser products):

Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem:	Possible cause & Solution
Appliance is not working correctly	➢ Check whether the power cord is plugged into the power outlet properly.➢ Check the fuse or circuit of your power supply, replace if necessary.➢ The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.➢ It is normal that the freezer is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor.
Odours from the compartments	➢ The interior may need to be cleaned.➢ Some food, co ntainers or wrapping cause odours.
Noise from the appliance	The sounds below are quite normal:➢ Compressor running noises.➢ Air movement noise from the small fan motor in the freezer compartment or other compartments.➢ Gurgling sound similar to water boiling.➢ Popping noise during automatic defrosting.➢ Clicking noise before the compressor starts. Other unusual noises are due to the reasons below and may need you to check and take action:➢ The cabinet is not level.➢ The back of appliance touches the wall.➢ Bottles or containers knocking against each other.
The motor runs continuously	It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances:➢ Temperature setting is set colder than necessary.➢ Large quantity of warm food has recently been stored within the appliance.➢ The temperature outside the appliance is too high.➢ Doors are kept open too long or too often.➢ After your installing the appliance or it has been switched off for a long time.
A layer of frost occurs in the compartment	➢ Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure the door can be fully closed. To remove the frost, please refer to the cleaning and care chapter.
Temperature inside is too warm	➢ You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top.
Temperature inside is too cold	➢ Increase the temperature by following the" Control Panel" chapter.
Doors can't be closed easily	➢ Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug.

Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Correct Disposal of this product

This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this p roduct, please contact your local council your household waste disposal service, or the shop where you purchased the product.

Hisense

Ces mots signifient:

DANGER

Installation - Important!

Diagram showing two 3D rectangular containers with checkmark and prohibition symbols, indicating inspection or rejection status.

Technical diagram showing mechanical assembly with labeled components and directional arrows

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force

Fresh Zone

Technical diagram showing mechanical assembly with labeled parts ① and ②

Technical diagram showing a mechanical assembly with labeled parts ③ and ④, likely illustrating a motion or assembly process.

Pure architectural detail drawing of a window frame with no text or symbols

Illustration of a cabinet or storage unit with arrows indicating movement or force (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

Diagram illustrating mechanical assembly or disassembly process with labeled components and directional arrows

Illustration of a computer rack with ports and connectors, showing no text or symbols

Diagram showing a door opening and a side view of a window with railings, both without any text or symbols.

Congélateur

Illustration of two hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

High Humidity Low Humidity

Diagram showing a door frame being opened into a refrigerator, with an arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing a lever and pivot mechanism (no text or symbols)

Mechanical assembly diagram showing a lever and pivot mechanism (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a rotating component (no text or symbols)

Attention!

Diagram showing a hand holding a tool interacting with a door panel, with an arrow indicating direction (no text or symbols present)

Simple line drawing of a hand holding a small object above a rectangular frame (no text or symbols)

Mise en garde!

Fresh Box Freezing Zone

Simple line drawing of a refrigerator with a checkmark inside, surrounded by directional arrows (no text or symbols)

Simple line drawing of a refrigerator with a prohibition symbol and lightning bolt (no text or labels)

Roof Box Roof Box (with label) Roof Box (with label)

¡Precaución!

Diagram illustrating a mechanical assembly process with numbered components and directional arrows, likely from an engineering or manufacturing context.

Line drawing of a refrigerator interior showing door, shelves, and ventilation system (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components, including a lever and pivot mechanism.

Technical diagram showing a mechanical assembly with labeled parts ③ and ④, likely illustrating a structural or mechanical assembly.

Pure architectural detail drawing of a window frame with diagonal bracing and horizontal beams (no text or symbols)

Diagram of a door with an arrow indicating direction, showing internal components and arrows (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram illustrating mechanical assembly or disassembly process with labeled components and directional arrows

Illustration of a computer rack with connectors and a hand holding a tool (no text or symbols visible)

Diagram showing a door panel being removed from a wall, with an arrow indicating the process (no text or symbols present)

Congelador

Illustration of hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

High Humidity Low Humidity

Diagram showing a device being placed inside a refrigerator, with no visible text or symbols

① Guia ② Ranura ③ ④

¡Advertencia!

Diagram showing a hand holding a tool interacting with a door panel, with an arrow indicating direction (no text or symbols present)

Simple line drawing of a refrigerator with a handle and lid, no text or symbols present

¡Precaución!

Simple line drawing of a refrigerator with a circular checkmark on the door (no text or symbols)

Diagram showing a refrigerator with a prohibition symbol and a downward arrow indicating clearance or release

Diagram illustrating a mechanical assembly process with numbered components and directional arrows indicating movement.

Fresh Xeno

Technical diagram showing mechanical assembly with labeled parts ① and ②

Technical diagram showing mechanical assembly with labeled parts ③ and ④

Pure architectural line drawing of a window with horizontal slats and diagonal braces (no text or symbols)

Diagram of a cabinet with an open door and directional arrows indicating movement (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram illustrating mechanical assembly or disassembly process with labeled components and directional arrows

Illustration of a computer tower with connectors and a hand holding a tool (no text or symbols visible)

Diagram showing a door panel being removed from a wall, with a close-up of the structure (no text or symbols present)

Frigorifero Fresh Zone Congelatore Freezing Zone

Frigorifero Fresh Zone Congelatore Freezing Zone

1 Struttura

Congelatore

Illustration of hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

High Humidity Low Humidity

Diagram showing a device being placed inside a refrigerator, with no visible text or symbols

① Guida Fessura ② ③ ④

Avvertenza!

Diagram showing a hand holding a tool interacting with a door panel, with an arrow indicating direction (no text or symbols present)

Simple line drawing of a refrigerator with a handle and lid, no text or symbols present

Attenzione!

Prote Zone Financing Zone

Illustration of a refrigerator with a circular checkmark on the door (no text or symbols)

Simple line drawing of a refrigerator with a prohibition symbol and downward arrow (no text or labels)

ParkLine ParkLine

Let op!

Diagram illustrating a mechanical assembly or disassembly process with labeled components and directional arrows

Punch Zone

Technical diagram showing mechanical assembly with labeled parts ① and ②

Technical diagram showing labeled mechanical components with numbered parts ③ and ④

Diagram showing a door lock mechanism before and after assembly, with no text or symbols present.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram illustrating mechanical assembly or disassembly process with labeled components and directional arrows

Illustration of a computer rack with switches and buttons, showing a hand holding a remote (no text or symbols present)

Diagram showing a door opening and a window with a handle, both before and after assembly (no text or symbols)

Koelkast Fresh Zone Vriezer Freezing Zone

Vriezer

Illustration of hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

High Humidity Low Humidity

Vrieslade

Diagram showing a door frame with a device inside, before and after assembly (no text or symbols)

Diagram showing a hand holding a tool interacting with a door panel, with an arrow indicating direction (no text or symbols present)

Simple line drawing of a refrigerator with a handle and lid, no text or symbols present

Let op!

PreVacZone PreVacing Zone

Simple line drawing of a refrigerator with a circular checkmark on the door (no text or symbols)

Simple line drawing of a refrigerator with a prohibition symbol and downward arrow (no text or labels)

ProBox ProBox 2014-03-01

Cuidado!

④ ⑤ Upper hinge cover-left

Diagram illustrating a mechanical assembly process with numbered components and directional arrows indicating movement.

Fresh Zone

Technical diagram showing mechanical assembly steps with numbered components

Diagram showing a door hinge mechanism before and after assembly, with no text or symbols present.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Illustration of a computer rack with buttons and a hand holding a pointer (no text or symbols present)

Diagram showing a door panel being removed from a wall, with no text or symbols present.

① ② ③ Interruptor de porta

Congelador

Illustration of hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

High Humidity Low Humidity

Gaveta do congelador

Diagram showing a door opening process with a device inside, before and after assembly (no text or symbols)

Diagram showing a hand holding a tool interacting with a door panel, with an arrow indicating direction (no text or symbols present)

Simple line drawing of a hand opening a refrigerator (no text or symbols)

Cuidado!

PreVac Zone PreVacing Zone
