Product Type	Waste Cooler
Brand	Gamko
Model	KFKHC/MUCS
Power Supply	220-240 V / 470 W, grounding required
Refrigerant	R134a
Temperature Range	Adjustable via thermostat, factory set at +4 °C
Capacity	Not specified in the manual
Cooling Method	Compressor, air-cooled condenser
Assembly Instructions	Modular assembly: panels, doors, cooling monoblock, defrost tray
Maintenance and Cleaning	Clean the condenser monthly with a vacuum cleaner or air compressor; interior with warm water and mild detergent; high-pressure cleaning possible
Safety Precautions	Disconnect before servicing; beware of sharp edges and hot compressor (90 °C); do not place heavy objects on the unit cover
Installation	Sheltered from sun, level, ventilated area, wait 2 hours after placement
Troubleshooting	If temperature too high: check power supply, load, door closure, thermostat, compressor, ventilation grilles, condenser; if too low: defective thermostat
Compliance	Directives: Machinery (98/37/EC), EMC (89/336/EC), Low Voltage (2006/95/EC), PED (97/23/EC), WEEE (2002/96/EC)
Manufacturer	Gamko Holding BV, Mon Plaisir 75, 4879 AL Etten-Leur, Netherlands

Frequently Asked Questions - KFKHC/MUCS Gamko

How to install the Gamko KFKHC/MUCS waste cooler?

Follow the assembly instructions: assemble the rear, middle and ceiling panels using a 6 mm wrench, fix the doors, then insert the cooling monoblock from above. The installation must be sheltered from sun, level, and in a ventilated area. After installation, wait at least 2 hours before starting to protect the compressor.

How to adjust the temperature of the cooler?

Use the thermostat knob located on the unit. The factory setting is +4 °C. The actual temperature depends on the load, ambient temperature and air circulation.

What to do if the temperature is too high even though the thermostat is set correctly?

Check:
a. The power supply to the compressor
b. Excessive load (reduce quantity)
c. Proper door closure (clean or replace magnetic gaskets)
d. The thermostat (call a Gamko installer)
e. The compressor (call an installer)
f. Obstructed ventilation grilles (clear them)
g. Dirty condenser (clean it)

How to clean the condenser?

Clean the condenser at least once a month using a vacuum cleaner or an air compressor to remove dust and ensure proper operation.

Can I use a high-pressure cleaner for the interior?

Yes, it is possible to clean the interior with a high-pressure device. However, use warm water and mild detergents for regular maintenance, and avoid abrasives.

What safety precautions should be followed?

Always disconnect the appliance before any technical intervention. Beware of sharp edges in the technical section and the hot compressor (up to 90 °C). Wait for it to cool down before intervening. Replace the protection grilles after disassembly.

Where to place the defrost water tray?

The defrost water tray can be placed inside the cooler (option A) or mounted on a side (option B). The defrost tube forms a siphon fixed to the rear panel and exits through the side panel to be connected to a drain or an optional re-evaporation tray.

What to do if the temperature is too low?

If the thermostat is set correctly but the temperature is too low, the cause is probably a broken thermostat. Contact your Gamko installer to replace it.

How to dispose of the appliance at end of life?

In accordance with the WEEE directive (2002/96/EC), this appliance must not be disposed of with household waste. Take it to a separate collection center for electrical and electronic equipment. You can also contact your distributor when purchasing a new product for the return of the old one.

What to do if the door does not close properly?

Check the condition of the magnetic gaskets. Clean or replace them if necessary. Also ensure that the doors are properly adjusted during assembly: adjust the lower hinges and lock the pivots with the M10 wrench.

USER MANUAL KFKHC/MUCS Gamko

C ∈

b. De koeler is overbelast

e. De compressor is defect

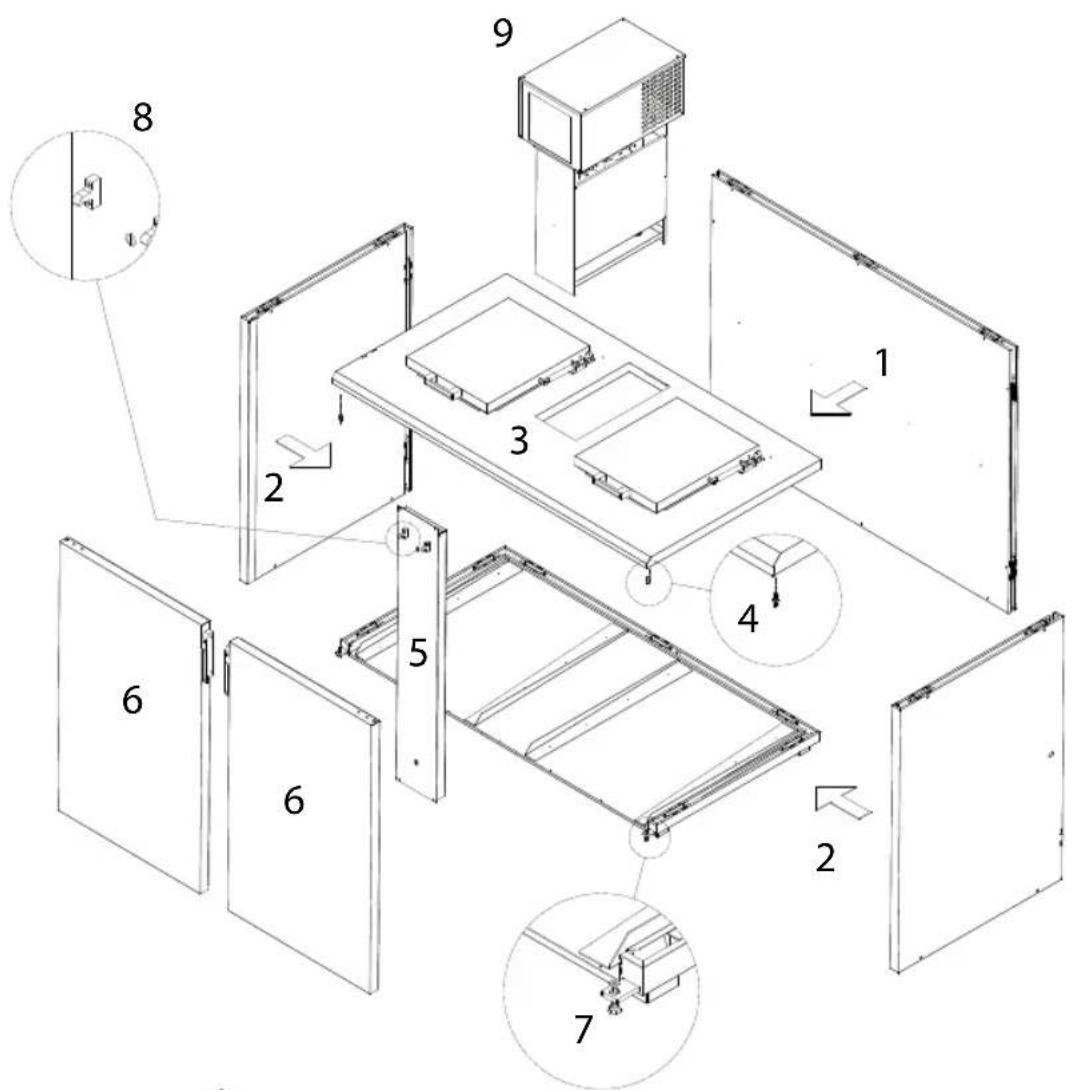

Mounting instructions

Required tools:

• screw wrench 10
• screwdriver

• socket-head screw wrench 6mm

• Place the back panel on the base and secure the click locks.

• Mount the side panels by means of 6mm socket-head screw wrench.
• Mount the top panel on the back panel and both side panels, and secure by means of socket-head screw wrench (6mm).
• Fix in the hinge pins into the underside of the top panels.
• Next, place the middle post loose, and after having mounted the doors, adjust it and screw it tight.
• Place the left and right door panels into upper hinge pins.
• Adjust lower hinges, plug in the hinge pins from under and secure by means of screw wrench (M10).
• The counter part of the latch has to be mounted on the doorpost with the screws supplied.
• Place the cooling unit from top downwards through the opening in the top panel.

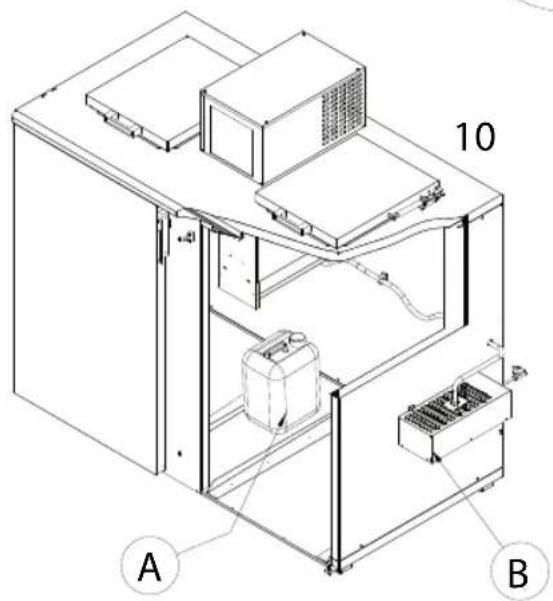

• Melt water container: A. in cooler

B. or mounted at a side

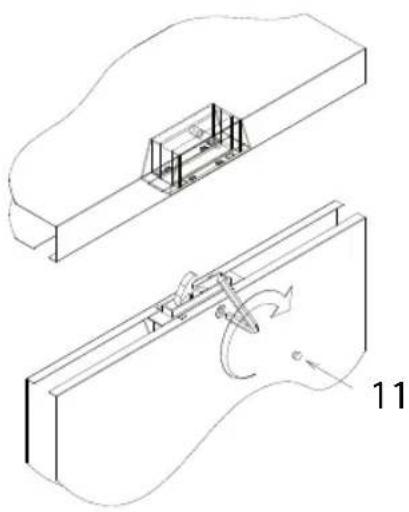

1. After total assembly, close the holes with the caps supplied.

Piping for melt water to be constructed with U-bends (stench-trap), outside through opening either to the left or the right and leading into the melt water container, or (as an option) into the melt water evaporation basin.

The waste disposal cooler should be placed under a roof, when installed outside.

Installation

The waste disposal cooler should not be placed in direct sunlight!

1. The cooler should be installed on a level surface.
2. After installation, leave the waste disposal cooler standing for no less than two hours before switching on to avoid damaging the compressor. Refrigerant: R134a.
3. Voltage: 220-240 V / 470 Watt. Don't forget to earth.
4. For an optimum temperature, install the cooler in a position where adequate air circulation is guaranteed.
5. Clean the condenser at least once a month by means of a vacuum cleaner or compressed air.
6. The temperature in the waste disposal cooler can be adjusted by the thermostat knob. As standard, this thermostat is set at about +4° C.
7. The ideal temperature is dependent upon the quantity and temperature of the products to be cooled and is also affected by the ambient temperature.
8. Don't place heavy objects on the cover plate.

General

For all actions in machinery or electric parts: ensure the plug is disconnected from the mains.

It is possible that sharp parts appear in the engine room. Be careful if you have to do operations in the engine room. It is possible that parts in the engine room are very hot (90°C). Convince yourself that all parts are chilled enough before you do operations in the engine room. Always mount eventual removed grids and/or other parts on the same place as before.

Maintenance

The waste disposal cooler should be cleaned with look-warm water and a mild domestic cleaner, never use abrasives or harsh chemicals. You may clean the inside by means of a high pressure spray gun. You should clean the condenser at least once a month by means of a vacuum cleaner or compressed air.

Emergency Pull out the plug!

Fault finding

Please ensure the plug is disconnected from the mains.

Symptom: Temperature is too high with correctly set thermostat.

Cause: a. The refrigeration machine has no power supply

b. Cooler is overfull
c. Door is not closed fully
d. Thermostat is out of order
e. Compressor is out of order
f. The air flow grills are covered
g. The condenser is blocked with dust

Solution: a. Check power supply

b. Replenish capacity more regularly
c. Clean the magnetic door gaskets or replace
d. Call your local Gamko distributor
e. Call your local Gamko distributor

f. Clear the air flow grills

g. Clean the condenser

Symptom: Temperature is too low with correctly set thermostat

Cause: Thermostat is out of order

Solution: Call your local Gamko distributor

EC DECLARATION CONFORMITY FOR MACHINERY

(directive 98/37/EC, Annex II, sub A)

Manufacturer: Gamko Holding BV

Address: Mon Plaisir 75

4879 AL, Etten-Leur

The Netherlands

Herewith declares that the following product

Waste disposal cooler, type:

KFK**

Is provided as defined in:

- Machine directive (Directive 98/37/EG)

- EMC-directive (Directive 89/336/EEG)

- Low currency directive (Directive 2006/95/EG)

- PED Pressure appliances (Directive 97/23/EG)

Etten-Leur, 31 - 12 - 2009

P. Naaijkens

Manager Engineering and Quality Control

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. KEEP THESE INSTRUCTIONS IN A SAFE PLACE. THE INFORMATION CONTAINED IN THIS BROCHURE IS IMPORTANT FOR THE DISPOSAL OR RE-USE OF THIS PRODUCT AT THE END OF ITS USEFUL LIFE.

Gamko Holding BV is attentive of the care of the environment and meets all requirements contained in the Directive 2002/96/CE, known as WEEE, or the Directive referring to Waste from Electrical and Electronic Equipment. This product conforms to the directive 2002/96/CE. At the end of its useful life the product, which is to be processed separate from household waste, should be transferred to a collection point of separate waste from electrical and electronic equipment. The objective of the Directive 2002/96/CE is to combat the increasing volumes of waste from electrical and electronic equipment, to increase the re-use of electrical and electronic equipment ("EEE") and finally to limit the total volume of waste EEE ("WEEE") destined to be disposed of.

The symbol of the crossed out waste bin indicates that this product is subject to the application of this Directive. It is the responsibility of the user to transfer the product to specialized collection points, as indicated by local legislation or the distributor. In case of installation of a new product the old WEEE product can be collected by the distributor at the same time. The manufacturer, importer and distributor are responsible for the collection and processing of the waste which is collected directly or through a collection point. Any violation of the above mentioned Directive will result in sanction measures in all of these countries. In general Gamko Holding BV applies the “CECED interpretation” (European Committee of Manufacturers of Electrical household appliances) according to which the WEEE legislation is applicable to portable air conditioners, dehumidifiers, window- air conditioning, split systems up to 12 kW, frigo’s and plug in freezer compartments. Nevertheless it is possible that in the various member countries differences in legislation are detected. In case some products are not included on the list of WEEE products following national legislation, the national legislation should be adhered to, the WEEE directives applicable to products that are not included in the scope of these national legislations should be omitted. The directive does not apply to products sold outside the European Union. In case the product is to be sold outside the European Union, it is not necessary to adhere to the WEEE directive, however, the vendor/distributor has to guarantee that local legislation is being observed. For further information please refer to the local authority for waste collection, the vendor/ distributor/ installer who supplied the product or directly to Gamko.
