Product type	Mini-bar refrigerator
Brand	Brandy Best
Model	WINDOPRO30
Net volume	26 L
Dimensions (H x W x D)	465 x 380 x 430 mm
Net weight	9.6 kg
Power supply	220-240 V, 50 Hz
Power	58 W
Annual energy consumption	75 kWh/year
Energy class	E
Climate class	N (temperate, 16-32°C)
Refrigerant	R600 (25 g)
Noise level	22 dB(A) - class A
Construction type	Freestanding
Reversible door	Yes, can open to the right or left
Adjustable thermostat	Yes, from ±8°C (position 3) to ±17°C (position 1)
Defrosting	Manual
Interior lighting	Interior lamp
Material	Plastic and metal
Maintenance	Monthly cleaning with mild baking soda solution; do not use abrasive products
Warranty	24 months
Included accessories	1 shelf, 1 evaporator grid, user manual
Repairability	All repairs must be carried out by a qualified approved technician
Safety	Grounding mandatory; do not use outdoors; keep out of reach of children (except under supervision)

Frequently Asked Questions - WINDOPRO30 BRANDY BEST

What to do if my mini-bar does not cool?

First check the power supply (plug, fuse). Make sure the ambient temperature is between 16°C and 32°C. Check that the door closes properly and the seals are not damaged. Avoid opening the door too often or leaving it open for a long time. If the problem persists, contact a qualified technician.

How to reverse the door opening direction?

Use a flathead and Phillips screwdriver. Unscrew the three screws of the right hinge and remove it. Insert the provided covers. Attach the left hinge (provided with the manual) by screwing the three screws. The operation is illustrated in the manual.

How to clean the interior of the mini-bar?

Unplug the appliance. Use a mild baking soda solution (1 tablespoon per liter of water). Rinse with warm water using a wrung-out sponge. Dry completely before restarting. Never use abrasive products or solvents.

What is the ideal temperature for my mini-bar?

The thermostat allows setting the temperature between ±8°C (position 3) and ±17°C (position 1). For drinks, a temperature around 8-10°C is recommended. Note that this appliance is designed to cool drinks, not to store perishable food.

Why is there condensation on the outside?

External condensation is normal in humid weather or during temperature changes. It is not a defect. Wipe with a dry cloth. If it persists, check that the door seal is clean and the room is not too humid.

How to reduce energy consumption?

Place the appliance in a well-ventilated area, away from sunlight and heat sources. Leave at least 2 cm space between the wall and the back, and 5 cm under the appliance. Open the door as little as possible. Clean the ventilation grilles regularly. Defrost when the frost layer exceeds 5 mm.

The door does not close properly, what to do?

First check that the mini-bar is level by adjusting the feet. Make sure shelves are not blocking the door. Clean the door seal. If you have reversed the door, recheck the assembly. If the problem persists, contact customer service.

Can I store food in this mini-bar?

No, this appliance is a mini-bar intended for cooling drinks only. Its optimal interior temperature is 17°C, which is not suitable for preserving perishable food. For food, use a standard refrigerator.

How to level the mini-bar?

Place the appliance in its final location. Use a bubble level on the shelf. Adjust the adjustable feet by turning them until the appliance is stable and level. Proper leveling ensures good door closure.

What is the warranty and how to activate it?

The warranty is 24 months. Keep the proof of purchase. Any modification or repair by an unauthorized person voids the warranty. For any claim, contact your retailer or Brandy Best's after-sales service. (Website: www.brandybest.com)

USER MANUAL WINDOPRO30 BRANDY BEST

Warning sign depicting a flame symbol in a yellow triangle with black border

Two labeled boxes with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

Top-down view of a white dome-shaped object placed on a perforated metal plate with geometric patterns (no text or symbols visible)

Circular diagram with numbered segments (0, 1, 2, 3) and curved arrows on a central circle, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Technical line drawing of a mechanical component or assembly (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Sortir le cache

Technical line drawing of a mechanical component or bracket with no visible text or symbols

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Designer of solutions for "tiny" places...

WINDOPRO30

Instruction Manual

Before installing or first usage of this appliance, attentively read this notice.

Conserve it careful after reading. You can also download the latest version of this manual on:

English

Safety precautions 3

About your Mini-bar 6

Installation 7

Location 7

Placement – fitting 7

Levelling the mini-bar 8

Cleaning before use 8

Before connecting, you must: 8

Start-up 8

Mini-bar start-up 8

Adjusting the reversible door 9

Cleaning 9

Maintenance 10

In case of malfunction 10

Advice for reducing your energy consumption 10

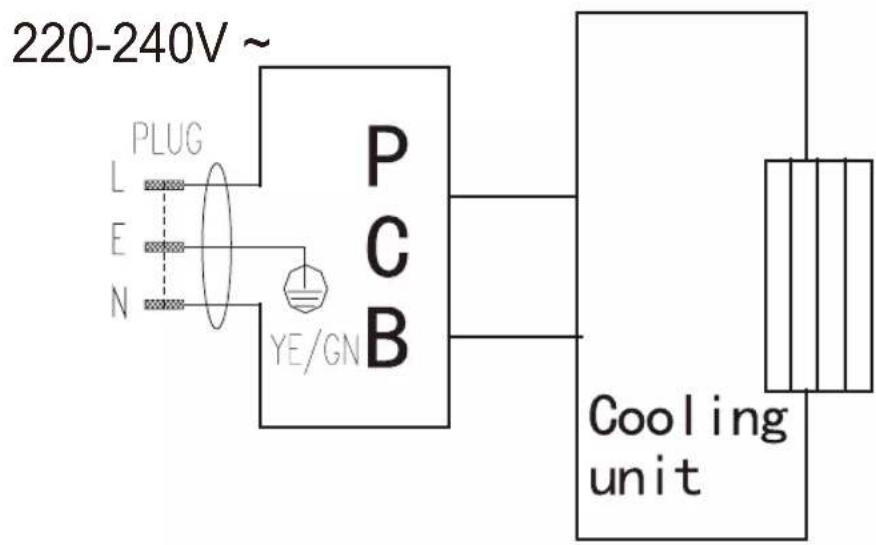

Electrical diagram 11

Technical Specifications 11

Security 14

Recycling 14

ENVIRONMENTAL PROTECTION - 14

Safety precautions

This device is very simple to use. However, we advise you to read this manual carefully as it contains important safety information and cleaning instructions. This device is intended for home use only. Any other use is excluded.

The manufacturer declines all responsibility for injury to persons or property damage due to non-observance of the maintenance instructions and improper use of the device. After removing the packaging from the various parts of the device, check that it is in perfect condition. If you are in doubt about this, do not use the appliance and contact the seller or a qualified technician. Also ensure that different types of packaging (cardboard, plastic bags, polystyrene, tape, ties, etc.) are out of reach of children, these elements carry a potential risk. Before using the appliance, check that the current in your area corresponds to that indicated on the rating plate.

When using this unit, please follow the following safety guidelines:

CAUTION : To reduce the risk of fire, electric shock or injury, always follow the following important safety instructions when using an electrical appliance.

- Before using this appliance, read the instructions for careful use. Keep this manual carefully.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not leave the device unattended while it is plugged in. Remove the plug when not in use or when cleaning.

- Check the status of your device regularly. Do not use the appliance if it is damaged.

- Do not use the appliance if it has been dropped, damaged, left outdoors, or dropped into water.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Never immerse this appliance in water or any other liquid.

- Do not pull or carry the unit by the power cord, use the cord as

a handle, pinch the cord in the door, or pull it along sharp edges or corners.

- Do not place the unit on the power cord. Do not allow the cord to wrap or tangle in any way. Keep the cord away from hot surfaces.

- Do not remove the plug by pulling on the cord. To remove the plug, take the plug in hand and carefully pull it out of the wall socket.

- Do not handle the device or the plug with wet hands.

- Pay special attention to this device and follow all instructions given in the operating instructions.

- Use only an extension cord certified with the amperage current in your country. Certified extensions with lower amperage may overheat. Make sure that no one trips on the cord or plug.

- Keep this unit indoors and in a dry place.

- Keep the unit away from heat sources such as radiators to prevent deformation of plastic parts.

• Always unplug the power cord before cleaning the unit.

- If the power cord is damaged, it must be replaced by the manufacturer, its service center, or similarly qualified persons to avoid danger.

- All repairs must be carried out by the after-sales service or persons of similar qualification.

- Do not use accessories that are not recommended by the manufacturer. They could damage the device.

- This device is intended for home use only.

- Do not use this unit outdoors.

- Do not use the device near flammable materials.

- Do not use any accessories other than those supplied with the unit.

- The lamp inside the device is used to illuminate the interior. This lamp is not suitable for lighting a room.

- WARNING: Keep ventilation openings clear in the appliance enclosure or in the installation structure.

- WARNING: Do not use mechanical devices or other means to speed up the defrosting process other than those recommended by the manufacturer.

- WARNING: Do not use electrical appliances inside the food storage compartment unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosols containing

flammable propellants in this device.

• It is imperative that your appliance is connected to an installation with a circuit breaker-protected electrical network and a suitable differential in accordance with the installation rules.
• The circuit of this product must be isolated.
• The voltage for this product should be 220-240V, 50Hz.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for freezing of fresh food.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not locate multiple portable socket-outlet or portable power supplies at the rear of the appliance.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
  – farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Regarding the method for replacing illuminating lamps, thanks to refer to the below paragraph of the manual.

For information on installation, handling, maintenance and dipo- sal of device,

Warning sign depicting a flame symbol in a yellow triangle with black border

WARNING : Risk of fire / flammable materials

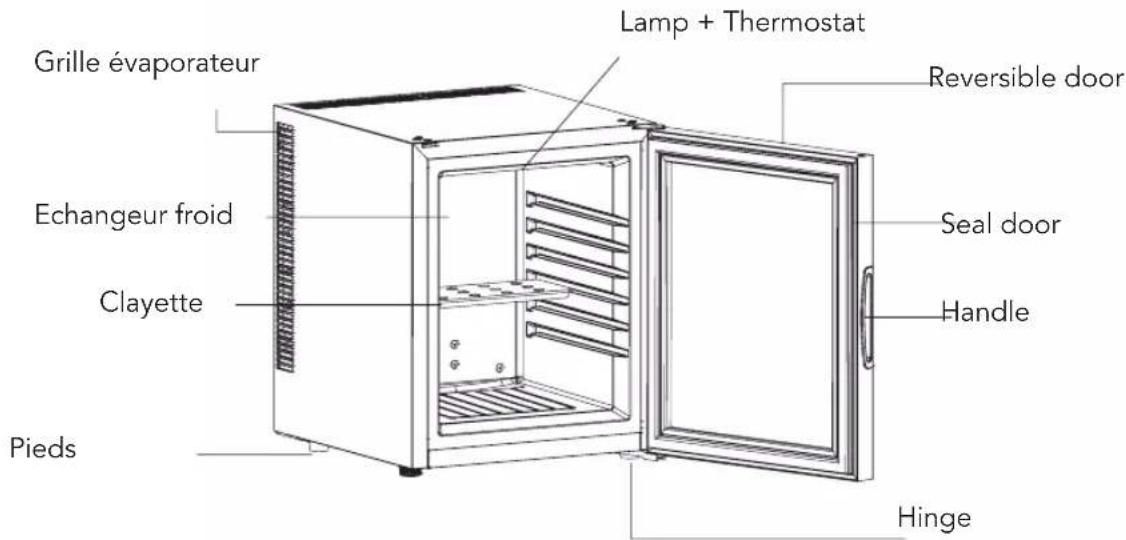

About your Mini-bar

Grille évaporateur Echangeur froid Clayette Pieds Lamp + Thermostat Reversible door Seal door Handle Hinge

Before use

Please read these instructions carefully before using your mini-bar. This is intended for household use and is to be installed inside.

Installation

Location

When choosing where to install your mini-bar, you must ensure that the floor is flat and closed, and that the room is well ventilated with a temperature between 16 and 32°C. Avoid installing it next to a heat source, such as a stove, boiler or radiator, etc.

Also avoid places subject to direct sunlight.

If you place your mini-bar in an annex or a garage, make sure that the place is not damp because condensation could appear on it.

The mini-bar door is reversible and can open to the right or to the left, depending on the chosen location. Never cover the device with a sheet or blanket.

For optimal operation, the room temperature should be between 20 and 25°C

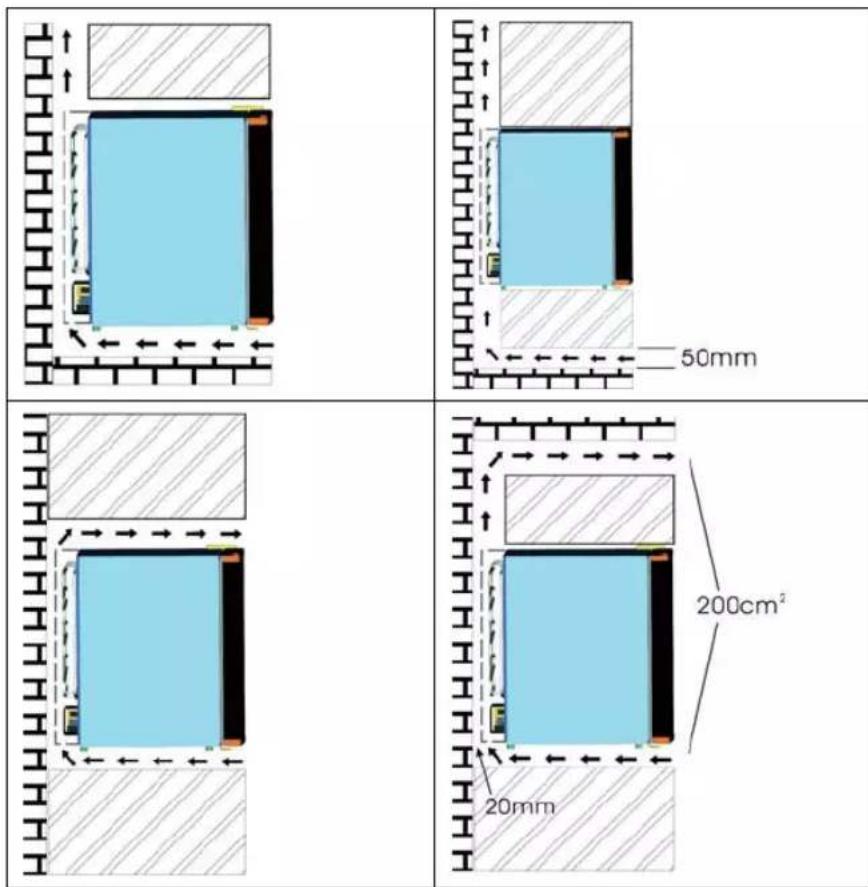

Placement – fitting

Position the device in front of the desired location and gently slide it into position. When installing the product, it is very important to ensure that it is well ventilated. At least 200cm^3 must be left for ventilation.

50mm 200cm² 20mm

Once the mini-bar is in its final position, ensure that it is level. Adjustments can be made using the two levelling feet at the front of the mini-bar.

If the appliance is not level, the alignment of the doors and the magnetic contacts will be affected.

Two identical icons: a checkmark and an 'X' symbol, likely indicating cancellation or rejection status.

Cleaning before use

Wipe the interior of the mini-bar with a mild solution of bicarbonate of soda. Then rinse with hot water using a sponge or a wrung cloth. Wipe the appliance in its entirety until there is no more water, then replace the shelves and drawers. You can clean the exterior with a mild detergent.

Before connecting, you must:

Check that the plug is compatible with the power cable of the appliance. If this is not the case, contact a specialist technician for assistance.

CAUTION: THIS APPLIANCE MUST BE GROUNDED.

Start-up

Before putting drinks in your mini-bar, leave it running for 24 hours to ensure that it is functioning properly, and to allow it to reach the correct temperature.

Mini-bar start-up

If your appliance is equipped with an adjustable thermostat, all you have to do is plug in the mini-bar and set a temperature on the potentiometer located at the level of the lamp. (see diagram below)

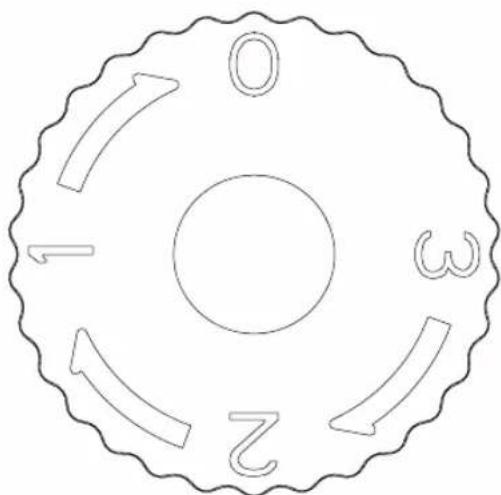

The lowest temperature is ±8^ , obtained by pushing the thermostat setting to 3, in position 1 the temperature will be ±17^

NOTE: Do not store flammable gases or liquids in the mini-bar.

Top-down view of a white spherical object on a metallic plate with geometric patterns (no text or symbols visible)

Circular diagram with four numbered arrows pointing inward from center, no text or symbols present

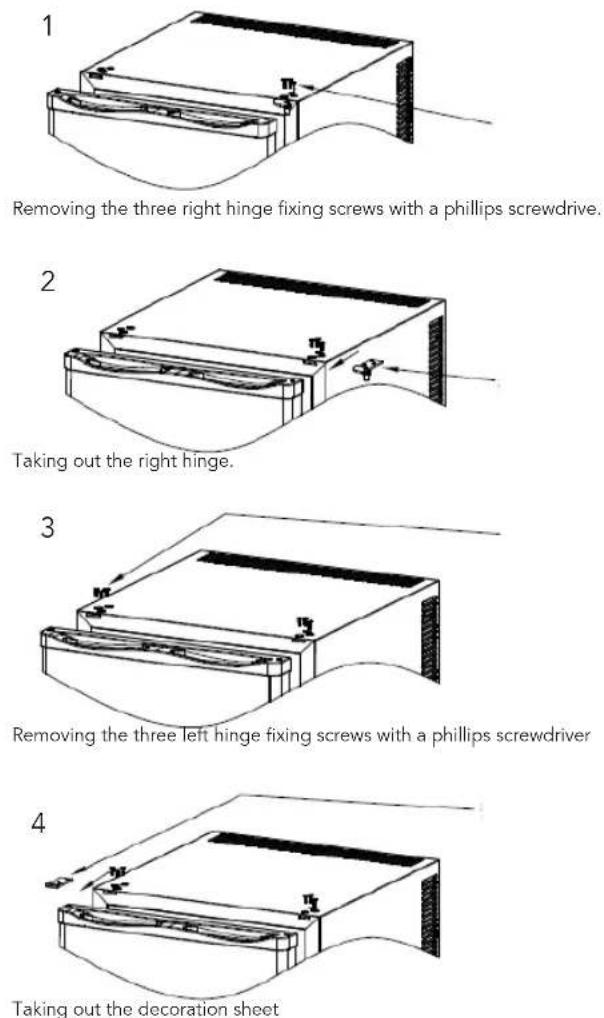

Adjusting the reversible door

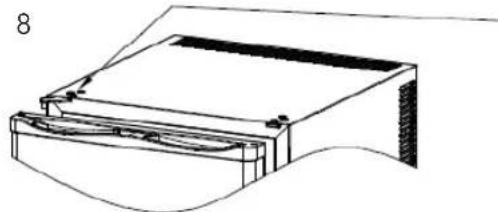

You will require a flathead screwdriver and a cross-headed screwdriver.

Technical line drawing of a mechanical component with no visible text or symbols

Inserting the decoration sheet inside the right hinge slot.

Technical line drawing of a mechanical component with no visible text or symbols

Fixing the decoration sheet by screwing the right three screws.

Technical line drawing of a mechanical component with no visible text or symbols

Insert the left door hinge (it's packed with the user manual)

Taking out the decoration sheet

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Fixing the left hinge by screwing the three screws, then the interchange is finished.

Cleaning

The mini-bar must be cleaned and maintained at least once a month. During maintenance, ensure that the appliance is unplugged.

Cleaning the exterior of the mini-bar:

You can use soap to clean the exterior of the appliance. However you should ensure that the door is fully closed in order to avoid contact between the product and the seal, or with the interior of the mini-bar. You can also just use a damp cloth.

Cleaning the interior of the mini-bar:

You can clean the interior of your mini-bar with a mild solution of bicarbonate of soda. After, rinse with hot water using a wrung cloth. Then wipe in order to remove any trace of moisture.

Pay attention to the maintenance of the rubber door seals. They must always be clean in order to avoid mould.

NOTE: Do not use diluents, petrol, alcohol, kerosene, abrasive detergents, washing powder, acid, chemical products, etc. in order to avoid damaging the plastic. It is discouraged to spray water directly onto the mini-bar. This could cause rusting.

Maintenance

-If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service, or a qualified individual.

-Do not place your mini-bar close to a heat source (e.g. radiator). Keep out of direct sunlight.

-Ensure that the mini-bar is level. If it is not level, the alignment of the doors and the magnetic contact could be affected.

-Caution – do not cover or block the ventilation or the grills of your appliance.

Service: Repairs and maintenance of the appliance must be carried out by an authorised and certified technician.

In case of malfunction

1. If the mini-bar is not working:

Check if there is a power failure (check the fuses)

Check if it is plugged in.

1. When the mini-bar does not cool sufficiently:

Have you put something hot or too many products in the mini-bar?

Check that the door closes properly

Check that the door seals are not damaged

Check the ventilation surrounding the mini-bar

1. If condensation appears on the outside of the mini-bar, this could be due to excessive humidity in the room (change of temperature). Therefore this is not a sign of malfunction. Please wipe the appliance with a dry cloth.

Advice for reducing your energy consumption

- Take care to maintain a minimum distance between different products when you put them in the mini-bar to allow a good circulation of air.

- Opening the door for too long or too frequently can cause a rise in the temperature of the interior of the mini-bar. For this reason the door must be closed immediately after use.

- Ensure that the door's airtight seal is correctly positioned, and that the appliance's ventilation openings are not obstructed.

- If the layer of ice becomes too thick, this can affect the performance of the mini-bar. When the layer of ice is thicker than 5mm, the appliance must be defrosted.

- The various compartments, trays and shelves are pre-arranged in the optimum layout.

220-240V ~ PLUG L E N PC YE/GN B Cooling unit

Technical Specifications

Model	WINDOPRO30
Voltage (V)	220-240
Frequency (Hz)	50
Net volume (l)	26
Power (W)	9,6
Climatic class	58
Coolant	N
	R600 (25g)

*Depending on the series and the county of distribution, the manufacturer reserves the right to modify certain characteristics.

Model identifier: WINDOWPRO30
Type of refrigerating appliance: thermoelectric
Low-noise appliance: Yes Design type: freestanding
Wine storage appliance: No Other refrigerating			appliance:	No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 465 Total volume (dm)		^3 or 1) 26
	Width 380
	Width 430
EEI		98,6	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		22	Airborne acoustical noise emission class	A
Annual energy consumption (kWh/a)		75	Climate class:	temperate

Parameter		Value	Parameter		Value
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		32
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
Compartment Volume (dm3 or l)		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	Yes	26,0	≥+14,≤+20	—	[A/M]
Wine storage	No			—	[A/M]
Cellar	No			—	-

Fresh food No —
Chill No —
0-star or ice- making	No				—
1-star No —
2-star No —
3-star No —
4-star No
2-star section No —
Variable tempera-ture compartment	compartment types
Compartiments «quatre étoiles»For 4-star compartments
Fast freeze facility No

Paramètres de la source lumineuse :Light source parameters :
Type of light source	-
Energy effi-ciency class	-
Minimum duration of the guarantee offered by the manufacturer : 24 month
Additional information: -
Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.brandybest.com

As determined in accordance with Commission Delegated Regulation (EU) 2019/2015 [1].
(1) Commission Delegated Regulation (EU) 2019/2015 of 11 March 2019 supplementing Regulation (EU) 2017/1369 of the European Parliament and of the Council with regard to energy labelling of light sources and repealing Commission Delegated Regulation (EU) No 874/2012 (see page 68 of this Official Journal).
(2) Changes to these items shall not be considered relevant for the purposes of point 4 of Article 4 of Regulation (EU) 2017/1369.
(3) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.
(4) Commission Regulation (EU) 2019/2019 of 1 October 2019 laying down ecodesign requirements for refrigerating appliances pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing.
Commission Regulation (EC) No 643/2009 (see page 187 of this Official Journal).

Security

Caution!

It is dangerous for anyone, other than qualified technicians) to dismantle or attempt to repair, which involves disassembly of the cover panels.

Risk of electric shocks.

Recycling

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

- This appliance carries the symbol WEEE (for Waste Electrical and Electronic Equipment Directive) which signifies that at the end of life, it must not be discarded with household waste, but disposed of at the local sorting/recycling center. Waste recovery aids in helping to preserve our environment

ENVIRONMENTAL PROTECTION - DIRECTIVE EN 50419

In order to preserve our environment and our health, end of life elimination of electric appliances and electronics must adhere to specific rules and requires everyone's involvement, whether supplier or user.

It is for this reason that your device, as noted by the symbol on the data plate or the packaging, should never be disposed of in a public or private bin for household waste. The user has the right to dispose of the device in a public electronics waste depot, which sorts and recycles or reuses it for other purposes in accordance with the law.
