Product type	Thermoelectric refrigerator
Brand	Brandy Best
Model	SILENTPRO28
Dimensions (H x W x D)	485 x 385 x 385 mm
Total volume	25.5 L
Weight (approx.)	Not specified in the manual, estimated ~10 kg
Power supply	220-240 V, 50 Hz
Energy efficiency class	E
Annual consumption	78 kWh/year
Noise level	22 dB(A) (class A)
Refrigerant	R600a (25 g)
Climate class	N (temperate: 16-32 °C)
Construction type	Freestanding
Reversible door	Yes, left or right opening
Defrosting	Manual
Interior lighting	LED
Flammable material (R600a)	Yes, caution
Manufacturer warranty	24 months
Maintenance and cleaning	Monthly cleaning, baking soda, avoid abrasive products
Safety	Automatic shutdown not specified, do not immerse, keep out of reach of children

Frequently Asked Questions - SILENTPRO28 BRANDY BEST

What is the ideal temperature for my SILENTPRO28 refrigerator?

The temperature can be adjusted via the thermostat. The recommended range is 6 to 8°C for a high temperature and about 12°C for a low temperature. Wait 24 hours after startup to reach the desired temperature.

How to reverse the refrigerator door?

The door is reversible. Use a flathead and Phillips screwdriver. Remove the trim covers, unscrew the hinges, lift the door, then reposition the hinges on the opposite side. See the manual for detailed steps.

What to do if the refrigerator is not cooling enough?

Check that the plug is connected, the door closes properly, the gaskets are not damaged, and the ventilation is not obstructed. Avoid placing hot or too many food items inside.

How to clean the interior of the refrigerator?

Unplug the appliance. Use a gentle solution of baking soda, rinse with warm water using a wrung-out sponge, then dry completely. Do not use abrasive products or solvents.

Can you freeze food with this refrigerator?

No, this model does not have a freezer compartment. It is designed only for refrigeration. Star compartments are not present.

What type of refrigerant does the SILENTPRO28 use?

It uses R600a (isobutane), a flammable gas. In case of leak, ventilate the room and avoid any ignition sources.

The refrigerator makes noise, is this normal?

This model is designed to be quiet (22 dB, class A). A slight operating noise is normal. If the noise is excessive, check that it is level and not in contact with a piece of furniture.

How to reduce energy consumption?

Avoid opening the door too often, leave space between food items for air circulation, defrost manually when the frost layer exceeds 5 mm, and clean the door gaskets.

What to do in case of a power outage?

Keep the door closed to maintain temperature as long as possible. Food usually stays cold for several hours. If the outage lasts, consume perishable items quickly.

Where to find spare parts?

Contact Brandy Best customer service or an authorized technician. Parts such as the power cord, door gaskets, or thermostat are available through the manufacturer.

USER MANUAL SILENTPRO28 BRANDY BEST

Warning sign depicting a flame symbol in yellow and black on a white background

50mm 310mm 50mm 310mm 50mm 385mm 310mm 50mm 485mm 50mm

Two labeled boxes with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

Technical line drawing of a two-door refrigerator with internal compartments and labeled parts (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Designer of solutions for "tiny" places...

SILENTPRO28

Instruction Manual

Before installing or first usage of this appliance, attentively read this notice.

Conserve it careful after reading. You can also download the latest version of this manual on:

English

Safety precautions 3

About your Mini-bar 7

Installation 7

Location 7

Placement – fitting 7

Levelling the mini-bar 8

Cleaning before use 8

Before connecting, you must: 8

Start-up 8

Mini-bar start-up 8

Adjusting the reversible door 9

Cleaning 9

Maintenance 10

In case of malfunction 10

Advice for reducing your energy consumption 10

Electrical diagram 11

Technical Specifications 11

Security 14

Recycling 14

ENVIRONMENTAL PROTECTION – DIRECTIVE 2012/19/EU 14

Safety precautions

This device is very simple to use. However, we advise you to read this manual carefully as it contains important safety information and cleaning instructions. This device is intended for home use only. Any other use is excluded.

The manufacturer declines all responsibility for injury to persons or property damage due to non-observance of the maintenance instructions and improper use of the device. After removing the packaging from the various parts of the device, check that it is in perfect condition. If you are in doubt about this, do not use the appliance and contact the seller or a qualified technician. Also ensure that different types of packaging (cardboard, plastic bags, polystyrene, tape, ties, etc.) are out of reach of children, these elements carry a potential risk. Before using the appliance, check that the current in your area corresponds to that indicated on the rating plate.

When using this unit, please follow the following safety guidelines:

CAUTION : To reduce the risk of fire, electric shock or injury, always follow the following important safety instructions when using an electrical appliance.

• Before using this appliance, read the instructions for careful use. Keep this manual carefully.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not leave the device unattended while it is plugged in. Remove the plug when not in use or when cleaning.
• Check the status of your device regularly. Do not use the appliance if it is damaged.
• Do not use the appliance if it has been dropped, damaged, left outdoors, or dropped into water.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Never immerse this appliance in water or any other liquid.
• Do not pull or carry the unit by the power cord, use the cord as

a handle, pinch the cord in the door, or pull it along sharp edges or corners.

- Do not place the unit on the power cord. Do not allow the cord to wrap or tangle in any way. Keep the cord away from hot surfaces.

- Do not remove the plug by pulling on the cord. To remove the plug, take the plug in hand and carefully pull it out of the wall socket.

- Do not handle the device or the plug with wet hands.

- Pay special attention to this device and follow all instructions given in the operating instructions.

- Use only an extension cord certified with the amperage current in your country. Certified extensions with lower amperage may overheat. Make sure that no one trips on the cord or plug.

- Keep this unit indoors and in a dry place.

- Keep the unit away from heat sources such as radiators to prevent deformation of plastic parts.

• Always unplug the power cord before cleaning the unit.

- If the power cord is damaged, it must be replaced by the manufacturer, its service center, or similarly qualified persons to avoid danger.

- All repairs must be carried out by the after-sales service or persons of similar qualification.

- Do not use accessories that are not recommended by the manufacturer. They could damage the device.

- This device is intended for home use only.

- Do not use this unit outdoors.

- Do not use the device near flammable materials.

- Do not use any accessories other than those supplied with the unit.

- The lamp inside the device is used to illuminate the interior. This lamp is not suitable for lighting a room.

- WARNING: Keep ventilation openings clear in the appliance enclosure or in the installation structure.

- WARNING: Do not use mechanical devices or other means to speed up the defrosting process other than those recommended by the manufacturer.

- WARNING: Do not use electrical appliances inside the food storage compartment unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosols containing

flammable propellants in this device.

• It is imperative that your appliance is connected to an installation with a circuit breaker-protected electrical network and a suitable differential in accordance with the installation rules.
• The circuit of this product must be isolated.
• The voltage for this product should be 220-240V, 50Hz.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for freezing of fresh food.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not locate multiple portable socket-outlet or portable power supplies at the rear of the appliance.

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

Regarding the method for replacing illuminating lamps, thanks to refer to the below paragraph of the manual.

For information on installation, handling, maintenance and dipo- sal of device,

Warning sign depicting a flame symbol in yellow and black on white background

WARNING : Risk of fire / flammable materials

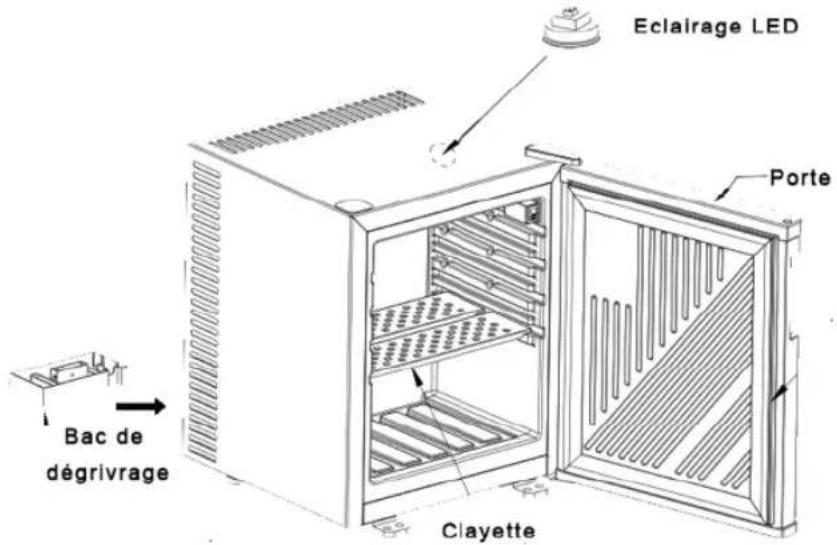

About your Mini-bar

Please read these instructions carefully before using your mini-bar.

This is intended for household use and is to be installed inside.

Installation

Location

When you choose the place of installation for your mini-bar, you must ensure that the floor is flat and solid, and that the room is well ventilated with a temperature between 16 and 32^ . Avoid installing next to a heat source such as an oven, boiler, radiator, etc...

Keep out of direct sunlight.

If you place your mini-bar in an outbuilding or garage, ensure that the location is not humid, as condensation could form.

Your appliance must be installed leaving a gap of 10cm to the rear and 2cm to each side.

The mini-bar features a reversible door, which can be opened to the left or to the right.

Never cover the appliance with a sheet or cover.

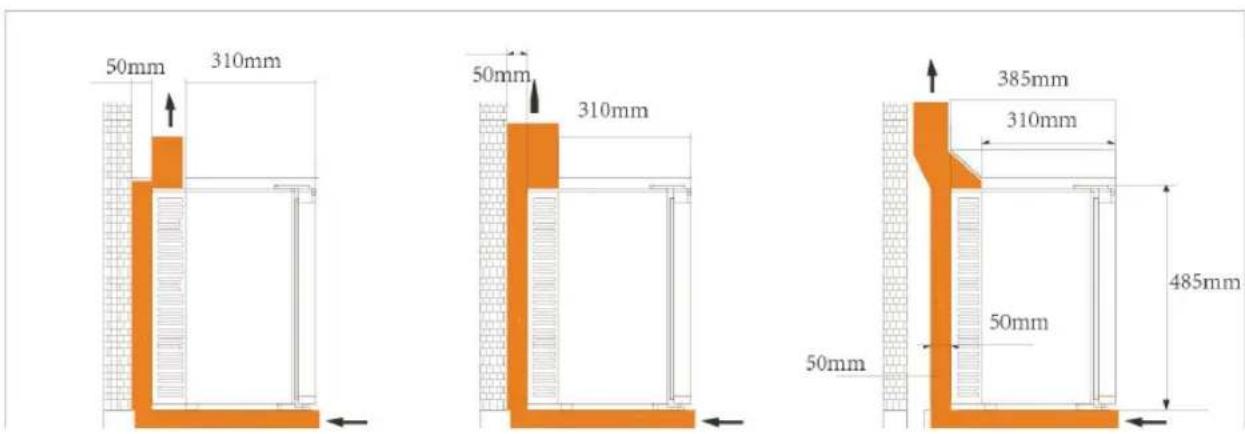

Placement – fitting

Position the appliance opposite the desired location, and slide gently into place.

50mm 310mm 50mm 310mm 50mm 385mm 310mm 50mm 485mm 50mm

Levelling the mini-bar

Once the mini-bar is in its final position, ensure that it is level. Adjustments can be made using the two levelling feet at the front of the mini-bar.

If the appliance is not level, the alignment of the doors and the magnetic contacts will be affected.

Two labeled diagrams showing a checkmark and an 'X' symbol inside rectangular containers

Cleaning before use

Wipe the interior of the mini-bar with a mild solution of bicarbonate of soda. Then rinse with hot water using a sponge or a wrung cloth. Wipe the appliance in its entirety until there is no more water, then replace the shelves and drawers. You can clean the exterior with a mild detergent.

Before connecting, you must:

Check that the plug is compatible with the power cable of the appliance. If this is not the case, contact a specialist technician for assistance.

CAUTION: THIS APPLIANCE MUST BE GROUNDED.

Start-up

Before putting drinks in your mini-bar, leave it running for 24 hours to ensure that it is functioning properly, and to allow it to reach the correct temperature.

Mini-bar start-up

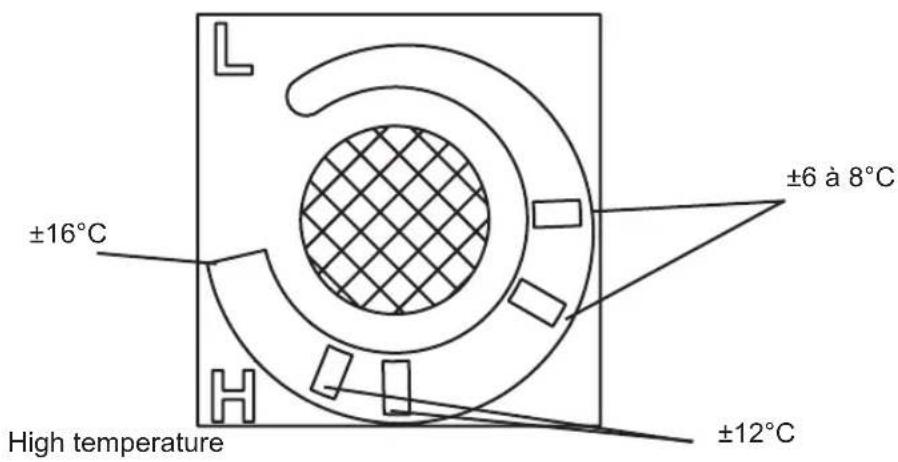

All you need to do is plug in the mini-bar and set a temperature on the thermostat located on the back of the product.

NOTE: Do not store gas or combustible liquids in the mini-bar.

Low temperature

±16°C High temperature ±6 à 8°C ±12°C

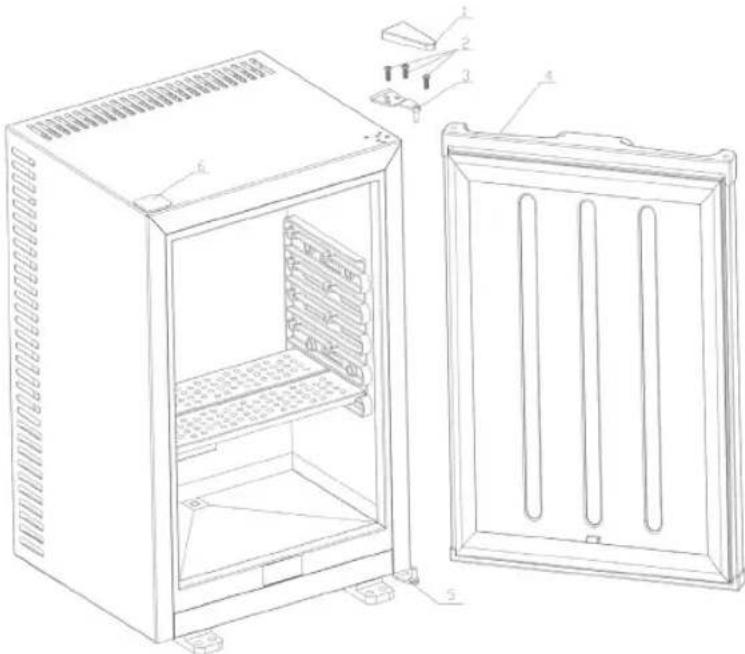

Adjusting the reversible door

You will require a flathead screwdriver and a cross-headed screwdriver.

Technical line drawing of a two-section refrigerator with labeled components (no text or symbols present)

1) Remove the caps (1)
2) Unscrew the screws (2)
3) Remove the upper hinge (3)
4) Lift the door (4) and unscrew and remove the hinge (5)
5) Place hinge (5) on the opposite side and replace the screw
6) Replace the door on the desired side on hinge (5)
7) Replace the upper hinge (3) on the door and screw (2) it back into place
8) Replace the caps (1) and (6)

Cleaning

The mini-bar must be cleaned and maintained at least once a month.

During maintenance, ensure that the appliance is unplugged.

Cleaning the exterior of the mini-bar:

You can use soap to clean the exterior of the appliance. However you should ensure that the door is fully closed in order to avoid contact between the product and the seal, or with the interior of the mini-bar. You can also just use a damp cloth.

Cleaning the interior of the mini-bar:

You can clean the interior of your mini-bar with a mild solution of bicarbonate of soda. After, rinse with hot water using a wrung cloth. Then wipe in order to remove any trace of moisture.

Pay attention to the maintenance of the rubber door seals. They must always be clean in order to avoid mould.

NOTE: Do not use diluents, petrol, alcohol, kerosene, abrasive detergents, washing powder, acid, chemical products, etc. in order to avoid damaging the plastic. It is discouraged to spray water directly onto the mini-bar. This could cause rusting.

Maintenance

-If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service, or a qualified individual.
-Do not place your mini-bar close to a heat source (e.g. radiator). Keep out of direct sunlight.
-Ensure that the mini-bar is level. If it is not level, the alignment of the doors and the magnetic contact could be affected.
-Caution – do not cover or block the ventilation or the grills of your appliance.

Service: Repairs and maintenance of the appliance must be carried out by an authorised and certified technician.

In case of malfunction

1. If the mini-bar is not working:

Check if there is a power failure (check the fuses)

Check if it is plugged in.

1. When the mini-bar does not cool sufficiently:

Have you put something hot or too many products in the mini-bar?

Check that the door closes properly

Check that the door seals are not damaged

Check the ventilation surrounding the mini-bar

1. If condensation appears on the outside of the mini-bar, this could be due to excessive humidity in the room (change of temperature). Therefore this is not a sign of malfunction. Please wipe the appliance with a dry cloth.

Advice for reducing your energy consumption

• Take care to maintain a minimum distance between different products when you put them in the mini-bar to allow a good circulation of air.
• Opening the door for too long or too frequently can cause a rise in the temperature of the interior of the mini-bar. For this reason the door must be closed immediately after use.
• Ensure that the door's airtight seal is correctly positioned, and that the appliance's ventilation openings are not obstructed.
• If the layer of ice becomes too thick, this can affect the performance of the mini-bar. When the layer of ice is thicker than 5mm, the appliance must be defrosted.
• The various compartments, trays and shelves are pre-arranged in the optimum layout.

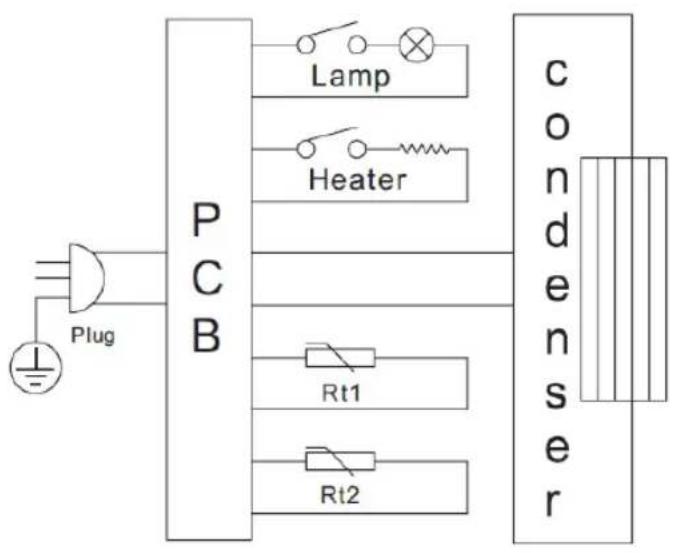

Circuit Diagram

Technical Specifications

Model	SILENTPRO28
Voltage (V)	220 - 240
Frequency (Hz)	50
Insulation blowing gaz	Cylopentane
Protection against electric shock	I
Climate class	N
Refrigerant	R600a (25g)

*Depending on the series and the county of distribution, the manufacturer reserves the right to modify certain characteristics.

Model identifier: SILENTPRO28B - SILENTPRO28W
Type of refrigerating appliance: thermoelectric
Low-noise appliance: Yes Design type: freestanding
Wine storage appliance: No Other refrigerating		appliance:		No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 485 Total volume (dm)		^3 or l) 19
	Width 385
	Width 455
EEI		116,4	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		22	Airborne acoustical noise emission class	A
Annual energy consumption (kWh/a)		90	Climate class:	temperate

Parameter Value		Parameter	Value
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		22	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		32
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
Compartment Volume (dm3 or l)		Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24 h)	Defrost-ing type (auto-de-frost = A, manual defrost = M)
Pantry	No			—	[A/M]
Wine storage	No			—	[A/M]
Cellar	Yes	32	≥+2,≤+14	—	-

Fresh food No —
Chill No —
0-star or ice- making	No				—
1-star No —
2-star No —
3-star No —
4-star No
2-star section No —
Variable tempera-ture compartment	compartment types
Compartiments «quatre étoiles»For 4-star compartments
Fast freeze facility No

Paramètres de la source lumineuse :Light source parameters :
Type of light source	-
Energy effi-ciency class	-
Minimum duration of the guarantee offered by the manufacturer : 24 month
Additional information: -
Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.brandybest.com

As determined in accordance with Commission Delegated Regulation (EU) 2019/2015 [1]
[1] Commission Delegated Regulation (EU) 2019/2015 of 11 March 2019 supplementing Regulation (EU) 2017/1369 of the European Parliament and of the Council with regard to energy labelling of light sources and repealing Commission Delegated Regulation (EU) No 874/2012 (see page 68 of this Official Journal).
(2) Changes to these items shall not be considered relevant for the purposes of point 4 of Article 4 of Regulation (EU) 2017/1369.
(3) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.
(4) Commission Regulation (EU) 2019/2019 of 1 October 2019 laying down ecodesign requirements for refrigerating appliances pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing
Commission Regulation (EC) No 643/2009 (see page 187 of this Official Journal).

Security

Caution!

It is dangerous for anyone, other than qualified technicians) to dismantle or attempt to repair, which involves disassembly of the cover panels.

Risk of electric shocks.

Recycling

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

- This appliance carries the symbol WEEE (for Waste Electrical and Electronic Equipment Directive) which signifies that at the end of life, it must not be discarded with household waste, but disposed of at the local sorting/recycling center. Waste recovery aids in helping to preserve our environment

ENVIRONMENTAL PROTECTION – DIRECTIVE 2012/19/EU

In order to preserve our environment and our health, end of life elimination of electric appliances and electronics must adhere to specific rules and requires everyone's involvement, whether supplier or user.

It is for this reason that your device, as noted by the symbol on the data plate or the packaging, should never be disposed of in a public or private bin for household waste. The user has the right to dispose of the device in a public electronics waste depot, which sorts and recycles or reuses it for other purposes in accordance with the law.
