Product type	Mechanical sewing machine
Brand	Bernina
Model	86
Dimensions (L x W x H)	42 x 18 x 30 cm
Weight	10 kg (approximate)
Power supply	220-240 V, 50/60 Hz
Motor power	100 W
Maximum sewing speed	1000 stitches per minute
Stitch types	Straight stitch, zigzag stitch, buttonhole stitch, decorative stitches
Number of stitches	10 built-in stitches
Maximum stitch width	5 mm
Maximum stitch length	4 mm
Automatic needle threader	No (manual threading)
Bobbin	Horizontal drop-in bobbin
Feed	Adjustable feed dogs
Included accessories	Gatherer #86, presser feet, needles, screwdriver
Special functions	Ability to gather and sew simultaneously with accessory #86
Maintenance and cleaning	Regularly dust the bobbin area and needle plate. Oil according to instructions.
Safety	Unplug before any maintenance. Do not use with bent needles.
Spare parts and repairability	Parts available from authorized Bernina dealers.

Frequently Asked Questions - 86 BERNINA

How to thread the needle on the Bernina 86?

Pass the thread through the upper guides, then the tension disc, then the take-up lever, and finally through the needle eye from front to back. Follow the threading diagram on the machine.

How to adjust the thread tension?

Use the tension dial located on the side of the machine. Turn clockwise to increase tension, counterclockwise to decrease. Test on a scrap of fabric.

What to do if the machine skips stitches?

Check that the needle is straight and correctly inserted. Replace it if blunt or bent. Make sure the thread is properly threaded and tension is suitable for the fabric.

How to clean the bobbin area?

Unplug the machine. Remove the needle plate and bobbin. Use a small brush to remove dust and lint. Replace the bobbin and screw the plate back on.

How to install the gatherer #86?

Place the foot holder in the up position. Attach the gatherer from the bottom right, placing the drive fork around the fixing screw. Lower the locking lever to secure it.

Why does the bobbin thread tangle?

Make sure the bobbin is correctly inserted in the case and the thread comes out in the right direction. Check that the bobbin thread tension is adjusted correctly (small screw on the case).

How to change the needle?

Unplug the machine. Loosen the needle clamp screw with a screwdriver. Remove the old needle and insert the new one (flat side to the back). Tighten the screw.

What types of fabric can I sew with the Bernina 86?

The machine is suitable for medium fabrics such as cotton, linen, and synthetics. For thick fabrics (denim) or very thin (silk), use a suitable needle and adjust the pressure.

How to adjust the stitch length?

Use the stitch length adjustment knob located on top of the machine. Turn it to increase (longer stitches) or decrease (shorter stitches) the length.

Where to find the original manual in French?

The manual is available for free download on the website notice-facile.com in PDF format. You can also request a paper version from your Bernina dealer.

USER MANUAL 86 BERNINA

Ruffles, flounces, gathering, pleats
- Gathering and simultaneous sewing onto a flat fabric.

en

To ensure your safety

Assembly

Read the instruction manual of the sewing machine as well as of this accessory carefully before use!

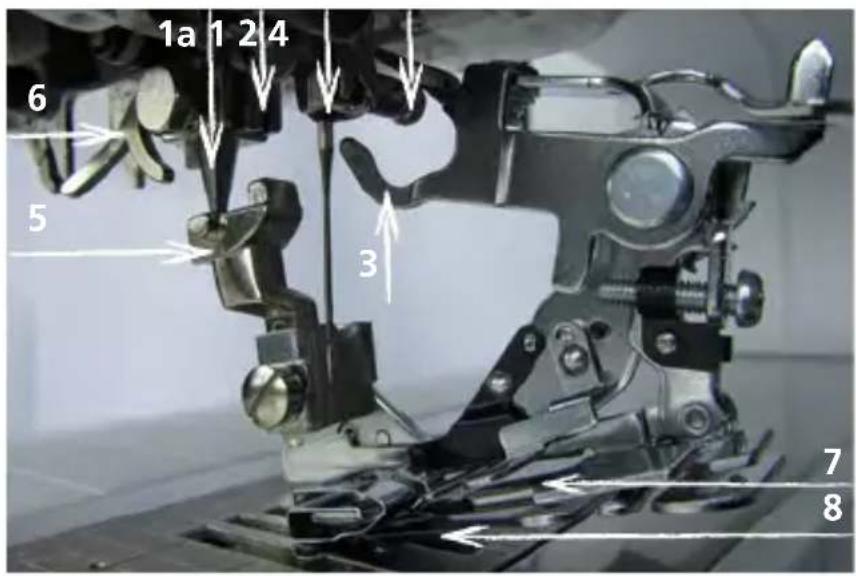

The presser foot bracket (1) as well as the needle bar (2) must be at highest position.
- Surround the needle fastening screw (4) with the driving lever (3) of the ruffler foot by pushing it diagonally from the bottom right and arrange the shank opening on the cone (1a).
Fasten the ruffler foot by tightening the fixing lever.

Preparation

en

BERNINA 8-series

Activate the ruffler foot #86 by pressing the presser foot indication in the display.

Threader mechanism is deactivated.

Automatic setting from Software Version 32.00.00:

Check/adjust the setting of the machine

Sewing speed

maximal 400 stitches/minute

Stitch selection

straight stitch

Stitch length

-1-5

Needle position

-enter

Feed dog

-raised

Mode of operation

Test sew first!
Position the edge of the fabric between the ruffler blade (7) and the separating blade guiding (8) it through the slot-guide (9) with the fabric edge flush with the right side of the slot.
- Pull the fabric backwards that the feed dog can catch it properly.
Lower the ruffler foot and bring it into sewing position.
The pleat depth can be increased (A) or reduced (B) at the setscrew (10) using a screw driver.
The pleat density can be pre-selected via the stitch selection lever (11) (see picture C).
The distance of the single pleats can additionally be influenced via the stitch length adjustment - the longer the stitch the larger the space between each pleat.

Tips

Some smooth and coated materials as well as heavy fabrics are unsuitable for gathering.

en

Übersicht

de

A

B

C

Anwendung

max. 400 points/minute

Position de I'aiguille

au milieu

Point sélectionné

point droit

Longueur de point

-1-5

Automatic setting from Software Version 32.00.00:

MexaHn3M HnteBdeBaTeJy BbIKIO- yaeTc.

ABytomaTnuecka HacTroPonKa npoBODITc,HaunHc BepCnBCTpoEHHoro PO 32.00.00:

Copyright by BERNINA International AG 0343055.10A.10
