USER MANUAL EF60BP MBM

Professional friturekoger

EF6BM

EF6+6BM

EF12B

EF12+12B

EF12S

EF12+12S

EF8BM

EF8B

EF20BP

EF60BP

EF25S

EF25+25S

EF8+8B

Profi-Fritteuse

Congratulations on the purchase of this high-quality

You have chosen an appliance that fulfils high technical requirements at the same time as it provides a comfortable usage. We hope the appliance will please you.

1 Explanation about the symbols and schedules

1.1 Warning notices

Gradation of the warning notices

The warning notices differ from one another concerning the type of danger through the following signs:

Caution warns against damage to property.
Warning warns against bodily harm.
Danger warns against danger to life.

Composition of the warning notices

Signal words

Type and source of the danger!

Measure to avoid the danger.

1.2 Other symbols

Operating instructions

Composition of the operation instructions:

Guidance to an operation.

Indication of an outcome, if necessary.

Schedules

Composition of the non numbered schedules:

Schedule level 1

Schedule level 2

Composition of the numbered schedules:

1. Schedule level 1
2. Schedule level 1

2.1 Schedule level 2
2.2 Schedule level 2

Deep fryer

2 Safety instructions

Mind the use directions.
Always keep the use directions with the appliance.
Install the appliance exactly as indicated.
Install the appliance in closed spaces.
Protect the appliance from the sun.
Protect the appliance from frost.
Make sure that the line cord is not damaged.
Protect the appliance from humidity.
Do not clean the appliance using direct water jets.
- Ask exclusively qualified personnel to carry out repair works.
- Keep children away from the appliance when it is active.
Make sure that only people who have been instructed use the appliance.
- Disconnect the appliance from the mains by pulling the plug, never the cord.
Use the appliance exclusively in the original conditions.
The appliance should be used only for the purpose for which it was designed.
Use exclusively original spare parts.
- Make sure that there is enough fresh air supply when the appliance is operating.

3 Package contents

Package contents:

The appliance
Lid
Tap
Wire basket

4 Correct ways of employment

Use the appliance exclusively to deep-fry food in oil or liquid fat.

5 Function

The appliances heats oil. The food is fried in hot oil. The temperature of the oil can be adjusted.

Deep fryer

6 Handling/Operation

6.1 Set-up/Assembly

Assemble the appliance exclusively under an extraction hood.
Remove protection film from the appliance.

6.2 First use

First cleaning

Clean the appliance before the first use (see Cleaning).

Connect the appliance

Life danger due to mains voltage!

Make sure that voltage and frequency of mains correspond to values specified on rating plate.
Make sure that line cord is not damaged.
Make sure that line cord does not get hotter than 50^ .
Ask qualified personnel to install the appliance.

• Connect an all-pole circuit breaker with a contact clearance of >3mm ahead of the appliance.
  Make sure that the appliance is earthed.

Necessary information for qualified personnel:

MODEL

EF6BM EF8BM

EF6+6BM

EF8B

EF8+8B

EF12B EF12S EF25S EF20BP EF60BP

EF12+12B EF12+12S EF25+25S

TYPE OF TENSION

Max A/f

N.Cables mm²

Max A/f

N.Cables mm²

Max A/f

N.Cables mm²

Max A/f

N.Cables mm²

Max A/f

N.Cables mm²

Max A/f

N.Cables mm²

1 N AC 230 V 50/60 Hz

-

3 x 2,5

3+3

3 x 2,5

6

3 x 4

6+6

3 x 4

12

3 x 4

12+12

3 x 4

3 AC 230 V 50/60 Hz

-

-

-

-

6

4 x 2,5

6+6

4 x 2,5

12

4 x 4

12+12

4 x 4

3 N AC 400 V 50/60 Hz

-

-

-

-

6

5 x 2,5

6+6

5 x 2,5

12

5 x 2,5

12+12

5 x 2,5

Deep fryer

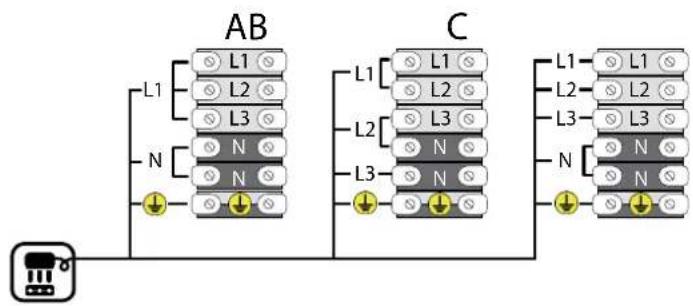

• Connect the appliance as follows: connect the appliance as follows:

A:PHASES:220/240V\~1N50-60Hz

B:PHASES:220/240V\~350-60Hz/

C:PHASES:380/415V\~3N50-60Hz

6.3 How to use

Control elements and indicators

The operating elements control the functions.

Switch/Button	Function
1/0	To switch the appliance on and off
Thermostat switch	Adjusting of temperature

Pilot lights show operating state.

When pilot light next to switch 1/0 is on:

The appliance is on.

When pilot light next to thermostat switch is on:

The appliance heats oil until it reaches the set temperature.

To fill up

Fill container up to the mark with

oil
molten fat

Deep fryer

Switching on

Check filling level.
Refill if necessary.
Rotate switch 1/0 (1).

Pilot light next to switch 1/0 is on.

Set thermostat switch to desired temperature.

The appliance is on.

Pilot light next to thermostat switch is on.

The appliance heats up the oil.

Note The time required to heat up depends on the type of oil and the ambient conditions.

When the appliance reaches set temperature:

Pilot light next to thermostat switch switches off.

Deep-frying

Put dry food into wire basket.
Put in wire basket with food.

If food is frozen:

Fill wire basket half-full.
Put in wire basket slowly.

Switching off

Set thermostat switch to 0.
Rotate switch 1/0 (0).

Both pilot lights switch off.

The appliance is off.

Remove residue from oil.
Separate the appliance from the mains.

Note The minimum temperature is approximately 55^ and the maximum temperature it can reach is approximately 180^ .

Deep fryer

Discharge

Warning

Risk of injury due to incorrect discharge!

Have the appliance emptied exclusively by qualified personnel or empty it under supervision of qualified personnel.
Let the appliance and the oil cool down completely before emptying it.
Wear appropriate protective clothing according to CE requirements when emptying the appliance.

Switch off the appliance.
Let the appliance cool down.
- Make sure that there is enough room for a container of sufficient size under the tap 2.
Put a container of sufficient size to hold all the oil under the tap 2.
Push down lever 1 on tap.
- Rotate lever 1 on tap by 90^ in counterclockwise direction.
Let all the oil run into container.

Note Oil disposal: see Disposal.

When the appliance is empty:

• Rotate lever 1 on tap by 90^ in clockwise direction.

6.4 Faults/Fault repair

Fault Remedy
The appliance is not working. Check	whether power supply is correct.
	Check whether control box is sitting on contact pins of housing.
	Check whether safety thermostat has been triggered.
Safety thermostat has been triggered.	Call a specialist and report the fault.

Deep fryer

6.5 Placing out of operation

When the appliance is not being used:

Set thermostat switch to 0.
Rotate switch 1/0 (0).

Both pilot lights switch off.

Separate the appliance from the mains.
Clean the appliance (see Cleaning).

7 Maintenance/Cleaning

Danger of life due to electrocution!

Prior to every maintenance work or cleaning, switch off power switch connected ahead.

7.1 Maintenance

Ask exclusively qualified personnel to do the maintenance of the appliance.

7.2 Cleaning

Clean the appliance daily.
Switch off the appliance before cleaning.
Let the appliance cool down.
Empty container.
Filter cold oil.
Do not use corrosive cleaning agents.
Clean container with hot water and cleaning agent.
Clean heating coils with hot water and cleaning agent.
Dry the appliance with a soft and clean cloth.

Deep fryer

8 Technical data

MODEL	DIMENSIONS mm.		Tank Capacity Lt.	TANK N°	TOTAL POWER SUPPLY kW	NET WEIGHT kg.
	External L x P x A/A max.	Basket
		mm.
EF6BM	290 x 505 x 300 / 440	190 x 200 x 105	5/6	1	3	11
EF6+6BM	580 x 505 x 300 / 440	190 x 200 x 105	5/6+5/6	2	3+3	19
EF8BM	290 x 505 x 300 / 440	190 x 245 x 105	8/9	1	3	12
EF8B	290 x 505 x 300 / 440	190 x 245 x 105	8/9	1	6	13
EF8+8B	580 x 505 x 300 / 440	190 x 245 x 105	8/9+8/9+10	2	6+6	20
EF12B	375 x 655 x 315 / 450	235 x 275 x 105	12+10	1	9	18
EF12+12B	750 x 655 x 315 / 450	235 x 275 x 105	12+10/12	2	9+9	32
EF12S	375 x 655 x 845 / 985	235 x 275 x 105	12/14	1	9	29
EF12+12S	750 x 655 x 845 / 985	235 x 275 x 105	12/14+12/14	2	9+9	55
EF25S	375 x 755 x 845 / 985	235 x 385 x 105	18/20	1	12	32
EF25+25S	750 x 755 x 845 / 985	235 x 385 x 105	18/20+18/20	2	12+12	60
EF20BP	750 x 675 x 315 / 440	560 x 275 x 105	18/20	1	9	24
EF60BP	750 x 675 x 315 / 440	600 x 400 x 105	34/37	1	9	29

Deep fryer

9 Standards and rules

The appliance complies with the following standards:

EN 60335-1
EN 60335-2-36
EN 60335-2-37
EN 60335-2-38
EN 60335-2-39
EN 60335-2-42/46
EN 60335-2-47
EN 60335-2-50
EN55014

10 Disposal

Oil disposal

Observe local laws and regulations on oil disposal.
When you dispose of the oil, do not put it into the household waste.

Disposal of the appliance:

To dispose of the appliance:

• When you dispose of your appliance do not put it into the household waste.
  Send the appliance to the recycling of electrical appliances.

The materials of the appliance are reusable. By reusing, material recycling or other forms of use of old appliances you give an important contribution to the protection of our enviroment.

To ask for the appropriate disposal point: www.servicevega.com

User information

Pursuant to the 2011/65/EU (ROHS II) and 2012/19/EU (WEEE) Directives concerning the reduction in the utilisation of dangerous substances in electric and electronic equipment, as well as waste disposal.

The symbol of the crossed rubbish skip on the equipment or on the package indicates that the product must be separated from other waste at the end of its useful life. The differentiated collection of this equipment is organised and managed by the producer. The user who intends to get rid of this equipment shall contact the producer and follow the system that the latter has used in order to collect the equipment separately at the end of its life. The proper differentiated collection in order to start the following recycling, treatment and disposal of the disused equipment incompliance with the environment helps to avoid possible negative effects on the environment and on health, and favours the reutilisation and/or recycling of the materials forming the equipment.

The unauthorised disposal of the product by the holder implies applying administrative penalties provided by the regulations in force.

Deep fryer

11 Guarantee

The appliance is guaranteed for ten years from the date of purchase in the following terms:

The guarantee covers assembly, manufacture, and material faults of any kind as well as the repair and / or replacement of parts that our technicians recognise to be faulty. The spare parts and the hours of work needed for the repair are not charged.
The certificate of guarantee is of your responsibility, please preserve it and in case you need to use the guarantee send it together!
The guarantee expires when the appliance is:

used inappropriately.
→ manipulated.
not suitably maintained.
not used according to the instructions.
technically modified.

Friteuse Chef

6.1 Installation/Montage

C:PHASES:380/415V\~3N50-60Hz

6.3 Manipulation

C:PHASES:380/415V\~3N50-60Hz

6.3 Manejo

Fritadeira professional

Fritadeira professional

2 Avisos de segurarca

Fritadeira professional

Fritadeira professional

C:PHASES:380/415V\~3N50-60Hz

6.3 Utilização

Elementos operativos e indicatores

Fritadeira professional

Ligar

Verifique o nivel da oleo.
Se for necessario encha o aparelho.
Rode o interruptor 1/0 (1).

Fritadeira professional

Esvaziar

Alerta

Perigo de danos corporais devido a esvazamento desadequado!

Fritadeira professional

6.5 Retirar de funciona

Fritadeira professional

8 Caracteristicas sociales

MODELO	DIMENções mm.		Capacidade da cuba Lt.	CUBA N°	CONSUMO TOTAL DE ENERGIA kW	PESO LIFO-DO kg.
	Externas L x P x A/A max.	Cesto
		mm.
2129.906	290 x 505 x 300 / 440	190 x 200 x 105	5/6	1	3	11
2129.914	580 x 505 x 300 / 440	190 x 200 x 105	5/6+5/6	2	3+3	19
2129.908	290 x 505 x 300 / 440	190 x 245 x 105	8/9	1	3	12
2129.910	290 x 505 x 300 / 440	190 x 245 x 105	8/9	1	6	13
2129.916	580 x 505 x 300 / 440	190 x 245 x 105	8/9+8/9+10	2	6+6	20
2129.912	375 x 655 x 315 / 450	235 x 275 x 105	12+10	1	9	18
2129.918	750 x 655 x 315 / 450	235 x 275 x 105	12+10/12	2	9+9	32
2129.920	375 x 655 x 845 / 985	235 x 275 x 105	12/14	1	9	29
2129.924	750 x 655 x 845 / 985	235 x 275 x 105	12/14+12/14	2	9+9	55
2129.922	375 x 755 x 845 / 985	235 x 385 x 105	18/20	1	12	32
2129.926	750 x 755 x 845 / 985	235 x 385 x 105	18/20+18/20	2	12+12	60
2129.902	750 x 675 x 315 / 440	560 x 275 x 105	18/20	1	9	24
2129.904	750 x 675 x 315 / 440	600 x 400 x 105	34/37	1	9	29

Fritadeira professional

9 Padrões e normas

Fritadeira professional

11 Garantia

A:FASI:220/240V\~1N50-60Hz

B: FASI: 220/240 V ~ 350-60 Hz /

C:FASI:380/415V\~3N50-60Hz

6.3 Comando

Professional friturekoger

Professional friturekoger

Professional friturekoger

Professional friturekoger

C:FASER:380/415V\~3N50-60Hz

6.3 Styring

Professional friturekoger

Tømning

Professional friturekoger

6.5 Nedlukning

Professional friturekoger

8 Tekniske data

MODEL	MÄL I mm.		KAPACITET KAR Lt.	KAR Nr.	SAMLET STRØMFORBRUG kW	NETTOVæ GT kg.
	Ekstern L x P x A/A max.	Kurv
		mm.
EF6BM	290 x 505 x 300 / 440	190 x 200 x 105	5/6	1	3 11
EF6+6BM	580 x 505 x 300 / 440	190 x 200 x 105	5/6+5/6	2	3+3	19
EF8BM	290 x 505 x 300 / 440	190 x 245 x 105	8/9	1	3	12
EF8B	290 x 505 x 300 / 440	190 x 245 x 105	8/9	1	6	13
EF8+8B	580 x 505 x 300 / 440	190 x 245 x 105	8/9+8/9+10	2	6+6	20
EF12B	375 x 655 x 315 / 450	235 x 275 x 105	12+10	1	9	18
EF12+12B	750 x 655 x 315 / 450	235 x 275 x 105	12+10/12	2	9+9	32
EF12S	375 x 655 x 845 / 985	235 x 275 x 105	12/14	1	9	29
EF12+12S	750 x 655 x 845 / 985	235 x 275 x 105	12/14+12/14	2	9+9	55
EF25S	375 x 755 x 845 / 985	235 x 385 x 105	18/20	1	12	32
EF25+25S	750 x 755 x 845 / 985	235 x 385 x 105	18/20+18/20	2	12+12	60
EF20BP	750 x 675 x 315 / 440	560 x 275 x 105	18/20	1	9	24
EF60BP	750 x 675 x 315 / 440	600 x 400 x 105	34/37	1	9	29

Professional friturekoger

9 Standarder og direktiver

Apparatet er i overensstemmelse med følgende standarder:

EN60335-1
EN 60335-2-36
EN 60335-2-37
EN 60335-2-38
EN 60335-2-39
EN 60335-2-42/46
EN 60335-2-47
EN 60335-2-50
EN55014

10 Bortskaffelse

Professional friturekoger

11 Garanti

EC declaration of conformity

The manufacturer / marketing authorisation holder Name / Address

declares that the current model of the machine/system mentioned below
