1 Battery pack
2 Battery pack release button
3 Power head
4 Upper pole
5 Base
6 Power head collar
7 Pole collar
8 Brush
9 Brush connector
10 Extension pole
11 Base handle
12 Pole grip
13 Pole handle
14 Pole latch
15 Pole latch screw
16 Pivot button
17 Battery compartment
18 Battery compartment latch

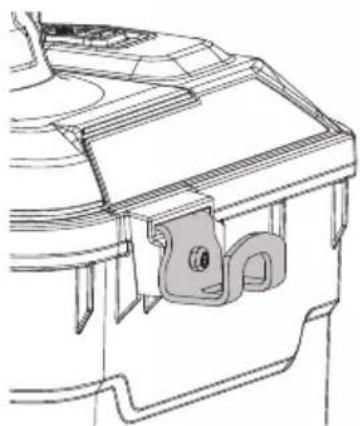

19 Battery compartment hook

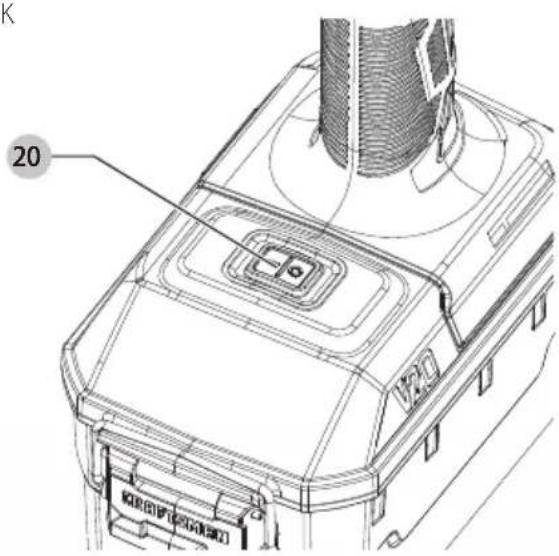

20 On/off button

Composants

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

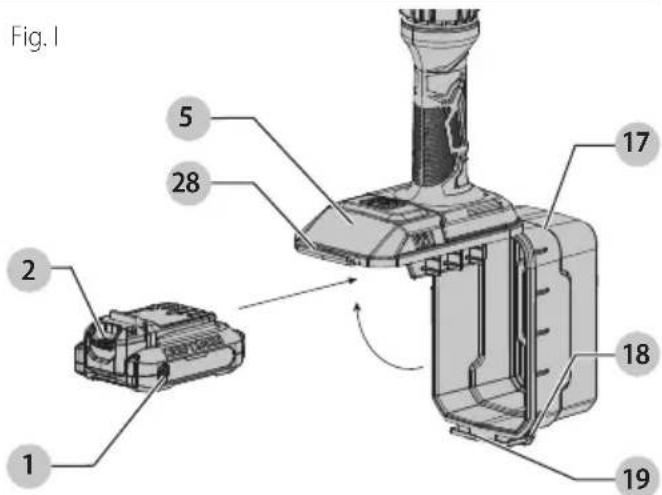

Fig. I 1 2 5 28 17 18 19

Fig. J

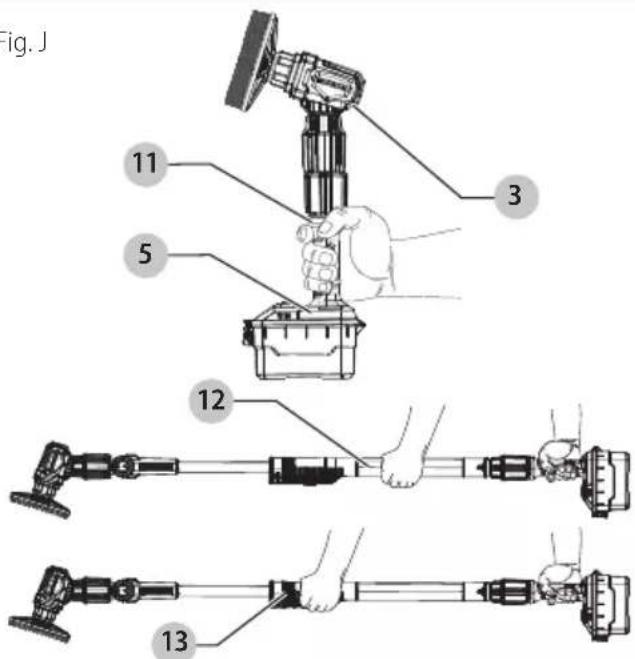

Fig. J 11 5 3 12 13

Fig. K

20 V20

Fig. L

Technical line drawing of a mechanical component with no visible text or symbols

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

Intended Use

This scrubber is designed for light duty, household cleaning applications and not for commercial or industrial use.

DO NOT let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

Typical Applications

- vehicles

- decks

- siding

- patios

- windows

- driveways

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

(Used without word) Indicates a safety related message.

Product Specifications

	Unit Measurement
Motor DC 20V
No Load Speed RPM 220/min
Waterproof Rating IPX7*

*IP Rating: Specifies the environmental protection the product enclosure provides. This product has an IPX7 rating meaning it can withstand immersion in water up to 3 feet (1 meter) for up to 30 minutes.

General Safety Rules

WARNING: Shock Hazard. To protect yourself from electrocution, do not operate within 50 feet (15 m) of overhead electrical lines.

- Never stand directly under the area you are cleaning. Always position yourself out of the path of falling debris.

• Always wear eye and body protection. Wearing body protection helps reduce the risk of injury when operating this unit.
• Never stand on a ladder or other unstable support while using the power scrubber.

Always avoid any position which can cause you to lose your balance and cause severe injury.

- Keep other persons at least 50 feet (15 m) from the work area. Distractions can cause you to lose control.

- Electrocution Hazard. To prevent shock, do not operate within 50 feet (15 m) of overhead electrical lines. Always check surrounding area for hidden electrical lines.

- Do not extend the power scrubber switch handle above shoulder height.

- Keep the handles dry, clean, and free of oil.

- Before you start the unit, make sure the brush is not contacting any object.

- Make sure the brush has stopped before setting the unit down.

- Grip the power scrubber firmly. Hold the scrubber firmly with both hands when the unit is running. Use a firm grip with thumbs and fingers encircling the scrubber handle and pole.

- Do not overreach.

- Keep proper footing and balance at all times.

- Use on firm level ground with good balance

- Keep the working area free from obstructions such as other trees, branches, rocks, fences, stumps, etc. Eliminate or avoid any obstruction that your brush could hit while you are cleaning a particular area.

- Do not immerse in water.

- Avoid overhead power lines.

• Make sure pole collars are tight.

• Always remove battery when storing, servicing, cleaning, changing brushes or extension pole, or transporting.

- Inspect brush for wear, damage or entrapped dirt before use.

- Be sure brush is firmly installed before use.

- Keep hands, feet, and face clear of rotating brushes.

Before Operating Power Scrubber

• For safe operation, read and understand all instructions before using the power scrubber. Follow all safety instructions. Failure to follow all safety instructions listed below can result in serious personal injury.
• Watch what you are doing. Use common sense. Do not operate the power scrubber when you are tired.
• Use the power scrubber for scrubbing only. Do not use the power scrubber for purpose not intended.
• Only well-instructed adults should operate the power scrubber. Never allow children to operate.
• Do not allow children or untrained individuals to use this unit.

- Wear the following safety gear when operating the scrubber:

• footwear with non-skid soles
• safety glasses, goggles or face screen that are marked to comply with ANSI Z87
• you may want to wear rubber gloves. Read and follow manufacturer's instructions on cleaning agent used

• face or dust mask (if working in dusty areas)

• Wear heavy long pants and boots. Do not wear loose fitting clothing, short pants, jewelry of any kind, or go barefoot.

• Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.
• Before scrubbing, always provide the following:

- clear work area

- secure footing

- planned retreat path from falling debris

• Before scrubbing always check that the brush is clean and does not have any trapped dirt, sand or debris as that may scratch the surface being scrubbed.
• Do not scrub with gasoline, solvents, acids, caustics, poisons, oils, flammable liquids or similar products.

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS CAREFULLY BEFORE USING THE UNIT.

WARNING: Some cleaning products contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. When using the power scrubber be sure to read cleaning product labels for any Proposition 65 warnings. Follow directions on container of all such products.

While Operating Power Scrubber

• Stay alert. Use common sense while operating the unit.
• Keep work area clean. Cluttered areas invite injuries.
• Keep children, animals and bystanders at least 50 ft. (15 m) away from the power scrubber. Only the power scrubber user should be in work area.
• Grip the power scrubber securely - one hand on the pole, the other on the handle.
• Before starting the power scrubber, make sure user has firm grip on power scrubber.
• Keep all parts of body away from brush when the power scrubber is running.
• Do not force the power scrubber while scrubbing. Apply light pressure. It will do the job better and safer at the rate for which it was intended.
• Carry the power scrubber from one place to another
• with battery removed
• by holding pole at balance point
• with brush removed
• Do not operate in poor lighting.
• Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces.

• Keep all parts of your body away from any moving part.

• Do not, under any circumstance, use any attachment or accessory on this product, which was not provided with the product, or identified as appropriate for use with this product in this Instruction Manual.

• This appliance is intended for household use and not for commercial or industrial use.
  • Always store the unit indoors.

Do Not Operate Power Scrubber:

• while under the influence of alcohol, medication, or drugs
• where highly flammable liquids or gases are present
• if the power scrubber is damaged, adjusted wrong, or not fully and securely assembled
• while in a hurry
• while in tree or on a ladder
• while on aerial booms, buckets or platforms
• during high winds, stormy weather, or risk of lightning
• if trigger does not turn the power scrubber on and off.
  The brush must stop moving when you depress the off (0) button. If not, remove the battery and have the faulty switch replace by an authorized service center

Specific Safety Rules

- Hold tool by insulated gripping surfaces when performing an operation where the cleaning tool may contact hidden wiring. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber. (CCA)

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

SAVE THESE INSTRUCTIONS

ENgliSh

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

or DC.....direct current

Class I Construction (grounded) .../min.....per minute

BPM.....beats per minute IPM.....impacts per minute

OPM.... oscillations per minute RPM.... revolutions per minute

sfpm .... surface feet per minute SPM .... strokes per minute

A.....amperes

W.....watts

Wh.....watt hours

Ah.....amp hours

or AC......alternating current

or AC/DC....alternatingor direct current

Class II Construction (double insulated)

n_0 .....no load speed n .....rated speed

PSI.....pounds per square inch

earthing terminal

A....safety alert symbol

▲......visible radiation—do not stare into the light

......wearrespiratory protection

...... wear eye protection

wearhearing protection

read all documentation

do not expose to rain

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

- Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

- NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.

- Charge the battery packs only in CRAFTSMAN chargers.

• DO NOT splash or immerse in water or other liquids.

- DO NOT allow water or any liquid to enter battery pack.

- Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.

NOTE: Do not store the battery packs in a tool with

the trigger switch locked on. Never tape the trigger switch in the ON position.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
• Battery liquid may be flammable if exposed to spark or flame.
• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

Storage Recommendations

The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of the charger.

Battery Pack Cleaning Instructions

Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Fuel Gauge Battery Packs (Fig. B)

Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-user application.

Transportation

WARNING: Fire hazard. Do not store, carry, or transport the battery pack so that metal objects can contact exposed battery terminals. For

example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc.,

with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li-ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry-on baggage.

The RBRC® Seal

Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org or call the toll-free number in the RBRC® Seal.

RBRC ^® is a registered trademark of Call 2 Recycle, Inc.

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to work together.
  • These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock or electrocution.

- Do not expose the charger to rain or snow.

- Do not allow water or any liquid to enter charger.

- Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.

- Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.

- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.

- When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords

plugged together, and nameplate ampere rating. If in doubt, use the next heavier gauge.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
Ampere Rating		American Wire Gauge
More Than Not More Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12		Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat.
  Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

- Do not operate the charger with a damaged cord or plug. Have them replaced immediately.

- Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.

- Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

- The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

- Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in the cavity.

Charging a Battery (Fig. C)

1. Plug the charger into an appropriate outlet.
2. Insert and fully seat battery pack 1. Green charging light(s) will continuously blink while charging.
3. Charging is complete when the green charging light(s) remain(s) continuously ON. Battery pack can be left in charger or removed.

WARNING: Only charge batteries in air temperature over 40°C (4.5°C) and below 104°F (40°C).

1. Charger will not charge a faulty battery pack, which may be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s) OFF.

NOTE: Refer to label near charging light(s) on charger for blink patterns.

NOTE: To remove the battery pack, some chargers require the battery pack release button 2 to be pressed.

ENGLISH

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack may charge at a slower rate than a warm battery pack.

The hot/cold pack delay will be indicated by the green light(s) continuing to blink and with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the charging procedure.

Electronic Protection System

Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to be recharged.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65 ^ - 75 ^ ( 18 ^ - 24 ^ ). DO NOT charge when the battery pack is below 40 ^ ( 4.5 ^ ), or above 104 ^ ( 40 ^ ). This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;

b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;

c. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. You may charge a partially used pack whenever you desire with no adverse effect on the battery pack.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Wall Mounting

Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9 mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

NOTE: Do not attempt to mount CMCB101 charger under a bench or table.

NOTE: Only mount CMCB101 charger with the charging lights pointed upward toward the ceiling.

VersaTrack™

WARNING: Do not charge batteries while charger is hung on Trackwall.

CRAFTSMAN chargers, except the CMCB101, can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for further information.

NOTE: The CMCB101 charger is not CRAFTSMAN VersaTrack™ Trackwall compatible.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Remove battery when installing and removing parts and accessories to prevent accidental operation.

WARNING: Always ensure the collar is completely threatened on. Not threading the collar completely on could result in the pole becoming disconnected, creating a hazardous condition and a possible water leakage point. Periodically check the connections for tightness.

- The scrubber may be used with just the power head 3 or with the power head and upper pole 4 together with the base 5 as shown in Fig. D and E.

Attaching Power Head (Fig. D)

1. Align the power head arrow 21 with the base arrow 22.
2. Slide the power head 3 onto the base 5.
3. Turn the power head collar 6 clockwise as seen from above. Ensure the collar is securely tightened. If loose, the product may not function as intended.

NOTE: Do not overtighten the collar. Overtightening may cause damage to the tool.

Attaching Pole and Power Head (Fig. D, E)

1. Align the bottom pole arrow 23 with the base arrow 22.
2. Slide the upper pole 4 onto the base 5.
3. Turn the pole collar 7 clockwise as seen from above (refer to Fig. D). Ensure the collar is securely tightened. If loose, the product may not function as intended.
4. Align the power head arrow 21 with the top pole arrow 24.

5. Slide the power head 3 onto the pole.

6. Turn the power head collar 6 clockwise as seen from above. Ensure the collar is securely tightened. If loose, the product may not function as intended.

NOTE: Do not overtighten the collars. Overtightening may cause damage to the tool.

Attaching Brush (Fig. F)

CAUTION: After installing a brush, ensure it is properly sealed and restrained to prevent the brush from falling off by pulling the brush gently away from the power head 3.

1. Slide the brush 8 onto the brush connector 9.
2. Turn the brush clockwise to secure as shown by the brush lock/unlock arrow 25.
3. To remove brush, turn the brush counterclockwise.

Adjusting Pole Length (Fig. G)

The upper pole 4 length can be adjusted for greater reach by pulling out the extension pole 10.

1. Release the pole latch 14.
2. Slide the extension pole to the desired length.
3. Lock the pole latch.

Adjusting Latch Tightness (Fig. A, G)

The pole latch screw comes set to a default tightness, but over time and continued use, the screw may loosen.

To ensure the pole latch 14 closes securely and the extension pole 10 is securely tightened, it must be set to an appropriate tightness.

NOTE: The pole latch may be open or closed when adjusting.

• To adjust the pole latch tightness, use a screwdriver:

• To tighten, turn the pole latch screw 15 clockwise.
• To loosen, turn the pole latch screw counterclockwise.

Pivoting Power Head (Fig. H)

When using the pole 4, there are five positions for the power head 3 to give you the best angle for the application.
• To set the desired angle, press the pivot button 16 and rotate the power head forward or backward until the pivot button marker 26 lines up with one of the pivot location markers 27. The pivot button must pop back out to ensure the power head is securely seated to avoid damage and injury.

Optional Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this appliance could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

NOTE: Some accessories may not be included in your model. Refer to product packaging for contents. Additional accessories are available at local retailers.

WARNING: Do not use general purpose brushes (black brushes) on painted surfaces.
WARNING: Before using any brush, wash and inspect the brush and bristles for wear and debris. Do not use if bristles are worn or washing does not remove the debris.

	Soft-bristle brush: gray
	Medium-bristle brush: red
	Hard-bristle brush: black
	Hook-and-loop backer: black
	Lambswool cloth: white
	Knit microfiber head: red
	Microfiber pad: gray

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Installing and Removing the Battery Pack (Fig. I)

WARNING: Ensure the tool/appliance is in the off position before inserting the battery pack.

NOTE: For best results, make sure your battery pack 1 is fully charged.

• To install the battery pack into the tool:

1. Lift the battery compartment latch 18.
2. Pull the battery compartment hook 19 out of the base notch 28.
3. Pull the battery compartment 17 away from the base 5.
4. Align the battery pack with the rails inside the battery compartment and slide it in until the battery pack is firmly seated in the tool, and ensure it does not disengage.
5. Close the battery compartment by looping the battery compartment hook over and into the base notch and pushing the battery compartment latch down until it clicks into place.

WARNING: Never operate scrubber with compartment open to keep water away from battery pack.

• To remove the battery pack:

1. Lift the battery compartment latch.
2. Pull the battery compartment hook out of the base notch.

3. Pull the battery compartment away from the base.

4. Press the battery pack release button 2 and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of this manual.

5. Close the battery compartment by looping the battery compartment hook over and into the base notch and pushing the battery compartment latch down until it clicks into place.

Operating

Because this scrubber is powerful, you do not need to apply excessive pressure while operating.

The scrubber works best with a wet and soapy surface. The surface may be first sprayed or soaked with water, and/or detergent, or the scrubber may be dunked into a bucket of detergent that is diluted to the recommended amount on its product label.

• Use with no extensions for lower and contoured surfaces.
• Use with the extension pole 10 for higher surfaces.
• Extend the extension pole for extra-long-reach applications.

Proper Hand Position (Fig. J)

Always be sure your footing and grip are firm before turning the scrubber on.

1. When using just the power head 3 and base 5, hold the scrubber by the base handle 11 with one hand.
2. When using the upper pole 4, hold either the pole grip 12 or pole handle 13 with one hand and the base handle with the other hand.

On/Off Switch (Fig. K)

To avoid splatter from a brush 8, turn the scrubber off while the attachment is still in contact with the surface.

• To turn the scrubber on, press the (l) side of the on/off button 20.
• To turn the scrubber off, press the (O) side of the on/off button.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Power Scrubber Cleaning and Storage

NOTE: Thoroughly clean the brushes before and after each use, and inspect for trapped debris and wear. Replace brush if the bristles are beginning to show signs of wear or if debris in brush cannot be removed.

1. Clean the brushes in a mild detergent, rinse with water and air dry.
2. To clean the scrubber, wipe with a damp sponge or cloth and a mild soap.
3. Store the scrubber and attachments/accessories indoors.

Important: However, should the unit accidentally fall into water without the connections or battery cover tightly in place, shake out loose liquid and allow to air dry overnight while disassembled.

1. Do not store the tool on or adjacent to fertilizers or chemicals.

VersaTrack™ (Fig. L)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: To reduce the risk of serious personal injury, do not use a damaged VersaTrack™ hang hook or VersaTrack™ Trackwall. A damaged VersaTrack™ hang hook or VersaTrack™ Trackwall will not support the weight of the tool.

WARNING: To reduce the risk of serious personal injury, ensure the screw holding the VersaTrack™ hang hook is securely tightened.

WARNING: To reduce the risk of serious personal injury, DO NOT suspend tool overhead or suspend objects from the hang hook. ONLY suspend tool on the VersaTrack™ Trackwall using the hang hook.

WARNING: The VersaTrack™ hang hook is not a book.

WARNING: Ensure that the tool weight does not be used at the maximum rated weight of 20 lb (9 kg) for the selected VersaTrack™ hook.

WARNING: When hanging objects on a VersaTrack™ Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.

NOTE: VersaTrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

Service

• Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.
• When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of electric shock or injury.
• Store in a safe location with battery removed, and out of reach of children.

Troubleshooting

Problem Possible Cause Possible Solution
Unit will not start.	Battery is not installed properly.Battery is not charged.Pole connections not properly tightened.	Check battery installation.Check battery charging requirements.Refer to instruction manual for pole connections.
Battery will not charge.	Battery not inserted into charger.Faulty battery pack, see Charging a Battery section.Battery pack is too cold or too hot, see Charging a Battery section.	Insert battery into charger until red LED appears. Charge up to 9 hours if the battery is totally drained.Return Battery Pack to an authorized service center.Battery Pack Charging will be suspended until the pack has reached an appropriate temperature.
Unit shuts off abruptly.	Battery pack has reached its maximum thermal limit.Out of charge.(To maximize the life of the battery pack, it is designed to shut off abruptly when the charge is depleted.)	Allow battery pack to cool down.Place on charger and allow to charge.
Brush is deformed.	Brushes stored wet in deformed shape.	Rinse the brush thoroughly in hot, running water and allow to hang and air dry.
Brush keeps falling off.	Brush not securely tightened.	Turn the brush fully in the lock direction as marked on the top of the brush.

Repairs

The charger and batteries are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a factory service center or an authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/support.

Two-Year Limited Warranty

For warranty terms, go to https://www.craftsman.com/support/warranty.

To request a written copy of the warranty terms, contact: Customer Service at CRAFTSMAN, 701 East Joppa Road, Towson, MD 21286 or call 1-888-331-4569.LATIN

AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

--- o CD.....corriente directa

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Col. Santa Fe Alvaro Obregon,

Ciudad de Mexico, Mexico.

C.P 01210

TEL[phone]

R.F.C.BDE8106261W7

Registro en Línea

Blocs-piles CMCB201, CMCB202, CMCB204, CMCB2015, CMCB205, CMCB206, CMCB2011

Baterías

Chargers

Chargeurs CMCB100, CMCB101, CMCB102, CMCB104, CMCB1104, CMCB124

Cargadores

* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
* La tension initiale maximum du bloc-piles (mesurée à vide) est de 20 volts. La tension nominale est de 18.
* El máximo voltaje inicial de la batería (medido sin carga de trabajo) es 20 voltios. El voltaje nominal es de 18.

IING: Use of any other battery packs may create a risk of injury and fire.
