K600VI - Musical instrument LEXIBOOK - Free user manual and instructions

Brand	Lexibook
Model	K600VI
Product type	Acoustic drum set for children
Recommended age	5 to 10 years
Included components	Bass drum 8" x 4.5", Tom 8" x 5", Snare drum 8" x 4.5", Cymbal, Pedal, Drumsticks (x2), Drum key, Assembly and tension rods, Legs, Felts, Washers, Wing nuts
Approximate dimensions (assembled)	Approximately 60 x 40 x 50 cm
Approximate weight	Approximately 4 kg
Materials	Wood, metal, plastic
Power source	None (acoustic instrument, no battery or electricity)
Main functions	Play drums, develop rhythm and coordination
Care and cleaning	Relax the heads after prolonged use; store in a dry place; inspect parts regularly
Safety	Assembly by an adult; not suitable for children under 5 years; watch out for sharp parts (cymbal rod); do not use as a toy
Spare parts and repairability	Standard parts available from the manufacturer; repair possible by a professional
Warranty	2 years, covers material and assembly defects, excluding wear and improper use
General information	Designed and developed in Europe, made in China. Ref: K600VI_01

Frequently Asked Questions - K600VI LEXIBOOK

How to assemble the bass drum?

Place the shell, then install the front and back heads with the rims and tension rods. Tighten each rod with the key until there are no wrinkles. Do not overtighten.

What age is recommended for this product?

This product is designed for children aged 5 to 10 years. It is not suitable for children under 3 years due to small parts.

Are batteries or electrical power required?

No, it is a traditional acoustic drum kit. No batteries or electrical connection is needed.

How to attach the cymbal?

Insert a washer and a felt on the cymbal rod, place the cymbal, then add a felt and a washer on top. Screw on the wing nut. Warning: the rod may be sharp before assembly.

What to do if a drum head tears?

The drum heads are consumable parts. You can order replacement heads from the manufacturer or a specialized dealer. Always loosen the tension rods during non-use to extend their lifespan.

How to maintain the drum set?

Store it in a dry place, away from humidity. Loosen the tension rods if not used for a long time. Regularly inspect the parts for any bending or breakage.

Is the drum kit delivered assembled?

No, the product requires assembly by an adult according to the provided instructions. Follow the steps in order (bass drum, legs, tom, snare drum, cymbal).

What accessories are included?

The kit includes: bass drum, tom, snare drum, cymbal, pedal, drumsticks (x2), drum key, assembly rods, tension rods, legs, felts, washers, and wing nuts.

Can I play the drum set without drumsticks?

Drumsticks are essential for proper playing. You can use your hands, but this may damage the heads and reduce sound quality.

How to contact after-sales service?

For warranty claims, call 01 84 88 58 58. For any other questions (pre-sale, usage), call 08 92 23 27 26 (€0.34 incl. tax/min).

USER MANUAL K600VI LEXIBOOK

Black-and-white portrait of a smiling woman holding a book, arms crossed (no visible text or symbols)

www.lexibook.com

LEXIBOOK®

K600VI_01

Mode d'emploi Instruction Manual Manual de instrucciones Bedienungsanleitung

size: 105 x 148mm

Batterie Enfant

Technical line drawing of a drum assembly with three cylindrical chambers and a central rotating drum (no text or labels)

FRANÇAIS

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

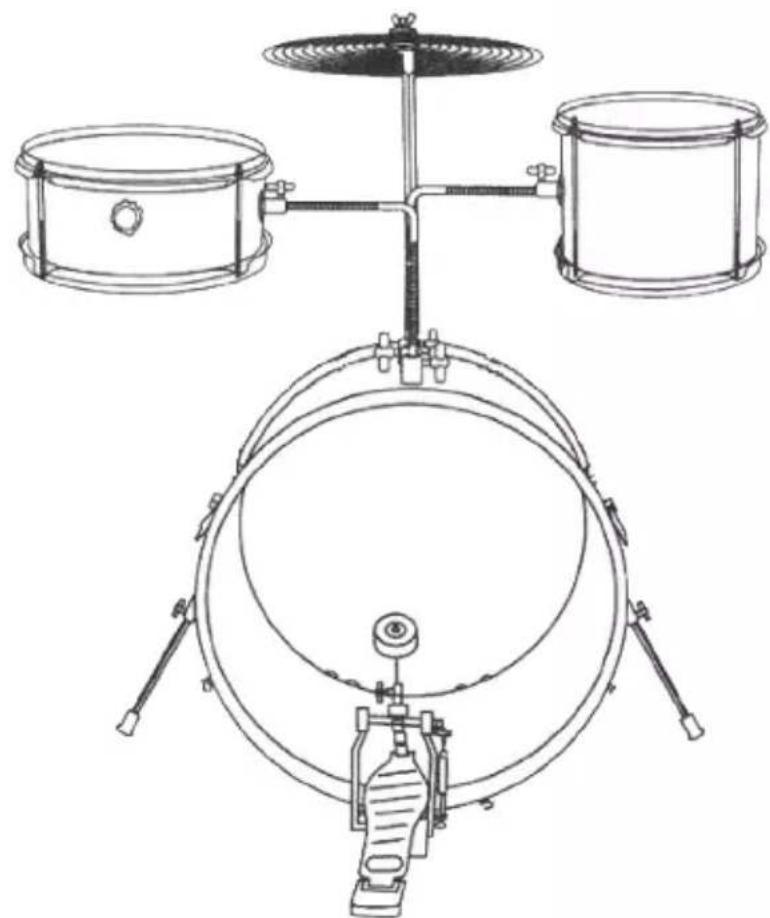

Junior Drum Set

Assembly instruction - Please keep it for future reference.

Technical line drawing of a drum assembly with three cylindrical chambers and a central rotating drum (no text or labels)

HS179NE

Important - Age: 5-10 years

Important - Please read these instructions before assembly or use

These instructions contain important information which will help you better understand your product and make sure it is safe in assembly, use and maintenance.

Safety Information

General safety

• This drum is set for children, not for adult.
- Please follow the age recommendation
• Adult assembly required.
- Please retain all information related to this product for future reference.

Parts

Please make sure you have all the parts and fittings listed below:

ENGLISH

1. 8” x 4.5” Snare drum x 1	8. Bass drum head x 2
2. 8” x 5” Tom drum x 1	9. Bass drum leg x 2
3. Drumstick x 2	10. Bass drum pedal x 1
4. Drum key x 1	11. Pedal beater x 1
5. Bass drum tension rod x 8	12. Cymbal x 1
6. Bass drum shell x 1	13. Cymbal rod x 1, felt x 2, washer x 2, wing nut x 1
7. Bass drum rim x 2	14. Mounting rod x 2

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Assembly instructions

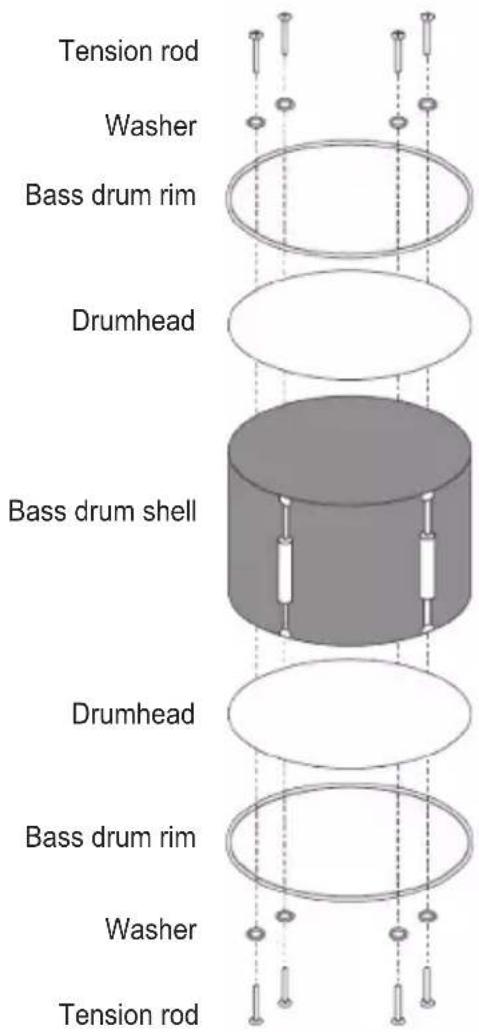

Step 1 - Bass drum

Fit the front and near drumheads. Adjust each one of the tension rods with the key until all wrinkled are gone.

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

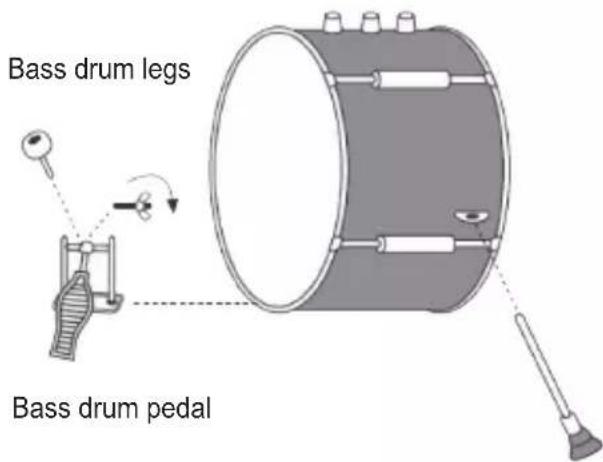

Step 2 - Pedal and bass drum legs

Insert the beater into the bass drum pedal and secure it with wing nut. Insert the bass drum legs into the mountings and adjust the height so that the bass drum is level, then secure the legs with the wing nuts.

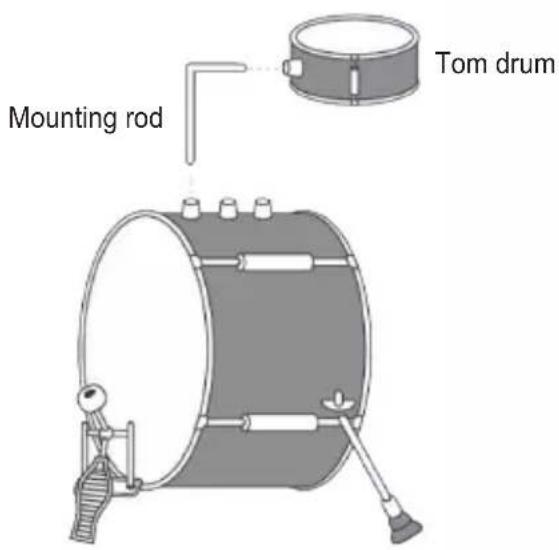

Step 3 - Snare and tom drums

Insert the mounting rod into the tom drum mounting located on the bass drum and secure it with wing nut. Slide the tom drum onto the mounting rod and secure it. Install snare drum the same way

12

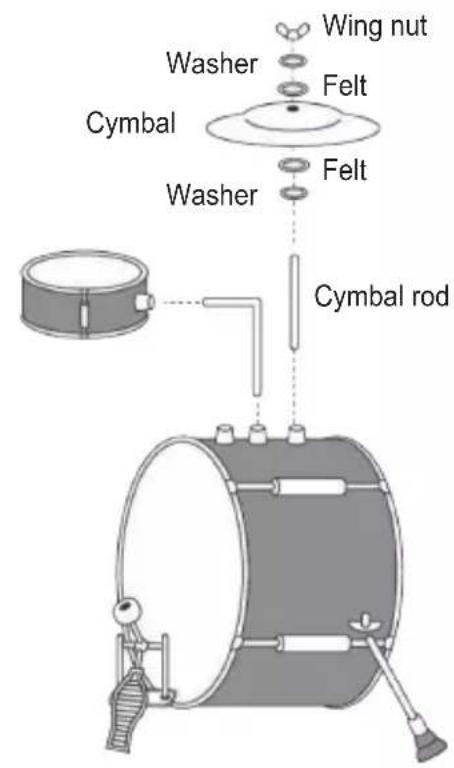

Step 4 - Cymbal

Place a washer and a felt onto the cymbal rod, then place the cymbal over the felt through the cymbal rod and put another felt and washer above the cymbal, then screw up the wing nut.

CAUTION: the cymbal rod has an uncovered sharp edge before mounted. We recommend that this product is assembled under the supervision of an adult.

Care and maintenance

General:

• This drum set was designed and manufactured with quality materials and craftsmanship.
• Please loosen the tension rods to relax the drumheads if you don't play the drum for a long time.
• Keep the drum set in dry position against moisture.

Inspect regularly for:

Bent or broken frame parts.

Moving the drum set:

• Take care when moving the drum set.
- Do not drag this drum set.
- With correct care and maintenance, it will provide users with years of fun and enjoyment.

Warranty

This product is covered by our 2-year warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.).

It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

Reference: K600VI_01

Designed and developed in Europe – Made in China

© 2014 LEXIBOOK®

© Disney

United Kingdom & Ireland

For any further information, please call 0808 100 3015

www.lexibook.com

This product is not a toy.
