USER MANUAL ROADsight Rear 10 Osram

1 Individual special requirements and legislation of the countries must be observed, especially concerning the duration of the records/use and the transfer of data. Please make yourself familiar with the data protection laws of your country and ensure that you comply with them. Please also familiarize yourself and comply with the relevant laws and regulations regarding the use and ownership of dash cameras in your country.

DE/AT: Permanent and occasion-free recordings are not permitted, i.e. no recording of the entire route, license plates or strangers (so-called loop function). When recording an event, e.g. an accident, all parties involved must be informed about the recording and about its transfer to the police. No posting of recordings in public media (Internet, social media) without the consent of all persons concerned or only after disguising the persons and license plates. It must be impossible to draw conclusions about persons, e.g. through pictures of the surroundings.

2 The dashcam must not be fitted in a position which obscures the driver's view of the road behind.
3 Only use the supplied power adapter, otherwise damage may occur to the dashcam. Take care when cleaning the dashcam lens and only use a suitable lens cleaner and a soft cloth. Do NOT expose this product to rain, moisture or water under any circumstances; doing so may result in the risk of electric shock or fire. Do NOT perform servicing other than that contained in the instruction manual, unless you are qualified to do so. When installing in a vehicle, always place the device securely against the windscreen and where possible conceal the power cable under the vehicles interior trim. Make sure that the power cable doesn't interfere with the driver's controls such as the steering wheel, pedals or gear lever. Do NOT mount the dashcam in front of an airbag deployment area or in a position to obscure any interior mirrors. Do NOT operate while driving and only adjust settings or review recordings while not driving.

BEFORE YOU BEGIN

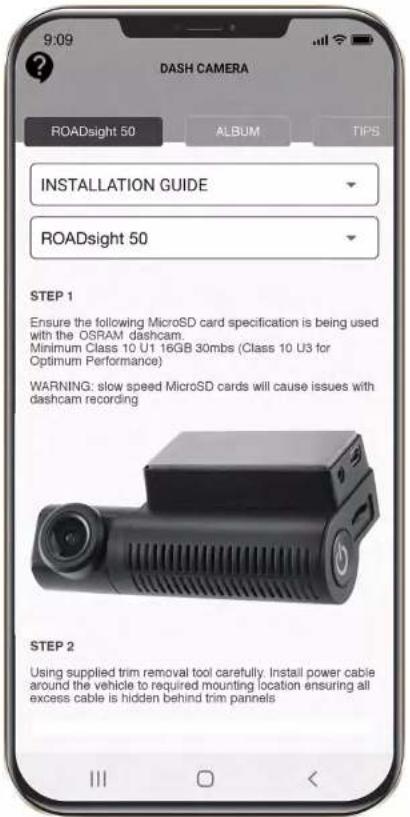

If you haven't already downloaded the app, do so now to get the most from your dashcamera.

As the OSRAM ROADsight 10 rear camera needs to be paired with the OSRAM ROADsight 50 dashcam to operate, please download the app by searching for OSRAMconnect in the App Store (iPhone) or Google Play (Android).
2 Open the app, follow the setup process shown and enable all necessary settings when prompted.

OSRAM

PACKAGE CONTENTS

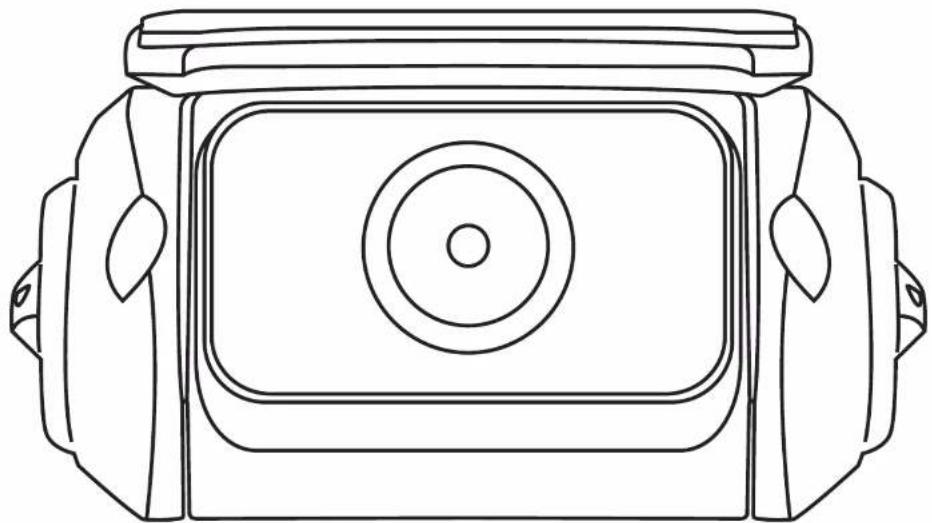

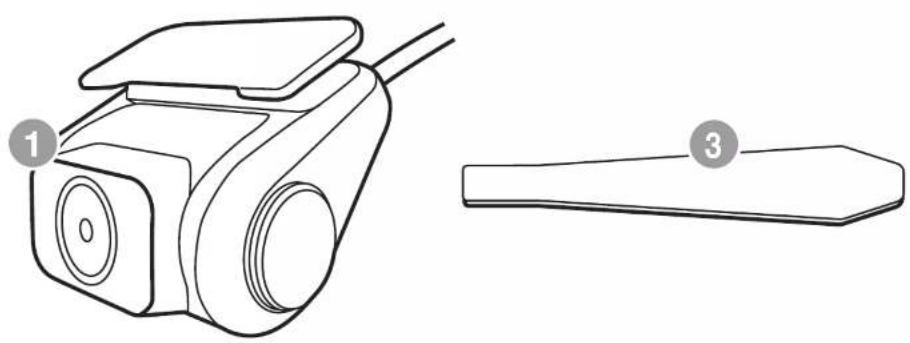

1 Rearcam

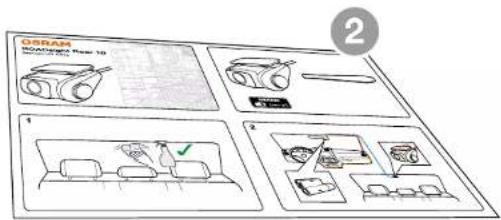

2 Quick Start Guide
3 Trim Removal Tool
4 Window Sticker

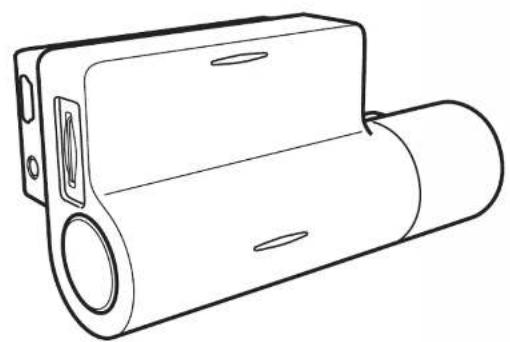

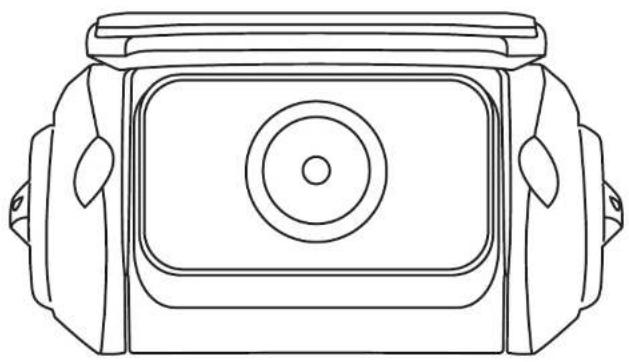

PAIR WITH DASHCAM OSRAM ROADsight 50

The OSRAM ROADsight 10 rear camera needs to be paired with the OSRAM ROADsight 50 dashcam to operate.

Compatible only with the OSRAM ROADsight 50 dashcam.

+

INSTALL GUIDE

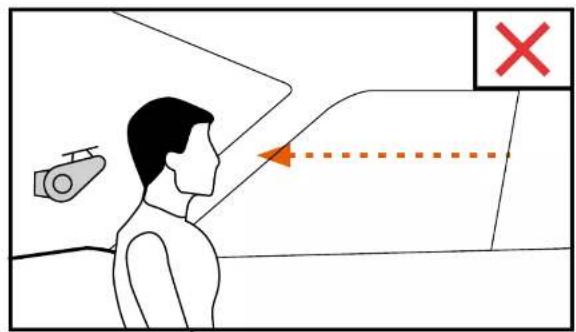

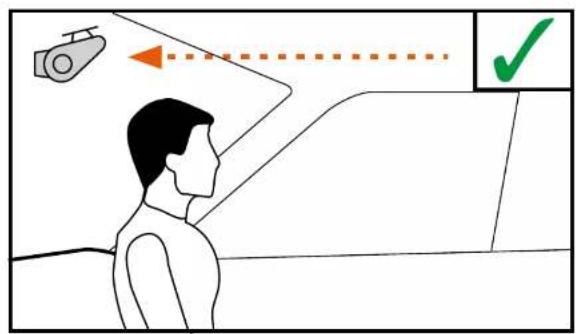

PLACING REAR CAMERA

To ensure a proper viewing angle of the road behind your vehicle place the rear camera towards the top of your rear window. Giving the rear camera an unobstructed view of the road.

INSTALLING REAR CAMERA

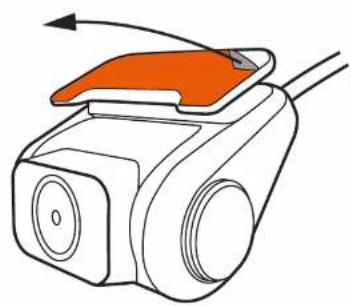

ATTENTION! Choose the installation location in advance, as the adhesive tape on the mount is of single use.

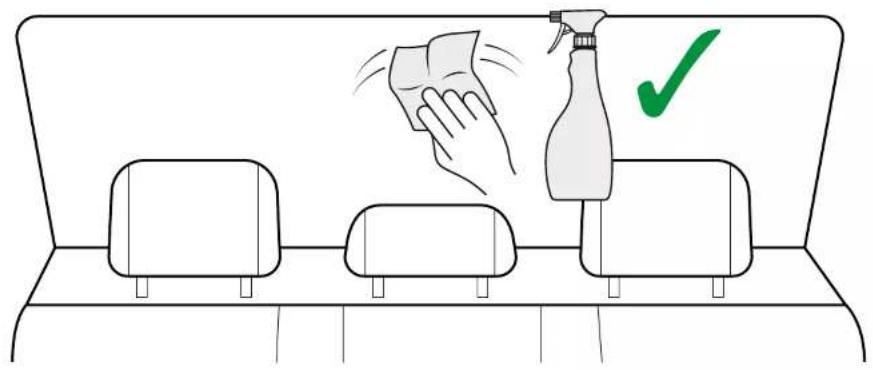

1 Ensure glass is dirt, dust and grease free.
2 Warm adhesive pad part of mount in hands to ensure strong adhesion to glass.

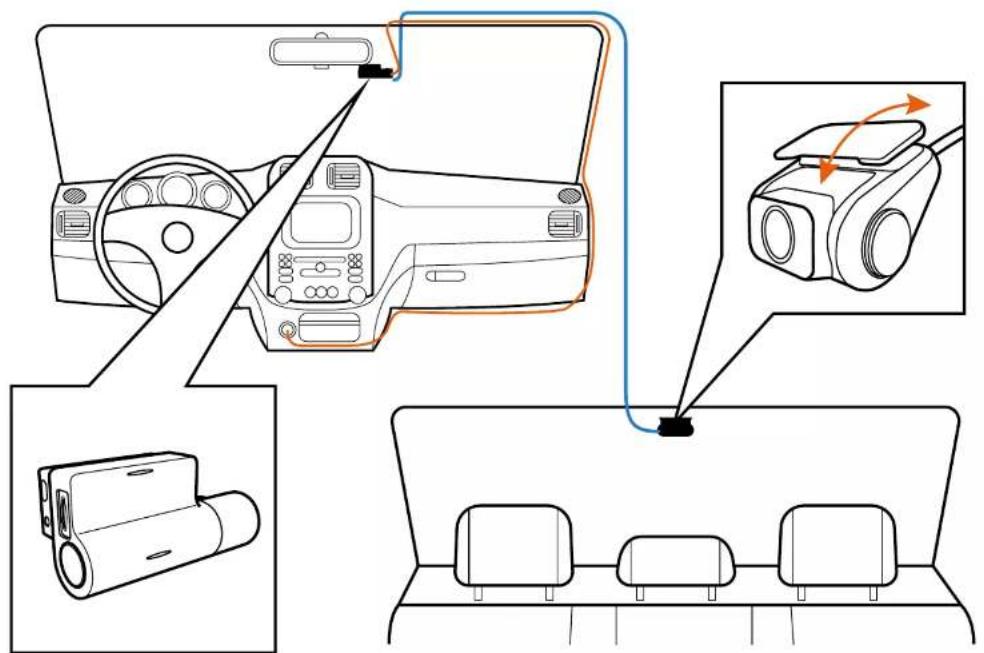

To power the device, connect the power cable to the OSRAM ROADsight 50 dashcam mount. When the vehicle's engine starts, the device turns on automatically.

OSRAM ROADsight 50

ADJUSTING VIEWING ANGLE

ATTENTION! Adjusting the viewing angle can only be done along the vertical axis, so be sure to position the device correctly on the windshield along the horizontal axis as close as possible to the windshield's center.

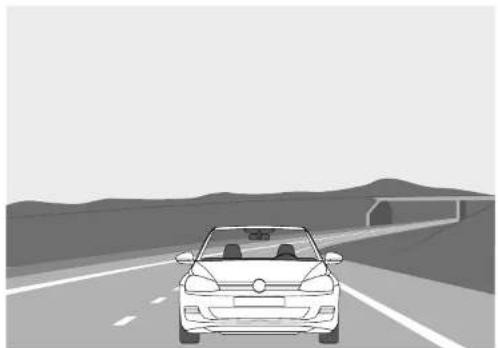

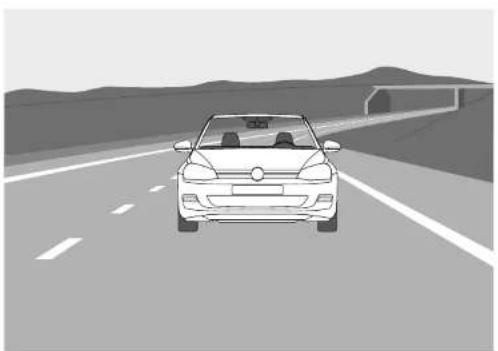

While pulling or pushing the device in the holder, ensure that the camera captures the image in proportions of 30% sky / 70% road.

Good Bad

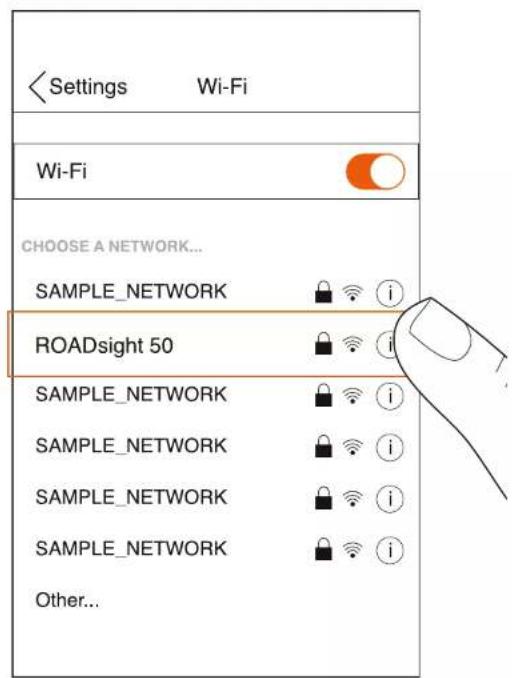

CONNECTING TO MOBILE

1 Switch on dashcam.
2 Your camera automatically broadcasts a Wi-Fi network.
3 Open your phone's Settings.
4 Tap on Wi-Fi or Connections.
5 Select the dashcam hotspot and enter the password "12345678".
6 You are now connected to your device.

Check if there is enough free space on the micro SD card.

RECORDING HAS STOPPED

Too many video files stored. Only use at least class 10 U1 high-speed micro SD cards by proven manufacturers.

When you try to view a photo/play a video file, the "wrong file" message appears.

File writing failure due to micro SD card file system error. Format the micro SD card.

BLURED IMAGE

Ensure removal of lens sticker. Check for dirt on the lens. If there is any, wipe the lens with a soft cloth before use (it is recommended to use special care products for the optics in order not to damage the surface of the lens).

POWER REQUIREMENTS

ATTENTION! Once there is no external power input, the battery cannot support recording for a long time, please make sure power supply is connected when recording.

Input voltage: 5V DC, 1.5A

Charging input voltage: 12-24V DC

Auxiliary cable for Power

OPERATING TEMPERATURES (all models)

Storage temperature: -20^ to 70^

Operating temperature: -10^ to 60^

PLEASE RECYCLE YOUR SPENT BATTERIES

Batteries should not be disposed of in unsorted municipal waste, but separately collected to facilitate the correct treatment and recycling of the substances they contain. The recycling of batteries ensures the recovery of these valuable materials and prevents any potentially harmful effects upon both the environment and human health.

OSRAM

ROADsight 10

Dashcam HD 1080p
