Product type	Pellet stove
Brand	Edilkamin
Model	FANTASY
Dimensions (W x D x H)	68 x 53 x 115 cm
Weight (with packaging)	271 kg
Power supply	230 V ~ 50 Hz, 100 W (average), 400 W (ignition)
Nominal heat output	13.2 kW
Reduced heat output	5.1 kW
Efficiency	92.5 – 93.3 %
Fuel	Wood pellets Ø 6 mm, length ≤ 40 mm, humidity ≤ 8 %
Hopper capacity	23.5 kg
Autonomy	7 – 19 hours
Flue pipe diameter	80 mm (male)
External air intake diameter	40 mm (male)
Control system	Leonardo® – automatic combustion control
Functions	Automatic ignition, timer programming, remote control, Comfort/Turbo mode
Safety devices	Thermocouple, vacuum gauge, safety thermostat, fuses
Routine maintenance	Daily cleaning of the brazier and ash drawer, weekly vacuuming
Warranty	Subject to commissioning by an authorized Edilkamin dealer
Spare parts	Brazier, ignition resistor, door gasket, remote control, electronic boards

Frequently Asked Questions - FANTASY EDILKAMIN

How to ignite the Edilkamin FANTASY stove?

Press the 0/1 button for 2 seconds. The automatic ignition procedure starts. If the temperature is below 3 °C, use a firelighter in the brazier.

What type of pellets to use?

Use wood pellets of 6 mm diameter, maximum length 40 mm, humidity below 8 %. Certified quality is recommended.

What to do if the stove displays 'Verific. flux air'?

Check the door seal, cleaning of the brazier, combustion air intake, and flue gas evacuation. Clean the flow sensor with dry air.

What is the recommended cleaning frequency?

Clean the brazier and ash drawer daily. Perform a complete cleaning of the firebox and flue pipe every 3 months with intensive use, and at least once a year.

How to adjust the room temperature?

Switch to Automatic mode by pressing the M button, then adjust the desired temperature with the +/- buttons. The stove automatically modulates its power.

What does the display 'Stop Flamme' mean?

This indicates that the flame has gone out. This may be due to a lack of pellets, an excess of pellets smothering the flame, or poor fuel quality. Check the hopper and clean the brazier.

Can I use an external room thermostat?

Yes, connect a dry contact thermostat to the rear serial port (cable optional). The stove automatically recognizes it and manages ignition/extinction.

How to program a delayed ignition?

Use the remote control: press the A button, set the number of hours (1 to 12) with +/- and confirm by pressing and holding A. The stove will ignite after this delay.

What is the maximum autonomy of the stove?

With a full hopper of 23.5 kg of pellets and operating at reduced power, the autonomy can reach 19 hours.

What to do in case of a chimney fire?

Unplug the power supply, use a CO2 extinguisher, call the fire department. Do not use water. Have the appliance checked by an authorized technician.

USER MANUAL FANTASY EDILKAMIN

UK Installation, use and maintenance

F Installation, usage et maintenance

Close-up of a mechanical component with wires and connectors, no visible text or symbols

CARATTERISTICHE

CARATTERISTICHE TERMOTECNICHE ai sensi EN 14785
	Potenza Nominale Potenza Ridotta
Potenza termica 13,2 5,1 kW
Rendimento / Efficenza	92,5	93,3	%
Emissione CO al 13% O_2	0,019	0,038	%
Temperatura massima fumi	96	70	°C
Tiraggio minimo	12 - 5	10 - 3	Pa
Portata in Massa dei fumi	13,5 7,4	g/s
Consumo combustibile	3	1,1	kg/h
Capacità serbatoio	23,5		kg
Autonomia	7	19	ore
Volume riscaldabile *	345 m		^3
Diametro condotto fumi (maschio)	80 mm
Diametro condotto presa aria (maschio)	40 mm
Peso con imballo FANTASY / FATA / SIRENA / STORY	271 / 248 / 248 /230		kg

Close-up of a computer tower with labeled component '29' and part identifier 'fi g. 2' (no readable text or symbols beyond labels)

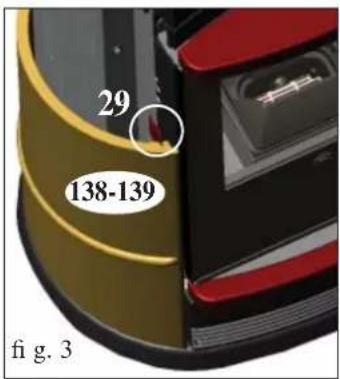

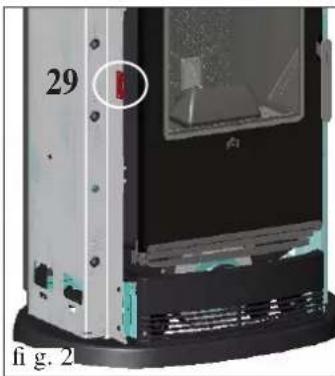

29 138-139 fi g. 3

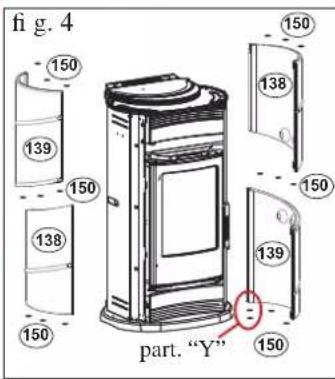

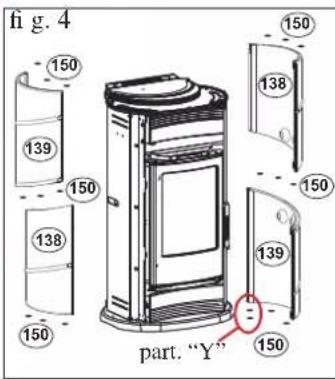

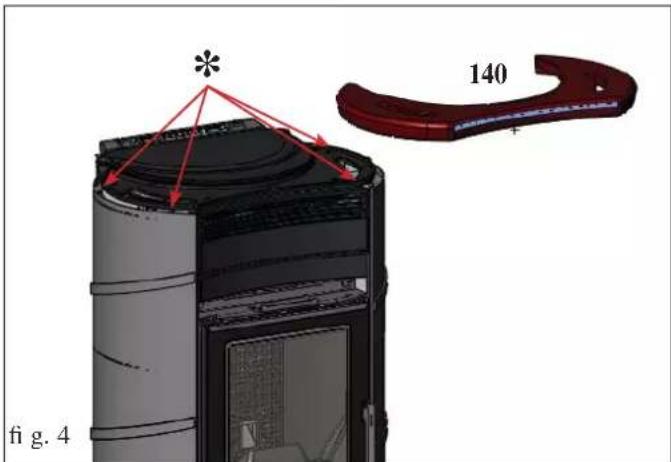

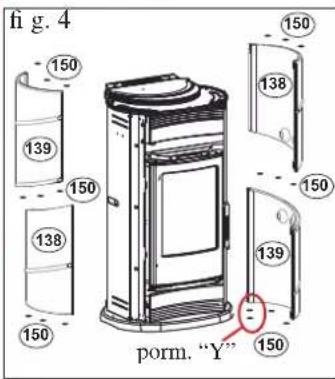

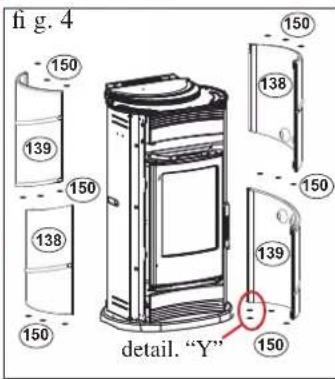

fi g. 4 150 139 150 138 150 138 150 139 part. "Y" 150

Close-up of water bubbles and submerged objects in a container (no text or symbols visible)

Close-up of a hand applying a white substance to a smooth, curved surface (no text or symbols visible)

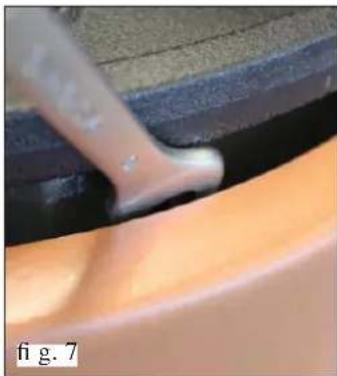

Close-up of a metallic mechanical component with a hole and mounting holes (no visible text or symbols)

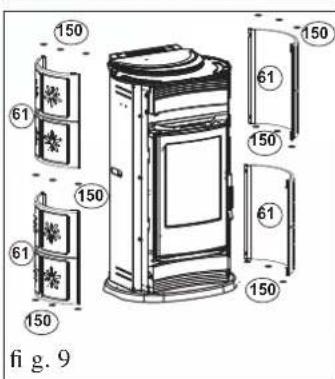

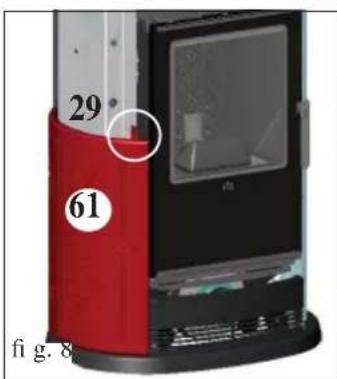

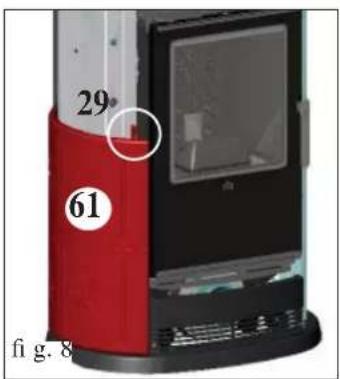

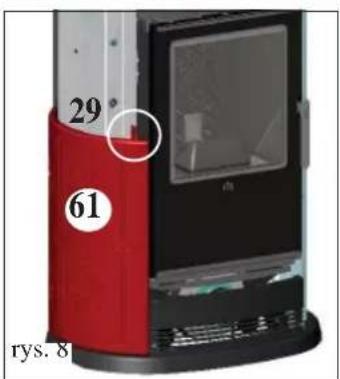

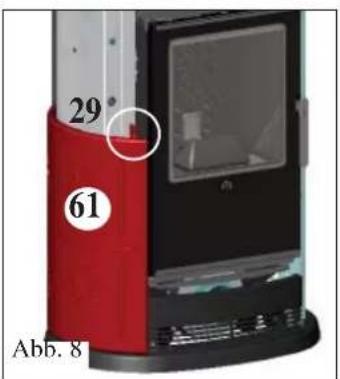

29 61 fi g. 8

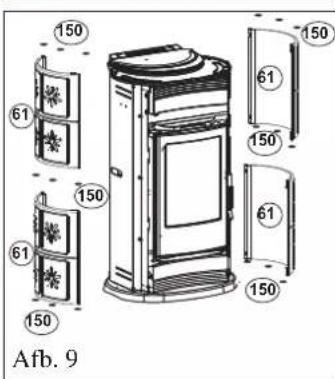

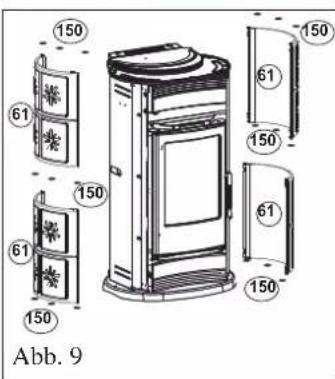

150 61 150 61 150 61 150 61 150 fi g. 9

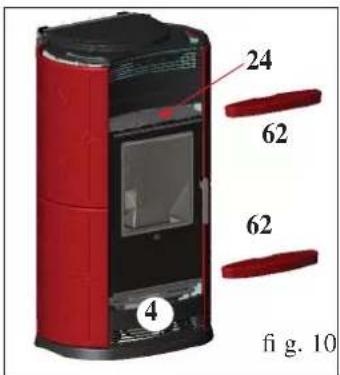

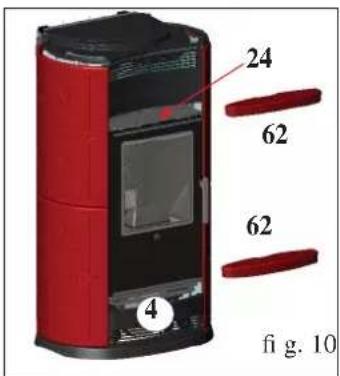

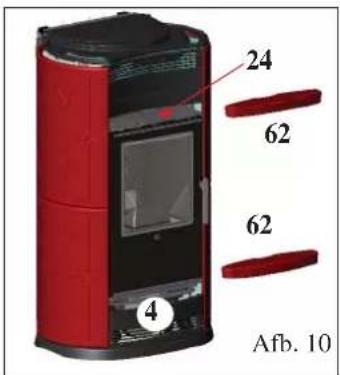

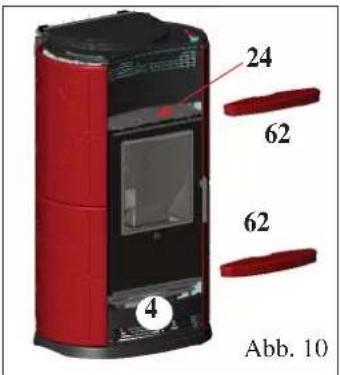

24 62 62 4 fig. 10

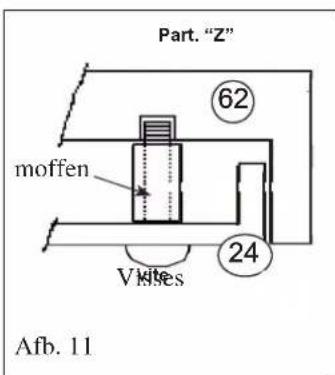

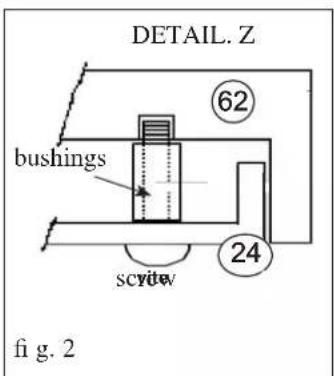

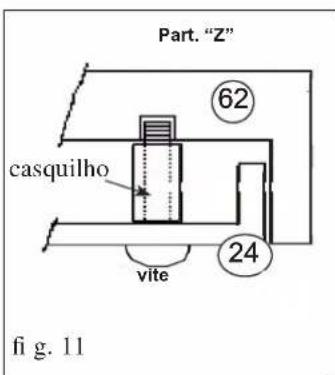

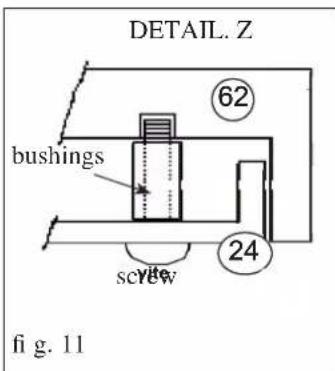

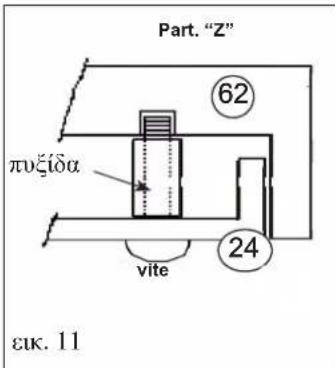

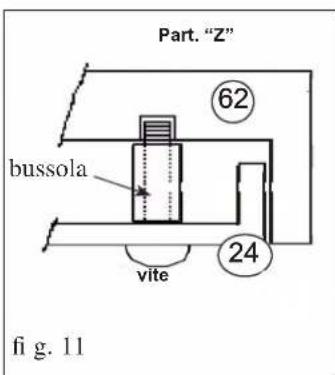

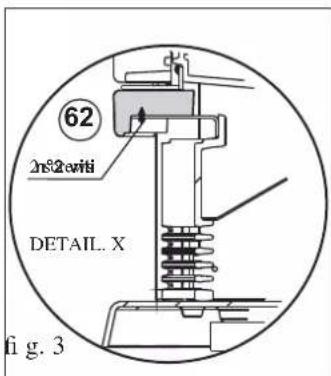

Part. "Z" bussola 62 vite 24 fi g. 11

Red robotic vacuum cleaner with open lid and control panel (no visible text or symbols)

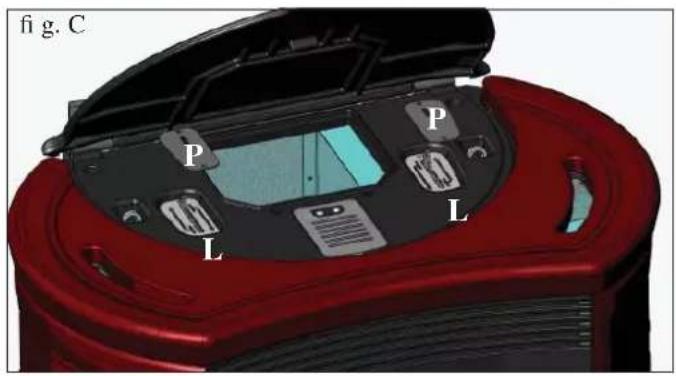

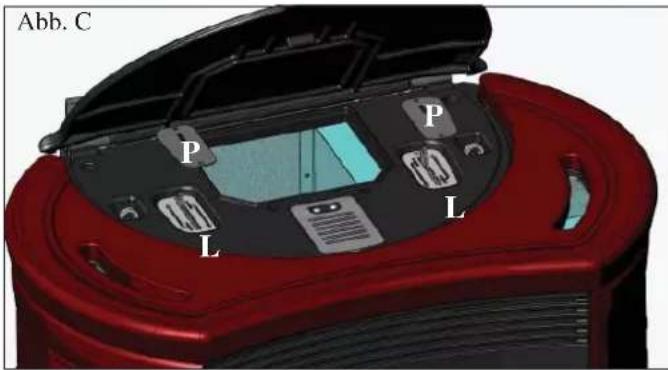

fig. C P P L L

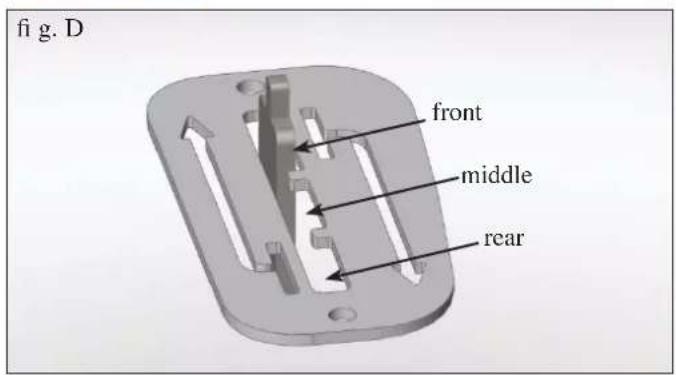

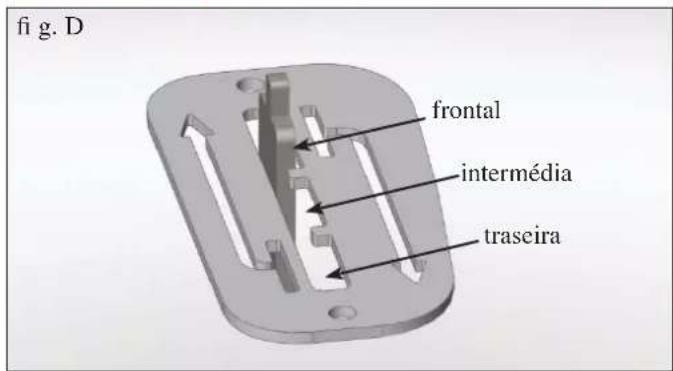

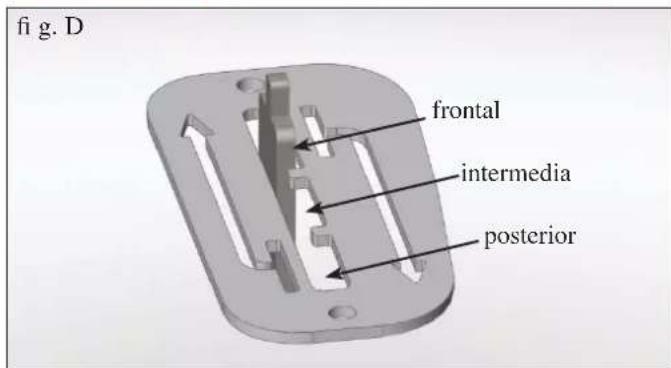

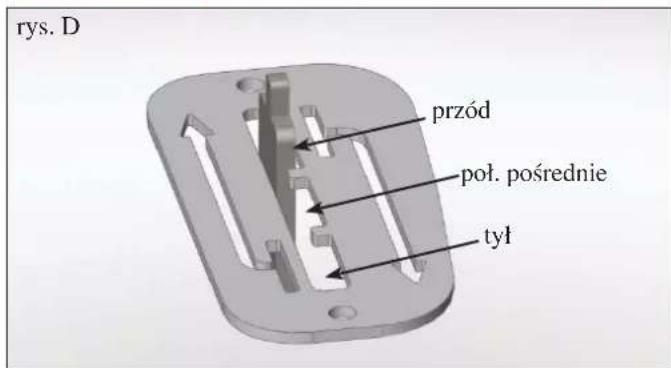

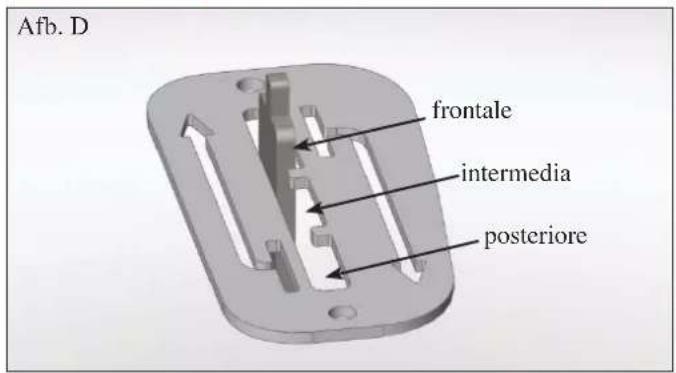

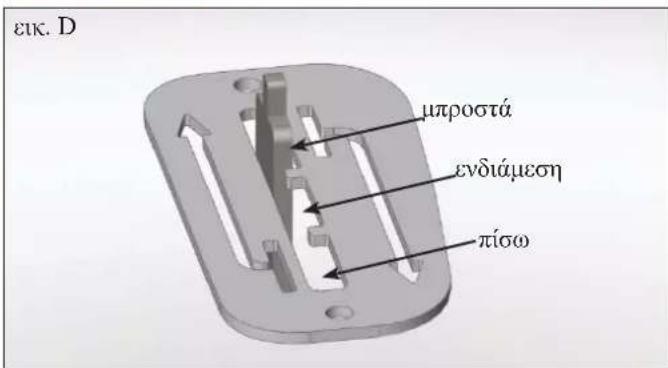

fi g. D frontale intermedia posteriore

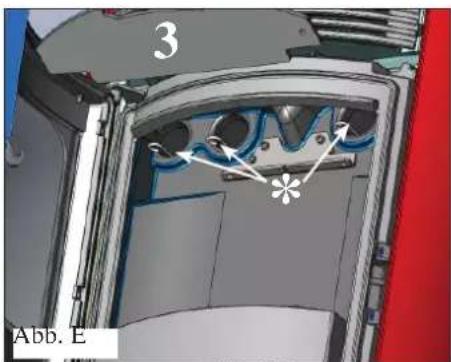

fig. E

Technical diagram of a mechanical assembly with red arrows indicating flow or movement, no visible text or symbols

INSTALLAZIONE

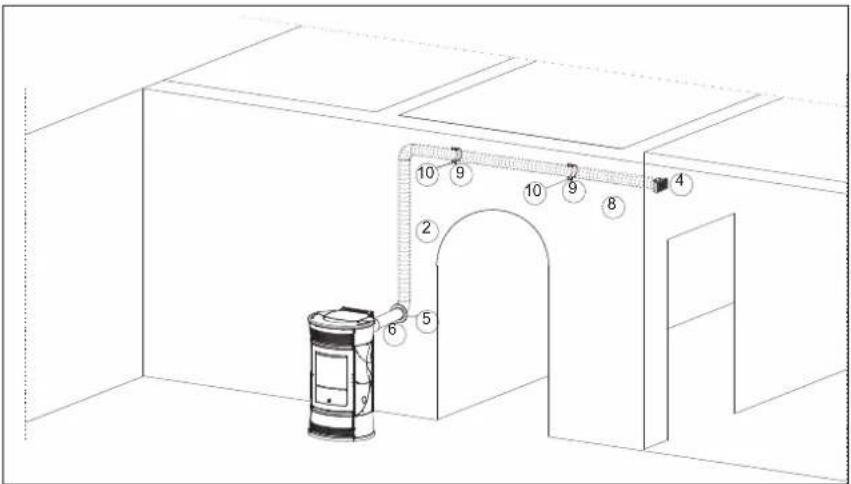

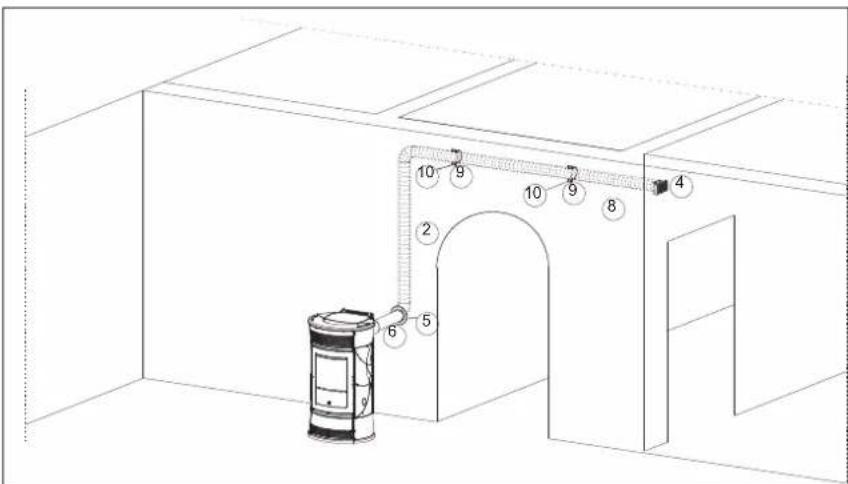

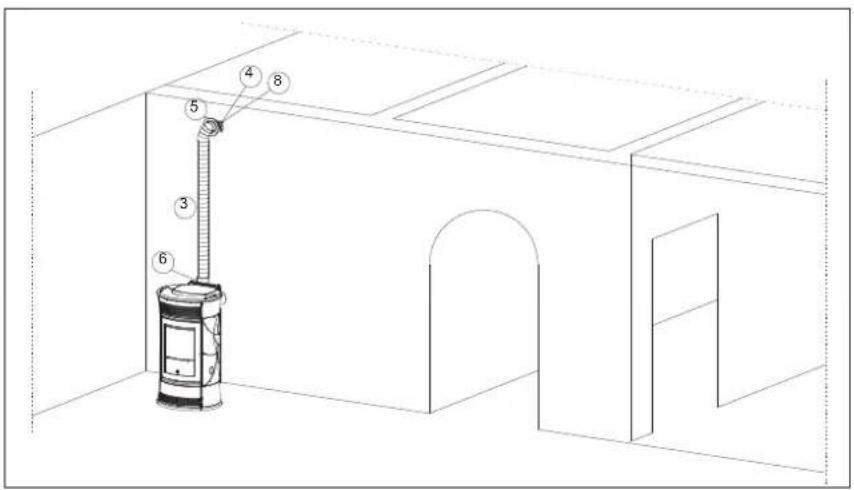

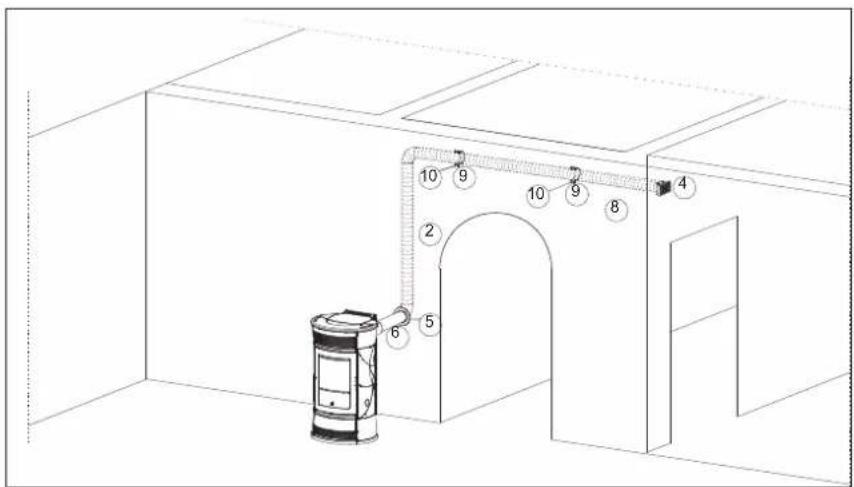

1° SOLUZIONE: KIT 11 (cod. 645700) - SOLO LOCALE ATTIGUO

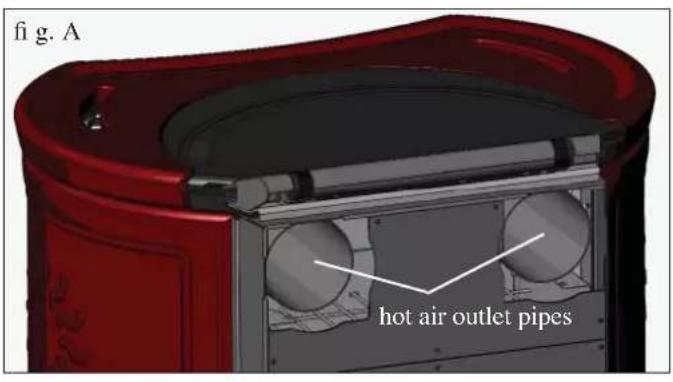

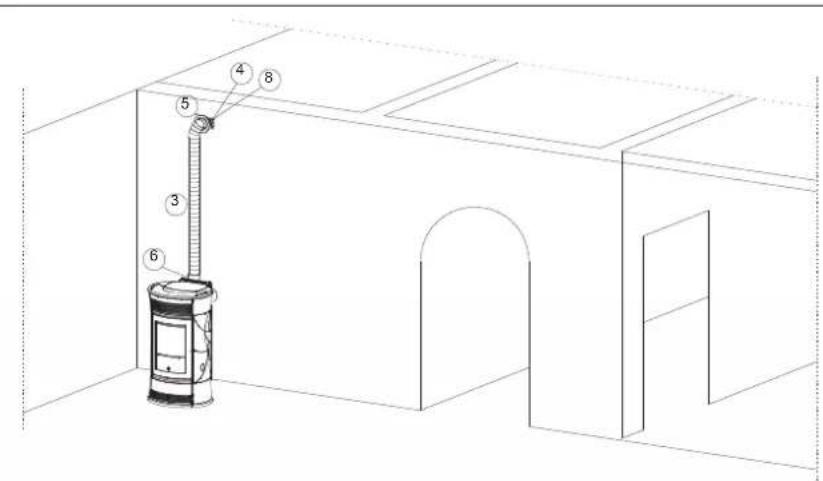

N.B.: I TUBI SUI BOCCHETTONI USCITA ARIA CALDA DEVONO ESSERE CALZATI PRIMA DI APPLICARE IL RIVESTIMENTO E PREVIO SMONTAGGIO DEL FIANCHETTO LATERALE SUPERIORE IN GHISA. LA PARTE INIZIALE DEL TUBO FLESSIBILE DEVE ESSERE “DISTESA” COMPLETAMENTE IN MODO DA ELIMINARE IL CORRUGAMENTO; IN TAL MODO IL DIAMETRO INTERNO SI ALLARGHERA’ SENSIBILMENTE FAVORENDO L’IMBOCCO.

Technical diagram showing a mechanical assembly with labeled components and directional arrows

fig. c

Technical diagram of a piping system with labeled components and airflow paths

fig.d

Technical diagram of a ventilation system with numbered components and airflow paths

fig. b

132 132 133 13

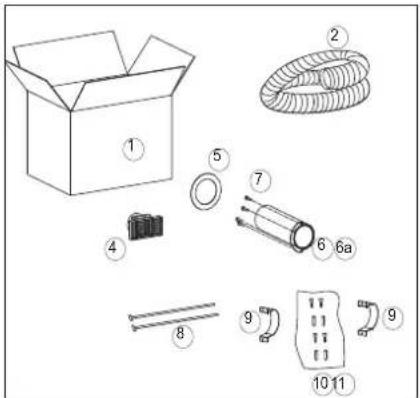

Exploded view diagram of a cardboard box with numbered parts for identification

Technical diagram showing a vertical scale with numbered components mounted on a wall, likely for measurement or installation instructions.

Technical diagram showing a mechanical assembly with labeled components and directional arrows

fig. c

Technical diagram of a ventilation system with labeled components and airflow paths

fig.d

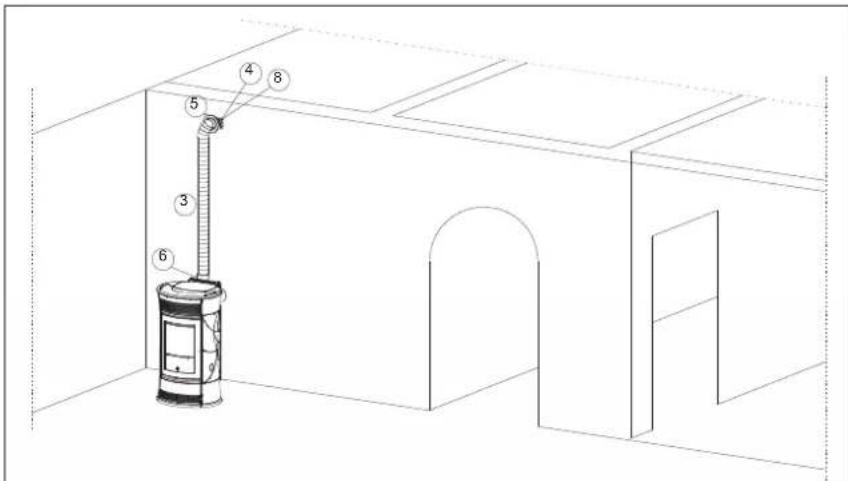

Technical diagram of a building interior with numbered components and airflow paths

fig. b

132 132 133 13

Diagram showing exploded view of a mechanical assembly with numbered parts including a box, coiled spring, and various components.

Technical diagram showing a pipe installation with numbered components and a trash bin, likely for safety or ventilation instructions.

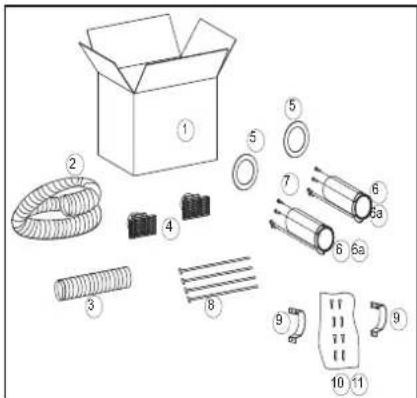

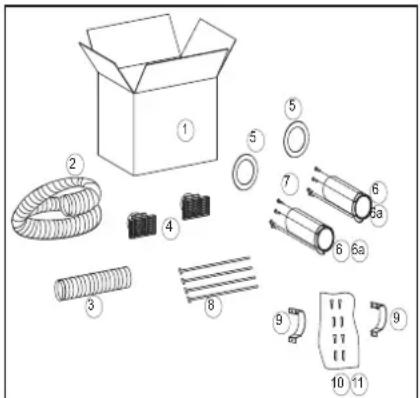

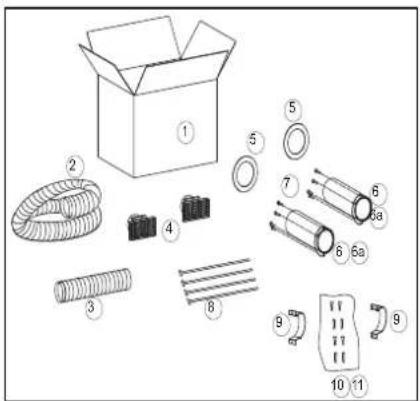

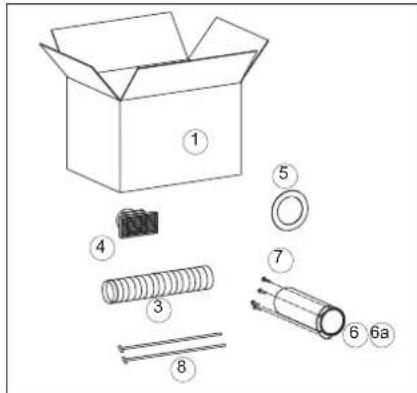

		n° KIT 11	BIS

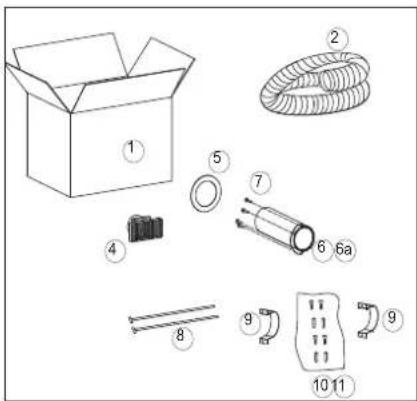

1 Scatola 1 643910
2 Tubo ∅ 10 1 643900
4 Bocchetta terminale 1 293430
5 Rosone a muro 1 644190
6a Copricanna 1 645730
7 Viti fi ssaggio copricanna 4 168260
8 Fascetta bloccaggio tubi 2 46160
9 Collare a muro		2 645750
10 Viti		4	8410
11 Tasselli		4	8520

INSTALLAZIONE

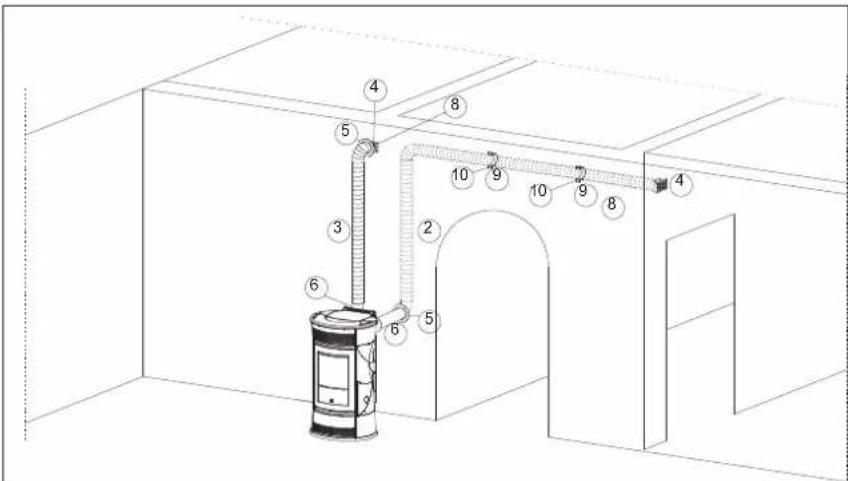

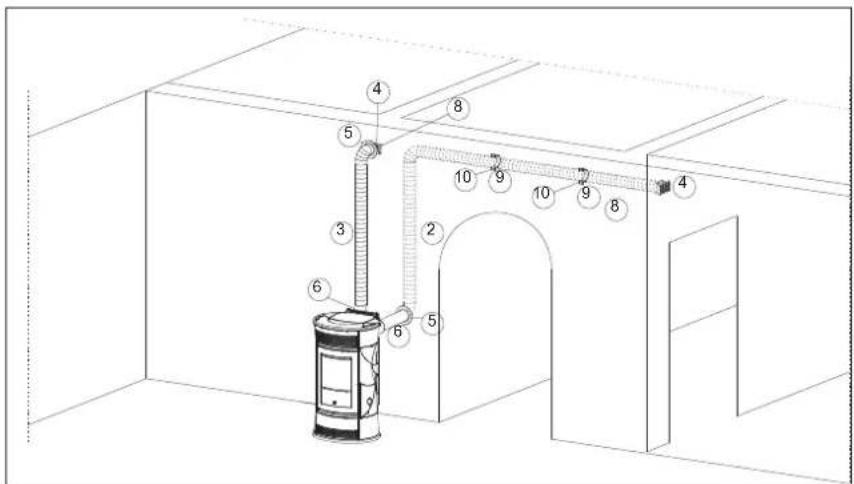

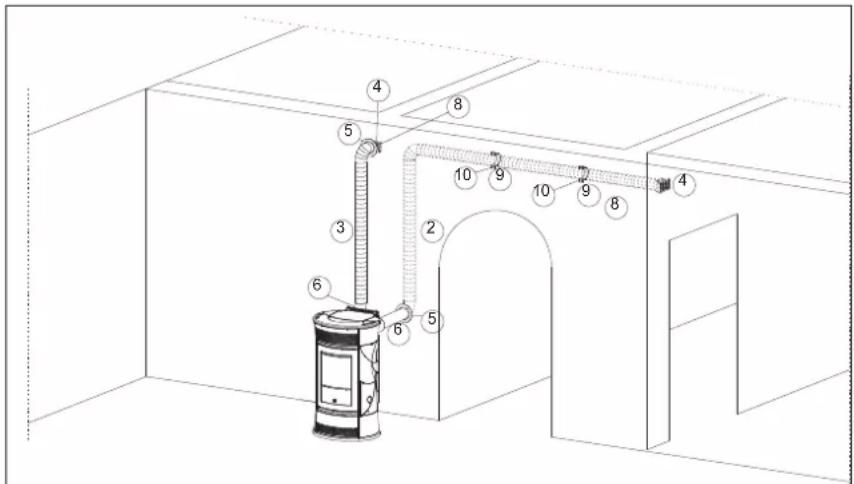

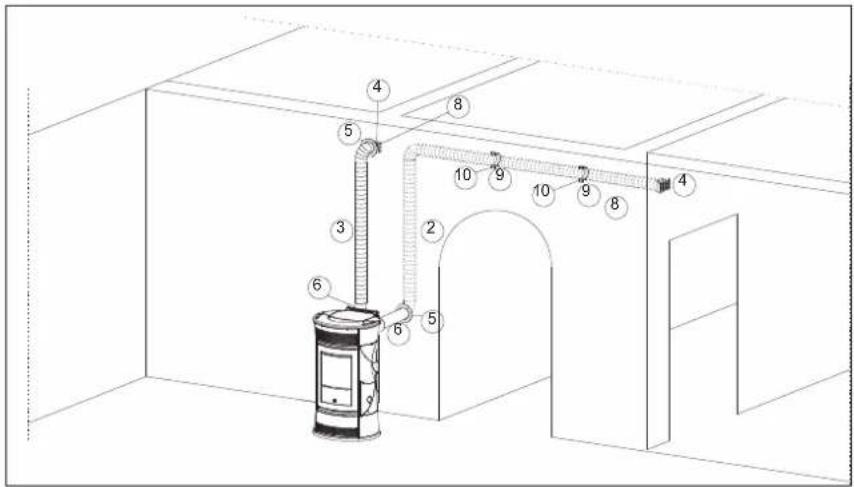

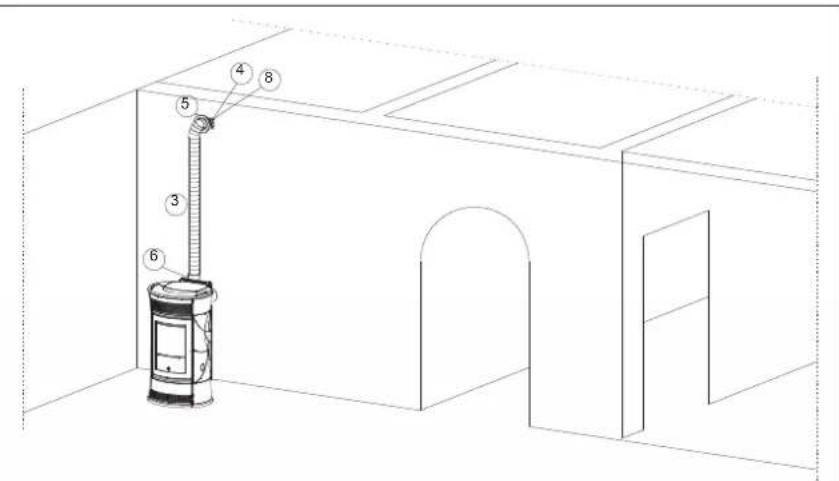

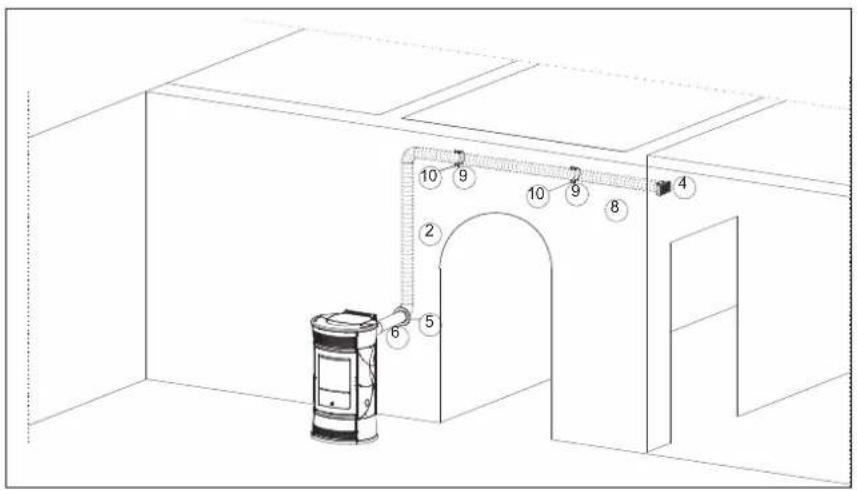

3° SOLUZIONE: KIT 11 (cod. 645700) con KIT 11 BIS (cod. 645710) - ENTRAMBI I LOCALI

N.B.: I TUBI SUI BOCCHETTONI USCITA ARIA CALDA DEVONO ESSERE CALZATI PRIMA DI APPLICARE IL RIVESTIMENTO E PREVIO SMONTAGGIO DEL FIANCHETTO LATERALE SUPERIORE IN GHISA. LA PARTE INIZIALE DEL TUBO FLESSIBILE DEVE ESSERE “DISTESA” COMPLETAMENTE IN MODO DA ELIMINARE IL CORRUGAMENTO; IN TAL MODO IL DIAMETRO INTERNO SI ALLARGHERA’ SENSIBILMENTE FAVORENDO L’IMBOCCO.

Technical diagram showing a mechanical assembly with labeled components and cross-sectional views

fig. c

Technical diagram of a piping system with labeled components and flow paths

fig.d

Technical diagram of a ventilation system with numbered components and airflow paths

fig. b

132 132 133 13

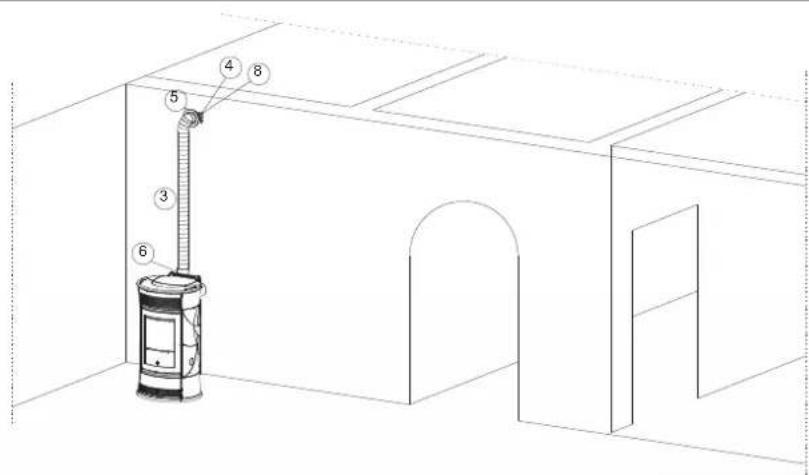

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a fire extinguisher installation with numbered components and labeled parts

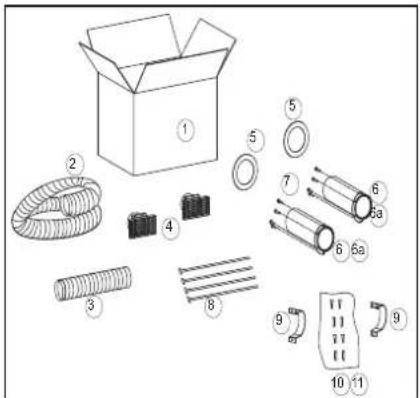

		n° KIT 11 KIT 11 BIS
1 Scatola 1 645740 643910
2 Tubo ∅ 10 1 - 643900
3 Tubo ∅ 10 1 162520 -
4 Bocchetta terminale 2 293430 293430
5 Rosone a muro 2 644190 644190
6a Copricanna		2 645730 645730
7	Viti fissaggio copricanna	8	168260	168260
8	Fascetta bloccaggio tubi	4	46160	46160
9 Collare a muro		2	-	645750
10	Viti	4	-	8410
11	Tasselli	4 -	8520

ISTRUZIONI D'USO

Red and black robotic vacuum cleaner with open lid and internal compartments (no visible text or symbols)

fig. 1

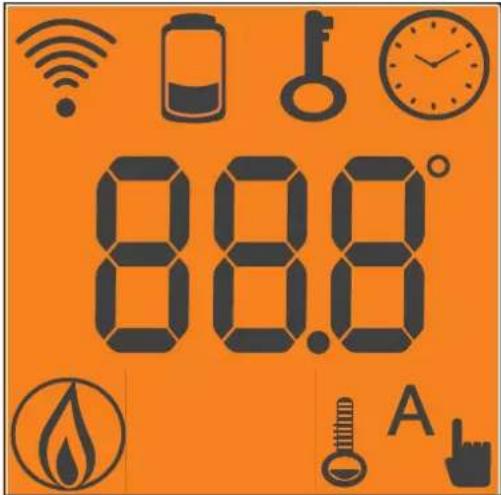

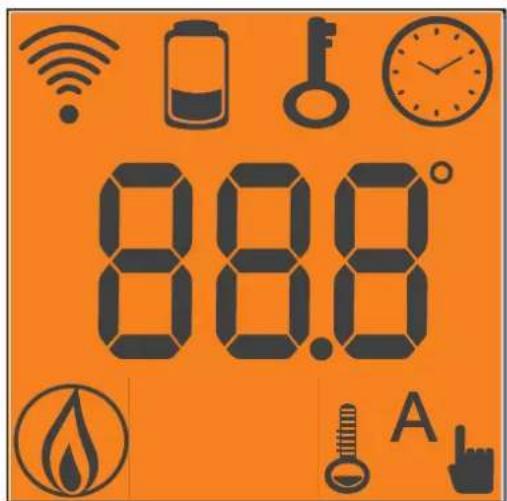

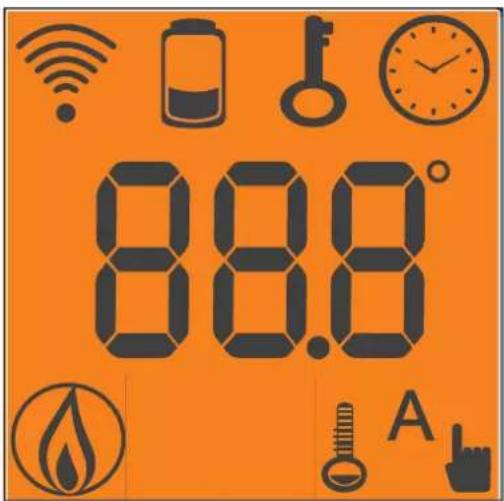

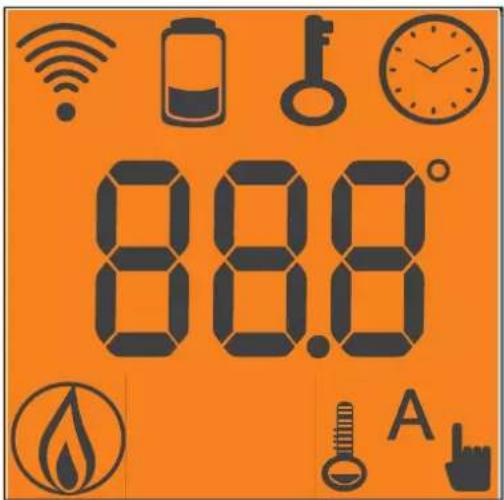

Control panel interface with icons for display, battery, and function buttons

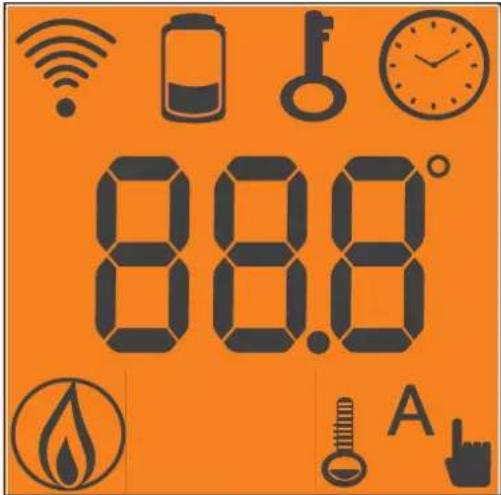

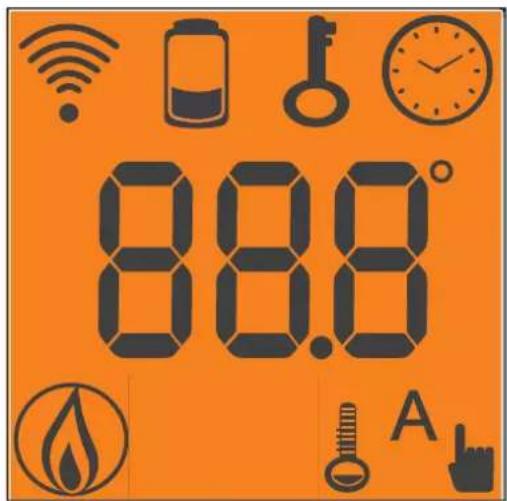

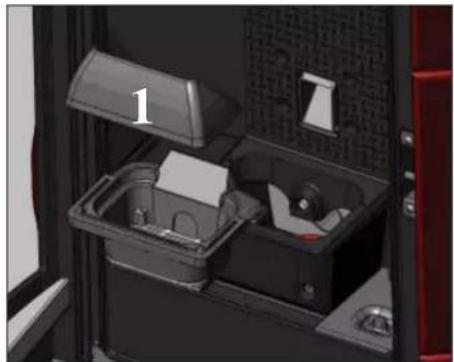

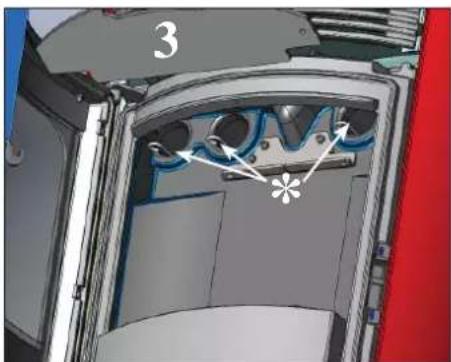

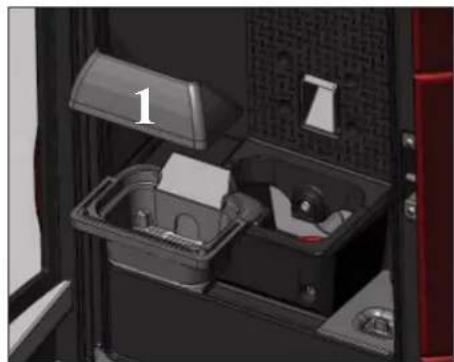

Riempimento coclea.

Close-up of a black handheld electronic device with a green display screen and control buttons (no readable text or symbols)

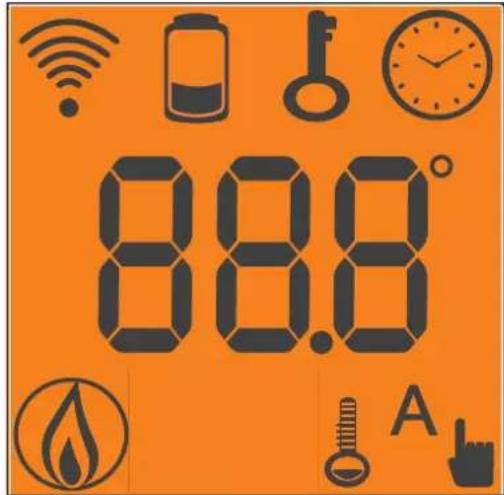

88.8° A

3D rendering of a red appliance interior showing internal components and a decorative handle with two asterisks (no text or symbols)

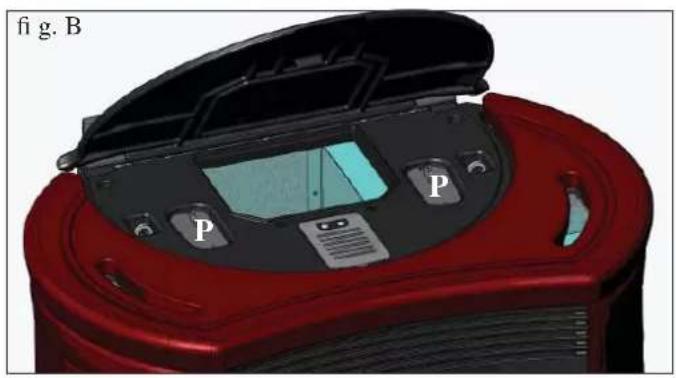

fig.B

Interior view of a refrigerator with open storage compartments and numbered items (no visible text or symbols)

fig.C

Interior view of a red industrial machine with labeled components (no readable text or symbols)

fig. D

3

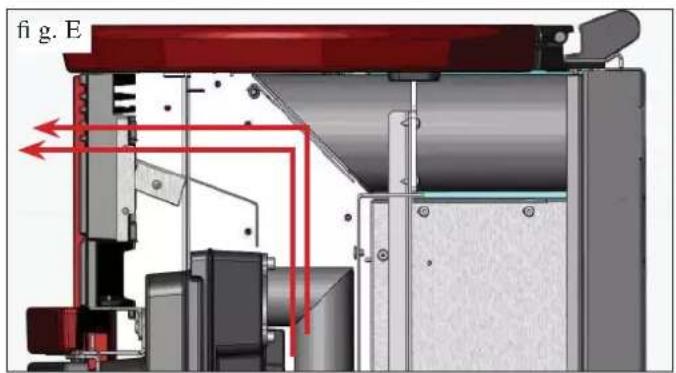

fig. E

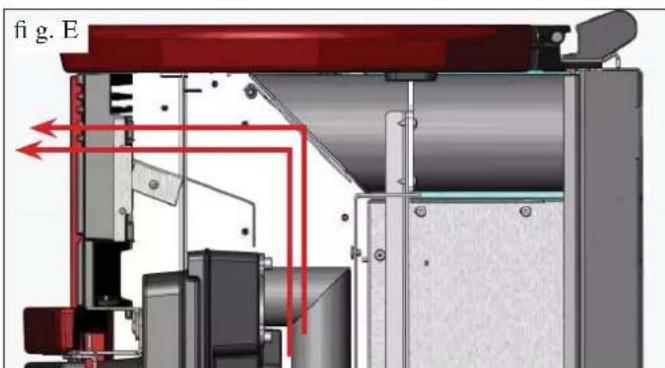

4 2 2 4 2

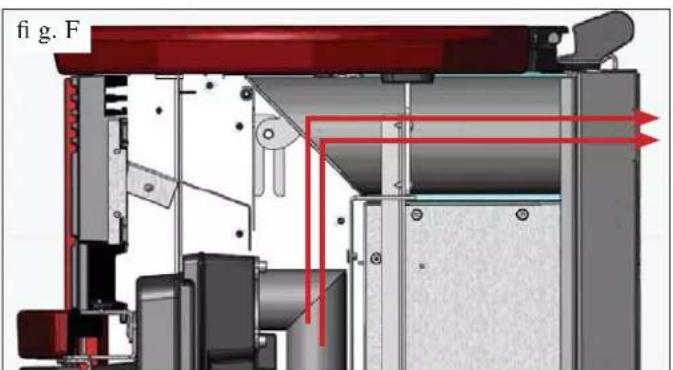

fig. F

MANUTENZIONE

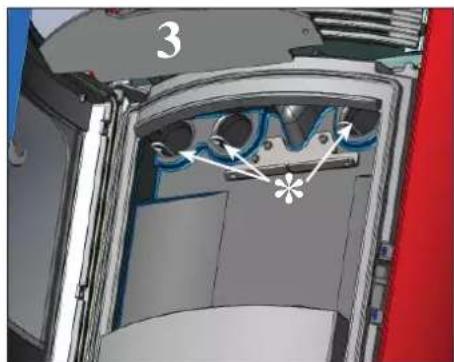

3D rendering of a mechanical device with mounting holes and a control panel (no visible text or symbols)

fig.2

POSSIBILI INCONVENIENTI

Metallic cylindrical container with black hose and lid, no visible text or symbols

Congratulations and thank you for choosing our product.

Please read this document carefully before you use this product in order to obtain the best performance in complete safety.

For further details or assistance, please contact the DEALER where you purchased the product or visit our website www.edilkamin.com. and click on DEALERS.

NOTE

- After having unpacked the stove, ensure that its contents are complete and intact (cladding, remote control with display, cold hand" handle for opening door, guarantee booklet, glove, CD/technical data sheet, spatula, dehumidifying salt, allen wrench).

In case of anomalies please contact the dealer where you purchased the product immediately.

You will need to present a copy of the warranty booklet and valid proof of purchase.

- Commissioning/ testing

Commissioning and testing must be performed by the DEALER. Failure to do so will void the warranty.

Commissioning, as specified in standard UNI 10683 consists in a series inspections to be performed with the insert installed in order to ascertain the correct operation of the system and its compliance to applicable regulations

- Incorrect installation, incorrect maintenance, or improper use of the product, shall relieve the manufacturer from any damage resulting from the use of this product.

- the proof of purchase tag, necessary for identifying the insert, is located:

-on the top of the package

- in the warranty booklet found inside the fi rebox

- on the ID plate affi xed to the back side of the unit;

This documentation must be saved for identification together with the valid proof of purchase receipt. The data contained therein must be reported when requesting information and made available should servicing be required;

- All images are for illustration purposes only; actual products may vary.

The undersigned EDILKAMIN S.p.a. with head offi ce headquarters at Via Vincenzo Monti 47 - 20123 Milan - Italy - VAT T00192220192

Declares under its own responsibility as follows:

The pellet stove illustrated below conforms to Regulation EU 305/2011 (CPR) and to the harmonised European Standard EN 14785:2006

WOOD PELLET STOVES, trademark EDILKAMIN, called FANTASY - FATA - SIRENA - STORY

Year of manufacture: Ref. Data nameplate Declaration of performance (DoP - EK 083): Ref. data tag plate

In addition, it is hereby declared that:

the wood pellet stove FANTASY - FATA - SIRENA - STORY is in compliance with the requirements of the European directives:

2006/95/EC - Low voltage directive

2004/108/EC - Electromagnetic compatibility directive

EDILKAMIN S.p.a. will decline all responsibility of malfunctioning or damage to the equipment in case of unauthorized substitution, assembly or modifications of any sort on the said equipment on the part of non-EDILKAMIN personnel.

The stoves heat the air using wood pellets as fuel, with electronically controlled combustion. Hereunder is the explanation of its functions (the letters refer to figure 1).

The fuel (pellets) is transferred from the storage hopper (A) to the combustion chamber (D) by means of a feed screw (B), which is driven by a gear motor (C).

The pellets are ignited by the air that is heated by an electrical resistance (E) and drawn into the combustion chamber by a smoke extractor (F).

The fumes produced during the combustion process are extracted from the hearth by the same centrifugal fan (F) and expelled through the outlet (G) located on the lower part at the back of the stove.

The stoves allow for hot air channelling to to convey the air to heat adjacent rooms.

Two male pipes of a ∅ 10 cm for hot air channelling connection are found on the back part.

To channel the hot air in one or two adjoining rooms, the stove is equipped with two pipes on the back, to which special aluminium pipes must be connected.

KIT 11 and KIT 11 BIS optional are available to facilitate air distribution (see page 34-35-36).

Fuel quantity, smoke extraction and combustion air supply are all controlled by an electronic control board, which is equipped with Leonardo® software to achieve high combustion efficiency and low emissions.

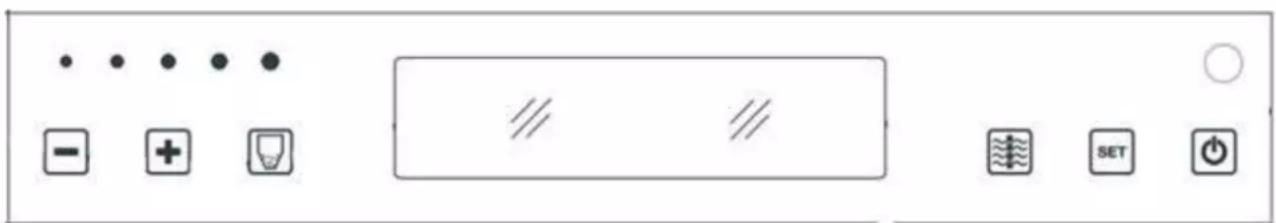

The synoptic panel (M) is installed on the top, through which all phases of operation can be displayed and controlled. The main functions can also be controlled by remote control.

A serial port is found at the back of the stove (optional cable: code 640560) to be connected to devices that allow remote ignition (e.g. remote telephone, local thermostat).

The stoves have an internal structure that is made entirely of cast iron.

M A B E C D G F fig. 1

SAFETY INFORMATION

The stove is designed to heat, through automatic pellet combustion in the hearth, the room where it is installed, both by radiation and the air that comes out of the front grille.

• The appliance is not designed to be used by people, including children, with reduced physical, sensorial or mental abilities. Children must be supervised to ensure they do not play with the appliance.

- The only risks that may derive from using the stove pertain to non-compliance with installation instructions, direct contact with live electrical parts (internal), contact with the fire or hot parts (glass, pipes, hot air output), when extraneous substances or non-recommended fuel are introduced, or due to incorrect maintenance.

- Only use certified, high quality, 6mm diameter wooden pellets for fuel.

- Should components fail, the stoves are equipped with safety devices that guarantee automatic shutdown. These are activated without any intervention required.

- In order to function correctly, the stove must be installed in accordance with the instructions given herein and the door must not be opened during operation: combustion is fully automatic and requires no intervention.

- Under no circumstances should any foreign substances be entered into the hearth or hopper.

- Do not use fl ammable products to clean the smoke channel (the fl ue section connecting the stove smoke outlet to the chimney fl ue).

• The hearth and hopper parts must only be cleaned when COLD.

• The glass can be cleaned when COLD with a suitable product (e.g. GlassKamin Edilkamin) and a cloth.

- Do not clean when hot.

- Make sure the stove is installed and ignited the first time by Edilkamin-qualified CAT personnel (technical assistance centre) in accordance with the instructions provided here within; this is an essential requirement for the validation of the guarantee.

- When the stove is in operation, the exhaust pipes and door become very hot (do not touch without wearing the thermal glove).

- Do not place anything, which is not heat resistant near the stove.

- NEVER use liquid fuel to ignite the stove or rekindle the embers.

- Do not obstruct the ventilation apertures in the room where the stove is installed, nor the air inlets of the stove itself.

- Do not wet the stove and do not go near electrical parts with wet hands.

- Do not use reducers on the smoke exhaust pipes.

- The stove must be installed in a room that is suitable for fi re prevention and equipped with all that is required (power and air supply and outlets) for the stove to function correctly and safely.

- Should ignition fail, DO NOT re-ignite until you have emptied the combustion chamber.

- ATTENTION: THE PELLET EMPTIED FROM THE COMBUSTION CHAMBER MUST NOT BE DEPOSITED INSIDE THE HOPPER.TED INSIDE THE HOPPER.

DIMENSIONS AND FINISHINGS

• FANTASY: soapstone.
• FATA: ceramic cream white, rossa, leather.
• SIRENA: ceramic cream white, rossa, leather.
• STORY: grey painted steel.

FRONT BACK

68 115

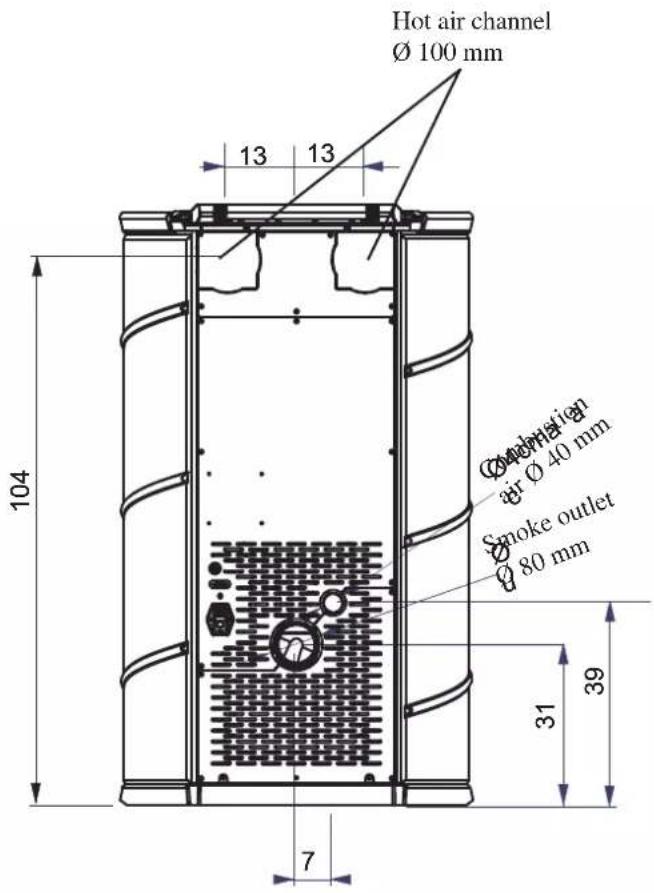

Hot air channel Ø 100 mm 13 13 104 Concentration air Ø 40 mm Smoke outlet Ø 80 mm 31 39 7

SIDE

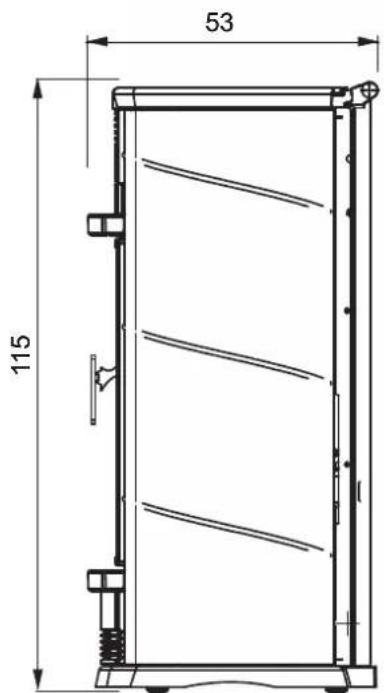

53 115

SYSTEM

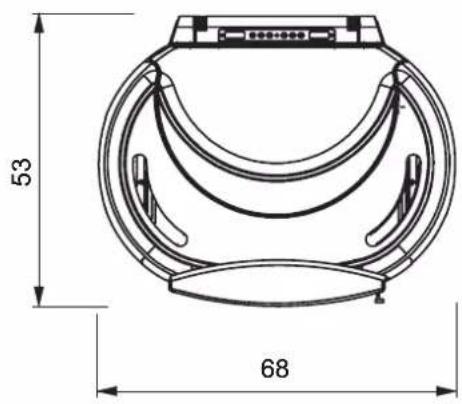

53 68

MEASUREMENTS VALID FOR THE 4 MODELS

CHARACTERISTICS

• ELECTRONIC EQUIPMENT

LEONARDO® is a combustion safety and control system which allows optimal performance in all conditions thanks to two sensors measuring the pressure level in the combustion chamber and smoke temperature.

The detection of and subsequent optimisation of these two parameters is continuous in order to correct operation anomalies in real time.

The LEONARDO ^® system offers constant combustion, automatically regulating the draft based on the characteristics of the chimney flue (bends, length, shape, diameter, etc..) and environmental conditions (wind, humidity, atmospheric pressure, installations at high altitude, etc.).

The standards for installation must be respected.

LEONARDO ^® system is also able to recognise the type of pellets and automatically djust the flow moment by moment to ensure the required level of combustion.

• ELECTRONIC CIRCUIT BOARD

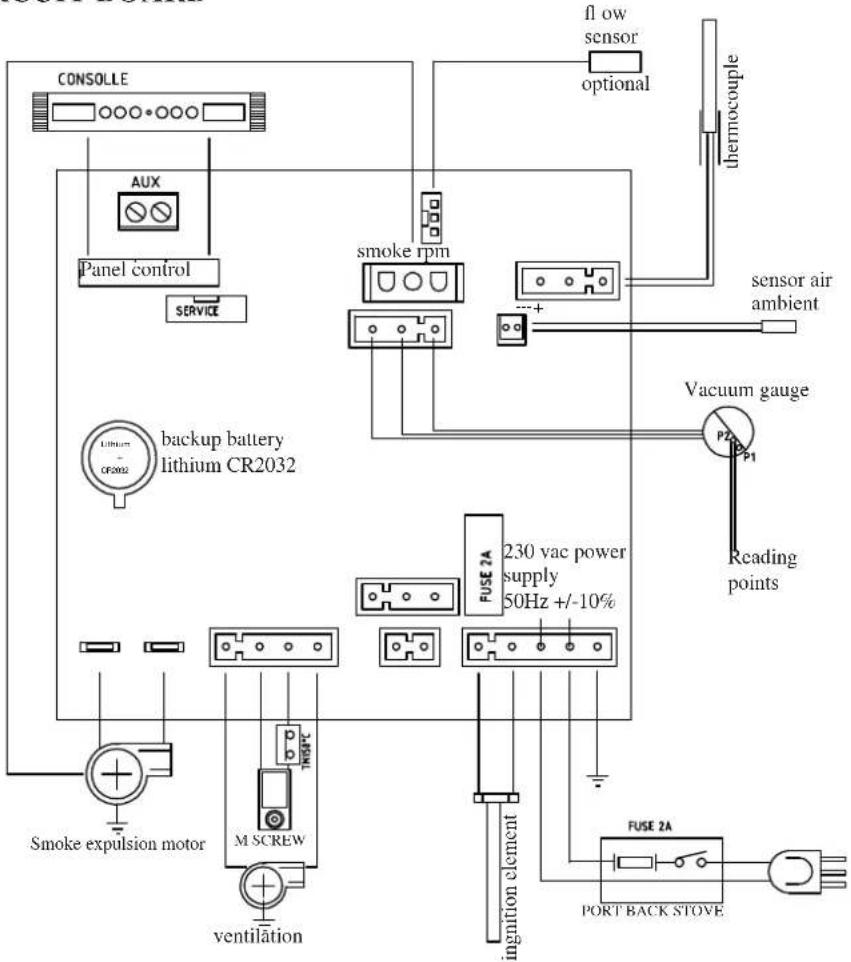

CONSOLLE AUX Panel control SERVICE Lithium CR2032 backup battery lithium CR2032 Smoke expulsion motor M SCREW ventilation smoke rpm FUSE 2A 230 vac power supply 50Hz +/-10% ingnition element flow sensor optional sensor air ambient vacuum gauge PZ P1 reading points FUSE 2A PORT BACK STOVE

sistema

®

LEONARDO

3DO

[Non-Text]

two fuses are inserted in the socket with switch, located on the back of the stove, one of which operational * and the other is held in reserve **.

SERIAL PORT

The Dealer can install an optional on the AUX outlet for controlling the process of switching on and off (e.g. telephone remote, local thermostat), located at the rear oh the stove. Can be connected via special optional trestle (code 640560).

BACKUP BATTERY

A backup battery is found on the control board (3-Volt CR 2032 battery). Its malfunction is indicated with the following messages (not considered a defect but due to normal wear-and-tear): "Battery check".

For more detailed information, please contact the DEALER who has performed the first 1st ignition.

Close-up of a mechanical component with wires and connectors, no visible text or symbols

CHARACTERISTICS

THERMO TECHNICAL CHARACTERISTICS according to EN 14785
	Nominal power Reduced power
Heat output 13,2 5,1 kW
Yield / Efficiency	92,5	93,3	%
Emissions CO 13% O_2	0,019	0,038	%
Maximum flue gas temperature	96	70	°C
Minimum draught	12 - 5	10 - 3	Pa
Mass flow rate of flue gas	13,5	7,4	g/s
Fuel consumption	3	1,1	kg/h
Hopper capacity	23,5		kg
Autonomy	7	19	hours
Volume riscaldabile *	345		m^3
Smoke outlet pipe diameter (male)	80		mm
Air intake pipe diameter (male)	40		mm
Weight including packaging FANTASY / FATA / SIRENA / STORY	271 / 248 / 248 /230		kg

* The heatable room dimensions are calculated on the basis home insulation in compliance with Italian law 10/91, and subsequent changes together with an expected heat output of 33Kcal / m^3 per hour.

ELECTRICAL CHARACTERISTICS
Power supply 230Vac +/- 10% 50 Hz
On/off switch si
Average power consumption 100 W
Power consumption during ignition 400 W
Remote control frequency Infrared
Protection on mains power supply* (see page 38) 2AT,	250 Vac, 5x20 Fuse
Protection on electronic circuit board 2AT, 250 Vac, 5x	20 Fuse

N.B.

1) keep in mind that external devices can cause interference to the operation of the circuit board.
2) caution: live parts. Servicing and/or inspections must be carried out by qualified staff.

The data shown above is purely indicative.

EDILKAMIN s.p.a. reserves the right to change the products at its discretion without notice.

SAFETY DEVICES

• THERMOCOUPLE:

Placed at the smoke outlet to detect the temperature.

Turns the stove on and off and controls its operation based on defined parameters.

• VACUUM GAUGE:

positioned on the smoke extractor, which detects the vacuum value (compared to the installation environment) in the combustion chamber.

• AIR FLOW SENSOR:

located in the suction channel, it is activated when the combustion air flow is not correct, with consequent pressure problems in the smoke circuit causing the stove to shut-down.

• SAFETY THERMOSTAT:

Trips when the temperature inside the stove is too high. It stops pellet loading, causing the stove to go out.

COVERING INSTALLATION FATA/SIRENA

33 75 75 fig. 1

Close-up of a computer tower with labeled component '29' and part identifier 'fig. 2' (no readable text or symbols beyond labels)

29 138-139 fig. 3

fi g. 4 150 139 150 138 150 138 150 139 150 detail. "Y"

Close-up of metallic components with bubbles, no visible text or symbols

Close-up of a finger pressing down on a curved surface, no visible text or symbols

Close-up of a metallic mechanical component with a hole and mounting holes (no visible text or symbols)

29 61 fi g. 8

150 61 150 61 150 61 150 fi g. 9

24 62 62 4 fig. 10

DETAIL. Z bushings 62 24 screw fi g. 11

INCLUDED HARDWARE:

2 M6x25 screws
2 M6x12 screws
4 silicone spacers for ceramic top
8 fl at washers diam. 6
2 bushings
16 silicone spacers for ceramics
2 ceramic fi xing plates

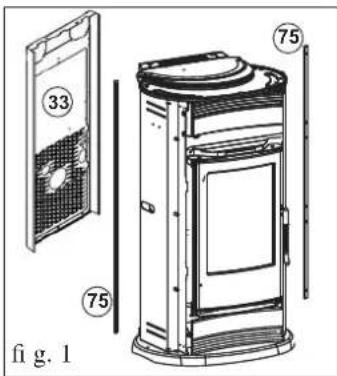

ASSEMBLING THE LATERAL TILES (fi g. 1-2)

• Remove the rear panel (33) "And the two profi les (75).
• Fix the two plates (29) to the zinc-plated sides."

"for the FATA model (Illustr. 3-4)

• The left-hand plate must be fixed to the central and upper holes, whilst the right-hand plate must be fixed to the central and lower holes.
  • Fit the ceramic tiles (138-139) on to the plates (29)
• Place 2 silicone-coated spacers (150) in the lower part between the cast iron base and the lower, right-hand tile (139) (see detail Y - Illustr. 4).
• For correct fastening of the upper right side ceramic tile and the lower left side ceramic tile use the stop adjustment screws located on the zinc-plated sides of the structure (Illustr. 5-6)

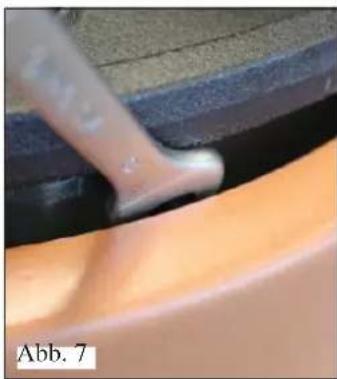

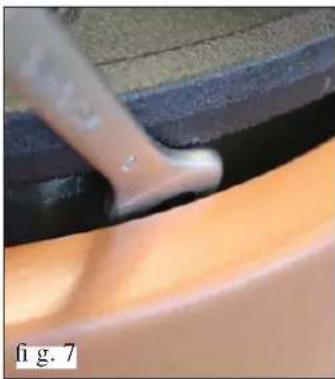

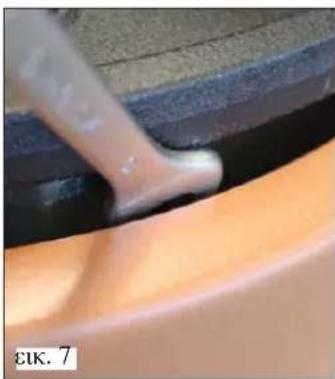

• Right-hand side (Illustr. 5): adjust the fixing screw abutted against the upper right side ceramic tile (138).
• Left-hand side (Illustr. 6): remove the upper left ceramic tile (139) and adjust the fi xing screw abutted against the lower left side ceramic tile (138).
• Replace the upper left ceramic tile (139).

for the SIRENA model (Illustr. 8-9)

• Both plates must be fixed to the central and lower holes.
• Fit the ceramic tiles (61) on to the plates (29)"

NOTE: Being made through a process of casting, the tiles may differ slightly in height. To compensate for any height variations, silicone spacers may be inserted (150 - fi g. 4-9) without affecting the aesthetic appearance of the stove.

- Replace the profi les (75) Replace the rear panel (33).

ASSEMBLING THE UPPER FRONT PANEL FATA/SI-RENA (fi g. 10-11)

• Position the ceramic upper front panel (62) so that it rests
  against the front panel support (24) positioned above the door.
• Use an Allen key to fasten the front panel in place using the 2 supplied M6x25 screws (the door must be opened before performing this operation).

NOTE: For correct assembly of the upper front panel (62), place the bushing supplied between the same and the front panel (24), as shown in detail "Z" in Illustr. 11.

ASSEMBLING THE LOWER FRONT PANEL FATA/ SIRENA (fi g. 10-12)

• Use the supplied Allen key to loosen the screws that hold the cast iron lower front grill (4) in place and remove it.
• Position the front panel (62) and use an Allen key to fasten it in place using the 2 supplied M6x25 screws as indicated in detail "X" (fi g. 12).

COVERING INSTALLATION FATA/SIRENA

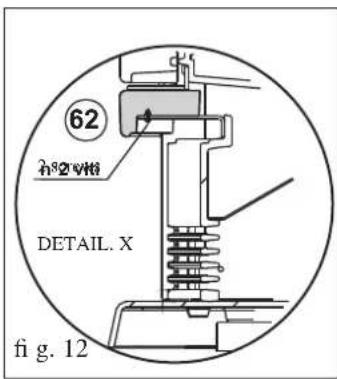

62 DETAIL. X fi g. 12

140 fig. 13

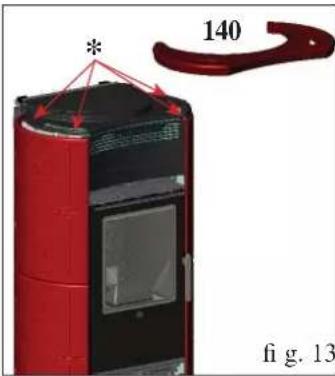

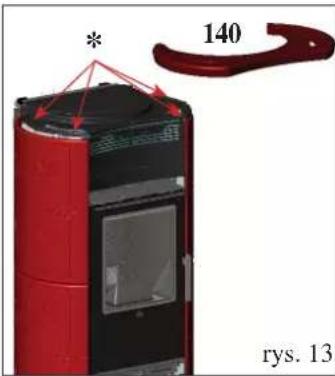

ASSEMBLING THE CERAMIC TOP FATA/SIRENA (fi g. 13)

• Insert the 4 ceramics (*) spacers into their 4 free holes in the cast iron top and place the ceramic top (140)
• if necessary, insert a washer between the silicone spacer and the cast iron top.

NOTE:

• the red enamel with crystalline, applied to the majolica, crazes (cracks) evenly over the whole surface. Crazing is not a defect but is a characteristic of enamel applied to majolica known as “cracle”.
• The ceramic parts (majolica) are cast and enamelled manually and may present small defects that will not affect their quality (small dents or enamel porosity), but instead testifies to their manual manufacture.

COVERING INSTALLATION STORY

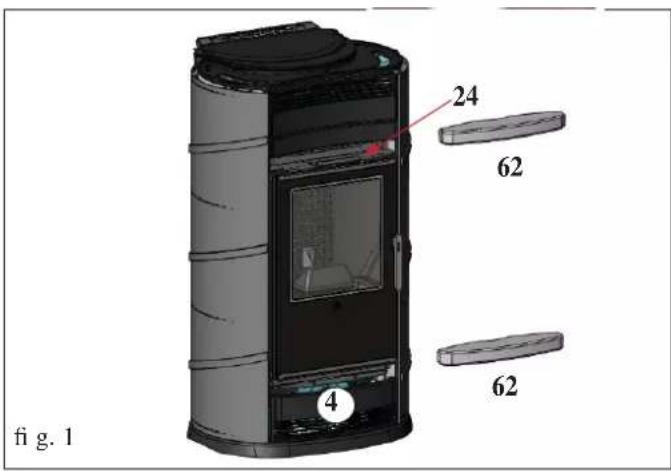

24 62 62 4 fig. 1

DETAIL. Z 62 bushings scrow 24 fig. 2

62 2n82eviti DETAIL. X fig. 3

140 fi g. 4

INCLUDED HARDWARE:

2 M6x25 screws
2 M6x12 screws
4 silicone spacers for ceramic top
8 fl at washers diam. 6
2 bushings

The stove comes furnished with its lateral metal side panels already assembled, while its ceramic upper and lower front panels (62) and top (140) must be assembled as follows:

ASSEMBLING THE UPPER FRONT PANEL (fi g. 1-2)

• Position the ceramic upper front panel (62) so that it rests against the front panel support (24) positioned above the door.
• Use an Allen key to fasten the front panel in place using the 2 supplied M6x25 screws (the door must be opened before performing this operation).

NOTE:

For correct assembly of the upper front panel (62), place the bushing supplied between the same and the front panel (24), as shown in detail "Z" in Illustr. 2.

ASSEMBLING THE LOWER FRONT PANEL (fi g. 1-3)

• Use the supplied Allen key to loosen the screws that hold the cast iron lower front grill (4) in place and remove it.
• Position the front panel (62) and use an Allen key to fasten it in place using the 2 supplied M6x25 screws as indicated in detail "X" (fi g. 3).

ASSEMBLING THE CERAMIC TOP (fi g. 4)

• Insert the 4 ceramics (*) spacers into their 4 free holes in the cast iron top and place the ceramic top (140)
• Where necessary, affi x the supplied washer between the silicone spacer and cast iron top.

All local and national laws and European standards must be met when installing and using the appliance. In Italy, refer to the UNI 10683 standard, as well as any regional or local health authority regulations

It is necessary to refer to regulations in force in each country. If installing in an apartment building, check with the management company fi rst.

VERIFY COMPATIBILITY WITH OTHER DEVICES

The stove MUST NOT be installed in the same space as type B gas heating equipment (e.g. gas boilers, stoves, and equipment served by an extraction hood) as the stove may cause a vacuum in the space which may compromise or influence how these units work.

VERIFYTHE POWER SUPPLYCONNECTION

(the plug must be accessible)

The stove is supplied with a power cable that is to be connected to a 230V 50 Hz socket, preferably fitted with a magnetothermic switch. Voltage variations exceeding 10% can damage the stove (unless already installed, an appropriate differential switch must be fitted). The electrical system must comply with the law; particularly verify the efficiency of the earthing system. The power line must have a suitable cross-section for the stove's power. An inadequate earthing system can cause anomalies for which Edilkamin cannot be held liable.

POSITIONING

The stove must be level for it to function correctly.

Verify the bearing capacity of the floor.

FIRE PREVENTION SAFETY DISTANCES

The stove must be installed in compliance with the following safety conditions:

• medium flammability items must be kept at a minimum distance of 40 cm from the sides and back of the stove
• highly fl ammable items must be kept at a minimum distance of 80 cm if placed in front of the stove.
  If it is not possible to comply with the above mentioned distances, technical and construction-related provisions must be taken to prevent fi re hazards. If connected to wooden walls or other fl ammable materials, the smoke exhaust pipe must be appropriately insulated

AIR INTAKE

The room where the stove is located must have an air intake with cross section of at least 80cm2 to ensurereplenishment of the air consumed by combustion. Alternatively, the stove air may be taken directly from outside through a 4 cm steel extension of the pipe.

In this case, there may be condensation problems and it is necessary to protect the air intake with a grille, which must have a freesection of at least 12 cm^2 .

The pipe must be less than 1 metre long and have no bends. It must end with section at 90^ facing downwards or be fitted with a wind guard. In any case all the way air intake duct must be a free section of at least 12 cm^2 .

The external terminal of the air inlet channel must be protected with an anti-insect netting that does not reduce the 12 cm^2 through passage.

MOKE OUTLET

The stove must have its own smoke outlet (the smoke cannot be discharged into a smoke flue used by other devices).

The smoke is discharged through the 8 cm diameter outlet at the back of the stove. The smoke outlet must be connected to outside by means of suitable steel pipes EN 1856 certifi ed. The pipe must be hermetically sealed.

The material used to seal and if necessary insulate the pipes, must be resistant to high temperatures (high temperature silicone or mastic).

The only horizontal section allowed may be up to 2 m long. It may have up to two 90° bends.

A vertical section of at least 1.5m and an anti-wind terminal is necessary (if the discharge outlet is not in a chimney fl ue - reference UNI 10683).

The vertical duct can be internal or external. If the smoke channel is outside, it must be appropriately insulated.

If the smoke channel is fitted inside a chimney flue, the latter must be suitable for solid fuel. If it is wider than 150 mm in diameter it must be improved by entering a pipe that has a suitable cross-section and is made of suitable material (e.g. 80 mm diameter steel). All sections of the smoke duct must be accessible for inspection. The chimney pots and smoke ducts connected to the solid fuel appliances must be cleaned once a year (verify whether a specific legislation exists in your country). Failure to regularly inspect and clean the stove increases the probability of a fire occurring in the chimney pot. In that case, proceed as follows: Do not use water to extinguish the fire; Empty the pellet hopper; Contact specialist personnel before reigniting the stove. The stove is designed to work under any weather conditions. In case of particular conditions, such as strong wind, the safety system may be activated, which results in the stove being extinguished. If this happens, do not operate the stove with the safety devices disabled. If the problem persists, contact our Technical Service Department. In this case, do not operate the appliance while the safety devices are disabled. If the problem persists, contact the Service Centre.

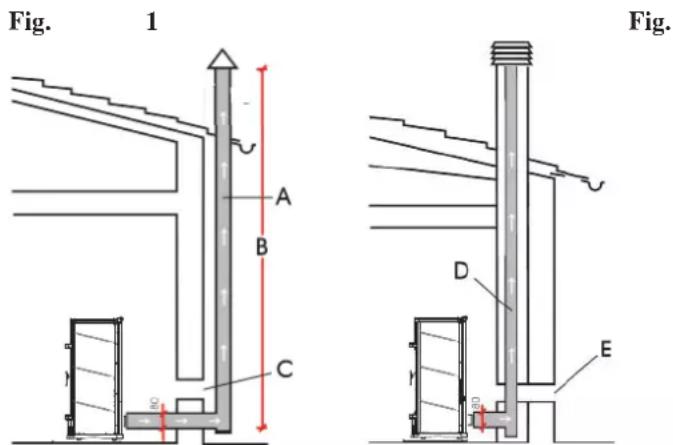

TYPICAL EXAMPLES

Fig. 1 A B C D E Fig.

A: insulated steel fl uc
B: minimum height of 1.5 m and in any case above the height of the roof gutter
C-E: air intake from inside room (minimum internal section: 80 cm²)
D: steel flue, inside existing brick-built chimney.

CHIMNEY POT

The main characteristics are:

- an internal cross-section at the base, which is the same as that of the chimney fl ue

- an outlet cross-section which is no smaller than twice that of the chimney fl ue

- its position must be high enough to catch the wind and avoid downdraft areas in turbulent wind, it must be high enough to catch the wind and avoid downdraft areas in turbulent wind.

INSTALLATION

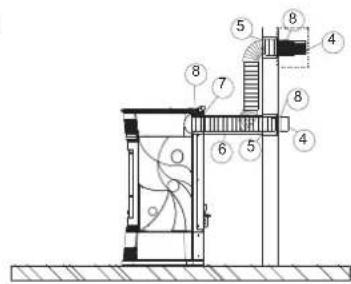

fig. A hot air outlet pipes

Red robotic vacuum cleaner with open lid and labeled ports (P), no visible text or symbols on the device itself

fig. C P P L L

fi g. D front middle rear

Cross-sectional diagram of an industrial machine or equipment assembly with red flow arrows indicating internal components (no text or symbols)

HOT AIR CIRCULATION

In the installation area, the hot air is emitted through the grill installed in the upper front portion (fi g. E). To channel the hot air in one or two adjoining rooms, the stove is equipped with two pipes on the back (fi g.A), to which special aluminium pipes must be connected.

KIT 11 and KIT 11 BIS optional are available to facilitate air distribution (see page 34-35-36).

It is essential to remember the importance of proper insulation on the pipe where the hot air passes to avoid dispersion. Avoid curves in the pipe as much as possible.

Note: THE PIPES ON THE HOT AIR OUTLETS MUST BE FITTED BEFORE APPLYING THE COVERINGS AND PRIOR TO DISASSEMBLY OF THE UPPER CAST IRON SIDE FLANK. THE FIRST PART OF THE FLEXIBLE PIPE MUST BE COMPLETELY "RELAXED" IN SUCH AWAY TO ELIMINATE CORRUGATION. IN THIS WAY, THE INTERNAL DIAMETER WILL BE SLIGHTLY ENLARGED TO FAVOUR ENTRANCE.

Channelled air distribution is adjustable manually by means of the "L" lever (fi g.D).

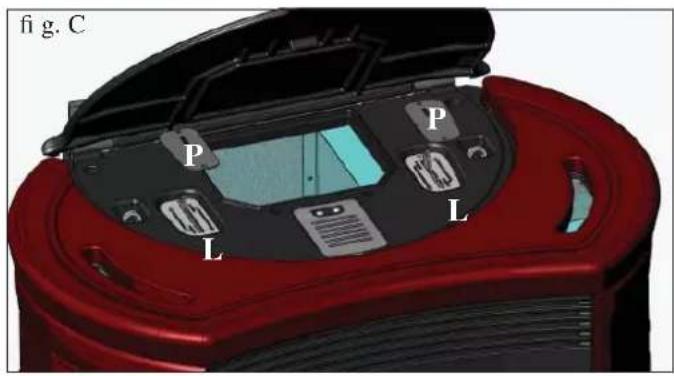

To move, remove the "P" locking plates fastened with screws (fi g. B-C).

Once the plates have been removed, hot air can be directed either in the upper front panel part fi g. E (lever pulled all the way back - see fig. D) or in the rear part fig. F (lever pulled all the way forward - see fi g. D) or half in the upper front panel part and half in the rear part (lever in the middle - see fi g. D).

Note: IF THE STOVE IS NOT CHANNELLED, THE PLATES (P) MUST NOT BE REMOVED.

Technical diagram of a mechanical assembly with red flow arrows indicating fluid or airflow paths (no text or symbols present)

INSTALLATION

1st SOLUTION: KIT 11 (code 645700) - ADJACENT ROOM ONLY

Note: THE PIPES ON THE HOT AIR OUTLETS MUST BE FITTED BEFORE APPLYING THE COVERINGS AND PRIOR TO DISASSEMBLY OF THE UPPER CAST IRON SIDE FLANK. THE FIRST PART OF THE FLEXIBLE PIPE MUST BE COMPLETELY "RELAXED" IN SUCH AWAY TO ELIMINATE CORRUGATION. IN THIS WAY, THE INTERNAL DIAMETER WILL BE SLIGHTLY ENLARGED TO FAVOUR ENTRANCE.

• Define the position of the stove with respect to the walling (fig. a).
• Disassemble the upper part of the back (132) and remove one of the two predrilled caps in correspondence with the hot air outlet pipes (fi g. b).
• Activate the hot air channelling control lever (13), removing the locking plate (133) (fig. b).
• Cut the flue cover to size (6) on the wall side (fig.c)
• Place the stove in its definite position.
• Extend the aluminium pipe (3) for hot air channelling, without connecting the stove outlet.
• Fit the medallion (5) on the aluminium pipe and the pipe cover (6a) without locking it in (fig. c).
• Fit the aluminium pipe to the hot air outlet on the back of the stove (8) (fig. d).
• Replace the upper part of the back (132).
• Place the pipe cover (6) in the definite position and fasten it to the back of the stove with the supplied screws (7) (fig. d).
• Install the terminal outlet (4) and its aluminium pipe (3) (fig. d).
• Fasten the wall medallion (5) with silicone (fi g d).

fig. a

Technical diagram showing a mechanical assembly with labeled components and directional arrows

fig. c

Technical diagram of a piping system with labeled components and directional arrows indicating flow or movement.

fig.d

Technical diagram of a ventilation system with numbered components and airflow paths

fig. b

132 132 133 13

Exploded view diagram of a cardboard box with numbered parts for identification

Technical diagram showing a vertical scale with numbered components mounted on a wall, likely for measurement or inspection.

		n° KIT 11
1 Box 1 645740
3 ∅ 10 pipe 1 162520
4 Smoke outlet end-piece 1 293430
5 Wall medallion 1 644190
6a Flue cover 1 645730
7 Flue cover fastening screws 4 168260
8 Pipe blocking clamp 2 46160

INSTALLATION

2nd SOLUTION: KIT 11 BIS (code 645710) - NON-ADJACENT ROOM ONLY

Note: THE PIPES ON THE HOT AIR OUTLETS MUST BE FITTED BEFORE APPLYING THE COVERINGS AND PRIOR TO DISASSEMBLY OF THE UPPER CAST IRON SIDE FLANK. THE FIRST PART OF THE FLEXIBLE PIPE MUST BE COMPLETELY "RELAXED" IN SUCH AWAY TO ELIMINATE CORRUGATION. IN THIS WAY, THE INTERNAL DIAMETER WILL BE SLIGHTLY ENLARGED TO FAVOUR ENTRANCE.

• Define the position of the stove with respect to the walling (fig. a).
• Disassemble the upper part of the back (132) and remove one of the two predrilled caps in correspondence with the hot air outlet pipes (fi g. b).
• Activate the hot air channelling control lever (13), removing the locking plate (133) (fig. b).
• Cut the flue cover to size (6) on the wall side (fig.c)
• Place the stove in its definite position.
• Extend the aluminium pipe (2) for hot air channelling, without connecting the stove outlet.
• Fit the medallion (5) on the aluminium pipe and the pipe cover (6a) without locking it in (fig. c).
• Fit the aluminium pipe to the hot air outlet on the back of the stove (8) (fig. d).
• Replace the upper part of the back (132).
• Place the pipe cover (6) in the definite position and fasten it to the back of the stove with the supplied screws (7) (fig. d).
• Install the terminal outlet (4) and its aluminium pipe (2) fastening it with the wall collar (9) and the dowels with screws (10-11) (fig. d).
• Fasten the wall medallion (5) with silicone (fi g d).

fig. a

Technical diagram showing a mechanical or electrical system with labeled components and directional arrows

fig. c

Technical diagram of a mechanical or electrical system with numbered components and internal flow paths

fig.d

Technical diagram of a building interior with numbered components and airflow paths

fig. b

132 132 133 13

Diagram of various electrical components and wiring, including a box, coil, and various wires with numbered labels.

Technical diagram of a utility cabinet with numbered components and labeled parts in Chinese

		n° KIT 11	BIS
1 Box 1 643910
2 ∅ 10 pipe 1 643900
4 Smoke outlet end-piece 1 293430
5 Wall medallion 1 644190
6a Flue cover 1 645730
7 Flue cover fastening screws 4 168260
8 Pipe blocking clamp 2 46160
9 Wall collar		2 645750
10	Screws	4	8410
11	Dowels	4	8520

INSTALLATION

3rd SOLUTION: KIT 11 (code 645700) con KIT 11 BIS (code 645710) - BOTH ROOMS

Note: THE PIPES ON THE HOT AIR OUTLETS MUST BE FITTED BEFORE APPLYING THE COVERINGS AND PRIOR TO DISASSEMBLY OF THE UPPER CAST IRON SIDE FLANK. THE FIRST PART OF THE FLEXIBLE PIPE MUST BE COMPLETELY “RELAXED” IN SUCH AWAY TO ELIMINATE CORRUGATION. IN THIS WAY, THE INTERNAL DIAMETER WILL BE SLIGHTLY ENLARGED TO FAVOUR ENTRANCE.

• Define the position of the stove with respect to the walling (fig. a).
• Disassemble the upper part of the back (132) and remove the predrilled caps in correspondence with the hot air outlet pipes (fig. b).
• Activate the hot air channelling control lever (13), removing the locking plates (133) (fig. b).

- Cut the flue cover to size (6) on the wall side (fig.c)

- Place the stove in its definite position.

- Extend the aluminium pipes (2-3) for hot air channelling, without connecting them to the stove outlets.

- Fit the medallions (5) on the aluminium pipes and the pipe covers (6a) without locking them in (fig. c).

- Fit the aluminium pipes to the hot air outlets on the back of the stove (8) (fig. d).

- Replace the upper part of the back (132).

- Place the pipe covers (6) in the definite position and fasten them to the back of the stove with the supplied screws (7) (fig. d).

- Install the terminal outlets (4) and relative aluminium pipes (2-3), fastening them with the wall collars (9) and the dowels with screws (10-11)(fi g. d).

- Fasten the wall medallions (5) with silicone (fi g d).

fig. a

Technical diagram showing a cross-section of a mechanical or electrical component with labeled parts 2 and 3.

fig. c

Technical diagram of a piping system with labeled components and flow paths

fig.d

Technical diagram of a mechanical or architectural assembly with numbered components and flow indicators

fig. b

132 132 133 13

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a fire extinguisher installation with numbered components and labeled parts

		n° KIT 11 KIT 11 BIS
1 Box 1 645740 643910
2 ∅ 10 pipe 1 - 643900
3 ∅ 10 pipe 1 162520 -
4 Smoke outlet end-piece 2 293430 293430
5 Wall medallion 2 644190 644190
6a Flue cover		2 645730 645730
7 Flue cover fastening screws		8	168260 168260
8 Pipe blocking clamp		4	46160	46160
9 Wall collar		2	-	645750
10 Screws		4	-	8410
11 Dowels		4 -	8520

INSTRUCTIONS FOR USE

Commissioning must be done by a Technical Service Centre authorised by Edilkamin (CAT) prior to ignition and testing according to the UNI 10683 standard.

This standard indicates the control operations to be carried out in situ, aimed at ascertaining correct system function.

Before igniting.

To ignite for the first time, it is essential to contact your local Edilkamin technical service centre (CAT), (for information see the www.edilkamin.com website) to calibrate the stove according to the type of pellets used and installation conditions, thereby starting the guarantee.

Failure to have the stove ignited by an authorised C.A.T. prevents Edilkamin from guaranteeing correct functioning.

There may be a slight smell of paint the first few times it is ignited, however, this will disappear quickly.

Before igniting you must check:

• that installation is correct
• the power supply
• that the door closes properly to a perfect seal
• that the combustion chamber is clean
- that the display is on standby (the date, power or temperature fl ashes).

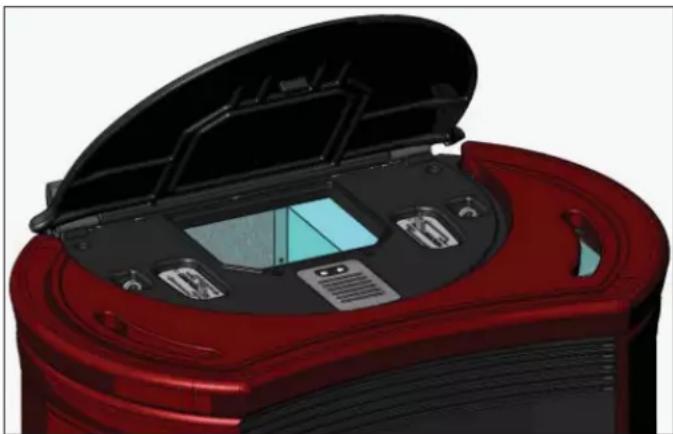

FILLING THE PELLET HOPPER

The hopper lid opens and closes with a practical click-clack system. Simply apply slight pressure to the front part of the cast iron lid (fi g. 1).

ATTENTION:

use the glove supplied when filling the stove whilst it is running and therefore is hot.

Red and black robotic vacuum cleaner with open lid and internal display panel (no visible text or symbols)

fig. 1

NOTE regarding the fuel.

The stoves is designed and programmed to burn wood pellets with 6 mm diameter.

Pellets are a type of fuel in the form of little cylinders, made from compacted sawdust, compressed under high pressure with no adhesives or foreign materials.

They are sold in bags of 15 kg.

For the stove to function properly, you MUST NOT burn anything else in it. Using other materials (including wood) will render the warranty null and void. Such use is detected by laboratory analyses. Edilkamin has designed, tested and programmed their stoves to guarantee the best performance when pellets with the following characteristics are used:

diameter: 6 millimetres

maximum length: 40 mm

maximum moisture content: 8%

calorifi c value: at least 4300 kcal/kg.

If pellets with different characteristics are used, the stoves must be recalibrated a similar procedure to that carried out by the DEALER when the stove is ignited the first time.

Using unsuitable pellets may: decrease efficiency; cause malfunctions; stop the stove from functioning due to clogging, dirt on the glass, unburnt fuel, etc.

A simple, visual analysis of the pellets may be carried out:

Good quality: smooth, uniform length, not very dusty.

Poor quality: with longitudinal and transverse cracks, very dusty, various lengths and mixed with foreign matter.

INSTRUCTIONS FOR USE

MIMIC PANEL

hold down for 2 seconds to turn stove on or off

Pressed briefly it switches the stove from manual to automatic operating mode; held down (pressed and held for 2") it gives access to the various programming menus.

increases the various settings

decreases the various settings; pressing for 5s locks the keypad, pressing for another 5s unlocks the keypad

Each time it is pressed tells the electronic circuit board memory that 15Kg have been loaded into the tank; pressing it continuously for 5" cancels any residual or previously loaded Kg.

Pressed briefly it switches the stove's fan from the quieter "Comfort" level to the higher energy "Turbo" level.

“Touch in correspondence to the LED points to select the desired operating power. Alternatively, the traditional setting can be used, which can be selected using the +/- buttons.”

Control panel interface with icons for display, function buttons, and power button

Loading the feed screw.

Should the pellet hopper empty completely the feed screw must be filled. To do so, keep the + and - keys pressed simultaneously for a few seconds (on the remote control or synoptic panel). Once released, 'REFILL' will appear on the display. This must be carried out before ignition if the stove has stopped due to the pellets having finished.

It is quite normal for some pellet residue to remain inside the hopper, this is what the feed screw is unable to pick up.

Once a month, fully vacuum the hopper to prevent dusty residue from accumulating.

Automatic ignition

With the stove on standby, press the 0/1 button for 2 seconds (on the synoptic panel or remote control). This will startup the ignition process, 'Start-up' will appear on the display and a countdown will commence in seconds (1020). There is no preset time for the ignition process: its duration will be automatically shortened if the control board detects that certain tests have been carried out positively. The flame appears after about 5 minutes.

Manual ignition

At a temperature lower than 3 ^ – too low for the electrical resistance to become red hot - or if the resistance is temporarily not working, you can use a fi relighter to ignite the stove. Insert a well-lit fi relighter into the combustion chamber, close the door and press 0/1 on the synoptic panel or remote control.

Operating modes

Manual: the user sets the desired operating power (from a minimum of 1 to a maximum of 5)

Automatic: the user sets the desired room temperature using the +/- key or the remote control, the stove reads the setting and adjusts the power to reach the temperature set, then sets itself to Power 1.

Manual mode from synoptic panel/remote control

With the stove in operation mode or on standby, press and release the MENU button on the synoptic panel/remote control and 'Power' will appear on the display (showing the power at which the stove is working). Press the + key on the remote control to increase the operating power (from Power 1 to Power 5). Setting the fan via the Synoptic Panel With the stove in operation mode or on standby, rotate the right knob to adjust the ventilation setting (from 1 to 10 in all powers).

INSTRUCTIONS FOR USE

Automatic mode from synoptic panel/remote control

Press the MENU button twice to switch from manual to automatic mode and adjust the temperature desired for the room (on the panel or the + and - keys on the remote control to set the temperature between 10 and 29 ..., and the stove will regulate the operating power required to reach it.

If the set temperature is lower than the room temperature, the stove works at Power 1.

Shutdown

For greater comfort, the stove and the air vents go off at the same power at which it was operating.

With the stove in operation mode press the 0/1 key for 2 seconds (on the synoptic panel or remote control). The shutdown procedure will begin and the countdown is displayed. This varies according to the power at which it is running when the shutdown phase begins.

The shutdown phase (which will extinguish the flame without leaving any unburnt material in the combustion chamber and cool the stove), consists of:

• Pellet loading ceases.
• Ventilation is activated at the level at which the stove was operating.
• Smoke expulsion motor enabled.

Never unplug the stove during the shutdown process.

Setting the clock

Press the MENU button for 2 seconds and use the + and - keys to follow the instructions given on the display to access the 'Clock' menu. This allows you to set the time on the electronic control board.

Then press MENU and the following data appears in sequence - this can be adjusted:

day, month, year, hour, minutes, day of the week.

When 'Save?' appears on the display you can check that the settings have been entered correctly before confirming.

Press MENU to save the information ('Save OK' then appears on the display).

Weekly timer

Press the MENU button for 2 seconds to access the time setting function and press the + key to access the weekly timer function – ‘Program ON/OFF’ will appear on the display.

A maximum of three timer programs can be set for each day of the week.

As you confirm via the MENU button, one of the following options will appear:

• 'No Prog.' (no program is set).
• 'Daily program' (a single program is set for every day)
• ‘Weekly program’ (a program is set for each day of the week).

Move from one to the other using the + and - keys.

Use the MENU button to confirm the 'Daily program' option and access the selection of the number of programs (ignition/shutdown) to be set per day. Use the 'Daily program' option to set the identical program/s for every day of the week.

The following will be displayed if the + key is pressed:

- No Programs.

- 1st daily program (one ignition and one shutdown per day), 2nd daily program (same as before), 3rd daily program (same as before).

Use the MENU button to show them in reverse order. If the 1st program is selected, the ignition time is shown.

The display shows: 1 Ignition Hour 10.30; use the +/- keys to change the hour and press MENU to confirm.

The display shows: 1 Ignition Minutes 10.30; use the +/- keys to change the minutes and press MENU to confirm. In the same way, adjust the shutdown times. The program is confirmed by pressing the MENU button when 'Save OK' appears on the display. When confirming the 'Weekly program' the day to which the program is to apply must be selected:

1 Mon; 2 Tues; 3 Wed; 4 Thurs; 5 Fri; 6 Sat; 7 Sun Once you have chosen the day by scrolling through them with the + and – keys, confirm by pressing MENU and proceed with the settings of the programs in the same way as for the ‘Daily program’, selecting whether or not to enable a program for each day of the week and choosing the number and times of interventions.

Should you make a mistake whilst setting the programs you can exit without saving by pressing the 0/1 key.

Note on flame variability

The flame may vary depending on the type of pellets used, in addition to normal variability of the solid fuel flame and regular cleaning of the combustion chamber carried out automatically by the stove.

N.B. The automatic cleaning process performed by the stove does not replace the need for the user to vacuum the stove when cold, prior to ignition).

Pellet reserve warning

Stoves are equipped with an electronic pellet detection system. The detection system is integrated into the electronic control board, allowing the stove to monitor how many kilos of pellets are left. This verification is implemented at any point whilst the stove is in operation mode. For correct system operation, it is important that the following procedure is adhered with during the first ignition (that must be implemented by the DEALER). Before starting to use the pellet detection system, you must load and consume a full sack of pellets. This allows for a brief running-in of the loading system. Hence, load 15 kg of pellets. Then press the 'reserve' button once, thereby storing the data into the memory that 15 kg have been loaded.

From now on the display will show the remaining pellets as they decrease in kg (15...14...13).

Each time pellets are reloaded you must enter the quantity.

E.g. when loading 15 kg, simply press the 'pellet load' button to enter this into the memory. For other quantities, or in the event of an error, you can specify the quantity using the pellet reserve menu as follows:

Press the MENU button for 2 seconds to view the SETTINGS. Press + or - consecutively to view RESERVE.

Pressing the + key increases the Kg to be loaded, pressing the - key reduces the Kg, pressing the - key repeatedly sets the load to 00Kg (R on the display), which makes it possible to cancel the residual load.

INSTRUCTIONS FOR USE

Confir rm by pressing MENU and the remaining quantity of pellets will be displayed + that being loaded (default is 15 and can be changed using the +/- keys). Should the hopper run out of pellets, the stove will block and 'Stop/Flame' will appear (see page 35).

Note: Every now and again remember to reset the “pellet reserve warning” for it to function in a more reliable manner. For any clarification please contact the authorised DEALER who performed the first 1st ignition.

This provides a reference indicator. Greater precision is obtained by regularly zeroing the system before filling it again. Edilkamin does not accept any responsibility for differences from what is indicated (which may be due to external factors).

Environmental temperature adjustment

this comfortable and simple adjustment feature, as standard in this line of products, allows you to manage the stove power based on the environmental temperature.

After activating the “Clima Comfort” function from the parameters menu (ask the technical assistance centre - TAC), we can use this function to switch off the stove when it reaches the set temperature. This function is combined with the AUTOMATIC stove setting. MANUAL mode operation will in any case remain unchanged.

After the Comfort Clima function has been enabled by the TAC, you can activate/deactivate it from the user menu. Press the SET key, look for the "Comfort Clima" menu with the +/- keys, select it with the SET key, set ON/OFF with the +/- buttons, save the desired setting and exit using the 0/1 button.

Operation details Comfort Clima ON

when set on AUTOMATIC, the stove modulates its power by following the temperature set by the user. On reaching environmental temperature, the stove switches off and then switches on again independently when the temperature drops.

Temperature selection

In “Comfort Clima” mode, by pressing the +/- - buttons on the synoptic panel or on the remote control, you can set the display to the desired environmental temperature. So we will have the following situations:

-At environmental temperatures below the setting, the stove switches on independently, modulating the power automatically.

-With environmental temperature reached (+2°C) the stove switches to stand-by. The environmental temperature is sent from the remote control; the remote control transmitter must be visually aligned with the receiver of the synoptic panel. If the remote control is incorrectly positioned, it cannot send its recorded temperature. The stove therefore independently switches to use of its on-board temperature sensor and continues thus until the connection with the remote is restored

Temperature adjustment with external thermostat

another temperature control system is available as an alternative to the remote control. You can in fact connect the thermostat serial port to your home thermostat or any (clean output contact) easily available one.

The stove will automatically recognise the connection with the serial port of the thermostat under the following conditions:

With environmental temperature lower than the thermostat setting (contact closed), the stove modulates power normally to follow the set temperature

-With environmental temperature reached by the thermostat (contact open), the stove switches to stand-by mode.

Confi guration	Temperature provided by the remote control	Temperature provided by external environmental thermostat	No adjustment (factory setting)
"Comfort Clima" parameter	ON ON ON
“SONDA IR” parameter	ON OFF ON
Connection to serial port	NO no connection	Yes with blue serial cable	NO no connection

INSTRUCTIONS FOR USE

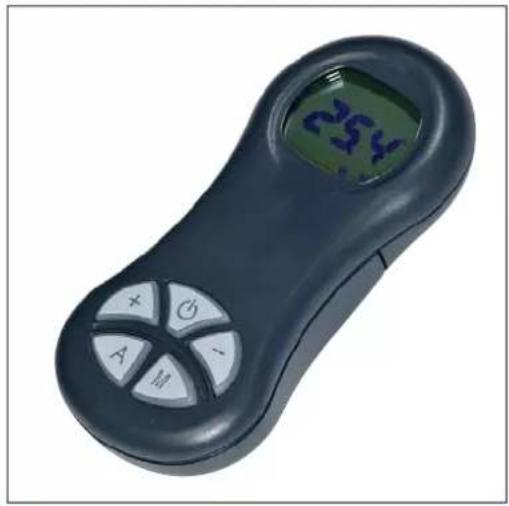

REMOTE CONTROL

Key to buttons and display:

: ignition / shutdown button

+ : button to increase the power/operating temperature (when inside a menu, it increases the displayed variable)

- : button to decrease the power/operating temperature (when inside a menu, it decreases the displayed variable)

A : button to switch to the "EASY TIMER" program

M : button to toggle from automatic to manual mode and vice versa

Close-up of a black handheld electronic device with a digital display showing '255' and control buttons (no readable text beyond symbols)

Indicates data transmission between the remote control and the control board.

blocked keypad; avoid turning on the remote control for no reason (press "A" and "M" simultaneously for a few seconds to block/unblock the keypad)

fl at battery (3 mini alkaline batteries type AAA)

Indicates that ignition / shutdown is being via the "EASY TIMER" program

Indicates the room temperature detected by the remote control (it indicates the values of the set parameters during its technical set-up).

Indicates that a setting has been transmitted for the stove to ignite

pellet/air stove remote control setting indicator

automatic function (the temperature value appears on the display)

manual adjustment function (the operating power value appears on the display)

88.8° A

TEMPERATURE DETECTED BY THE REMOTE CONTROL

The remote control is equipped with an internal sensor to detect the room temperature and display it in real time. The detected temperature is transmitted periodically to the control board of the insert/stove if the transmission LED of the remote control and the receiving sensor of the synoptic panel of the insert/stove are in each other's field of view. If the temperature of the remote control does not reach the control board of the insert/stove for over 30 minutes, the temperature detected by the sensor connected to the synoptic panel is used.

The following functions can be scrolled through and set by briefly pressing the "M" button:

automatic power adjustment

manual power adjustment

INSTRUCTIONS FOR USE

TEMPERATURE DETECTED BY THE REMOTE CONTROL

With the remote control it is possible to use the very quick and intuitive time programming function.

• If the stove is on: a delayed shutdown can be set using the remote control – from one to twelve hours. The remaining time before the scheduled shutdown is shown on the synoptic panel's display.
• If the stove is off: a delayed ignition can be set using the remote control – from one to twelve hours. The remaining time before the scheduled ignition is shown on the synoptic panel's display.

- Setting: proceed as follows to set the timer:

a) Press the “A” button and the icon 📋 will light up on the display, thereby confirming the “Easy timer” program has been accessed.
b) Set the hours by pressing the +/- buttons, for example:

c) Point the remote control towards the synoptic panel receiver
d) Confirm the setting by pressing the "A" button for a few seconds; the icon 📋 will go off and the remaining time before the scheduled intervention will appear on the synoptic panel.
e) Repeat points a), b), c), d) to cancel the setting, and set the hours to "00H"

BLOCKED KEYPAD

The remote control buttons can be blocked so as to prevent it from going on accidentally.

Press the A and M buttons simultaneously and the key symbol will light up confirming that the keys have been blocked. Press the A and M buttons simultaneously once again to unblock the keypad.

LOW BATTERY INDICATOR

When the battery icon lights up it indicates that the batteries inside the remote control are almost flat. Replace them with three new batteries of the same model (size AAA 1.5V).

• Do not use new batteries with used ones.
• Do not mix brands and different types as every type and brand has a different capacity.
• Do not mix traditional batteries with rechargeable ones;
• Do not try recharging alkaline and zinc-carbon batteries as this can cause them to break and/or a liquid leakage.

INFORMATION FOR USERS

In accordance with Art. 13 of the Legislative Decree No. 151, dated 25 July 2005, “Implementation of Directives: 2002/95/EC, 2002/96/EC and 2003/108/EC, pertaining to the reduction of hazardous substances used in electrical and electronic equipment, as well as disposal of waste”. The crossed-out wheeled bin symbol shown on the equipment or on the packaging indicates that the product must be disposed of separately at the end of its useful life. Therefore, at the end of the equipment’s useful life, the user must hand in the equipment to suitable collection facilities for electrical and electronic waste, or return it to the retailer when a new, equivalent appliance is purchased in a ratio of one to one.

MAINTENANCE

Before performing any maintenance, disconnect the appliance from the mains.

Regular maintenance is required for the stove to function correctly.

FAILURE TO PERFORM REGULAR MAINTENANCE, at least on a SEASONALbasis, could lead to poor functionality.

Any problems resulting from lack of maintenance will immediately void the warranty.

NOTE: After every 800 kg, “Mainten.” will appear to remind the user to clean the smoke channels, which is the user’s responsibility. This message will disappear by pressing the “TURBO” button for 5 seconds. Upon reaching 2000 kg of pellets, a “Mainten.-dealer” message will appear which will not disappear because the assistance of a DEALER is required.

This message can be reset from the parameters menu.

N.B.

• Any unauthorised modification is forbidden
• Use spare parts recommended by the manufacturer
• The use of pirate parts results in the guarantee becoming null and void

DAILY MAINTENANCE

Operations must be performed when the stove is off, cold and unplugged from the power supply

• Cleaning must be carried out with a vacuum cleaner. (see optional extras page 47).
  • The whole procedure takes up a few minutes every day.

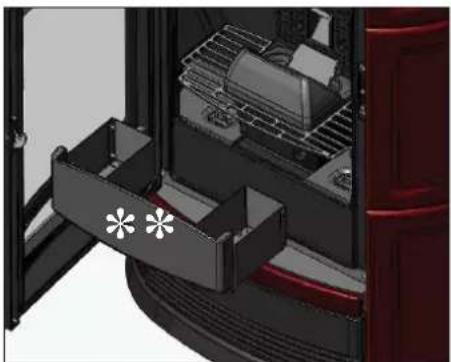

• Open the door and remove and empty the ash pan ( ^** - fi g. B).
  • DO NOT EMPTY THE RESIDUE OUT INTO THE PELLET HOPPER.
• Remove the combustion chamber or use the spatula to scrape it and clean out any blocked holes on all sides.
• Remove the combustion chamber (1) (fig. C) and scrape with a spatula. Clean any obstructions in the apertures.
• Suction the combustion chamber holder, clean the contact edges.
• Clean the glass, if necessary (when cold).

Never vacuum hot ash, it can make the vacuum cleaner breakdown and puts the household rooms at risk of fire.

3D rendering of a red and black interior space with a decorative handle and window (no text or symbols visible)

fig. B fig. C

Interior view of a computer case with open storage compartments and a numbered item labeled '1' (no text or symbols on main objects)

WEEKLY MAINTENANCE

• Clean the hearth (with a brush) after having removed the smoke deviators (3 - fig. D/E).
• Use the swabs (* - fig. E).
• Empty the pellet hopper and clean the base with the vacuum cleaner.

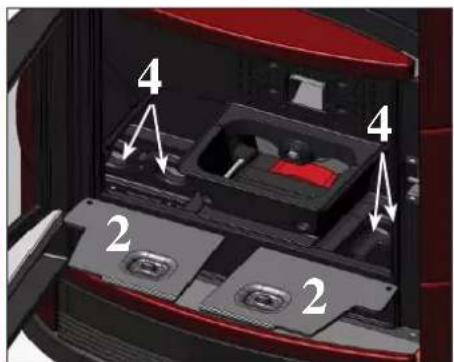

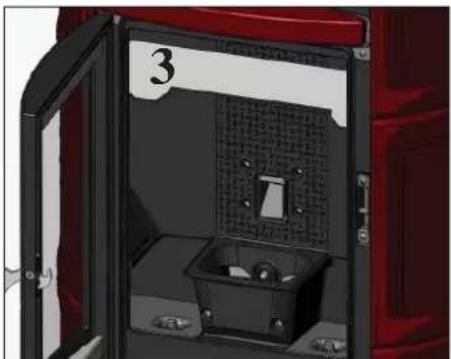

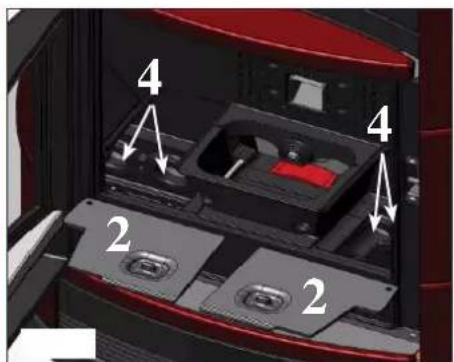

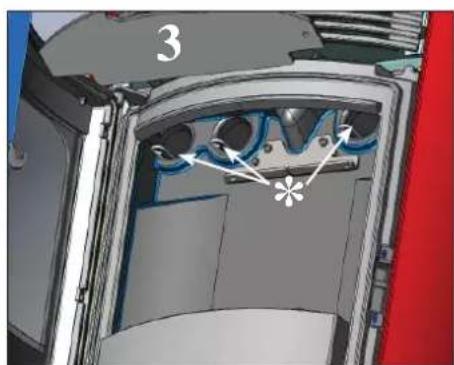

• When cleaning the combustion chamber, lift the smoke caps (2 - fig. F) and suction the four pipes underneath (4 - fig. F).

Interior view of a red and black industrial machine with labeled part '3' (no text or symbols beyond label)

fig. D

3

fig. E

4 4 2 2

fig. F

MAINTENANCE

SEASONAL MAINTENANCE (implemented by the DEALER)

Consists in:

• Clean the stove internally and externally
• Carefully clean the heat exchange tubes
• Carefully clean and remove dirt from the combustion chamber and the relative compartment
• Clean fans, verify mechanical and clamp loosening
• Clean smoke channel (replace seals on smoke exhaust pipe)
• Clean smoke duct (see weekly cleaning)
• Clean smoke extraction fan compartment.

- Clean smoke flow sensor.

- Clean smoke check thermocouple.

- Clean, inspect and scrape any residue from the ignition resistance compartment and if necessary, replace it

- Clean/check the Synoptic Panel

- Visually inspect the electrical wires, connections and power cable

- Clean the pellet hopper and check loosening of the feed screw - gear motor assembly

- Replace the door seal

- Functionality test: load the feed screw, ignite, let it run for 10 minutes and shutdown

If the stove is used very often, it is recommended to clean the smoke channel every 3 months.

ATTENTION !!!

After implementing a normal cleaning procedure, INCORRECT coupling of the upper (A) (figura 1) and lower (B) (figura 1) combustion chambers can compromise the stove's performance.

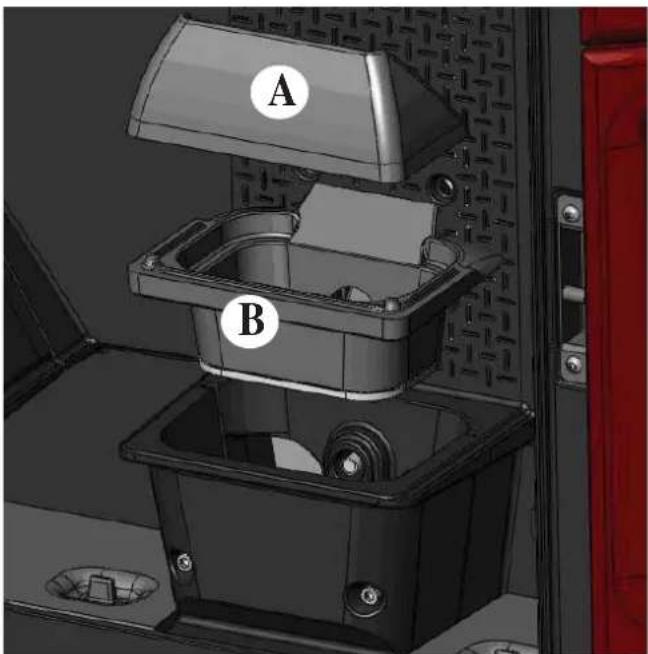

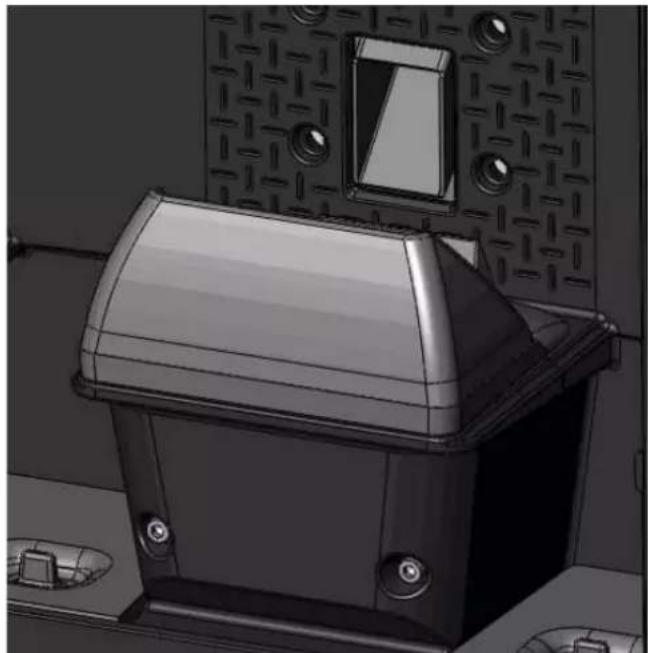

Before igniting the stove, make sure the combustion chambers are correctly paired as indicated in (fig. 2) without ash or unburnt material present on the support perimeter.

We remind you that using the stove without cleaning the melting pot, may cause a sudden ignition gas inside the combustion chamber with the consequent breaking of the glass

A B

fig.1

3D rendered mechanical component with mounting holes and a textured panel (no visible text or symbols)

fig.2

POSSIBLE TROUBLESHOOTING

In the event of problems the stove stops automatically and runs the shutdown process and the display shows text regarding the motivation of the shutdown (see the various alarms below).

Never pull the plug during shutdown on account of malfunction.

Should it block, to restart the stove you will need to allow the turn-off procedure to take place (600 seconds with audible signal), and then press the button 0/1.

Do not turn the stove on again before checking the cause of the malfunction and CLEANING/ EMPTYING the crucible.

INDICATION OF POSSIBLE CAUSES OF MALFUNCTION AND INDICATIONS AND REMEDIES:

1) Signalling: Verific./air flow: (intervenes if the flow sensor detects insufficient combustion).

Problem: Turns off for lack of depression

Air flow may be insufficient because the door is open, the door does not close properly (e.g. bad seal), there is an air intake or smoke extraction problem, or the combustion chamber is clogged.

Actions: Check:

• door closure;
- combustion air intake duct (clean, paying attention to the flow sensor components);
- clean the flow sensor with dry air (like that used for PC keyboards);

• stove location: it must not be installed against a wall;
• combustion chamber position and cleanliness (clean regularly according to the type of pellet);
• smoke duct (clean);
• installation (if it does not comply with regulations or the smoke outlet has more than 2-3 bends);

If you suspect the sensor is malfunctioning, carry out cold tests. If the conditions are changed (for example by opening the door) and the value does not change, there is a sensor problem.

N.B.: The no depression alarm may also occur during ignition, since the flow sensor starts monitoring 90 seconds after the ignition cycle begins.

2) Signalling: Verific./extract.: (this trips if the smoke extraction speed sensor detects a fault)

Problem: Shutdown for smoke extraction speed fault detection

Actions: • Check smoke extractor function (devolution sensor connection) and board (DEALER).

- Check smoke channel for dirt

• Verify the electrical system and earthing system.
• Check electronic circuit board (DEALER).

3) Signalling: Stop/Flame: (this trips if the thermocouple detects a smoke temperature lower than the value set, which it interprets as the absence of flames)

Problem: Turns off due to drop in smoke temperature

Actions: • lack of pellets

- too many pellets have suffocated the flame, check pellet quality (DEALER)

- the maximum thermostat has intervened (rare, this only intervenes in the event of excessive smoke temperature) (DEALER)

4) Signalling: Block_FI/NO Start: (intervenes if a flame fails to appear within a maximum of 15 minutes, or if ignition temperature is not reached).

Problem: Turns off due to incorrect smoke temperature during ignition

Distinguish either of the following cases:

Flame does NOT appear

Actions: • Check: - combustion chamber position and cleanliness;

• arrival of combustion air in the combustion chamber;
• if the heating element is working (DEALER);
  • room temperature (if lower than 3^ C use a firelighter) and damp.

Try to light with a fi relighter (see page 38).

Flames appear, but AF appears on the display after Ar

Actions: • Check: (only by the Dealer)

• if the thermocouple is working (DEALER);
• start-up temperature setting in the parameters (DEALER).

- Repeat start up after having emptying the brazier.

5) Signalling: Black Out: (not a defect of the stove).

Problem: Turns off due to lack of electricity

Actions: • Check electricity connection and drops in voltage.

6) Signalling: Fault/RC: (intervenes if the thermo coupling has failed or is disconnected).

Problem: Turns off due to thermo coupling failed or disconnected

Actions: • Check connection of thermo coupling to board: check function in cold test (DEALER).

POSSIBLE TROUBLESHOOTING

7) Signalling: smoke °C/high.

Problem: turns off due to exceeding maximum smoke temperature.

Actions: • Check the pellet type

• Check for anomalies with the smoke extraction motor
• Check to see if there are any obstructions in the smoke channel
• Check correct installation
• Check gear motor "drift"
• Check to make sure there is an air intake in the room

8) Signalling: ALARM - HIGH CURRENT: Activated when anomalous, excessive current absorption is detected on the gear motor..

Actions: Check functioning (CAT): gear motor - Electrical connections and electronic board.

9) Signalling: ALARM - LOW CURRENT: Activated when anomalous, insufficient current absorption is detected on the gear motor.

Actions: Check functioning (CAT): gear motor - pressure switch - tank thermostat - electrical connections and electronic board

10) Signalling: "Battery check"

Problem: The insert does not stop but the error appears on the display.

Actions: • The buffer battery of the control board needs changing (DEALER). Remember that this component is subject to regular wear and so it is not covered by the guarantee.

11) Problem: Remote control not working

Actions: • closer to the receiver of the insert

- check the battery and if necessary, replace it.

12) Problem: Outlet air not hot

Actions: • clean heat exchanger from inside the firebox.

13) Problem: During ignition, the differential switch trips (DEALER):

Actions: • check moisture content of ignition resistance

14) Problem: Does not ignite:

Actions: • clean combustion chamber.

NOTA

Warnings are shown until you intervene and press the 0/1 key on the control panel.

Do not ignite the stove until the problem has been checked and resolved.

N.B.:

The combustion chambers and smoke ducts connected to the solid fuel appliances must be cleaned once a year (check if your country has specifi c legislation covering this).

Failure to regularly check and clean increases the likelihood of a fire in the chimney pot.

IMPORTANT!!!

In the case of a fire in the stove, in the flue or in the chimney, proceed as follows:

- Disconnect the power supply

- Use a carbon dioxide (CO^2) extinguisher

- Call the fi re brigade

DO NOT ATTEMPT TO PUT THE FIRE OUT WITH WATER!

After the event, have the appliance checked by an authorised Service Centre and have an authorised technician check the flue.

CHECK LIST

To be integrated with a complete reading of the technical specifications

Positioning and installing

• First ignition performed by authorised CAT who released the guarantee certificate
• Room ventilation
• Only the stove outlet passes through the smoke channel/chimney flue
• The smoke channel has: a maximum of 2 curves, a maximum 2 horizontal metres
• Chimney pot that is high enough to avoid downdraft areas
• The discharge pipes are made of a suitable material (stainless steel is recommended)
• When using any flammable materials (e.g. wood), all precautions have been taken to prevent a fire hazard

Use

• Good quality, dry pellets are used
- The chimney pot and ash compartment are clean and well positioned
• The door is closed properly
- The combustion chamber is inserted properly into the relevant compartment

REMEMBER TO VACUUM THE COMBUSTION CHAMBER BEFORE EACH IGNITION Should ignition fail, DO NOT re-ignite until you have emptied the combustion chamber.

OPTIONAL

TELEPHONE COMBINER FOR REMOTE IGNITION (code 281900)

The stove can be ignited remotely by asking the DEALER to connect the telephone combiner to the serial port behind the stove via the optional cable (code 640560).

KIT 11 for channelling hot air into an adjacent room, with max channelling pipe length 1.5 m (code 645700).

KIT 11 BIS for channelling hot air into a non-adjacent room, with max channelling pipe length 5 m (code 645710).

CLEANING ACCESSORIES

GlassKamin
(code 155240)
Used for cleaning the ceramic glass

Metallic cylindrical container with black hose and lid, no visible text or symbols

Ash vacuum cleaner
without motor
(code 275400)
User for cleaning
the hearth

Madame, Monsieur,

2006/95/CE - Directive Basse Tension

Close-up of a metallic electrical connector with wires and connectors (no visible text or symbols)

CARACTERISTIQUES

positioned on the smoke extractor, which detects the vacuum value (compared to the installation environment) in the combustion chamber.

• CAPTEUR FLUX D'AIR:

Close-up of a computer tower with labeled component '29' and part identifier 'fi g. 2' (no readable text or symbols beyond labels)

29 138-139 fi g. 3

fi g. 4 150 139 150 138 150 138 150 139 150 part. "Y"

Close-up of bubbles rising in a container with two metallic vials (no text or symbols visible)

Close-up of a hand pressing down on a curved surface, possibly part of a mechanical or dental tool (no visible text or symbols)

Close-up of a metallic mechanical component with a hole and mounting holes (no visible text or symbols)

29 61 fig. 8

150 61 150 61 150 61 150 61 150 fi g. 9

24 62 62 4 fig. 10

PART. Z douilles 62 24 vites fi g. 11

PETITES PIÈCES FOURNIES:

62 In V2sviti PART. X fig. 3

140 fi g. 4

PETITES PIÈCES FOURNIES:

2 vis M6x25

2 vis M6x12

EVACUATION DES FUMEES

Technical diagram showing a structural component with labeled parts A, B, and C, including dimension lines.

Technical diagram of a vertical structure with labeled components D and E, showing internal components and connections.

Red robotic vacuum cleaner with open lid and labeled ports (P), no visible text or symbols on the device itself

fig. C P P L L

Technical diagram of a mechanical assembly with red arrows indicating flow or movement, no readable text or symbols present.

INSTALLATION

1ère SOLUTION: KIT 11 (code 645700) - SEULEMENT PIECE VOISINE

N.B.: LES TUYAUX DOIVENT ETRE ENFILES SUR LES RACCORDS DE SORTIE D'AIR CHAUD AVANT D'APPLIQUER LE REVETEMENT ET APRES AVOIR DEMONTE LE COTE LATERAL SUPERIEUR EN FONTE. LA PARTIE INITIALE DU TUYAU FLEXIBLE DOIT ETRE "ETENDUE" COMPLETEMENT DE MANIERE A ELIMINER LE PLISSEMENT; DE CETTE MANIERE LE DIAMETRE INTERNE S'ELARGIRA SENSIBLEMENT CE QUI FAVORISERA L'ENTREE.

Technical diagram showing a mechanical assembly with labeled components and directional arrows

fig. c

Technical diagram of a piping system with labeled components and directional arrows indicating flow or movement.

fig.d

Technical diagram of a staircase with numbered components and airflow indicators

fig. b

132 132 133 13

Diagram of a cardboard box with numbered parts for identification and assembly reference.

Technical diagram showing a vertical scale measurement setup with numbered components in a room layout

Technical diagram showing a mechanical or electrical system with labeled components and directional arrows

fig. c

Technical diagram of a ventilation system with labeled components 5, 6, and O, showing airflow paths and structural elements.

fig.d

Technical diagram of a building interior with numbered components and structural annotations

fig. b

132 132 133 13

Diagram showing exploded view of a mechanical assembly with numbered parts including a box, coiled spring, and various components.

Technical diagram showing a door opening with numbered components and a trash bin, likely for safety or ventilation instructions.

Technical diagram showing a mechanical assembly with labeled components and cross-sectional views

fig. c

Technical diagram of a piping system with labeled components and flow paths

fig.d

Technical diagram of a mechanical or architectural structure with numbered components, likely a valve or stairwell assembly.

fig. b

132 132 133 13

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a fire extinguisher installation with numbered components and labeled parts

		n° KIT 11 KIT 11 BIS
1 Boite 1 645740 643910
2 Tuyau ∅ 10 1 - 643900
3 Tuyau ∅ 10 1 162520 -
4 Goulotte terminale 2 293430 293430
5 Rosace murale 2 644190 644190
6a Cache conduit		2 645730 645730
7	Vis de fixation cache conduit	8	168260	168260
8	Collier de blocage des tuyaux	4	46160	46160
9 Collier mural		2	-	645750
10	Vis	4	-	8410
11	Chevilles	4 -	8520

INSTRUCTIONS D'UTILISATION

Red and black 3D printer case with open lid showing internal components (no visible text or symbols)

fig. 1

Control panel interface with icons for display, function buttons, and settings

Remplissage vis sans fi n.

Close-up of a black handheld electronic device with a digital display showing '254' and control buttons (no readable text beyond symbols)

88.8° A

INDICATION PILES DECHARGEES

3D rendering of a red appliance interior showing internal components and a decorative handle with two asterisks (no text or symbols)

fig. B fig. C

Interior view of a storage cabinet with labeled compartments (no text or symbols visible)

ENTRETIEN HEBDOMADAIRE

Interior view of a red industrial machine with labeled part '3' (no text or symbols beyond label)

fig. D

3

fig. E

4 4 2 2

fig. F

ENTRETIEN

ENTRETIEN SAISONNIER (par le revendeur)

Consiste en:

3D rendering of a mechanical device with a curved top and control panel (no visible text or symbols)

fig.2

INCONVENIENTS POSSIBLES

Actions: • clean combustion chamber.

REMARQUE

Metallic cylindrical container with black hose and handle, no visible text or symbols

- The appliance is not designed to be used by people, including children, with reduced physical, sensorial or mental abilities. Children must be supervised to ensure they do not play with the appliance.

- Only use certified, high quality, 6mm diameter wooden pellets for fuel.

Close-up of a mechanical component with wires and connectors (no visible text or symbols)

CARACTERÍSTICAS

Close-up of a computer tower case with labeled component '29' and part identifier 'fi g. 2' (no readable text or symbols beyond labels)

29 138-139 fig. 3

fi g. 4 150 139 150 138 150 138 150 139 150 part. "Y" 150

Close-up of a metallic object with bubbles and a small object inside, no visible text or symbols

Close-up of a hand holding a small white object near a smooth orange surface, with no visible text or symbols.

Close-up of a metallic mechanical component with a hole and mounting holes (no visible text or symbols)

150 61 150 61 150 61 150 fi g. 9

29 61 fi g. 8

24 62 62 4 fig. 10

Part. "Z" 62 casquillo Tovello 24 fi g. 11

ACCESORIOS VARIOS SUMINISTRADOS:

Technical diagram showing a structural component with labeled parts A, B, and C, including dimension lines and a vertical arrow indicating direction.

Technical diagram of a vertical structure with labeled components D and E, showing internal components and connections.

Red robotic device with open lid and labeled ports (P), no visible text or symbols on the device itself

fig. C P P L L

fig. D frontal intermedia posterior

fig. E

Technical diagram of a mechanical assembly with red arrows indicating flow or movement, no readable text or symbols present.

INSTALACIÓN

Technical diagram showing a mechanical assembly with labeled components and directional arrows

fig. c

Technical diagram of a piping system with labeled components and directional arrows indicating flow or movement.

fig.d

Technical diagram of a mechanical or architectural component with numbered parts and labeled features

fig. b

132 132 133 13

Exploded view diagram of a cardboard box with numbered parts for identification

Technical diagram showing a vertical scale mounted on a wall-mounted device, with numbered components labeled 3 through 8.

		n° KIT 11
1 Caja 1 645740
3 Tubo 10 ∅ 1 162520
4 Boca terminal 1 293430
5 Rosetón de pared 1 644190
6a Cubretubo 1 645730
7 Tornillos de fi jación cubretubo 4 168260
8 Abrazadera de bloqueo de tubos 2 46160

INSTALACIÓN

Technical diagram showing a mechanical assembly with labeled components and directional arrows

fig. c

Technical diagram of a mechanical or electrical device with labeled components and flow paths

fig.d

Technical diagram of a mechanical or architectural assembly with numbered components, likely a valve or stairwell.

fig. b

132 132 133 13

Diagram showing exploded view of a mechanical assembly with numbered parts including a box, coiled spring, and various components.

Technical diagram showing a pipe installation with numbered components and a trash bin, likely for safety or ventilation instructions.

		n° KIT 11	BIS
1 Caja 1 643910
2 Tubo 10 ∅ 1 643900
4 Boca terminal 1 293430
5 Rosetón de pared 1 644190
6a Cubretubo 1 645730
7 Tornillos de fi jación cubretubo 4 168260
8 Abrazadera de bloqueo de tubos 2 46160
9 Anillo de pared		2 645750
10 Tornillos		4	8410
11 Tacos		4	8520

INSTALACIÓN

Technical diagram showing a mechanical assembly with labeled components and cross-sectional views

fig. c

Technical diagram of a ventilation system with labeled components and airflow paths

fig.d

Technical diagram of a mechanical or architectural structure with numbered components, likely a valve or stairwell assembly.

fig. b

132 132 133 13

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a utility pole installation with numbered components and labeled parts

		n° KIT 11 KIT 11 BIS
1 Caja 1 645740 643910
2 Tubo 10 ∅ 1 - 643900
3 Tubo 10 ∅ 1 162520 -
4 Boca terminal 2 293430 293430
5 Rosetón de pared 2 644190 644190
6a Cubretubo		2 645730 645730
7	Tornillos de fijación cubretubo	8	168260	168260
8	Abrazadera de bloqueo de tubos	4	46160	46160
9 Anillo de pared		2	-	645750
10	Tornillos	4	-	8410
11	Tacos	4 -	8520

INSTRUCCIONES DE USO

Red and black robotic vacuum cleaner with open lid and internal compartments (no visible text or symbols)

fig. 1

Control panel interface with icons for display, function buttons, and power button

Llenado cóclea.

Close-up of a black handheld electronic device with control buttons and a display screen (no visible text or symbols)

89.8° A

3D rendering of a red appliance interior showing internal components and a decorative handle with two white star-like symbols (no text or labels)

fig. B fig. C

Interior view of a mechanical or electronic device with open compartments and labeled parts (no readable text or symbols)

MANTENIMIENTO SEMANAL

Interior view of a red and black industrial machine with labeled part '3' (no text or symbols on the device itself)

fig. D

3

fig. E

4 4 2 2

fig. F

MANUTENCIÓN

LIMPIEZA ESTACIONAL (a cargo del DISTRIBUIDOR)

Consiste en la:

3D rendered mechanical component with mounting holes and a textured panel background (no visible text or symbols)

fig. 2

CONSEJOS PARAPOSIBLES INCONVENIENTES

Metallic cylindrical container with black hose and lid, no visible text or symbols

Close-up of a metallic electrical connector with wires and connectors (no visible text or symbols)

MERKMALE

Close-up of bubbles rising in a metal enclosure, labeled 'Abb. 5' (no other text or symbols visible)

Close-up of a hand holding a white object over a smooth, curved surface (no text or symbols visible)

Close-up of a metallic mechanical component with a hole and mounting holes, labeled 'Abb. 6' (no other text or symbols visible)

29 61 Abb. 8

150 61 150 61 150 61 150 150 Abb. 9

24 62 62 4 Abb. 10

D#P#A12: Z 62 Buchsen Schmitaben 24 Abb. 11

Red robotic vacuum cleaner with open lid and labeled ports (P), no visible text or symbols on the device itself

Abb. C P P L L

Exploded view diagram of a cardboard box with numbered parts for identification

Technical diagram of a fire extinguisher with numbered parts labeled 3 through 8, shown in an indoor enclosure.

Diagram showing various types of electrical components with numbered labels, including a box, coil, and various wires.

Technical diagram of a utility cabinet with numbered components and piping connections

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a fire extinguisher installation with numbered components and labeled parts

		n° KIT 11	KIT 11 BIS
1 Schachtel 1 645740 643910
2 Rohr ∅ 10 1 - 643900
3 Rohr ∅ 10 1 162520 -
4 Abschlussstutzen 2 293430 293430
5 Wandrosette 2 644190 644190
6a Rohrhülse 2 645730 645730
7 Befestigungsschrauben Rohrhülse 8 168260 168260
8	Befestigungsschelle Rohr	4	46160	46160
9 Rohrmanschette		2	-	645750
10	Schrauben 4 - 8410
11	Dübel	4 -	8520

Red and black 3D printer case with open lid showing internal components (no visible text or symbols)

Abb. 1

Control panel interface with icons for display, function buttons, and power button

Close-up of a black handheld electronic device with a digital display showing '25V' and control buttons (A, M, +, -) on its body.

80.8° A

3D rendering of a red and black mechanical device with internal compartments and a star-like symbol on the base (no text or symbols present)

Abb. B Abb. C

Interior view of a storage cabinet with open compartments and numbered parts (no visible text or symbols)

Interior view of a red industrial machine with labeled components (no readable text or symbols)

3 Abb. E

4 4 2 2

WARTUNG

3D rendering of a mechanical device with mounting holes and a textured panel background (no visible text or symbols)

Abb. 2

MÖGLICHE PROBLEME

Metallic cylindrical container with black hose and lid, no visible text or symbols

Close-up of a mechanical component with wires and connectors, no visible text or symbols

EIGENSCHAPPEN

BESCHERMINGSINSTALLATIES

• THERMOKOPPEL:

Close-up of metallic components with bubbles, labeled 'Afb. 5' in bottom-left corner (no other text or symbols)

Close-up of a finger pressing a small white object on a smooth, curved surface (no text or symbols visible)

Close-up of a metallic mechanical component with a hole and mounting holes, labeled 'Afb. 6' (no other text or symbols visible)

29 61 Afb. 8

150 61 150 61 150 61 150 Afb. 9

24 62 62 4 Afb. 10

Part. "Z" moffen 62 24 Vites Afb. 11

BLIGESLOTEN MATERIAAL:

Red robotic vacuum cleaner with open lid and control panel (no visible text or symbols)

Afb. C P P L L

Afb. D frontale intermedia posteriore

CIRCULATIE VAN WARME LUCHT

Exploded view diagram of a cardboard box with numbered parts for identification

Technical diagram showing a vertical scale mounted on a cylindrical device in an enclosure, with numbered labels pointing to components.

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Afb. c

Technical diagram of a ventilation system with labeled components and airflow paths

Afb. d

Technical diagram of a building interior with numbered components and airflow paths

Afb. b

132 132 133 13

Diagram showing exploded view of a mechanical assembly with numbered parts including a box, coiled spring, and various components.

Technical diagram showing a pipe installation with numbered components and a trash bin, likely for safety or ventilation instructions.

Technical diagram showing a mechanical assembly with labeled components and cross-sectional views

Afb. c

Technical diagram of a ventilation system with labeled components and airflow paths

Afb. d

Technical diagram of a mechanical or architectural assembly with numbered components and flow indicators

Afb. b

132 132 133 13

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a utility pole installation with numbered components and piping connections

Red and black robotic vacuum cleaner with open lid and internal display panel (no visible text or symbols)

Afb. 1

OPMERKING betreffende de brandstof.

Control panel interface with icons for display, function buttons, and settings

Close-up of a black handheld electronic device with a display screen showing '234' and control buttons (no readable text beyond symbols)

86.8° A

3D rendering of a red appliance interior showing internal components and a black plastic holder with two white star symbols (no text or labels)

Afb. B Afb. C

Interior view of a mechanical or electronic device with labeled parts (no readable text or symbols)

WEKELIJKS ONDERHOUD

Interior view of a red and black industrial machine with labeled part '3' (no text or symbols on the device itself)

Interior view of a vehicle showing engine, air ducts, and structural components (no text or symbols)

4 4 2 2

ONDERHOUD

SEIZOENSGEBONDEN ONDERHOUD (door uw Dealer)

Bestaat uit:

3D rendering of a mechanical device with a curved top and control panel (no visible text or symbols)

Afb. 2

MOGELIJKE STORINGEN

Metallic cylindrical container with black hose and lid, no visible text or symbols

Aszuiger

zonder motor

(code 275400)

Handig voor de

Close-up of a mechanical component with wires and connectors, no visible text or symbols

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Close-up of a computer tower with labeled components and a red circular annotation (no readable text or symbols)

29 138-139 εικ. 3

εικ. 4 150 139 150 138 150 138 150 139 part. "Y" 150

Close-up of water bubbles and submerged objects in a container (no text or symbols visible)

Close-up of a finger pressing a small white object on a smooth, curved surface (no text or symbols visible)

Close-up of a metallic mechanical component with a hole and textured surface (no visible text or symbols)

29 61 εικ. 8

150 61 150 61 150 61 150 150 εικ. 9

24 62 62 4 εικ. 10

Red robotic vacuum cleaner with open lid and control panel (no visible text or symbols)

εικ. C P P L L

Technical diagram showing a mechanical assembly with labeled components and directional arrows

ELK. C

Technical diagram of a piping system with labeled components and directional arrows indicating flow or movement.

εικ. d

Technical diagram of a ventilation system with numbered components and airflow paths

εικ. b

132 132 133 13

Exploded view diagram of a cardboard box with numbered parts for identification

Technical diagram showing a vertical scale mounted on a device inside a room with numbered annotations pointing to components.

Technical diagram showing a mechanical or electrical system with labeled components and directional arrows

εικ. c

Technical diagram of a ventilation system with labeled components 5, 6, and Q

εικ. d

Technical diagram of a building interior with numbered components and structural elements

εικ. b

132 132 133 13

Diagram showing exploded view of a mechanical assembly with numbered parts including a box, coiled spring, and various components.

Technical diagram showing a pipe installation with numbered components and a trash bin, likely for safety or industrial monitoring.

Technical diagram showing a mechanical assembly with labeled components and cross-sectional views

εικ. ο

Technical schematic diagram of a piping system with labeled components and flow paths

εικ. d

Technical diagram of a mechanical or architectural assembly with numbered components and flow paths

εικ. b

132 132 133 13

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a fire extinguisher installation with numbered components and labeled parts

Red and black 3D printer case with open lid showing internal components (no visible text or symbols)

fig. 1

Control panel interface with icons for display, function buttons, and settings

Φόρτωση κοχλία

Close-up of a black handheld electronic device with a display screen showing abstract symbols (no readable text or labels)

88.8° A

3D rendering of a red appliance interior showing internal compartments and a decorative handle with two white star-like symbols (no text or labels)

εικ. Β εικ. Β

Interior view of a mechanical device showing a tray with a lid and internal compartments (no visible text or symbols)

Interior view of a red industrial machine with labeled part '3' (no text or symbols beyond label)

3

Diagram of a red electronic device showing labeled components with arrows pointing to internal compartments

3D rendering of a mechanical device with control panel and mounting base (no visible text or symbols)

εικ. 2

ΠΙΘΑΝΑ ΑΝΕΠΙΘΥΜΗΤΑ

Metallic cylindrical container with black hose and lid, no visible text or symbols

WYMIARY I TYPY WYKOŃCZENIA

Close-up of a mechanical component with wires and connectors, no visible text or symbols

CECHY TECHNICZNE

Close-up of metallic surfaces with water droplets and a small object, labeled 'rys. 5' in the corner (no other text or symbols)

Close-up of a hand pressing down on a curved surface, no visible text or symbols

Close-up of a metallic surface with dark spots and a label 'rys. 6' (no other text or symbols visible)

29 61 rys. 8

150 61 150 61 150 61 150 150 rys. 9

24 62 62 4 rys. 10

szczg 62 zlt. "Z" tulejka 24 vite rys. 11

DROBNE ELEMENTY ZAWARTE W DOSTAWIE:

2 szt. śrub M6x25

2 szt. śrubM6x12

62 n°2 viti Part. X "X" rys. 12

140 rys. 13

MONTAŻ CERAMICZNEGO TOPU FATA/SIRENA (rys. 13)

62 n°2 viti Part. "X" rys. 3

140 rys. 4

DROBNE ELEMENTY ZAWARTE W DOSTAWIE:

Red robotic vacuum cleaner with open lid and control panel (no visible text or symbols)

rys. C P P L L

Diagram of a cardboard box with numbered parts including a coiled spring, coiled tube, and cylindrical tube

Technical diagram of a utility pole installation with numbered components and labeled parts inside a room.

Technical diagram of a mechanical device with labeled components and internal flow paths

rys. c

Technical diagram of a piping system with labeled components 5, 6, and O, showing airflow paths and structural elements.

rys. d

Technical diagram of a building interior with numbered components and piping layout

rys. b

132 132 133 13

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a utility cabinet with numbered components and piping connections

Technical diagram showing a mechanical assembly with labeled components and cross-sectional views

rys. c

Technical diagram of a piping system with labeled components and flow paths

rys. d

Technical diagram of a mechanical or architectural assembly with numbered components and flow indicators

rys. b

132 132 133 13

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a fire extinguisher installation with numbered components and labeled parts

Red and black robotic vacuum cleaner with open lid and internal display panel (no visible text or symbols)

fig. 1

Control panel interface with icons for display, function buttons, and settings

Napełnianie ślimaka

Close-up of a black handheld electronic device with a display screen showing abstract symbols (no readable text or labels)

88.8° A

3D rendering of a red appliance interior showing internal components and a decorative handle with two asterisks (no text or symbols)

rys. B

Interior view of a storage cabinet with labeled compartments and a red door (no visible text or symbols)

rys. C

KONSERWACJA COTYGODNIOWA

Interior view of a red industrial machine with labeled part '3' (no text or symbols on the device itself)

rys. D rys. E rys. F

3

4 4 2 2

KONSERWACJA

3D rendering of a mechanical device with mounting holes and a textured panel (no visible text or symbols)

rys. 2

POSTĘPOWANIE W PRZYPADKU NIEPRAWIDŁOWOŚCI

WYPOSAŻENIE DODATKOWE

KOMBINATOR TELEFONICZNY DO ZDALNEGO ROZPALANIA PIECYKA (kod. 281900)

Metallic cylindrical container with black hose and lid, no visible text or symbols

Close-up of a mechanical component with wires and connectors, no visible text or symbols

CARACTERÍSTICAS

Close-up of a computer tower with labeled component '29' and part identifier 'fi g. 2' (no readable text or symbols beyond labels)

29 138-139 fig. 3

fig. 4 150 139 150 138 150 138 150 porm. "Y" 139 150

Close-up of metallic components with water droplets and a small object, labeled 'fig. 5' in the corner (no readable text or symbols on the objects)

Close-up of a hand holding a small object near a smooth, curved surface (no visible text or symbols)

Close-up of a metallic surface with dark spots and a label 'fig. 6' (no other text or symbols)

29 61 fi g. 8

150 61 150 61 150 61 150 fi g. 9

24 62 62 4 fig. 10

Part. "Z" 62 casquilho 24 vite fi g. 11

ITENS FORNECIDOS:

Red robotic vacuum cleaner with open lid and labeled ports (P), no visible text or symbols on the device itself

fi g. C P P L L

fi g. D frontal intermédia trascira

Technical diagram of a mechanical assembly with red arrows indicating flow or movement, no readable text or symbols present.

INSTALAÇÃO

Technical diagram showing a mechanical assembly with labeled components and directional arrows

fig. c

Technical diagram of a piping system with labeled components and directional arrows indicating flow or movement.

fig.d

Technical diagram of a ventilation system with numbered components and airflow paths

fig. b

132 132 133 13

Exploded view diagram of a cardboard box with numbered parts for identification

Technical diagram showing a vertical scale with numbered components mounted on a wall, likely for measurement or installation instructions.

Technical diagram showing a mechanical assembly with labeled components and directional arrows

fig. c

Technical diagram of a ventilation system with labeled components 5, 6, and Q

fig.d

Technical diagram of a building interior with numbered components and structural elements

fig. b

132 132 133 13

Diagram showing exploded view of a mechanical assembly with numbered parts including a box, coiled spring, and various components.

Technical diagram showing a door opening with numbered components and a trash bin, likely for architectural or industrial design reference.

Technical diagram showing a mechanical assembly with labeled components and cross-sectional views

fig. c

Technical diagram of a piping system with labeled components and flow paths

fig.d

Technical diagram of a ventilation system with numbered components and airflow paths

fig. b

132 132 133 13

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a fire extinguisher installation with numbered components and labeled parts

		n.° KIT 11 KIT 11 BIS
1 Caixa 1 645740 643910
2 Tubo ∅ 10 1 - 643900
3 Tubo ∅ 10 1 162520 -
4 Boca terminal 2 293430 293430
5 Rosácea de parede 2 644190 644190
6a Cobertura do tubo		2 645730 645730
7	Parafusos de fixação da cobertura do tubo	8	168260	168260
8	Faixa de bloqueio dos tubos	4	46160	46160
9 Colar de parede		2	-	645750
10	Parafusos	4	-	8410
11	Buchas	4 -	8520

Red and black 3D printer case with open lid showing internal components (no visible text or symbols)

fig. 1

Control panel interface with icons for display, function buttons, and settings

Close-up of a black handheld electronic device with control buttons and a green display screen (no visible text or symbols)

88.8° A

3D cutaway view of a red appliance showing internal components and a black plastic tray with two white star-like symbols (no text or labels)

fig.B

Interior view of a storage cabinet with labeled compartments and a red door (no visible text or symbols)

fig.C

MANUTENÇÃO SEMANAL

Interior view of a red industrial machine with labeled part '3' (no text or symbols on the device itself)

fig. D

3

fig. E

4 4 2 2

fig. F

MANUTENÇÃO

3D rendering of a mechanical device with mounting holes and a textured panel background (no visible text or symbols)

fig.2

POSSÍVEIS INCONVENIENTES

Metallic cylindrical container with black hose and handle, no visible text or symbols

Tanque aspira-cinzas sem motor (cód. 275400)
Útil para a limpeza da fornalha
