USER MANUAL XVC2067 Xtorm
1x USB-C PD 67W
1x USB-C PD 20W
AC 100V-240V, 50-60Hz, 1.65A Max
68×68×30 mm
191 grams
1x Manual
1x 2M USB-C PD Cable
1x EU, US & UK Plug
When using multiple outputs
When using 2 outputs
1 20W 45W
SWITCHABLE PLUGS 4
3B Connect the other end to the input of your device. Charging will start automatically.


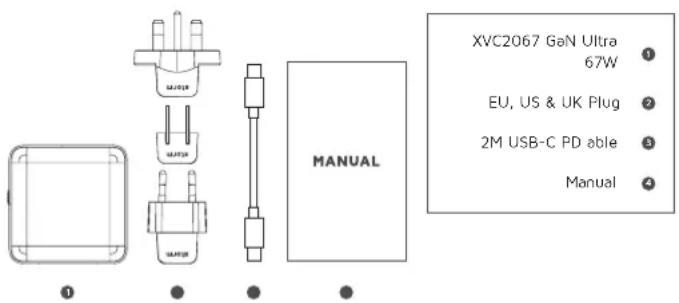

IN THE BOX5
1 SPECIFICATIONS
2 PRODUCT OVERVIEW
3 CHARGING YOUR DEVICE
3.A Connect one end of the charging cable to the output of the adapter.
3.B Connect the other end to the input of your device. Charging will start automatically.

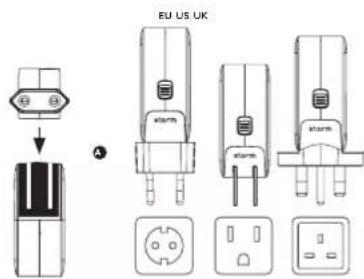

4 SWITCHABLE PLUGS
4.A Lock the correct plug* in the Adapter via the sliding mechanism until you hear the 'click' sound. When done charging pull the small button to the side to release the plug. After that you can connect the adapter to the wall socket,
5 IN THE BOX
NL - NEDERLANDS
EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.
XTORM SAFETY CHECK WARNINGS
1. TEMPERATURE CONTROL
Provided with a temperature control chip that prevents overheating.
2. OVERLOAD PROTECTION
Protects both the internal battery as well as the battery of the attached device from overcharging.
3. SECURED POWER MANAGEMENT
Automatically picks the correct charging speed and efficiently devides power between attached devices.
4. SHORT CIRCUIT PROTECTION
Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.
5. A-CLASS BATTERY CELLS
We only use the best battery cells that provide the fast charging you need and meet all safety requirements.
6. HIGH EFFICIENCY
Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.
EN Warnings
Don't crop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flammibia gas. The warranty will lapse in the event of limproper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.
