Li-ion 9000 mAh - Power bank Xtorm - Free user manual and instructions

Product Type	External battery (Power bank)
Brand	Xtorm
Model	Li-ion 9000 mAh
Battery Type	Lithium-ion
Battery Capacity	9000 mAh / 33.3 Wh
Input Port	Micro USB 5V/2A
Output Port	USB-A 5V/2.1A
Charging Time	Approximately 5 hours (with 2A adapter)
Number of USB Ports	1
Dimensions	Approx. 140 x 70 x 15 mm
Weight	Approx. 200 g
LED Indicators	4 LED lights for battery level
Protection Features	Overcharge, over-discharge, short circuit protection
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Maintenance	Clean with a dry, soft cloth. Do not use liquids.
Safety Precautions	Do not expose to water or high temperatures. Do not disassemble.
Spare Parts & Repairability	Not user-serviceable. Contact manufacturer for replacement.

Frequently Asked Questions - Li-ion 9000 mAh Xtorm

How do I charge the power bank?

Use a micro USB cable (not included) and connect it to a USB power adapter (5V/2A recommended). Plug into the input port. The LED lights will indicate charging status.

How long does it take to fully charge the power bank?

Charging time is approximately 5 hours when using a 2A adapter. Using a lower current adapter will take longer.

Can I charge my phone while the power bank itself is charging?

Yes, the power bank supports pass-through charging. You can charge both the power bank and your device simultaneously.

How do I check the battery level?

Press the power button (if available) or check the 4 LED indicators. Each LED represents approximately 25% charge. All LEDs on means 100%.

What devices can I charge with this power bank?

It can charge most USB-powered devices such as smartphones, tablets, Bluetooth headphones, and cameras. The output is 5V/2.1A, suitable for most devices.

Is it safe to leave the power bank plugged in overnight?

Yes, it has built-in overcharge protection. Once fully charged, the power bank will stop drawing current to prevent damage.

Why is my power bank not charging my phone?

Check that the cable is properly connected and the power bank has sufficient charge. Try a different cable or device. If the problem persists, reset by connecting it to a charger for a few seconds.

Can I take this power bank on a plane?

Yes, it is allowed in carry-on luggage. The capacity of 9000 mAh (33.3 Wh) is below the 100 Wh limit set by airlines.

How many times can it charge my smartphone?

The number of charges depends on your phone's battery capacity. For example, a 3000 mAh phone can be charged approximately 2-3 times (accounting for energy loss).

What do flashing LED lights mean?

Flashing LEDs indicate error or low battery in the power bank. Try recharging it. If flashing persists, contact support.

USER MANUAL Li-ion 9000 mAh Xtorm

Don't drop, dissemble or attempt to repair the charger by yourself.

Avoid exposure to water or high humidity. Don't expose to any heat source.

Don't expose to any heat source. Keep out of reach of children.

Don't use in the presence of flammable gas

NL: Waarschuwing

* THIS MANUAL IS AVAILABLE IN DIFFERENT LANGUAGES

ON OUR WEBSITE

Hoofdveste 19

3992 DH Houten

The Netherlands

T: [phone]

F: + 31 (0) 30 635 4801

www.xtorm.eu

xtorm

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

BY A-SOLAR

Portable Power Bank USB
XB101 Power Bank Trip 9000 mAh

Box contains

MICRO USB CABLE

POWER BANK

POUCH

Specifications:

Battery

Battery type:

Input:

USB output

Dimentions

Weight:

LED battery indication

Charging time

Charging time Mobile equipment:

9000mAh

Li-ion

5V/2A

2x 5V max. 2.5A

65×97×22mm

200grams

Yes

4-5 hrs

1-4 hrs

1. Product overview

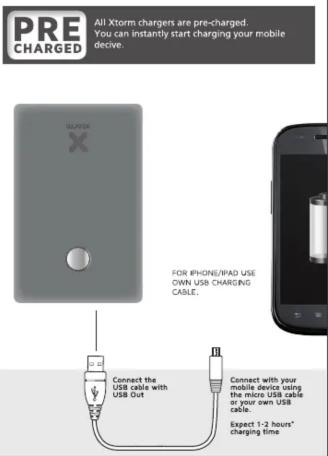

1. QUICK START / First use


1. Charge the Power Bank by USB or A/C


1. Charge your mobile device


By ideal conditions,

1. Charging 2 devices at the same time
