USER MANUAL XW403 Xtorm

Line drawing of a mobile phone chassis with grid-patterned panel and base (no text or symbols)

1 SPECIFICATIONS

USB-C™ PD 20W Wireless 5W/7.5/10W/15W (max)

113x80x80 mm

110 grams

+ 1x USB-C™ PD cable (1.5m) 1x Manual

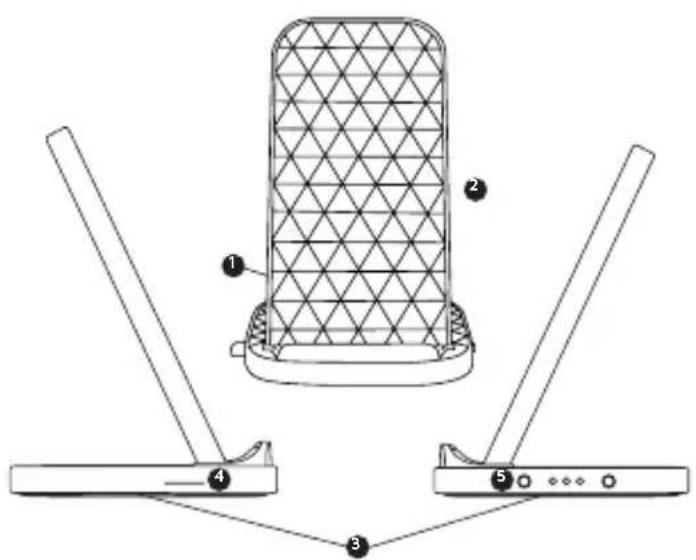

PRODUCT OVERVIEW 2

Input USB-C 20W

1

Wireless output 15W

2

LED light indicator

3

Official Xtorm Label

4

Connection 2 ^nd charger

5

3 CHARGING YOUR DEVICE

Line drawing of a smartphone with a circular button labeled 'B' on its screen, mounted on a stand (no text or symbols beyond the label)

Simple line drawing of a two-pin electrical plug (no text or symbols)

COMPATIBLE DEVICES

3A Connect the USB-C end of the charging cable to the input of the wireless charger and the other USB-C end to a wall charger.
3B Place your device on top of the wireless charger or in the charging stand, your device will charge automatically.

CHARGE SEPARATELY 4

4A Create a dual charger by connecting 2 chargers together magnetically. The expansion port transfers power, you only need to use 1 cable.
4B When the two chargers are connected together, the 15W maximum power will be split between them in 10W/5W, or 7.5W/7.5W.

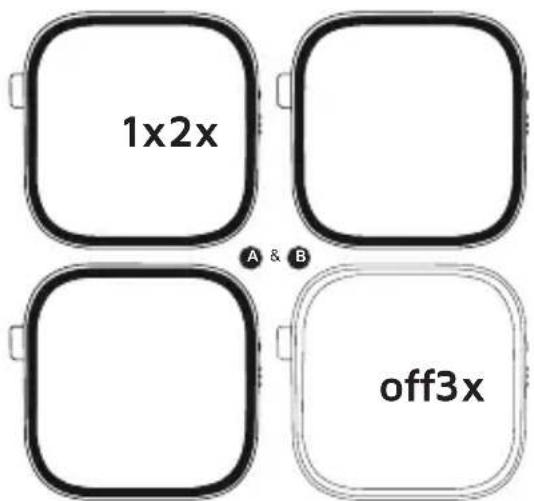

LED LIGHT INDICATOR5

5A To indicate the power is on, the LED light ring will slowly flash 3x, and then turn off.
5B Place your phone in the middle of the charger or in the charging stand, and charging will start automatically. To indicate charging has started, the LED light ring will slowly flash 3x, and then turn off.

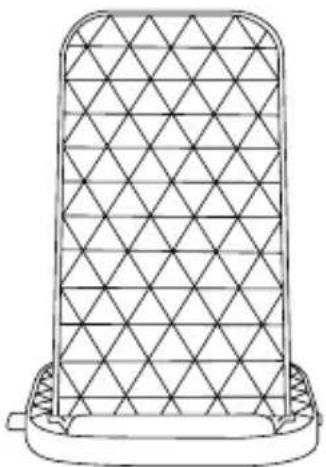

IN THE BOX 6

Line drawing of a triangular grid-patterned object with base and top (no text or symbols)

1

2

3

XW403 Wireless charging stand solo

USB-C™ PD cable (1.5m

Manual

EN - ENGLISH

1 SPECIFICATIONS

2 PRODUCT OVERVIEW

3 CHARGING YOUR DEVICE

3.A Connect the USB-C end of the charging cable to the input of the wireless charger and the other USB-C end to a wall charger.

3.B Lay your device on top of the wireless charger or in the charging stand, your device will charge automatically.

4 RECHARGING THE POWER BANK

4.A Create a dual charger by connecting 2 chargers together magnetically. The expansion port transfers power, you only need to use 1 cable.

4.B When the two chargers are connected together, the 15W maximum power will be split between them in 10W/5W, or 7.5W/7.5W.

5 LED POWER INDICATOR

5.A To indicate the power is on, the LED light ring will slowly flash 3x, and then turn off.

5.B Place your phone in the middle of the charger or in the charging stand, and charging will start automatically. To indicate charging has started, the LED light ring will slowly flash 3x, and then turn off.

6 IN THE BOX

NL - NEDERLANDS

1 SPECIFICATIES

2 PRODUCTOVERZICHT

3 UW APPARAAT OPLADEN

5 LED STROOMINDICATOR

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

WARNINGS

EN Warnings

Don't drop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flammable gas. The warranty will lapse in the event of improper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the (operation) of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.

NL Waarschuwingen

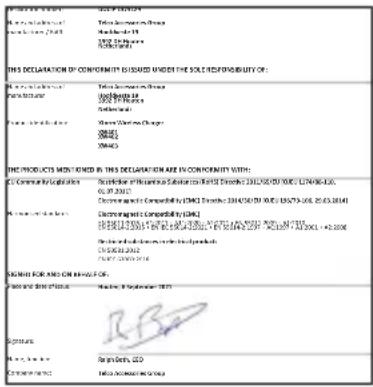

EU DECLARATION OF CONFORMITY

HIGHER QUALITY

= LOWER IMPACT

CUSTOMER SUPPORT

[e-mail]

[phone]

TELCO ACCESSORIES GROUP

Hoofdveste 19, 3992DH Houten

The Netherlands
