FS5101 - Power bank Xtorm - Free user manual and instructions

Product type	Portable battery (power bank)
Brand	Xtorm
Model	FS5101
Input power	USB-C (for charging the battery)
Output power	USB-A (for charging devices)
Fast charging	USB-C PD 20 W (dedicated LED indicator)
Recommended charger for fast charging	PD USB-C charger 18 W (full charge time: 3.4 h)
Battery level indicator	LED screen displaying percentage (0% – 100%)
Power button function	Single press: display level; double press: turn power bank on/off
Fast charging indicator	Lights up when using a fast charging compatible cable (20 W USB-C PD and above)
Box contents	FS5101 portable battery, charging cable (USB-C to USB-A ?)
Safety	Do not drop, disassemble, expose to water or high humidity, heat source, flammable gases. Keep out of reach of children.
Recycling	Follow WEEE procedures. Contact local recycling organization.

Frequently Asked Questions - FS5101 Xtorm

How to recharge the FS5101 portable battery?

Connect the USB-C end of the supplied cable to the USB-C input of the battery (output 3) and the other end to a USB wall charger. For fast charging, use an 18 W PD USB-C charger, providing a full charge in 3.4 hours.

How to charge my phone with this battery?

Plug the USB end of the charging cable into the USB-A output of the battery, then the other end into your device. Charging starts automatically. Some devices require a specific cable (Apple Lightning or Micro USB).

What does the LED screen on the battery mean?

The screen displays the remaining battery percentage, from 0% (empty) to 100% (fully charged). Press the power button once to turn it on.

How to know if fast charging is active?

A fast charging indicator lights up when you use a fast charging compatible cable (20 W USB-C PD and above) to charge your device.

Can I use a cable other than the one provided?

Yes, you can use other cables, for example a Lightning cable for iPhone or a Micro USB cable for some devices. Make sure they are compatible with fast charging if needed.

How long does it take to fully charge the battery?

With an 18 W PD USB-C charger, the charging time is about 3.4 hours. With a standard charger, the time may be longer.

Can I use the battery while it is charging?

The manual does not explicitly mention it, but it is generally not recommended to charge and discharge a portable battery simultaneously for safety and performance reasons.

Is it dangerous to leave the battery plugged in after a full charge?

It is recommended to unplug the battery once fully charged to avoid premature wear. The manual specifies not to expose the device to a heat source and to follow safety instructions.

What to do if the battery does not turn on?

Check that the battery is sufficiently charged. Plug it into a charger and wait a few minutes. If the LED screen still does not turn on, contact customer service. Do not attempt to repair yourself.

How to recycle the Xtorm FS5101 portable battery?

Do not dispose of the battery with household waste. Contact your local recycling organization to follow WEEE (Waste Electrical and Electronic Equipment) procedures.

USER MANUAL FS5101 Xtorm

Line drawing of a smartphone with 'xtorm' branding and circular design, no readable text or symbols beyond branding

SPECIFICATIONS PRODUCT OVERVIEW1 2

10.000 mAh Li-Polymer / 37Wh

1x USB-C PD 20W

1x USB-C 18W

1x USB-A 22.5W [QC 3.0 18W / SCP 22.5W]

USB-C PD 18W Input

136x71x15 mm

218 grams

1x USB-C PD cable

1x Manual

When using multiple outputs

When using 2 outputs

Share 15W

Share 15W

Share 15W

When using all outputs

Share 15W

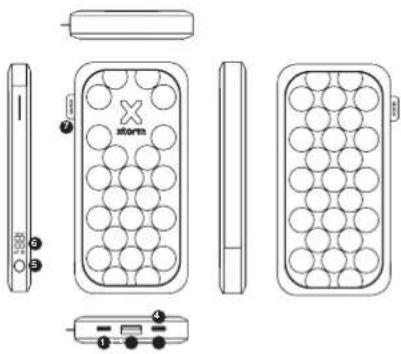

Output

USB-C PD 18W

Output

USB-A 22.5W

QC 5.0 (4W) 3CP 22.5K

Output

USB-C 20W

Input

USB-C PD 18W

Power Button

Digital Power Indicator

Official Xtorm Label

CHARGING YOUR DEVICE3 RECHARGING THE POWER BANK 4

Diagram showing three electronic devices: a smartphone, a connector pin, and a separate device with ports (no text or symbols present)

COMPATIBLE DEVICES

3A Connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied.
E.g. an Apple Lightning ^® or a Micro USB cable.

Three technical line drawings of electronic components: a three-pin plug, a connector pin, and a multi-pin connector (no text or symbols)

4A Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 3.4 hours.

LED POWER INDICATOR5 IN THE BOX 6

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:

- single press to turn on/off the display

- double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

EN - ENGLISH

1 SPECIFICATIONS

2 PRODUCT OVERVIEW

3 CHARGING YOUR DEVICE

3.A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically.

3.B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^4 or a Micro USB cable.

4 RECHARGING THE POWER BANK

4.A Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.

4.B For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 3.4 hours.

5 LED POWER INDICATOR

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:

- single press to turn on/off the display

- double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

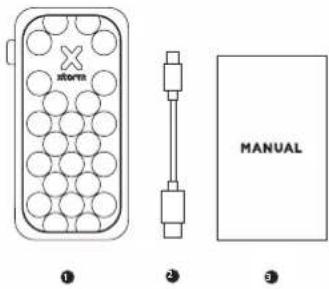

6 IN THE BOX

NL - NEDERLANDS

1 SPECIFICATIES

2 PRODUCT OVERZICHT

3 OPLADEN VAN JOUW APPARAAT

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK WARNINGS

1. TEMPERATURE CONTROL

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

EN Warnings

Don't crop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flammibia gas. The warranty will lose in the event of limproper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.

NL Waarschuwingen

EU DECLARATION OF CONFORMITY
