Product type	Interactive flat panel (touch monitor)
Brand	Optoma
Model	5752RK+
Screen diagonal	65 inches (165 cm) – other sizes available (75, 86 inches)
Native resolution	3840 x 2160 (4K UHD)
Touch technology	Capacitive touch (supports stylus and finger)
Video inputs	3x HDMI 2.0, 1x VGA, 1x USB Type-C (DisplayPort 1.2), 1x OPS (optional)
USB ports	2x USB 3.0 (front), 2x USB 3.0 (rear), 1x USB 2.0, 1x USB Type-C (PD 65W)
Network connectivity	2x RJ45 (LAN), Wi-Fi via dongle, Bluetooth 5.0
Audio outputs	3.5 mm headphone jack, optical SPDIF, built-in speakers 2x 20 W
Operating system	Android (version unspecified)
Pre-installed applications	Creative Board (whiteboard), Creative Cast, file manager, browser
Remote control	IR remote, RS232, LAN (remote control)
Wall mount	VESA 600x400 mm (65"), 800x400 mm (75"), 800x600 mm (86") – optional kit
Power supply	100-240 V AC, 50/60 Hz (power consumption unspecified)
Power consumption (standby)	Eco standby mode: <0.5 W; active standby mode: higher (for Wake-on-LAN)
Dimensions (W x H x D) - 65"	Approximately 1488 x 897 x 110 mm (without stand)
Weight	Unspecified (estimated ~55 kg for the 65" model)
Security	OSD lock, screen password, presence detection, auto shutdown
Maintenance and cleaning	Unplug before cleaning; use a soft, dry cloth; do not use liquids or abrasive cleaners

Frequently Asked Questions - 5752RK+ OPTOMA

How to turn on the screen?

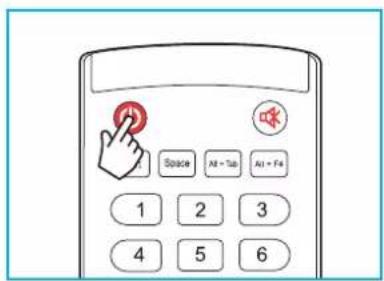

Press the Power button located at the bottom right of the screen or the ⏻ button on the remote control. The LED indicator turns solid white.

No image or sound displayed

Check that the power cable is plugged in and the main power switch is set to ON (I). Make sure the correct input source is selected (HDMI, VGA, etc.) and that the volume is not muted or at minimum.

How to connect a computer via HDMI?

Connect an HDMI cable between the computer and one of the HDMI 1/2/3 ports on the back of the screen. For touch, also connect a USB cable between the computer and the TOUCH 1 or TOUCH 2 port.

Touch screen not working

Make sure the screen is not exposed to direct sunlight. For an external device, check that the USB cable is properly connected to the Touch USB port on the screen. Restart the device if necessary.

How to use the remote control?

Insert two AAA batteries into the compartment on the back of the remote. Point it at the IR receiver on the front of the screen, at a maximum distance of 8 meters and within an angle of ±30 degrees.

How to reset image settings?

Open the OSD menu by swiping up from the bottom of the screen or pressing the Menu button on the remote. Go to Image > Reset to restore default values.

Screen turns off automatically

Check the Auto Standby settings in the Android Settings > System > Startup & Shutdown menu. If Auto Shutdown is enabled, the screen turns off after a period of no input signal.

How to connect the screen to Wi-Fi?

First install a Wi-Fi dongle (sold separately) into the slot underneath the screen. Then go to Settings > Network > Wi-Fi, enable Wi-Fi and select your network. Enter the password if required.

How to clean the screen?

Unplug the device from the power outlet. Use a soft, dry, lint-free cloth to gently wipe the screen and frame. Never use water, liquid cleaners, or abrasive cleaners.

Where to find the serial number?

The serial number is indicated on the label attached to the back of the screen. You can also view it from the OSD > Information > About menu.

USER MANUAL 5752RK+ OPTOMA

Blank whiteboard with a blank gray background, no text or symbols visible.

TABLE DES MATIÈRES

SÉCURITÉ 5

Application Creative Board 55

Applid d'annotation....62

Airshare 63

Optoma Marketplace 88

Keeper 89

Joan à la télé 90

Visualiseur 93

Autres logiciels 94

Reactiv Suite 94

Optoma Management Suite (OMS) 95

INFORMATIONS SUPPLÉMENTAIRES ...... 97

Dimensions....97

65 pouces....97
75 pouces....98
86 pouces....99

Line drawing of a metal stand with wheels and a vertical support structure, labeled 'Montage sur pied' below (no other text or symbols)

INTRODUCTION

Technical line drawing of a dual-framed rack structure with no text or symbols

Technical diagram of a mechanical component with a magnified inset showing a screw inserted into a slot (no text or symbols present)

Diagram showing a cylindrical device with a ring attached to a panel, connected to a dashed rectangular box (no text or symbols present)

Diagram of a vertical panel mounted on a wall, with a blue arrow indicating direction (no text or symbols present)

Technical diagram showing a mechanical assembly with a close-up inset of a component labeled 'C' (no text or symbols present)

Remarque :

Technical line drawing of a mechanical component with a magnified inset showing a threaded fastener (no text or symbols present)

Diagram showing a two-wheeled cart with wheels and a close-up of its mechanical components (no text or symbols)

Technical line drawing of a mechanical lifting device with wheels and a blue arrow indicating motion (no text or symbols)

CONFIGURATION ET INSTALLATION

Diagram of a smartphone rear panel with a blue arrow indicating rotation (no text or symbols)

Diagram of a remote control device showing battery and charging mechanism (no text or labels)

Diagram of a smartphone with a blue arrow indicating rotation or change, showing the battery inside (no text or symbols)

MISE EN GARDE

CONFIGURATION ET INSTALLATION

Connexions

CONFIGURATION ET INSTALLATION

Pure diagram of a beam with two hanging lights and a downward arrow, no text or symbols present

Diagram showing a blue upward arrow pointing to a gray base with a label 'II' (no text or symbols on the diagram itself)

Diagram of a cable connector with a power outlet and cable routing (no text or symbols)

Diagram of a cable connector with a cylindrical device inserted into a socket, connected to a wall-mounted cable (no text or symbols visible)

Illustration of a hand pressing a button on a computer monitor (no text or symbols visible)

Mise hors tension

OPÉRATIONS DE BASE

OPÉRATIONS DE BASE

IFP Apparel portable

OPÉRATIONS DE BASE
